Product type	Ceiling/wall mount kit for video projector
Brand	Epson
Model	CHF2500
Maximum load capacity	22.68 kg (50 lb)
Materials	Steel and aluminum
Installation types	Ceiling, wall (wood or concrete), beam with threaded rod
Adjustments	Vertical orientation (Y-axis), longitudinal tilt, lateral pivot
Included parts	Projector bracket (A), ceiling pipe (B), interface plate (C), safety screws (F, G)
Recommended threaded rod diameter	1/4 in (not included)
Projector compatibility	Epson projectors with standard mounting holes
Dimensions (bracket)	Approximately 20 x 15 x 5 cm (estimated)
Kit weight	Approximately 2 kg (estimated)
Safety	Locking and safety screws, load capacity 5x installed weight
Maintenance	Regularly check screw tightness
Warranty	Manufacturer's warranty (see manual)

Frequently Asked Questions - CHF2500 EPSON

How to install the Epson CHF2500 projector mount on the ceiling?

First attach the sleeve plate (D) to the joists, then screw the ceiling pipe (B) into the plate. Align the projector bracket (A) on the pipe and tighten the locking screw. Make sure the structure supports 5 times the total weight.

What is the maximum weight supported by the CHF2500 mount?

The combined weight of all attached components must not exceed 22.68 kg (50 lb).

Can I install the mount directly on the ceiling without the pipe?

Yes, the mount can be recessed into the ceiling without a pipe. Refer to sections 1a, 1b, and 1c of the manual for recessed installation options.

How to adjust the image orientation?

Use the adjustment screws: loosen the corresponding locking screw, turn the fine adjustment screw (vertical axis, longitudinal tilt, lateral pivot) with a #2 Phillips screwdriver, then retighten the locking screw.

What tools are needed for installation?

You will need a #2 Phillips screwdriver, a drill (for wood or concrete), a spirit level, and possibly a socket wrench for threaded rods.

Is the mount compatible with all Epson projectors?

It is compatible with Epson projectors that have standard mounting holes. Use the provided interface plate (C) and the projector's hardware.

How to install the mount on a concrete wall?

Drill 10 mm diameter holes 64 mm deep, insert Toggler A10 concrete anchors, then secure the mount with 1/4 in x 3 in lag bolts.

What if the locking screws are too tight?

Do not overtighten to avoid damaging the threads. Tighten until the screw is no longer visible in the access hole.

Does the kit include mounting screws for the projector?

No, use the hardware provided with your projector to attach the interface plate. The kit only contains safety screws (F, G) for the pipe.

How to ensure the installation is secure?

After installation, ensure the base mounting slots slide under the clamping screws and the locking lever is in the locked position. Regularly check screw tightness.

USER MANUAL CHF2500 EPSON

INSTALLATION INSTRUCTIONS

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Cinema Projector Mount

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT WARNINGS AND TIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the CHF1000/2500 does not exceed 50 lbs (22.68 kg).

IMPORTANTS AVERTISSEMENTS et PRÉCAUTIONS!

[165] 6.50 [43] [21] .84 [57] 2.25 [114] 4.50 [140] 5.50 [70] 2.75 [140] 5.50 [43] 1.69 [21] .84 1.50° DIA NPT

Technical line drawing of a mechanical housing component (no text or symbols)

YAW ADJUSTMENT POINT 20 °

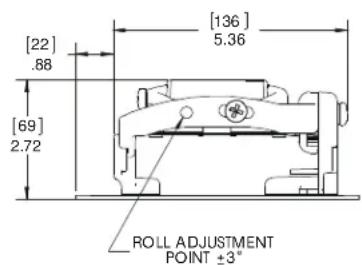

[22] .88 [69] 2.72 [136] 5.36 ROLL ADJUSTMENT POINT ±3°

[7] .28 [117] 4.61 PITCH ADJUSTMENT POINT +20°

DIMENSIONS: [MILLIMETERS] INCHES

LEGEND

	Tighten Fastener
	Serrez les fixations
	Serrare il fissaggio
	Befestigungsteil festziehen
	Apretar elemento de fijación
	Bevestiging vastdraaien
	Apertar fixador
	Loosen Fastener
	Desserrez les fixations
	Allentare il fissaggio
	Befestigungsteil lösen
	Aflojar elemento de fijación
	Bevestiging losdraaien
	Desapertar fixador
	Phillips Screwdriver
	Tournevis à pointe cruciforme
	Cacciavite a stella
	Kreuzschlitzschraubendreher
	Destornillador Phillips
	Kruiskopschroevendraaier
	Chave de fendas Phillips
	Hex-Head Wrench
	Clé à tête hexagonale
	Chiave esagonale
	Sechskantschlüssel
	Llave de cabeza hexagonal
	Zeskantsleutel
	Chave de cabeça sextavada

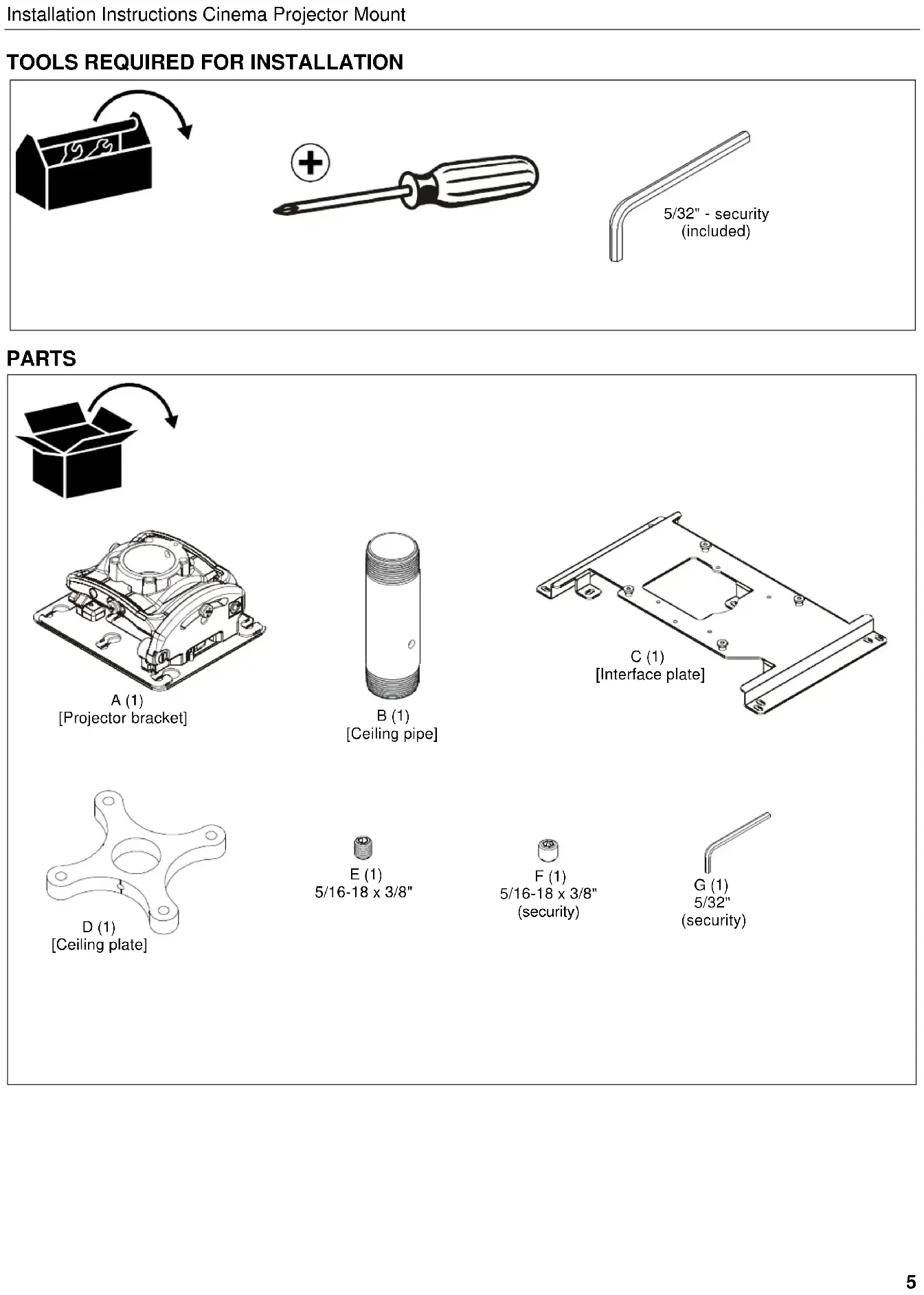

TOOLS REQUIRED FOR INSTALLATION

PARTS

Simple black-and-white icon of an open box with a curved arrow indicating rotation or delivery (no text or symbols)

Technical line drawing of a mechanical housing component (no text or symbols)

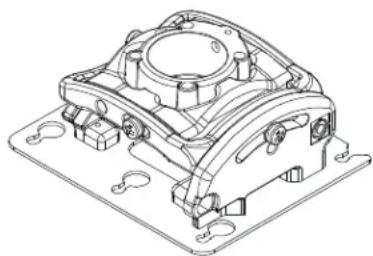

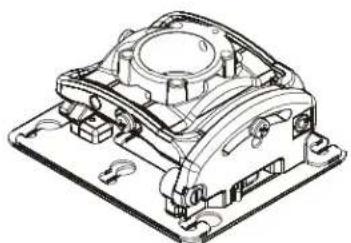

A (1)
[Projector bracket]

B (1)
[Ceiling pipe]

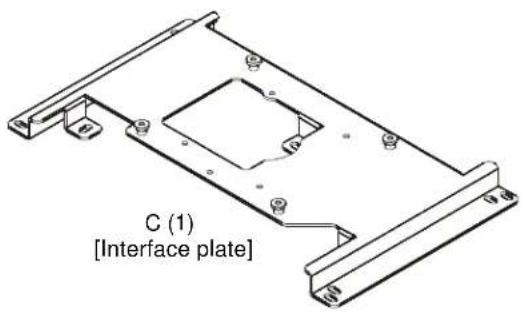

C (1) [Interface plate]

Isometric line drawing of a four-pronged mechanical part with a central hole and circular end (no text or symbols)

[Ceiling plate]

E (1)
5/16-18×3/8"

F(1)
5/16-18×3/8"
(security)

G (1)
5/32"
(security)

1	CEILING INSTALLATIONNOTE: Projector mount can be mounted flush against the ceiling without using the ceiling pipe. See Sections 1a, 1b and 1c for flush mounting options. Additional hardware may be required.Threaded Pipe Installation1. Carefully determine required mounting location.IMPORTANT ! : This will require knowing the lens to screen distance. See projector specifications for details on determining this distance.2. Securely install ceiling plate (D) to ceiling joists.See drawing on the left for bolthole spacing.NOTE: If using only two holes for mounting, you must use opposing holes.

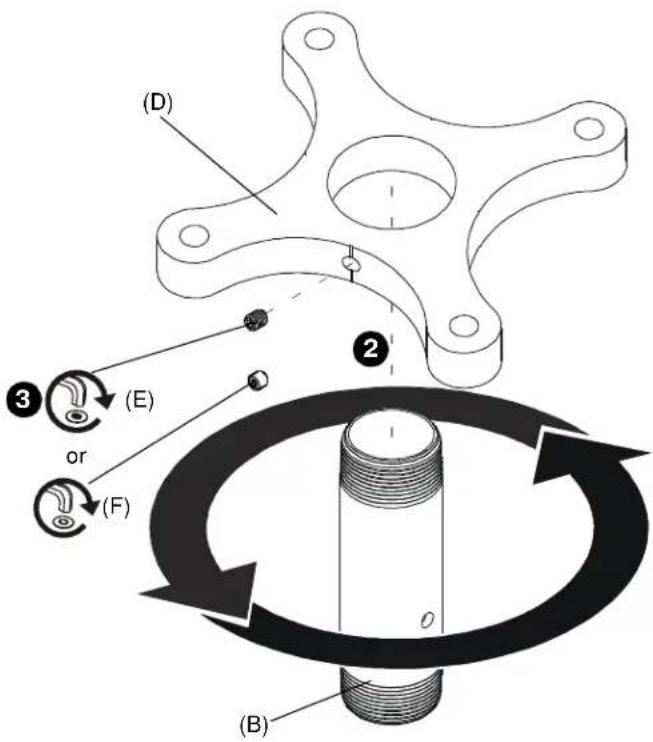

	Thread Ceiling Pipe into Ceiling Plate1. Align ceiling pipe (B) with installed ceiling plate (D).2. Turn ceiling pipe (B) counter-clockwise to thread onto ceiling plate (D) until hand-tight.3. Install 5/16-18 x 3/8" set screw (E) or 5/16-18 x 3/8" security set screw (F) into ceiling plate to secure pipe to plate.

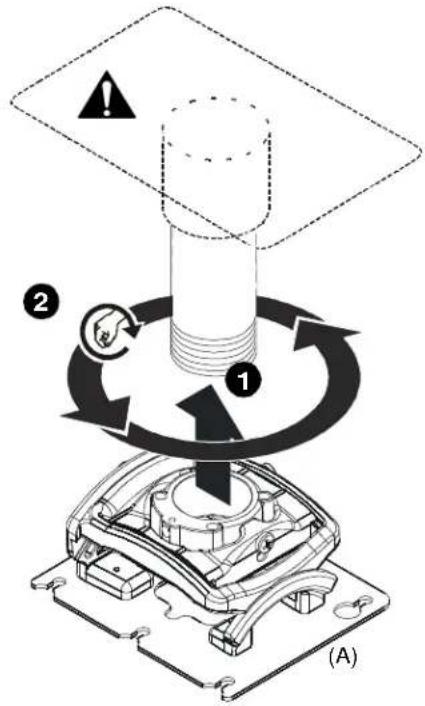

1	Projector Mount Installation to Ceiling PipeWARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural membersMUSTbe capable of supporting five times the combined weight of all equipment being mounted.1. Align projector mount (A) with end of ceiling pipe (B).2. Thread projector mount (A) up onto pipe by turning counter-clockwise until hand tight.

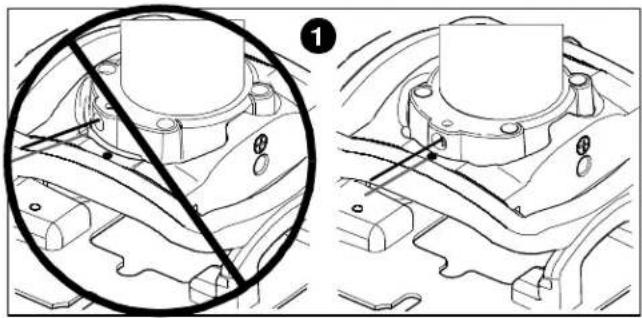

	Rough Alignment of Projector Mount1. Turn projector mount (A) clockwise or counter-clockwise until front of mount is facing target.IMPORTANT ! : When projector mount is properly positioned, the set screw access hole should be pointing directly at target.(see bottom detail in figure at left)2. Secure projector mount (A) to pipe by turning set screw until tight.CAUTION: DO NOT OVERTIGHTEN!Overtightening of setscrew can damage threads on pipe.3. Turn security screw using a Phillips screwdriver until set screw cannot be seen through access hole in projector mount.

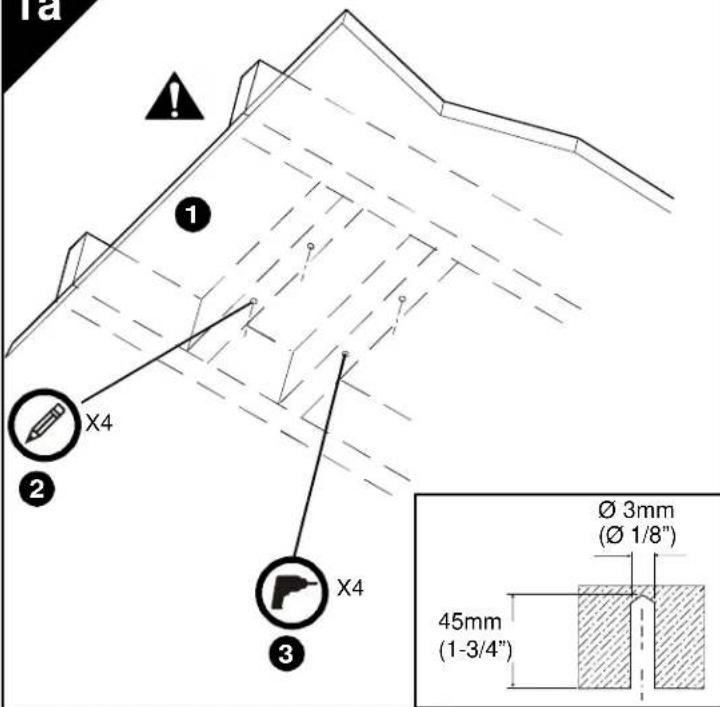

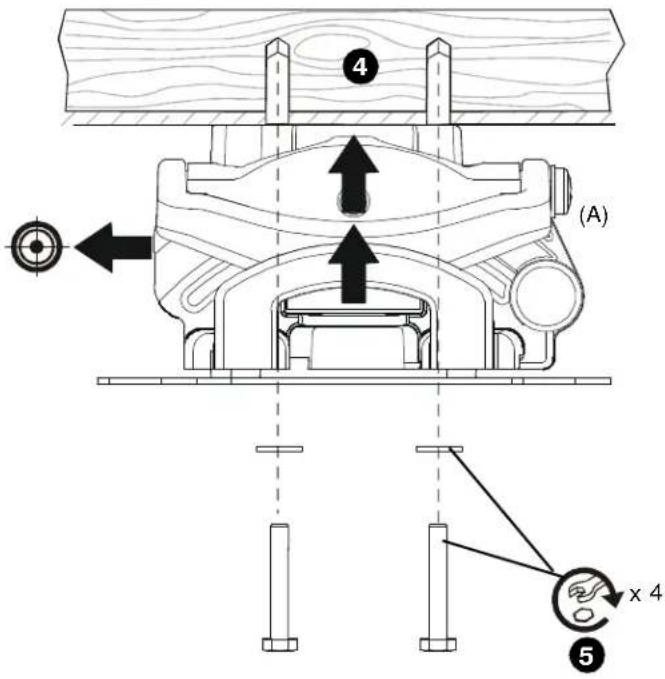

Wood Stud Installation1. Carefully determine required mounting location.IMPORTANT !: This will require knowing the lens to screen distance. See projector specifications for details on determining this distance.WARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural membersMUST be capable of supporting five times the combined weight of all equipment being mounted.2. Using the projector bracket (A) as a guide, mark four mounting hole locations with a pencil or similar tool.3. Drill four 1/8" (3mm) dia. pilot holes to a depth of 1-3/4" (45mm) deep.

4. Align four mounting holes in projector bracket (A) with four pilot holes.IMPORTANT !: Make sure mount is properly oriented towards target before securing to structure.5. Secure projector bracket (A) to structure using four 1/4" flat washers and four 1/4" x 3" lag bolts (not included).

1a

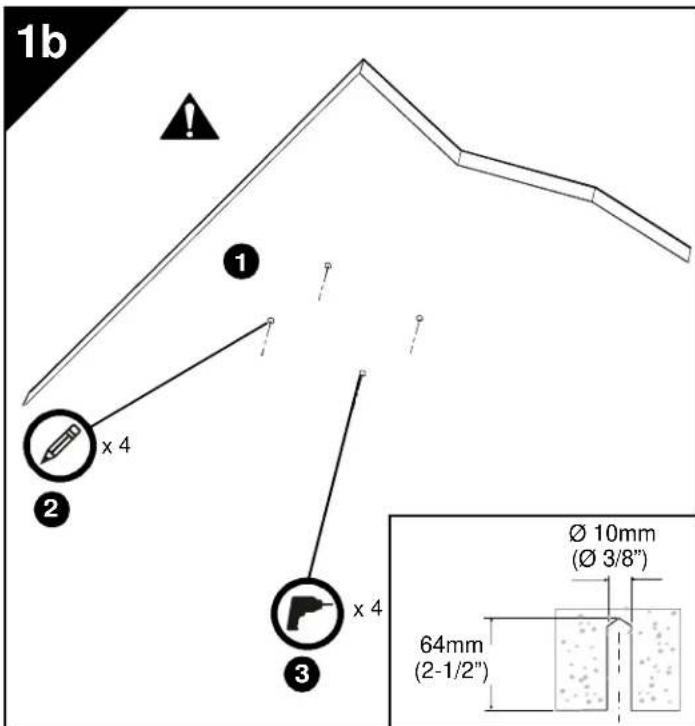

1b 1 X4 2 X4 3 Ø 10mm (Ø 3/8") 64mm (2-1/2") Ø 10mm

Concrete Installation

1. Determine mounting location.

WARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural members MUST be capable of supporting five times the combined weight of all equipment being mounted.

1. Using the projector bracket (A) as a guide, mark four mounting hole locations on ceiling using a pencil or similar tool.

2. Drill four 3/8" (10mm) dia. pilot holes to a depth of 2-1/2" (64mm) deep.

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating movement or assembly.

1. Align four mounting holes in projector bracket (A) with four pilot holes.

IMPORTANT ! : Make sure mount is properly oriented towards target before securing to structure.

1. Install four Toggler A10 Alligator concrete anchors (not included) by inserting into pilot holes and pounding in until flush with mounting surface.

2. Secure projector bracket (A) to structure using four 1/4" flat washers and four 1/4" x 3" lag bolts. (not included)

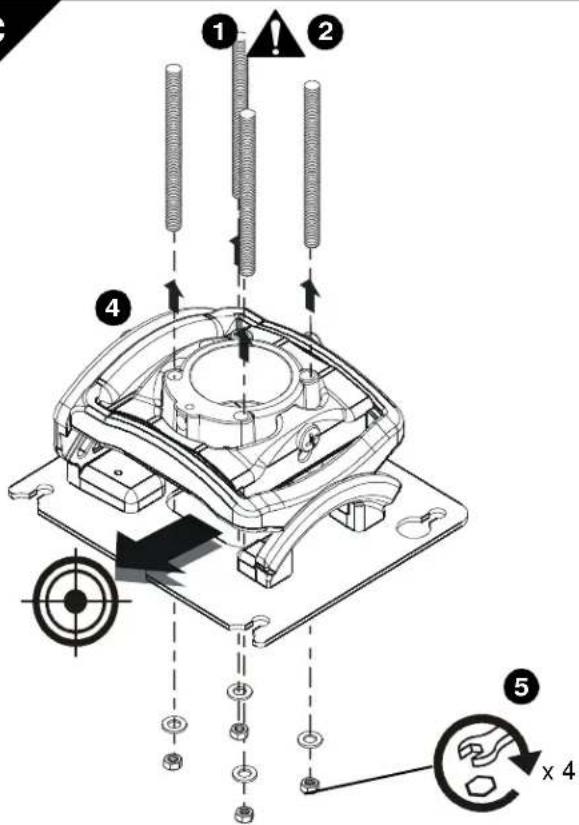

1c

Technical diagram of a mechanical assembly with numbered components and labeled parts, including a wrench and magnified view.

Threaded Rod Installation

The projector bracket (A) can be secured to unistrut, angle or channel assembly overhead structural members (trusses or I-beams) using four 1/4" diameter threaded rods.

WARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural members MUST be capable of supporting five times the combined weight of all equipment being mounted.

1. Carefully determine required mount position.

IMPORTANT !: This will require knowing the lens to screen distance. See projector specifications for determining this distance.

NOTE: Threaded rod and installation hardware not included.

1. Secure one end of the threaded rod to the structural member.

2. Install four 1/4-20 jam nuts on each threaded rod.

3. Install the projector bracket (A) on the threaded rod.

NOTE: Hole in the projector bracket (A) allows socket wrench access without unit disassembly.

1. Secure the projector bracket to the threaded rod using four 1/4-20 nuts.

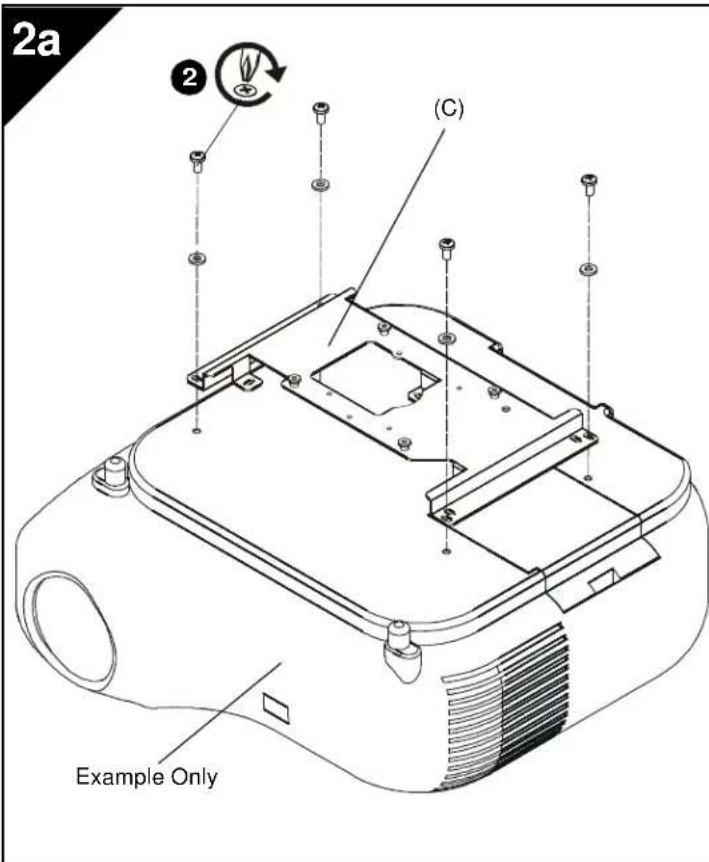

2a ② (C) Example Only

PROJECTOR INSTALLATION Install Interface Bracket to Projector

WARNING: IMPROPER INSTALLATION CAN LEAD TO PROJECTOR FALLING RESULTING IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT. DO NOT substitute hardware. Use only the hardware provided by the manufacturer.

1. Line up mounting holes on projector with interface bracket (C) hole pattern.

2. Secure interface bracket (C) to projector using installation instructions and hardware provided with projector.

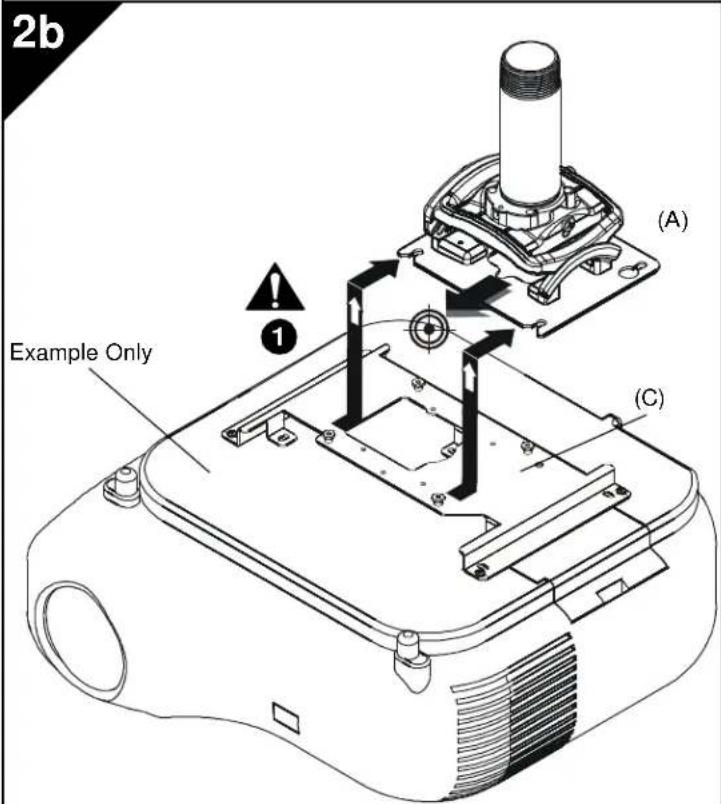

2b Example Only (A) (C)

Install Projector With Interface Bracket to Projector Mount

1. Orient projector with interface bracket as shown in Figure 3b at left.
2. Lift projector so that screws are aligned with mounting slots in mount base.
3. Slide projector with mounting bracket onto mounting slots in mount base until screws are seated against the back of mounting slots.

WARNING: IMPROPER INSTALLATION CAN LEAD TO PROJECTOR FALLING RESULTING IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT. Make certain mounting slots in mount base slide under screws and that screws are seated in the back of slots.

2c

Technical line drawing of a mechanical device with internal components and a magnified inset showing internal structure (no text or symbols)

Securing Projector with Interface Bracket to Model RPM Mount.

WARNING: IMPROPER INSTALLATION CAN LEAD TO PROJECTOR FALLING RESULTING IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT. Make certain mounting slots in mount base slide under thumb screws and that screws are seated in the back of slots.

1. Move locking lever into the locked position in order to secure projector to projector mount.

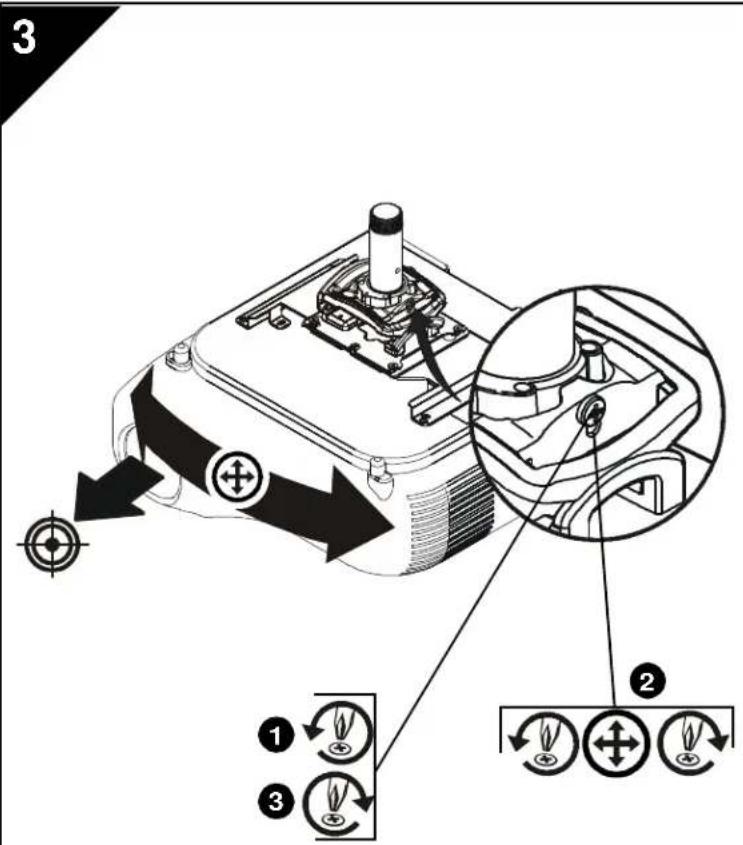

3 ① ② ③

ADJUSTMENTS

YAW Adjustment

1. Loosen YAW adjustment locking screw using a #2 Phillips screwdriver.
2. Turn YAW micro-adjustment screw right or left using a #2 Phillips screwdriver until image is properly aligned on target.
3. Tighten YAW adjustment locking screw using a #2 Phillips screwdriver.

3a ① ② ③

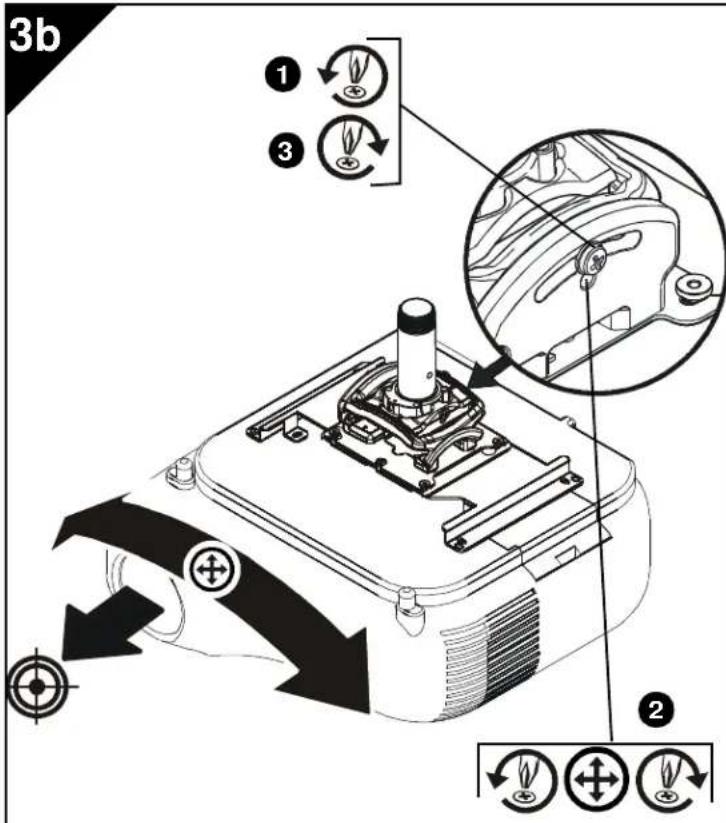

Pitch Adjustment

1. Loosen PITCH adjustment locking screw using a #2 Phillips screwdriver.
2. Turn PITCH micro-adjustment screw right or left using a #2 Phillips screwdriver until image is properly aligned on target.
3. Tighten PITCH adjustment locking screw using a #2 Phillips screwdriver.

3b ① ③ ②

Roll Adjustment

1. Loosen ROLL adjustment locking screw using a #2 Phillips screwdriver.
2. Turn ROLL micro-adjustment screw right or left using a #2 Phillips screwdriver until image is properly aligned on target.
3. Tighten ROLL adjustment locking screw using a #2 Phillips screwdriver.

OUTILS REQUIS POUR L'INSTALLATION

PIÈCES

Simple black-and-white icon of an open box with a curved arrow indicating rotation or delivery (no text or symbols)

Technical line drawing of a mechanical housing component (no text or symbols)

Isometric line drawing of a four-petal mechanical part with a central hole and mounting holes (no text or symbols)

[Plaque du plafond]

E (1)
5/16-18 × 3/8 po

1b 1 x 4 2 x 4 3 Ø 10mm (Ø 3/8") 64mm (2-1/2") Ø 10mm

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered annotations indicating directional changes and three circular icons with lightbulb symbols.

AJUSTEMENTS

Technical diagram of a mechanical device with numbered parts and directional arrows indicating motion or assembly steps.

Simple black-and-white icon of an open box with a curved arrow indicating rotation or delivery (no text or symbols)

Technical line drawing of a mechanical housing component (no text or symbols)

Isometric line drawing of a four-petal mechanical part with a central hole and mounting holes (no text or symbols)

1b 1 x 4 2 x 4 3 Ø 10mm (Ø 3/8") 64mm (2-1/2") Ø 10mm

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating movement or assembly.

Technical diagram of a mechanical assembly with numbered components and labeled parts, including callouts and annotations.

Simple black-and-white icon of an open box with a curved arrow indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical housing component (no text or symbols)

Technical line drawing of a four-pronged mechanical part with a central hole and mounting holes (no text or symbols)

[Placa do teto]

E (1)
5/16-18×3/8"

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating movement or assembly.

1b 1 x 4 2 x 4 3 Ø 10mm (Ø 3/8") 64mm (2-1/2") Ø 10mm

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating movement or assembly.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating assembly steps
