Product Type	Washing Machine
Brand	Avanti
Model	SLTW37D0W
Power Supply	115 V, 60 Hz, 15 A, 3-prong grounded plug
Wash Cycles	Normal, Heavy, Bulky, Towels, Whites, Casual, Delicate, Quick Wash, Drain & Spin, Tub Clean (10 cycles)
Water Temperatures	Hot, Warm, Cold, Tap Cold
Water Levels	Automatic, High, Medium, Low
Soil Level	Adjustable (adjusts wash time)
Extra Rinse	Available option
Fabric Softener Dispenser	Yes, dedicated compartment
Bleach Dispenser	Yes, dedicated compartment
Delay Start	1 hour to 48 hours
Child Lock	Control Lock
Lid Lock	Yes, built-in safety
Leveling Feet	4 adjustable feet
Drain Hose	Included, recommended height 48 inches (122 cm)
Water Inlet Hoses	Not included (2 hoses required for hot and cold water)
Grounding	Required (standard 3-prong outlet)

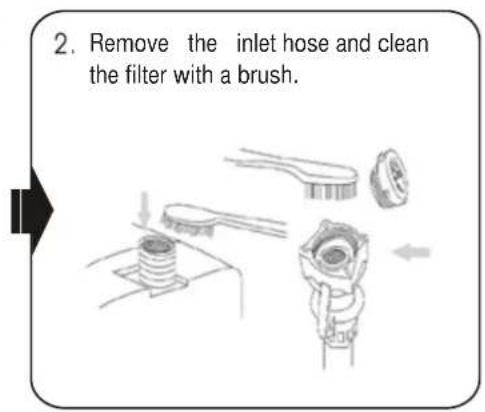

Filter Cleaning	Clean the inlet valve or hose filter regularly
Customer Service	Product Information: 800-323-5029; Parts Ordering: 800-220-5570

Frequently Asked Questions - SLTW37D0W Avanti

What to do if the machine does not start?

Check that the machine is plugged in, the circuit breaker has not tripped, the lid is properly closed, and the water faucet is open.

How to install the water inlet hoses?

Connect the cold water hose to the cold water faucet and the hot water hose (if used) to the hot water faucet. Use the included adapters if necessary. Tighten firmly by hand, then use a wrench to finish tightening without forcing.

What is the recommended drain height for the drain hose?

The recommended height is 48 inches (122 cm) for a laundry tub or sink, with a minimum of 39 inches (99 cm) and a maximum of 96 inches (244 cm).

How to activate the child lock?

After starting a cycle, press and hold the TEMP and WATER LEVEL buttons simultaneously for about 3 seconds until you hear a beep. The Control Lock indicator lights up.

What do error codes E1, E2, etc. mean?

E1: fill too long (more than 30 min). E2: drain too long (more than 10 min). E3: lid open. E4: imbalance during spin. E5: machine level? F5/F8/Fd/C9: electronic fault, contact customer service.

How to add laundry after starting the cycle?

Press Start/Pause to pause the cycle, wait for the lid lock to release, open the lid, add laundry, close the lid, and press Start/Pause again.

What type of detergent to use?

Use an automatic washer detergent, powder or liquid, in the appropriate compartment. Pods can be placed directly in the drum. Follow the detergent manufacturer's instructions.

How to clean the machine?

Regularly clean the exterior with a soft cloth. For the interior, use the Tub Clean cycle once a month. Clean the inlet valve filter to prevent blockages.

How to adjust the feet for leveling?

Use a bubble level. Turn the leveling feet in the desired direction to adjust the height. Check that the machine is stable and does not vibrate.

Where to find the machine's serial number?

The serial number is on a rating plate located on the rear outer wall of the washer. Note it along with the model number for any service requests.

USER MANUAL SLTW37D0W Avanti

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products LLC

3265 Meridian Pkwy # 114 - Weston, Florida 33331

www.avantiproducts.com

TABLE OF CONTENTS

Appliance Safety	3
Important Safeguides	4
Help Us Help You / If You Need Service	5
Parts, Features, and Accessories	6
Important Safety Instructions	7
Installation Instructions	8
Before Using Your Washer	8
Selecting a Location	8
Connecting the Water Supply Hoses / Sink Faucet Connection	9-10
Disconnecting the Water Supply Hoses / Positioning the Drain Hose	10
Electrical Connection / Extension Cords	11-12

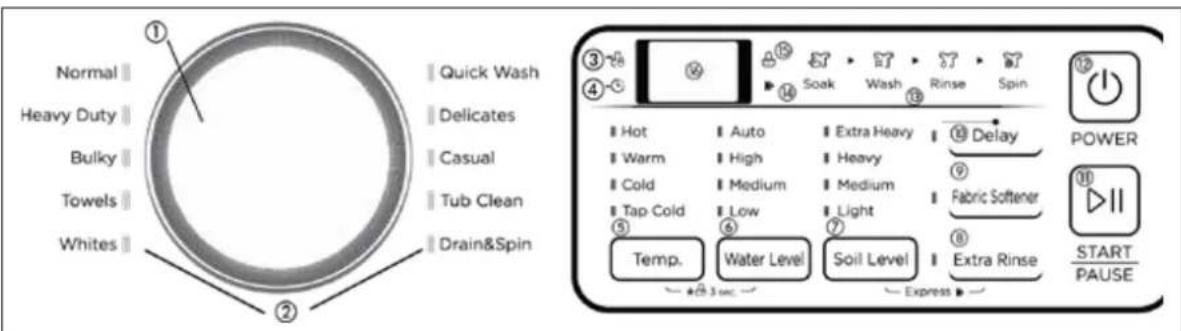

Control Panel / Functions Description	12
Operating Your Washer	13
Preparation / Before Washing	13-14
Operating Instructions	15-16
Care and Maintenance	17
Problems with Your Washer	18
Troubleshooting Guide / Service for Your Washer	19
Your Avanti Products Warranty / What is not Covered	20
Instrucciones en Espanol	21-38
Instructions en Français	39-56
Registration Information and Registration Card	Last Page

APPLIANCE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words "DANGER", "WARNING" or "CAUTION".

Danger means that failure to heed this safety statement may result in severe personal injury or death.

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, or property or equipment damage.

All safety messages will alert you do what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

PROP. 65 WARNING FOR CALIFORNIA RESIDENTS

WARNING:

Cancer And Reproductive Harm

www.p65 warnings.ca.gov

IMPORTANT SAFEGUIDES

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully.

WARNING - to reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following:

DANGER

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
• Replace all panels before operating.
  It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this material. All other servicing should be referred to a qualified technician.

WARNING

FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install appliance. Failure to do so can result in back or other injury.
  To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60^ (16^) and below 90^ (32^) . This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.
  The appliance should not be located next to ovens, grills or other sources of high heat.
• The appliance must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
• Do not kink or pinch the power supply cord of appliance.
• The fuse (or circuit breaker) size should be 15 amperes.
  It is important for the appliance to be leveled in order to work properly. You may need to make several adjustments to level it.
• Never allow children to operate, play with or crawl inside the appliance.
• Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior.
• Do not use this apparatus for other than its intended purpose.
• Failure to closely follow these instructions may result in an abnormal vibrating and out-of-balance condition that could result in physical injury, property damage, and/or appliance damage.

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new washer properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a plate located on the rear outside wall of the washer.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your washer.

If you received a damaged washer, immediately contact the dealer (or builder) that sold you the washer.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your washer. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

3265 Meridian Pkwy # 114

Weston, FL 33331 USA

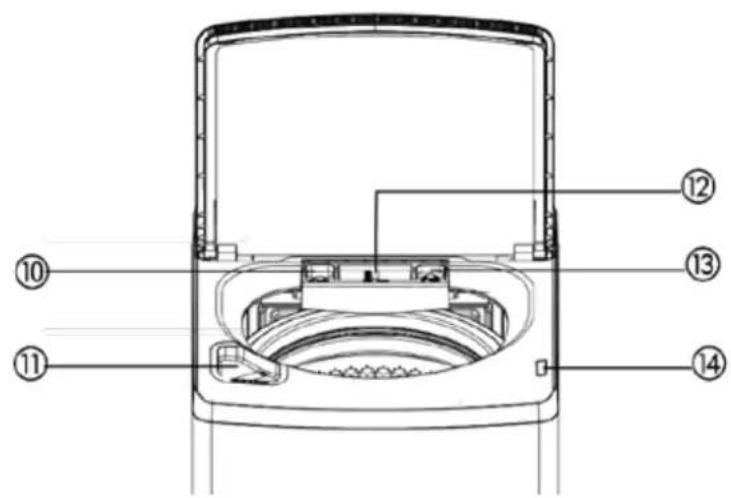

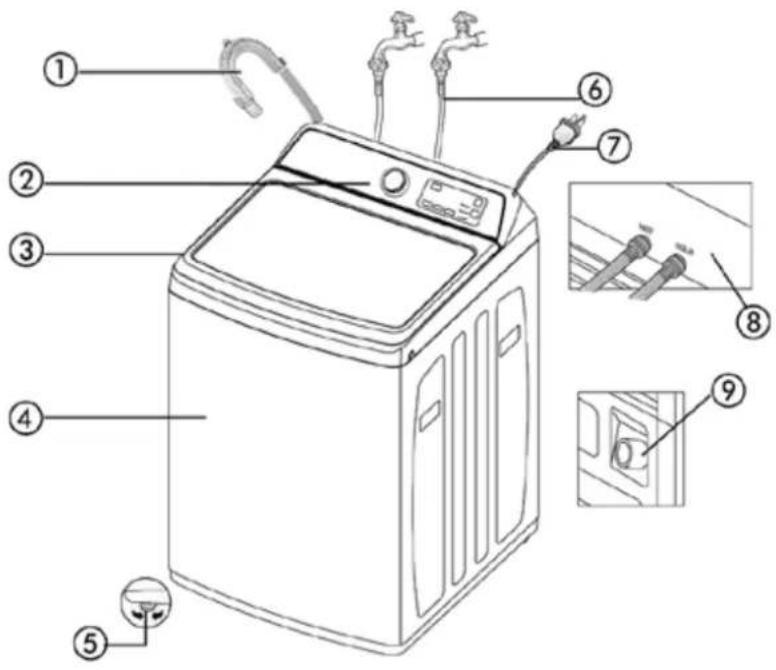

PARTS & FEATURES

1	Drain Hose Assembly	8	Water Inlet (Hot / Cold) Rear
2	Control Panel	9	Drain Hose Outlet - Rear
3	Top Lid	10	Fabric Softener Compartment
4	Washer Body	11	Bleach Compartment
5	Leveling Leg	12	Powder Detergent Compartment
6	Water Inlet Hoses (NOT INCLUDED)	13	Liquid Detergent Compartment
7	Power Plug	14	Lid Lock

IMPORTANT SAFETY INSTRUCTIONS

~ WARNING~

To reduce the risk of fire, electrical shock, or injury when using your washer, follow these basic precautions:

· Read all instructions before using the washer.· Do not wash water-resistant or water repellant type clothing.· Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.· Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapours that could ignite or explode.· Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using a washing machine, turn on all hot-water faucets and let water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.· DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will "just sit in the garage a few days."· Before you throw away your old washer: Take off the lid.· Never allow children to operate, play with, or crawl inside the washer. Close supervision of children is necessary when the washer is used near children.· Do not reach into the washer if the agitator or inner tub is moving.· Do not tamper with controls.· Do not repair or replace any part of the washer or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions.· Never clean washer parts with flammable fluids. The fumes can create a fire hazard or explosion.· Do not place the washer in steamy rooms or where the washer is directly exposed to rain. Moisture may destroy the electrical insulation causing an electrical shock hazard.· Do not store, use gasoline, or any other flammable vapors and liquids in the vicinity of this or any other washer. The fumes can create a fire hazard or explosion.· If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.-Save these instructions-

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities.

This appliance should not be operated by those with a lack of experience or knowledge of its use or operation, unless they have been given instructions concerning and/or are supervised during the use of the appliance by a person responsible for their safety.

This appliance is not intended for use by children. To avoid any possible type of injury or damage to the unit and or personal property all children should be supervised to ensure they do not play with the appliance.

INSTALLATION INSTRUCTIONS

BEFORE USING YOUR WASHER

• Remove the exterior and interior packing.
• You will need the following tools:

Wrench
- Pliers
Screwdrivers (Flat Head and Phillips Head)
Level
Water Inlet Hoses (Not Included with your washer)

• Check to be sure you have all of the following parts:

1 Drain Hose Assembly

• Remove shipping brace. Note - It should be saved and used (to prevent damage to washer components) whenever washer is moved or transported to a new location.
  Clean the interior surface with lukewarm water using a soft cloth.
• Allow 2 inches of space between the sides and 6 inches at the back of the appliance.

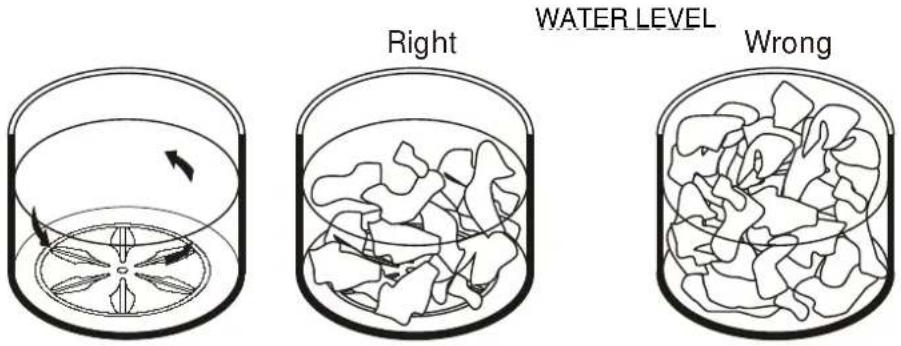

• Put your laundry into the washer evenly. Uneven laundry may cause noise or vibration.
  DO NOT use excessively hot water (122^ / 50^ or more). Plastic parts may be deformed or damaged. Also, clothing may be deformed or bleached.
• Before washing, check all pockets. If nails or pins remain in pockets, they may damage the washer or clothes.
• Never splash water on the control panel.
• Plug the washer into an exclusive properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an Authorized Avanti Products service center.

SELECTING A LOCATION

Before you install the washer, select a location with the following characteristics:

• A hard level surface (if the surface is uneven, see Adjusting The Adjustable Foot section on the next page).
• Away from direct sunlight. Direct sunlight may affect the acrylic coating, plastic and electrical components.
• Adequate ventilation.
• Away from sources of heat such as coal or gas. Make sure that the washing machine does not stand on its power cord.
• Ventilation openings must not be obstructed by carpeting when the washer is installed on a carpeted floor. It is recommended that you place your washer on a hard material floor such as tile, concrete, linoleum and to avoid if at all possible, placement on wooden floors or carpeted areas.

WARNING:

DO NOT install your washer in areas where water may freeze, because your washer always retains some water in its water valve, pump and hose areas. Frozen water can damage the belts, pump, hoses and other components.

NEVER install your washer on a platform or weakly supported structure.

CONNECTING THE WATER SUPPLY HOSES (HOSES ARE NOT INCLUDED)

The water supply hose must be connected to the washing machine at one end and to the water faucet at the other. Do not stretch the water supply hose. If the hose is too short and you do not wish to move the water faucet, replace the hose with a longer, high-pressure hose.

Select appropriate faucet as shown in the figures below. If none of these faucets are available, use the faucet adapter provided.

The end of faucet spout should be longer than 10mm (0.4"), or the connector cannot be fixed properly. Water leakage could develop.

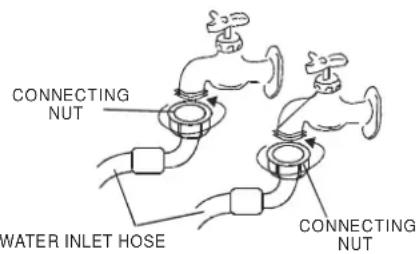

1. Connect the water inlet hose to the faucet by turning the connecting nut.

Be sure a rubber ring is inside the connecting nut.

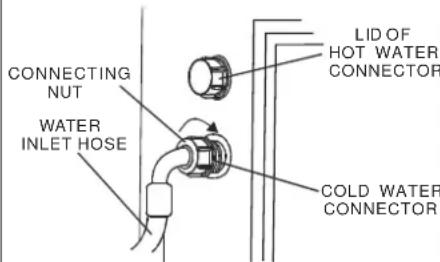

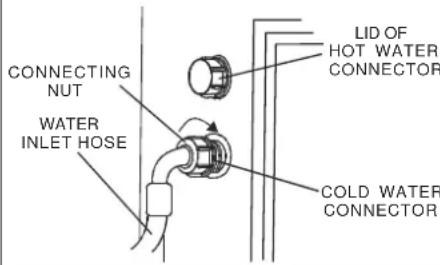

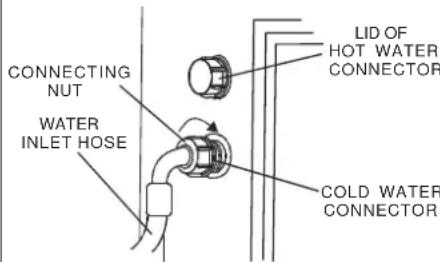

1. Then connect the other end of water inlet hose to the cold connector in water mixing valve by turning the connecting nut.

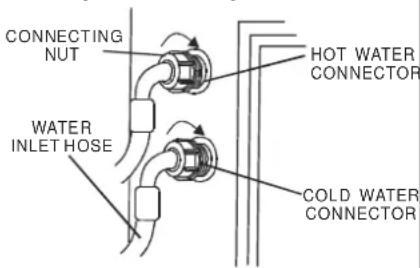

If you have both cold and hot water supplied, connect the inlet hoses by matching cold to cold and hot to hot.

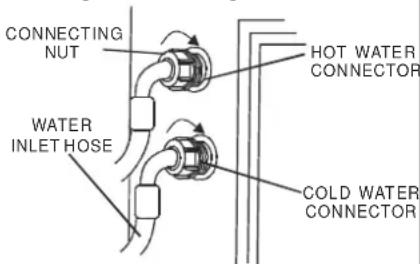

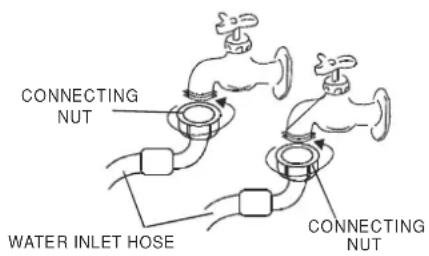

1. Connect the water inlet hoses to the faucets by turning the connecting nuts.

Be sure the rubber rings are inside the connecting nuts.

1. Unscrew the lid of hot water connector in water mixing valve, and then connect the other end of water inlet hoses to the connectors in water mixing valve by turning the connecting nuts.

y

y

Note:

If you do not want to use the hot water supply hose, insert a water intake cap (not included, must purchase separately at any home center) into the hot water supply intake hole. In this case you must select "Tap Cold" option for the water temperature with each use.

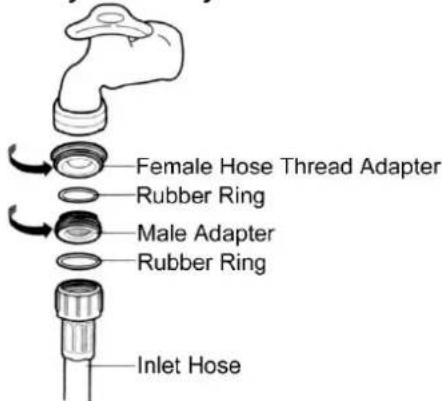

SINK FAUCET CONNECTION

For normal kitchen-sink tap only use the inlet hose with cold water inlet.

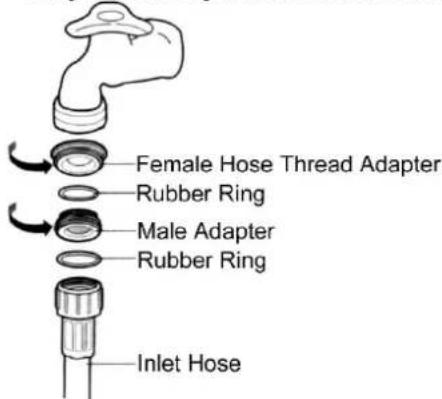

Connect the inlet hose to the male hose thread adapter by turning it clockwise to be fixed tightly.

Make sure to insert the rubber ring enclosed. Then connect tightly to your sink.

Note: Some faucets may require you to also use the female hose thread adapter between the male adapter and your sink faucet as shown below. Make sure the rubber ring is inserted and connect to your sink.

Only necessary on some faucets.

If water leaks from faucet connection or washer connection, turn off water and tighten fully using a wrench. Be careful not to over tighten and damage water connection. Turn on water supply and make sure no leaks are present.

DISCONNECTING THE WATER SUPPLY HOSES

Dismantling the hose directly may cause water to splash due to the possible high water pressure in the hose, even after the faucet has been turned off. Please take off the hose as per following steps, even if the faucet is closed:

• Turn off the faucet.
• Turn on the power and let the machine run for about 5 seconds then turn it off.
• Remove the connecting nuts from the faucet and washing machine.

Note: If the washing machine is frequently used, it is not necessary to dismantle the inlet hose to avoid possible damage to the screws.

POSITIONING THE DRAIN HOSE

The drain hose is installed during production.

The recommended height for the drain stand pipe is 48 inches (122cm); if draining to a laundry sink or wash basin minimum recommended height 39 inches (99 cm) and no higher than 96 inches (244 cm).

The drain hose must be routed through the drain hose clip into the drain pipe.

The drain stand pipe must be large enough to accept the outside diameter of the drain hose.

Warning\~

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This appliance requires a standard 115/120 Volt AC /60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric show by providing a path of least resistance for electrical current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Warning:

Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance, if it will not fit in the outlet, have a proper outlet installed by a qualified electrician.

Extension Cord

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

SURGE PROTECTOR

Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed.

If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a licensed electrician in your area.

Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty.

CONTROL PANEL

1	Wash Cycle Selector Knob
2	Pre-programmed Wash Cycles with Indicator Lights
3	Child Lock Indicator Light
4	Delay Start Indicator Light
5	Water Temperature Selector with Indicator Lights
6	Water Level Selector with Indicator Lights
7	Soil Level Selector with Indicator Lights
8	Extra Rinse Option Selector Button
9	Fabric Softener Selector Button
10	Delay Start Selector Button
11	Start / Pause Button
12	Power ON / OFF Button
13	Cycle Status Indicator Lights
14	Cycle Started Indicator Light
15	Lid Locked Indicator Light
16	Digital Display

1. Connect the water inlet hose to the water faucet. Don't switch on the power if the water pressure is lower than 0.05MPa and higher than 0.5MPa.

2. Ensure the drain hose has been installed properly.

3. Insert the plug into the socket. For safety the plug should have ground connection.

1. Insert the end of drain hose into the hook shelf, and hang the drain hose over a drain outlet.

1. Open the water faucet.

1. Put the wash load into the tub evenly.

1. Add the suitable quantity detergent into the detergent case.

1. Close the lid. Otherwise the washer will not wash or spin, and alarm will sound.

BEFORE WASHING

Prepare the wash load. Mix large and small articles in a load to get the best washing results. Drop articles loosely into the inner tub. Do not pack articles in or wrap them. Articles should move freely through the wash water for best cleaning results. Articles should rollover, sink and then reappear.

When washing very large articles, do not fill inner tub as full as with other loads. The water level in your washer should fit the size of your wash load. Small load will use lower water levels. There must be enough water in the inner tub to allow articles to move and turn over freely. Overloading the inner tub can result in poor washing and rinsing. Overloading may also cause wrinkling and tearing of articles.

BEFORE WASHING

Make sure that you follow all manufacturer instructions for washing:

Wash Cycle		Special Instructions		Warning Symbols for laundering
	Normal		Line Dry/Hang to Dry		Do Not Wash
	Permanent Press / Wrinkle Resistant / Wrinkle Control		Drip Dry		Do Not Wring
	Gentle/Delicates		Dry Flat		Do Not Bleach
	Hand Wash	Heat Setting			Do Not Tumble Dry
Water Temperature**			High		No Steam (added to iron)
***	Hot		Medium		Do Not Iron
**	Warm		Low		Dryclean
●	Cold		Any Heat		Dry Clean
Bleach			No Heat/Air		Do Not Dry Clean
	Any Bleach (when needed)	Iron-Dry or Steam Temperatures			Line Dry/ Hang to Dry
	Only Non-Chlorine (color-safe) Bleach (when needed)		High		Drip Dry
	Tumble Dry Cycle		Medium		Dry Flat
Normal			Low		For machine-washable wool. Loads should be under 8 pounds.
	Permanent Press / Wrinkle Resistant / Wrinkle Control
	Gentle/ Delicates

OPERATING INSTRUCTIONS

1	Press the power button to turn the washer ON / OFF
2	Add detergent to the appropriate compartment (either liquid, powdered) or add the necessary amount of wash pod to the tub.Add fabric softener to the fabric softener dispenserAdd bleach to the bleach dispenser if desired.
3	Load the washer with the appropriate amount of clothes to be washed. Be careful to not overload as this will affect the wash efficiency, cause excess wear on the clothing and cause wrinkling.
4	Turn the Program Selector Knob to the desired wash program
	The initial wash time will appear in the digital display.** While the wash cycle is in progress, the digital display will show the remaining time left in the current wash program
5	Press the Temp button to select the desired water temperature** Tap Cold – For cold washing only
6	Press the Water Level button to change the water level if desired
7	Press the soil level to adjust the soil level of the clothing to be washed, this will adjust the wash time accordingly.
8	Press the Fabric Softener button to activate the softener dispensing option.
9	Press the Extra Rinse button if you desire an additional rinse cycle at the end of the pre-programmed wash cycle.
10	Close the top lid
11	Press the Start / Pause button to start the selected wash program.

AUTOMATIC WASH PROGRAMS

Wash Program	Water Levels	Wash Temperatures	Extra Rinse Available
Normal	Automatic High / Med / Low	Hot / Warm / Cold / Tap Cold	YES
Heavy Duty	Automatic High / Med / Low	Hot / Warm / Cold / Tap Cold	YES
Bulky	Automatic High / Med / Low	Hot / Warm / Cold / Tap Cold	YES
Towels	Automatic High / Med / Low	Hot / Warm / Cold / Tap Cold	YES
Whites	Automatic High / Med / Low	Hot / Warm / Cold / Tap Cold	YES
Casual	Automatic High / Med / Low	Warm / Cold / Tap Cold	YES
Delicates	Med / Low	Hot / Warm / Cold / Tap Cold	NO
Quick Wash	Med / Low	Hot / Warm / Cold / Tap Cold	YES
Drain and Spin	N/A		NO
Tub Clean	High	HOT	NO

Settings shown in Bold are the default settings.

Note:

• Clothes easily discolored should be washed separately so as to prevent inter-dyeing.
• If you want to change a selected program, press the POWER button first to turn the unit off, then press the POWER button again to turn the unit back on, then press the Program button to select the new cycle before pushing START/PAUSE button.
• When the Rinse and Spin functions are ON, do not use detergent.
• If you want to drain the water during washing, press the POWER button first to turn the unit off, then press the POWER button again to turn the unit back on, then select the SPIN function. Press START/PAUSE button again to restart.

ADDING / REMOVING CLOTHING AFTER THE CYCLE HAS STARTED

Your washing machine is equipped with a safety system that will lock the top lid during a wash cycle or will prevent a wash cycle to start if the lid is not closed.

THE MACHINE WILL NOT OPERATE WITH THE TOP LID OPEN, CLOSE THE LID AND PRESS THE START / PAUSE BUTTON.

To add or remove clothing to/from a wash cycle follow the steps below:

• Press the Start / Pause button to pause the wash cycle, wait for the machine to stop and the lid lock to release.
• Open the lid and place the additional items to be washed, close the lid and press the Start / Pause button to resume the wash cycle.

DELAY START (PRESET) SETTING

Select this option when you would like to load the washer but not run the wash cycle until a later time. Note:

As washing machines and other appliances are considered to present a potential child entrapment danger; you should never run a wash cycle when you are not present for either the entire or major portion of the cycle.

• Press down the power button.
• Load the washing machine and select the appropriate wash program.
• Press DELAY button continuously to select the delay start time. (From 1 hour to 48 hours)
• Close the lid completely.
  Press START/PAUSE button to start the course.

CONTROL PANEL - CHILD SAFETY LOCK

If you have small children, it is recommended that you activate this setting every time you use the washing machine as children can be attracted to and enticed to play with the washing machine.

• Select the desired washing program as described previously in this manual
• Select the appropriate program and press START/PAUSE button to start the washing machine.
• Press and hold both the TEMP and WATER LEVEL buttons until you hear a "BEEP" sound (approximately 3 seconds) and the CONTROL LOCK indicator is illuminated.
• The "Control Lock" indicator and remaining wash time will display.
• While the control lock is activated the only buttons that will function will be the Power ON/OFF and the buttons to de-activate the control lock function.
• To de-activate the child lock function simply press and hold the TEMP and Water Level buttons again.

CARE AND MAINTENANCE

CLEANING YOUR WASHER

• Clean the surface of your washer regularly with soft fabric.
  Clean the inner tub regularly, especially immediately after starch or bleach operation.
  Clean the filter in the inlet valve or inlet hose regularly in order to prevent it from clogging.

PROBLEMS WITH YOUR WASHER?

You can solve many common washer problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Washer does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.The lid is not closed.Make sure the water source is turned on.
No water or insufficient water supply.	The water source faucet is not turned on.The water source hose is frozen.The water intake hose is bent.The filter on the water intake hose is clogged.
The washing machine does not drain.	The drain hose is squashed or bent.
Washing machine vibrates or is too noisy.	Check to assure that the washer is level.The washing machine is touching another object.The laundry load is not balanced.
Washing machine does not spin.	The lid is not closed.The washer is not on a level surface.
Error Code E 1 shown in display	The washer takes mor than 30 minutes to fill with water. After water finishes entering your washer, the water level has not changed in 5 minutes.Check if the water supply valve is open.Check for water leaks.
Error Code E 2	The unit takes more than 10 minutes to drain.
Error Code E 3	The lid is open, Close the lid if continues the PCB or lid lock may be faulty.
Error Code E 4	The unit is out of balance in spin operation.Adjust wash load.
Error Code E 5	The washer is not level / Impact switch failureAdjust the level by using a level and adjusting the leveling leg.
Error Code F 5	Load sensing failedContact Customer Service
Error Code F 8	Water Level sensor failedContact Customer Service
Error Code F d	Door Lock FailureContact Customer Service
Error Code C L	Lid open for over 20 seconds with the Control lock function enabledPress the power button to turn off the washer, deactivate the control panel lock.
Error Code C 9	The PCB board failedContact Customer Service.

SERVICE FOR YOUR WASHER

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti washers. With the purchase of your Avanti washer, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service Team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information 800-323-5029	Whatever your questions are about our products, help is available.
Part Orders 800-220-5570	You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.
In-Home Repair Service 800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your washer inside and out.
YOUR AVANTI PRODUCTS WARRANTY	Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.
WHAT IS COVERED - LIMITED ONE-YEAR WARRANTY Avanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 3.5 cubic feet capacity or less must be brought/ sent to the appliance service center for repair.
LIMITED FIVE YEAR WARRANTY ON PLASTIC TUB After one year and until five years from the date of purchase, Avanti Products will furnish a replacement plastic tub, for one which is defective in material or workmanship. All labor and transportation charges are the responsibility of the consumer. LIMITED SEVEN YEAR WARRANTY ON STAINLESS STEEL TUB After one year and until seven years from the date of purchase, Avanti Products will furnish a replacement plastic tub, for one which is defective in material or workmanship. All labor and transportation charges are the responsibility of the consumer.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED: The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:
· A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations. · Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
· Shipping and handling costs associated with the replacement of the unit. · Repairs performed by unauthorized servicers. · Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or any other acts of God.	· Failure of the product if it is used for other than it intended purpose. · The warranty does not apply outside the Continental USA. · Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas.
In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooding, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCT Avanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired. Warranty - Washing Machines

Escribe这些东西They are good.

Fecha de compra

Numero de modelos

Numero de série

1. Connect the water inlet hose to the faucet by turning the connecting nut.

Be sure a rubber ring is inside the connecting nut.

1. Then connect the other end of water inlet hose to the cold connector in water mixing valve by turning the connecting nut.

1. Connect the water inlet hoses to the faucets by turning the connecting nuts.

Be sure the rubber rings are Inside the connecting nuts.

1. Unscrew the lid of hot water connector in water mixing valve, and then connect the other end of water inlet hoses to the connectors in water mixing valve by turning the connecting nuts.

y

y

Nota:

Only necessary on some faucets.

Wash Cycle		Special Instructions		Warning Symbols for laundering
	Normal		Line Dry/Hang to Dry		Do Not Wash
	Permanent Press / Wrinkle Resistant / Wrinkle Control		Drip Dry	×	Do Not Wring
	Gentle/Delicates		Dry Flat	▲	Do Not Bleach
	Hand Wash	Heat Setting		○	Do Not Tumble Dry
Water Temperature**			High		No Steam (added to iron)
***	Hot		Medium		Do Not Iron
**	Warm		Low	Dryclean
●	Cold		Any Heat		Dry Clean
Bleach			No Heat/Air		Do Not Dry Clean
	Any Bleach (when needed)	Iron-Dry or Steam Temperatures			Line Dry/ Hang to Dry
	Only Non-Chlorine (color-safe) Bleach (when needed)		High		Drip Dry
	Tumble Dry Cycle		Medium		Dry Flat
Normal			Low		For machine-washable wool. Loads should be under 8 pounds.
	Permanent Press / Wrinkle Resistant / Wrinkle Control
	Gentle/ Delicates

Service client Avanti 800-220-5570

1. Connect the water inlet hose to the faucet by turning the connecting nut.

Be sure a rubber ring is inside the connecting nut.

1. Then connect the other end of water inlet hose to the cold connector in water mixing valve by turning the connecting nut.

1. Connect the water inlet hoses to the faucets by turning the connecting nuts.

Be sure the rubber rings are Inside the connecting nuts.

1. Unscrew the lid of hot water connector in water mixing valve, and then connect the other end of water inlet hoses to the connectors in water mixing valve by turning the connecting nuts.

y

y

Noter:

Only necessary on some faucets.

Wash Cycle		Special Instructions		Warning Symbols for laundering
	Normal		Line Dry/Hang to Dry		Do Not Wash
	Permanent Press / Wrinkle Resistant / Wrinkle Control		Drip Dry		Do Not Wring
	Gentle/Delicates		Dry Flat		Do Not Bleach
	Hand Wash	Heat Setting			Do Not Tumble Dry
Water Temperature**			High		No Steam (added to iron)
***	Hot		Medium		Do Not Iron
**	Warm		Low	Dryclean
●	Cold		Any Heat		Dry Clean
Bleach			No Heat/Air		Do Not Dry Clean
	Any Bleach (when needed)	Iron-Dry or Steam Temperatures			Line Dry/ Hang to Dry
	Only Non-Chlorine (color-safe) Bleach (when needed)		High		Drip Dry
	Tumble Dry Cycle		Medium		Dry Flat
Normal			Low		For machine-washable wool. Loads should be under 8 pounds.
	Permanent Press / Wrinkle Resistant / Wrinkle Control
	Gentle/ Delicates

MODE D'EMPLOI

Clean the surface of the washing machine with a soft cloth regularly.
Clean the inner tub regularly, especially after washing starched or bleached laundry.

DES PROBLÉMES AVEC VÔTURE LAVEUSE?

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

Avanti Products LLC

3265 Meridian Pkwy # 114 - Weston, Florida 33331

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

y Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

-(detach here)

Avanti Registration Card

Name			Model #	Serial #
Address			Date Purchased	Store / Dealer Name
City	State	Zip	E-mail Address
Area Code	Phone Number		Occupation
Did You Purchase An Additional Warranty			As your Primary Residence, Do You:
£ Extended			£ Own	£ Rent
£ None			Your Age:
Reason for Choosing This Avanti Product: Please indicate the most important factors That influenced your decision to purchase this product:			£ under 18	£ 18-25 £ 26-30
			£ 31-35	£ 36-50 £ over 50
			Marital Status:
			£ Married	£ Single
£ Price			Is This Product Used In The:
£ Product Features			£ Home	£ Business
£ Avanti Reputation
£ Product Quality
£ Salesperson Recommendation			How Did You Learn About This Product:
£ Other:			£ Advertising
£ Friend / Relative Recommendation			£ In-Store Demo
£ Warranty			£ Personal Demo
£ Other:

Comments:
