USER MANUAL AMG 18 Westfalia

Blue and black handheld air purifier with attached cable and connector (no visible text or symbols)

Original Instructions

18 V Li-Ion Multifunctional Blower AMG 18

Article No. 91 24 87

CE

Illustration of a person in camouflage gear standing in water with a device, no text or symbols present

Dear Customers

Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage.

Please take the time to read this manual carefully and keep it for future reference.

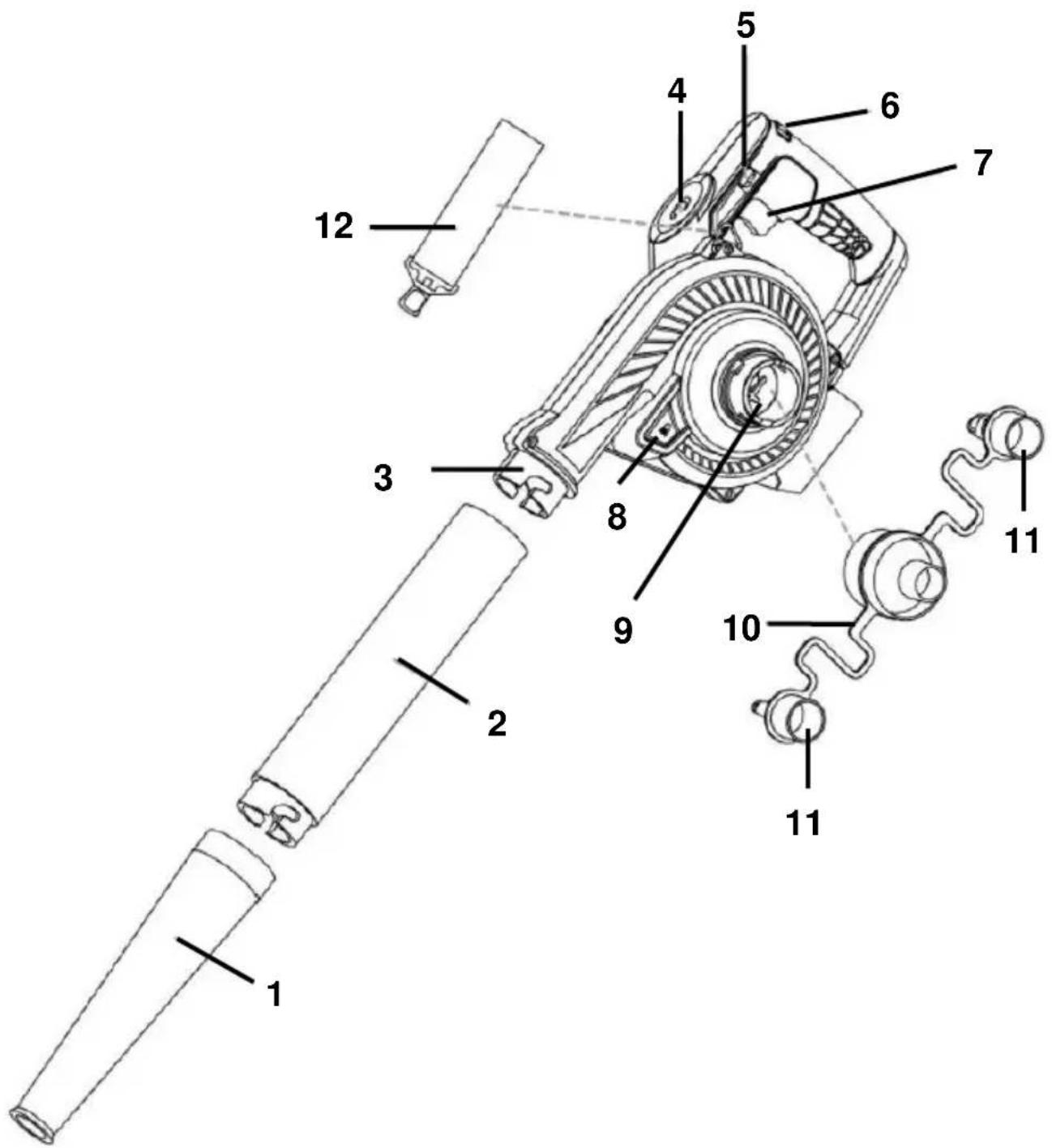

Technical diagram of a mechanical device with numbered components for identification

Before first Use....Page 26

Intended Use ...... Page 26

Possible foreseeable Misuse ...... Page 26

Scope of Delivery...... Page 26

Vibration Load ...... Page 27

Noise Pollution...... Page 27

Assembly – Using as Leaf Blower...... Page 27

ON/OFF Trigger......Page 28

Lock Button for ON/OFF Trigger Page 28

Hints on correct Working Technique....Page 28

LED Page 29

Turnable Handle Page 30

Speed Regulator......Page 30

Assembly – Operating as Volume Pump...... Page 30

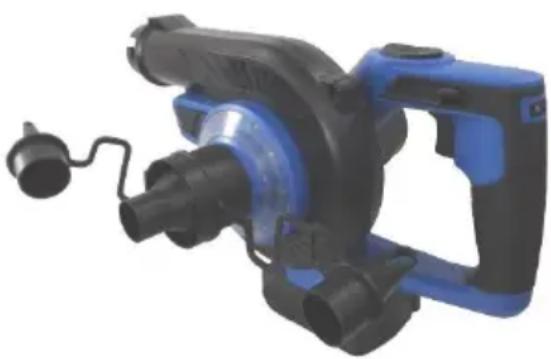

Assembly – Extracting clean Air......Page 31

Cleaning Page 31

Storing....Page 31

Technical Data......Page 32

Simple line drawing of a recycling symbol (three chasing arrows) with no text or labels

Pure electrical circuit lines without any symbols

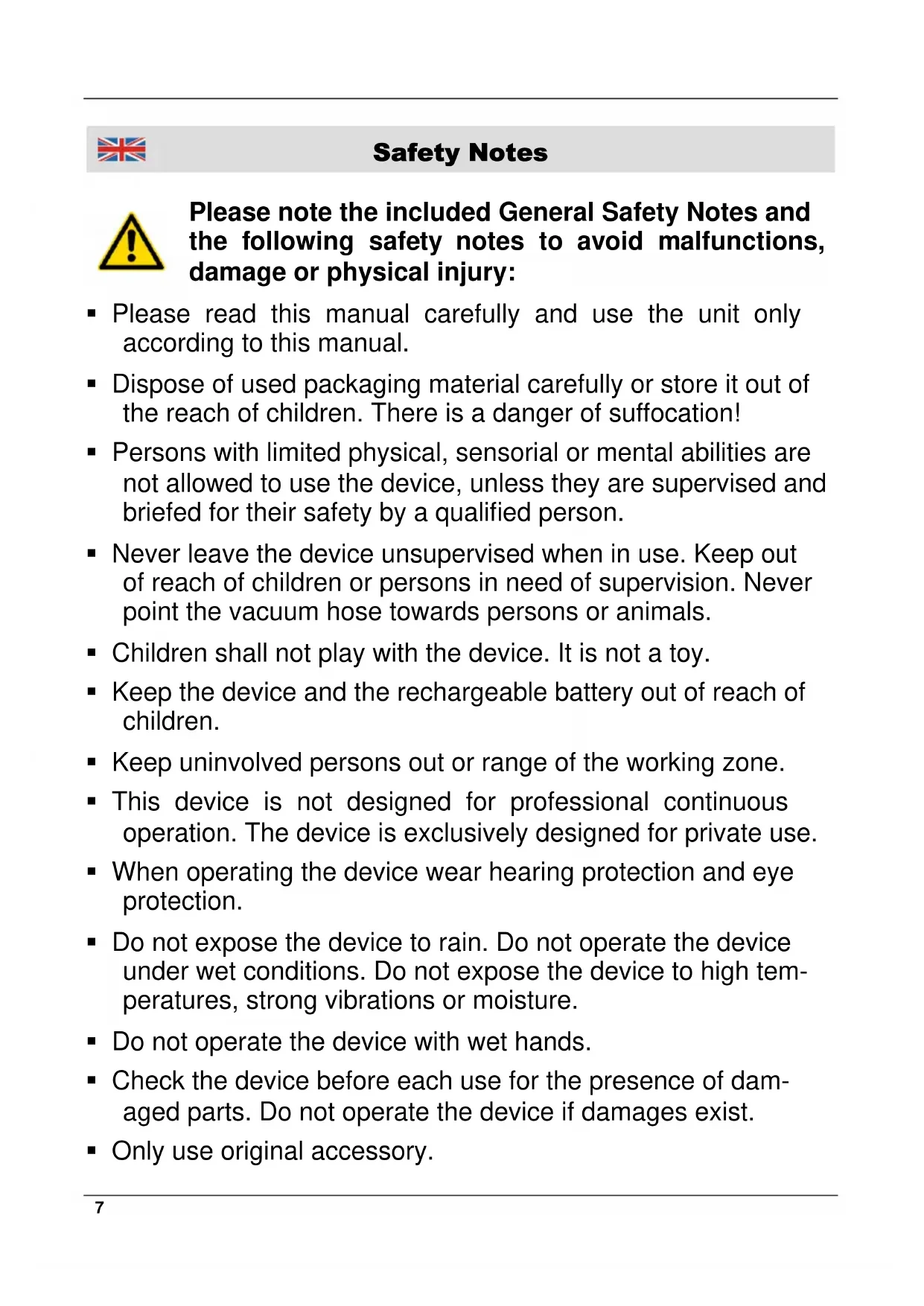

Please note the included General Safety Notes and the following safety notes to avoid malfunctions, damage or physical injury:

• Please read this manual carefully and use the unit only according to this manual.
  ■ Dispose of used packaging material carefully or store it out of the reach of children. There is a danger of suffocation!
• Persons with limited physical, sensorial or mental abilities are not allowed to use the device, unless they are supervised and briefed for their safety by a qualified person.
  ■ Never leave the device unsupervised when in use. Keep out of reach of children or persons in need of supervision. Never point the vacuum hose towards persons or animals.
  ■ Children shall not play with the device. It is not a toy.
• Keep the device and the rechargeable battery out of reach of children.
• Keep uninvolved persons out or range of the working zone.
  ■ This device is not designed for professional continuous operation. The device is exclusively designed for private use.
• When operating the device wear hearing protection and eye protection.
• Do not expose the device to rain. Do not operate the device under wet conditions. Do not expose the device to high temperatures, strong vibrations or moisture.
  ■ Do not operate the device with wet hands.
• Check the device before each use for the presence of damaged parts. Do not operate the device if damages exist.
  ■ Only use original accessory.

Safety Notes

■ The device is intended

• for blowing away soiling, such as sawdust, leaves, dust, etc.,
• for inflating smaller objects, such as water toys, etc.
  ■ Make sure the suction inlet and the blower outlet are not directed towards people or animals.
• Do not operate the device in the vicinity of an opened window etc.
• Do not work with the device in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
• The device does not have an automatic turn-off. Too much pressure in the inflated object can burst it. Observe the object while inflating.
  ■ Make sure the cable of the charger is not kinked or pinched or comes into contact with heat sources.
  ■ Do not operate a damaged charger.
• Charge the battery only with the specially designed charger for this battery. Do not charge with this charger other batteries.
  ■ WARNING: Li-Ion batteries, if incorrectly used, stored or charged are a fire, burn and explosion hazard.
• Keep the battery and the charger clean at all times. Dirt and debris may cause a short circuit and clog the ventilation holes. Failure to follow these instructions may result in overheating or fire.
  ■ Before maintenance and repair work, remove the battery.
• Do not touch the connected charger with wet hands.
• Allow batteries to cool for 15 minutes after charging or heavy use. Failure to follow these instructions may cause overheat-

Safety Notes

ing or fire.

• Use the device only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When not in use batteries should be stored at room temperature (approximately 20^ C ).
• Do not open, disassemble, crush, heat above 60^ or incinerate. Do not dispose of in fire or similar or short-circuit the battery.
• Keep the battery away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Only charge the battery at an ambient temperature between 10^ C and 40^ C . A charged battery can be used to power the unit under ambient temperature conditions between 0^ C and 40^ C .
• When not in use, store the battery in a dry place between 10^ and 30^ out of reach of children and persons in need of supervision.
• Should the device become damaged do not use it and have it repaired by a professional or contact our customer support department. Do not disassemble the device or try repairing it yourself.
• The unit is designed for operation in altitudes of up to 2000 m above sea level.

Symbol Explanation

The symbols shown are used for the device. Make sure to familiarise yourself with the meaning of the symbols before using the device.

• CE Article
  ■ Take particular care and attention.
  ■ Wear hearing protection.
  ■ Wear eye protection.
• Read the instruction manual.
• Wear ear protection. The device generates max. 102 dB.
• Keep hands away from rotating parts.
  ■ Remove the battery before maintenance and repair work.
  ■ Do not expose the device to rain.
• Keep persons within 5 m of the work area.
• There is danger due to objects being thrown out. Keep bystanders away from the work area.

CE ! Lone 102 dB No. 340 No. 1000 No. 500 No. 1000 No. 2000 No. 3000 No. 4000 No. 5000 No. 6000 No. 7000 No. 8000 No. 9000 No. 10000 No. 11000 No. 12000 No. 13000 No. 14000 No. 15000 No. 16000 No. 17000 No. 18000 No. 19000 No. 20000 No. 21000 No. 22000 No. 23000 No. 24000 No. 25000 No. 26000 No. 27000 No. 28000 No. 29000 No. 30000 No. 31000 No. 32000 No. 33000 No. 34000 No. 35000 No. 36000 No. 37000 No. 38000 No. 39000 No. 40000 No. 41000 No. 42000 No. 43000 No. 44000 No. 45000 No. 46000 No. 47000 No. 48000 No. 49000 No. 50000 No. 51000 No. 52000 No. 53000 No. 54000 No. 55000 No. 56000 No. 57000 No. 58000 No. 59000 No. 60000 No. 61000 No. 62000 No. 63000 No. 64000 No. 65000 No. 66000 No. 67000 No. 68000 No. 69000 No. 70000 No. 71000 No. 72000 No. 73000 No. 74000 No. 75000 No. 76000 No. 77000 No. 78000 No. 79000 No. 80000 No. 81000 No. 82000 No. 83, No. No. 84, No. No. 85, No. No. 86, No. No. 87, No. No. 88, No. No. 89, No. No. 9, No. No. 91, No. No. 92, No. No. 93, No. No. 94, No. No. 95, No. No. 96, No. No. 97, No. No. 98, No. No. 99, No. No.11, No.

Batteries and rechargeable batteries do not belong in household garbage.

For battery disposal, please check with your local council.

Pure electrical circuit lines without any symbols

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Pure electrical circuit lines without any symbols

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Pure electrical circuit lines without any symbols

Benutzung

Two blue and black industrial spray machines labeled 'Version 2' (no additional text or symbols visible)

Version 1

Close-up of a blue industrial fan or mechanical component with glowing blue light (no visible text or symbols)

Benutzung

Drehbarer Handgriff

Two hands holding a blue and gray handheld device, showing a change in the action (no text or symbols visible)

Close-up of a black camera with blue top and control buttons (no visible text or symbols)

Close-up of a blue automotive engine component with attached wires and connectors (no visible text or symbols)

Benutzung

Blue and black electric vehicle charging station with attached cable (no visible text or symbols)

Reinigung

Remove the multifunctional blower of the packing and check all parts for damage in transit. Dispose of packaging materials or store them out of reach of children. Plastic bags etc. may become a deadly toy for children.

Intended Use

This rechargeable multifunctional blower is designed for blowing away and collecting leaves, grass, dirt and refuse.

Furthermore the device can be used as a volume pump for inflating water toys.

The multifunctional blower is for private use only. Any other use is regarded as contrary to the intended use and will result in damaging the device.

The blower is designed for one-hand operation. It can be carried by the handle in either the right or left hand.

The cone-shaped nozzle produces a broad and powerful airstream at ground level. It can be aimed and controlled very accurately. This nozzle is highly effective for blow sweeping sawdust, leaves, grass cuttings, etc. on flat surfaces.

Possible foreseeable Misuse

The device is designed neither for commercial use in public parks and sports facilities, nor for use in farming and forestry.

Even during correct use of the device, there is always a certain residual risk that cannot be excluded. Depending on the use, the following potential risks can be derived from the type and construction of the device:

• Throwing out of cuttings, soil and small stones.
• Inhalation of cuttings particles if no breathing protection is worn.
• Damage to the hearing if no hearing protection is worn.

Scope of Delivery

The device is designed to be used with the rechargeable battery type A2AH18 (Art. No. 878474) or with the rechargeable battery type A4AG18 (Art. No. 878475). Please note that the rechargeable battery and a charging unit are not included in delivery.

Operation

ATTENTION! Danger of damage to the device and battery!

If the device is operated with an unsuitable battery, both the device and the battery may be damaged. Only operate the device with the specified rechargeable battery.

For charging the rechargeable battery, the charging unit ASLD Quick Charger (Art. No. 878476) is required.

Vibration Load

WARNING! Danger due to Vibration!

The actual magnitude of the vibration emissions during the operation of the device may deviate from that stated by the manufacturer,

when the device is not operated as intended,

when the device is not in a proper condition of use.

Noise Pollution

A certain level of noise exposure from the device is inevitable.

Carry out noisy work at approved and specified time periods. Observe rest periods as necessary.

For your personal protection and protection of persons in the vicinity, appropriate hearing protection must be worn.

WARNING! Danger due to uncomplete Assembly!

Operation of an incompletely assembled device can result in serious injury.

Only operate the device when it is fully assembled!

Do not insert the battery into the device until it is fully assembled!

Assembly – Using as Leaf Blower

1. Before starting work, mount the included accessory on the multifunctional blower. The two-piece blowing tube consists of the cone nozzle (1) and the extension tube (2) and is equipped with bayonet lock. Mount the assembled blowing tube on the device and make sure the assembled blowing tube is properly locked.

Operation

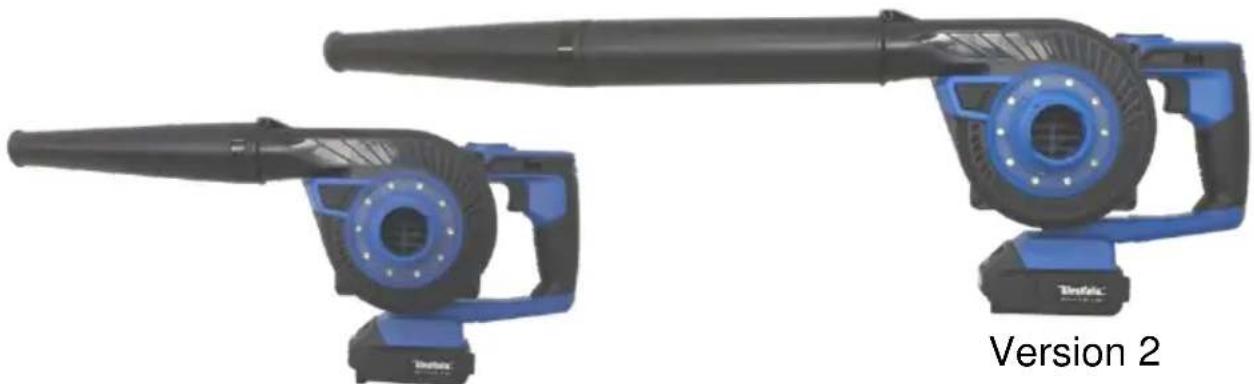

Two blue and black industrial spray sprayers labeled 'Version 2' (no additional text or symbols visible)

Version 1

1. Make sure the battery is fully loaded. For detailed information read and observe the instruction manuals of the rechargeable battery and charger.
2. Insert the battery straight into the recess of the device and push the battery up to the end until you hear a click sound.
3. To remove the battery, first depress the unlocking button and pull out straight from the device. Do not force the battery when inserting into the device or removing.

ON/OFF Trigger

1. To switch on the device, pull the ON/OFF trigger (7).
2. To switch off the device, release the trigger.

Lock Button for ON/OFF Trigger

1. For locking the ON/OFF trigger, pull the ON/OFF trigger and afterwards press the locking button (5) down. The ON/OFF trigger is now locked in place. Release the ON/OFF trigger.
2. For unlocking and switching off the device, pull the ON/OFF trigger and release it. The locking button (5) automatically snaps back in place and the device switches off.

Hints on correct Working Technique

- WARNING! Only operate the device when the blowing tube properly assembled. There is risk of injury!

Operation

• Hold the device firmly in your hand. The multifunctional blower is designed for one-hand operation. The device can be operated with the right or the left hand.
• Angle the device forwards slightly, and walk forwards slowly.
• Sweep the machine to the right and left in order to blow away the leaves.
• Never work against the wind to ensure that you and persons behind you are not soiled.
• Always make sure to have a safe stand while working with the device.
• Do not overload the device during work. Do not block the blower outlet and the suction inlet while working with the device.
  ■ Make sure long hair or loose clothing cannot get into the openings of the device.
• In dusty locations, it is advisable to slightly dampen the surface with a suitable spraying device to avoid too much dust.
• In case of stubborn soiling, it is advisable to loosen the surface with a rake or broom.
  ■ After operation, remove the battery from the device to avoid unintentional switching on.

LED

- To switch on the LED, press the button (8) once.

■ To switch off the LED, press the button again.

Close-up of a blue circular mechanical component with glowing light, no visible text or symbols

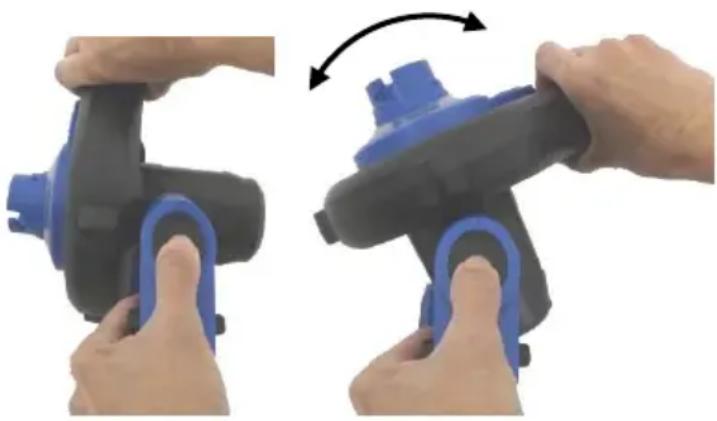

Turnable Handle

The handle can be locked in 2 working positions.

To avoid unintentional operation, of the device, remove the battery!

1. To adjust the working position of the handle, slide the handle unlock button (4) forwards and simultaneously turn the blower to the side.

Two hands holding a blue and gray automotive spray gun, showing the process of assembly or disassembly (no text or symbols visible)

1. Turn the handle until you hear a click sound and the handle is properly locked in this position.

Speed Regulator

The device is equipped with an infinitely adjustable speed regulator (6).

1. When starting work, adjust the speed regulator to the lowest setting for low air volume.
2. Turn the speed regulator in direction to the highest setting 7, according to the desired application.

Close-up of a black camera with blue adjustment knob and digital display (no text or symbols visible)

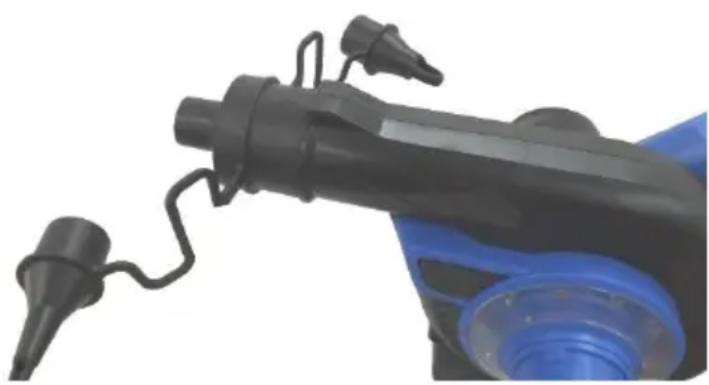

Assembly – Operating as Volume Pump

1. To inflate water toys (e.g. water balls), mount the nozzle holder (10) on the blower outlet (3) of the device.
2. Insert the suitable nozzle (11) into the nozzle holder (10).
3. Make sure the nozzle holder is properly locked in the blower opening.

Close-up of a blue industrial robotic arm with black connectors and a blue housing (no visible text or symbols)

Operation

• Do not leave the inflating object unattended!
• The device does not switch off automatically. Thus the object to be inflated can burst.

Assembly – Extracting clean Air

1. For extracting clean air from an object, e.g. from an inflated airbed, mount the suitable nozzle (^1) on the suction inlet (9) and switch on the device.
2. Do not leave the device unattended during work.

3D rendering of a blue and black electric vehicle charging plug with attached cable (no text or symbols visible)

Cleaning

• Remove the battery from the device before cleaning.
• Clean the housing with a dry of if necessary a lightly moistened cloth for cleaning. Do not use chemicals or abrasives in order not to damage the surfaces.
• Do not immerse the device in water.

Storing

• Store the device and the accessory in a dry and cool place. Do not store the device close to heat sources such as heaters.
• Do not expose the device to direct sunlight for an extended time. Extreme heat will damage the device.
  ■ Store the device out of reach of children.

Technical Data

Rated Voltage	18 V DC
Nominal Speed	0 – 18000 min ^-1
Sound Level	≤ 102 dB(A)
Air Velocity	228 km/h
Intake Vacuum	4.5 kPa
Dimensions	30 x 17.5 x 19.5 cm
Net Weight (without battery)	1147 g
Hand Arm Vibration	1.0 m/s ^2

* The declared vibration total value and the declared noise emission values have been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure.

Warning!

The vibration and noise emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used, in particular, what kind of work piece is machined.

It is necessary to identify safety measured to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time)

Try to minimize the impact of vibration and noise. Exemplary measures to reduce vibration exposure include wearing gloves while using the tool, limiting working time, and using accessories in good condition.

declare by our own responsibility that the product

Article No. 91 24 87

is according to the basic requirements, which are defined in the European Directives and their amendments.

2011/65/EU Restriction of the Use of certain hazardous Substances in electrical and electronic Equipment (RoHS)

2006/42/EC Machinery

EN 60335-1:2012+AC+A11+A13+A15, EN 50636-2-100:2014

The technical documentations are on file at the QA department of the Westfalia Werkzeug-company.

Hagen, 28 ^th of February 2023

Jhomo Klingbeil

Thomas Klingbeil,

Symbol of a trash bin crossed with no text or labels

Werter Kunde,

Please help avoid waste materials.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled.

Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
