YOLO - Stroller Asalvo - Free user manual and instructions

Product type	Stroller
Brand	Asalvo
Model	YOLO
Recommended use	Children from 6 months
Maximum supported weight	15 kg
Maximum weight of storage basket	1 kg
Safety standards	UNE-EN 1888:2012
Number of seats	1
Backrest positions	2 (upright and reclined)
Front wheel type	Swivel with lock
Brake	Brake/release pedal
Restraint system	5-point harness with waist belt and crotch strap
Canopy	Foldable with latches, clip attachment
Frame material	Steel
Folding	Manual with lower and upper locking mechanism
Safety	Locking devices on frame, wheels and harness
Maintenance	Visit Club Asalvo blog for maintenance tips
Cleaning	Clean with a soft damp cloth
Included accessories	None mentioned
Repairability	Spare parts available through after-sales service

Frequently Asked Questions - YOLO Asalvo

How to open the YOLO stroller?

To open the stroller, first release the locking hook (Photo 1). Then press on the front side bars of the frame (Photo 2). Finally, press the lower locking mechanism downward to fully open the stroller (Photos A and B). Make sure all locks are engaged before use.

How to close the stroller?

To close the stroller, first press the lower locking mechanism upward (A, Photo 4). Then press the plastic part B downward to open the upper locking mechanism C (Photo 4). Next, close the stroller in the direction of the arrow (Figure 5). Finally, secure the stroller with the locking hook (Photo 6).

How to assemble the front wheels?

Before assembling the two front wheels, make sure the locking mechanisms of both legs are properly secured. Hold a leg, push each wheel set by matching its recess with the leg until it reaches the end and locks. Repeat with both front wheel sets. Make sure the wheels are not mounted upside down. The rear wheels are already mounted.

How to use the brake?

To brake, press the pedal downward. To release the brake, press the pedal upward. Make sure the brake is engaged before leaving the child unattended.

How to adjust the backrest?

This stroller has two backrest positions: upright and reclined. To use the upright position, keep the buckle closed as shown. For the reclined position, release the lock as indicated in the manual.

How to use the canopy?

Before folding the stroller, the canopy must be gathered. There are two clips attaching the canopy to the frame. Press the two clips against the frame until the canopy is secure. To fold and unfold the canopy, use the latches on both sides. To release the latch, pull from the center upward. To lock it, press the latch downward.

How to use the safety harness?

To close the harness, insert both ends into the central lock. To open the harness, press the lock tabs and pull the strap outward. The strap length is adjustable. Never use the crotch strap without the waist belt.

What are the recommended weight and age?

This stroller is suitable for children from 6 months up to 15 kg weight. The maximum weight supported by the storage basket is 1 kg. Not suitable for children under 6 months.

What are the important safety instructions?

Never leave your baby unattended. Make sure all locking devices are engaged before use. Always use the restraint system. Do not place loads on the handlebar or sides of the stroller. Do not use on stairs or as a scooter. Regularly check for missing or damaged parts.

How to maintain the stroller?

For maintenance, visit the Club Asalvo blog for tips and exclusive promotions. Clean the stroller with a soft damp cloth. Do not use accessories not approved by the manufacturer. Store it in a dry place.

USER MANUAL YOLO Asalvo

ATTENTION: Please read these instructions before use.

IMPORTANT: Save these instructions for future reference

Thank you for purchasing a travel cot ASALVO. We are glad you have chosen one of our products, and hope you will be satisfied with its use. Failure to do so may result in a risk for the health of your baby. Pay special attention to the tips on washing and care of the product, soo you can enjoy it longer.

Cher client:

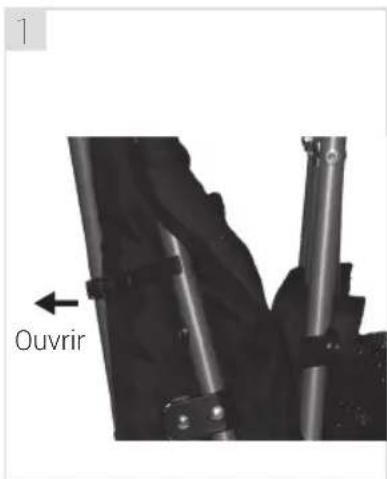

1. Release the hook (Pic.1)

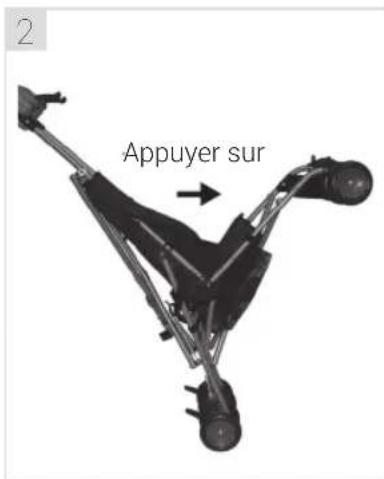

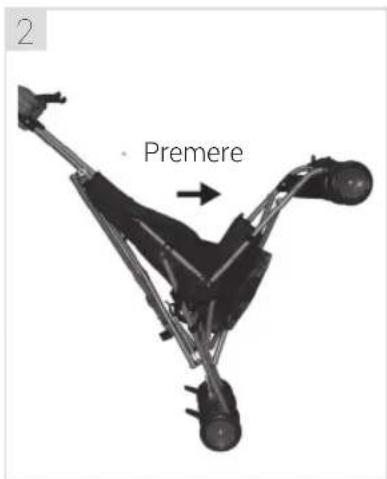

2. Press the side bars (front frame Pic.2)

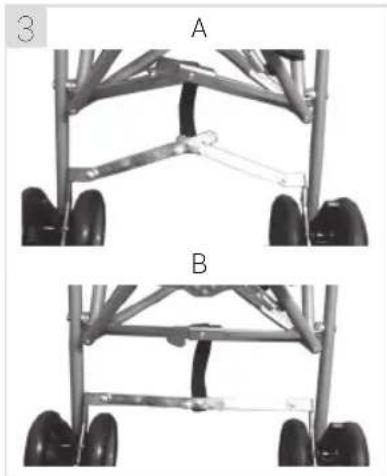

3. Press the locking mechanism to open the seat bottom through (Pic.A-Pic.B)

1. Lift locking mechanism lower (A) (Photo 4). Press down the plastic B to open the locking mechanism they C (Picture 4)
2. Close the chair according to the direction of the arrow shown (Figure 5)
3. Finally secure the seat with lock jaw (Photo 6)

MOUNTING THE FRONT WHEEL

Before entering, make sure both wheels locking mechanisms from both legs are properly locked.

Holding one leg, push each set of wheels until fitting it on every leg's hole, so you reach the end of it... Repeat with both sets of wheels.

Make sure that the wheels are mounted upside down.

The rear wheels are already mounted.

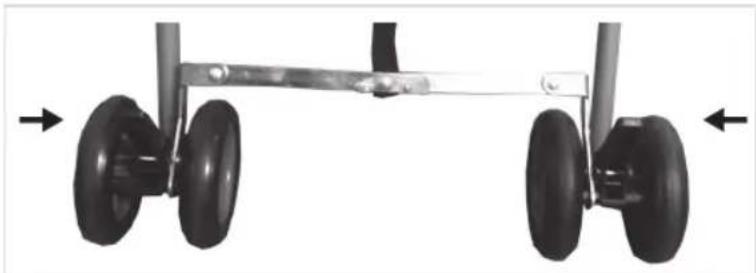

FRONT WHEELS FUNCTIONS

To unlock front wheels, push down the lever located between the two wheels on each set. To lock the wheels, lift it up.

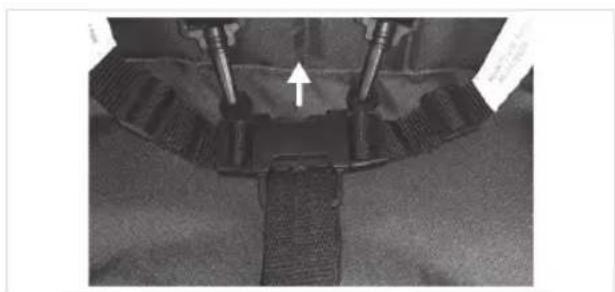

USE OF BELT

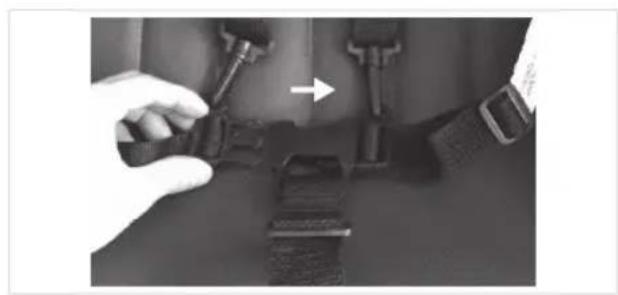

• Use belt buckle to close the sling on both ends of the central lock.
• To open the belt, press the tabs on the end and pull the tape out. The tape size is adjustable in length.

USE OF CANOPY

1. The use of canopy is also important for the folding of the chair. Before folding the seat, the canopy must be collected.
2. There are two mounting clips to the chassis. Each clip allows placing the cover on one side of the chassis. Press the two clips from the chassis until the top is well protected.
3. To fold and unfold the top, use the latches located on both sides. To release the lock, pull it up. To lock, press the lock down.

USE OF BRAKE

To brake, push the brake pedal down. To release the brake, press pedal upward

RECLINING SYSTEM

-This stroller has two backup positions:

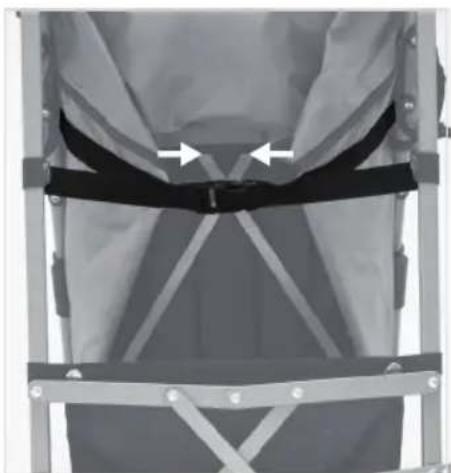

1) To use the straight position, hold the buckle closed as shown.

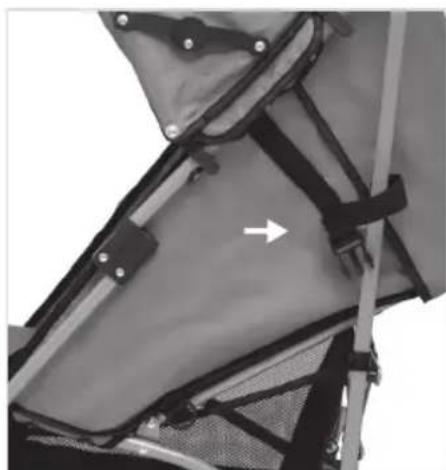

2) To use the reclined position release the lock as shown.

This chair has been validated according to the rules: UNE-EN 1888:2012

SAFETYNOTICESANDCARE

WARNING: Read these instructions carefully before use and keep for future reference. Child's safety may be affected if you do not follow these instructions.

WARNING: This vehicle is for children 6 months and up to 15kg

WARNING: Do not leave the child unattended.

WARNING: Ensure that all locking devices are engaged before use.

WARNING: Any load hanging on the handle affects the stability of the chair.

WARNING: Never use the crotch strip without abdominal belt.

WARNING: this place is not suitable for children under 6 months.

WARNING: Do not use accessories not approved by the manufacturer.

WARNING: this product is not suitable for running or skating.

WARNING: always use a seat belt when the baby is in place.

WARNING: The maximum weight that supports the slide basket is 1kg , this chair is for a single baby.

WARNING: The stroller should be stopped and locked to mount or lower the baby.

CARE: take out the baby, before going up or down stairs.

WARNING: This chair is not thought to be use with ride on extension.

WARNING: Make sure that all safety locks are properly locked.

WARNING: Do not use the product if they are damaged or missing parts.

MAINTENANCE

• Use soap and water to wash the seat
• Periodically check the condition of the chair greasing wheels and folding system.
• On recommend to lubricate it periodically the wheels and folding system.

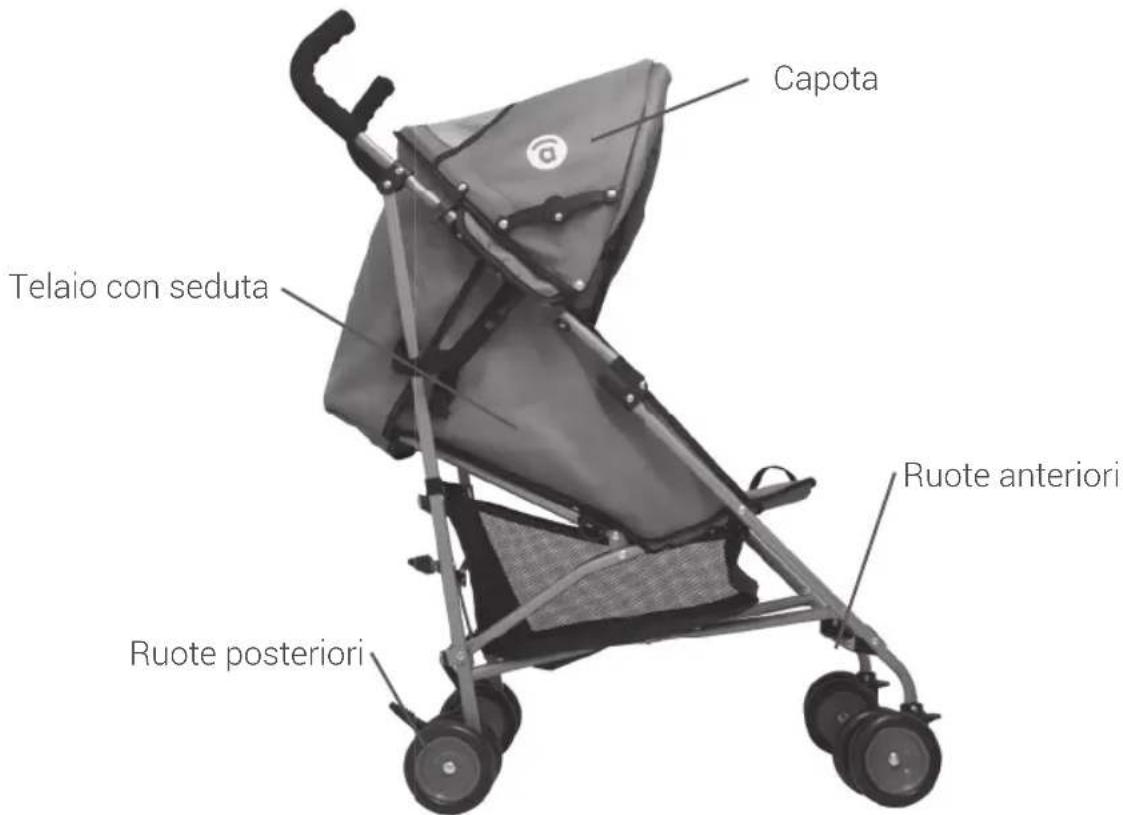

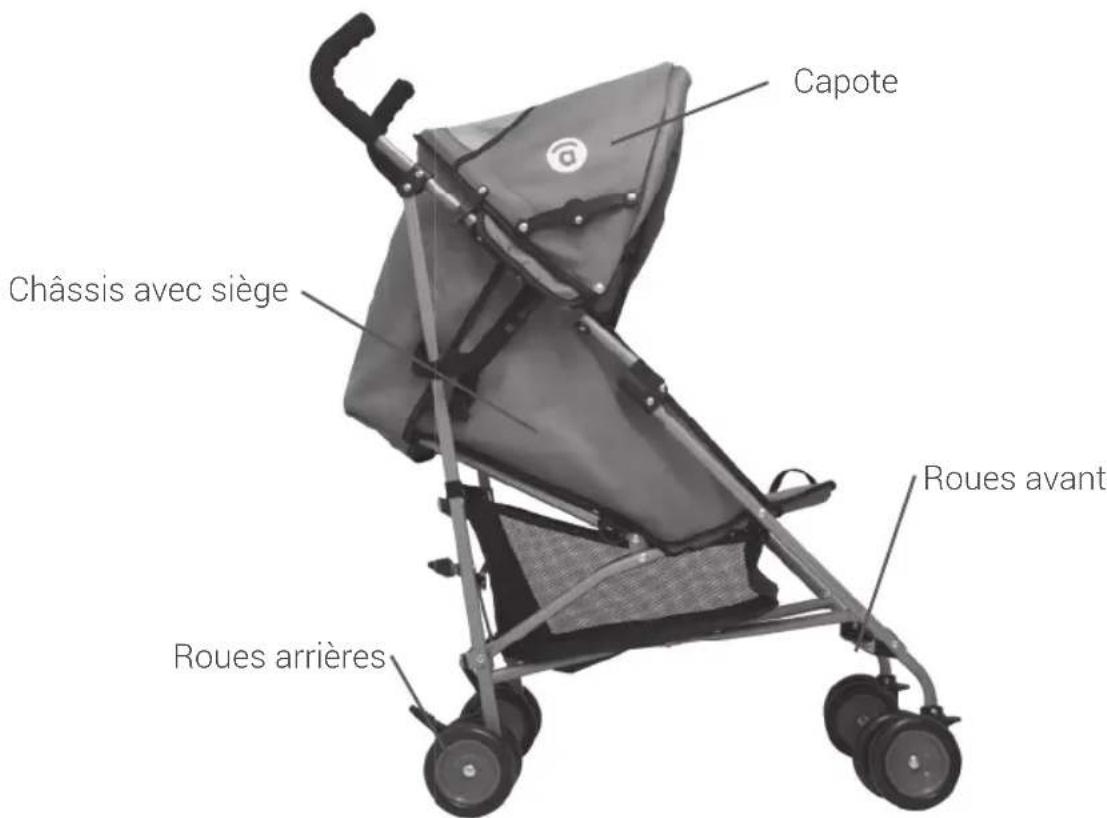

PARTS

Déploiation LA POUSSETTE

• Use soap and water to wash the seat
• Periodically check the condition of the chair greasing wheels and folding system.
• On recommend to lubricate it periodically the wheels and folding system.

PEZZI

COME APRIRE IL PASSEGGINO
