Product type	Wine cellar
Brand	CASO
Model	WineExclusive 38 Smart
Article number	721
Capacity	38 bottles
External dimensions (W/H/D)	400 x 1065 x 670 mm
Weight	47.8 kg
Power supply	220~240 V / 50 Hz
Power	70 W
Average daily energy consumption	0.400 kWh/24h
Climate class	ST
Temperature range	5 °C to 20 °C
Temperature zones	2 independently adjustable zones
Integrated WiFi	Yes, IEEE 802.11 b/g/n, 2.4 GHz band
CASO app	Remote control and programming
Interior lighting	LED, automatic shut-off after 4 hours
Wooden shelves	7 removable pieces
Lockable door	Yes
Refrigerant	Combustible propellant (R600a or similar)
Cleaning	Warm water and mild detergent, no abrasive products
Defrosting	Manual, at least twice a year
Warranty	24 months

Frequently Asked Questions - WineExclusive 38 Smart CASO

How to adjust the temperature of the CASO WineExclusive 38 Smart wine cellar?

Use the + and - buttons on the control panel to adjust the temperature in 1 °C increments. The adjustment range is 5 to 20 °C for each zone. The upper zone must have a temperature lower than or equal to the lower zone.

How to connect the wine cellar to WiFi?

Download the CASO app on your smartphone or tablet. Follow the app instructions to connect the device to your WiFi network (2.4 GHz). For further assistance, visit www.casoapp.com/help.

Why doesn't the interior light turn on?

Check that the light has been activated with the 'Light' button. If it still does not turn on, contact customer service as this may indicate a fault with the LED or the control panel.

How to clean the interior of the wine cellar?

Use a soft cloth dampened with warm water and mild detergent. Rinse and dry thoroughly. To prevent odors, use a solution of 2 teaspoons of baking soda in 1/4 liter of warm water.

What to do in case of error message 'Lo' on the display?

The 'Lo' error indicates poor display quality or a temperature value that is off. Check the temperature settings and ensure the appliance is properly plugged in. If the problem persists, contact after-sales service.

How to defrost the wine cellar?

Turn off and unplug the appliance. Open the door and let the frost melt naturally. Place a cloth or tray to collect condensation water. Never use mechanical or electrical tools to speed up defrosting.

The wine cellar makes a gurgling noise, is this normal?

Yes, this noise is normal. It comes from the refrigerant circulating in the cooling circuit when the compressor starts or stops.

How to reverse the door of the wine cellar?

Door reversal is not described in the manual. Contact after-sales service for specific instructions.

What is the recommended ambient temperature for optimal operation?

The recommended ambient temperature is 16 to 20 °C. A higher temperature will increase energy consumption.

Can I store beverages other than wine in this cellar?

Yes, the appliance is designed to chill wine and beverages. Avoid storing explosive or flammable substances.

USER MANUAL WineExclusive 38 Smart CASO

Front view of a modern refrigerator with multiple shelves and control buttons (no visible text or symbols)

Interior view of a modern refrigerator with multiple shelves and control buttons (no visible text or symbols)

CE

Braukmann GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Service-Hotline International:

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

Homepage: www.caso-design.de

Dokument-Nº: 00721 - 00726 14-01-2021

11 Safety....28
11.1 Intended use 28
11.2 General Safety information....29
11.3 Sources of danger 30
11.3.1 Risk of fire / flammable materials used. Danger of burns or of explosion....30
11.3.2 Dangers due to electrical power....30
12 Commissioning ....31
12.1 Safety information....31
12.2 Delivery scope and transport inspection 31
12.3 Unpacking....31
12.4 Disposal of the packaging....32
12.5 Setup 32
12.5.1 Setup location requirements: 32
12.5.2 Feet....33
12.5.3 The handle installing 33
12.5.4 Wooden shelves....33
12.5.5 To remove a shelf ....33
12.6 Electrical connection ....34
13 Design and Function....35
13.1 Complete overview....35
14 Operation and Handing....35
14.1 Operating elements and displays 35
14.2 WiFi control....36
14.3 Rating plate....36
15 Cleaning and Maintenance....36
15.1 Safety information....37
15.2 Cleaning 37
15.3 Moving the appliance....38
16 Troubleshooting....38
16.1 Safety notices....38
16.2 Fault indications and rectification of faults ....38
17 Disposal of the Old Device 40
18 Guarantee....40
19 Technical Data....41
20 Mode d'emploi....43
20.1 Généralités....43
20.2 Informations relatives à ce manuel....43

Three identical white cylindrical objects with black outlines, arranged horizontally on a gray background (no text or symbols)

Normaler Boden

Abstract geometric pattern of stacked rectangular shapes with no text or symbols

unterer Boden

Interior view of an electrical enclosure showing coiled wires, a transformer, and labeled components (no readable text or symbols)

Original Operating Manual

WineExclusive 38 Smart (721)

WineExclusive 66 Smart (726)

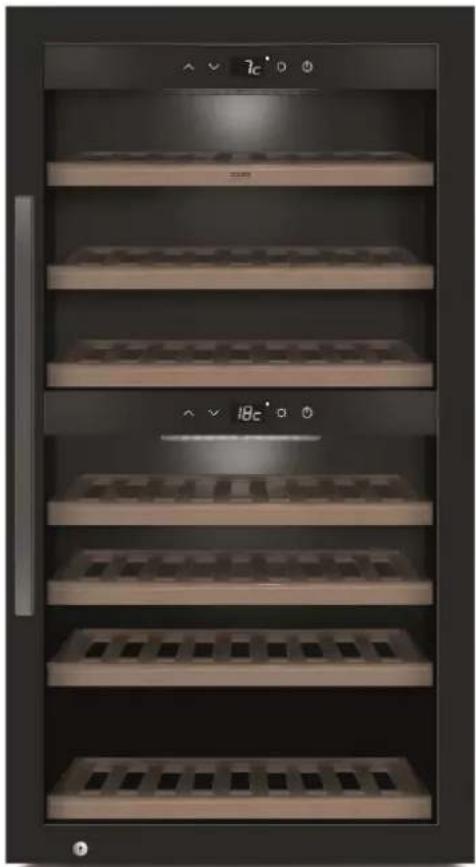

Front view of a modern refrigerator with multiple shelves and control buttons (no visible text or symbols)

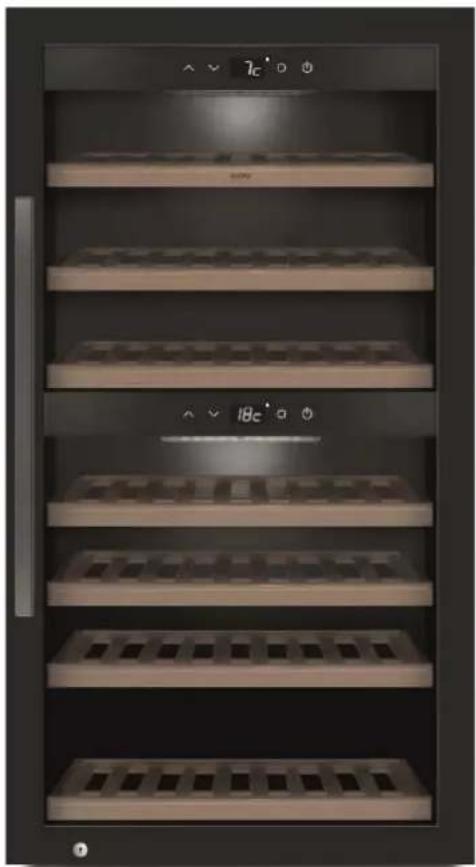

Interior view of a modern refrigerator with multiple shelves and control buttons (no visible text or symbols)

CE Home

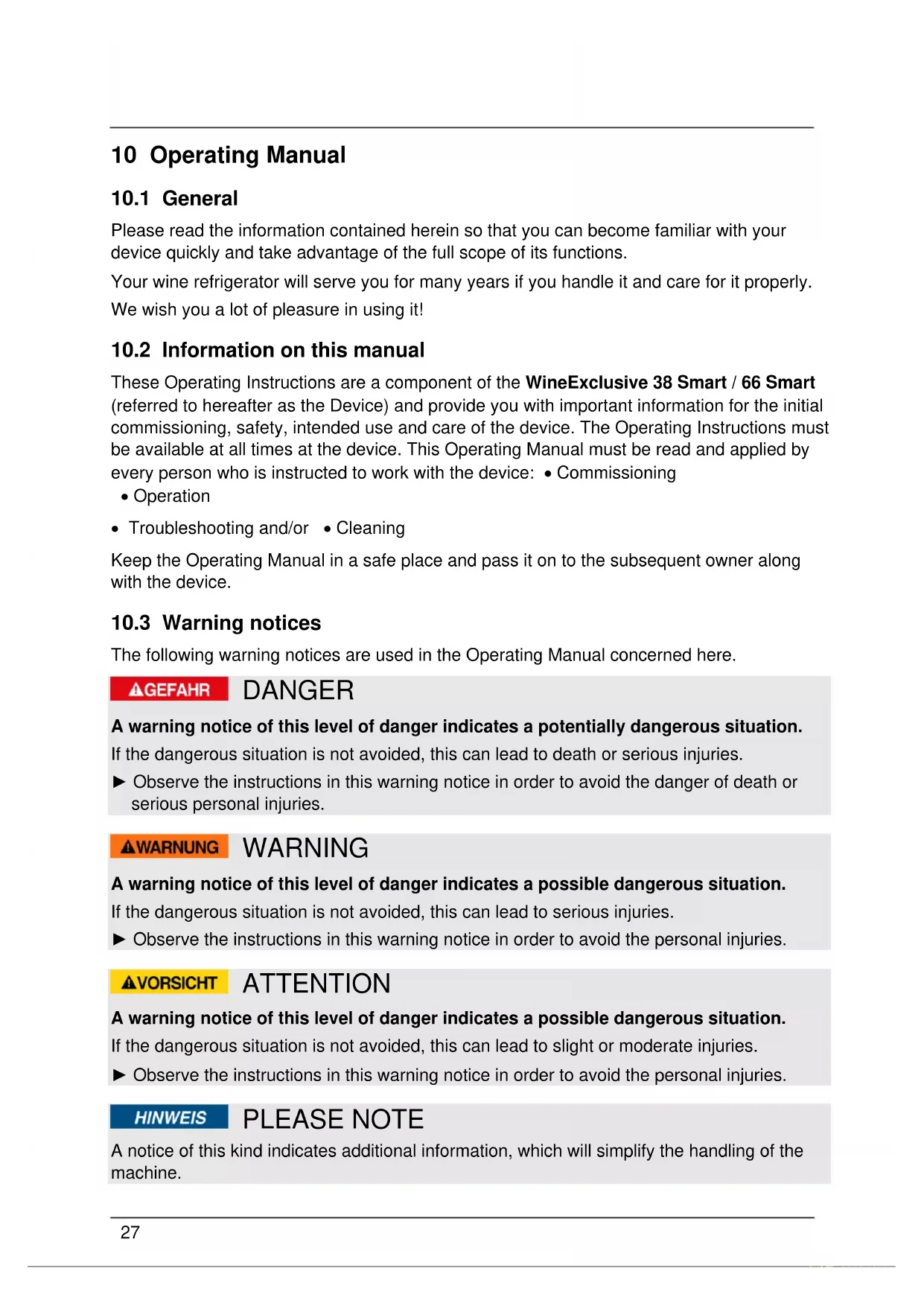

10 Operating Manual

10.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your wine refrigerator will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

10.2 Information on this manual

These Operating Instructions are a component of the WineExclusive 38 Smart / 66 Smart (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: • Commissioning

- Operation

- Troubleshooting and/or - Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

10.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

⚠️WARNUNG

WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

10.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: • Non-observance of the manual • Uses for non-intended purposes

• Improper repairs
• Technical alterations, modifications of the device
• Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

10.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

10.6 EU declaration of conformity

Hereby, Braukmann GmbH, declares that the radio equipment type [721, 726] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.caso-design.de/nc/service/dokumente-download/

11 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

11.1 Intended use

This device is only intended for use in households in enclosed spaces for cooling wine and other beverages. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

⚠️WARNUNG

WARNING

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

11.2 General Safety information

HINWEIS PLEASE NOTE

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ Children are not allowed to play with the device.
▶ The device and its connecting cable must be kept away from children who are less than 8 years old.
▶ The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.

11.3 Sources of danger

11.3.1 Risk of fire / flammable materials used. Danger of burns or of explosion

⚠GEFAHR

DANGER

There is a danger of burns and explosion due to excess pressure that is created in the event the device is not used properly.

Observe the following safety notices to avoid dangers of burns or an an explosion:

Warning: Risk of fire / flammable materials used.

▶ Do not store explosive substances such as aerosol cans with a flammable propellant in this device.

▶ Blowing gas inside the unit is flammable.
▶ Do not damage the cooling circuit of the device.
▶ Do not use electrical devices inside the device.
▶ Do not use mechanical devices or other means to accelerate the defrosting process.
▶ Never use the device to store or dry flammable materials.
▶ Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
▶ Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

11.3.2 Dangers due to electrical power

⚠GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

▲GEFAHR Danger

▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

12 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.1 Safety information

▲WARNUNG WARNING

▶ Packaging materials may not be used for playing. There is a danger of suffocation.
▶ Transport, unpack and use two persons to set down the device because of the heavy weight of the device.

12.2 Delivery scope and transport inspection

As a rule, the device is delivered with the following components:

• WineExclusive 38 Smart / 66 Smart with WiFi equipment
• 7 wooden shelves
• Operating Instructions with handle and screws

HINWEIS Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.3 Unpacking

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.
• Your device should only be moved in an upright position.
• Clean the interior surface with lukewarm water using a soft cloth.
• After at least 24 hours, plugging the appliance into the wall outlet, than place wine bottles or beverages in the appliance.

HINWEIS

Please note

▶ Only remove the blue protective film shortly before setting up the device in the location where it will be used, to prevent scratches and dirt accumulations.

12.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

HINWEIS

Please note

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.5 Setup

12.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded.
• Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• This unit is not designed for use in a garage or any other outside installation.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 15 cm around the appliance.
• WARNING! Do not close the ventilation openings in the device housing.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.
• For energy saving reasons please ensure that the door is closed when the appliance is turned on.

12.5.2 Feet

There are FOOT (3 bigger feet and 1 small foot).

To level your appliance, adjust the front feet at the bottom of the appliance.

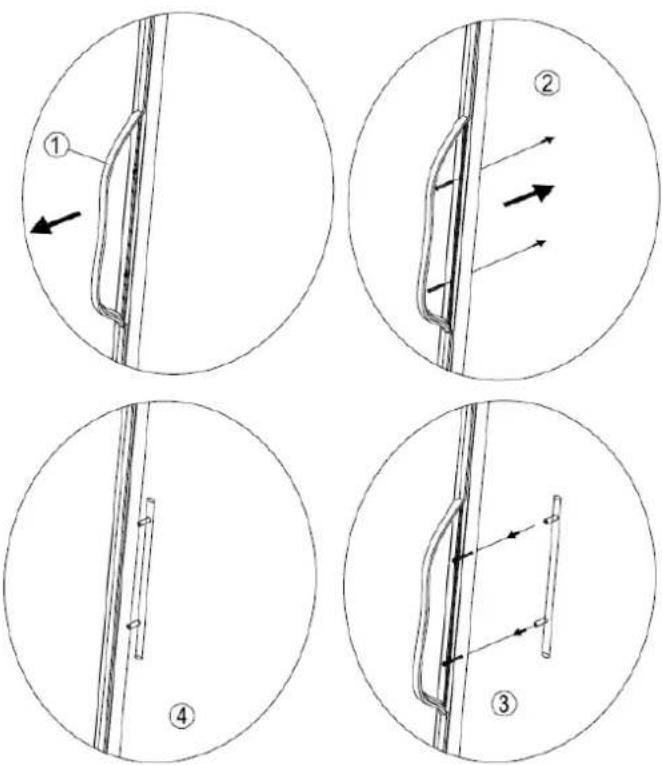

12.5.3 The handle installing

The wine cooler comes with one metal stainless steel handle. To install simply screw them to the door with the supplied screws.

To do this, slide the rubber seal on the back of the door to the side to lay open the predrilled holes. Use the included screws to install the handle on the door.

Then reinsert the rubber seal in the correct position.

12.5.4 Wooden shelves

Three identical white cylindrical objects with black outlines, arranged horizontally on a gray background (no text or symbols)

Usual shelf
Lower shelf

Abstract geometric pattern of stacked cylindrical shapes with no text or symbols

Each shelf can be removed to store larger bottles.

12.5.5 To remove a shelf

Remove all bottles from the shelves.

Removal of the fixed shelves:

Carefully pull out the shelf until this is no longer possible.

Look at the shelf rail from the side.

You see a lever. There are 2 positions

A 1 2 A

1 = below - release with pressure at point A upwards

2 = up - release with pressure at point A down

Reach into the rail with one finger and change the position of the lever by pressing the lever.

Hold this new position of the lever appropriately on both sides of the shelf and then pull out the shelf.

Installation of the shelves:

Put the shelf back into the rail and slowly push it in until it clicks into place.

HINWEIS

Please note

▶ Ensure that the shelves are firmly engaged in place before storing any bottles.
▶ Any of the shelves can be removed to accommodate larger bottles.
▶ Spread your bottles out as evenly as possible over the shelves, so weight is not concentrated in one point; and make sure your bottles will not touch the back of the cabinet.

12.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 ~mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under or over hot or sharp surfaces.
• This unit is not designed to be installed in an RV or used with an inverter.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

13 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

13.1 Complete overview

13 12 11 10 9 8 7 6 5 1 2 3 4

(1) Up Hinge Cover
(2) Door Sealing
(3) Door Frame(lockable)
(4) Door Handle
(5) Down Hinge (adjustable foot)
(6) Foot
(7) Hot Air Outlet
(8) Air inlet
(9) Control Panel (Down)
(10) Cold Air Outlet
(11) Shelves 7 pcs
(12) Control Panel (Up)
(13) Housing

14 Operation and Handing

This chapter provides you with important notices with regard to operating the device.

14.1 Operating elements and displays

HINWEIS

Please note

▶ Use the buttons and to set the temperature for both zones in the range of 5-20°C.
▶ Temperature recommendations: Red wine: 12^ C – 16^ C and white wine 6^ C – 10^ C.

HINWEIS

Please note

The device can achieve the best cooling and consumption results at a recommended ambient temperature of 16-20 °C.
▶ When both - up and down zone - are working, the temperature of upper zone must be lower than or equal to the temperature of down zone.
▶ In case of high temperature difference between both zones the energy consumption of the device may be higher as indicated in the technical data.

^ ∨ 886 ♂ ⬢

If you press the power button of : Upper zone -> the device is switched on

Down zone -> the down zone is switched on/off

When the LED lights the device is working.

With pushing both for ends, the temperature display mode will be exchange between ^ C and ^ F.

You can set the temperature as your desire: With you adjust the temperature by 1°C among 5-20°C.

You can tune the interior light on or off by pressing the "Light" button. The light will off automatically after 4 hours to save energy.

The temperature in the device depends on the room temperature, the quantity of bottles and the chosen temperature. Please note that your device is intended to cool wine. The maximum temperature that can be reached inside the device cannot be significantly ABOVE the ambient temperature at the setup location.

14.2 WiFi control

The device can optionally also be controlled / programmed via app via WiFi. Download the CASO-App to your smartphone or tablet. Details about the app, the scope of operation and installation instructions can be found on our website www.casoapp.com/help

14.3 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

15 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

▲VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

▶ Prior to commissioning, clean the appliance thoroughly.
▶ Switch the device off prior to cleaning it and unplug the plug from the wall power outlet. Remove all content.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.

15.2 Cleaning

◆ Interior space

Wash the inside with a damp cloth soaked in lukewarm water and a bit of mild detergent.

Tip for neutralisation of odors: Wash the inside with a damp cloth soaked in lukewarm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quarter of water. After cleaning the interior space, leave the oven door open until the interior of the device is completely dry.

Door gasket

Be sure to keep the door gasket clean to keep the unit running efficiently.

Cabinet

The cabinet should be cleaned with a mild detergent and warm water.

Use a soft, damp cloth for drying.

◆ Vent opening

Dust or anything else may block the vent and hinder the cooling efficiency of the appliance. Vacuum the vent if necessary.

◆ Container for condensed water (K)

Remove regularly the condensed water with a sponge from the container for condensed water. The container is located on the back side of the device at the right bottom.

Interior view of an appliance showing electrical components and wiring (no readable text or symbols)

◆ Manual defrosting

Please defrost the device at least every 6 months. When you open the door of the device frequently, you need to perform the defrosting more often.

Turn off the power but do not unplug the power plug. Let the appliance then defrost manually. Pay attention to the container for condensed water(K) and remove the condensed water during the defrosting.

15.3 Moving the appliance

Turn off the appliance first and then unplug the unit from the wall outlet.

Remove all content. Shurely tape down all lose items inside your appliance.

Tape doors shut. Be sure the wine refrigerator stays in the upright position during transportation.

16 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

16.1 Safety notices

▲VORSICHT Attention

▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.

16.2 Fault indications and rectification of faults

The following table assists in localizing and rectifying minor faults.

Fault	Possible Cause
Your device is not cold enough or it does not reach the adjusted temperature:	Check the temperature control setting.External environment may require a higher setting.The door is open too often. The door is not closed completely.The door seal does not seal properly.The wine refrigerator does not have the correct clearance.Defrost the device.
The light does not work.	Check the service center.
Vibrations.	Check to assure that the wine refrigerator is level.
The wine refrigerator seems to make to much noise	The wine refrigerator is not level.Check the fan.
The door will not close properly.	The wine refrigerator is not level.The door is reversed and not properly installed.The seal is weak. The shelves are out of position.
LED could not display.	Main control board does not work.PCB Problem. There is some problem with the plug.
LED display error - Lo	Display problem.PCB problem. Check the service center.
Buttons are not functional.	Temperature controller panel is damaged.
Compressor will not start	Room temperature is lower than desired temperature.
Compressor re-start	Compressor will stop working when cooling system in the cabinet reaches presetting temperature, and re-start working until the desired temperature is achieved. Allow a minimum 5 minute interval before re-starting.
Dew on the surface of cabinet :	The surface of wine cabinet especially the glass door appear some frost if item in a damp room. This is due to the moisture in the air coming into contact with the cabinet. Please wipe it away with dry cloth.
Liquid sound	(1)、The sound of compressor when starts or stops working(2)、The flowing sound of refrigerant in the refrigeration system(3)、The evaporating sound of refrigerant in the evaporator
Condensation formed inside the cabinet	Under the environment with high level of humidity or the door of wine cabinet has been left open for a long period or opened frequently, wipe off the door and walls and leave the door closed as long as possible.
Error code E2	Desired temperature is not reached.If necessary defrost the device (Please follow the hints for manual defrosting in chapter cleaning).
Error code CE1	WiFi connection established, but no connection to the internet
Error code CE2	DNS Error – Route to Cloud not found
Error code CE3	CASO Cloud Server not reachable
Error code CE4	WiFi not found, possible reason signal too weak
Error code CE5	Update Server not reachable

HINWEIS

Please note

▶ If you are unable to solve the problem with the steps shown above, please contact Customer Service.

17 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS

Please note

▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away: Before you throw away your old refrigerator take off the doors and leave the shelves in place, so that children may not easily climb inside.
▶ Blowing gas inside the unit is flammable. The disposal of this flammable material should be in accordance with national regulations.

18 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels.

Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery.

All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

19 Technical Data

Name	WineExclusive 38 Smart	WineExclusive 66 Smart
Article No.	721	726
Power	70W	70W
Average daily energy consumption	0.400kW.h/24h	0.452kW.h/24h
Daily energy consumption at 16 °C ambient temperature	0.170kW.h/24h	0.144kW.h/24h
Daily energy consumption at 32 °C ambient temperature	0.630kW.h/24h	0.760kW.h/24h
Connection	220~240V/50Hz	220~240V/50Hz
Outside dimensions (W/H/D)	400 x 1065 x 670 mm	600 x 1080 x 670 mm
Bottles	38 bottles	66 bottles
Weight:	47,8 kg	60,35 kg
WLAN / WIFI	IEEE 802.11 b/g/n	IEEE 802.11 b/g/n
Frequency band	2.4 - 2.4835 GHz	2.4 - 2.4835 GHz
Climate class	ST	ST

Front view of a modern refrigerator with multiple shelves and control buttons (no visible text or symbols)

Interior view of a modern refrigerator with multiple shelves and digital display (no visible text or symbols)

CE HUA

20 Mode d'emploi

20.1 Généralités

Three identical white cylindrical objects with black outlines, arranged horizontally on a gray background (no text or symbols)

Rayonnages normal

Abstract geometric pattern with three horizontal oval shapes, no text or symbols present

Interior view of an industrial refrigerator with visible wiring, cooling unit, and warning label (no readable text or symbols beyond labels)

◆ Dégivrage manuel

Exterior view of a modern refrigerator with multiple shelves and control buttons (no visible text or symbols)

Interior view of a modern refrigerator with multiple shelves and control buttons (no visible text or symbols)

CE RECOCONSHIP HOUSE

29 Istruzioni d'uso

29.1 In generale

Three identical white cylindrical objects arranged vertically on a gray background (no text or symbols)

Ripiani normale

Abstract geometric pattern with three horizontal lines and rounded ends, no text or symbols present.

Ripiani inferiore

Interior view of an electronic device showing internal components including a black box, wiring, and a labeled component 'K' (no readable text or symbols beyond labels)

Exterior view of a modern refrigerator with multiple shelves and control buttons (no visible text or symbols)

Interior view of a modern refrigerator with multiple shelves and control buttons (no visible text or symbols)

CE

Three identical white cylindrical objects with black outlines, arranged horizontally on a gray background (no text or symbols)

Estante normal

Abstract geometric pattern of three horizontal oval shapes with rounded ends, no text or symbols present.

Estante inferior

Interior view of an industrial machine with visible wiring, components, and a warning label (no readable text or symbols beyond labels)

Front view of a modern refrigerator with multiple shelves and control buttons (no visible text or symbols)

Interior view of a modern refrigerator with multiple shelves and control buttons (no visible text or symbols)

CE

▲WARNUNG WAARSCHUWING

Three identical white cylindrical objects with flared ends, arranged horizontally on a gray background (no text or symbols)

Normaal plateau

Onderste plateau

51.5.5 Houten bewaarplateaus eruit nemen

Interior view of an industrial appliance showing a black box with internal components and wiring, no visible text or symbols.
