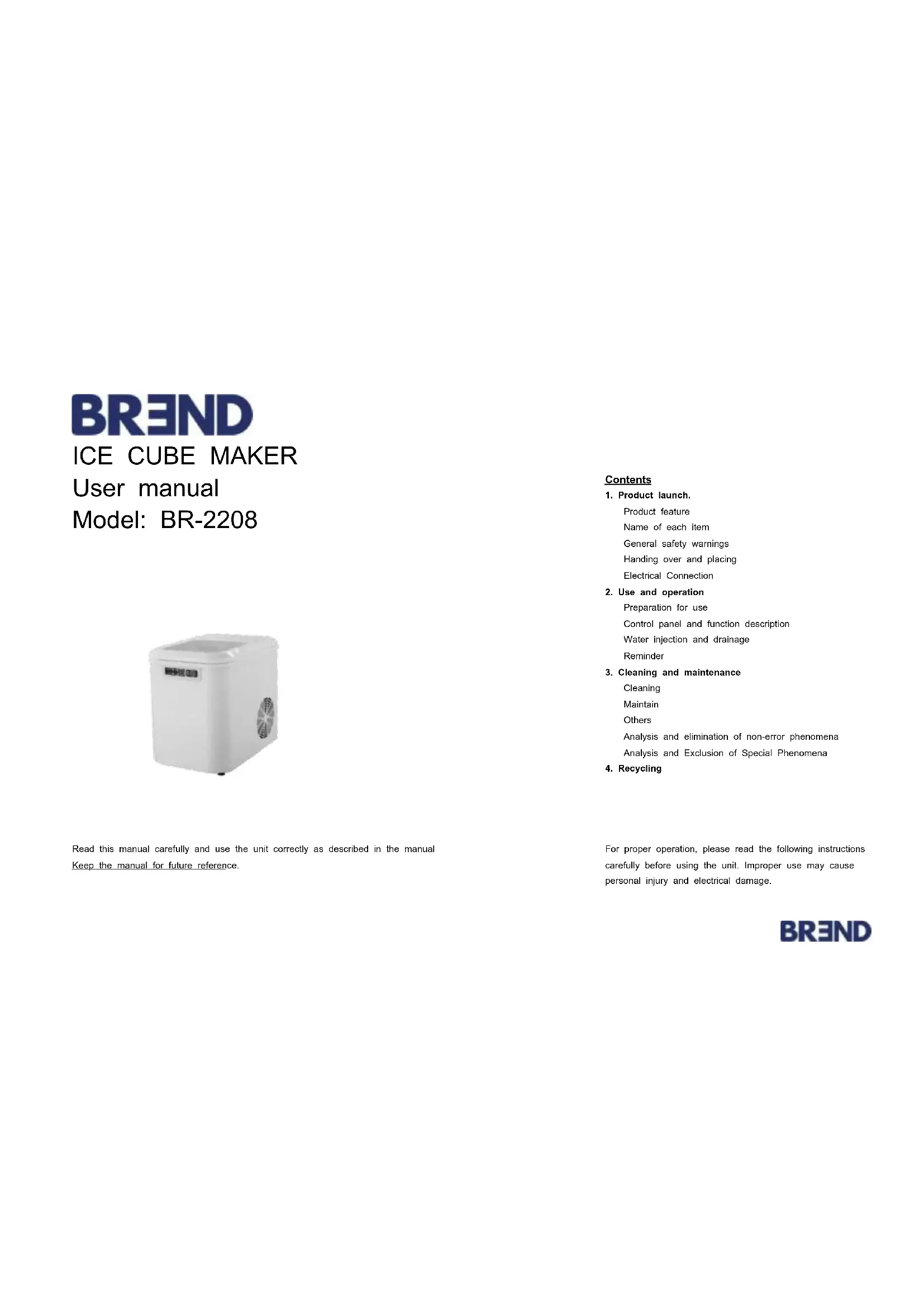

USER MANUAL BR2208 BREND

Product feature Name of each item General safety warnings Handing over and placing Electrical Connection

2. Use and operation

Preparation for use Control panel and function description Water injection and drainage Reminder

3. Cleaning and maintenance

Cleaning Maintain Others Analysis and elimination of non-error phenomena Analysis and Exclusion of Special Phenomena

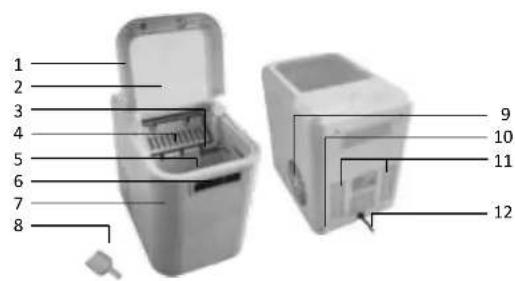

For proper operation, please read the following instructions carefully before using the unit. Improper use may cause personal injury and electrical damage.Product introduction Product Features ■ Make ice cream quickly Adopting compressor cooling technology, efficient ice maker yield bullet. ■ Environmental protection R600a refrigerants and cyclopentane gas are hydrocarbons that do not destroy the ozone layer or cause a greenhouse effect. ■ Climate type Suitable for SN, N, ST, T. ■ Status Notes Low water wanning and decreasing for full storage box-remove ice to continue process. ■ Transparent window The ice making process can be viewed through the transparent window. ■ Moment of use This alliance is intended for use in household and similar applications, such as: - Staff kitchen areas in shops, office and other working environments - Farm house: - By customers in hotels, motels and other residential settings: - Bed and breakfast type environments: List of main components It is only sketch card for this manual, some feature or parts maybe different with your machine, please refer to the product.

5. Ice storage compartment 6. Control panel

◇ Ice house 4-1 Ice cream maker box (water box) 4-2 Evaporator 4-3 Connecting rod 4-4 Ice cream scoop plate ◇ Ice storage The storage area is divided into two parts, the upper part is the ice storage area and the lower part is the water storage area. 5-1 Ice stock basket 5-2 Water max mark 5-3 Water mixture marking 5-4 Water drainage General safety warnings ■ This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, provided they are supervised or have received guidance in the sensible use of the appliance and are aware of the risks involved. 4-1 4-2 4-3 4-4 5-1 5-2 5-3 5-4

12■ Children should not play with the device. Children are not allowed to clean and maintain the device without supervision. Children between the ages of 3 and 8 may take ice. ■ Children should be watched closely to prevent them from playing with and climbing on the ice machine, and no one should climb, sit, stand or lean on the door (lid) of the ice machine to prevent personal injury and damage to the ice machine. ■ Avoid pinching, folding, tying or damaging the power cord. If the power cord is damaged, it must be replaced by a manufacturer's professional, its maintenance service or similar service to avoid danger. The appliance cannot be turned on until the power cord is replaced, otherwise it may easily cause electric shock or even fire. ■ Do not pull the power cord directly when unplugging to prevent it from breaking. ■ When repairing or cleaning the ice maker, unplug it. ■ The ice maker is used primarily for making and briefly storing ice, not for cooling or storing other foods and beverages. ■ Only potable water can be injected to make ice, otherwise it will cause personal injury and product damage. ■ Do not store explosives such as combustion-promoting sprays in the device.

Danger: Do not store or use flammable items, such as gas, paint, gasoline, etc.

near the icemaker, and do not put flammable and explosive items, such as alcohol, gasoline, etc. in the icemaker to prevent explosion and fire。

Danger: Do not place the icemaker in a damp, splashed area.

Warning: this product is only suitable for making and storing ice cubes. It is not

used for other purposes, such as storage of blood and products, medicines, biological products, chemicals and technical data.

Warning: Do not use electrical appliances in the utility room of appliances other

than recommended by the manufacturer。

Warning: The top of the ice maker should not be placed and used microwave

oven, electric plate pot, voltage regulator and other electric devices, also should not be placed on the top of the ice maker heavy objects and liquid containers, in order to prevent people from falling or liquid overflow caused by leakage of electricity caused by electric shock and fire

Warning: In case of flammable gas leakage, close the valve of the leakage

source and try to evacuate the inside air. Do not unplug or operate the icemaker in case of fire.

Warning: Keep ventilation openings in the housing or internal structure of the

unit free from obstructions。

Warning: Do not damage the refrigerant circuit. In case of fire and flammable

material hazard, take care not to ignite flammable material to cause fire

Warning: Do not use machines or other means to speed up the defrosting

process except as recommended by the manufacturer。 Handing over and placing ■ Displacement ◇Do not hold the door (lid) to move the ice maker, do not lift it by the lift structure or the bottom of the product design. ◇Do not lift or turn the icemaker upside down. ■ Placement ◇The ice maker must be placed on a smooth, horizontal surface, otherwise it is dangerous for the user. ◇ The ice maker should be placed in a dry, ventilated place with free flowing air. In order to avoid overheating, affect the ice machine use effect and prevent the occurrence of hazards, the ice machine ventilation grid to maintain more than 20cm around the space, the top to maintain more than 30cm space. ◇ Do not cover or block the ice maker grille, or keep it away from curtains and other flammable materials. Avoid direct exposure to heat or sunlight.

Warning: When placing equipment, be careful not to pinch or damage the power cord.

Do not place multiple portable outlets or portable power sources at the rear of the unit. Electric connection■ Power supply: The icemaker is powered by AC current (see product nameplate for specific power supply specifications), and the allowable voltage variation range is ±10%. ■ To ensure safe use, the socket and the connecting wire must be able to withstand a current of more than 10 A. ■ Be sure to use a separate three-wire outlet with a reliable ground wire. User manual Preparation before use ■ Clean the machine and its parts before use. ■ The appliance must be left standing for 30 minutes after being moved before you turn it on. Failure to follow this instruction may result in damage to your Ice Cube Machine. ■ Pour water into the water storage box (Allow only water that meets the drinking standard). ■ Cleaning inside. Beginning of use ■ Refer to the instructions for the electrical connection. Plug in the power cord and turn on the power. ■ Follow the instructions for water injection and drainage. ■ Refer to the control panel instructions and function settings for setup and startup. ■ If the ice machine has been moved, please stop for 30 minutes before starting to make ice, otherwise the cooling effect will be affected and the cooling system will be seriously damaged. ■ Ensure that the plug is properly connected. Loose plugs can cause wires and outlets to heat up, break and even catch fire. ■ Ensure that the product ventilation grid and surrounding obstacles, ensure that the product ventilation. Control panel and function description ■ Stand-by-mode - After switching on, the work indicator flashes, then the machine will go into standby mode. - In ice making mode, press the ice maker button briefly, and the ice maker icon will appear stops shining and the machine goes into standby mode. ■ Ice cream preparation mode - In other operating modes, except for the rinse and ice-fill reminder modes, press press the icecream preparation button once; the icecream preparation icon flashed and the machine switches to ice preparation mode. - Press the Ice selection button to set the ice size. There are two types of ice cream from which to choose. When you select them, the corresponding icon displayed, which defaults to medium ice. ■ Washing function - In standby mode, if you press and hold the ice machine button for 5 seconds, the L/S icons will start to shine and the machine will switch to wash mode. - In the washing mode, long press of the ice maker button for 5 seconds will stop the washing mode. ■ Ice reminder function - In the standby or ice-making mode, when the ice cubes cover the temperature sensor and the sensor detects that the temperature is about 2°C, the "ice-free" icon will light up and the machine will emit a "di-di" sound for 5 seconds, after which the machine will automatically enter the ice-free reminder mode. - When the temperature sensor detects that the temperature is about 4C, the machine Description of the illustration of the control panel L/S Specify ice size Ice cream full Indicate work Add water. Selecting the ice On/Offwill go into the mode of operation before the ice cream is recalled full. ■ Automatic water supply and water shortage reminder mode - In ice making mode, when the float switch is at the minimum lever line, or the water tank is not full of water, the water shortage icon lights up, makes a "di-di" sound for 5 seconds and switches to water shortage mode. - In the water shortage mode, shortly press the ice maker button, the machine will go into the ice making mode. ■ Ice cube machine is not reset reminder mode - In the ice cream making or washing mode, if the ice cream maker is not on the ice cream making or washing station, the icon of the ice cream maker will not reset and a "di-di" sound will be heard for 5 seconds. The machine will automatically go into the reminder mode for the ice cream maker that has not been reset yet. - 20 minutes later, the machine will automatically switch to ice making mode. - If the ice bucket has not been reset, the machine is put in the ice making mode by pressing briefly on the ice maker button. Water injection and drainage ■ Water injection - Water injection is required when the water volume in the storage area is lower than the minimum water level mark or water. - Artificial injection of drinking water into the storage area. - For each water injection, the volume of water must remain between the maximum and minimum water level marks and must not exceed the maximum water level mark.

Warning: Only potable water can be filled.

■ Drainage - Where the water in the storage area is contaminated or the internal wall of the storage area needs to be cleaned, drainage should be provided. - Unplug the power cord before draining the water. - Move the icemaker so that the water outlet is in a position suitable for manual operation and drainage. - Loosen the drain nut and remove the plug, the water will run out by itself. - After draining, immediately insert the plug and tighten the drain nut. ■ When injecting or draining water, make sure that water is not sprayed on the live parts of the device to avoid danger ■ When reusing after draining, check for leakage at the drain opening to ensure there is no leakage to continue use. Reminder ■ When the ice cube maker is on, do not reach into the ice cube maker to avoid danger. ■ When using purified or distilled water for making ice, there can be a false alarm of water shortage, as long as a little salt can be added ■ The design of the refrigerator is not reset reminder mode is a protective function. In the general： - When there is ice or a foreign object around the outside of the ice box If the ice box is not rotating, it is only necessary to manually remove the ice or foreign object. - If the ice on the icicle greatly affects the rotation of the water box, it is necessary to wait until the ice has melted naturally before using it. It is not allowed to remove the ice on the icicle by force. ■ In order to avoid contamination of food, please follow the following instructions： - Opening the door (lid) for a long period of time can cause a significant increase in temperature in the ice maker storage area. - Regularly clean surfaces that may come into contact with food and accessible drainage systems; Clean the water tank if it has not been used for 48 hours; If there is water in the tank for more than 5 days, flush the water circulation system connected to the water supply system. - If the icemaker is left empty for a long period of time, close it, defrost it, clean it, dry it, and keep the door (lid) open to prevent mold growth in the icemaker. Cleaning and maintenance Cleaning■ Precautions for storage and external cleaning: - You must unplug it before cleaning it. - When cleaning, make sure that no water gets into the live area. - Use a soft towel dipped in warm water or neutral detergent to scrub the inside and outside of the ice maker. - Do not scrub with a cleaning agent that contains an abrasive (such as toothpaste), an acid, a chemical solvent (such as alcohol) or a polish. - Do not rinse with water. Indoor cleaning - Add the water mixed with 50% vinegar. - Open the flush. - After finishing the will mode, drain the water according to the "Drainage". Rotate adding the water, and drain the water along with washing, until the drain water is clear. Maintenance The ice maker should be placed in a place where it is dry and ventilated, to avoid contact with the heat source and the sun. The water that is too hot must be cooled down to inside temperature for making ice. Reduce the time of holding the door/lid open. - Clean the ventilation grid at regular intervals. Other points of interest Turn off, stop using - Unplug the machine when you want to turn it off. - If the machine will not be used for a long period of time, proceed as follows: clean, turn off the machine, and leave a little space between the door and the machine. ATTENTION: IF YOU DECIDE NOT TO USE THE ICEMAKER ANYMORE, THE

STORAGE CAN NOT PRESERVE FOOD

Analysis and elimination of non-error phenomena Fog condensation - The humidity may be too high. Wipe away the water droplet. Clearly different sizes of ice cubes - Stop and start again, try several times. The cooling system is not stable on the first few rounds. - The ambient temperature is too low. Ice cube too small - The ambient temperature is too high or the water temperature is too high. Strange sound ("si-si" "hu-hu" "di-da" "wu-wu") - When the cooling system is in operation, the freezing medium flowing in the tube will cause the sound of "si-si"; - When the cooling system is working, the wind fan will cause the sound of "hu-hu". - When the water box arrives at the defrost location, it will cause the sound of "di-da" by turning the solenoid valve on or off. - When the water runs to the inner box, it will cause the sound of "wu-wu". All these situations are normal. Analysis and exclusion of special phenomena Symptoms Possible cause Handling method The indicator lamp does not light up and there is no sound when the buttons are pressed. The plug is not properly inserted into the wall socket; Power failure; The control system is broken Plug into a power outlet; check for power outage; professional personnel are needed to check the maintenance control system Water leakage The drain nut is not tightened; The drain plug is not capped; Tighten the nut; Plug in and tighten the nut; Remove excess water, professionalExcessive water injection exceeds the position of the ice bucket, and the internal water circulation pipe is not properly connected or damaged；. personnel are required to check and maintain the internal water circulation line; If there is water in the storage room, add water The ice-making mode is not activated; The water quantity is lower than the minimum water level; The outlet of the water storage compartment is blocked; Clean or distilled water is injected; Error in the internal water circulation and detection system Turn on ice preparation mode; Add water according to water injection instructions; Remove foreign objects from water storage area drain; Add a little salt to purified water or distilled water; Professionals are required to inspect and maintain the internal water circulation and detection system; Ice storage area free of ice or small amount of ice, indicating full ice The ambient temperature of the place is lower than 3℃; Ice on the temperature sensor; The parameters of the temperature sensor change; Place in a suitable environment; Remove ice on racks or get back automatically after ice melts naturally; Professionals are needed to check and replace temperature sensor; The icon Ice full flashes (you can still make ice with this phenomenon) Temperature sensor connecting wire falls off, breaks or is internally short-circuited Professionals are needed to check and replace the temperature sensor; There is a constant reminder that the refrigerator has not been reset See tips; Malfunction of the ice preparation box and the internal drive mechanism and detection system; Operate according to hot directions; professionals are required for inspection and maintenance; Ice cream - the ice cream making mode operates normally, no ice cream or a small amount of ice cream Cooling system is not stable in operation; Ventilation grille is blocked; Fan is not working or cooling system is defective；. Continuous observation; Remove objects near the ventilation grille and dust accumulation; Professionals are needed for inspection and maintenance; Difficulty or inability to get rid of ice Low ambient temperature; The ice fell into the ice tray, making the ice too large for reprocessing; Malfunction in the cooling system and control system; Place in a suitable environment; Operate according to hot directions; Professionals are required for inspection and maintenance; Abnormal noise Resonance; Internal movement, control device sound; During ice making, the internal electrical components will vibrate to ensure that no other objects near the ice maker are affected by the vibrations, resulting in resonance and noise of the product. Professional personnel are required for inspection and maintenance.Recycling (disposal of product at end of life) Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Contact your local authority for advice on recyclingEISWÜRFELMASCHINE Betriebsanleitung Modell: BR-2208 Lesen Sie diese Anleitung sorgfältig durch und verwenden Sie das Gerät ordnungsgemäß wie in der Anleitung beschrieben. Bewahren Sie das Handbuch zum späteren Nachschlagen auf Inhalt
