VCW 62801 BR - Vacuum Cleaner BEKO - Free user manual and instructions

Appliance type	Canister vacuum cleaner
Brand	Beko
Model	VCW 62801 BR
Power supply	220-240 V ~ 50/60 Hz
Rated power	750 W
Tank capacity	2.8 L
Operating radius	9 m
Filter type	HEPA 13
Included accessories	Main brush, water brush, telescopic tube, dusting brush, crevice tool
Features	Automatic cord rewind, power adjustment (via switch button)
Tank materials	Durable plastic
Cable length	Approximately 5 m (power cable)
Weight	Approximately 4.5 kg
Dimensions (L x W x H)	Approximately 30 x 25 x 40 cm
Noise level	Approximately 78 dB(A)
Recommended maintenance	Clean the HEPA filter regularly and empty the tank after each use
Safety	Protection against electric shock (class II), automatic shut-off in case of overheating
Environmental instructions	Compliant with WEEE and RoHS, recyclable packaging
Warranty	2 years (according to applicable legislation)

Frequently Asked Questions - VCW 62801 BR BEKO

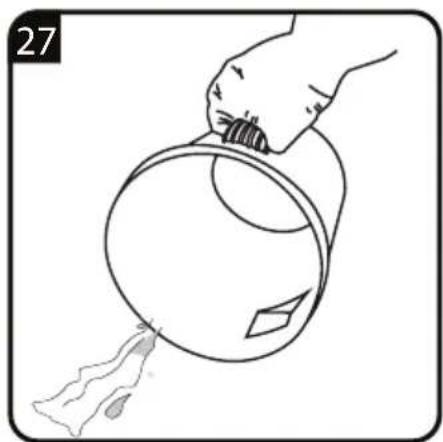

How to empty the dust tank?

Unplug the appliance, press the side button of the tank to unlock it, then empty the contents into a trash bin. You can rinse the tank with clean water if necessary.

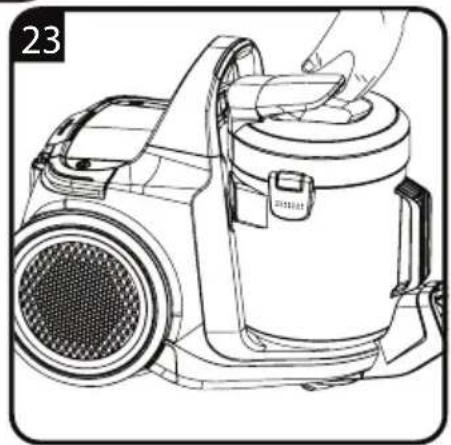

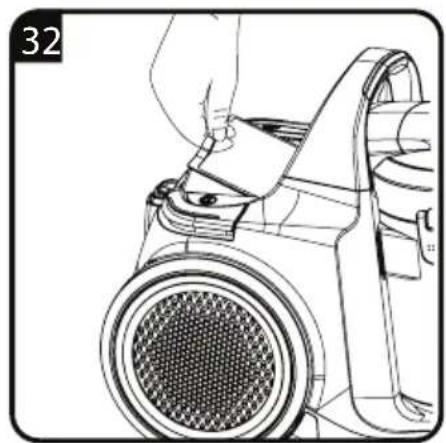

How to clean the HEPA filter?

Remove the filter cover, take out the HEPA filter and gently tap it to remove dust. Do not wash the HEPA filter with water; replace it every 6 months or as needed.

What to do if the vacuum cleaner does not turn on?

Check that the plug is connected and the cable is not damaged. Make sure the switch is in the on position. If the problem persists, contact customer service.

Can I vacuum liquids with this vacuum cleaner?

Yes, this vacuum cleaner is equipped with a water brush and can vacuum liquids. However, do not use it to vacuum flammable or explosive liquids.

How to rewind the power cord?

Press the cable rewind switch on the appliance while guiding the cable to ensure it winds correctly.

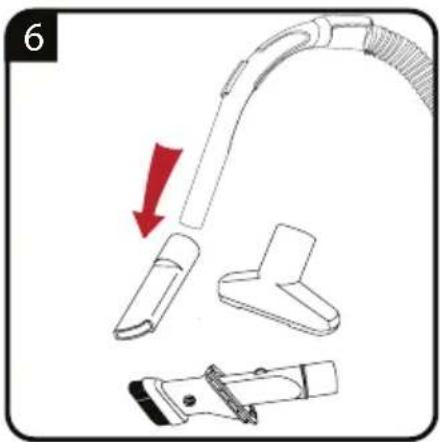

What accessories are included?

The vacuum cleaner comes with a main brush, a water brush, a telescopic tube, a dusting brush, and a crevice tool.

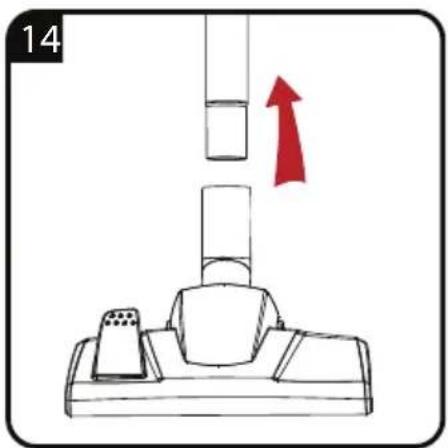

How to use the water brush?

The water brush is designed to vacuum liquids. Make sure the tank is empty and dry before vacuuming liquids. Do not immerse the brush in water.

What is the suction power?

The rated power is 750 W. The suction power varies according to the setting selected via the switch button.

How to store the vacuum cleaner?

Unplug the appliance, wind the cable, store the accessories in their designated locations (brush storage groove) and keep the appliance in a dry place.

What to do if the filter is clogged?

Clean the HEPA filter by tapping it. If performance does not improve, replace the filter. Also check that the hose is not blocked.

USER MANUAL VCW 62801 BR BEKO

Red and black vacuum cleaner with coiled hose and filter (no visible text or symbols)

VCW 62801 BR

EN DE FR ES RO IT

PL SL CS BG HU

Technical diagram of a digital vacuum cleaner with numbered parts labeled for identification.

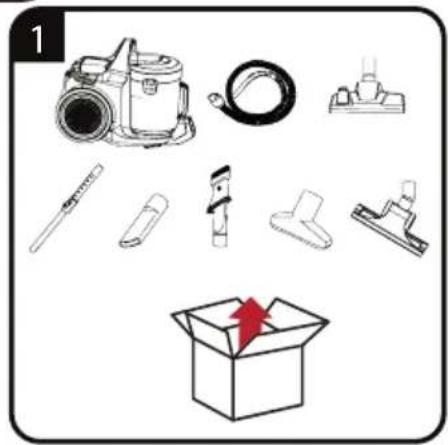

Illustration of various cleaning and repair tools including a camera, ring, tools, and a box with a red arrow (no text or symbols)

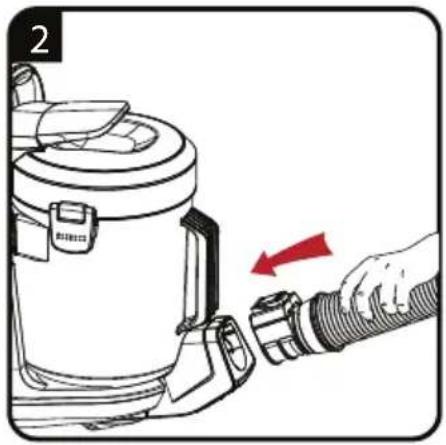

Illustration of a hand holding a flexible hose next to a thermosink (no text or symbols present)

3

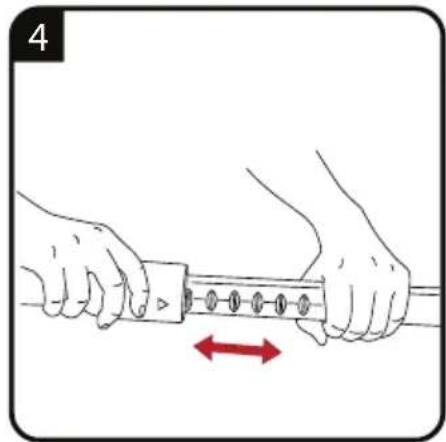

Illustration of hands holding a mechanical component with a red double-headed arrow indicating motion (no text or symbols)

5

Diagram showing a vacuum cleaner with a red arrow indicating the process (no text or symbols present)

Line drawing of a hand inserting a component into a device, no text or symbols present

Line drawing of hands holding a container with a lid (no text or symbols)

Line drawing of a cylindrical industrial vessel with heat exchanger and lid (no text or symbols)

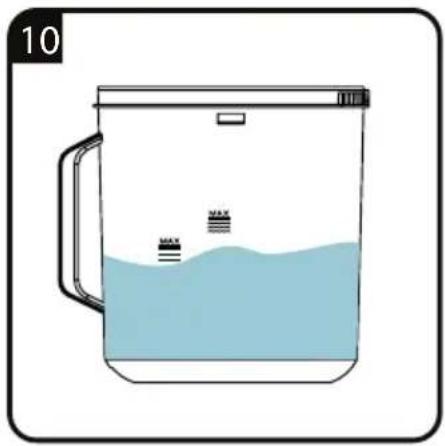

10 MAX MAX

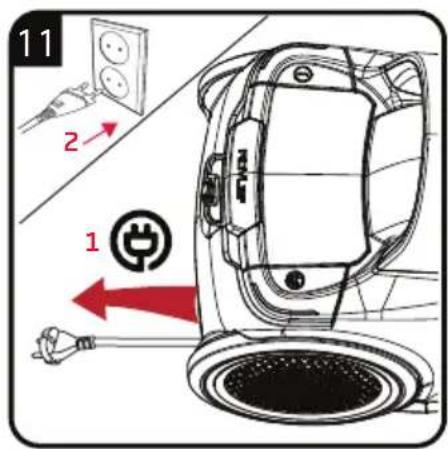

11 2 1

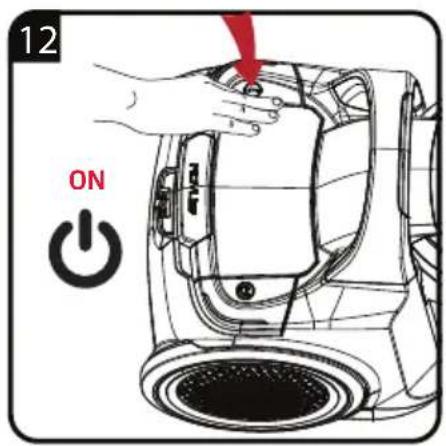

12 ON

13

Diagram of a mechanical device with a red upward arrow indicating motion or force (no text or symbols present)

Diagram of a mechanical device with a red arrow indicating downward motion (no text or symbols)

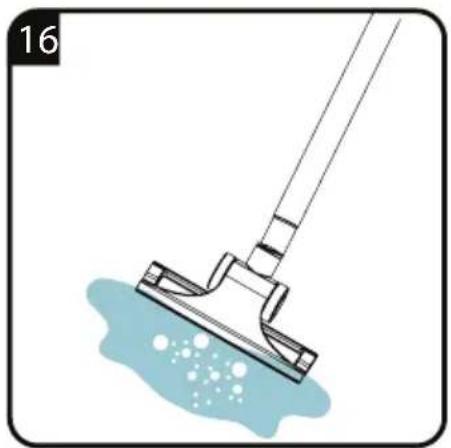

Illustration of a mop cleaning a blue surface with bubbles (no text or symbols)

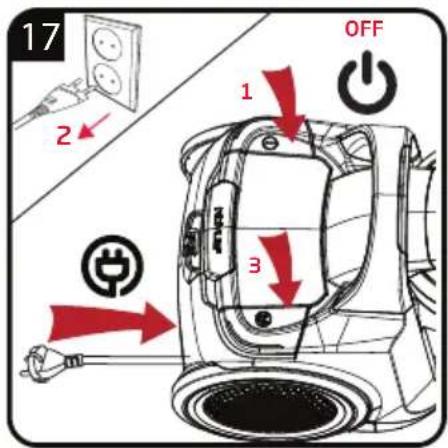

17 2 1 OFF 3

Line drawing of a hand inserting a component into a device, showing mesh chamber and lid (no text or symbols)

Line drawing of a hand holding a container with a lid, no text or symbols present

Line drawing of a portable stove or oven with a lid and side-mounted heating element (no text or symbols)

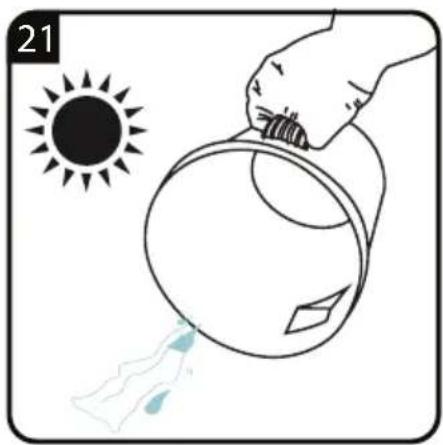

Illustration of a hand pouring liquid into a container with a sun symbol nearby (no text or labels)

Technical diagram of a mechanical component with a red arrow indicating a specific part (no text or symbols present)

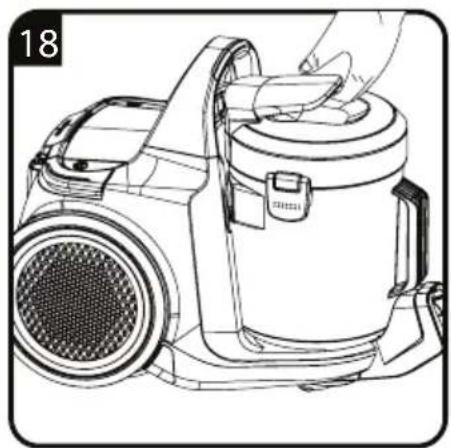

Line drawing of a vacuum cleaner with handle and lid, no text or symbols present

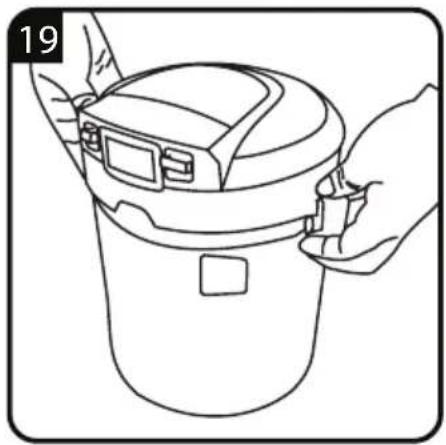

Line drawing of a hand holding a container with a lid, no text or symbols present

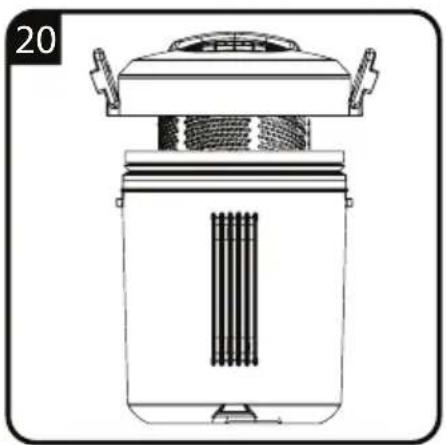

Line drawing of a cylindrical industrial vessel with a lid and internal structure (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand holding a circular object with a flag, next to a small object (no text or symbols)

Illustration of hands using a portable electric fan to clean or feed a bucket (no text or symbols visible)

Illustration of hands operating a mechanical device with a spool (no text or symbols visible)

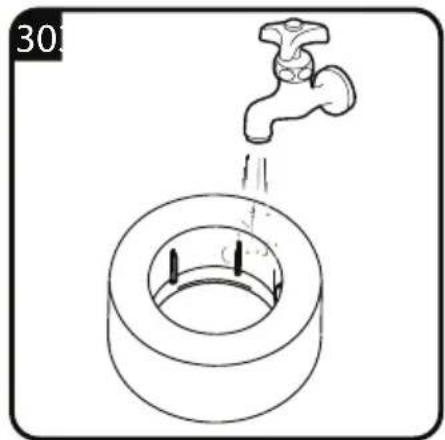

Illustration of a faucet pouring liquid into a circular tank (no text or symbols)

Line drawing of a hand adjusting a component on a car wheel (no text or symbols)

Line drawing of a hand adjusting a mechanical component with a mesh grille (no text or symbols)

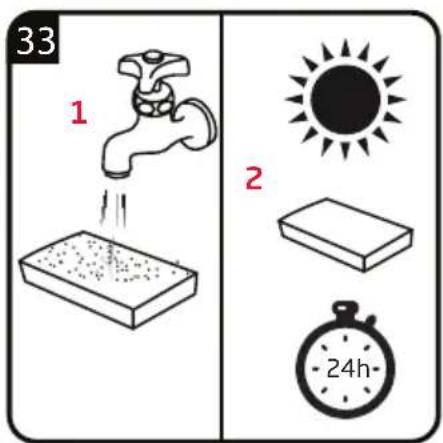

33 1 2 24h

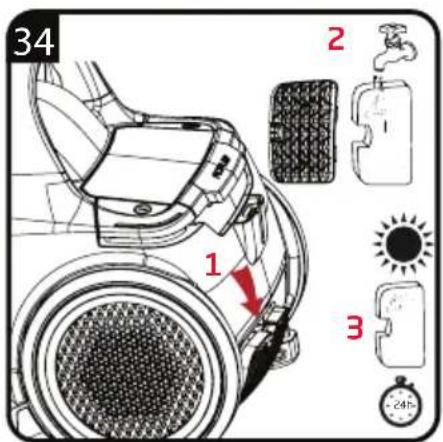

34 1 2 3

EN	OPERATION CLEANING AND CARE
DE	BETRIEB REINIGUNG UND PFLEGE
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
RO	UTILIZARE CURĂȚAREA ȘI ÎNGRIJIREA
IT	UTILIZZO PULIZIA E CURA
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA
SL	DELOVANJE ČIŠČENJE IN VZDRŽEVANJE
CS	PROVOZ ČIŠTĚNÍ A PÉČE
BG	РАБОТА ПОЧИСТВАНЕ И ГРИЖИ
HU	MŰKÖDÉS TISZTÍTÁS ÉS KARBANTARTÁS

Please read this user manual first!

Dear Customers,

Thank you for selecting an Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Protection class for electric shock.

1. Handle

2. Tank upper handle

3. Tank side button

4. Tank front handle

5. Dust tank

6. Hose inlet

7. Rear wheel

8. Parquet/carpet brush parking groove

9. Cable rewind switch

10. Filter cover

11. Switch button

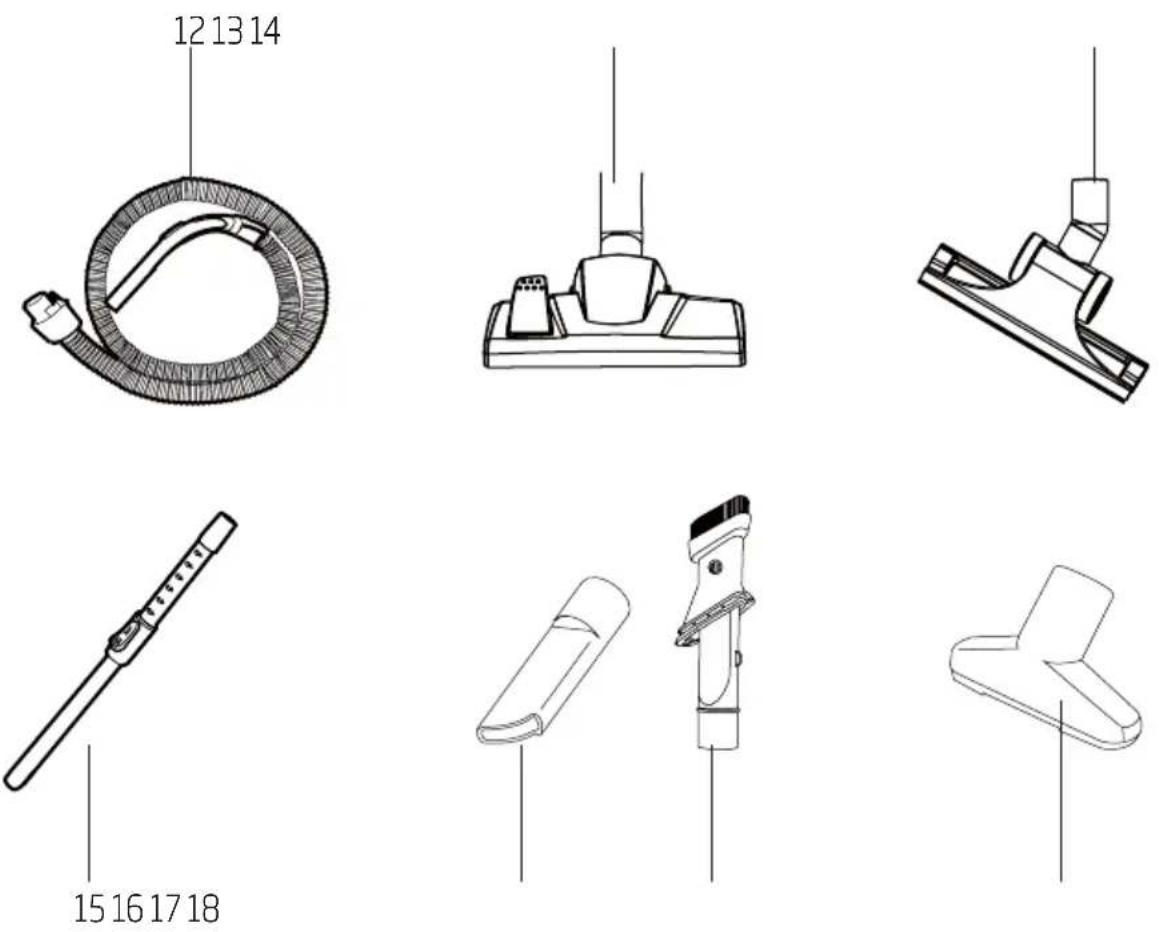

12. Hose and handle

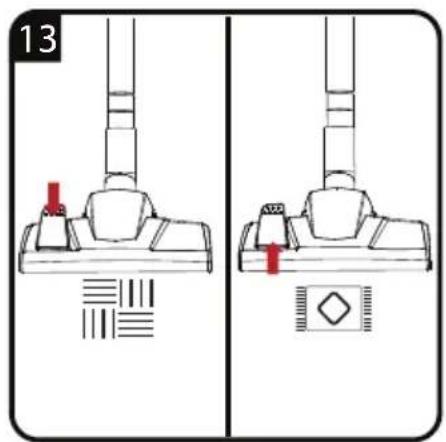

13. Main brush

14. Water brush

15. Telescopic tube

16. Crevice

17. Optional

18. Dusting brush

Technical data

Power supply : 220-240 V\~ 50/60 Hz

Power : 750 W

Water and

Technical and design modifications reserved.

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

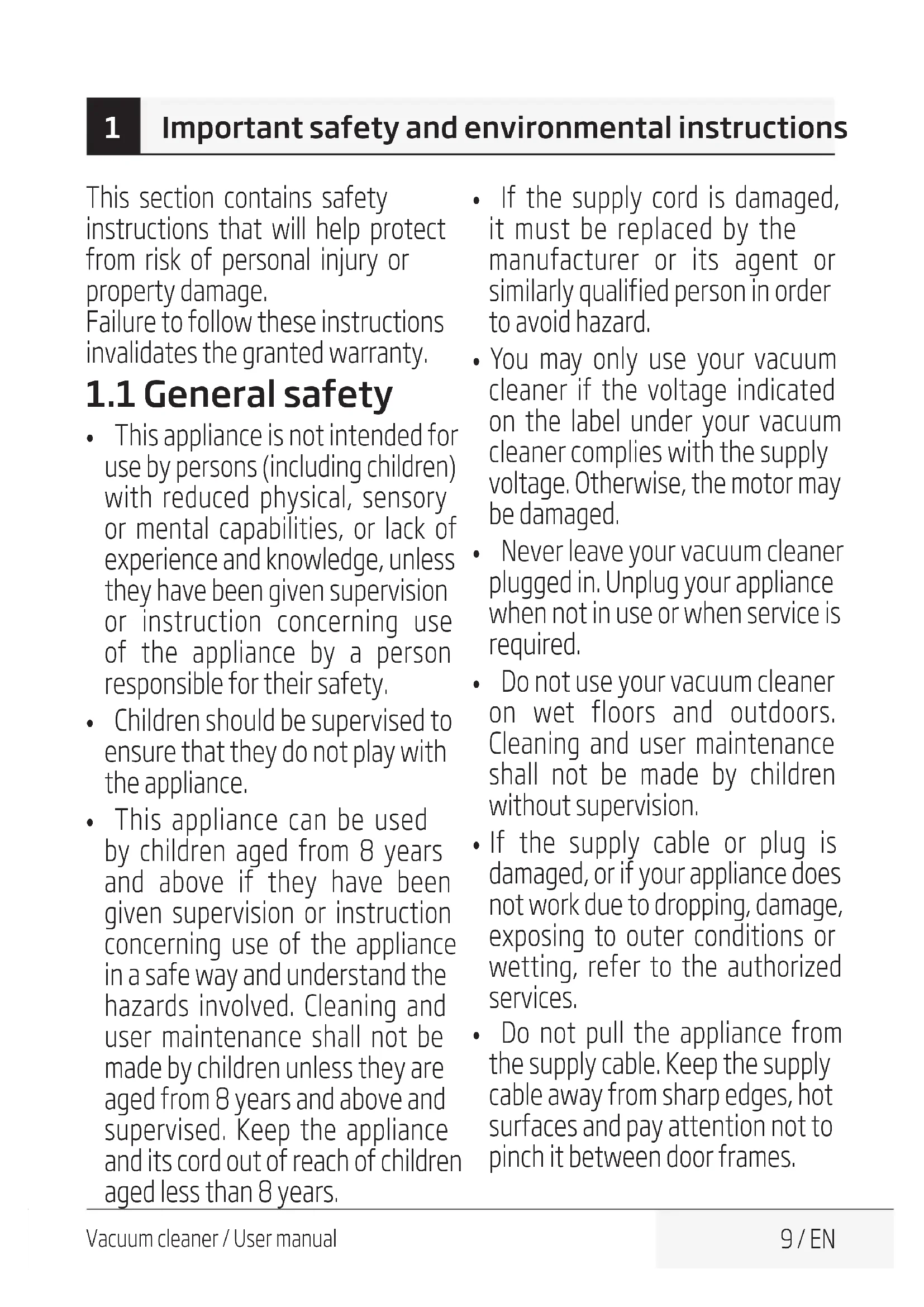

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

- If the supply cord is damaged, it must be replaced by the manufacturer or its agent or similarly qualified person in order to avoid hazard.

- You may only use your vacuum cleaner if the voltage indicated on the label under your vacuum cleaner complies with the supply voltage. Otherwise, the motor may be damaged.

- Never leave your vacuum cleaner plugged in. Unplug your appliance when not in use or when service is required.

- Do not use your vacuum cleaner on wet floors and outdoors. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cable or plug is damaged, or if your appliance does not work due to dropping, damage, exposing to outer conditions or wetting, refer to the authorized services.

- Do not pull the appliance from the supply cable. Keep the supply cable away from sharp edges, hot surfaces and pay attention not to pinch it between door frames.

1 Important safety and environmental instructions

• Do not unplug by pulling the cable. Always hold the plug to take it out from the socket.
• Do not touch the plug or the appliance with wet hands.
• Do not drop anything on to the exposed parts of your vacuum cleaner. Pay attention that the air ducts and openings are always open.
• Keep your hands, hair and clothes away from the running parts of the appliance.
• Do not vacuum flammable materials (cigarette ash, fireplace ash).
• Always turn off all control buttons on your vacuum cleaner prior to unplugging it.
• Do not absorb combustible and explosive liquids with your vacuum cleaner. Do not use your vacuum cleaner at areas where such liquids exist.
  • Always unplug the appliance prior to attaching or replacing the supplied accessories.

• Do not operate your vacuum cleaner in a vertical position to the floor.

• Do not use your vacuum cleaner when its filters are not attached and without putting water in it.

• Things to be done for energy saving.
• If your vacuum cleaner is featured with absorption power adjustment, you can have the appliance draw less energy.
• Cleaning your product's filters frequently or replacing the same will both increase your product's performance and also decrease cleaning time which will provide energy saving.

3 Information

3.1 Cleaning and care

Switch off and unplug the appliance, before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

3.2 Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

3.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

3.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

3.5 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Pull the appliance's plug out.
• Keep the appliance out of the reach of children.

Please see the cover page of the user manual for initial use, general use and cleaning sections.
