USER MANUAL MWOFS30100SS BEKO

MWOFS 30100 SS EN - FR 01M-9206293200-5022-01 User Manual Microwave Oven2 / EN Microwave Oven / User Manual CONTENTS ENGLISH 3-18 FRANÇAIS 19-35Please read this user manual first! Dear Valued Customer, Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual. Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual. Meanings of the Symbols Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and prop- erty. Warning for hot surfaces.

WARNING: Warning for electric shock.4 / EN Microwave Oven / User Manual

• Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

• Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: – Door (bent) – Hinges and latches (broken or loosened) – Door seals and sealing surface

• The oven should not be adjusted or repaired by anyone except properly qualified service personnel.5 / ENMicrowave Oven / User Manual

1.1 IMPORTANT SAFETY

INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns,

electric shock, fire, injury to persons or exposure to excessive microwave ener- gy:

1. Read all instructions before using the

2. Read and follow the specific: “

3. This appliance must be grounded.

Connect only to properly grounded out- let. See “ GROUNDING INSTRUCTIONS” found on page 6.

4. Install or locate this appliance only in

accordance with the provided installa- tion instructions.

5. Some products such as whole eggs

and sealed containers - for example, closed glass jars - are able to explode and should not be heated in this oven.

6. Use this appliance only for its intend-

ed use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industri- al or laboratory use.

8. Do not operate this appliance if it has a

damaged cord or plug, if it is not work- ing properly, or if it has been damaged or dropped.

9. This appliance should be serviced only

by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment.

10. Do not cover or block any openings

11. Do not store this appliance outdoors.

Do not use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surface.

15. When cleaning surfaces of door and

oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.

16. To reduce the risk of fire in the oven

cavity: – Do not overcook food. Carefully at- tend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. – Remove wire twist-ties from paper or plastic bag before placing bag in oven. – If material inside of the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or cir- cuit breaker panel. – Do not use the cavity for storage purposes. Do not leave paper pro- ducts, cooking utensils, or food in the cavity when not in use. 1 Important safety and environmental instructionsMicrowave Oven / User Manual6 / EN 1 Important safety and environmental instructions

17. Liquids, such as water, coffee, or tea

are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present.

THIS COULD RESULT IN VERY HOT

OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: – Do not overheat the liquid. – Stir the liquid both before and half- way through heating it. – Do not use straight-sided containers with narrow necks. – After heating, allow the container to stand in the microwave oven for a short time before removing the con- tainer. – Use extreme care when inserting a spoon or other utensil into the con- tainer. SAVE THESE INSTRUCTIONS.

Electric Shock Hazard Touching some of the inter- nal components can cause serious personal injury or death. Do not disassemble this appliance.

Electric Shock Hazard Improper use of the ground- ing can result in electric shock. Do not plug into an outlet until appliance is prop- erly installed and grounded. Three-pronged (grounding) plug This appliance must be grounded. In the event of an electrical short circuit, ground- ing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having grounding wire with a ground- ing plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of

the grounding can result in a risk of electric shock. Consult a qualified electrician or service- man if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an ex- tension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug, and a 3-slot receptacle that will ac- cept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the elec- trical rating of the appliance.

• A short power-supply cord is provided to reduce the risks resulting from be- coming entangled in or tripping over a longer cord.

• Longer cord sets or extension cords are available and may be used if cared is exercised in their use.7 / ENMicrowave Oven / User Manual

• If a long cord sets or extension cord is used: – The marked electrical rating of the cord set or extension marked elect- rical rating of the cord set or exten- sion cord should be at least as great as the electrical rating of the appli- ance. – The extension cord must be a grounding-type 3-wire cord; and – The longer cord should be arranged so that it will not drape over the co- untertop or tabletop where it can be pulled on by children or tripped over unintentionally.

1.3 RADIO INTERFERENCE

1. Operation of the microwave oven may

cause interference to your radio, TV or similar equipment.

2. When there is interference, it may be

reduced or eliminated by taking the fol- lowing measures: – Clean door and sealing surface of the oven – Reorient the receiving antenna of radio or television. – Relocate the microwave oven with respect to the receiver. – Move the microwave oven away from the receiver. – Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits. UTENSILS

Hazard Tightly-closed uten- sils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking. See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in ques- tion following the procedure below. Utensil Test:

• Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.

• Cook on maximum power for 1 minute.

• Carefully feel the utensil. If the empty utensil is warm, do not use it for micro- wave cooking.

• Do not exceed 1 minute cooking time. 1 Important safety and environmental instructionsMicrowave Oven / User Manual8 / EN Materials you can use in microwave oven Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat re- sistant and may break. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven cooking bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Paper plates and cups Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled “Microwa- ve Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package. Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish. Metal or metaltrimmed utensils Metal shields the food from microwave energy. Metal trim may cause arcing. Metal twist ties May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. 1 Important safety and environmental instructions9 / ENMicrowave Oven / User Manual Wood Use for short–term cooking/warming only. Do not leave oven unattended whi- le cooking. Paper towels Wood will dry out when used in the microwave oven and may split or crack.

• Metallic containers for food and beverages are not allowed during microwave co- oking.

• Care should be taken not to displace the turntable when removing containers from the appliance.

• The appliance shall not be cleaned with a steam cleaner.

1.4 Package information

Packaging materials of the product are manufactured from recyclable ma- terials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. 1 Important safety and environmental instructions10 / EN Microwave Oven / User Manual 2 Your microwave oven

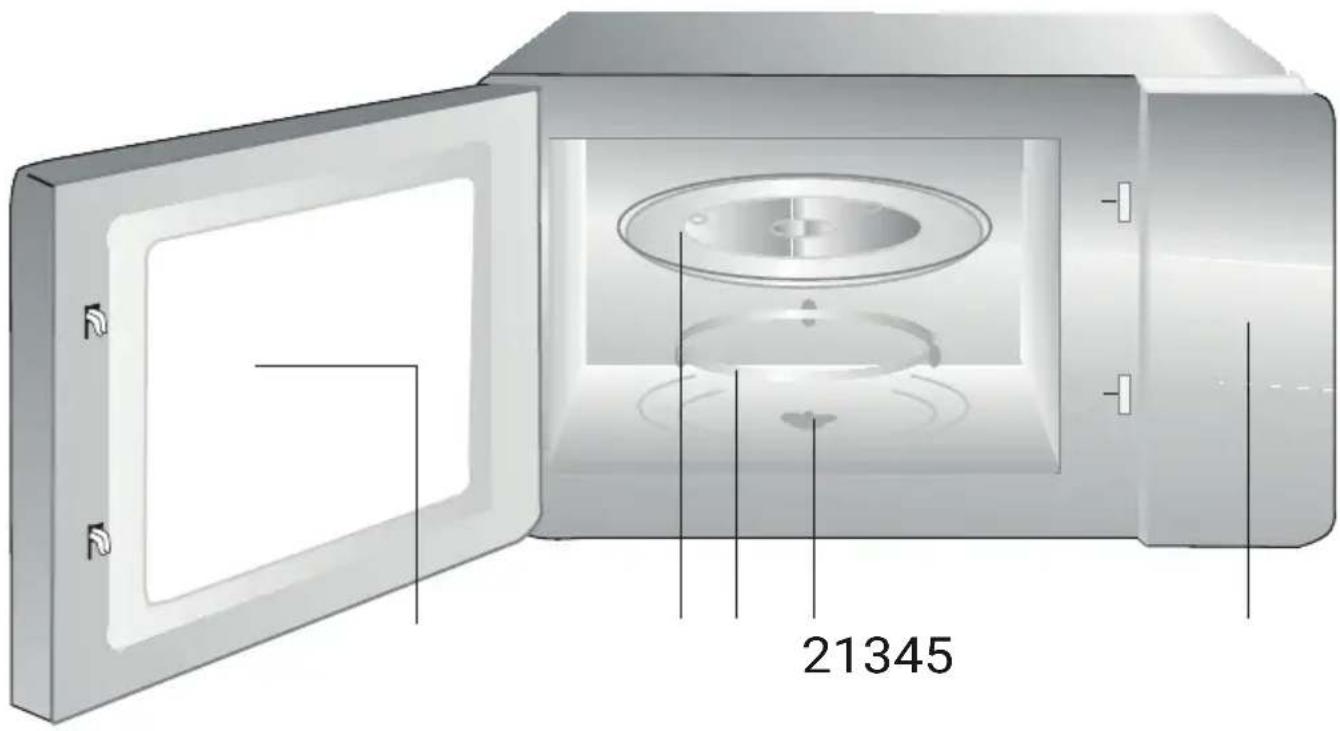

3. Turntable support

Rated voltage 120V~ 60HzInput power (Microwave) 1500 WOutput power (Microwave) 1100 WOperating frequency 2450 MHzTurntable diameter Ø420 mmExternal dimensions 620*499*346 mmOven Capacity 62 LitersNet weight Approx. 43 lbs. Technical and design modification rights are reserved.11 / ENMicrowave Oven / User Manual 2 Your microwave oven

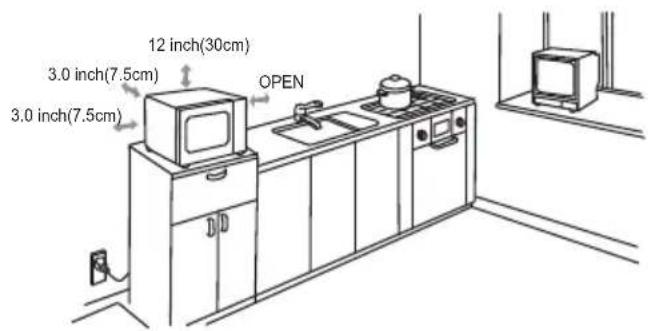

3.1 Countertop installation

Remove all packing material and acces-sories. Examine the oven for any dam-age such as dents or broken door. Do not install if oven is damaged.Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

• Select a level surface that provide eno- ugh open space for the intake and/or outlet vents.3.0 inch(7.5cm)3.0 inch(7.5cm)12 inch(30cm) OPEN
• A minimum clearance of 3.0 inches 3 Installation (7.5cm) is required between the oven and any adjacent walls. One side must be open. The minimum installation he-ight is 3.0ft(91.6cm). • Leave a minimum clearance of 12 inc-hes (30cm) above the oven.
• Do not remove the legs from the bot- tom of the oven.
• Blocking the intake and/or outlet ope- nings can damage the oven. • Place the oven as far away from radios and TV as possible. Operation of mic-rowave oven may cause interference to your radio or TV reception. • Plug your oven into a standard house-hold outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label. The trim kit Beko MWOKT 30100 SS is required for built-in use. And the installa-tion information contained in trim kit installation manual of Beko MWOKT 30100 SS.

2.3 Installing the turntable

• Never place the glass tray upside down. The glass tray should never be restricted. • Both glass tray and turntable support must always be used during cooking. • All food and containers of food must always place on the glass tray for co-oking. • If glass tray or turntable support crack or break, contact your nearest authori-zed service center. Göbek (alt kısım) Cam tabla Döner tabla desteği Döner tabla mili Hub (underside)Glass trayTurntable shaftTurntable support12 / EN Microwave Oven / User Manual 4 Operation

1. Press “Clock” once, “00:00” will display.

2. Press the number keys and enter the

current time. For example, time is 10:12 now, please press “1, 0, 1, 2” in turn.

3. Press “Clock” to finish clock setting. “:”

will flash and the clock will be lighted.

4. If the numbers input are not within the

range of 1:00--12:59, the setting will be invalid until valid numbers are input.

In the process of clock set- ting, if the “Stop/Clear” button is pressed or if there is no op- eration within 1 minute, the oven will go back to the for- mer setting automatically. If the clock need to be reset, please repeat step 1 to step

1. Press “Cook Time” once, the screen will

2. Press number keys to input the cook-

ing time; the maximum cooking time is 99 minutes and 99 seconds.

3. Press “Power Level” once, screen will

display “PL10”. The default power is 100% power. Now you can press num- ber keys to adjust the power level.

4. Press “Start/+30 Sec” to start cooking.13 / ENMicrowave Oven / User Manual

Example: To cook the food with 50% mi- crowave power for 15 minutes.

2. Press “1, 5, 0, 0” in order.

3. Press “Power Level” once,then press

“5” to select 50% microwave power.

4. Press “Start/+30 Sec” to start cooking.

In the process of setting, if the “Stop/Clear” button is pressed or if there is no op- eration within 1 minute, the oven will go back to the for- mer setting automatically. You can skip the step of “3” and cook at 100% microwave power.

2. Press the number keys and enter the

timer time.(the maximum cooking time is 99 minutes and 99 seconds)

3. Press “Start/+30 Sec” to confirm set-

ting, time counts down.

4. When the timer time arrives, the buzzer

The kitchen time is differ from 12-hour system,Kitchen Timer is a timer. Kitchen Timer and cooking (including microwave, defrost- ing, Auto menu) are independ- ent, all the cooking for func- tions can be set during run- ning Kitchen Timer, Kitchen Timer can be set during run- ning other cooking functions. Example: When oven is cooking with 50% microwave power for 15 minutes, screen display countdown cooking time, you want to set timer 10 minutes.

2. Press the number keys and enter the

timer time. If no entering timer in 10 seconds, timer set is cancled and oven return to countdown cooking time.

3. Press “Start/+30 Sec”, timer is operat-

ed. Timer counts down in screen. If no press “Start/+30 Sec” in 10 seconds , timer set is canceled and oven return to countdown cooking time.

4. If timer countdown time earlier than

the end of cooking process, buzzer sound 3 times, after the buzzer, screen display the remaining cooking time. If the cooking process earlier than the end of the program Timer timer, buzzer sound 5 times, screen display count- down timer. When the timer time arrives, buzzer sound 3 times, and screen dis- play “End”. If the cooking process and the Timer tim- er finishe at the same time, buzzer sound 5 times and screen display “End” .

1. In waiting state, instant cooking at

100% power level with 30 seconds’ cooking time can be started by press- ing “Start/+30 Sec”. Each press on the same button will increase cooking time by 30 seconds. The maximumcooking time is 99 minutes and 99 seconds.

2. In waiting state, press number keys

1~6 to start cooking for 100% power level with the corresponding cooking time 1~6 minutes directly. 4 Operation14 / EN Microwave Oven / User Manual

During microwave cooking and time defrost , time can be added by pressing “Start/+30 Sec” button.

4.7 Weight defrost function

1. Press “Weight Defrost“ once, screen

will display “0.0 lb”

2. Press number keys to input the weight

to be defrosted. If the weight input is not within 0.3~6.3(lb), the input will be invalid.

3. Press “Start/+30 Sec” to start defrost-

ing and the cooking time remained will be displayed.

4.8 Time defrost function

1. Press “Time Defrost“ once, screen will

time. The maximum value is 99:99.

3. Press “Start/+30 Sec” to start defrost-

ing. The remained cooking time will be- displayed.

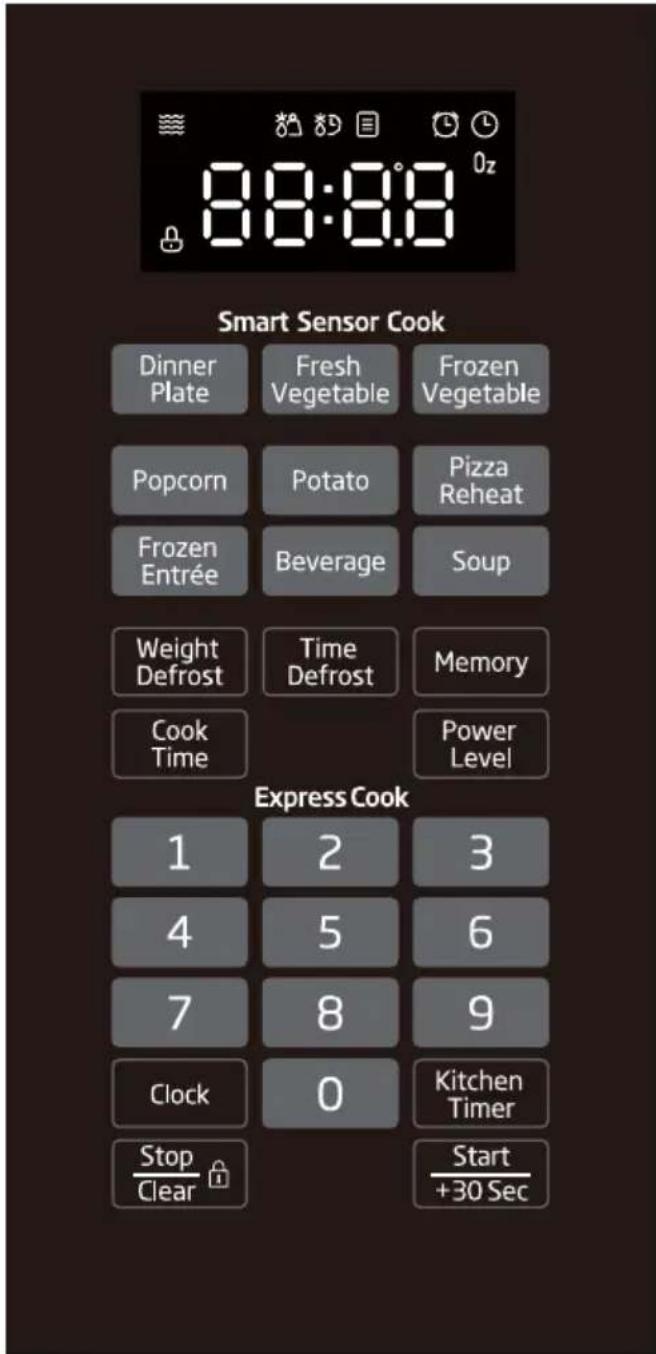

1. In waiting state, press “Popcorn, Potato,

Pizza Reheat, Frozen Entree, Beverage or Soup” to choose the desired menu.

2. Press the chosen menu key repeatedly

to choose the weight of the food.

3. Press “Start/+30 Sec” to start cooking.

1. In waiting state, press “Dinner Plate,

Fresh Vegetable or Frozen Vegetable”, the screen will display “SC”.

2. Press “Start/+30 Sec” to start sensor

cooking. “SC” will flash in the display.

3. The buzzer will sound once when the

sensor has finished, the surplus cook- ing time will count down.

4.11 Memory function

1. Press “Memory” to choose memory

1-3 procedure. The screen will display 1,2,3.

2. If the procedure has been set, press

“Start/+30 Sec” to use it. If not, con- tinue to set the procedure. Only one or two stages can be set.

3. If the procedure has not been set, after

finishing the setting, press “Memory” once to save the procedure and turn back to the waiting states. If press “Start/+30 Sec” it will save the proce-15 / ENMicrowave Oven / User Manual 4 Operation dure then start cooking at once. Example: To set the following procedure as the second memory, that is memory

2. to cook the food with 80% microwave

power for 3minutes and 20 seconds. The steps are as follow:

1. In waiting states, press “Memory”

twice, stop pressing until the screen displays “2”.

play, then press “8” and “PL8” displays.

4. Press “Memory” to save the setting.

Buzzer sounds once then turn back to waiting states. If you press “Start/+30 Sec” again, the procedure will be saved as the memory 2 and operated.

Defrosting and Auto menu can not be set in memory function. The procedure will still be saved if the electricity is cut off.

4.12 Multi-stage cooking

At most 2 stages can be set for cook- ing. In multi-stage cooking, if one stage is defrosting, then defrosting shall be placed at the first stage automatically. Note: Auto menu cannot work in the mul- ti-stage cooking. Example: If you want to cook with 80% microwave power for 5 minutes + 60% microwave power for 10 minutes. The cooking steps are as following:

1. Press “Cook Time” once,then press “5,

0, 0” to set the cooking time;

2. Press “Power Level” once,then press

“8” to select 80% microwave power.

3. Press “Cook Time” once,then press “1,

0 , 0 , 0” to set the cooking time;

4. Press “Power Level” once,then press

“6” to select 60% microwave power.

5. Press “Start/+30 Sec” to start cooking.

4.13 Inquiring function

In cooking state, press “Clock”, the oven will display clock for three seconds.

The default mode is OFF Mode. In wait- ing state, open the door and then press “7” for 3 seconds to enter to mute mode. mute icon will display, you can operate the oven without sound. Press “7” for 3 seconds again to cancel it.

4.15 Lock function for children

You can use this function to prevent chil- dren from accidentally turning the oven on. Lock: In waiting state, press “Stop/ Clear” for 3 seconds, there will be a long “beep” denoting the entering into the chil- dren-lock state, and the lock indicator will light. The screen will display the current time(if the clock is set) or “0:00” . Unlock: In locked state, press “Stop/ Clear” for 3 seconds, there will be a long “beep” denoting that lock is released.

4.16 Door lock function

When there is not any operation more than 5 minutes, if you set a cooking func- tion, “door” will display when you press “Start/+30sec”, denoting that it can’t work as usually (clock and kitchen timer can be set), you can open then close the door and press “Start/+30sec” again to restore these cooking functions.16 / EN Microwave Oven / User Manual 4 Operation

4.17 Cooking end reminding function

At the end of cooking or kitchen timer, the buzzer will sound 5 “beeps” to alert user the operation is finished. If you want to cancel the buzzer remind at the end of cook-ing or kitchen timer, in standby mode, open the door then press “8” for 3 seconds, “Good” will display. 5 Cleaning and maintenance

WARNING: Never use gasoline, solvent, abrasive

cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Never immerse the appliance or its po-

wer cable in water or in any other liquid. 1. Turn off the oven and remove the power plug from the wall socket before cleaning.2. Wait for the appliance to completely cool down.3. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.4. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.5. Wipe the both sides of the door and window, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.6. A steam cleaner is not be used.7. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.8. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high hu-midity condition. And it is normal.9. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.17 / ENMicrowave Oven / User Manual 5 Cleaning and maintenance

10. The roller ring and oven floor should be cleaned regularly to avoid excessive

noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

11. Remove odors from your oven by combining a cup of water with the juice and

skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

12. When it becomes necessary to replace the oven light, please consult a dealer to

13. The oven should be cleaned regularly and any food deposits removed. Failure to

maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

14. Please do not dispose this appliance into the domestic rubbish bin; it should be

disposed to the particular disposal center provided by the municipalities.

15. When the microwave oven with grill function is first used, it may produce slight

smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

• If you do not intend to use the appliance for a long time, please store it carefully.

• Please make sure that the appliance is unplugged, cooled down and totally dry.

• Store the appliance in a cool and dry place.

• Keep the appliance out of the reach of children.

5.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.

• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
