USER MANUAL VST413WA INVENTUM

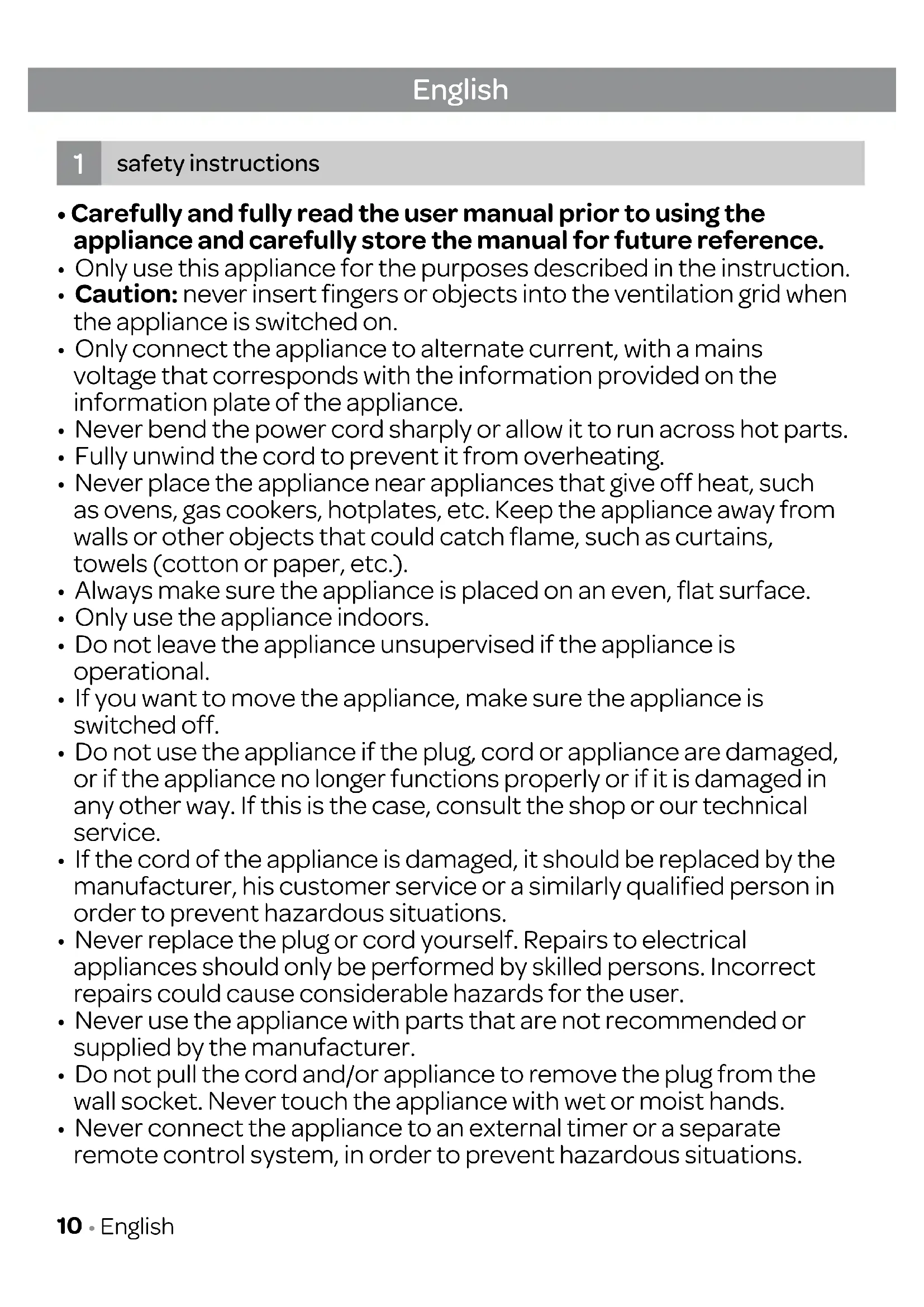

1. safety instructions page 10

4. cleaning and maintenance page 14

general terms and conditions of service and warranty page 28

• Carefully and fully read the user manual prior to using the appliance and carefully store the manual for future reference.

• Only use this appliance for the purposes described in the instruction.

• Caution: never insert fingers or objects into the ventilation grid when the appliance is switched on.

• Only connect the appliance to alternate current, with a mains voltage that corresponds with the information provided on the information plate of the appliance.

• Never bend the power cord sharply or allow it to run across hot parts.

• Fully unwind the cord to prevent it from overheating.

• Never place the appliance near appliances that give off heat, such as ovens, gas cookers, hotplates, etc. Keep the appliance away from walls or other objects that could catch flame, such as curtains, towels (cotton or paper, etc.).

• Always make sure the appliance is placed on an even, flat surface.

• Only use the appliance indoors.

• Do not leave the appliance unsupervised if the appliance is operational.

• If you want to move the appliance, make sure the appliance is switched off.

• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. If this is the case, consult the shop or our technical service.

• If the cord of the appliance is damaged, it should be replaced by the manufacturer, his customer service or a similarly qualified person in order to prevent hazardous situations.

• Never replace the plug or cord yourself. Repairs to electrical appliances should only be performed by skilled persons. Incorrect repairs could cause considerable hazards for the user.

• Never use the appliance with parts that are not recommended or supplied by the manufacturer.

• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or moist hands.

• Never connect the appliance to an external timer or a separate remote control system, in order to prevent hazardous situations.

• Keep the appliance out of reach of children. Children do not see the dangers when handling electrical appliances. Therefore, never allow children to work with electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.

• The appliance can be used by children of 8 years and older and persons with a limited physical, sensory or mental capacity or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards involved.

• Children are not allowed to play with the appliance.

• The appliance may not be cleaned or maintained by children, unless this is done under supervision.

• If the appliance is not being used or is being cleaned, fully switch off the appliance by removing the plug from the socket.

• Extension cords may only be used if the mains voltage (see the information plate) and capacity are identical to or higher than that of the appliance. Always use an approved extension cord.

• If you decide not to use the appliance any more due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. Take the appliance to the waste processing department concerned of your municipality.

• Never submerge the appliance, cord or plug in water.

• This appliance is intended for household and similar use, such as: - in staff kitchens, shops, offices and other work environments; - by guests of hotels, motels and other residential environments; - in Bed&Breakfast type environments; - farms.

• If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.

• If you decide not to use the appliance any more due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. Small household appliances do not belong in the dustbin. Take the appliance to the waste processing department concerned of your municipality.assembly instructions

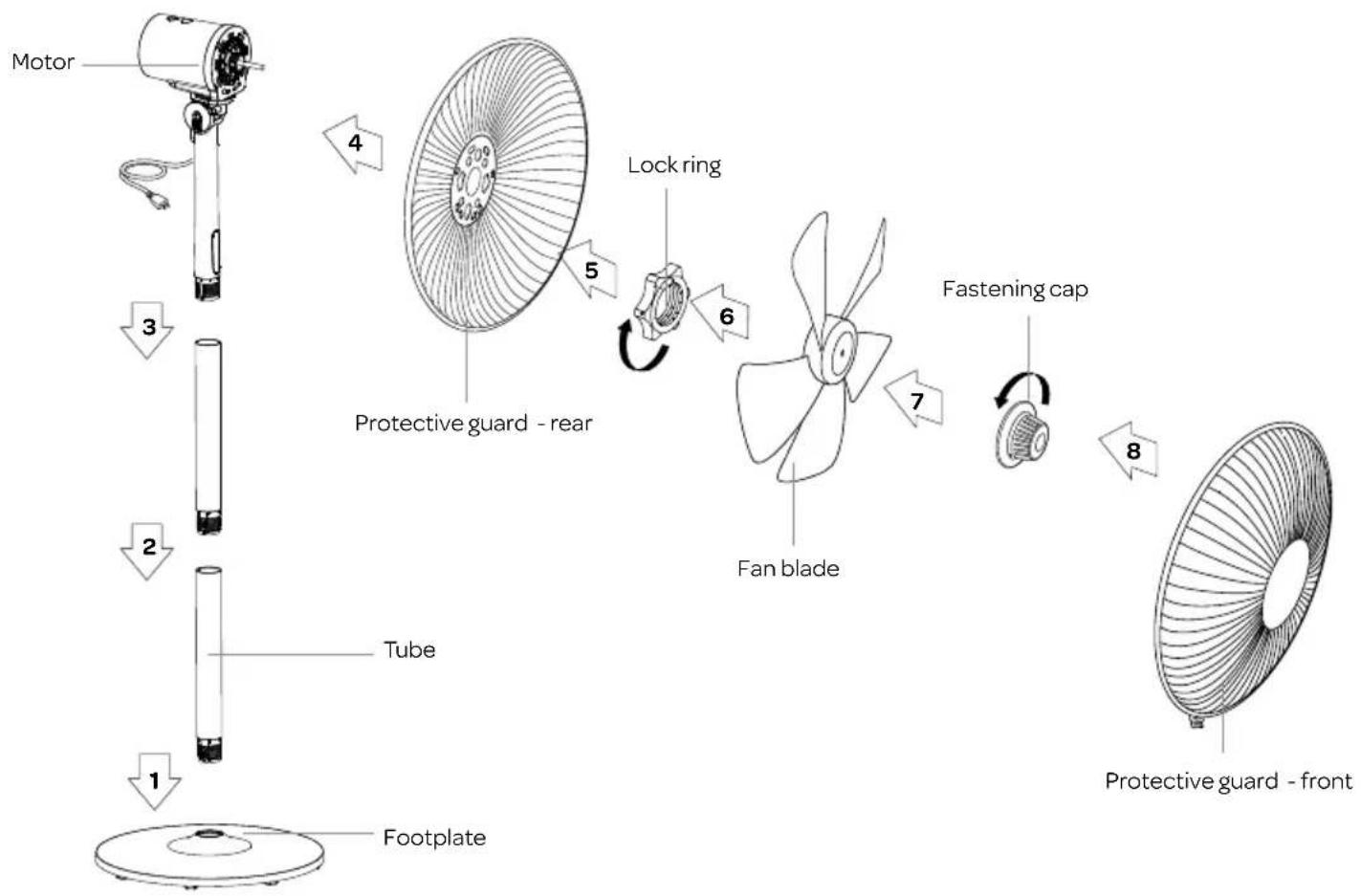

Before using the fan for the first time, please proceed as follows: carefully unpack the appliance and all components and remove all packaging material and any promotional stickers. Keep the packaging (plastic bags and cardboard) out of the reach of children. After unpacking the appliance, check it for external damage that may have occurred during transport. Assemble the fan in accordance with the instructions. Before assembling, determine the height at which you want to use the fan. This affects the installation of the number of tubes. COMPLETE ASSEMBLY 1. Start by attaching the footplate to the pedestal. Take a tube and place it in the opening of the footplate and fasten it.

2. Attach the next tube to the tube on the footplate.

3. Place the pedestal with the motor section on the tube.

4. Place the rear protective guard on the fan.

5. Fasten it by tightening the lock ring.

6. Insert the fan blade onto the fan. Test the fan blade by rotating it by hand. During rotation,

the blade should not create any friction with the lock ring. If it does, remove the fan and repeat all steps from the beginning.

7. Mount the fan blade with the fastening cap. Tighten the fastening cap by turning it to the left - counter-clockwise.

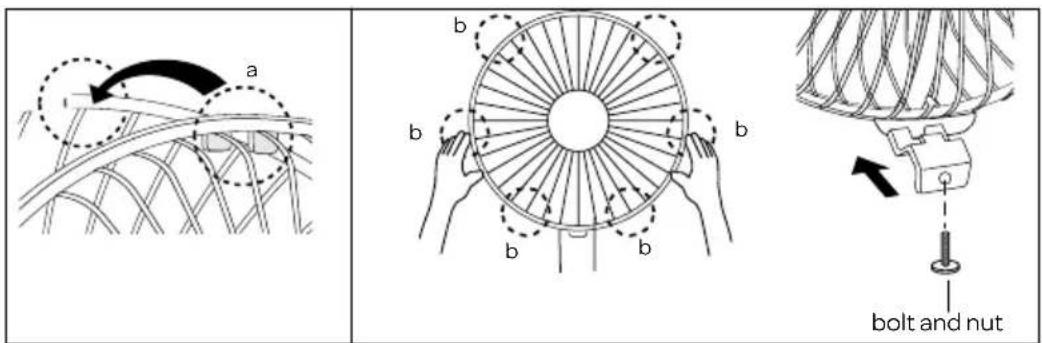

8. Place the front protective guard on the fan and use the clamps to attach it to the rear protective guard.

- Align the front protective guard with the rear protective guard using the positioning clamp on the bottom side in order to attach both parts to each other properly. Use the bolt and nut at the top of the guards to fasten the guards to each other. - Press the clamps [ b ] downwards in order to fasten the front and rear protective guards to each other.

Protective guard - front Protective guard - rear Fan blade Lock ring Fastening cap Motor Tube Footplate

bThe range of the remote control is approx. 5 metres at an angle of 30° in front of the fan. Insert the two supplied AAA 1.5 Volt batteries in the remote control, as indicated in the drawing. Do take the plus and minus symbols on the inside of the remote control into account. The remote control has the same function keys as the fan’s control panel. Turning the fan on and off Insert the plug in a wall socket. Press the ON

OFF key to switch on the fan. By pressing the key once more, you switch off the appliance. Setting the speed With every press on the SPEED key you change the speed of the fan, from 1 to 8. Setting 1 is low and setting 8 is high. Setting the timer Press the TIMER key to start the timer. The time period is increased in steps of 1 hour when you repeatedly press this key, up to a maximum of 8 hours. For example, if you want to set the fan to 5 hours, press this button until the number 5 appears in the display. A short beep indicates the timer being set at 5 hours. A clock appears in the display. The fan will switch off when the entire programme has been completed. It is not possible to check the remaining time of the timer. If you want to stop the timer function or set a new time, you must continue to press the TIMER key until the setting is back to zero. The timer can also be set without the remote control. Press the SPEED key during 2 seconds to enter the timer mode. Oscillation This fan is able to oscillate (swerve to the left and right) for a better air displacement. If you want to change the wind to an upward or downward direction, you can simply move the fan head upwards or downwards. Energy saving To save energy, the display will automatically switch off after aprrox. 30 seconds. Press the SPEED or OSCILLATION key to activate the display. Place the fan on a flat, stable surface. Clean the exterior of the fan using a slightly damp cloth and then wipe it with a dry cloth. The fan is ready for use. using the fan

batteries English • 13 speed timer on/off oscillationcleaning and maintenance

Before cleaning the fan, you must switch it off with the ON

OFF key and remove the plug from the socket.

• Wipe the exterior of the appliance with a slightly damp cloth and dry properly.

• If necessary, you can clean the protective guard using a vacuum cleaner (nozzle).

• Do not use aggressive or abrasive cleaning agents for cleaning the appliance.

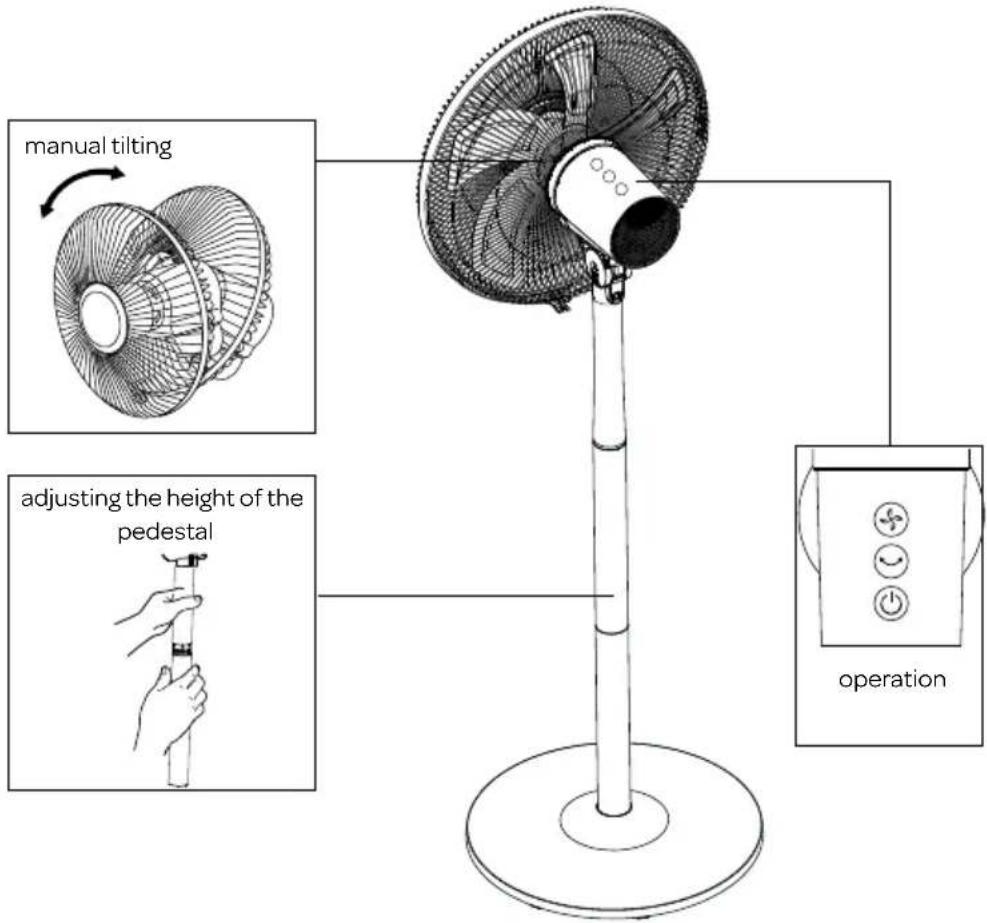

• Never submerge the fan in water or any other liquid. Adjusting the height of the pedestal In order to adjust the height, remove 1 or 2 tubes from the pedestal. Loosen the tubes and attache the pedestal with the motor section to the footplate.

aansprakelijkheid voortvloeit uit dwingendrechtelijke bepalingen. 5. Op deze garantie- en servicevoorwaarden is Nederlands recht van toepassing. Geschillen zullen uitsluitend worden berecht door de bevoegde Nederlandse rechter. algemene service- en garantievoorwaardenWe do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs. 2-year full manufacturer’s warranty 1. Customers enjoy a 2-year full manufacturer’s warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer’s warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www. inventum.eu/service-aanvraag.

2. The 2-year warranty period starts from the date the product is bought.

3. In order to claim under the warranty, you must produce a copy of the original receipt.

4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period 1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department. 2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense. 3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance. 4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour. 5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment. Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;

• failure to comply with the operating and maintenance instructions;

• unprofessional installation or repairs by third parties or the customer himself;

• non-original parts used by the customer;

• use for commercial or business purposes;

• removal of the serial number and/or rating label.

2. In addition, the warranty does not apply to normal consumer goods, such as:

• external connection cables;

• glass accessories and glass parts such as oven doors;

• and similar items. 3. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect. 4. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance. Important to know 1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.

2. If a complaint is unfounded, all costs arising from it will be at the customer’s expense.

3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer. 4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions. 5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court. general terms and conditions of service and warranty
