KK 28 - Fridge AEG - Free user manual and instructions

Product type	Peltier effect refrigerator (electrothermal cooler)
Model	KK 28
Brand	AEG
Dimensions (closed, H x W x D)	43,0 x 46,0 x 31,0 cm
Dimensions (open, H x W x D)	72,5 x 46,0 x 31,0 cm
Weight	7,1 kg
Usable volume	28 L
Power supply	12 V DC (via cigarette lighter plug) and 230 V AC (via mains adapter)
Rated power (12 V)	40 W (cooling)
Rated power (230 V)	55 W (cooling)
Protection fuse	8 A (in the cigarette lighter plug)
Temperature control	Thermostat with continuous adjustment (Min-Max) in 230 V mode
Climate class	SN / N (ambient temperature +16 °C to +32 °C)
Energy efficiency class	A++
Annual energy consumption	80 kWh/year (according to standardised tests)
Functions	Cooling only (no warming function)
Intended use	Cooling of packaged food and drinks or in suitable containers
Cleaning and maintenance	Clean the inside and outside with a damp cloth; store in a clean and dry place
Safety	Replaceable fuse; do not use if cable is damaged; do not cover during operation; stop if smoke/odor
Spare parts supplied	Spare fuses (8 A)
Repairability	Have repaired by a specialist workshop; do not disassemble yourself
General information	Non-commercial use; do not use with cold accumulators or ice packs

Frequently Asked Questions - KK 28 AEG

How to connect the AEG KK 28 refrigerator to a 230 V mains socket?

Use the supplied 230 V mains plug (cable with mains plug). Plug it into a standard mains socket. The appliance starts cooling automatically. Ensure that the mains voltage corresponds to 230 V AC.

Can I use the KK 28 in a car?

Yes, plug the 12 V cigarette lighter plug (with 8 A fuse) into a vehicle's cigarette lighter socket. Note that some sockets are only active after the engine is started. Check the vehicle manual.

How to adjust the cooling temperature?

When operating on 230 V, use the regulator (item 7) to continuously adjust the cooling power from 'Min' (economy) to 'Max' (lower temperature, higher consumption). On 12 V, the power is fixed.

What to do if the refrigerator no longer cools?

First check the fuse in the cigarette lighter plug (8 A). If it is blown, replace it with a fuse of the same rating. If the problem persists, contact a specialist workshop. Do not use a higher-rated fuse.

Can I store medications in the KK 28?

Yes, but first check that the cooling capacity of the appliance meets the storage requirements of the medication. Food must be packaged or placed in suitable containers.

How to clean the interior of the refrigerator?

Use a damp cloth with mild detergent if necessary. Wipe carefully after each use to prevent mold. Never immerse the appliance in water.

Can the KK 28 heat food?

No, this model (KK 28) only provides cooling. The warming function is only available on model KK 14 (switch position 'HOT'). For the KK 28, only cooling is possible.

What is the annual electricity consumption of the KK 28?

The annual energy consumption is 80 kWh according to standardised tests. Actual consumption depends on use, ambient temperature, and the chosen setting.

Does the appliance turn off automatically?

No, the refrigerator runs continuously as long as it is plugged in. To stop it, unplug the mains plug or the cigarette lighter plug. In a car, the battery can discharge if the engine is off.

What to do if condensation forms inside?

Condensation is normal after prolonged cooling. Wipe it with a dry cloth. This does not indicate a defect. Make sure the lid is tightly closed to limit humidity.

USER MANUAL KK 28 AEG

GB Instructions for use Cool box KK 14, KK 24, KK 28

FR Mode d'emploi Glacière KK 14, KK 24, KK 28

Read these instructions before using the charger. Follow all instructions and recommendations.

FR - Page 33

14 www.aeg-automotive.com

10697

1 2 3 4 5 6 7 8 9 10 11 MINMAX

Cooling process.... 30

Tips for achieving the best cooling power ....31

Cleaning, care and maintenance....31

Changing the fuses ....31

Service....31

Disposal....32

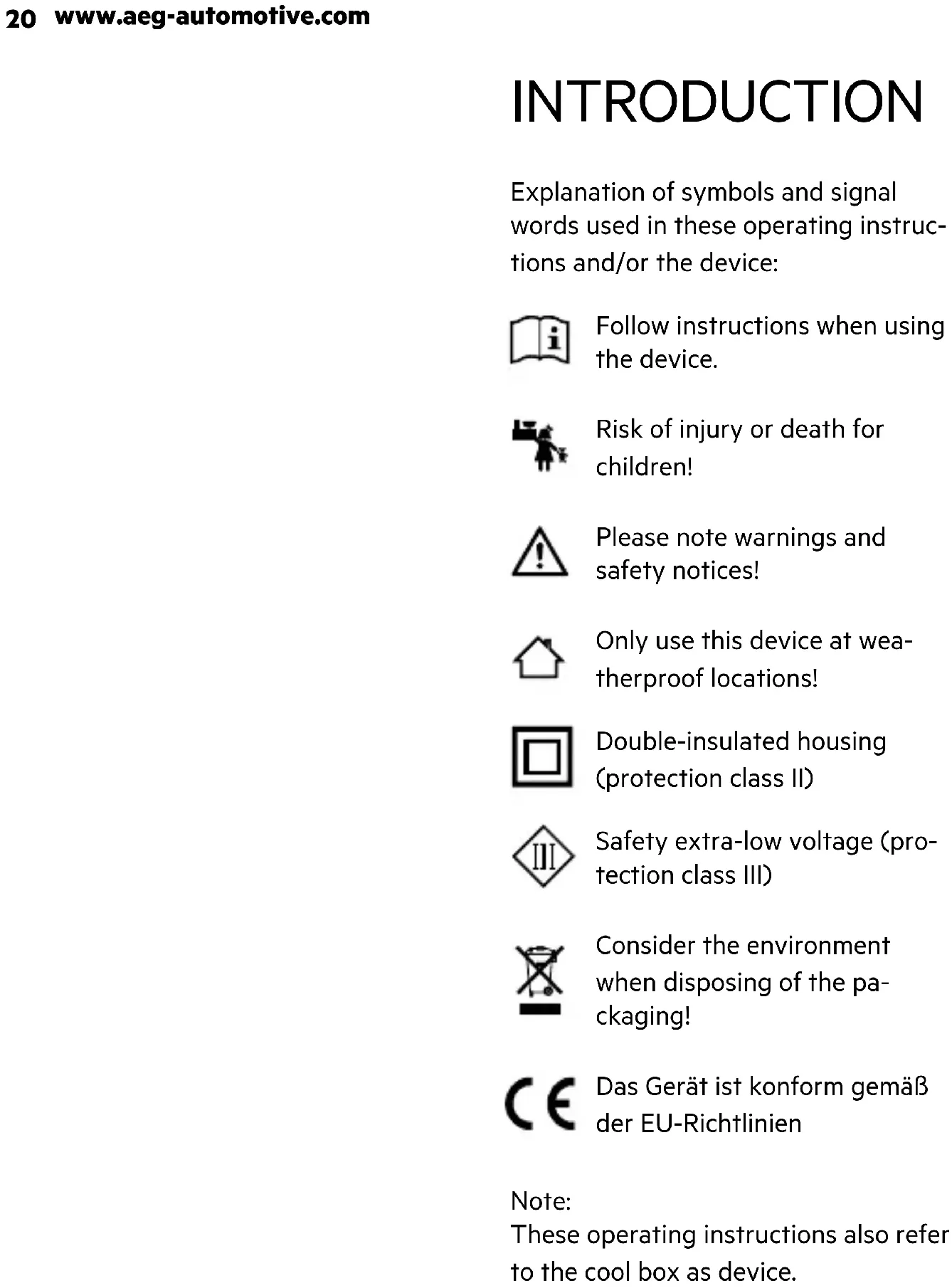

INTRODUCTION

Explanation of symbols and signal words used in these operating instructions and/or the device:

Follow instructions when using the device.

Risk of injury or death for children!

Please note warnings and safety notices!

Only use this device at weatherproof locations!

Double-insulated housing (protection class II)

Safety extra-low voltage (pro-tection class III)

Consider the environment when disposing of the packaging!

These operating instructions also refer to the cool box as device.

Intended use

The cool box is used to cool food and beverages. Cooling is achieved using an electrothermal transducer (Peltier element) with a fan. It connects to power via the car adapter (12 V) or a 230 V power supply.

This device is not intended for storing and transporting unpackaged foods.

This device may be used by children age eight (8) years and up and persons with limited physical, sensory or mental capacity or lacking experience and/or knowledge when supervised or instructed on the safe use of the device and having understood the risks involved. Children must not play with this device. Cleaning and user maintenance must not be performed by children without supervision.

This device is not intended for commercial use.

Any other use or modification of the device is considered improper and involves significant risks. The manufacturer assumes no liability for damages due to improper use.

Contents

Be sure to verify contents immediately upon opening the product. Check the product and all parts for damage. Do not use a defective product or parts.

• Cool Box KK 14 or KK 24 or KK 28 incl. connecting cable with 12 V car plug/230 V plug
  3 Spare fuses (8 A)
  ●Operating instructions

Please include all relevant documentation to other users!

Technical data

Model KK 14 KK 24 KK 28
Item number 10695 10696	10697
Dimensions in cm (h x w x d) closed	42.5 x 38.3 x 25.4	42.5 x 42.3 x 31.3	43.0 x 46.0 x 31.0
Dimensions in cm (h x w x d) open	62 x 38.3 x 25.4	72.3 x 42.3 x 31.3	72.5 x 46.0 x 31.0
Weight ~3.5 kg ~6.2 kg ~7,1 kg
Volume 14 L	24 L	28 L
Power supply	12 V DC	12 V DC / 230 V AC
Power rating at 12 V	40 W (cool), 35 W (heat)	40 W (cool)	40 W (cool)
Power rating at 230 V	-	55 W (cool)	55 W (cool)
Fuse	8 A (12 V car plug)
Temperature control	Thermostat
Ambient temperature	+16 °C to +32 °C

Model KK 24 KK 28
Device category Category 10, multi-purpose cooling units and other cooling units
Climate class SN/N
Energy efficiency class	A++
Power consumption1	79 kWh/year 80 kWh/year

^1 based on results of testing to standards over 24 hours. Actual consumption depends on use and the location of the device.

SAFETY

General safety guidelines

Read all safety guidelines and instructions. Non-compliance with safety guidelines and instructions can cause electric shock, fire and / or serious injury. Keep all safety guidelines and instructions for future reference.

Please include all relevant documentation to other users!

Warning!

Risk of bodily or fatal injury to children! Risk of suffocation or strangulation! Keep the machine out of the reach of children. Children are unable to assess the risks associated with use of this product!

Danger!

Damaged leads may cause fatal electric shock. Discontinue use if leads are damaged.

The manufacturer is not responsible for damages caused by:

Improper use.

External forces, damage to the device and/or damage to parts of the device due to mechanical impacts or overload.

Any type of modifications to the device.

Using the device for purposes not described in this operating manual.

Subsequent damages from improper and/or incorrect use.

Moisture and/or inadequate ventilation.

Unauthorised opening of the device.

This will void the warranty.

Fire hazard!

For 230 V power supply, ensure the mains voltage matches the input voltage specified on the device (230 V AC) to prevent a fire hazard and damage to the device.

For 12 V power supply, ensure the on-board voltage matches the input voltage specified on the device (12 V DC) to prevent a fire hazard and damage to the device.

Do not modify the plug in any way.

The coolbag is not suitable for continuous use. Otherwise overheating and permanent damage may result.

Do not cover the device during use, as it may be damaged from extreme heating.

Immediately stop using the device if you notice smoke or an unusual odour.

Risk of electrical shock!

Do no expose the device to rain or wet conditions. Avoid pouring or dripping water or other liquids over it. If water penetrates electrical devices, the risk of electric shock increases.

Please verify there is no moisture on plugs and cables. Never connect the device to the on-board power system with wet hands.

Always unplug the cable from the 12 V car outlet by the plug. The cable may otherwise be damaged.

Do not use device if damaged. Damage to the device or the charging cable increases the risk of electrical shock.

Do not attempt to dis- assemble or repair the device. Immediately have the device repaired or re- placed by a speciality shop if defective.

Never use the cable to carry or pull the device.

Never operate the device if it has been dropped or damaged in any other way. For inspection and repair, take it to a qualified electrician.

If the power supply on this device is damaged, it must be replaced by the manufacturer, a manufacturer authorised service station or a similarly qualified person to prevent hazards.

Risk of injury!

When transporting the device in a vehicle, keep it secured in the boot or a suitable storage area to

prevent it from moving in the event of sudden vehicle movement.

Be sure the device has a solid footing. The device will tip and can fall when empty.

Secure the cool box (10695, 10697 only) using the SSBF (Safe Seat Belt Fixation).

The brackets prevent the seat belt from slipping and secure the cool box in the seat.

Health hazard!

When cooling medications be sure the cooling capacity of the device meets the requirements of the respective medication.

Any foods being cooled must be in their original packaging or in suitable containers.

PRODUCT OVERVIEW

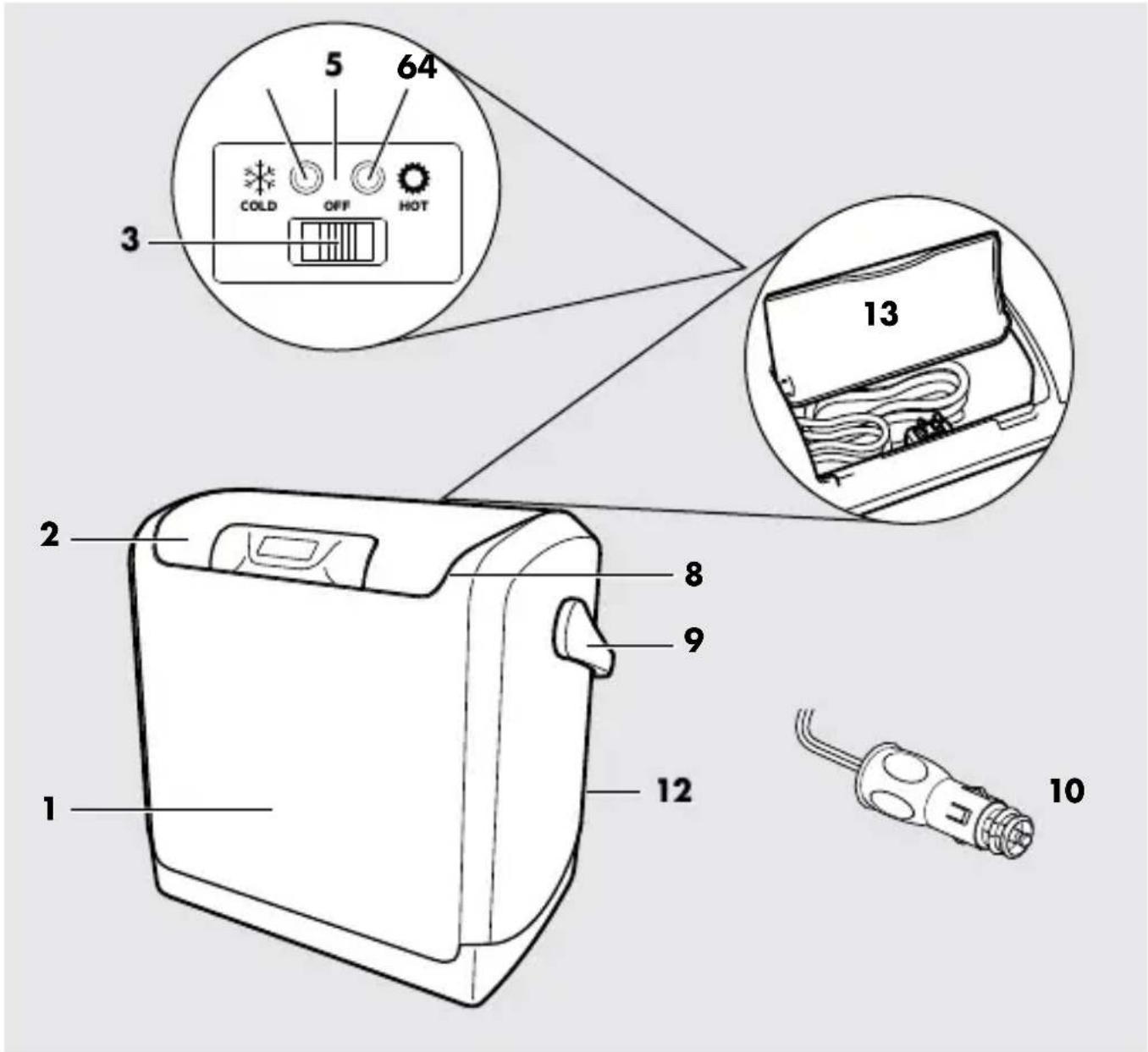

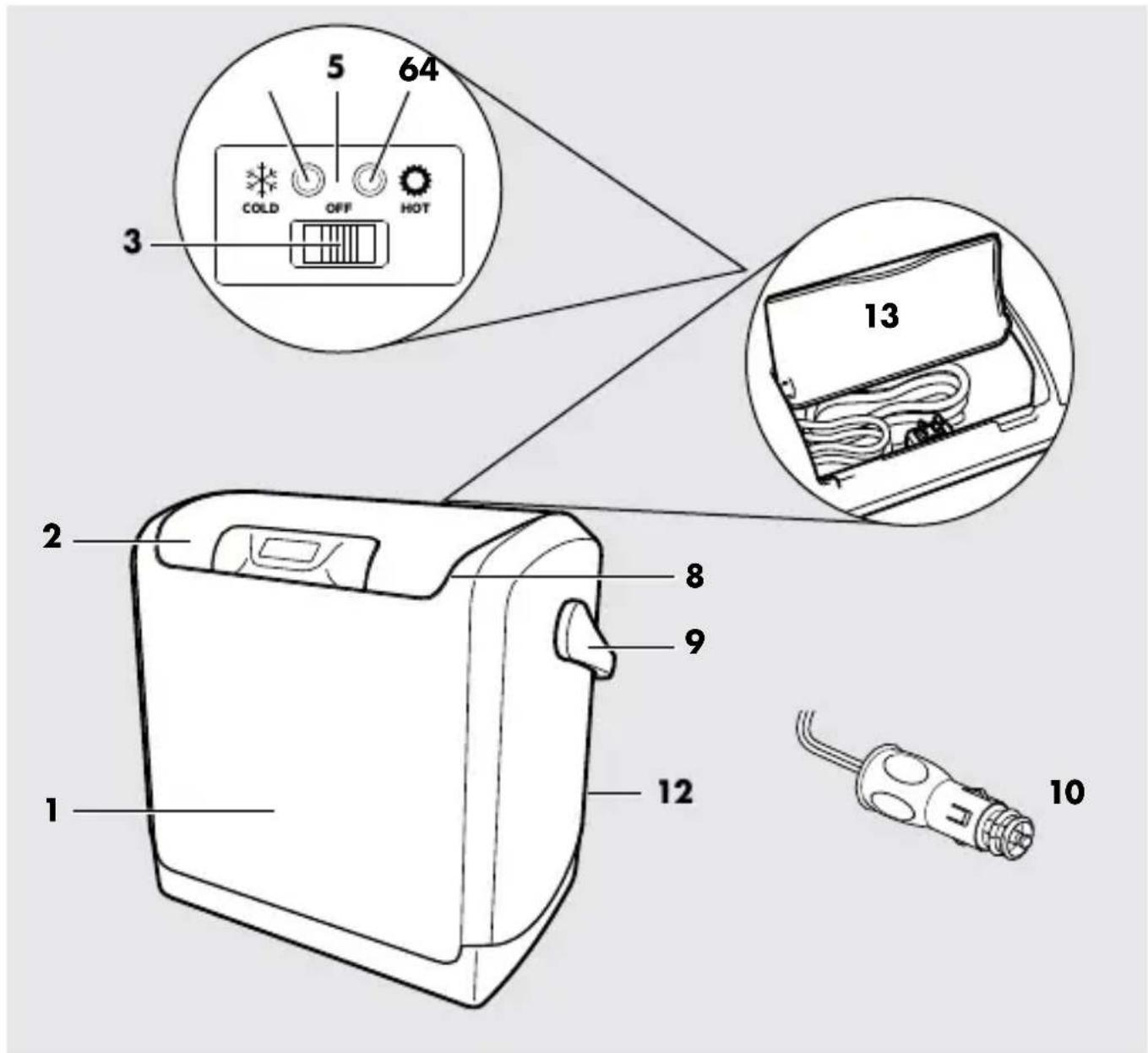

10695

1 2 3 5 64 COLD OFF HOT 8 9 12 10

1. Cool Box
2. Lid
3. Switch
4. green LED - cooling
5. OFF - device off
6. red LED - heating

7. -

8. Latch for open cover

9. Carrying handle
10. 12 V car plug with 8 A fuse
12. Holder for safety strap
13. Connecting cable

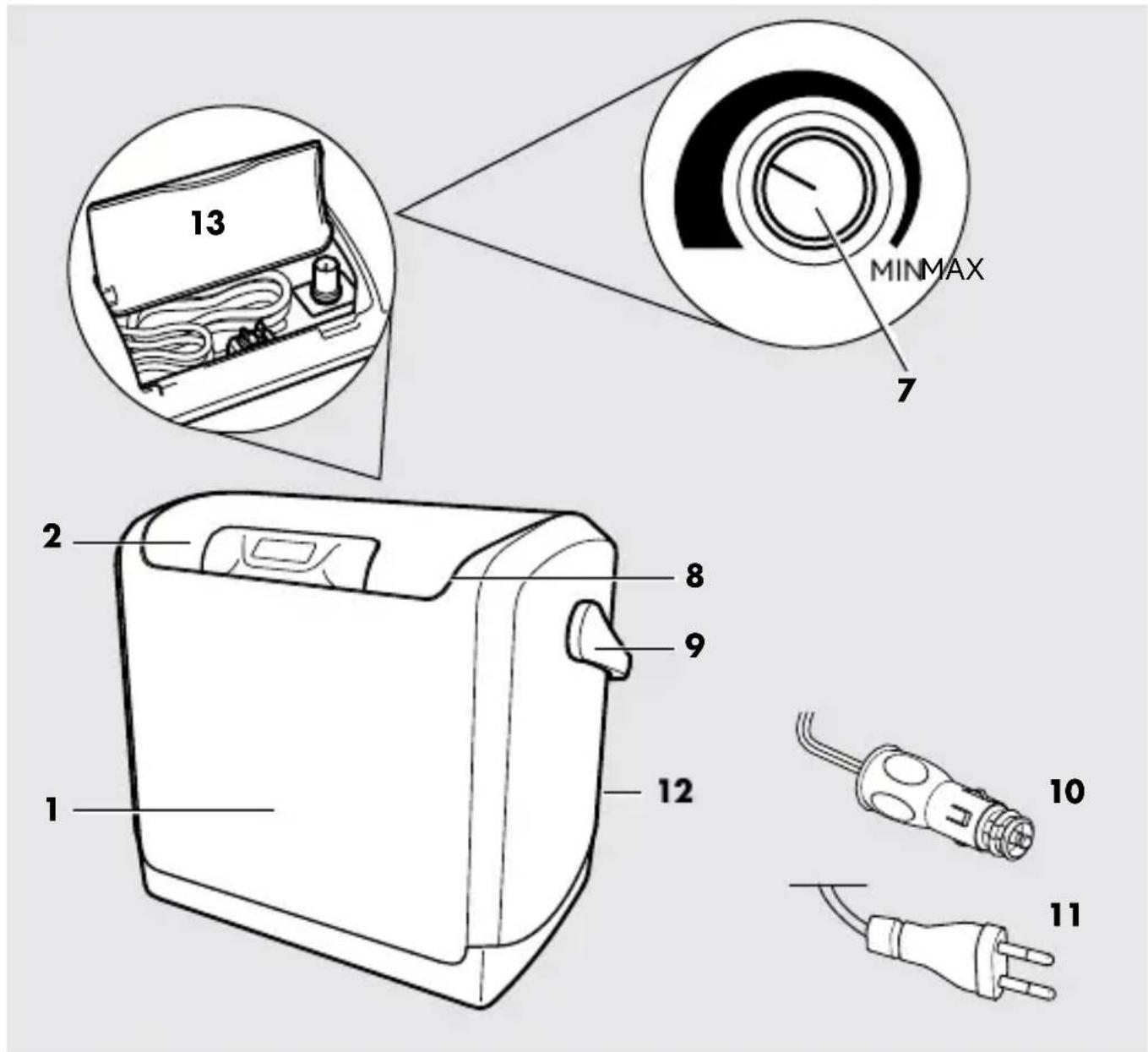

10696

1 2 13 MINMAX 7 8 9 12 10 11

1. Cool Box
2. Lid

7. Controller

8. Latch for open cover

9. Carrying handle
10. 12 V car plug with 8 A fuse
11. 230 V power plug
12. Holder for safety strap
13. Connecting cable

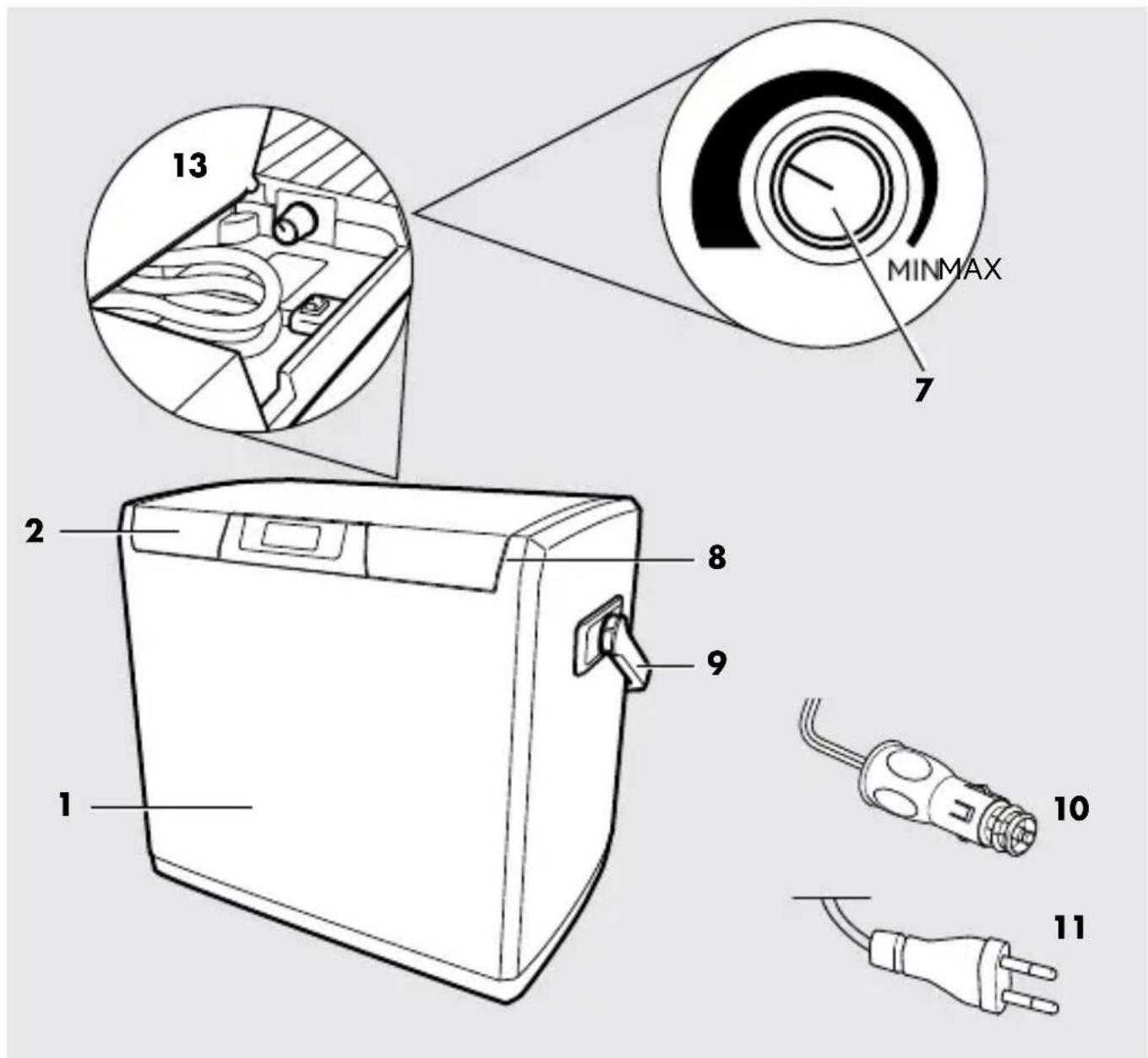

10697

1 2 3 4 5 6 7 8 9 10 11 MINMAX

1. Cool Box
2. Lid

7. Controller

8. Latch for open cover

9. Carrying handle
10. 12 V car plug with 8 A fuse
11. 230 V power plug
13. Connecting cable

USE

Information about use

You may have to turn the ignition to activate the vehicle's 12 V car outlet. Please refer to the owner's manual for your vehicle. Contact a specialised shop if you are unsure.

Do not cover the device during use and ensure proper ventilation.

Wipe away any condensation promptly. After extended cooling periods moisture will condense to water drops inside the cool box. This does not mean the device is defective.

Do not use ice packs or ice bags in the cool box. Melt water can damage the cool box.

Cooling process

1. For reasons of hygiene, clean the inside of the cool box with a damp cloth before every use.
2. Fill the cool box with the items you wish to cool.
3. Applies to KK 14: Set the switch (3) to the "OFF" position.
4. Connecting the power supply:

Option 1:

Plug the car power plug (9) into a 12 V car socket. The cool box will start cooling straight away.

- Option 2 (applies to KK 24 and KK 28):

Plug the 230 V mains plug (11) into a mains socket.

1. Switching on the cool box:

Applies to KK 14:

Cooling: Set the switch (3) to the "COLD" position.

Heating: Set the switch (3) to the "HOT" position.

Applies to KK 24 and KK 28:

The cool box will start cooling as soon as it is plugged in.

1. The cool box can be adjusted variably using the controller (7). To achieve a lower temperature than in energy-saving mode, the controller may be set to around "Max". Please note, this will use more power than normal continuous duty.

Attention!

There is no auto shut-off. The unit will run continuously so long as the board bar is switched on. Remember the vehicle's battery will be discharged when the vehicle is not running.

1. Applies to KK 14:

Set the switch (3) to the "OFF" position.

1. Unplug the 230 V mains plug (11) from the mains socket, or the car plug (10) from the 12 V car socket, and neatly roll up the cable.

2. Clean and dry the inside of the board bar after use. This will prevent mould from forming.

Tips for achieving the best cooling power

Select a well ventilated location for use, away from sunlight.
Allow warm dishes to first cool down before keeping them cool in the cool box.
Do not open the cool box more than necessary.
Do not leave the cool box open longer than necessary.

CLEANING, CARE AND

MAINTENANCE

Minimal care will ensure your device remains functional for years.

Carefully wind the cable when storing the device. This will help prevent accidental damage to the cable and the device.
●clean the product with a soft, dry cloth.
Store the machine in a clean, dry place.

Changing the fuses

A fuse inside the car plug safeguards the device. This will respond in the event of a short circuit or voltage peaks and must then be replaced.

Attention!

Do not use higher rated fuses. The electronics may otherwise be damaged.

1 2 3 4

1. Unscrew the retaining pin (1) with the fuse cover (2) from the car plug (4).
2. Insert a new micro-fuse (3) of the same rating (see Technical Data).
3. Replace the retaining pin (1) with the fuse cover (2) in the car plug (4).

Service

Should you have any questions regarding commissioning or operating in spite of studying these operating instructions, or if a problem should occur against all expectations, please get in contact with your specialist supplier.

Disposal

The packaging consists of non-contaminating materials that you can dispose of at your local recycling point

Do not throw electrical appliances in with domestic waste!

In accordance with European Directive 2012/19/EC for waste electrical and electronic equipment (WEEE) and conversion to national law, used electrical appliances must be collected separately and taken to a recycling point. For ways to dispose of old electrical appliances please contact your community or city administration.

Illustrations may vary slightly from the product itself. We reserve the right to modify the product in accordance with technical advances. Decoration not included.
