USER MANUAL 80250 AMICA

DISPOSAL OF OLD APPLIANCE 19

INSTALLING THE APPLIANCE 20

DISPOSAL OF OLD APPLIANCE 76

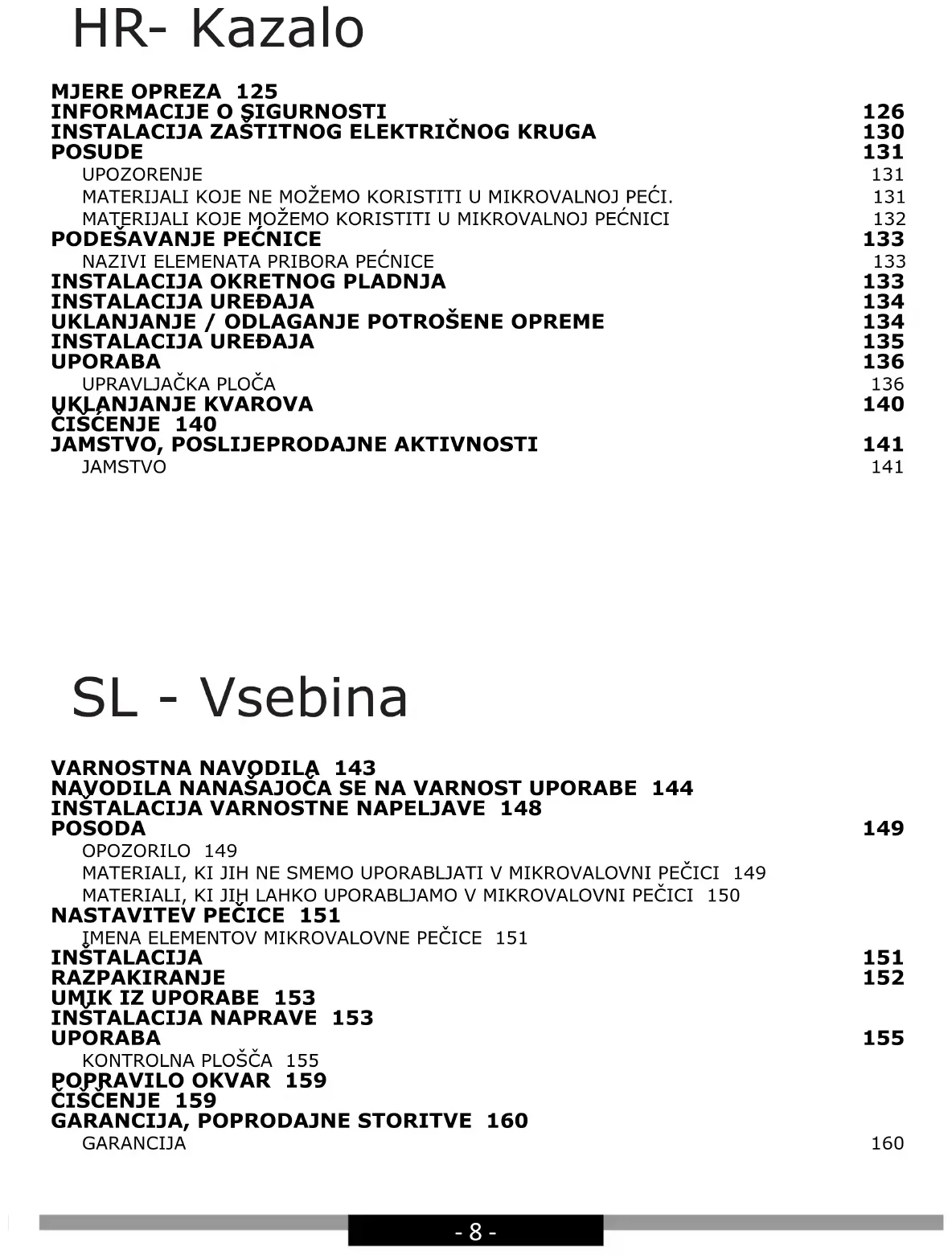

JAMSTVO 141 HR- Kazalo SL - Vsebina- 9 - Dear customer, From now on, your daily housework will be easier than ever before. Your appliance is excepon- ally easy to use and extremely ecient. Aer reading these Operang Instrucons, operang the appliance will be easy. Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and funconality. Before using the appliance, please carefully read these Operang Instrucons. By following these instrucons carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operang Instrucons and store them in a safe place so that they can be consulted at any me. Follow these instrucons carefully in order to avoid possible accidents. Sincerely,- 10 - PRECAUTIONS

• TO AVOID POSSIBLE OVER-EXPOSURE TO MI- CROWAVE ENERGY

• Do not attempt to operate the oven with the door open, because it may cause harmful exposure to microwave energy. Do not disable the safety in- terlocks, or attempt to circumvent them.

• Do not place anything between the front surface of the oven and the door or allow dirt or deter- gent residue to gather on sealing surfaces.

• Do not operate the oven if it is damaged. It is particularly important that the oven door is prop- erly closed and that there is no damage to:

1. Door (dents, cracks)

2. Hinges and locks (broken, cracked or loose)

3. Door seals and sealing surfaces

• Any adjustments, maintenance or repairs should only be entrusted to the manufacturer’s properly qualied service personnel. In particular, the work associated with removing the cover that protects the user against microwave radiation.

• Keep the appliance and its power cord away from children under 8 years old.

• Microwave oven should not be placed in a cabi- net*

• WARNING: The appliance and its accessible parts become hot during use. Avoid contact with hot parts. Children under the age of 8, should be kept away from the appliance, unless supervised by an adult person;

• Do not clean the appliance with steam

• Surfaces of the cabinet may become hot when the oven is operating;

• applies to oven models that are not built-in appliances- 11 -

• READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

• To reduce the risk of re, injury to people or exposure to excessive microwave energy when using the appliance, please observe the following basic safety rules:

• Read the Operating Instructions before using the appli- ance.

• Close supervision is needed to reduce the risk of re in- side the oven chamber.

• Use this appliance only for its intended purpose as de- scribed in the manual. Do not use corrosive chemicals in the appliance. Oven is specically designed for heating or cooking food. It is not intended for industrial or laborato- ry use.

• WARNING: When the appliance is used in a combined mode, children can use the microwave oven only under adult supervision due to the high temperatures generat- ed;

• WARNING: Liquids and other foodstus may not be heat- ed in sealed containers as the containers could explode;

• WARNING: This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are super- vised or have been instructed how to safely use the ap- pliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.

• Use only cookware that is suitable for use in microwave ovens;

• When heating food in plastic or paper containers, pay special attention to the microwave oven as containers may ignite;

• Applicable to microwave ovens with grill- 12 -

• If you see smoke or re, turn o the appliance or unplug it from power and keep the door closed until the ames are smothered;

• Microwave heating of beverages can cause delayed boil- ing, therefore care should be taken when handling the container;

• Cleaning instructions for door seals and adjacent parts may be found in an appropriate section of this operating instructions.

• The oven must be cleaned regularly. Remove any depos- its of food and leftovers

• Neglecting to keep the oven clean can damage the sur- face, which may adversely aect the durability of the ap- pliance and cause dangerous situations

• Important! If the power cord is damaged, it should be re- placed by the manufacturer or specialist repair centre or a qualied person in order to avoid danger.

• Before using the oven, test heat the grill heater (smoke can be given o through ventilation grid):

• - switch on the ventilation in the room or open a window,

• - set the oven to heat the grill heater only for about 3 minutes without heating food.

• Oven must be placed on at a surface.

• Turntable and rotating trolley unit should be in the oven during cooking. Carefully put cooked food on the turnta- ble, and handle it carefully to avoid any breakage.

• Improper use of the browning plate may cause cracking of the turntable due to the high temperature.

• Only use bags for cooking in microwave ovens, which are correct size.

• Microwave oven has several in-built circuit breakers to prevent emission of radiation, while the door is open. Do not tamper with these circuit breakers.

• Do not operate the oven when empty. Operating the oven without food or dish with very low water content may result in re, carbonization, arcing and damage to the internal chamber shell.

• Do not cook food directly on the turntable. Excessive local heating of turntable may cause its rupture.

• Do not heat baby bottles or baby food in the microwave. Uneven heating may occur and cause physical injury. Please read the provisions of warranty- 13 -

• Do not use narrow-necked containers such as bottles for syrups.

• Do not fry in deep fat in the microwave.

• Do not do home canning in a microwave oven because not always the entire contents of pot reaches boiling point.

• Do not use microwave oven for commercial purposes. This appliance is intended for use at home or in facilities, such as*: kitchen for employees; in shops, oces and other working environments, use by the customers of hotels, motels and other residential facilities, in rural residential buildings, in the accommodation facilities*;

• In order to avoid delayed boiling of hot liquids and bev- erages and the risk of burns, stir the liquid before placing the container in the oven and again in the middle of cook- ing time. Then leave the container in the oven for a short time and stir again before removing from oven chamber.

• Do not forget that there is a dish in the microwave oven to avoid burning due to excessive cooking.

• When the appliance is used in a combined mode, children can use the microwave oven only under adult supervision the high temperatures generated;

• This appliance is not intended for use by persons (includ- ing children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the ap- pliance, unless under supervision or in accordance with the instructions as communicated to them by persons re- sponsible for their safety. Children shall not play with the appliance.

• Do not overcook dishes

• Do not use the oven for storage. Do not store ammable objects inside the microwave oven, such as bread, cook- ies, paper products, etc. If lightning hits the power line, the oven may switch on automatically.

• Remove the wire clamps and metal xtures from con- tainers / paper or plastic bags before placing them in the oven.

• Microwave oven must be grounded. Only connect to a wall socket with the proper protective conductor. See “In- stalling the protective circuit.”

• Applicable to microwave ovens with grill- 14 -

• Some products, such as whole eggs (boiled or fresh), wa- ter, oil or grease, sealed containers and closed glass jars may explode and therefore should not be heated in the oven.

• Operating the microwave oven should be done with adult supervision at all times. Do not allow children to play with the appliance or have access to the controls.

• Do not operate the oven when its terminal strip or plug is damaged, it is not working properly, or if it has been damaged or dropped.

• Do not cover or block the air vents on the oven.

• Do not store or use the oven outdoors.

• Do not use the microwave oven near water, near the kitchen sink, in a damp room or near a swimming pool.

• Do not immerse the power cord or plug in water.

• Keep cord away from heated surfaces.

• Do not allow the connection cord hanging over the edge of a table or counter.

• The appliance must be used with mounted decorative frame*

• The inner cavity surface is hot after use of the microwave oven.

• Regularly check the oven and its power cord for damage. If there is any damage, do not use the oven

• Metallic containers for food and beverages are not allowed during microwave cooking

• Care should be taken not to displace the turntable when removing containers from the appliance- 15 - Accessible surfaces may become hot during operation.

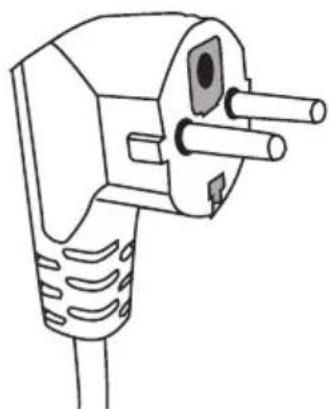

INSTALLING THE PROTECTIVE

CIRCUIT DANGER Danger of electric shock when touched, some internal components may cause serious injury or death. Do not disassemble this appliance. WARNING Electric shock hazard. Improper use of earthing can cause electric shock. Do not insert the plug into the socket before the appliance is properly installed and grounded. This appliance must be grounded. In the event of a short-circuit, earthing reduces the risk of electric shock. The appliance is equipped with earthing wire with an appropriate plug. The plug should be in- serted into a properly installed and grounded outlet. If you do not completely understand earthing in- struction or you are unsure whether the appliance is properly grounded, please contact a qualied elec- trician or service technician. f you must use an extension cord, use only a three- wire extension with an earthing connector. The manufacturer shall not be liable for damage or injury resulting from connecting the microwave oven to a power source without a protective circuit or with a malfunctioning protection circuit. A short power cord is provided to reduce the risk resulting from becom- ing entangled or tripping over a long cord. If you use the extension cord: - Extension cord must be capable of withstanding nominal current re- quired by the appliance. - Extension cord must be 3-wire with earthing, - Extension cord should be so arranged as not to be hung by the table top where it could be pulled by children, or caught inadvertently.- 16 - COOKWARE WARNING Risk of injury. Tightly closed containers may explode. Closed con- tainers must be opened and plastic bags pierced before cooking. Materials that can be used and materials to be avoided in the micro- wave oven. The use of some non-metallic cookware may not be safe in the mi- crowave oven. If in doubt, you can check the cookware following this procedure. Checking the cookware: 1 Fill the microwave-safe cookware with 1 cup of cold water (250 ml), and do the same with the test cookware. 2 Operate the oven with the maximum power for 1 minute. 3 Carefully touch the test cookware. If the test cookware is hot, do not use it in the microwave oven. 4 Do not exceed 1 minute cooking time. Materials that cannot be used in a microwave oven Type of cookware Comments Aluminium tray May cause an electric arc. Transfer food to microwave-safe cookware. Cardboard box with metal handle May cause an electric arc. Transfer food to microwave-safe cookware. Metal or cookware with metal frame Metal shields the food from microwave energy. Metal frame can cause an electric arc. Metal closure - tightened May cause an electric arc and re in the oven. Paper bags May cause a re in the oven. Plasc foam Plasc foam may melt or contaminate the liquid in it when exposed to high temperatures. Wood Wood dries out when it is heated in the microwave oven and can crack or break.- 17 - Materials that can be used in a microwave oven Type of cookware Comments Browning plate Observe the manufacturer’s instructions. The bottom of the browning plate must be at least 5 mm above the turntable. Improper use may cause cracking of the turntable. Dinner dishes Suitable for microwave ovens only. Observe the manu- facturer’s instructions. Do not use cracked or chipped cookware. Glass jars Always remove the lid. Use only for heating food to a suitable temperature. Most glass jars are not heat resistant and may explode. Glassware Use only heat-resistant glassware in the microwave oven. Make sure that there are no metal frames. Do not use cracked or chipped cookware. Bags for microwave cooking Observe the manufacturer’s instructions. Do not seal with metal clamps. Paper plates and cups Cut through to allow the steam to escape. Use only for short cooking / heating. Do not leave the oven unat- tended while cooking. Paper towels Use to cover food to be heated to absorb fat. Use only for short cooking under constant surveillance. Parchment paper Use as a cover to prevent splashing or as a container for evaporation. Plastics Suitable for microwave ovens only. Should be labelled "for use in microwave ovens." Some plastic containers soften when the content is warmed up. Bags for micro- wave cooking and sealed plastic bags must be pierced or incised, or vented according to the directions on the package. Plastic packaging Suitable for microwave ovens only. Use to cover food during cooking in order to maintain moisture. Do not let plastic packing touch the food. Thermometers Suitable for microwave ovens only. (Temperature probes for meat and sugar). Wax paper Used as a covering to prevent splashing and to keep moisture. Cookware material Microwave Barbecue grill Combi Mode Heat-resistant glass YES YES YES Regular glass NO NO NO Heat-resistant ceramics YES NO NO Microwave-safe plastic utensils YES NO NO Kitchen paper YES NO NO Metal container NO YES NO Metal rack (provided for the oven)*

Aluminium foil and foil contain- ers

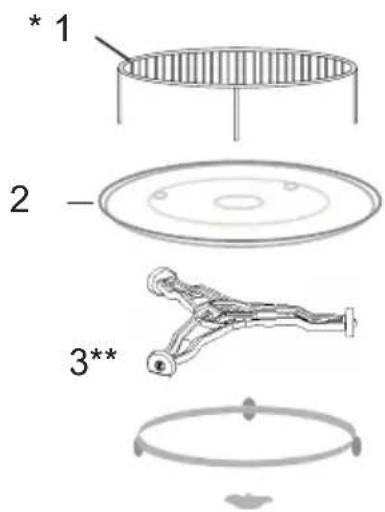

MICROWAVE OVEN Microwave oven accessories Remove all packaging, both inside and outside the oven, before using the oven. The oven comes with the following accessories: Turntable 1 Rotating trolley 1 Operating Instructions 1 Grilling rack 1* A) Control Panel B) System security lock - disconnects power to the oven when the door is opened during opera- tion. C) Rotating trolley D) Turntable E) Door inner protecting shield F) Door

1. Never compress or place the turntable upside down.*

2. When cooking, always use turntable and rotating

4. For cooking or heating always put the food on the turntable.

• Available on selected models Note: The grilling rack supplied with the appliance should only be used when the appliance is set to „GRILL”. Place the rack on the turntable. ** Trolley is available in selected models in two versions, depending on the model. These are not interchangeable. *** Turnable existing according to the model. In this case, put food on Your own plate and put into the microwave oven.- 19 - UNPACKING During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dis- pose of all elements of packaging in a way that will not cause damage to the environ- ment. All materials used for packaging the appli- ance are environmentally friendly; they are 100% recyclable and are marked with the appropriate sym- bol. Important! Packaging materials (bags, polyethylene, poly- styrene, etc.) should be kept away from children during un- packing.

DISPOSAL OF OLD APPLIANCE

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collec- tors, including local collection points, shops and local au- thority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropri- ate storage and processing of such goods.

• applies to built-in appliances- 20 -

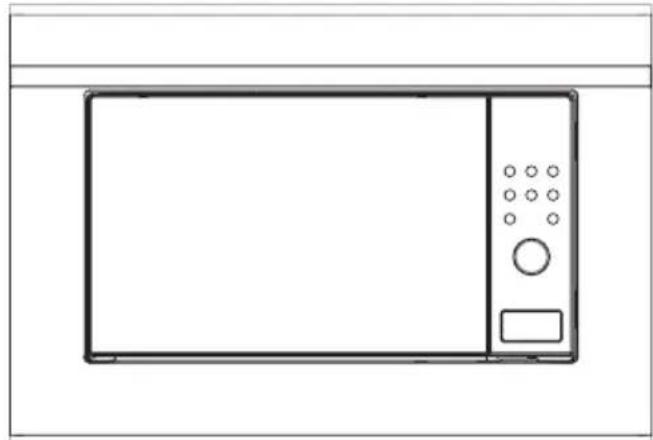

INSTALLING THE APPLIANCE

- Remove all packaging materials and components. - Check the oven for damage such as dents or door misalignment or breakage. - Remove any protective lm from the surface of the cabinet. - Do not install the oven if it is damaged. Do not remove the light brown mica cover bolted into the recess in order to shield the microwave magnetron. Installing

1. The appliance is designed for household use only.

2. The appliance can be used only after tting in kitchen furniture.

3. For tting instructions, please refer to “Installation guide”*.

4. Microwave oven should be installed in a cabinet with a width of 60

cm and a height of 85 cm from the kitchen oor*.

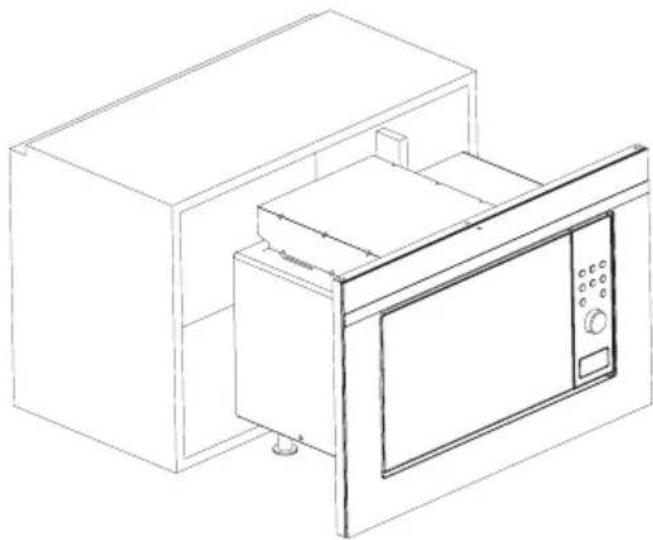

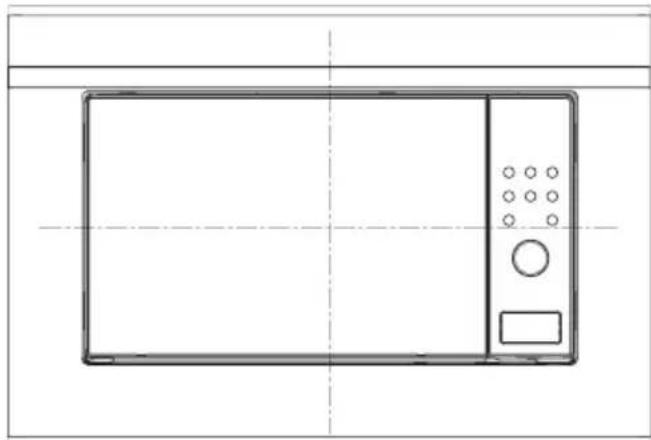

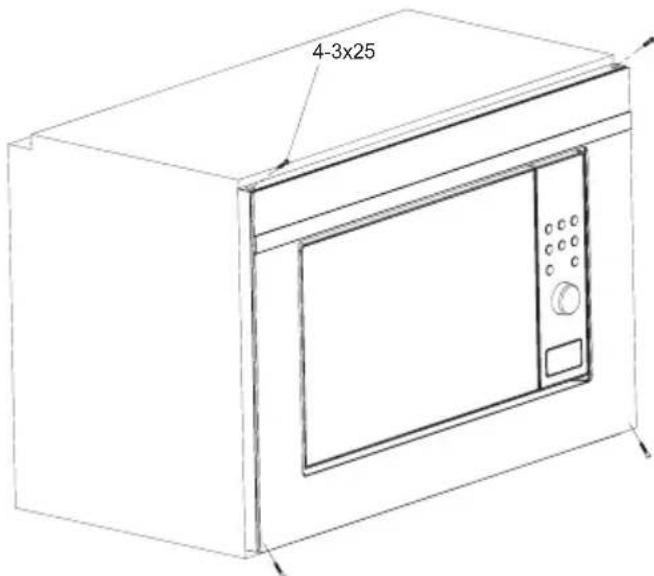

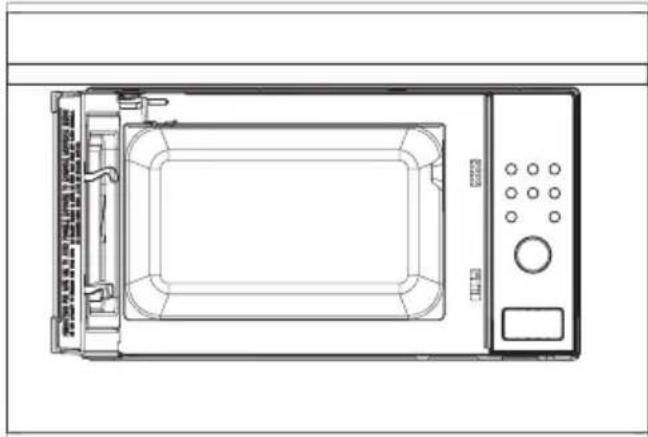

5. Assembly drawings at the end of the manual.

Do not remove the legs located in the bottom of the appliance*. Blocking the inlet and outlet openings may damage the microwave oven. Place the oven as far away from radio and television as possible. Op- erating microwave oven may cause interference to radio and television reception.

2. Insert the oven power plug into a standard household wall socket.

Make sure beforehand whether voltage and frequency are the same as on the oven’s rating plate.

WARNING: Do not install the oven on the gas hob or other heat pro-

ducing appliance. In the event of such installation, the oven may be damaged and void the warranty.

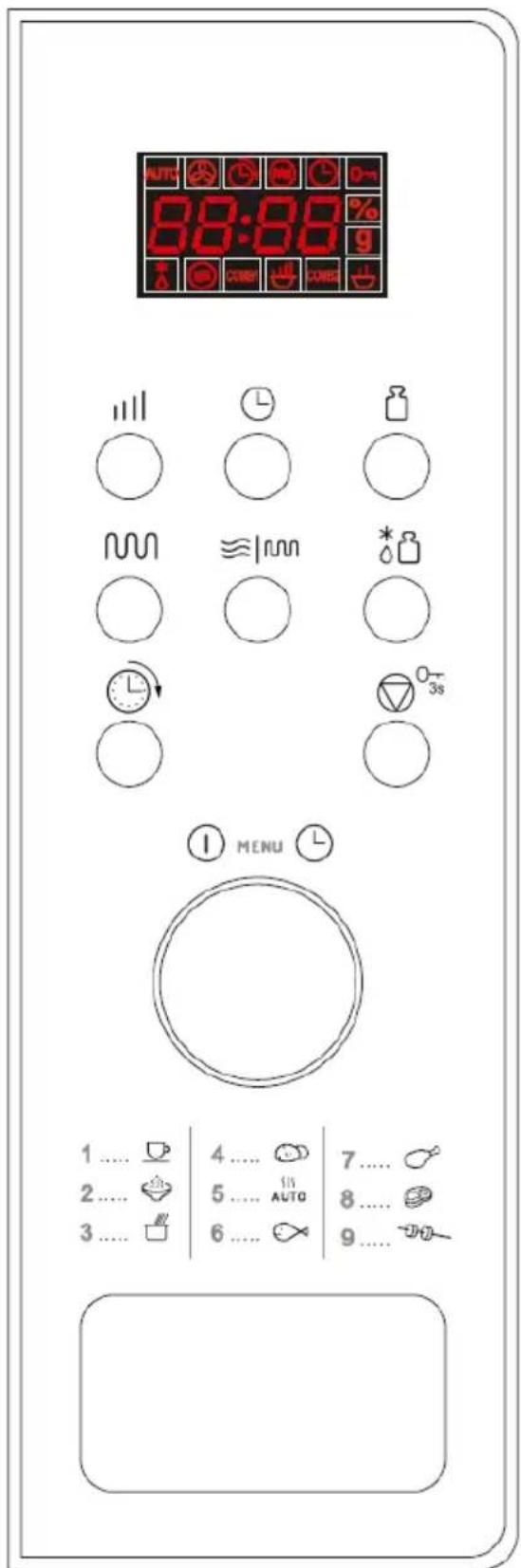

• applies to built-in appliances- 21 - OPERATION This microwave oven has a modern electronic programmer to adjust the parameters of cooking or reheating. Control Panel MENU ACTION SCREEN: Cooking time, power, action indicators, and clock time are displayed. POWER LEVEL: Press this button a number of times to set microwave cooking power level. CLOCK: Press this button to set oven clock. WEIGHT ADJUST: Press to specify food weights or number of serv- ings. GRILL: Press this button to set a grill-cooking program up to 95 minutes. COMBI: Cooking with combined microwave and grill power. WEIGHT DEFROST: Press to set de- frost program based on the weight entered. TIMER: Press to set the cooking time PAUSE/CANCEL: Press to cancel setting or reset the oven before setting a cooking program. Press once to temporarily stop cooking, or twice to cancel cooking alto- gether. It is also used for setting child lock. MENU/TIME(KNOB): Turn the knob to enter time. Turn the knob to select an auto-cooking menu. START/QUICK START(MENU/TIME): Press once to start a cooking pro- gram. Simply press it a number of times to set cooking time and cook immediately at full power level.- 22 -

SETTING DIGITAL CLOCK

This is 24-hour clock. To check the time while the oven is operating, press the button, then the time will be displayed for a while on the display screen. FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30.

3. Press button once to conrm the hour setting.

4. Turn to set minute digit 30.

5. Press button once to conrm the setting.

MICROWAVE COOKING For microwave cooking, just press the button a number of times to select a cooking power level, and then use the knob to set a de- sired cooking time. The longest cooking time is 95 minutes. Select power level by pressing the button. PRESS POWER LEVEL BUTTON COOKING POWER LEVEL(DISPA\LAY) Once 100% Twice 80% 3 times 60% 4 times 40% 5 times 20% 6 times 00% For example, suppose you want to cook for 10 minute at 60% of micro- wave power.

1. Press button a number of times to set 60%..

GRILL COOKING The longest cooking time is 95 minutes. The grill cooking is particu- larly useful for thin slices of meat, steaks, chops, kebabs, sausages or pieces of chicken. It is also suitable for hot sandwiches and au gratin dishes. For example, suppose you want to grill for 12 minutes.

2. Turn the knob to 12:00.

COMBINATION COOKING CO-1 30% 70%- 23 - The longest cooking time is 95 minutes. The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages or pieces of chicken. It is also suitable for hot sandwiches and au gratin dishes. For example, suppose you want to grill for 12 minutes.

2. Turn the knob to 12:00.

QUICK START The oven will cook food quickly at HIGH power (100% power output) for quick start cooking program. Just press the START a number of times to set cooking time, the oven starts working immediately at full power. The maximum cooking time you can enter is 10 minutes. AUTO DEFROST The oven allows to defrost food based on the weight entered by user. The defrosting time and power level are automatically set once the food category and the weight are programmed. The frozen food weight ranges from 100g to 1800g. FOR EXAMPLE: Suppose you want to defrost 600g of shrimp.

2. Press to select weight of food to be defrosted.

NOTE: The oven stops during defrosting to let the user to turn food over for uniform defrosting and then press START to defrost for the remaining time. TIMER Setting timer:

1. In standby mode, press the button once. “:” and the symbol

appear in the display. Enter the cooking time (up to 95 minutes). Press the button to conrm your entry. The system starts the countdown. The countdown time and the symbol appear in the dis- play . After 5 seconds, the display returns to the standby screen.

2. Press the button once during cooking. “:” and the symbol appear

in the display. Enter the cooking time (up to 95 minutes). Press the button to conrm your entry. The system starts the count- down. The countdown time and the symbol appear in the display . After 5 seconds, the display will automatically return to the cook- ing screen Note 1: When the timer is running, the icon will light steadily in each mode until the set time has elapsed. Then the symbol goes out. Note 2: When the timer expires, Beep 1 will sound. Note 3: While thetimer is running, press the button once . The countdown time and the symbol appear in the display. Press the button once to cancel the timer.- 24 -

Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will show up on display screen, and the oven can not be operated while the CHILD LOCK is set. To set the CHILD LOCK: Press and hold the button for 3 seconds, a beep sounds and lock indicator lights. To cancel the CHILD LOCK: Press and hold the button for 3 sec- onds until lock indicator on display turns o. AUTO COOK For the following foods or cooking operation, you do not need to input cooking power and time. Try to focus on telling the oven what you want to cook and how much the food weighs. The oven starts to work after you pressing the START. You may need to turn food over at the middle of cooking time to obtain uniform cooking. For example:

1. In waiting mode, turn the dial anti-clockwise to select food

code to specify the food to be cooked.

2. Press button a number of times to indicate the desired weight.

3. Press START button.

Auto cooking menu Code Food/Cooking Mode For milk/coee and potato, the screen will show the number of serving instead of food weight when pressing button. For item 07, 08, 09 in the list, the oven stops during cooking, and beeps to remind you to open the door and turn the food over for uniform cooking.

Milk/Coee (200ml/ cup) 02 Rice (g) 03 Spaghetti (g) 04 Potato (each 230g) 05 Auto Reheat (g) 06 Fish (g) 07 Chicken (g) 08 Beef/Mutton (g) 09 Skewered Meat (g) The result of auto cooking depends on factors such as voltage uctu- ation, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you nd the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly. For Spaghetti, add boiling water before cooking- 25 - TROUBLESHOOTING Microwave oven interferes with the TV reception Television and radio reception may be disrupted when the microwave oven is operating. The same applies to small household appliances such as a blender, vacuum cleaner and electric fan. This is normal. Dimmed oven lighting. When cooking with low microwave power, oven light may be dimmer. This is normal. Condensation forms on the door, hot air comes out through vents. When cooking, steam can be released from food. Most of the steam escapes through the vents. However some steam can collect in the form of conden- sation on cooler parts, such as oven door. This is normal. Fault Possible cause How to correct Oven does not start. Power cord unplugged or not plugged properly into the socket. Pull the plug and put it back in after 10 seconds. Blown fuse or tripped circuit breaker. Replace the fuse or turn on the circuit breaker (any repairs by producers service only). Problem with the power outlet. Check the outlet by plugging in other appliance. The oven does not heat. The door is not closed properly. Close the door fully. Turntable makes noise when oven operates. Rotating ring or bottom of the oven dirty. See "Microwave oven mainte- nance". CLEANING Before cleaning, make sure the oven is disconnected from the power source. a) After use, clean the inside of the microwave oven with a damp cloth. b) Clean the accessories in the normal way in soapy water. c) Dirty door frame, seal and adjacent elements should be cleaned gen- tly with a damp cloth. When cleaning the surface of the oven door, use only mild soap or detergent applied with a sponge or soft cloth. When cleaning glass door, do not use any abrasive cleaners or sharp metal washers, as this may cause scratches on the surface and damage the glass. In order to clean the inner cavity: put half a lemon in a bowl, add 300 ml of water and turn on the microwave oven at 100% power for 10 minutes. After cleaning, disconnect the microwave oven from the power and wipe the inside with a soft, dry cloth.- 26 -

SALES SERVICE Warranty The manufacturer shall not be held liable for any damage caused by im- proper use of the product. Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer’s Authorized Service Point. For safety reasons, repairs should be re- ferred to professionals.

• Repairs carried out by unqualied persons may seriously endanger the appliance user.

• The minimum warranty period for the appliance oered by the man- ufacturer, importer or authorized representative is given in the war- ranty card.

• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating in- structions. In the event of appliance malfunction, request assistance or repair. If your appliance needs repair, please contact the service centre. Please see website for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identication sticker: For your convenience, please write it down below: Certifi cate of compliance CE and UKCA The Manufacturer hereby declares that this product complies with the general require- ments pursuant to the following European Directives and analogous UK requirements:

• The Low Voltage Directive 2014/35/EC / Electrical Equipment (Safety) Regulations

KOMBINOVANÉ VAŘENÍ (Smíšené) CO-1 30% 70%- 61 - The longest cooking time is 95 minutes. The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages or pieces of chicken. It is also suitable for hot sandwiches and au gratin dishes. For example, suppose you want to grill for 12 minutes.

2. Turn the knob to 12:00.

DISPOSAL OF OLD APPLIANCE

In accordance with European Directive 2012/19/EU and local legislation re- garding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user is obliged to hand it over to waste collec- tion centre collecting used electrical and electron- ic goods. The collectors, including local collection points, shops and local authority departments pro- vide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health haz- ards resulting from the presence of dangerous com- ponents and the inappropriate storage and process- ing of such goods.- 77 -

2. Turn the knob to 12:00.

• Tiče se naprav, ki imajo žar- 148 - Accessible surfaces may become hot during operation.
