USER MANUAL RP135WSET Fenton

MANUEL D'INSTRUCTIONS

V1.223 ENGLISH Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference. - Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while. - The unit contains voltage carrying parts. Therefore, do NOT open the housing. - Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction. - Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes. - The unit is not suitable for continuous use. - Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction. - When unplugging the unit from a mains outlet, always pull the plug, never the lead. - Do not plug or unplug the unit with wet hands. - If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician. - If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer. - To avoid fire and shock hazard, do not expose the unit to rain and moisture. - All repairs should be carried out by a qualified technician only. - Connect the unit to an earthed mains outlet (220- 240Vac/50Hz) protected by a 10-16A fuse. - During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use. - If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors. - To prevent accidents in companies, you must follow the applicable guidelines and follow the instructions. - Do not repeatedly switch the fixture on and off. This shortens the lifetime. - Keep the unit out of the reach of children. Do not leave the unit unattended. - Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist. - Do not force the controls. - This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV. - If this product has a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged. - If the battery is damaged, please replace with same specifications battery. And dispose the damaged battery environment friendly. - If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again. - Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth. - Keep away from electronic equipment that may cause interference. - Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur. - Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit. - Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults! - The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit. - Keep the original packing material so that you can transport the unit in safe conditions. This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard. This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to. The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee! NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F. Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.4 UNPACKING INSTRUCTION CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. OVERVIEW

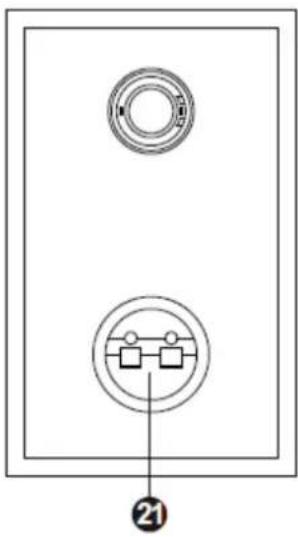

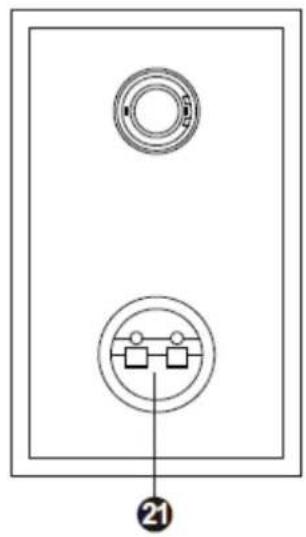

speakers(with power amplifier built-in)

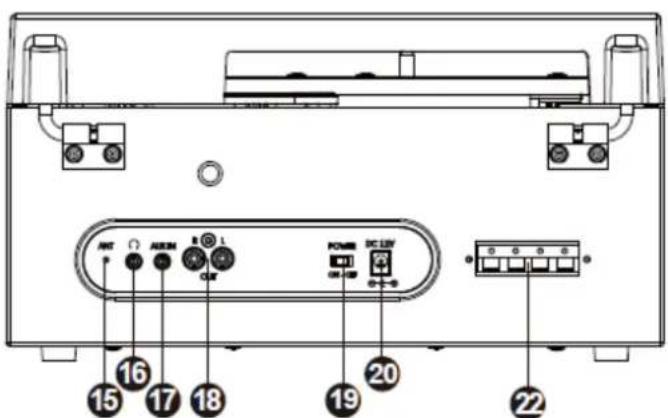

22. Speaker terminal OUT (record player)

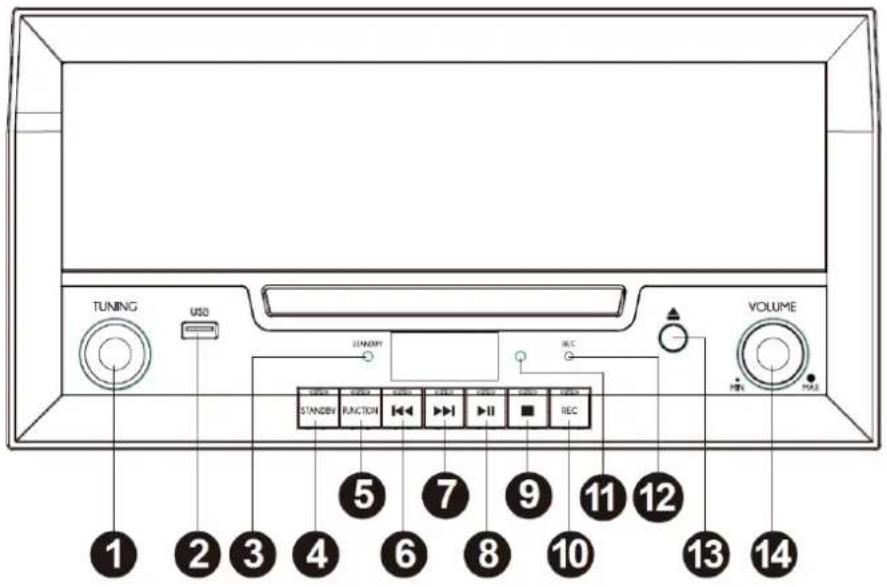

• Press standby button [4] to power on the device. The default mode is FM radio mode.

• Rotate the tuning knob [1] to search for the FM radio station manually.

• Press play/pause [8] for 2 seconds to search stations and save stations with name P01, P02, etc.

• Press previous [6] or next [7] to switch between saved stations. Recording Plug in the USB drive to the USB port [2] at the front of the unit; press the REC button [10], the REC indicator [12] will light up and “USB” will be flashing on the display. The radio program will now be recorded onto the inserted USB drive; press the STOP button [9] to save the recorded file and stop recording.

• Press the function button [5] to enter the CD mode; press the OPEN/CLOSE button [13] to open the disc tray, place disc label side up on the tray. Press the OPEN/CLOSE button [13] to close the tray; the disc will start playing once loaded.

• Press the PREV button [6] to skip backwards through tracks. Press the NEXT button [7] to skip forwards through tracks. Recording There are two ways to record CD to USB: Recording of one track

• Press the REC button [10], the REC indicator [12] will light up. REC appears on the display, ONE will soon appear after.

• Press the REC button [10] to confirm the recording.

• Press the NEXT button [7] to select the song to be recorded.

• Press the REC button [10] to confirm the selection. The single song recording will automatically end when that song is finished. During recording, you can also press the STOP button [9] to stop the recording. Recording of all music tracks

• Press the REC button [10], the REC indicator [12] will light up. REC appears on the display, ONE will soon appear after.

• Press the NEXT button [7], then ALL will appear on the display.

• Press the REC button [10] to confirm and start recording. During recording, you can press the STOP button [9] to stop the recording.5

PLAYING FROM USB DRIVE

• Press the function button [5] to enter the USB mode; it will play automatically when the USB drive is plugged in.

• To skip tracks, press the NEXT button [7]. Press the PREV button [6] once to go back to the beginning of current song. Press the PREV button [6] twice to start the previous song.

PLAYING A VINYL RECORD

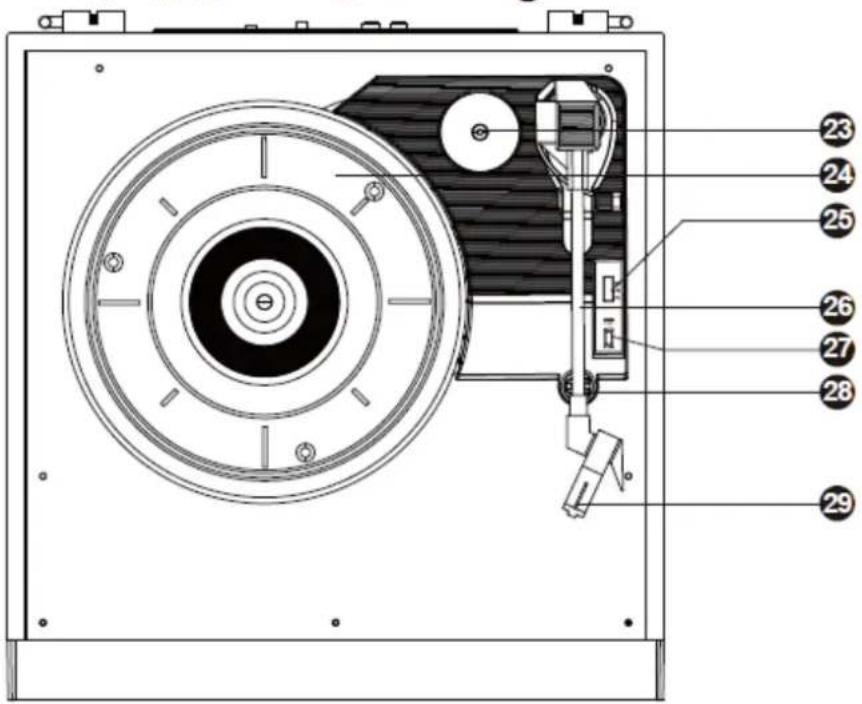

• Before playing a record, please unlatch the Tone Arm Lock [28] and remove the cartridge protector from the cartridge/needle.

• Press the function button [5] to enter the PHONO mode. Place the record on the turntable [24], select the speed required using the speed selector [25] and gently place the needle on the record. The turntable will start spinning when the AUTO STOP switch is set to the ON position.

• Besides the speed selector, there is an AUTO STOP ON/OFF Switch [27]. If the AUTO STOP ON/OFF Switch is turned ON, the record will stop automatically when finished (some vinyl records will not stop automatically when it reaches the end or will stop earlier). When the switch is set to OFF, the record will NOT stop automatically when finished.

• Press the REC button [10], the REC indicator [12] will light up and USB will flash on the display. The vinyl records will now be recorded onto the USB drive. Press the STOP button [9] to stop recording and save the recorded file.

LISTEN TO AN EXTERNAL SOURCE

• To listen to an external source, such as an MP3 player or smartphone, connect a suitable cable (3.5mm jack to 3.5mm jack) to the AUX IN socket [17] at the back of this unit. Press the function button [5] to enter AUX in mode.

• Press the REC button [10], the REC indicator [12] will light up and USB will flash on the display. The external sources’ output will now be recorded onto the inserted USB drive. Press the STOP button [9] to stop recording and save the recorded file.

• Turn on the BT function on your smartphone or tablet PC and search for “Fenton recordplayer”. After successful pairing, the BT indicator [11] will stop flashing. You can now play your music via streaming. Noted: This device does not have a BT transmitter, this means that it is not possible to send sound via BT to, for example, a BT speaker When the unit is used as a BT speaker, all other playback functions cannot be used at the same time.

HOW TO REPLACE THE NEEDLE

To replace the needle, please refer to the instructions below. Removing the needle from the cartridge

• Place a screwdriver at the tip of the stylus and push downward as shown in direction “A”.

• Remove the stylus by pulling the stylus forward and pushing downward. Installing the stylus

• Hold the tip of the stylus and insert the stylus by pressing as shown in direction “B”.

Playback options : CD, FM radio, USB Input connections : 3.5mm jack, USB Output connections : 3.5mm jack, RCA, USB Speed settings (RPM) : 33, 45, 78 Output Power : 200W Power supply : 100-240VAC 50/60Hz (12V Adapter) Dimensions player (L x W x H) : 340 x 320 x 170mm Dimensions speaker (L x W x H) : 180 x 145 x 235mm Weight : 7.20kg The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject: European Union United Kingdom

Tronios Ltd., 130 Harley Street, London W1G 7JU, United Kingdom

2014/30/EU S.I. 2016:1091 2011/65/EC S.I. 2012:3032 2014/53/EU S.I. 2017:1206Specifications and design are subject to change without prior notice. www.tronios.com Copyright © 2022 by Tronios The Netherlands
