Product type	Audio volume controller
Brand	Power Dynamics
Model	PDVC50
Dimensions (L x H x D)	70 x 112 x 83 mm
Weight	225 g
Maximum power per channel	50 W
Attenuation	10 positions: position 1 (full off), positions 2 and 3 (-6 dB per step), positions 4 to 9 (-3 dB per step), position 10 (full volume)
Power supply	None (passive device)
Mounting	In a standard electrical box (appropriate depth)
Connections	Screw terminals for speaker cables (4 conductors input, 2 conductors output)
Maintenance and cleaning	Use a dry cloth only. Do not use chemicals.
Safety	Do not open the housing. Do not expose to moisture. Disconnect during thunderstorms.
Spare parts and repairability	Contact the Power Dynamics dealer. Use only original parts.
General information	Warranty valid if instructions are followed. Indoor use only (5°C to 35°C).

Frequently Asked Questions - PDVC50 Power Dynamics

What is the maximum power supported by the PDVC50?

The PDVC50 supports a maximum power of 50 watts per channel. Make sure your amplifier does not exceed this limit to avoid damaging the controller.

How to install the volume controller?

Install the PDVC50 in a standard electrical box. Connect the 4-conductor cable from the amplifier to the input terminals, and the 2-conductor cables from the speakers to the output terminals. Respect polarities (+ and -) and tighten the wires securely.

Can I use this controller with 4 ohm speakers?

Yes, but the maximum power of 50 W per channel is defined for a standard impedance. Check compatibility with your amplifier and respect the total power to avoid saturation.

How many speakers can I connect?

You can connect multiple speakers in parallel on each channel, as long as the total impedance does not drop below the minimum value supported by your amplifier. The PDVC50 handles up to 50 W per channel regardless of configuration.

How to clean the device?

Use a dry cloth to clean the housing. Never use chemicals, aerosols, or liquids, as they could damage the finish or cause short circuits.

What to do in case of malfunction?

If the PDVC50 does not work properly, disconnect all cables and check the connections. If the problem persists, contact a qualified technician. Do not attempt to repair the device yourself, as this would void the warranty.

Does the controller require electrical power?

No, the PDVC50 is a passive device: it does not require any mains power. It simply attenuates the audio signal from the amplifier to the speakers.

Can I mount the controller directly in the wall?

No, you must mount the PDVC50 in a standard electrical box, either flush or surface mounted. Never install it bare in the wall for safety and compliance reasons.

What is the warranty?

The warranty is valid if the instructions in the manual are followed. Any unauthorized modification or repair voids the warranty. Keep your proof of purchase and contact your Power Dynamics dealer.

How can I tell if the installation is correct?

After installation, turn the volume knob to the Full Off position and then increase gradually. Check that the sound is clear and without distortion. Ensure that polarities are respected to avoid phase issues.

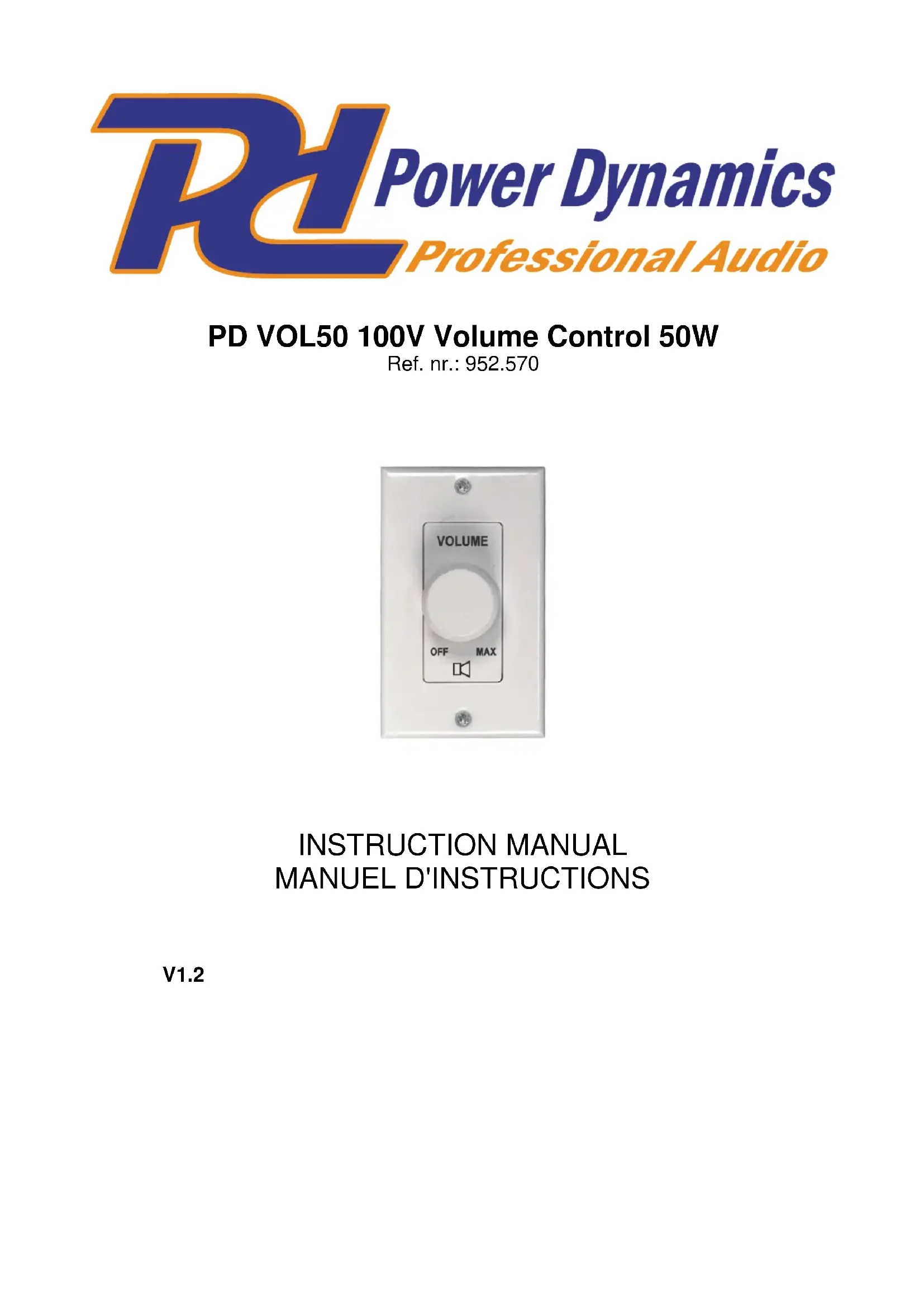

USER MANUAL PDVC50 Power Dynamics

Power Dynamics Professional Audio

PD VOL50 100V Volume Control 50W

Ref. nr.: 952.570

INSTRUCTION MANUAL MANUEL D'INSTRUCTIONS

V1.2

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• This unit is with built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

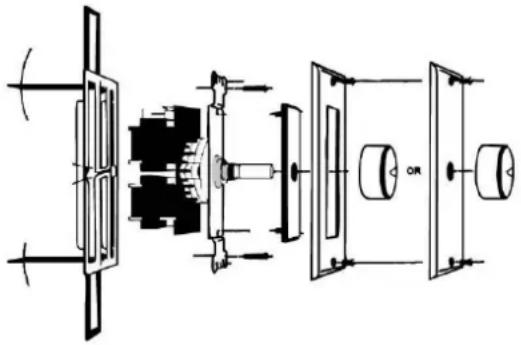

The volume control is designed to be mounted in a standard electrical wall box. Select a location that is within reach of the speaker wires and easy to reach for using the volume control.

Warning: You must mount the volume control in a standard electrical box, do not mount it directly on a wall.

Technical line drawing of a mechanical assembly with no visible text or symbols

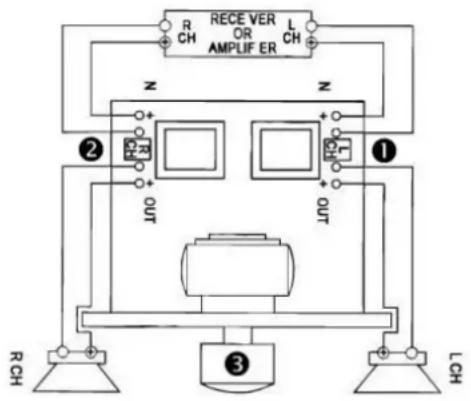

CONNECTIONS

1. Run 4-Conductor speaker cable from the amplifier (positive and negative for both the left and right channel) to the volume control marked 1 and 2. Similarly, run 2-conductor speaker cable from each of the first pair of speakers to the volume control. Label the cables for future reference.
2. Measure the depth of the volume control to make sure your Volume Control will fit in the box.
3. Connect the speaker cable to the volume control: a. Strip 6mm of insulation from the end of each cable. b. Tightly twist the wires in each cable until there are no frayed ends.
   c. Insert the 4-conductor speaker cable from the amplifier into the input terminals. d. Insert the two 2-conductor speaker cables from the first pair of speakers into the output terminals.
4. Connect additional speakers in parallel.
5. Make sure that all connections between your amplifier and the volume control, and between the volume control (3) and each speaker, are in "phase", that is (+) to (+) and (-) to (-).
6. Turn the volume knob to the "off" position (all the way down.)
7. Screw box into place.
8. Put on faceplate and screw in place using the screws.

Caution: This volume control is limited to a maximum of 50 watts maximum per channel.

SPECIFICATIONS

Power : 50 Watts / Channel

Attenuation : 1 ^st position (slider at bottom): Full off 2 ^nd and 3 ^rd position: attenuate 6 +/- 1 dB per step 4 ^th through 9 ^th position: attenuate 3 +/- 1 dB per step 10 ^th position: Full on

Weight : 225 gram

Dimension : 70 x 112 x 83mm

Technical line drawing of a mechanical assembly with no visible text or symbols

BRANCHEMENTS

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice..
