USER MANUAL SDW6003EW SIGNATURE

Cutaway view of a white kitchen appliance showing multiple circular dishes and a rack-mounted cart (no text or symbols visible)

SIGNATURE

LAVE-VAISSELLE

SDW6003EW NE

GUIDE D'OPERATION RAPIDE

Line drawing of a hand holding a faucet and a handle (no text or symbols)

AVERTISSEMENT!

Diagram of a mechanical assembly with a hand holding a component, showing internal components and no visible text or symbols.

Screenshot of a software toolbar with Chinese function labels and control buttons

Close-up of a hand holding a small control knob next to a white appliance panel (no visible text or symbols)

Close-up of a medical device with a white cap and ventilation slots (no visible text or symbols)

Close-up of a hand holding a small electronic device with indicator lights, next to a white electronic device (no visible text or symbols)

Close-up of a kitchen appliance interior with a lid and control knob (no visible text or symbols)

REMARQUE:

Technical diagram of an electronic device with numbered components and wiring layout

Sans le Porte-tasses

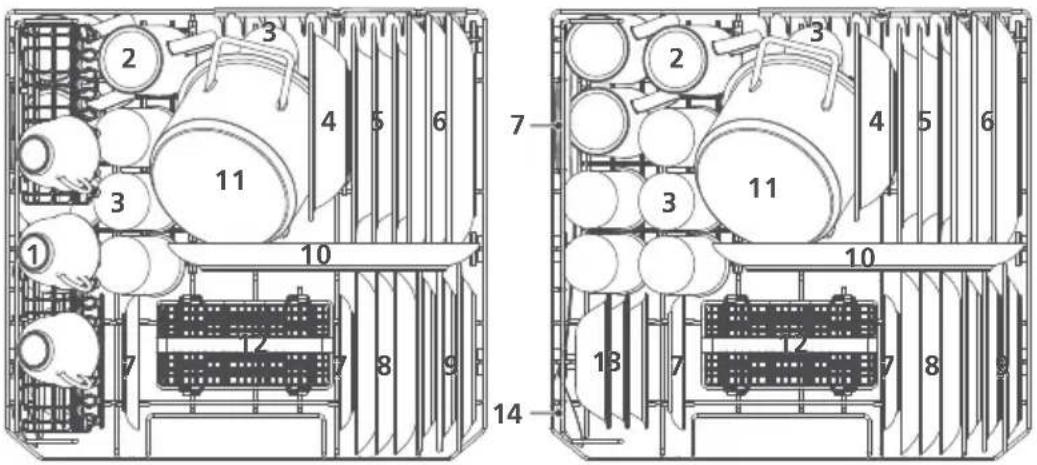

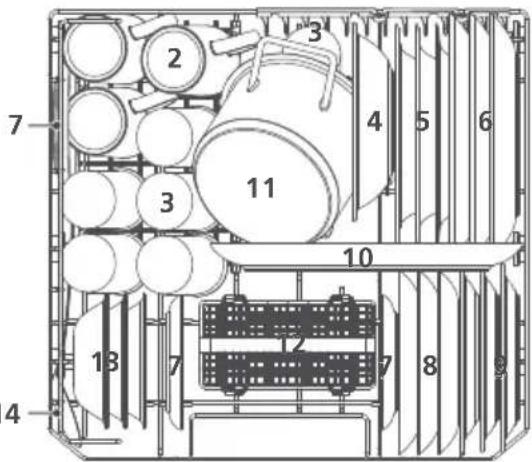

2 3 4 5 6 7 11 10 13 7 12 7 8 9 4

Diagram showing a mechanical component with labeled parts A, B, and C, including an upward arrow indicating direction.

Diagram showing a mechanical device with labeled directional arrows A, B, and C pointing to different components.

Isometric line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

AVERTISSEMENT!

Technical line drawing of a mechanical device interior with no visible text or symbols

Cutaway view of a white kitchen appliance showing multiple white kitchen units and a green rack (no text or symbols visible)

SIGN< TURE

DISHWASHER

SDW6003EW NE

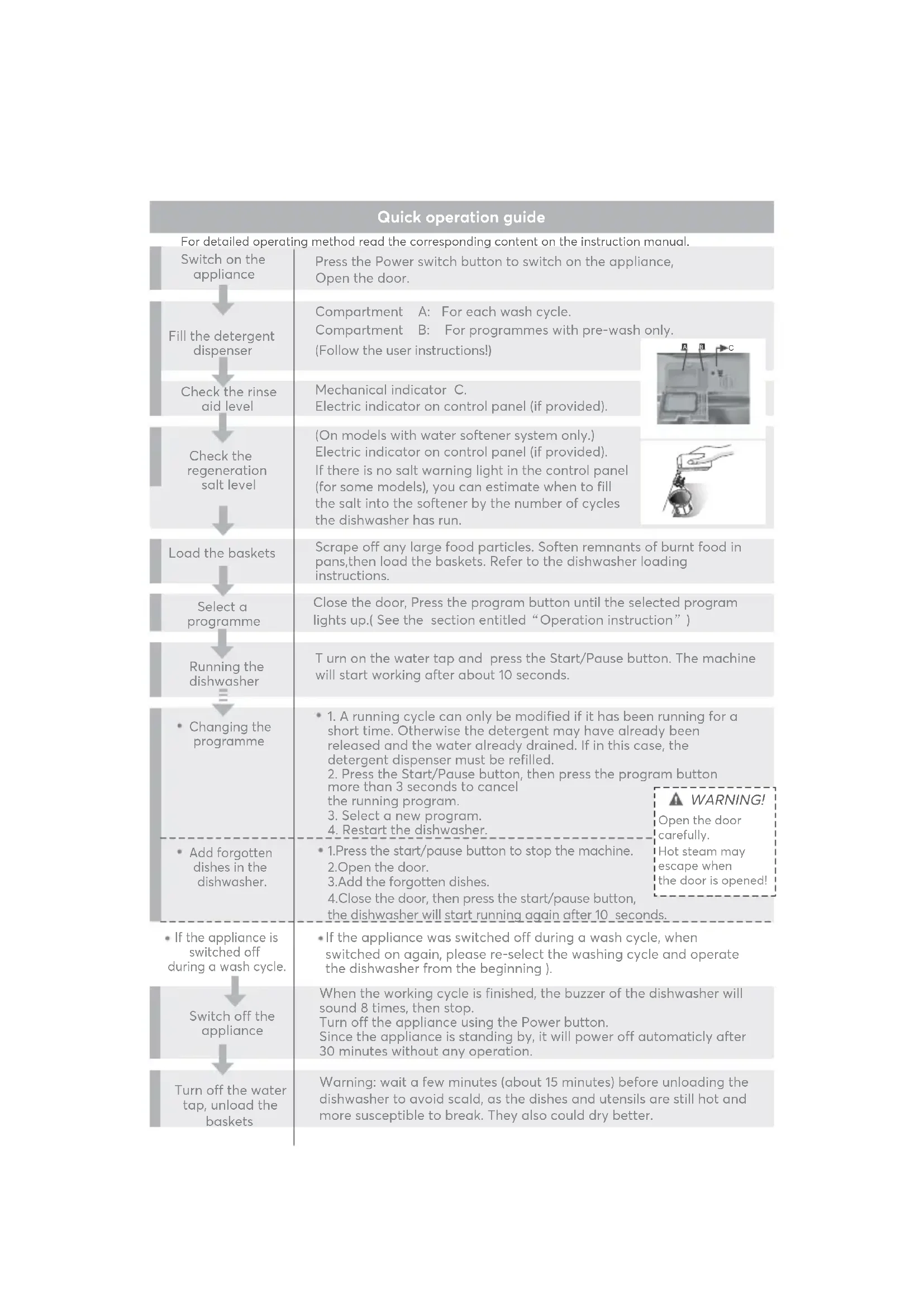

Quick operation guide
For detailed operating method read the corresponding content on the instruction manual.
Switch on the appliance	Press the Power switch button to switch on the appliance, Open the door.

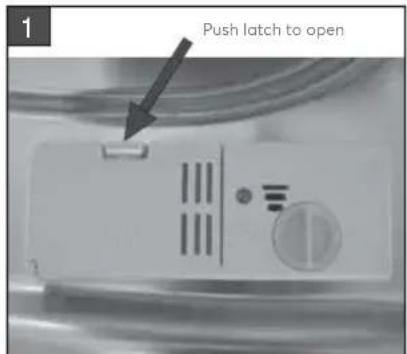

Fill the detergent dispenser	Compartment A: For each wash cycle. Compartment B: For programmes with pre-wash only. (Follow the user instructions!)
Check the rinse aid level	Mechanical indicator C. Electric indicator on control panel (if provided).
Check the regeneration salt level	(On models with water softener system only.) Electric indicator on control panel (if provided). If there is no salt warning light in the control panel (for some models), you can estimate when to fill the salt into the softener by the number of cycles the dishwasher has run.
Load the baskets	Scrape off any large food particles. Soften remnants of burnt food in pans,then load the baskets. Refer to the dishwasher loading instructions.
Select a programme	Close the door, Press the program button until the selected program lights up.( See the section entitled “Operation instruction”)
Running the dishwasher	Turn on the water tap and press the Start/Pause button. The machine will start working after about 10 seconds.
Changing the programme	1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If in this case, the detergent dispenser must be refilled.2. Press the Start/Pause button, then press the program button more than 3 seconds to cancel the running program.3. Select a new program.4. Restart the dishwasher.	WARNING! Open the door carefully. Hot steam may escape when the door is opened!
Add forgotten dishes in the dishwasher.	1. Press the start/pause button to stop the machine.2. Open the door.3. Add the forgotten dishes.4. Close the door, then press the start/pause button, the dishwasher will start running again after 10 seconds.
If the appliance is switched off during a wash cycle.	If the appliance was switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher from the beginning).
Switch off the appliance	When the working cycle is finished, the buzzer of the dishwasher will sound 8 times, then stop. Turn off the appliance using the Power button. Since the appliance is standing by, it will power off automatically after 30 minutes without any operation.
Turn off the water tap, unload the baskets	Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid scald, as the dishes and utensils are still hot and more susceptible to break. They also could dry better.

WARNING!

TABLE OF CONTENT

1. Safety Information -37-
2. Operation Instruction -42-
   3.Installation instruction -43-
3. Prior to using for the first time -48-
4. Loading the Dishwasher Baskets -52-
   6.Starting a washing programme -57-
5. Maintenance and cleaning -59-
   8.Troubleshooting Tips -62-
6. Technical Information -64-
7. Disposal -67-

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY. Please read these instructions carefully before the first use and save them for future reference.

1. Important safety information Read all of the instructions before using

⚠ WARNING! When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

1. This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
2. The plug must be plugged into an appropriate outlet that is installed and grounded inaccordance with all llocal codes and ordinances.

WARNING!

1. Improper connection of the equipment-grounding conductor can result in the risk of an electric shock.
2. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

1. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
2. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
3. Do not place any heavy objects of stand on the door when it is open. The appliance could tip forward.
4. When loading items to be washed:
   1) Locate sharp items so that they are not likely to damage the door seal.
   2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
5. Check that the detergent receptible is empty after completion of the wash cycle.
6. Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacture's recommendations.

7. Use only detergent and rinse additives designed for an automatic dishwasher.

8. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

9. Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.
10. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
11. Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
12. The door should not be left in the open position since this could present a tripping hazard.
13. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. 14. Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

14. Please dispose of packing materials properly.

15. Use the dishwasher only for its intended function.

16. During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls.
17. The appliance shall be connected to the water mains using new hose-sets supplied with the appliance, old hose-sets should not be reused.
18. The maximum number of place settings to be washed is 6.
19. The maximum permissible inlet water pressure is 1 MPa.
20. The minimum permissible inlet water pressure is 0.04 Mpa.
21. It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.
22. The appliance is not intended to be operated by means of an external timer or a separate remote control system.
23. This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.
24. This appliance is intended to be used in household and similar applications such as:
25. staff kitchen areas in shops, offices and other working environments;
26. farm houses;
27. by clients in hotels, motels and other residential type environments;

28. bed and breakfast type environments.

29. Children should be supervised to ensure that they do not play with the appliance.

30. This dishwasher is only designed for domestic using.
31. In order to avoid the risk of electric shock, do not immerse the machine, the power cable or the plug in water or any other liquid.
32. Be sure to unplug the unit before performing any operation of cleaning or maintenance.
33. Keep the appliance and its cord out of reach of children under 8 years.
34. The outlet plug must be easily accessible after the installation of the device.
35. The plug must be remained easily accessible after installation of the appliance.
36. This appliance normally used on a table or similar support.
    The ventilation openings must not be obstructed by a carpet.
37. Loading the household dishwasher up to the 6 sets will contribute to energy and water savings on correct loading of tableware;
    The eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation;
    Washing tableware in a dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the dishwasher is used according to the manufacturer's instructions;
    Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

2. Operation Instruction

IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

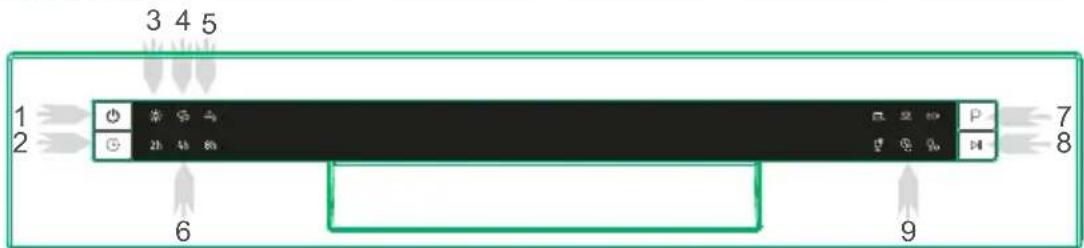

Control Panel

3 4 5 1 2 6 9 7 8

1. Power Button: To turn on/off the power supply.

2.Delay Button: To press the button to delay.

1. Rinse Aid Warning Light: To be on when the rinse aid dispenser needs to be refilled..

2. Salt Warning Light: To be on when the softener needs to be refilled..

3. Water failure indication, the faucet maybe not open

6.Delay setting indications

1. Program Selector: Press the button to select wash cycles

8.Start/Pause Button: Press this button to start or pause the dishwasher.

1. Program indications.

Dishwasher Features

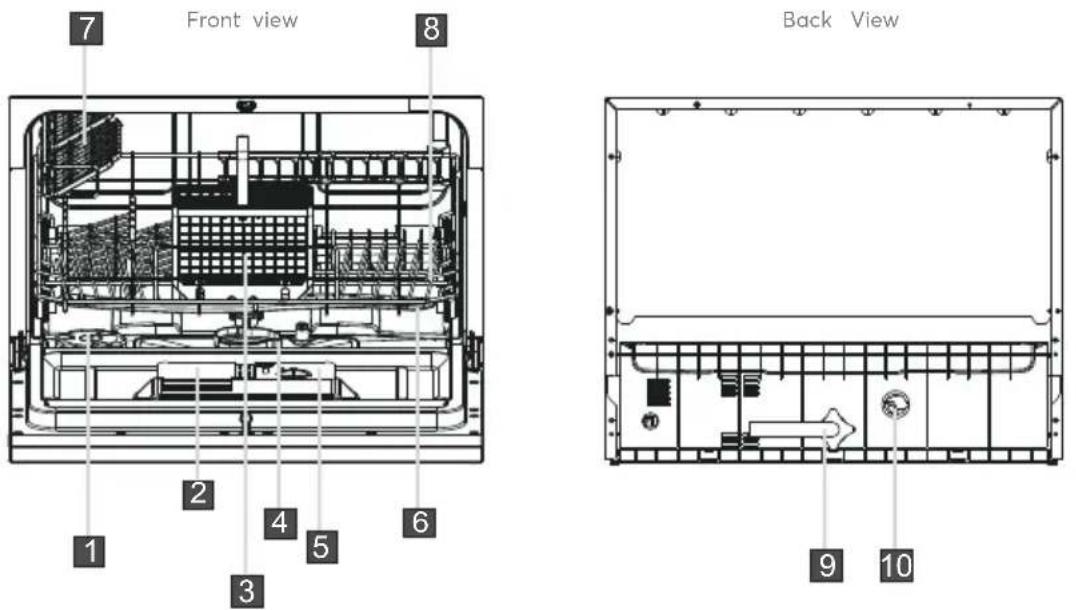

Front view 1 2 3 4 5 6 7 8 Back View 9 10

1.Salt Container

3.Cutlery Basket

1. Rinse Aid Dispenser

7.Cup Shelf

9.Inlet pipe connector

4.Filter assembly2.Detergent Dispenser

8.Basket

1. Drain pipe connector

3. Installation instruction

▲Attention:

The installation of the pipes and electrical equipments should be done by qualified professionals.

! Warning

Electrical Shock Hazard Disconnect electrical power before installing dishwasher.

Failure to do so can result in death or electrical shock.

Installation preparation

The installation position of dishwasher should be near the existing water inlet tap and drain outlet and power socket.

One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

WARNING!

For personal safety:

1. Do not use an extension cord or an adapter plug with this appliance.
   2.Do not cut or remove the earthing connection from the power cord under any circumstances.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

⚠️ Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Water Connection

Cold Water Connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

Please Note: If the supplied hose cloes not fit your tap, please contact your local plumbing supply center where adapters are available for purchase.

Illustration of a hand holding a tap wrench and a faucet (no text or symbols)

WARNING!

Please close the hydrant after using.

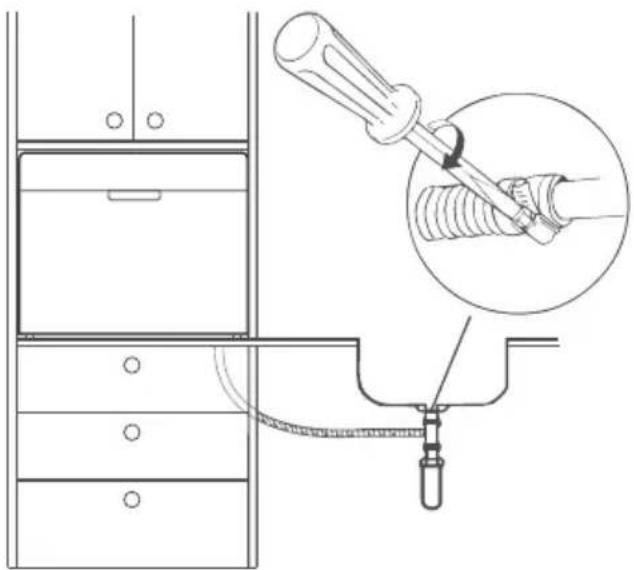

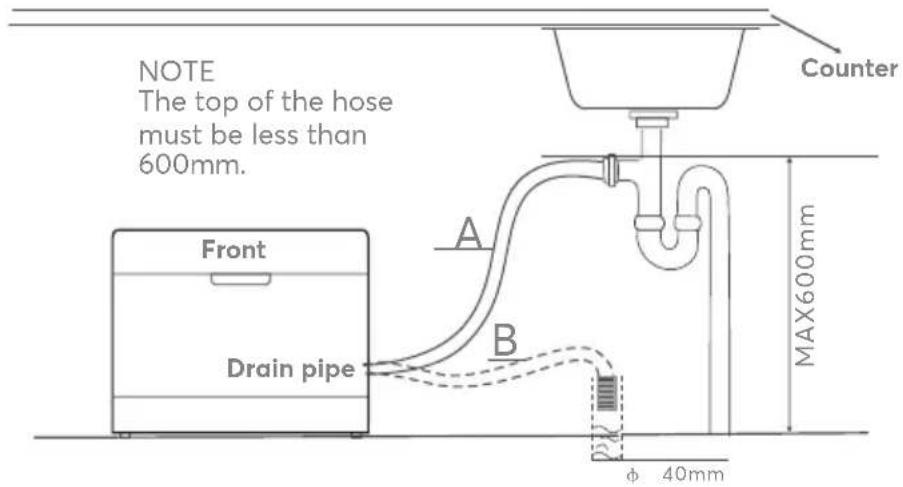

Connection of drain hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. The free end of the hose must be at a height lower than 60cm and must not be immersed into water to avoid the backflow of it.

PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B

NOTE The top of the hose must be less than 600mm. Counter Front Drain pipe A B MAX600mm φ 40mm

Technical line drawing of a mechanical assembly with a magnified inset showing a tool interacting with a threaded component (no text or symbols present)

How to Drain Excess Water From Hoses

If the sink is more than1000 mm higher than the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.

Ensure that the water drain hose is not kinked or squashed.

Extension Hose

It must be no longer than 4 metres, otherwise the cleaning effect of the dishwasher could be reduced.

If you need a drain hose extension, make sure to use a similar drain hose.

Start of dishwasher

The following things should be checked before starting the dishwasher.

1. The dishwasher is level and fixed properly.
2. The inlet valve is open.
3. Inlet hose connections are fully tightened and not leaking.
4. The wires are tightly connected.
5. The power is switched on.
6. The inlet and drain hoses are not kinked.
   7 All packing and print materials should be taken out of the dishwasher.

Attention: After installation, please make sure to keep this manual. The content of this manual is very helpful to the users.

4. Prior to using for the first time

Note: If your model have no water softener, you may skip this section.

A. Loading the Salt Into the Softener

Always use salt intended for use with dishwasher.

The salt container is located beneath the basket and should be filled as follows:

Attention!

Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any caused damages.
■ Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water, which may have been split, remaining of the bottom of the machine for any period of time, which may cause corrosion.

1 Oper

Cross-sectional diagram of a mechanical device showing internal components and a hand holding a tool (no text or symbols visible)

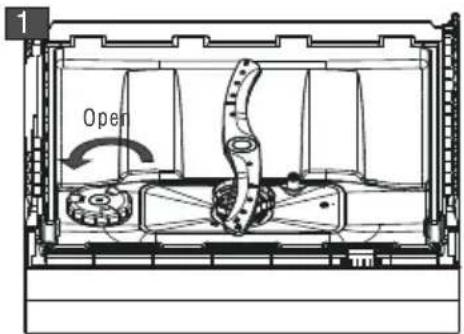

A. Remove the basket and then unscrew and remove the cap from the salt container.(1)

B.Before first wash, add 1lt. of water in the salt container of your machine.

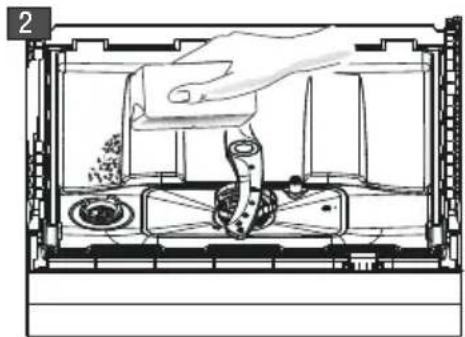

C. Place the end of the funnel (supplied) into the hole and introduce about 1kg of salt.

It is normal for a small amount of water to come out of the salt container.(2)

D. After filling the container, screw the cap tightly back clockwise.

E. Usually, the salt warning light will be cease to be illuminated within 2-6 days after the salt container has been filled with salt.

F. Immediately after filling the salt into the salt container, a washing programme should be started (Suggest choose rapid programme). Otherwise filter system, pump or other important parts of the machine may be damaged by salty water. It is out of warranty.

Note:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how fully the salt dissolves, the salt warning light may still be on even though the salt container is filled.

If there is no salt warning light in the control panel (For some Models), you can judge when to load the salt into the softener by the cycles that the dishwasher had run.

1. If there are spills of the salt, a soak or a rapid program should be run to remove the excess salt.

Adjusting Salt Consumption

Step 1: Enter the status of salt adjustment

Close the door, within 60 seconds after power on, press Program button and hold for 5 seconds, the machine will enter setting mode.

Screenshot of a software interface toolbar with Chinese labels and control buttons

Step 2: select a certain level of salt consumption

Press the Program button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;

Step 3: Exit the status of salt adjustment

Without any operation in five seconds, the machine will exit from set mode, the machine is into standby status

There are 6 levels of salt consumption in all. It is recommended to select the level according to below table:

Water Hardness level		Setting on the water softener	Digital display stalls
^^1)	mmol/ I^2)
0-5 0-0.9		1	H1 Rapid
6-11 1.0-2.0		2	H2 90Min
12-17	2.1-3.0	3	H3 90Min & Rapid
18-22	3.1-4.0	4*	H4 Glass
23-34	4.1-6.1	5	H5 Glass & Rapid
35-45	6.2-8.0	6	H6 Glass & 90Min

Note:

1) German degree of measurement for the water hardness
2) millimol, international unit for water hardness
*) factory setting

Contact your local water board for information on the hardness of your water supply.

B. Rinse Aid Dispenser

Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free help the drying.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator"C "located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3 / 4 full
1/2 full
1/4 full - Should refill to eliminate spotting
Empty

How to fill the Rinse Aid Dispenser

C (Rinse-Aid indicator)

Hand holding a small electronic device with ports and indicator lights (no visible text or symbols)

Close-up of a kitchen sink with a hand holding a bag, no visible text or symbols

Close-up of a hand holding a small electronic device with indicator lights (no visible text or symbols)

1. To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2. Pour the rinse aid into the dispenser, being careful not to overfill.
3. Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Note: Clean up any rinse aid spill during filling with an absorbent cloth to avoid excessive foaming

during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

Adjust lever (Rinse) MAX Increase Reduce

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

Note:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

C. Detergent

Detergents with have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Normally new pulverised detergent is without phosphate, thus he water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 °dH. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not remove completely. In this case please choose a program with higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

■ Conventional, alkaline detergents with caustic components.

■ Low alkaline concentrated detergents with natural enzymes.

The use of Normal washing program in combination with concentrated detergent reduces pollution and is good for your dishes.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short Programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent and rinse aid then conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

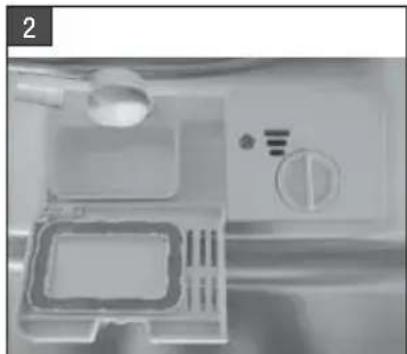

Adding detergent to dispenser

Push latch to open

Close-up of a kitchen appliance panel with a tool and control knob (no visible text or symbols)

NOTE:

1. If the lid is closed: press release button. The lid springs open.
2. Always add the detergent just before starting each wash cycle.
3. Only use branded detergent aid for dishwasher.

WARNING! Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Proper Use of Detergent

Only use detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes.

Fill in detergent dispenser

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on right:

A.Location of main wash cycle detergent. B.Location of pre-wash cycle detergent

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging. Close the lid and press until it locks in place.

A B

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

1. You see information about the amount of detergent for the single program on the page9.
2. Please be aware that soiling levels and water hardness can effect wash results.
3. Please observe the manufacturer's recommendations on the detergent packaging.

5. Loading the Dishwasher Baskets

Recommendation

1. Consider buying utensils which are identified as dishwasher-proof.
2. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from detergent manufacturers.
3. For particular items, select a program with as low temperature as possible.
4. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

Suitability of use in the dishwasher

Not suitable for use

1. Cutlery with wooden, horn china or mother-of-pearl handles.
2. Plastic items that are not heat resistant.
3. Older cutlery with glued parts that is not temperature resistant.
4. Bonded cutlery items or dishes.
5. Pewter or copper items.
6. Crystal glass.
7. Steel items subject to rusting.
8. Wooden platters.
   9.Items made from synthetic fibres.

Limited suitability

1. Some types of glasses can become dull after a large number of washes.
2. Silver and aluminium parts have a tendency to discolour during washing.
3. Glazed patterns may fade if machine washed frequently.

Attention before or after loading the Dishwasher Baskets

(For the best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large food paritcles. Soften remnants of burnt food in pans It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are face downwards.
2. Curved items, or those with recesses, should be loaded at aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

Note: Very small items should not be washed

in the dishwasher as they could easily fall out of the basket.

1. Load hollow items such as cups, glasses, pans etc. with the opening facing downwards so that water cannot collect in the container or a deep base.
2. Dishes and items of cutlery must not lie inside one another, or cover each other.
3. To avoid damage to glasses, they must not be touched.
4. Long bladed knives stored in an upright position are a potential hazard!
5. Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the basket.
6. Please do not overload your dishwasher. This is important for good results and for reasonable energy consumption.

Loading the Basket according to EN 60436:

1.Basket:

with the cup rack without the cup rack

Technical diagram of a multi-chamber electronic device with numbered components and labeled sections

Number	Item
1	Cups
2	Mugs
3	Glasses
4	Melamine bowl
5	Soup plates
6	Dinner plates
7	Saucers

Number	Item
8	Dessert dishes
9	Melamine dessert plates
10	Oval platter
11	Small pot
12	Cutlery basket
13	Dessert bowls
14	Serving spoon

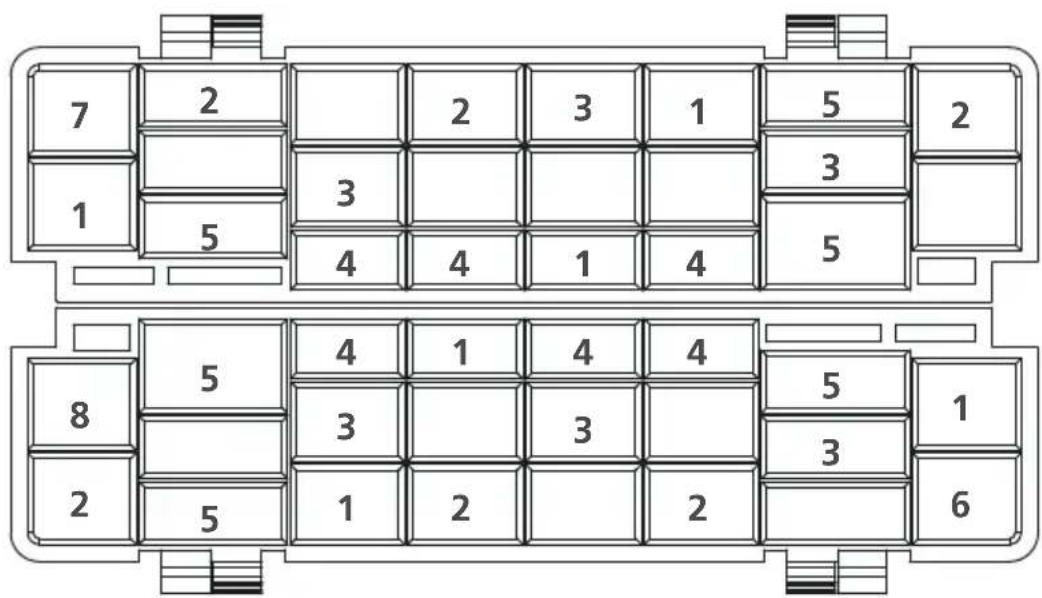

2. Cutlery basket:

7 2 2 3 1 5 2 1 5 3 3 5 4 4 1 4 8 5 4 1 4 4 5 1 3 3 3 3 2 5 1 2 2 6

1 2 3 4 5 6 7 8

Information for comparability tests in accordance with EN60436

• Capacity: 6 place settings
- Program: ECO
- Rinse aid setting: Max
- Softener setting: H4

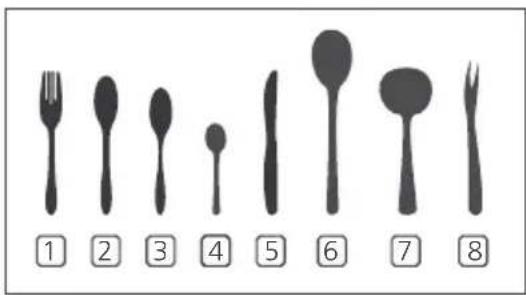

Number	Item
1	Forks
2	Soup spoons
3	Dessert spoons
4	Teaspoons
5	Knives
6	Serving spoons
7	Gravy ladles
8	Serving forks

6. Starting a washing programme

Wash Cycle Table

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (l)	Rinse Aid
Intensive	For heaviest soiled crockery, and normally soiled pots, pans, dishes etc with dried on soiling.	Pre-wash(50°C)Wash (70 °C)RinseRinseRinse (70 °CDrying)	4/10g	140	1.2	9.6
Universal	For normally soiled loads, such as pots, plates, glasses and lightly soiled pans.	Pre-washWash (60 °C)RinseRinse (70 °CDrying)	4/10g	120	1.05	7.7
ECO (*EN 60436)	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.	Pre-washWash (45 °C)Rinse (65 °CDrying)	14g	230	0.613	6.5
Glass	For lightly soiled loads, such as glasses, crystal and fine china.	Wash (45 °C)RinseRinse (60 °CDrying)	14g	75	0.65	5.8
90 Min [ADHS]	For normally soiled loads that need quick wash.	Wash(65°C)RinseRinseRinse(70°C)Drying	14g	90	1.16.6
Rapid [TW40]	A shorter wash for lightly soiled loads and quick wash.	Wash (40 °C)RinseRinse	12g	30 0.5		5.8

NOTE: *EN 60436 : This programme is the test cycle. The information for comparability test in accordance with EN 60436, as follows:

■ Capacity: 6 setting
■ Rinse aid setting: Max
The power consumption of off-mode is 0.45W

left-on mode is 0.49W

Turning On the Appliance

Starting a cycle wash

1. Draw out the basket(see the section entitled "Loading the Dishwasher baseket").
2. Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").
3. Insert the plug into the socket. The power supply is 220-240 V\~ 50Hz, the specification of the socket is 10 A 250V\~.
4. Make sure that the water supply is turned on to full pressure.
5. Press the program button, the wash program will be changed as follows direction

ECO->Glass->90 min->Rapid->Intensive->Universal;

If a program is selected, the corresponding light will be on. Then press the

Start/Pause button, the dishwasher begins to start.

NOTE: When you press the Start/Pause button to pause during washing the program light will stop blinking and the dishwasher will sound every minute unless you press the Start/Pause button to start.

Change the Programme...

Premise: You can modify the washing program, If the dishwasher just worked for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. in this case, the detergent dispenser must be refilled (see the section entitled "Detergent").

Press Start/Pause Button to pause the machine when the door is closed, Press Program Button more than three seconds the machine will be in stand by state, then you can change the program to the desired cycle setting (see the section entitled "Starting a wash program").

The program lights show the status of the dishwasher:

a) One of the program lights on----stand by or pause.
b) One of the program lights blinking---- running.

NOTE: If you open the door during washing, the machine will pause. When you and press the Start/Pause Button, the machine will keep on working after 10 seconds. If your model has broken remember function, the machine will go on to finish the selected program after the power cut.

Forget to Add a Dish?

A forgotten dish can be added any time before the detergent cup opens.

1. Press the Start/Pause button.
   2.Open the door a little to stop the washing.
2. After the spray arms stop working, you can open the door completely.
   4.Add forgotten dishes.
3. Close the door.
4. Press the Start/Pause button, the dishwasher will run after 10 seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid scald, the dishes and utensils are still hot and more susceptible to breakage. They will also dry better.

1. Switch Off the Dishwasher

a) Switch off the dishwasher by pressing the ON/OFF button.

b) Turn off the water tap!

2.Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

1. Unloading the dishwasher

It is normal that the dishwasher is wet inside.

WARNING! It is dangerous to open the door when washing, because the hot water may scald you.

7. Maintenance and cleaning

Filtering System

The filter prevent larger remnants of food or other objects from getting inside the pump.

The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter).

Diagram showing three labeled components (A, B, C) of a device with arrows pointing to their respective parts.

1.Main filter

Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.

2.Fine filter

This filter holds soil and food residues in the sump area and prevents it from being redeposited on the dishes during a cycle.

3. Coarse filter

Larger items, such as pieces of bone or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by this filter, gently squeeze the tap on the top of this filter and lift it out.

Filter assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter assembly must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapping in the filter after each wash cycle by rinsing the filter and cup under running water. To remove the filter assembly, pull the cup handle in the upward direction.

WARNING!

Never run the dishwasher without the filters in place.

The dishwasher must never be used without the filters.

Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

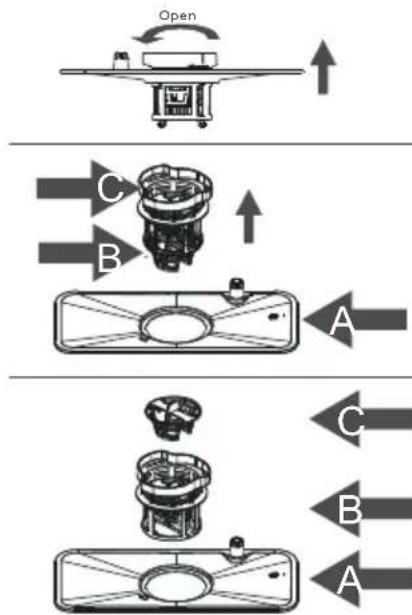

Open C B A C B A

Step 1: Contrarotate the filter assembly(A,B and C), then lift it all up.
Step 2: Lift B and C up from A;
Step 3: Separate B and C.

NOTE: If do it from step1 to step 3, the filter system will be removed; while if do it from Step 3 to Step 1, the filter system will be installed.

Notes:

1. Inspect the filters for blocking after every time the dishwasher has been used.

2. By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning The Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.

For the exterior use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Isometric line drawing of a mechanical component or housing (no text or symbols)

WARNING!

1. Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
2. Abrasive agents or some paper towel should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

Protect Against Freezing

please take frost protection measures on the dishwasher in winter. Each time after washing cycles, please operate as follows:

1. Cut off electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

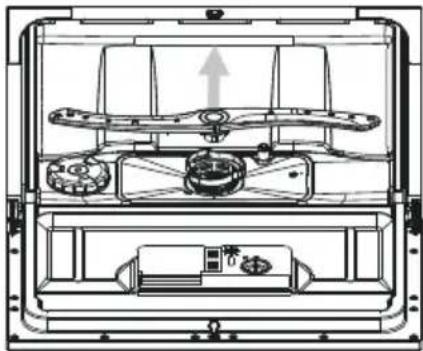

Cleaning the Spray Arms

The spray arms can be easily removed for periodic cleaning of the nozzles to prevent possible clogging.

Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded.

Grasp the middle of the spray arm, pull it upwards to remove it. Wash the arms under a jet of running water and replace it carefully to its seat. After reassembly, check that the spray arms rotate freely. Otherwise, check that they have been installed correctly.

Technical line drawing of a mechanical device interior with no visible text or symbols

How to keep your dishwasher in shape

1. After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.

1. Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

1. No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water with a little vinegar, or a cleaning product made specifically for dishwashers.

1. When not in use for a long time

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

5.Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

6.Seals

One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Troubleshooting Tips

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

	Problem Possible Causes	What To Do
Technical problems	Dishwasher doesn't start	Fuse blown, or the circuit breaker tripped.	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
		Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
		Door of dishwasher not properly closed.	Closed dishwasher making sure that door latches.
	Water not pumped from dishwasher	Kink in drain hose	Check drain hose.
		Filter clogged.	Check the coarse the filter.(see section titled " Cleaning The Filter ")
		Kitchen sink clogged.	Check kitchen sink to make sure it is draining well.If problem is kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwasher.
General problems	Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds. If this occurred, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then Start any wash cycle to drain out the water. Repeat if necessary.
		Spilled rinse-aid	Always wipe up rinse-aid spills immediately.
	Stained tub interior	Detergent with colourant was used.	Make sure that the detergent is the one without colourant.
	White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves.Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
	There are rust stains on cutlery	The affected items are not corrosion resistant.
		A programme was not run after dishwasher salt was added.Traces of salt have got into the wash cycle.	Always run the Quick wash programme .without any crockery in the dishwasher and without selecting the Turbo function (if present),after adding dishwasher salt.
		The lid of softer is loose.	Check the lip .Ensure the fix is fine.
Noise	Knocking noise in the wash cabinet	The spray arm is knocking against an item in a basket.	Interrupt the programme, and rearrange the items which are obstructing the spray arm.
	Rattling noise in the wash cabinet	Item of crockery are insecure in the wash cabinet.	Interrupt the programme,and rearrange the items of crockery.
	Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on dishwasher function.if in doubt, contact a suitably qualified plumber.
Unsatis-factory washing result	Problem Possible Causes What To Do
	The dishes are not clean	The dishes were not loaded correctly.	See notes in "Loading the Dishwasher Baskets".
		The programme was not powerful enough.	Select a more intensive program.See" Wash Cycle Table ".
		Not enough detergent was dispensed.	Use more detergent, or change your detergent.
		Item are blocking the path of spray arms.	Rearrange the items so that the sprayer can rotate freely.
		The filter combination in the base of wash cabinet is not clean or is not correctly fitted.This may cause the spray arm jets get blocked.	Clean and/or fit the filter combination correctly.Clean the spray arm jets. See "Cleaning the Spray Arms".
	Cloudiness on glassware	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
	Black or gray marks on dishes	Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
	Detergent left in dispenser cups	Dishes block detergent cup opens.	Re-loading the dishes properly.
Unsatis-factory drying result	The dishes are not drying	Improper loading	Load the dishwasher as suggested in the directions.
		Too little rinse-aid	Increase the amount of rinse-aid/Refill the rinse-aid dispenser.
		Dishes are removed too soon.	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once the dishes are barely warm by touching.
		Wrong programme selection	In short programmes the rinse temperature is lower.Choose a program with a high rinse temperature.
		Using cutlery with a low-quality coating	Water drainage is more difficult with these items.Cutlery or dishes of this type are not suitable for washing in the dishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
The rapid light flicker fleetly	Longer inlet time.	Faucets is not opened, or water intake is restricted, or water pressure is too low.
The Rapid and 90Min light flicker fleetly	Not reaching required temperature.	Malfunction of heating element .
The Glass light flicker fleetly	Overflow.	Some element of dishwasher leaks .

WARNING!

1. If overflow occurs, turn off the main water supply before calling a service.
2. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

9.Technical Data Sheet

Parameter Value Parameter Value
Rated capacity (ps)	6	Dimensions in cm Height		43,8
			Width	55,0
			Depth	55,0
EEI	61,9	Energy efficiency class	F
Cleaning performance index	1,13	Drying performance index	1,07
Energy consumption in kWh [per cycle], based on the eco programme using cold water fill. Actual energy consumption will depend on how the appliance is used.	0,613	Water consumption in litres [per cycle], based on the eco programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	6,5
Parameter Value Parameter Value
Programme duration(h:min)	3:50	Type	Free standing
Airborne acoustical noise emissions(dB(A) re 1 pW)	49	Airborne acoustical noise emission class	C
Off-mode (W)	0,49	Standby mode (W)	N/A
Delay start (W) (if applicable)	1,00	Networked standby (W) (if applicable)	N/A
Minimum duration of the guarantee offered by the supplier : 2years
Additional information:
Weblink to the supplier's website, where the information in point 6 of Annex II to Commission Regulation (EU) 2019/2022 is found: www.but.fr

Reference	SDW6003EW NE
Rated voltage	220-240V~
Rated power	1170-1380W
Rated frequency	50Hz

Note: More data information, please scan the QR code on the energy label.

10. Disposal

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with the standard international abbreviations:

1. PE — for polyethylene, e.g. sheet wrapping material

2.PS——for polystyrene, e.g. padding material

3.POM — polyoxymethylene, e.g. plastic clips

4.PP——polypropylene, e.g. Salt filler

5.ABS — Acrylonitrile Butadiene Styrene, e.g. Control Panel .

WARNING!

1. Packaging material could be dangerous for children!
2. For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable.
3. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
4. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
5. For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions containde in this booklet.

CORRECT DISPOSAL OF THIS PRODUCT

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

Note:

• In accordance with Article L. 217 of the Consumer Code, your product has 2 year legal guarantee of conformity.
• Period of availability of repair spare parts: 10 years.
  · To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97,

From Monday to Friday from 9:00 to 19:00, Saturday from 9:00 to 18:00 (local call price).

LE TRI + FACILE
