EGSP 566 100 E - Dishwasher AMICA - Free user manual and instructions

Product type	Fully integrated built-in dishwasher
Brand	Amica
Model	EGSP 566 100 E
Capacity	14 place settings (EN 60436)
Wash programs	Auto, Intensive, Hygiene, ECO, Glass, 60 min, Quick
Additional functions	Extra wash, Extra drying, Delay start (max 24h), Child lock, Automatic door opening
Water hardness adjustment	6 levels (H1 to H6)
Detergent dispenser	Main compartment (30 g max) + prewash
Rinse aid dispenser	Adjustable D1 to D5, default D3
Water softener	With salt reservoir (1.5 kg)
Spray arms	Upper and lower, removable for cleaning
Upper basket	Height-adjustable (2 positions), folding cup racks
Lower basket	With foldable tines for large dishes
Cutlery basket	Yes, with compartments
Power supply	220-240 V ~ 50 Hz, fuse 10-16 A
Water pressure	0.03 - 1 MPa
Dimensions (W x H x D)	600 x 820 x 570 mm (approx)
Installation	Built-in, adjustable feet, cold water connection
Spare parts	Available 7 to 10 years according to EU regulation
Safety	Child lock, Aquastop (on some models), automatic stop

Frequently Asked Questions - EGSP 566 100 E AMICA

How to load the dishwasher correctly?

Place hollow dishes facing down so water can drain. Long and sharp items (knives) in the cutlery basket, point down. Do not overload the baskets and ensure the spray arms rotate freely. Refer to the manual for loading examples.

When should regenerating salt be added?

Salt must be added when the salt indicator on the control panel lights up. Pour about 1.5 kg of special dishwasher salt into the reservoir, then fill with water and start a short program immediately after.

How to adjust water hardness?

Use the test strip (if provided) or contact your water supplier. To adjust, open the door, turn on the appliance, then within 60 seconds press the Start Pause button for more than 5 seconds. Use the same button to select the level H1 to H6 corresponding to your hardness. Confirm with the power button.

What to do if the salt or rinse aid indicator remains lit after refilling?

The indicator may remain lit until the salt or rinse aid has completely dissolved or dispensed. Wait a few cycles. If the problem persists, check that the reservoir is properly filled and the dispenser is correctly adjusted.

How to clean the filters?

Remove the lower basket. Turn the coarse filter to the left to unscrew. Separate the different filters (main, coarse, micro). Rinse them under running water with a soft brush. Reassemble in reverse order and ensure they are properly engaged. Never operate the appliance without filters.

What do the error codes (E1, E3, etc.) mean?

E1: water fill too long (check tap and pressure). E3: temperature not reached (heating element failure). E4: overflow (leak). E8: non-return valve anomaly. Ed: communication fault. Consult the manual for detailed actions.

How to activate the child lock?

Press simultaneously the Alt and Delay start buttons for 3 seconds. An indicator lights up. To deactivate, repeat the same operation.

Can I use all-in-one tablets (2in1, 3in1)?

Yes, but for best results, add salt and rinse aid separately, and set water hardness to the lowest level. Tablets are not suitable for short programs. If white residue appears, increase detergent quantity or switch to regular detergent.

How to install the appliance as built-in?

Choose a location near water and electricity supplies. Adjust the feet to level. Connect the cold water inlet hose and drain hose. Attach the decorative door according to instructions (max weight 7 kg for 60 cm). Adjust the door spring tension. Refer to the installation manual for detailed steps.

What to do if the dishes are not drying well?

Check that the rinse aid dispenser is filled and set the dose to a higher level (D4 or D5). Use a program with drying (e.g., ECO + extra drying). Open the door at the end of the cycle to speed up drying. Avoid overloading the dishwasher.

USER MANUAL EGSP 566 100 E AMICA

DISPLAY I BEDIENPANEL 30

FEHLERCODE 31

GARANTIE, NACHVERKAUF-SERVICE 45

GARANTIE 45

EN - CONTENTS

SAFETY INSTRUCTIONS FOR USE 47

BEFORE YOU INSTALL THE APPLIANCE 47

BEFORE FIRST USE 47

CHILD SAFETY 47

IN CASE OF PROBLEMS 48

RECOMMENDATIONS 48

DISHES AND UTENSILS THAT ARE NOT SUITABLE FOR DISHWASHERS. 49

UNPACKING 50

DISPOSAL OF OLD APPLIANCE 51

INSTALL THE APPLIANCE 52

PLACE YOUR APPLIANCE 52

WATER SUPPLY CONNECTION 52

WATER SUPPLY HOSE 52

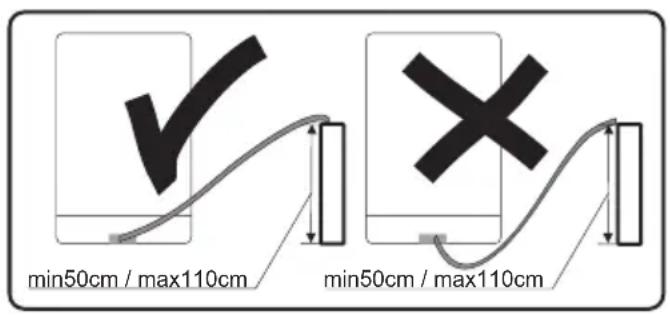

THE DRAIN HOSE 52

ELECTRICAL CONNECTION 53

PREPARE THE APPLIANCE FOR OPERATION 54

BEFORE FIRST USE 54

THE IMPORTANCE OF WATER DESCALING 54

ADD SPECIAL SALT 54

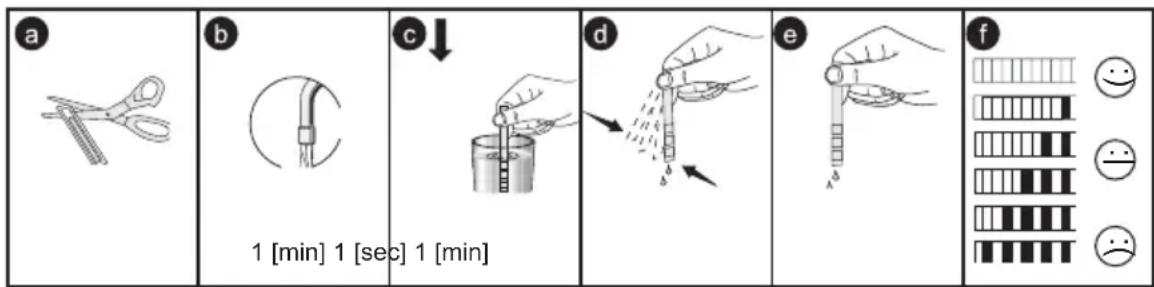

THE TEST STRIP 55

MULTI-COMPONENT (MULTITAB) DETERGENTS (EG. 2-IN-1, 3-IN-1, ETC.) 55

WATER HARDNESS TABLE 56

THE USE OF DETERGENTS 57

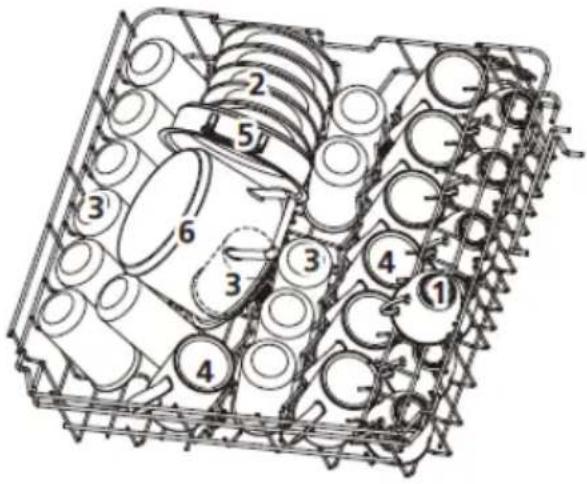

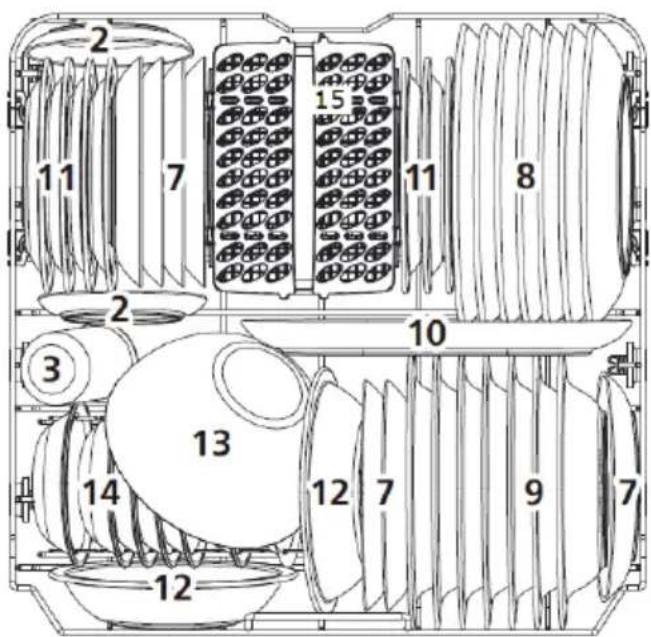

STANDARD LOADING AND TEST RESULTS: 58

INFORMATION FOR COMPARABILITY TEST IN ACCORDANCE WITH EN 60436 58

CUTLERY BASKET 59

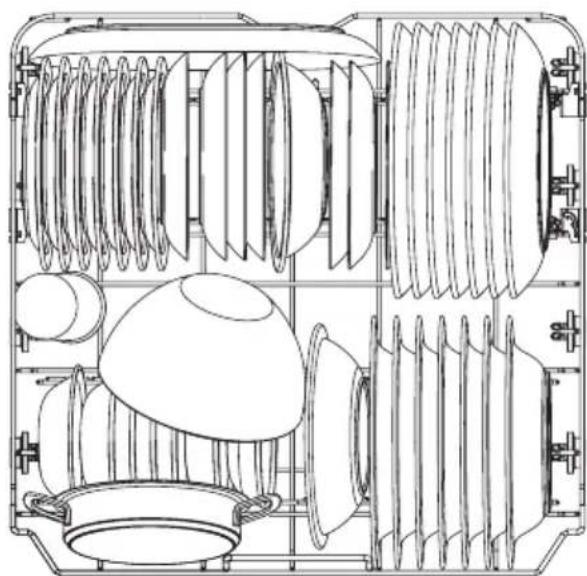

LOAD DISHES INTO DISHWASHER 60

UPPER BASKET 60

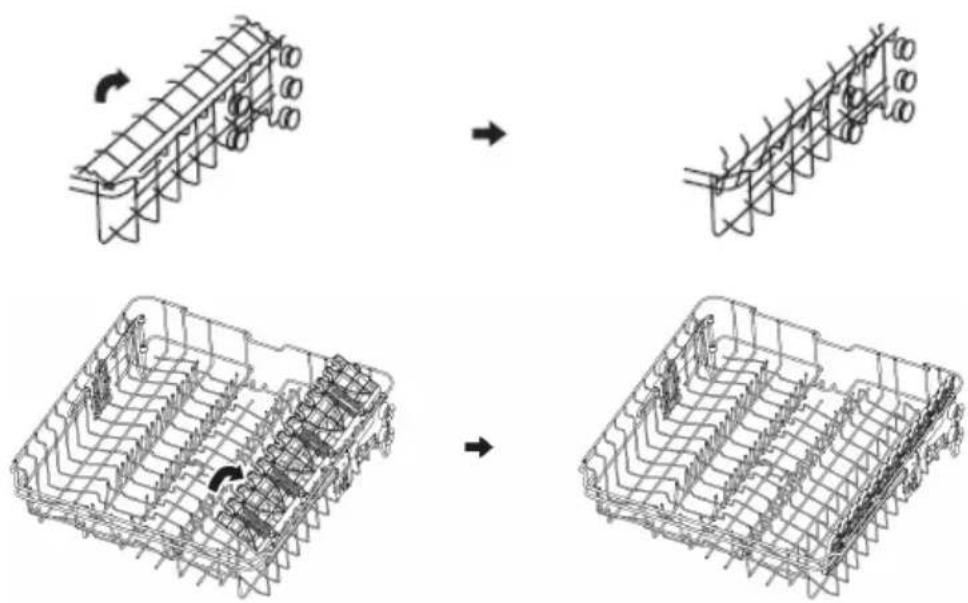

FOLD THE MUGS AND CUPS SHELVES 60

FOLD THE DISHWASHER BASKET SPIKES 61

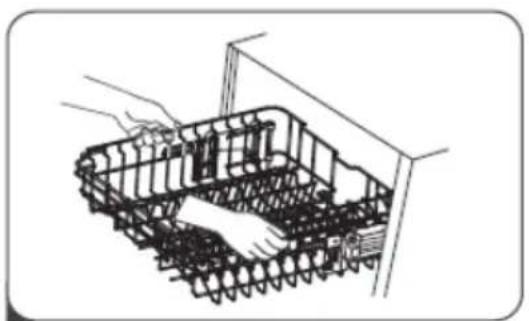

TIPS FOR USING THE DISHWASHER BASKET: 61

LOWER BASKET 62

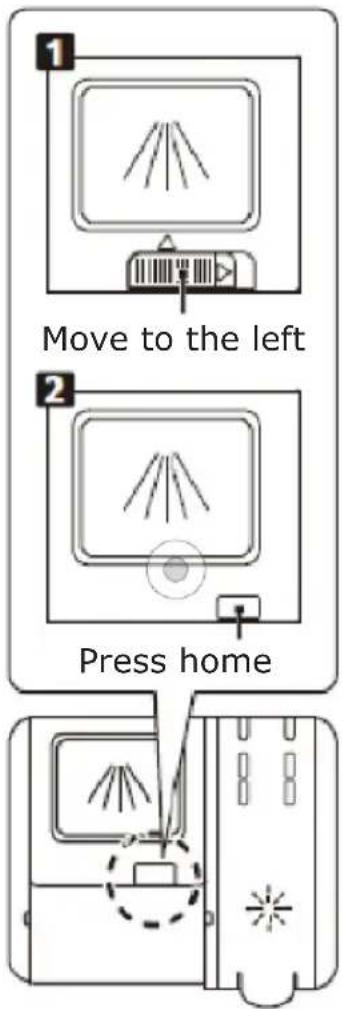

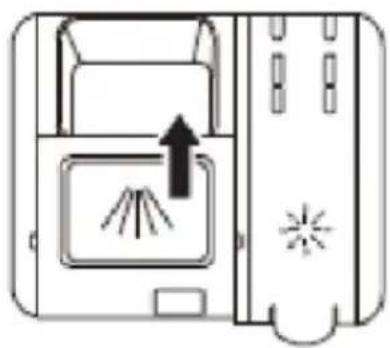

FILL THE DETERGENT DISPENSER 63

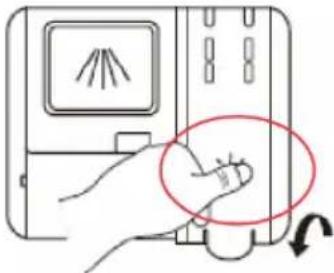

ADD RINSE AID TO THE DISPENSER AND ADJUST SETTING 64

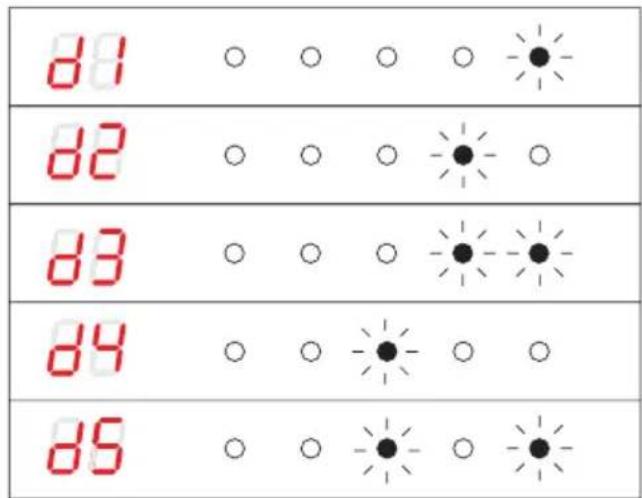

ADJUST THE RINSE AID DISPENSER 65

TURN ON THE APPLIANCE AND SELECT PROGRAMME 66

TURN ON THE APPLIANCE 66

CHANGE PROGRAMME 66

ADD DISHES DURING THE PROGRAMME: 66

THE DISHWASHING PROGRAMME COMPLETES 67

DISPLAY AND CONTROL PANEL 68

ERROR CODE 69

CLEANING AND MAINTENANCE 71

CLEAN EXTERNAL SURFACES 71

CLEAN INTERNAL SURFACES 71

SPRAY ARMS 72

CLEAN THE DISHWASHER 72

PROBLEM SOLVING GUIDE 74

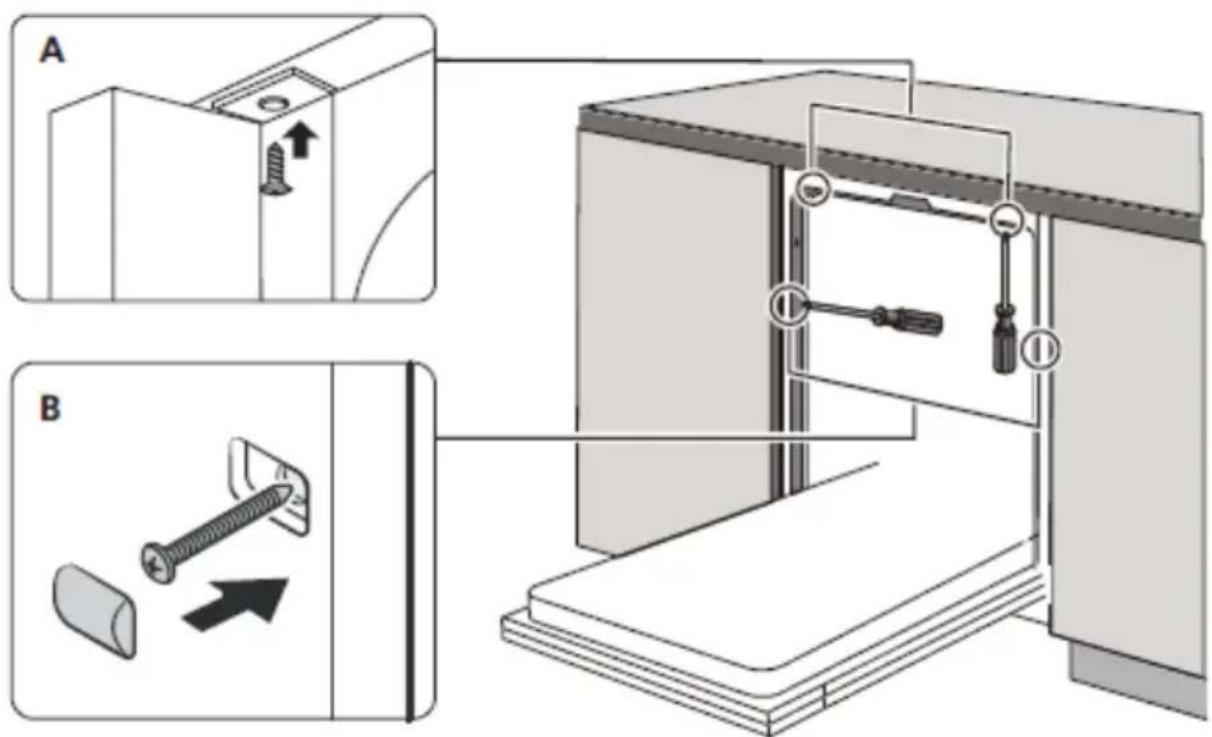

INSTALL THE APPLIANCE IN A CABINET 76

PLACE YOUR APPLIANCE 76

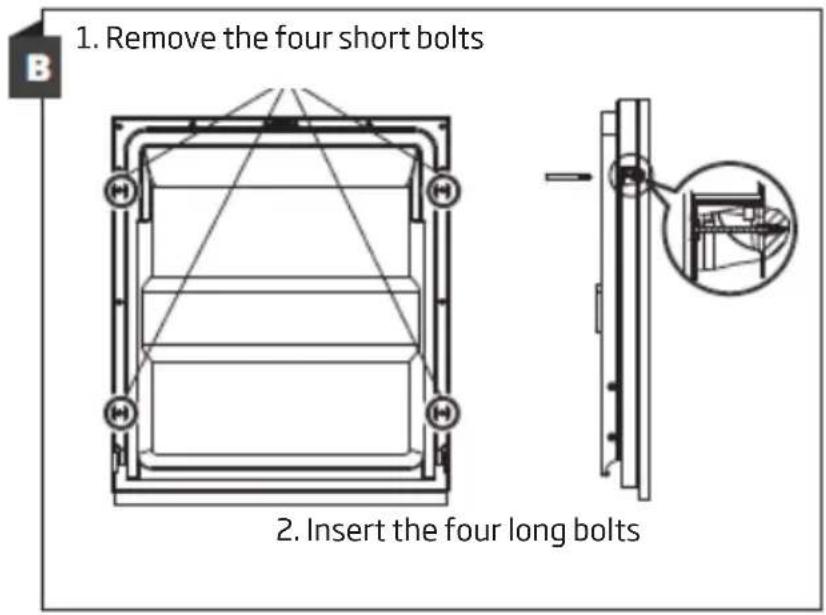

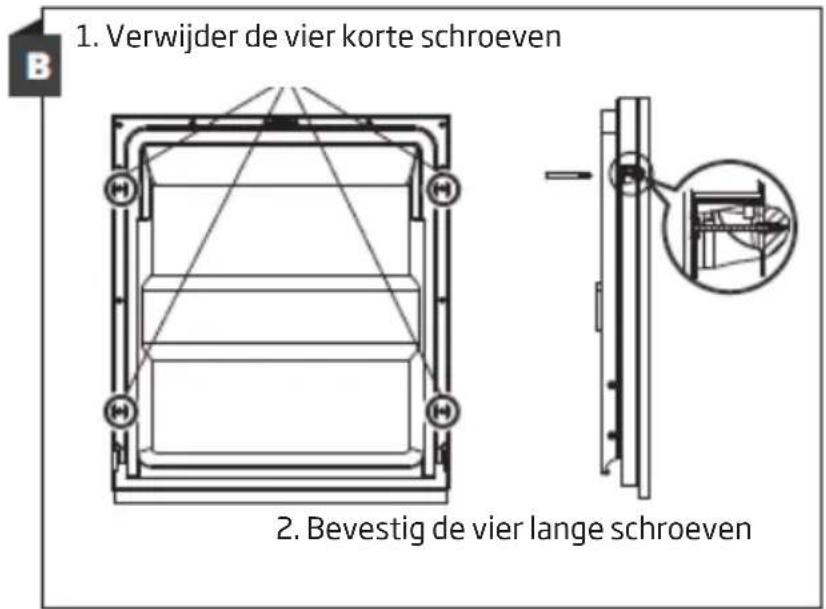

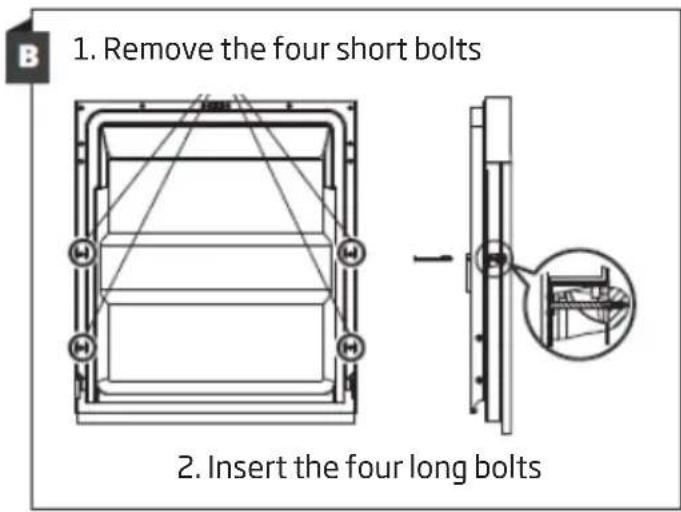

BUILT-ON INSTALLATION 78

WARRANTY AND AFTER SALES SERVICE 83

WARRANTY 83

FR - SOMMAIRE

INDICATIONS CONCERNANT LA SÉCURITÉ D'UTILISATION 85

AVANT L'INSTALLATION 85

AVANT LA PREMIERE UTILISATION 85

SECURITÉ DES ENFANTS 85

UTILISATION QUOTIDIENNE 86

EN CAS DE PROBLEMES 87

RECOMMANDATIONS 87

LA VAISSELLE OUI N'EST PAS DESTINEE A ÊTRE LAVEE DANS UN LAVE-VAISSELLE 87

DEBALLAGE 89

ÉLIMINATION DES APPAREILS USAGES 90

INSTALLATION DE L'APPAREIL 91

EMPLACEMENT DE L'APPAREIL 91

RACCORDEMENT A L'EAU 91

TUYAU D'ALIMENTATION EN EAU 91

TUYAU D'ÉVACUATION 92

RACCORDEMENT ÉLECTRIQUE 92

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

Illustration of a hand holding a faucet with a curved arrow indicating motion (no text or symbols)

Illustration showing three steps of a water tap tool: opening, adjusting the valve, and adding a plug to a drain.

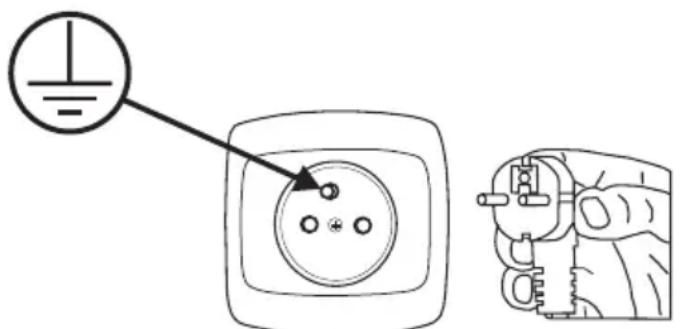

Diagram showing a power outlet with a symbol and a hand holding an electrical plug, illustrating the principle of circuit breakers.

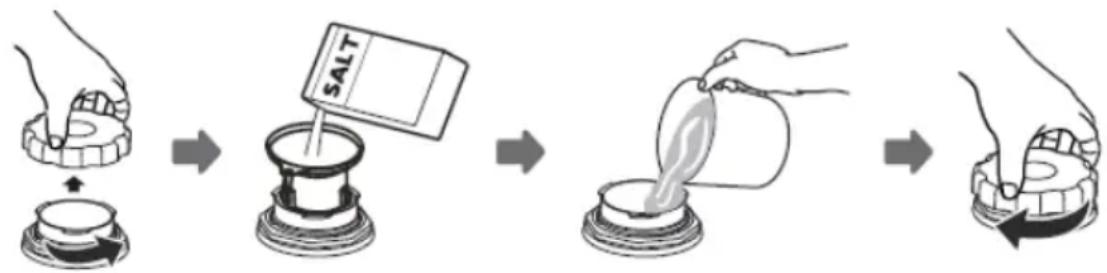


Technical diagram of a mechanical assembly with numbered components, likely a gear or housing component.

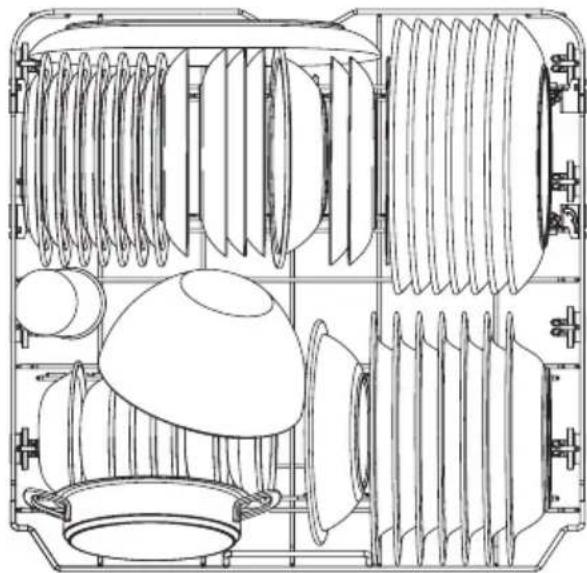

Line drawing of a metal crate filled with various circular and cylindrical objects (no text or symbols)

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Diagram of a car with wheels and an arrow indicating motion, no text or symbols present

Diagram of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

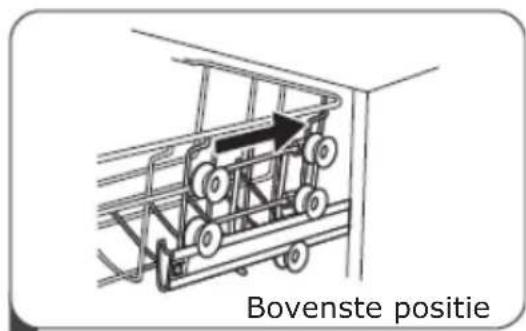

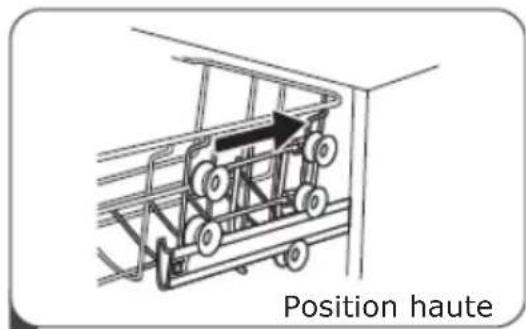

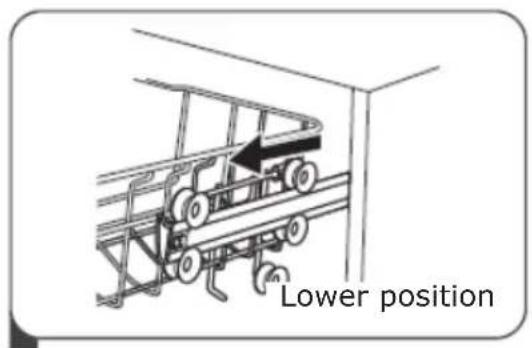

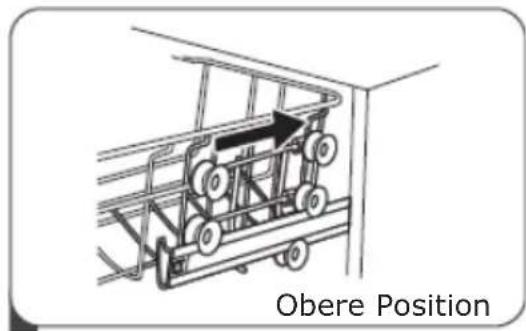

Obere Position

Line drawing of a mechanical assembly with gears and a housing (no text or symbols)

Illustration of a tracked vehicle with a hand operating a tool, showing mechanical components and a magnified inset (no text or symbols)

Technical line drawing of a mechanical fan or impeller assembly (no text or symbols)

Technical line drawing of a mechanical component with internal helical structures and housing (no text or symbols)

Technical diagram showing two steps of a printer or printer device with labeled components A and B, including a brush tip and explosion effect.

Diagram of a device with a window and fan, showing airflow or heat distribution (no text or symbols)

Simple line drawing of a device with a screen and directional arrows, no text or symbols present.

Diagram of a hand inserting a device into a device with a screen and cable (no text or symbols)

Diagram showing a hand pressing a button on a device with a red circle highlighting the button area.

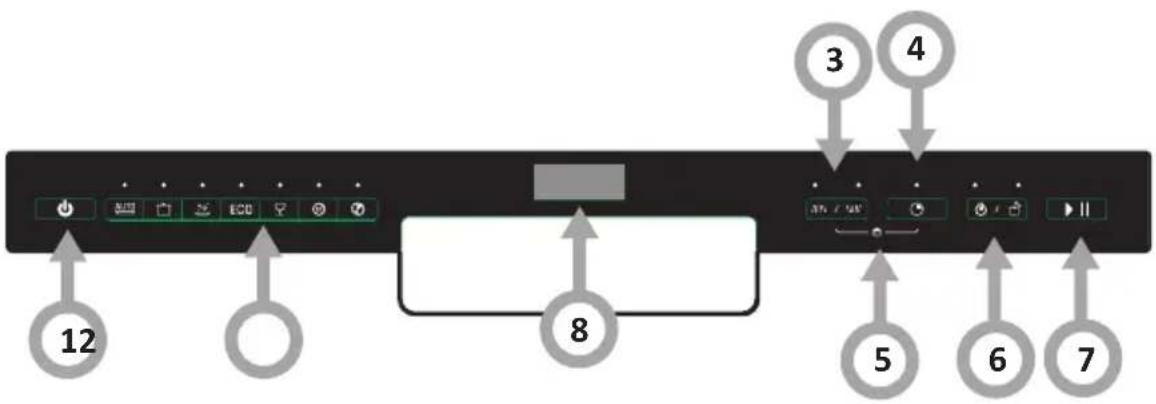

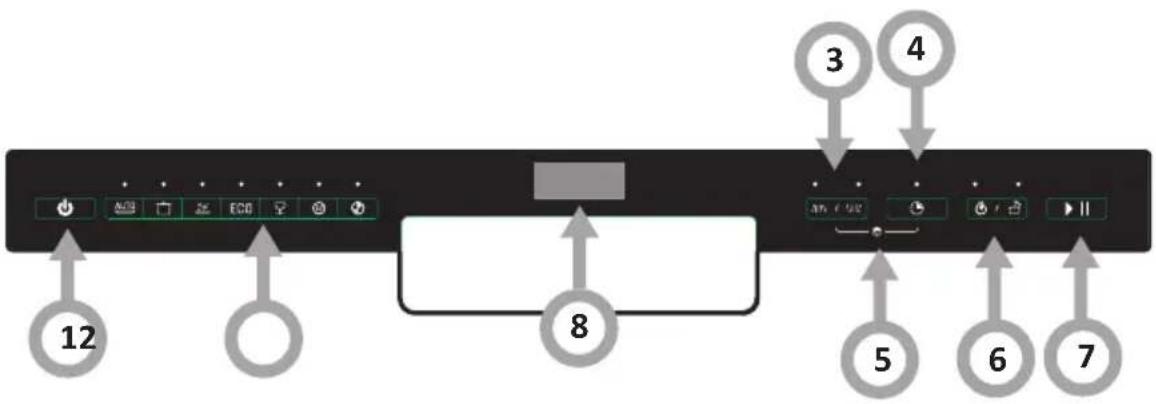

DISPLAY I BEDIENPANEL

Simple line drawing of a trash bin with a recycling arrow, no text or symbols present

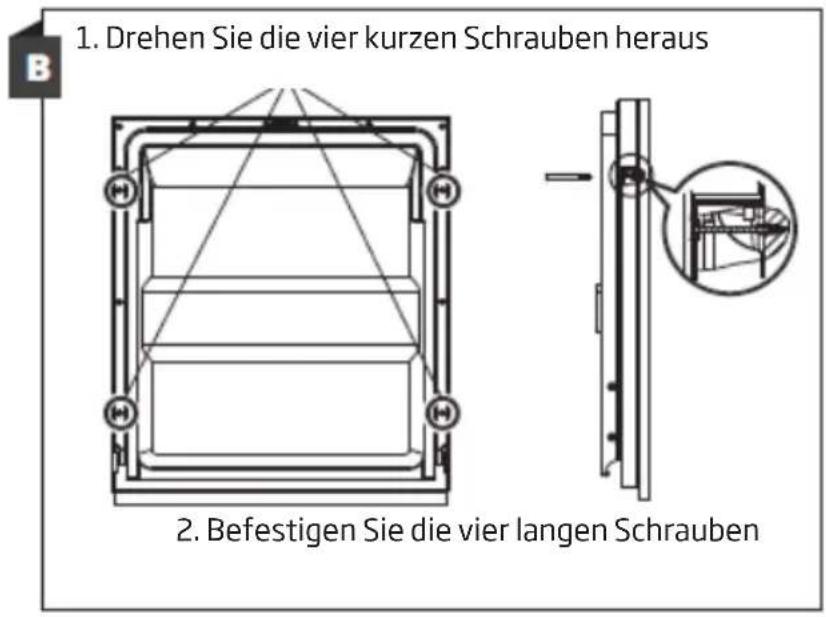

WARNHINWEIS:

Diagram of a mechanical assembly with a central component and a circular component, no visible text or symbols

② b a

Diagram of a car air vent with labeled component C and directional arrow indicating flow or movement

Technical line drawing of a mechanical assembly with a central component and mounting flanges (no text or symbols)

Illustration of a hand cleaning a car trunk with a faucet, showing cleaning process (no text or symbols)

Diagram of a device interior with internal components and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with two gears and a central shaft (no text or symbols)

Diagram showing a hand holding a tool with an arrow indicating motion, enclosed in a dashed circle (no text or symbols)

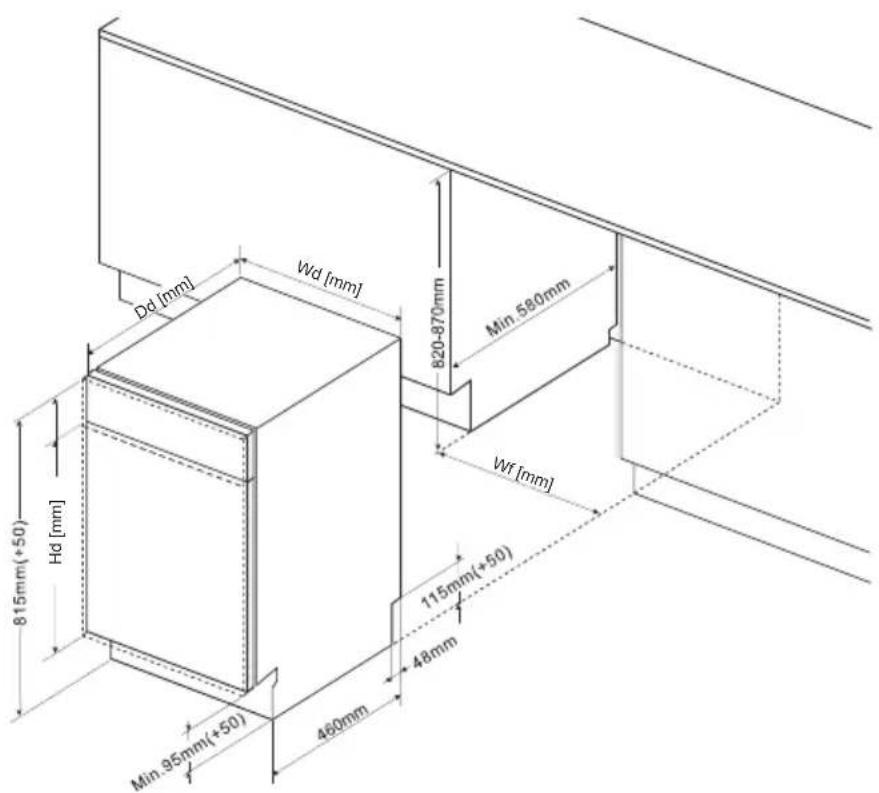

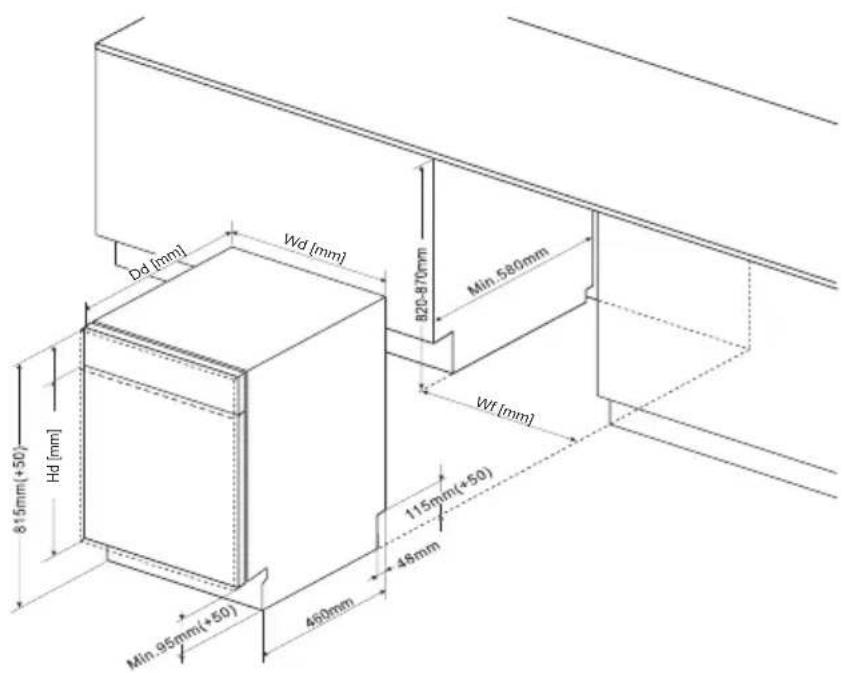

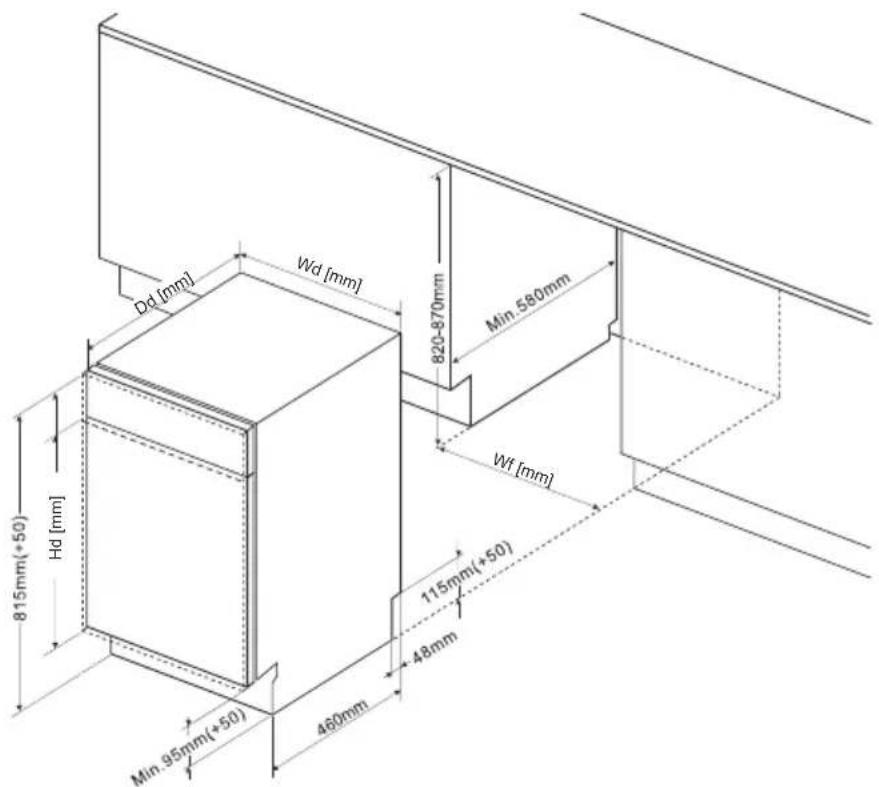

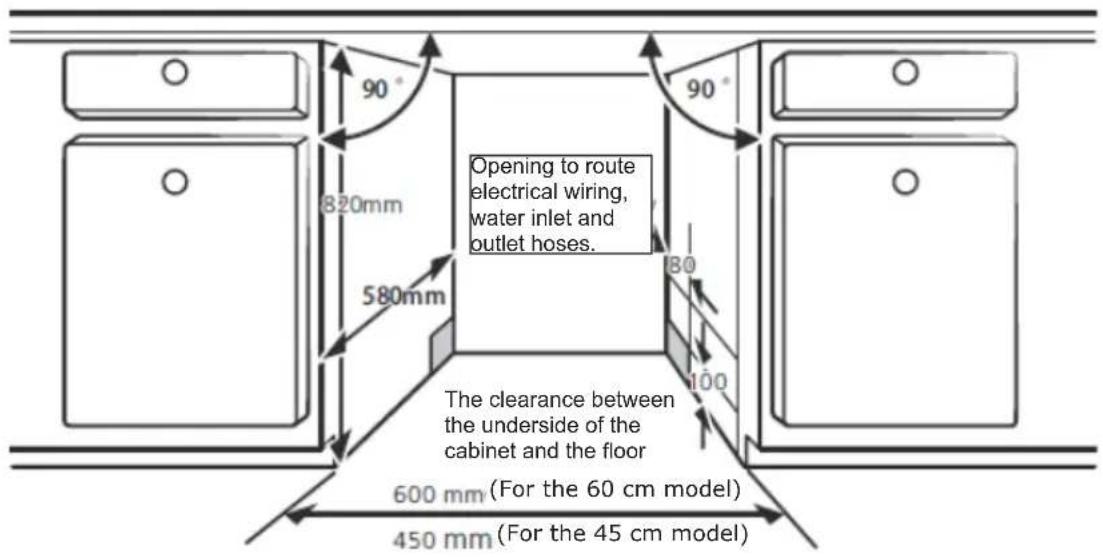

Dd [mm] Wd [mm] 820-870mm Min. 580mm Wf [mm] 115mm(+50) 48mm Min. 95mm(+50) 460mm 815mm(+50)

	5cm60cm
Wd	448 598 448 598
Wf	min 450 min 600	min 450 min 600
Dd	550 550 570 570
Hd	max 720 max 720	max 605 max 605

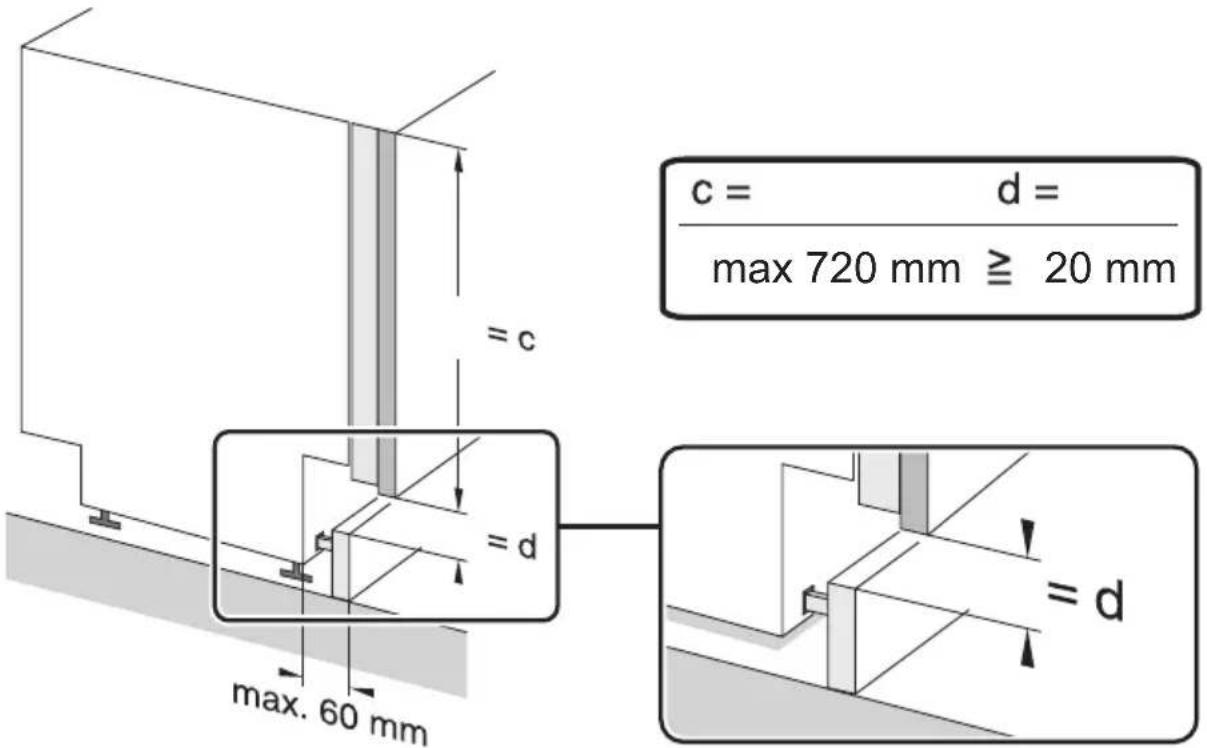

c = d = max 720 mm ≥ 20 mm = c = d max. 60 mm = d

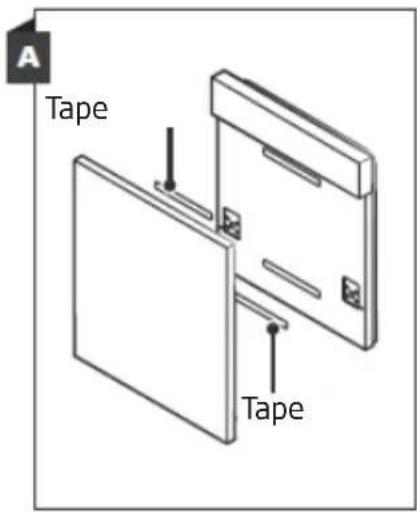

Technical diagram of a mechanical assembly with tool, plate, and base components (no text or labels)

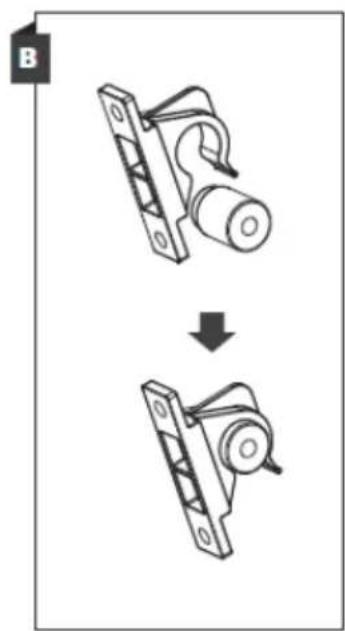

Diagram showing a mechanical latch mechanism with two steps: before and after assembly (no text or symbols)

*Einbaumodell

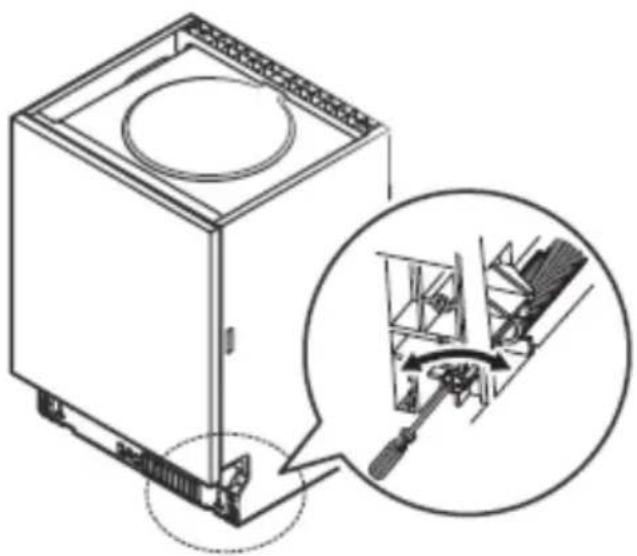

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram illustrating two-step installation of a mechanical device, labeled A and B with screw fasteners and adjustment arrows.

GARANTIE, NACHVERKAUFSERVICE

Garantie

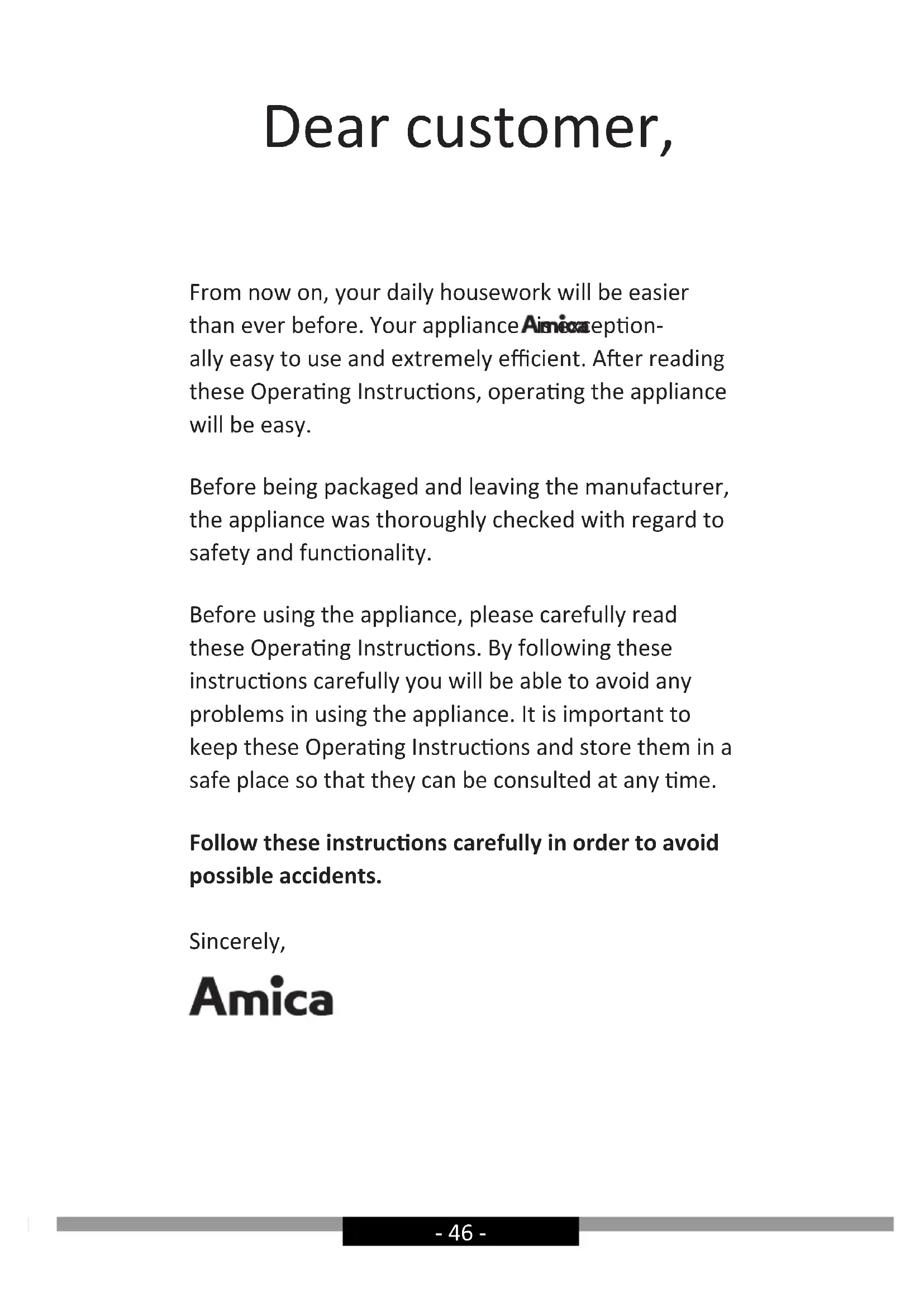

From now on, your daily housework will be easier than ever before. Your appliance Air*optionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

SAFETY INSTRUCTIONS FOR USE

Before you install the appliance

• Check the appliance for transport damage. Never install or use a damaged appliance. If in doubt, contact your seller.
• Carefully read the operating instructions before plugging dishwasher to a power outlet and using the appliance. Operating instruction include tips that will help you avoid the risk of injury and damage to the appliance. Keep dishwasher documentation in a safe place for possible future use.
• These operating instructions have been prepared for a range of appliances and some features described herein may not apply to your appliance.

Before first use

• See installation notes (below).
- Refer the grounding system installation to a qualified electrician.
- The manufacturer shall not be liable for any damage arising from the use of a non-grounded appliance.
- Before using the appliance, verify that the data given on the rating plate matches that of local power outlets.
- Do not plug in the appliance before and during installation.
- Always use the original plug that came with the appliance.
- Do not use an extension cord to connect the appliance to the wall outlet. Extension cords are not sufficiently safe (e.g. they may overheat).
- Make suré the plug is easily accessible after installing the appliance.

Child safety

- This appliance can be used by children aged 8 years and older or persons with physical, mental or sensory handicaps, or those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with the associated risks. Ensure that children do not

play with the appliance. Children should not be allowed to clean or maintain the appliance.

• Children less than 3 years of age shall be kept away unless continuously supervised.
• Do not allow children to play with the appliance.
• Dishwashing detergents can be caustic and irritate the eyes, mouth and throat. Read the safety notes from detergent manufacturer.
• Never leave children unsupervised when the appliance is open. It can contain residue detergent.
• Dishwasher water is not suitable for drinking. Danger of injury from the caustic chemicals.
• When you open the door during a programme, be careful as water temperature is high.
• To avoid injury always place long and sharp/point-ed items (e.g. forks, knives) in the cutlery basket, pointing down, or flat on the top basket.

Daily maintenance

• Use the appliance for household dishwashing only.
• Do not use solvents in the appliance as there is a risk of explosion.
• Do not sit or stand on the open door and do not place any objects on it. The device may overturn.
• Do not open the door when the appliance is operating. Hot water or steam can be released.
• Do not leave the door open, because they it can pose a hazard.
• Washing tableware in a household dishwasher usually uses less energy and water than washing up by hand.

In case of problems

• Refer repair and modifications of the appliance to qualified technicians only.
• In the event of problem's or repairs, unplug the appliance from the wall outlet:
• Unplug the appliance by pulling the plug,
• Turn off the circuit breaker.
• Do not pull the power cord, pull the plug only. Close the water supply.

Recommendations

• Loading the dishwasher to the capacity indicated by the manufacturer will save energy and water.

• Tó save energy and water, rinse food residue of the dishes before loading the dishes into the dishwasher. Run the dishwasher with full load.

• Do not put dishes with food leftovers in the appliance.

• Use pre-wash programme only when needed.
• Load bowls, cups and mugs bottom facing up.
• Do not load in the appliance any dishes that are not dishwasher safe and do not load too many dishes.
• It is not recommended to pre-rinse the tableware, as this leads to an increase in water and energy consumption.

Dishes and utensils that are not suitable for dishwashers.

• Ashtrays, candles, cleaning pastes, paints, chemicals, ferro-alloys;
• Forks, spoons and knives with a handle made of wood, ivory or Nacre, glued items contaminated with abrasive powders, acid or base
• Plastic dishes that are not resistant to high temperature, containers made of copper or tin;
• Aluminium and silver items (may be stained or loose lustre)
• Some delicate types of glass, porcelain with decorative prints, as prints may fade even after the first wash; some crystal dishes as they may lose their transparency, glued silverware sensitive to high temperatures, lead crystal glass, chopping boards, items made with synthetic fibres;
• Absorbent objects such as a sponge or kitchen cloths are not suitable for the dishwasher.
• Before buying dishes in the future make sure they are dishwasher safe.
• Pursuant to Commission Regulation (EU) 2019/2022, the minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part.
• The list of spare parts and the ordering procedure are available on the websites of the manufacturer, importer or an authorized representative.
• For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europa.eu. For more information, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.eu/

UNPACKING

Simple line drawing of a three chasing recycling symbol (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

INSTALL THE APPLIANCE

PLACE YOUR APPLIANCE

• When choosing the place of installation, make sure you will be able to easily load and remove dishes and utensils from the dishwasher.
• Do not place the appliance in a room where the temperature can fall below 0°C.
• Before installing unpack the appliance following the instructions on the packaging.
• When you move the appliance do not handle it by the door or control panel.
• Leave some room on all sides to have convenient access to the dishwasher when cleaning.
• Make sure that when you set the dishwasher you do not crush the water supply and drain hose. Also, make sure that the appliance is not places on the power cord.

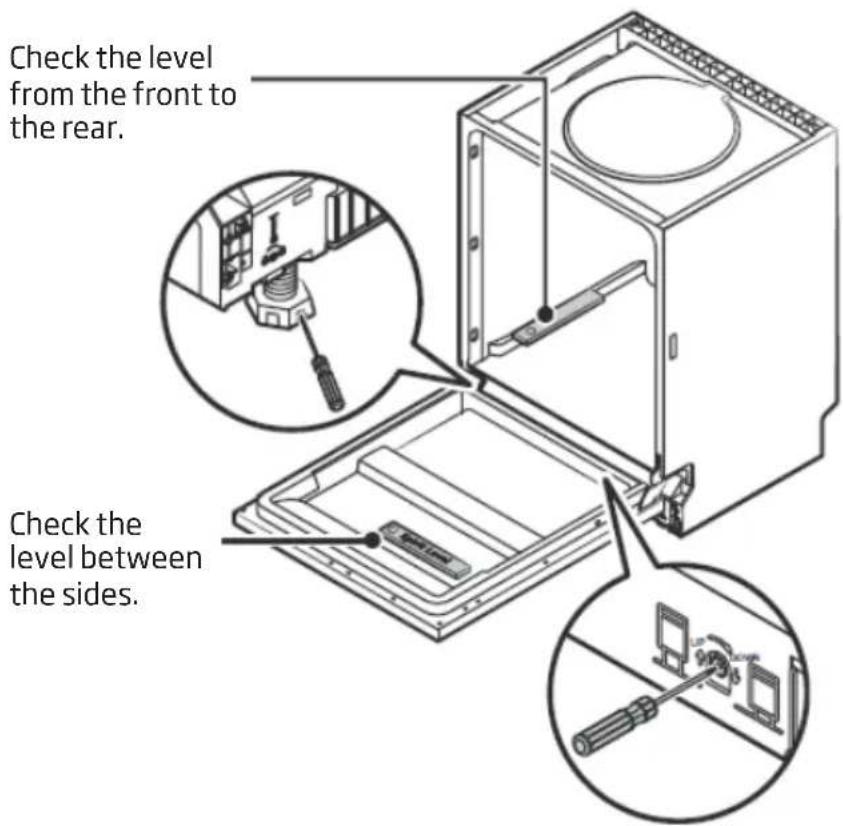

• Level the appliance using the adjustable legs. Proper level ensures trouble-free opening and closing the dishwasher doors.
• If the dishwasher door will not close properly, check that the appliance stands firmly on the floor, if not, adjust using the adjustable legs.

Water supply connection

Make sure that domestic water supply system is suitable for the dishwasher. It is recommended to install a filter in the water supply line to avoid damage to the appliance due to impurities (such as sand, clay, rust, etc.) that occasionally occur in water. This will also prevent accumulation of sediment after dishwashing.

Water supply hose

Illustration of a hand holding a faucet with a valve, showing airflow direction (no text or symbols)

Do not use the water supply hose from the old dishwasher. Use the new water supply hose provided with the appliance. Before connecting, rinse the hose with water. Connect the water supply hose directly to the water feed valve. The domestic water system pressure should be at least 0.03 MPa and up to 1 MPa. If the water pressure exceeds 1 MPa, install pressure reducing valve.

When the connection is ready, open the valve completely and check for leaks.

For safety reasons, close the water supply tap after every wash.

Illustration of a hand using a tap wrench to lift a water tap (no text or symbols present)

Illustration of a hand holding a wrench next to a faucet (no text or symbols)

NOTE: Aquastop water supply is used in some dishwasher models. Dangerous voltage could occur with Aquastop. Do not cut the Aquastop water supply. Do not allow it to bend or twist.

Note: For safety reasons, close the water tap after every wash

The drain hose

The drain hose can be connected directly to a water drain or kitchen sink

stub pipe. You can also drain the water directly into the sink using the special bracket (if available), placing the drain hose outlet on the kitchen sink edge. The drain hose connection should be made at least 50 cm and up to 110 cm from the floor.

min50cm / max110cm min50cm / max110cm

If the drain hose is longer than 4m, dishes may not be washed properly. The manufacturer will not be held responsible.

Electrical connection

Grounded plug must be connected to a grounded power outlet with a proper voltage. If there is no grounding, refer this to a qualified electrician. If you operate the appliance without proper grounding, the manufacturer does not assume any liability for the possible resulting damage.

Diagram showing a power outlet with a symbol and a hand holding the plug, illustrating electrical switch or socket installation.

• Domestic electrical system must be protected with a 10-16A fuse.
- The appliance must be supplied with 220-240V/50Hz AC.
- Always use the plug provided with the appliance. When you operate the appliance at lower voltage the dishwashing efficiency will deteriorate and may damage the appliance.
- The power cord may only be replaced by authorized service or a qualified electrician. Failure to comply with these rules may lead to an accident.
- For safety reasons, you should always unplug the appliance after you have finished using it.
- In order not to avoid electric shock, do not remove the plug from the wall outlet with wet hands.
- When you unplug the appliance from the wall outlet, always pull the plug. Never pull the power cord.

PREPARE THE APPLIANCE FOR OPERATION

Before first use

• Before using the appliance, verify that the data given on the rating plate matches that of local power outlets.
• Remove all packing materials from inside of the appliance.
  • Prepare special salt (water softener).
• Pour water into the special salt dispenser and then add about 1.5 kg of special salt (dishwasher salt).
• Pour'rinse aid into the dispenser.

The importance of water descaling

A dishwasher requires soft water (with low calcium content) to operate efficiently. Otherwise, white residue main remain on the dishes and inside the appliance. This has a negative impact on the quality of dish-washing, rinsing and drying. When the water flows through the softener, ions responsible for the water hardness are removed, and the water becomes soft, for best dishwashing results. Depending on the degree of water hardness, the ions responsible for water hardness accumulate quickly inside the water softener. Therefore, the water softener must be regenerated to operate with the same efficiency during the next wash. This is why special salt is used in the dishwasher.

Add special salt

Only use special salt intended for dishwashers.

Any other type of salt that is not intended for use in a dishwasher, especially regular kitchen salt, will damage the water softener. In the event of damage caused by the use of the wrong salt, the manufacturer's warranty is void and we will not be liable for damage.

Fill with special salt before running the washing programme.

This will prevent spilled special salt or salty water from remaining on the bottom of the device, which may cause corrosion.

1. Remove the lower basket from the appliance and unscrew the special salt dispenser cap.
2. Place the end of the funnel (included) in the hole and pour about 1.5 kg of salt.
3. Pour water into the dispenser until full. It is normal that a small amount of water spills out of the special salt dispenser.
4. After you fill the dispenser, screw the cap on.
5. When you fill the dispenser with special salt, the add salt indicator goes out.
6. Start the washing programme immediately after filling the dispenser with special salt (the quick wash is recommended). Otherwise, salty water can damage the filters, the pump or other important appliance components This is not covered by the warranty.

NOTE:

• Fill the special salt dispenser when the special salt indicator ( ) on the control panel lights up. Depending on the rate of salt dissolution, the special salt indicator may still be on even after filling the dispenser.
• If there is no special salt indicator on the control panel (on some models), you can estimate when to top up the dispenser based on the number of wash cycles performed.
• If some special salt spills, run the soaking programme or a quick wash programme.
• Use only the special salt intended for dishwashers!

The test strip

The dishwashing effectiveness is linked to water hardness. Therefore, the appliance is equipped with a system to reduce the hardness of the water supply. The dishwashing effectiveness is improved when the system is set correctly. To check water hardness contact the municipal water company or determined the water hardness using test strip (if available).

Multi-component (multitab) detergents (eg. 2-in-1, 3-in-1, etc.)

There are three types of detergents:

1. Containing phosphates and chlorine,
2. Containing phosphates and no chlorine,
3. Containing no phosphates and no chlorine.

The latest tablets are generally phosphate-free. Since phosphates have water softening properties, we recommend adding salt to the container even if the water hardness is only 6°dH. If you use phosphate-free detergent where water is hard, white residue may be visible on the dishes.

You can prevent this by increasing the amount of detergent. Chlorine-free detergents have less bleaching effect. Stains may not be entirely removed. Select the programme with a higher wash temperature. Generally, using multi-component detergents suitable results are obtained only under certain conditions. Such detergents contain rinse aid and/or special salt in a specific amount. It is recommended to use special salt when using multi-component tablets.

What you should pay attention to when using these tablets.

• Always check the type of detergent used and whether it is a multi-component product.
• Make sure that the detergent used is appropriate for tap water hardness.
• Follow the instructions on the product packaging.
• If the detergent is in the form of tablets, never place it the cutlery basket. Always place the tablet in the detergent dispenser compartment.

• The use of these detergents yields good results only in certain applications. Using this type of detergent you should contact the manufacturer for information about proper use.

• If you use the detergent properly and dishwasher settings are correct, you can save on salt and/or rinse aid.

• If dishwashing results while using 2-in-1 or 3-in-1 detergents are not satisfactory (traces of lime scale on the dishes), please contact the detergent manufacturer. The warranty does not cover complaints due to the use of multi-component detergents.

Recommended use: For best results using multi-component cleaning agents, add special salt and rinse aid in the dishwasher and set the water hardness and amount of rinse aid to the lowest setting.

The solubility of the detergent tablets made by different manufacturers can vary with regard to temperature and time. It is therefore not recommended to use detergent tablets in quick programmes. It is recommended to use powder detergents in quick programmes.

Always store detergents in a dry, cool place, out of reach of children. Add detergent to the dispenser immediately before using the appliance.

Warning: If encounter another problem when using a multi-component detergent, please contact the detergent manufacturer.

Stop using multi-component detergents

• Add special salt and rinse aid to dispensers.
• Set the water hardness to the highest level (6) and run an empty dishwasher.
• Adjust the water hardness.
• Adjust rinse aid setting.

Warning: Use only rinse aid designed for domestic dishwashers. Wipe up spilled rinse aid with a cloth as it will cause the formation of large amounts of foam, and thus will reduce the dishwashing effectiveness.

Water hardness table

Water hardness	German degrees [dH]	French degrees [dF]	British degrees [dE]	Water hardness level indicator	Special salt consumption [g/cycle]
1 0~5 0~9 0~6 H1 0
2 6-11 10-20 7-14 H2 9
3 12-17 21-30 15-21 H3			12
4 18-22 31-40 22-28 H4			20
5 23-34 41-60 29-42 H5			30
6 35-55 61-98 43-69 H6			60

If the water hardness is higher than the maximum values given in the table above, or if you use water from a deep well, it is recommended to use filters and water treatment equipment.

NOTE: The factory settings are for the water hardness level 3.

Switch on the appliance;

Press the Start/Pause button for more than 5 seconds to start the water softener set model within 60 seconds after the appliance was switched on;

Press the Start/Pause button to select the proper set according to your local environment, the sets will change in the following sequence:

H1->H2->H3->H4->H5->H6;

Press the Power button to end the set up model.

The use of detergents

Use a detergent for domestic dishwashers. On the market you can find detergent intended for dishwashers in the form of powder, gel and tablets. The detergent must be placed in the dispenser before starting the dishwasher. Store detergent in a cool and dry place, out of reach of children. Do not overfill the detergent dispenser, otherwise the detergent may not dissolve completely and leave streaks on the dishes. If you need more information on the detergent used, please contact the manufacturer directly.

Standard loading and test results:

Upper basket

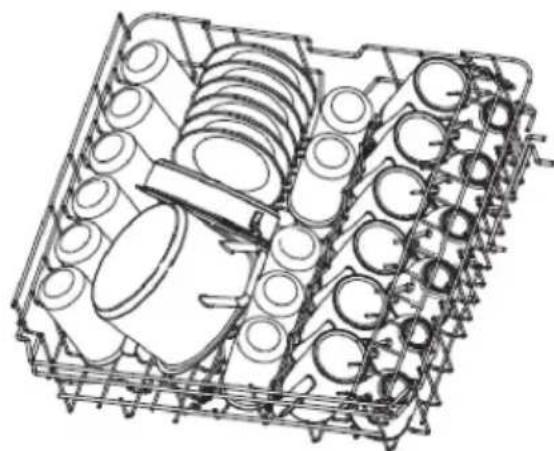

Technical diagram of a mechanical assembly with numbered components, likely a gear or housing component.

1 Cups

2 Saucers

3 Glasses

4 Mugs

5 Oven pot

6 Small pot

7 Dessert plates

8 Dinner plates

9 Soup plates

10 Oval platter

11 Melamine dessert plates

12 Melamine bowl

13 Glass bowl

14 Dessert bowls

15 Cutlery basket

Lower basket

1 2 11 7 15 11 8 2 3 10 13 14 12 7 9 7 12

Information for comparability test in accordance with EN 60436

Capacity: 14place settings

Position of the upper basket: lower position

Program: ECO

Rinse aid setting: MAX

Softener setting: H3

Cutlery basket

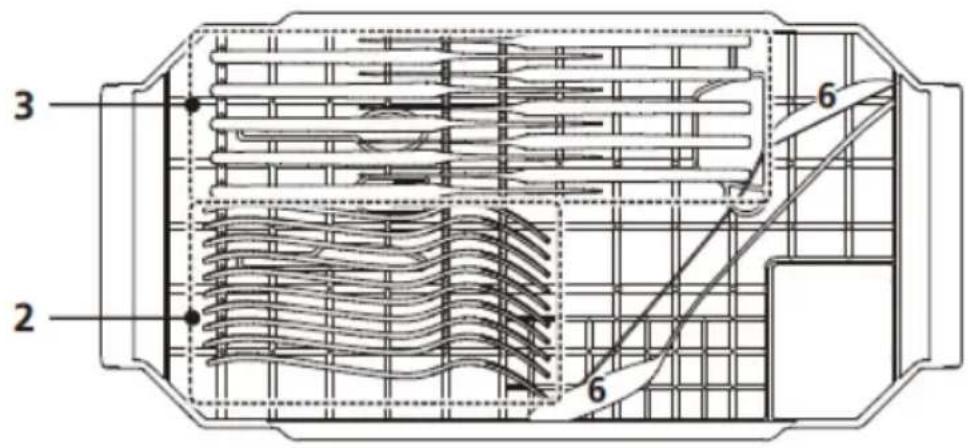

Place knives and forks separately from each other, and make sure they do not touch as this may cause poor washing results. For best washing results place knives and forks in the cutlery basket, and make sure: they do not touch and place objects in the middle.

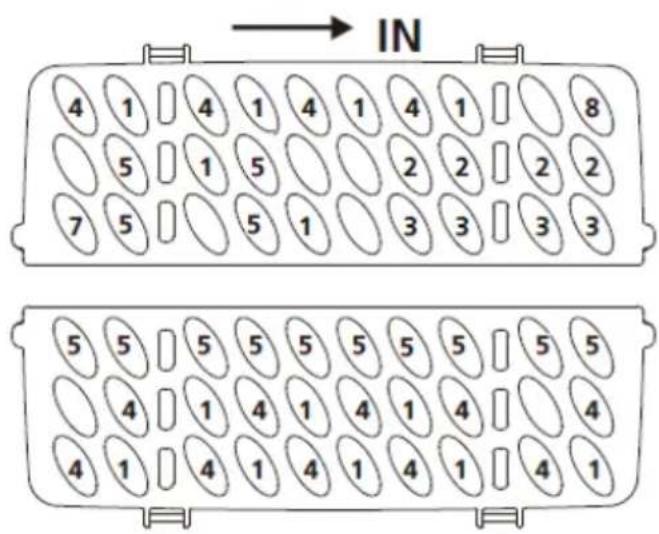

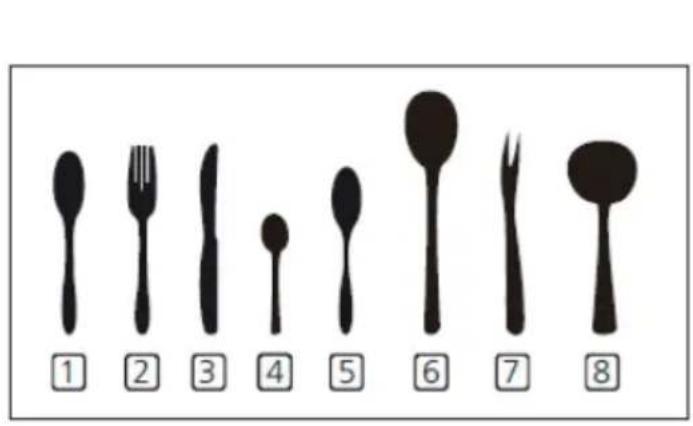

1 2 3 4 5 6 7 8

Item Cutlery

1 Soup spoons

2 Forks

3 Knives

4 Tea spoons

5 Dessert spoons

6 Serving spoons

7 Serving forks

8 Gravy ladles

IN 4 1 4 1 4 1 4 1 8 5 1 5 2 2 2 2 7 5 5 1 3 3 3 3 5 5 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 1 4 4 1 4 1 4 1 4 1 4 1

Cutlery rack

3 2 6 6

LOAD DISHES INTO DISHWASHER

Upper basket

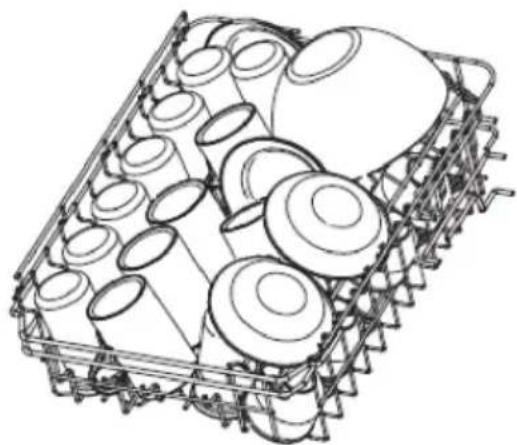

The upper basket is designed for washing delicate dishes such as glasses, cups, plates, etc. Dishes that are placed in the upper basket should be less soiled than dishes in the lower basket.

You can place long forks, knives and spoons horizontally on shelves so as not to obstruct the spray arms.

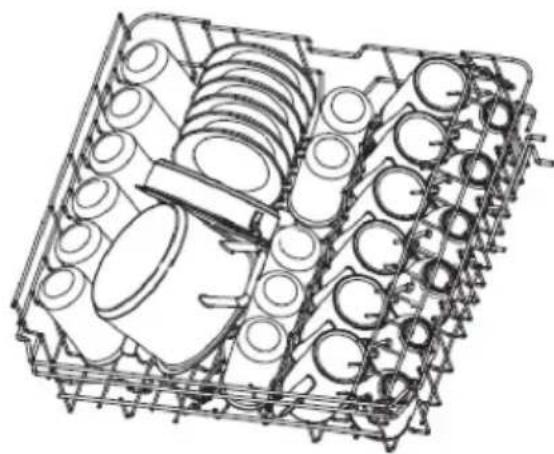

Line drawing of a metal crate filled with various plastic cups and lids (no text or symbols)

Technical line drawing of a mechanical assembly with multiple circular components and a central shaft (no text or labels)

Fold the mugs and cups shelves

Fold the shelves to increase the capacity of the upper basket. You can place the glasses and mugs on the shelves. Raise the cup shelf to make more space in the basket for taller items. You can then lean the taller glasses against the shelf. It can also be removed if it is not needed.


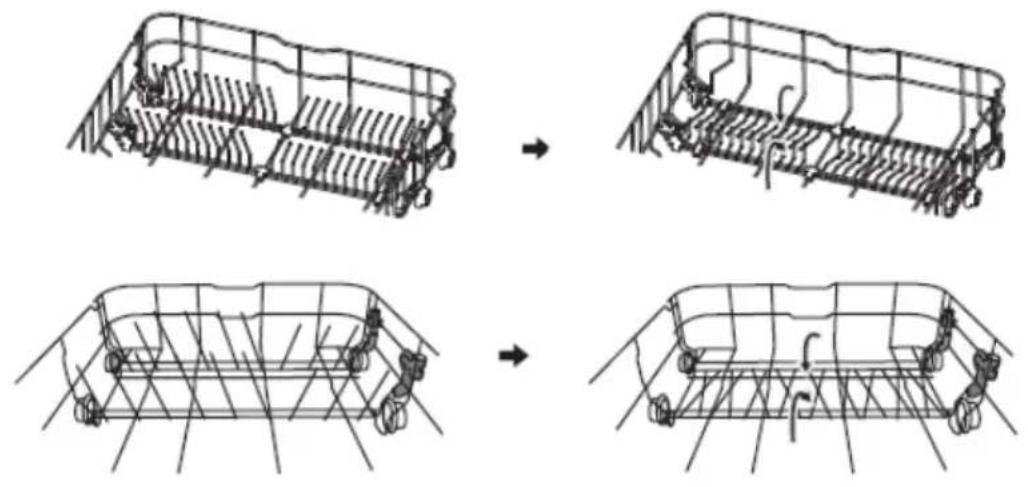

Fold the dishwasher basket spikes

The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items.

raise upwards fold backwards

Tips for using the dishwasher basket:

Adjust the upper basket Type 1:

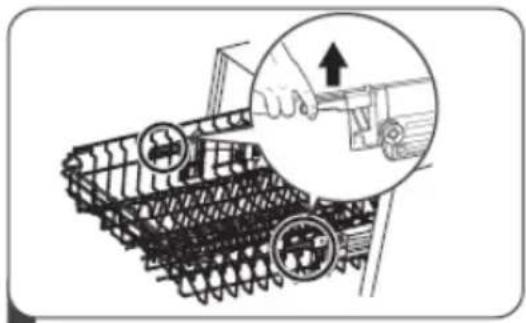

The height of the upper basket can be easily adjusted to accommodate tall pots and pans in the upper or lower basket. To adjust the height of the upper basket:

Lower position

Diagram of a car with wheels and an arrow indicating motion, no text or symbols present

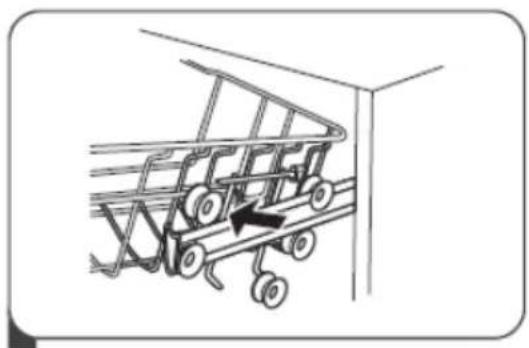

1. Extend the upper basket.
2. Remove the upper basket.

Line drawing of a shopping cart with wheels and an arrow indicating motion (no text or symbols)

Upper position

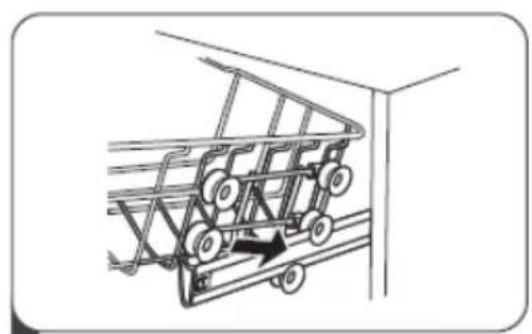

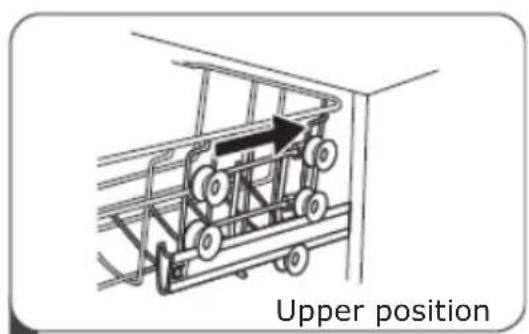

1. Mount the basket on the upper or lower rollers.
2. Insert the upper basket

Type 2:

Line drawing of a mechanical assembly with gears and a housing (no text or symbols)

Mechanical assembly diagram showing a tracked vehicle with gear and a hand adjusting a component, plus an inset magnified view of the tool (no text or symbols)

1. To raise the basket to the upper position, raise it until it is at the same height on both sides. Make sure it is securely attached to the rails.

2. To lower the basket, push down and release the handles.

Lower basket

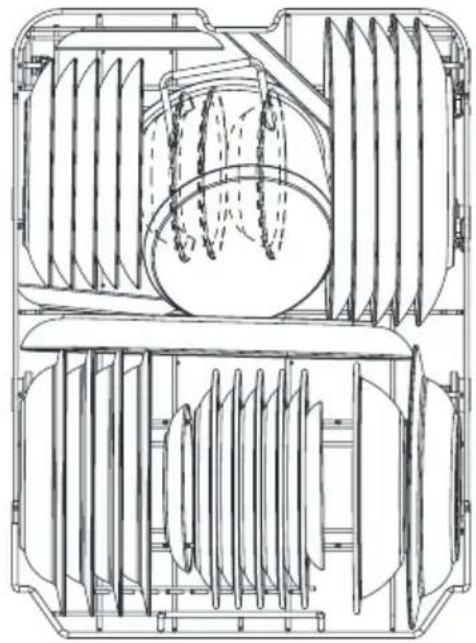

Put plates, bowls, pots, etc. in the lower basket. Make sure that dishes in the lower basket do not block the spray arm and it can rotate freely. Place large pans and heavily soiled items such as pots, pans, lids, dishes, etc. in the lower basket. Place dishes upside down, so that water does not collect inside.

Place the dishes in such a way that they do not block the spray arm.

Technical line drawing of a mechanical fan or impeller assembly (no text or symbols)

Technical line drawing of a mechanical component with coiled spring and housing (no text or symbols)

Fill the detergent dispenser

Open the detergent dispenser flap by pressing the detergent dispenser tab to release the lock as shown in the figure. The detergent dispenser features volume marking. Using these markings (lines) you can measure the correct amount of detergent. The dispenser can accommodate a maximum of 30g of detergent. Open the pack with dishwasher detergent and in the case of heavily soiled dishes pour 25 cm ^3 detergent into the main wash compartment (A) or 15 cm ^3 for less soiled dishes (B). Depending on the amount of soil and the water hardness you may need to add more detergent.

Move to the left Press home

1. Open the lid by moving the release lever.
2. Open the lid by pressing the release lever.

Technical diagram showing two steps of a device with labeled components A and B, including a tool pressing down and a close-up of the component being cut.

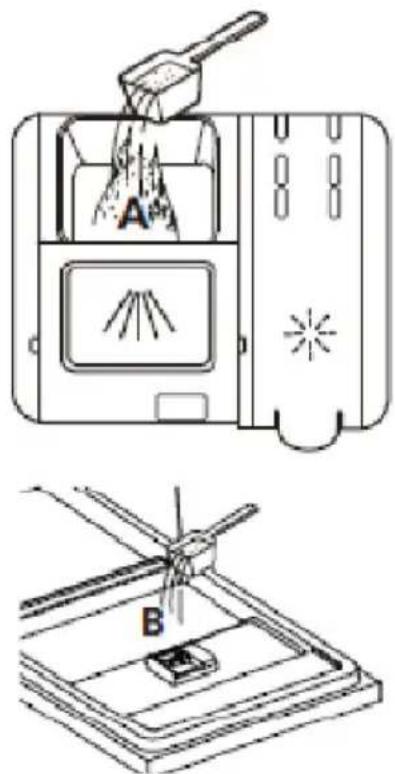

Pour the detergent into the larger chamber (A) for the main cycle. For a better washing result, especially in the case of heavily soiled dishes, pour a small amount of detergent on the door. The extra detergent will be used during the pre-wash.

Diagram of a device with an arrow pointing to a screen and a starburst symbol, no text or labels present.

Close the lid by moving it forward and pressing it.

Please note that the setting may be different depending on the water contamination. Follow the manufacturer's instructions on the detergent packaging.

Add rinse aid to the dispenser and adjust setting

Use rinse aid to prevent the formation of white water drops, lime scale spots, white streaks that may occur on the dishes, as well as to improve the drying process. Contrary to popular belief, it not only serves to obtain a shiny dishes, but also to facilitate drying. For this reason, make sure there is always sufficient amount of rinse aid in the dispenser.

Simple line drawing of a refrigerator with a window and starburst pattern (no text or symbols)

Open the dispenser lid by lifting the tab.

Line drawing of a hand inserting a device into a device with a screen and cable (no text or symbols)

Pour the rinse aid into the dispenser, take care not to overfill.

Diagram showing a hand pressing a button on a device with a red circle highlighting the button area.

Close the lid when finished.

Note: When closing the detergent dispenser, press marked location on the lid!

Adjust the rinse aid dispenser

To achieve better drying results you can adjust how much rinse aid is used. Follow these steps.

1. Connect the appliance to the wall power outlet
2. Within 60 seconds after step 1, press and hold the „Rapid" button for more than 5 seconds, then press the delay button to enter the desired setting. The rinse aid indicator blinks once every second.
3. Press the "Rapid" button to select the desired setting according to your local requirements. The following settings are available: D1->D2->D3->D4->D5->D1, The most rinse aid is dispensed with the D5 setting The default setting is D3.

Wait 5 seconds or press the power button to save the new setting and exit the rinse aid dispenser adjustment mode.

TURN ON THE APPLIANCE AND SELECT PROGRAMME

Turn on the appliance

1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. Make sure that the water supply is turned on to full pressure.
4. Open the door, press the Power button.
5. Choose a program, the response light will turn on. Then close the door, the dishwasher will start its cycle.

Change programme

You can change the programme only if it runs for a short time. Otherwise the detergent is already dissolved in water and the water could be pumped out. In this case, refill the dispenser with detergent and start the washing program from the beginning. To reset your dishwasher, please follow the instructions below:

1. Open the door a little to stop the dishwasher, after the spray arm stop working, you can open the door completely.
2. Press Program button for more 3 seconds to cancel the current program and the machine goes into standby state.
3. You can change the program to the desired cycle setting.

Add dishes during the programme:

You can add extra dishes at any time before detergent is released. In this case, follow the instructions below:

1. Open the door a little to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Add the forgotten dishes.
4. Close the door, the dishwasher will continued to run after 10 seconds.

WARNING!

Be careful when opening the door during the dish-washing programme as hot steam can be released and cause scalding.

The dishwashing programme completes

Press on/off button to turn off the appliance. Close water supply tap and open the dishwasher door. Wait a few minutes before unloading the dishwasher. Allow dishes to cool. Hot dishes are more susceptible to breakage. Also the dishes will dry.

Turn off the dishwasher

The programme is completed only when the programme indicator is on, but not flashing.

1. Press On/Off button to turn off the appliance.

2. Close water supply tap!

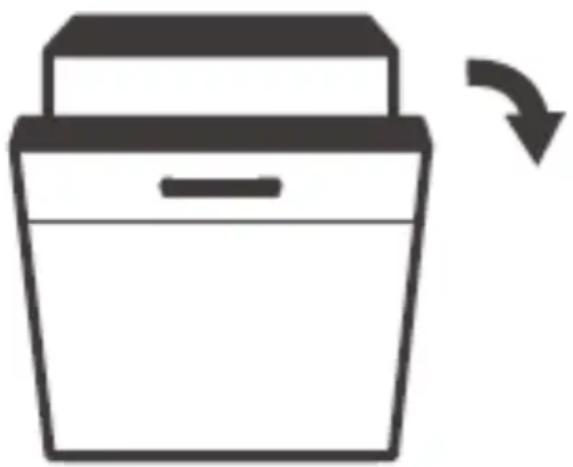

Open the door carefully.

Hot dishes are more susceptible to breakage. Before unloading the dishwasher leave the dishes to cool for about 15 minutes.

Open the dishwasher door, leave it ajar and wait a few minutes before removing the dishes. This will allow the dishes to cool and dry.

Unload the dishwasher

It is normal that the dishwasher interior is wet.

First remove dishes from the lower basket and then from the upper basket. This will avoid water dripping from the upper basket on the dishes in the lower basket.

DISPLAY AND CONTROL PANEL

Operation (Button)
1. Power Press	this button to turn on your dishwasher, the screen lights up.
2. Program	Auto ^AUTO For lightly, normally or heavily soiled crockery with or without dried-on food.Intensive ^☐ Heavily soiled items include pots and pans. With dried on food.Hygiene ^◇ With the Hygiene option selected, the water temperature is increased to 70 °C for high temperature sanitization.ECO ^ECO This is the standard program suitable for normally soiled loads, such as pots, plates, glasses and lightly soiled pans.Glass ^☐ For lightly soiled crockery and glass.60 min. ^60 For normally soiled loads that need quick wash.Rapid ^☐ A shorter wash for lightly soiled loads that do not need drying.
3. Alt Press the	button to select either upper basket or lower basket loaded, and the response indicators will be lit.Upper ^☐☐☐ When you select Upper, only the upper rack nozzle is activated. The lower nozzle will not operate.Lower ^☐☐☐ When you select Lower, only the lower rack nozzle is activated. The upper nozzle will not operate.
4. Delay Press	this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press of the button delays the start by one hour.
5. Child lock This	this option allows you to lock the buttons on the control panel - except the Power button - so children cannot accidentally start the dishwasher by pressing the buttons on the panel.To lock or unlock the buttons on the control panel, press and hold the Alt button+delay star button for 3 seconds simultaneously.

6. Function Press the button to select a function, corresponding indicator will be lit. Two functions cannot be selected at the same time.Strong washTo wash very dirty, hard to clean dishes.(It can only be used with Intensive, Hygiene, ECO, Glass, 60 min)Extra DryingTo dry dishes more completely.(It can only be used with Intensive, Hygiene, ECO, Glass, 60 min)
7. Start / Pause	To start the selected washing program or pause it when the dishwasher is working.
8. Screen	Rinse AidIf the indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill.SaltIf the indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled.Water FaucetIf the indicator is lit, it means the water faucet closed.8:88To show the selected program temperature, reminding time and delay time, error codes etc.

ERROR CODE

ERROR CODE	DESCRIPTION OF THE FAULT	ACTION
E1 Longer inlet time.		Faucets is not opened, or water intake is restricted,or water pressure is too low.
E3	Not reaching required temperature.	Malfunction of heating element.
E4 Overflow		Some dishwasher element leaks.
E8	The non-return valve is not aligned.	Changeover valve break or open.
Ec	Washing control system fail	PCB or motor fail.
Ed	Failure of communication between main PCB with display pcb.	Open circuit or break wiring for the communication.

Automatic opening

Simple line drawing of a trash bin with an arrow indicating recycling (no text or symbols)

Automatic opening

Press the button to set the delay time, the corresponding indicator lights up.

The dishwasher door opens automatically at the end of the operation. The automatic opening function improves the drying results. Hold the button for 3 seconds and the relevant indicator will light up.

CLEANING AND MAINTENANCE

Clean external surfaces

Door and door seal: To remove food residue, clean the door gasket regularly with a soft, moist cloth.

When loading dishes into the dishwasher, food and drink residue may deposit on the sides of the dishwasher door. These surfaces are outside the dishwasher compartment and the water from the spray arms does not reach them. Remove any residue before closing the door.

Control Panel

Wipe the control panel ONLY with a soft, damp cloth.

WARNING: Do NOT use any spray cleaner to prevent water ingress into the door lock and electrical components.

Do not use any abrasive detergents or sharp cleaners on external surfaces. Some paper towels may also leave scratches or marks on the surface.

Clean internal surfaces

Filter system

The filter system at the bottom of the dishwasher compartment stops coarse residue during wash cycle. This residue can cause clogging of the filters. Regularly check the condition of the filters and rinse them under running water, if necessary. Clean the filters as follows.

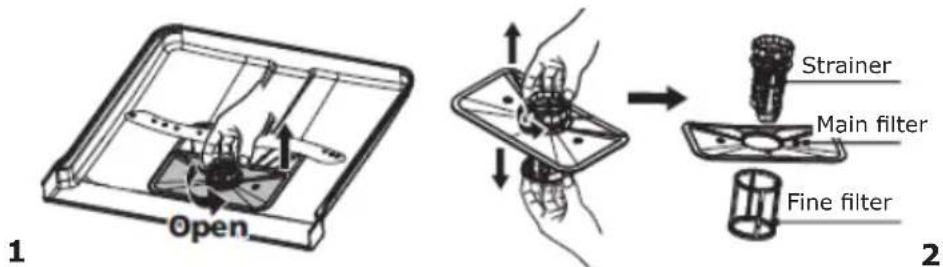

1 Open Strainer Main filter Fine filter 2

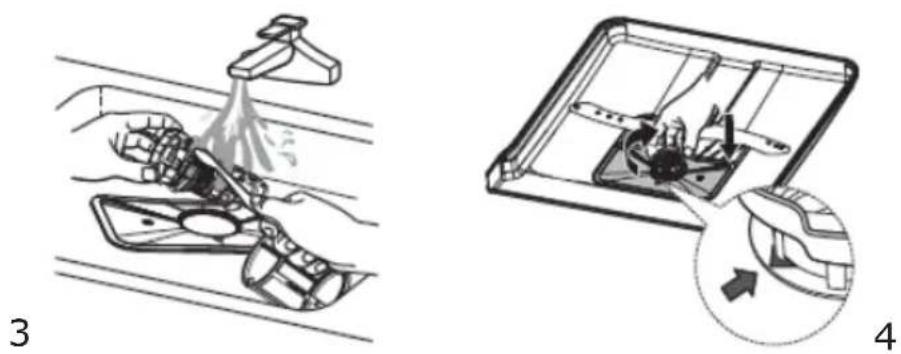

1. Hold the strainer and turn it counter clockwise to unscrew. Lift the filter up and remove it from the dishwasher.

2. The fine filter can be removed from the bottom of the filter assembly. The strainer can be disengaged from the main filter by gently squeezing the edges and pulling.

Illustration showing a hand washing a car with water spray and a close-up of the interior panel (no text or symbols)

1. Larger residues can be rinsed under running water. Clean the filter completely with a soft, clean brush.
2. Install the filters in reverse order, place the filter insert and turn clockwise as indicated by the arrow.

WARNING: Do not overtighten the filters. Carefully replace the filters and install in place. Otherwise, contaminants can enter the dishwasher's systems and cause clogging.

NEVER: use the dishwasher without the filter assembly. Incorrect filter replacement can reduce the appliance effectiveness and cause damage to the dishes and cutlery.

Spray arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below:

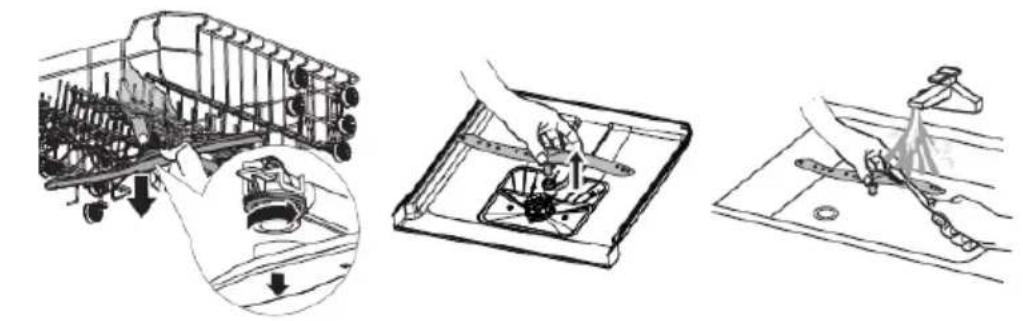

Three technical diagrams showing mechanical assembly and tool path (no text or labels)

Three-step mechanical assembly diagram showing hand tool, gear mechanism, and spray bottle (no text or labels)

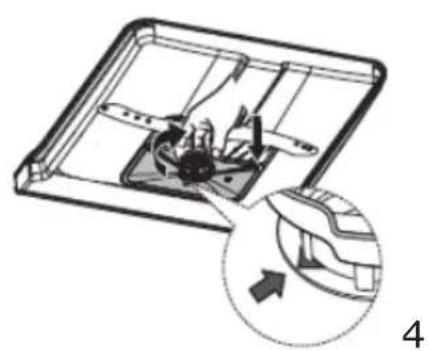

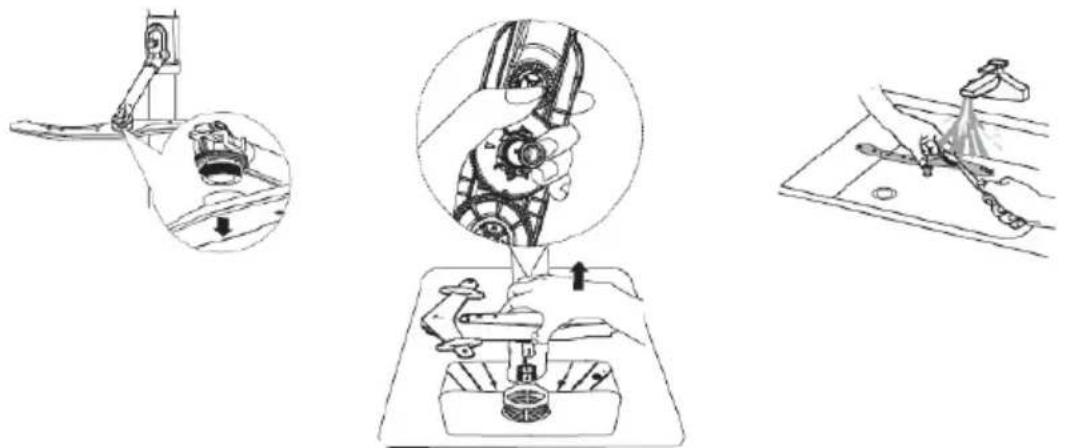

1. To remove the upper spray arm, hold the nut in the centre still and rotate the spray arm counter-clockwise to remove it.
2. To remove the lower spray arm, pull out the spray arm upward.
3. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Clean the dishwasher

Frost protection

In winter, the dishwasher must be protected against freezing temperature. After each wash:

1. Disconnect the dishwasher from power.
2. Turn off the water supply and disconnect the water inlet hose from the water valve.
3. Drain the water from the inlet hose and the water valve. (Collect the water in a bowl)

4. Reconnect the water inlet hose to the water valve.

5. Remove the filter and use a sponge to collect the water from the bottom of the dishwasher.

After each wash

After each wash, close the water supply to the appliance and leave the door slightly ajar, so that moisture and odours are not trapped inside.

Unplug the appliance

Unplug the appliance from the wall outlet before any cleaning and maintenance.

Do not use solvents or abrasive detergents.

Do not use solvents or abrasive detergents to clean the outer parts and the rubber seals of the dishwasher. Use only cloths and warm soapy water.

To remove stains from the inside use a cloth dampened with water and a little vinegar or cleaning detergent intended specifically for dishwashers.

If the dishwasher is not used for a long time

It is recommended to run the washing programme with an empty dishwasher, then unplug the appliance from power, close the water supply and leave the door slightly ajar. This protects the gaskets and prevents the formation of unpleasant odours in the appliance.

Move the appliance

If the appliance needs to be moved, try to keep it in an upright position.

If absolutely unavoidable, you can rest the appliance on the back wall.

PROBLEM SOLVING GUIDE

Problem Possible cause Solution

The dishwasher will not start	The appliance is not connected to the mains power	Connect to the power supply
	Child lock is on (selected models)	Turn off the Child Lock
The dishwasher does not start	The Delay start function is selected	Wait for the programme to start
	The dishwasher door is open.	Close the door.
	The temperature of water supplied to the dishwasher exceeds 70°C	Reduce the temperature of the supplied water or wait until the water temperature is lower.
	The appliance does not fill with water	Check that the water tap is open
The wash cycle takes too long	The duration of the wash programme varies depending on how soiled the dishes are	When heavy soil is detected, Auto and Optimal programmes automatically extend the wash cycle duration
	Self-cleaning option (selected models) is selected	When you select the self-cleaning option, the wash cycle time will be extended to reach the disinfection temperature
The dishes are not clean enough	The detergent is used incorrectly	Use the amount of detergent suitable for the water hardness and the selected wash programme or use a different detergent
	The dishes are arranged too close together.	Rearrange the dishes in accordance with the instructions.
	The selected wash programme is not suitable for the level of soil on the dishes	Select a different programme
	The spray arm rotation is blocked	Arrange the dishes again so that they do not block the spray arm.
The dishes are not dry enough	The rinse aid dispenser is empty	Fill the rinse aid dispenser or increase the dispensed amount
	Dishes placed incorrectly in the dishwasher	Rearrange the dishes in accordance with the instructions.
	The selected programme dose not include the drying stage	Select the wash program that includes drying

Problem Possible cause Solution

Stains and deposits on dishes	Water too hard	Change the water hardness settings according to the relevant points in the manual.
	The rinse aid dispenser is empty	Fill the rinse aid dispenser or increase the dispensed amount
	Incorrect amount of detergent	Change the water hardness and rinse aid settings according to the relevant points in the manual.
The detergent was not fully released from the dispenser	The detergent may be past the use-by date or may not be suitable	Use a different detergent
	The 3 in 1 detergent container is blocked by dishes	Rearrange the dishes in accordance with the instructions.
The water was not drained from the dishwasher	The previous programme was not completed or was interrupted	For information on how to select a suitable wash programme, please refer to the operating instructions
	Leftover food or glass has blocked the pump.	Remove the cause of the blockage.
The dishwasher does drain the water properly	The drain is clogged Check the air trap.
	The drain hose is bent	Make sure that the drain hose is correctly connected to the drain
Foam in the dishwasher	The wrong detergent was used	Make sure that the detergent used is suitable for dishwashers
Sediment on the walls of the dishwasher compartment	The use of the wrong detergent resulted in a deposit	Make sure that the detergent used is suitable for dishwashers
Black or grey streaks on the dishes	The aluminium dishes rubbed against the plates.	It is not recommended to wash dishes and cutlery made of aluminum.
The interior of the dishwasher is stained	Coffee and tea grounds	Use a certified stain removal agent
Noise	Noise of the detergent dispenser lid opening or water drain pump operating	This is normal.
Water leaks during operation	The dishwasher is not levelled	Level the dishwasher

INSTALL THE APPLIANCE IN A CABINET

Place your appliance

Place the appliance in the desired location. The back should rest against the wall and the sides should be against adjacent cabinets or walls. The dishwasher is equipped with water supply and drainage hoses, which can be placed on the right or left side to facilitate the installation.

Level the appliance

When you place the appliance you can use the adjustable feet to level the appliance.

Diagram showing a hand holding a tool with an arrow indicating motion, enclosed in a dashed circle (no text or symbols)

Dd [mm] Wd [mm] 820-870mm Min. 580mm Wf [mm] 115mm(+50) 48mm Min. 95mm(+50) 460mm 815mm(+50) Hd [mm]

	5cm60cm	____	____	____
Wd	448 598 448 598
Wf	min 450 min 600	min 450 min 600
Dd	550 550 570 570
Hd	max 720 max 720	max 605 max 605

Recommended weight of front panel:

*For appliances 45 cm in width with completely covered front door panel - ≤3.2-5kg

*For appliances 45 cm in width with revealed front control panel - ≤3,2-5kg

Recommended weight of front panel:

*For appliances 60 cm in width with completely covered front door panel - ≤3,2-7kg

*For appliances 60 cm in width with revealed front control panel - ≤3,2-6kgs

Please note that for appliances with sliding door, recommended weight of front panel - ≤ 3,2-10kgs

c = d = max 720 mm ≥ 20 mm = c = d max. 60 mm = d

Technical line drawing of a mechanical assembly with no visible text or symbols

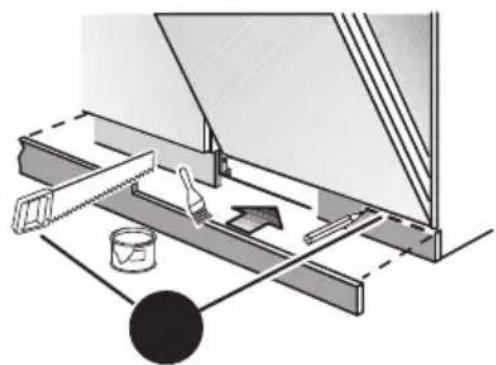

NOTE: Due to the design of some built-in furniture you may need to trim the base strip.

Built-on installation

Step 1. Choose the optimal location for your dishwasher The best location to install the dishwasher is near the water tap, the drainage inlet and an electrical wall socket. For details, please see the figure presenting cabinet dimensions and dishwasher place of installation.

1. A clearance of 5 mm between the top of the dishwasher and the cabinet, and the door flush the cabinet.

90° 820mm 580mm Opening to route electrical wiring, water inlet and outlet hoses. The clearance between the underside of the cabinet and the floor 600 mm (For the 60 cm model) 450 mm (For the 45 cm model)

1. When installing the dishwasher in the corner cupboard, leave room for the door to open.

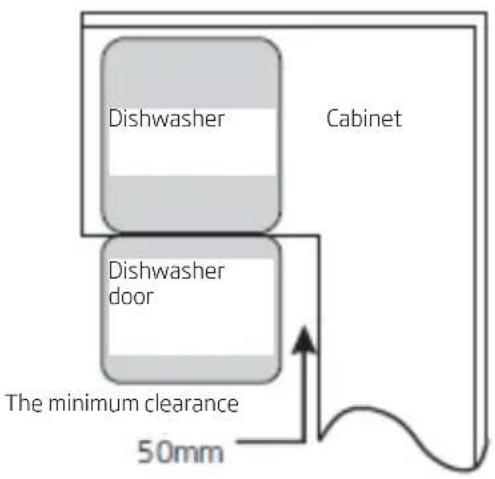

Dishwasher Cabinet Dishwasher door The minimum clearance 50mm

*NOTE: Depending on the location of the wall electrical socket, you may need to cut the opening in the cabinet rear wall.

Step 2. The cabinet door dimensions, install cabinet door (Available on selected models) The cabinet door should be installed in accordance with the installation drawing.

* Semi-built-in model

Tapes A and B should be separated. Tape A on the wooden door and felt tape B on the dishwasher door (see figure A). After adjusting the wooden door, fasten it to the dishwasher door using screws and bolts (see figure B)

A Tape Tape

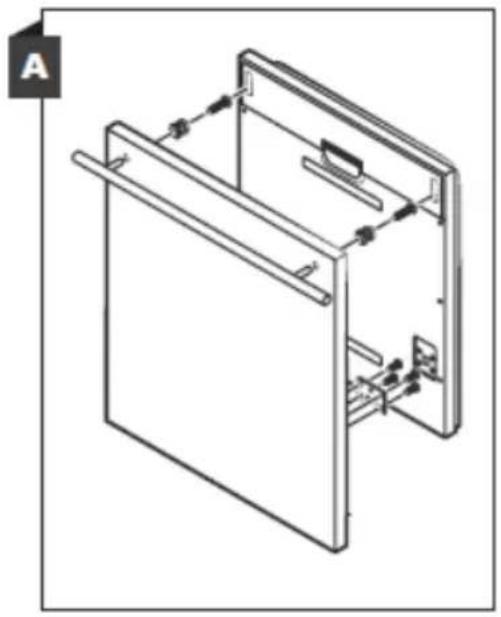

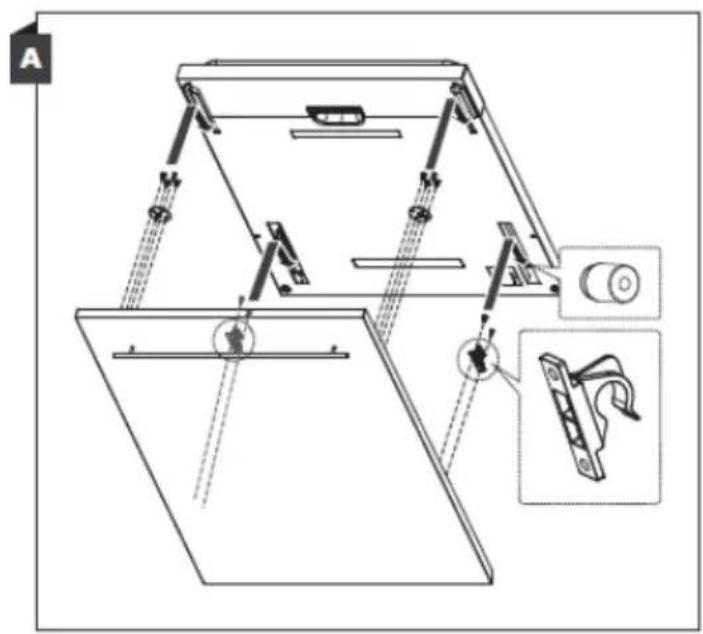

1. Remove the four short bolts 2. Insert the four long bolts

Install the hook on the decorative wooden panel (see figure 4A) and place the hook in the socket on the dishwasher door (see Figure 4B). When the panel is aligned, press it from the top so that the plastic hooks snap shut.

A

Diagram showing a mechanical device with two views and a rotation arrow, no text or symbols present

*Built-in model

Install the hook on the decorative wooden panel and place the hook in the socket on the dishwasher door (see Figure A). After adjusting the wooden door, fasten it to the dishwasher door using screws and bolts (see figure B).

Technical line drawing of a mechanical assembly with no visible text or symbols

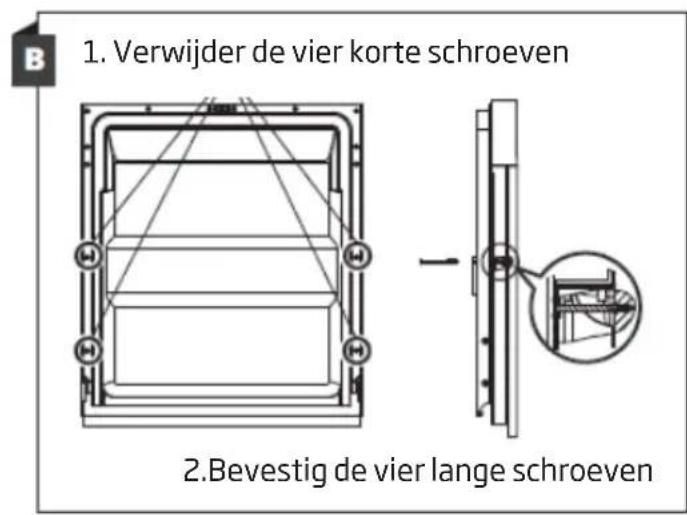

1. Remove the four short bolts 2. Insert the four long bolts

*Step 3. Adjust the door spring tension

1. The dishwasher door spring tension is factory-set. After installing the decorative wooden panel, adjust the door spring tension.
   Turn the adjusting bolt to loosen or tension the steel cable.
2. The door spring tension is optimal when the door is horizontal after opening, but it can easily be lifted with your finger.

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Step 4. Dishwasher installation steps

For other installation steps please see the installation instruction drawings.

1. Place the condensation strip under the cabinet worktop. Make sure that the condensation strip is flush with the edge of the worktop. (Step 2).

2. Connect the water supply hose to the cold water tap.

3. Connect the water drainage hose.

4. Connect the power supply cord.

5. Place the dishwasher in place. (Step 4)

6. Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by using the wrench to turn the hex screw in the centre of the dishwasher base. In order to adjust the front feet, use a flat head screwdriver and rotate the front feet until the dishwasher is level.

7. Attach the furniture door to the dishwasher door.

8. Adjust the tension of the door springs using the Allen key. Tighten the spring to the left. Failure to make the adjustments can damage the dishwasher.

9. The dishwasher must be fixed. This can be done in two ways:

A. MDF Worktop: Insert the mounting hook into the hole on the side panel and fix it to the worktop with screws.

B. Worktop made of marble or granite: Attach the side with the screw.

Technical diagram illustrating two-step assembly steps: (A) pinning and (B) mounting screw installation with tool positioning.

*In selected dishwasher models there are gaskets to be installed around the appliance (optional).

NOTE: Always ensure that there is a sufficient gap between metal furniture components such as handles, fittings, furniture fronts and the surface of the control panel buttons. If the gap is insufficient, functions may be triggered inadvertently and the dishwasher may malfunction.

Step 5. Level the dishwasher

The dishwasher must be properly levelled to operate correctly. Place the spirit level on the door and the basket guides inside the dish washer to ensure the unit is level. Level the dishwasher by adjusting the three levelling feet separately. Be careful not to topple the dishwasher when levelling.

Check the level from the front to the rear. Check the level between the sides.

NOTE: The height adjustment range of the feet is 50 mm.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see warranty card for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

Cher Client

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Illustration of a hand holding a faucet with a valve and handle, no text or symbols present

Illustration of a hand holding a water tap with a valve, next to a faucet (no text or symbols present)

Illustration of a hand holding a tool next to a faucet and a measuring tool (no text or symbols)

Diagram showing a power outlet with a symbol and a hand holding an electrical plug, illustrating the principle of electrical switch or socket installation.

Technical diagram of a mechanical assembly with numbered components, likely a gear or housing component.

Line drawing of a metal rack containing multiple circular and cylindrical objects (no text or symbols)

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Pliage des pics

Diagram of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Position haute

Line drawing of a mechanical device with gears and a handle, no text or symbols present

Mechanical assembly diagram showing a hand operating a tool with two circular components, no text or symbols present

Technical line drawing of a mechanical fan or impeller assembly (no text or symbols)

Technical line drawing of a mechanical component with internal helical and fan-like structures (no text or symbols)

Technical diagram showing two steps of a printer or printer device with labeled components A and B, including a brush tip and explosion effect.

Diagram of a device with a screen showing a tree-like structure and an arrow indicating direction (no text or symbols)

Simple line drawing of a door with a window and starburst pattern (no text or symbols)

Line drawing of a hand inserting a device into a device with a screen and cable (no text or symbols)

Diagram showing a hand pressing a button on a device with a red circle highlighting the button area.

Simple line drawing of a trash bin with an arrow indicating recycling (no text or symbols)

Illustration of a hand cleaning a car trunk with a faucet, showing cleaning process (no text or symbols)

Diagram of a device interior with internal components and an arrow indicating direction (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram showing a hand holding a device with an arrow indicating motion, enclosed in a dashed circle (no text or symbols)

Dd [mm] Wd [mm] 820-870mm Min 580mm Wf [mm] 115mm(+50) 48mm Min 95mm(+50) 460mm 815mm(+50) Hd [mm]

	15cm60cm
Wd	448 598 448 598
Wf	min 450 min 600	min 450 min 600
Dd	550 550 570 570
Hd	max 720 max 720	max 605 max 605

c = d = max 720 mm ≥ 20 mm = c = d max. 60 mm = d

Technical diagram of a mechanical assembly with no visible text or symbols

Diagram showing two mechanical components with a curved arrow indicating rotation or assembly (no text or symbols)

*Modèle encastré

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Dévisser quatre vis courtes 2. Visser quatre vis longues

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram illustrating two-step installation of a mechanical component, labeled A and B with screw fasteners and adjustment arrows.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

INSTALLATIE VAN HET APPARAAT

Hand holding a faucet with a valve, no text or symbols visible

Illustration of a hand using a water tap to lift a valve (no text or symbols present)

Illustration of a hand holding a tool next to a faucet (no text or symbols)

Diagram showing a wall socket with a pole and a hand holding an electrical plug, illustrating the electrical switch mechanism.

Gecombineerde afwasmiddelen (bv. „2-in-1“, „3-in-1“, etc.)

Technical diagram of a mechanical assembly with numbered components, likely a gear or housing component.

Line drawing of a metal crate filled with various circular components (no text or symbols)

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Diagram of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating motion (no text or symbols)

Bovenste positie

Line drawing of a mechanical assembly with gears and a handle, no text or symbols present

Mechanical assembly diagram showing a tracked vehicle with gear and a hand adjusting a component, plus an inset magnified view of the tool (no text or symbols)

Technical line drawing of a mechanical fan or impeller assembly (no text or symbols)

Technical line drawing of a mechanical component with internal helical and housing (no text or symbols)

Technical diagram showing two steps of a printer or printer device with labeled components A and B, including a brush tip and explosion effect.

Diagram of a device with a tray, front panel, and internal components (no text or symbols)

Simple line drawing of a door with a monitor and starburst pattern, no text or symbols present

Line drawing of a hand inserting a device into a device with a cable (no text or symbols)

Diagram showing a hand pressing a button on a device with a red circle highlighting the button area.

Simple line drawing of a trash bin with a recycling arrow, no text or symbols present

Illustration of hands cleaning a car with a faucet and spray (no text or symbols)

Diagram of a device interior with internal components and an arrow indicating direction (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram showing a hand holding a tool with an arrow indicating motion, no text or symbols present

Dd [mm] Wd [mm] 820-870mm Min.580mm Wf [mm] 115mm(+50) 48mm Min.95mm(+50) 460mm 815mm(+50) Hd [mm]

	5cm60cm
Wd 448 598 448 598
Wf min 450 min 600 min 450 min 600
Dd 550 550 570 570
Hd max 720 max 720	max 605 max 605

c = d = max 720 mm ≥ 20 mm = c = d max. 60 mm = d

Technical diagram of a mechanical assembly with tool, paintbrush, and base plate (no text or symbols)

A Tape Tape

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating motion or assembly.

Diagram showing a mechanical device with two views and a rotation arrow, no text or symbols present

*Inbouwmodel

Isometric line drawing of a cabinet or enclosure with mounting brackets and internal components (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Stap 4. Montagefasen vaatwasmachine

Technical diagram illustrating two-step assembly steps: (A) pinning and (B) mounting screw installation with tool positioning.

Two solid color blocks side by side: gray on the left and black on the right, with no text or symbols.
