KT 6004 - Kettle Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	KT 6004
Product type	Cordless electric kettle
Capacity	1.7 L
Power	2200 W
Supply voltage	220-240 V ~ 50/60 Hz
Body material	Plastic
Heating element	Hidden stainless steel
Auto shut-off function	Yes
Dry boil protection	Yes
Power indicator light	Yes
Water level indicator	Yes, with MIN and MAX marks
360° swivel base	Yes
Removable descaling filter	Yes
Power cord length	0.75 m
Dimensions (L x W x H)	22 x 16 x 24 cm
Net weight	0.8 kg
Care	Wipe with a damp cloth; descale with lemon juice
Warranty	2 years (according to applicable legislation)

Frequently Asked Questions - KT 6004 Orbegozo

How do I descale my Orbegozo KT 6004 kettle?

Fill the kettle halfway with water and add the juice of one lemon. Bring to a boil, let sit for 15 minutes, then discard the water. Rinse several times with clean water.

What to do if the kettle does not turn on?

Check that the kettle is properly placed on its base and the plug is firmly connected. If the indicator does not light up, the dry-boil safety switch may have been activated: wait 15 minutes before trying again.

Can I heat something other than water?

No, the kettle is designed only for heating water. Any other liquid or food could damage the appliance.

How to clean the exterior of the kettle?

Unplug it and let it cool. Wipe the exterior with a damp cloth, then dry thoroughly. Never use abrasive products.

Does the kettle shut off automatically?

Yes, the appliance turns off automatically as soon as the water boils. You can also turn it off manually by pressing the switch.

Can I immerse the kettle in water?

No, never immerse the kettle, base, or cord in water or any other liquid. Only the exterior can be cleaned with a damp cloth.

What is the maximum water capacity?

The maximum capacity is 1.7 liters, indicated by the MAX mark on the level indicator. Do not exceed this limit to avoid splashing.

How to remove the descaling filter?

The filter is located in the spout. Wait for the kettle to cool, then remove it gently. Clean it under running water once a month.

What to do if the kettle leaks?

Check that the lid is properly closed. If the leak persists, contact authorized technical service. Do not use the appliance if it leaks.

Can I use the kettle without the lid?

No, the lid must always be in place during operation to avoid hot water splashes and ensure proper automatic shut-off.

USER MANUAL KT 6004 Orbegozo

White Enhego 200 water heater with black handle and control buttons, no visible text or symbols on body.

KT 6004

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

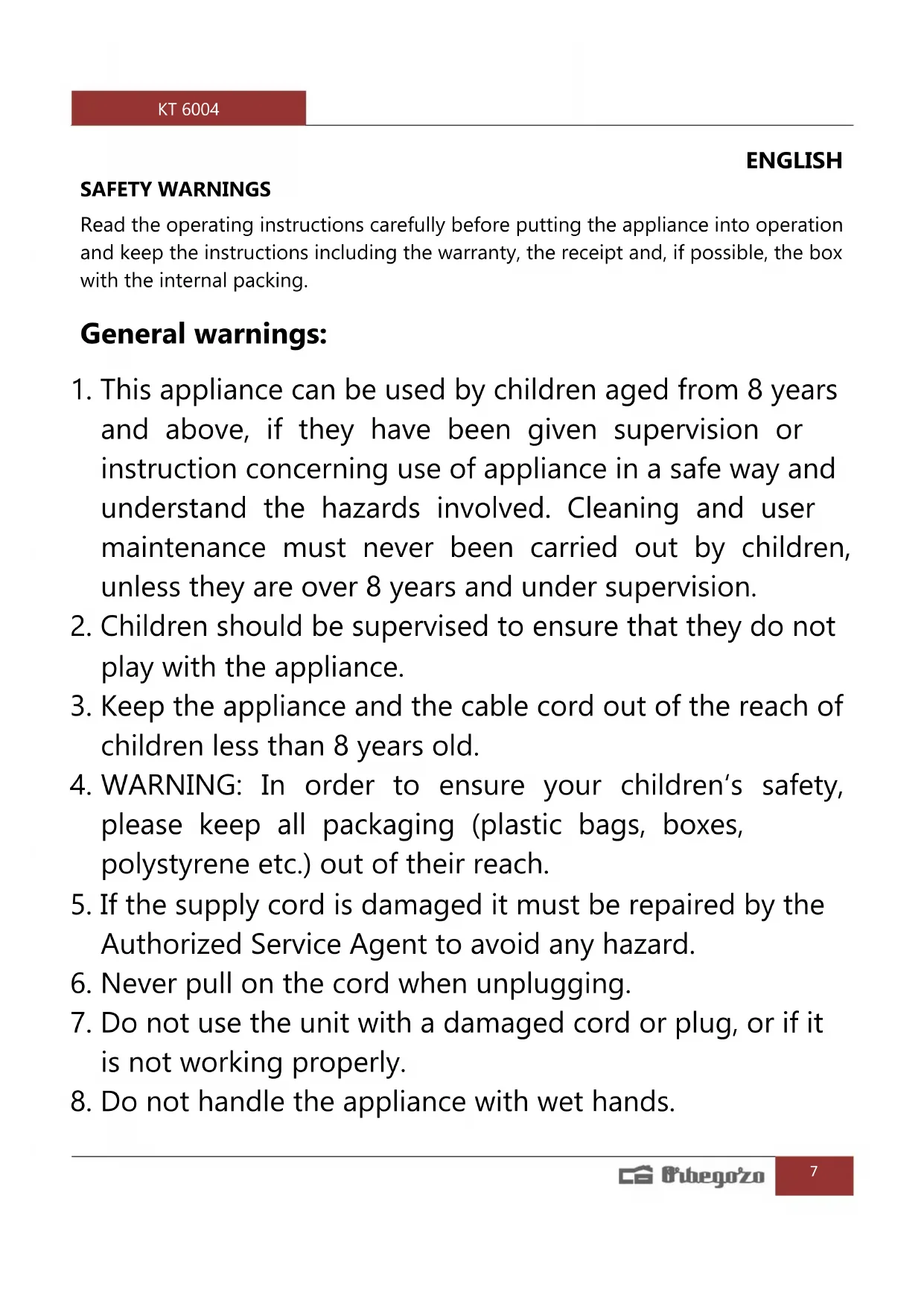

General warnings:

1. This appliance can be used by children aged from 8 years and above, if they have been given supervision or instruction concerning use of appliance in a safe way and understand the hazards involved. Cleaning and user maintenance must never been carried out by children, unless they are over 8 years and under supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid any hazard.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.
14. WARNING: In case of misuse, there is a risk of possible injury.

ATTENTION: This symbol show: Hot surface.

CAUTION: The surface can remain hot during or after use.

• The device should only be used with the supplied stand.
• If the unit is overfilled, boiling water may be projected.
• CAUTION: Make sure the kettle is switched off before you remove it from its holder.
• Switch off the plug from the outlet before filling, emptying or cleaning, or when not in use.
• Do not operate or place any part of this appliance on or near any hot surfaces such as gas or electric burner or in a heated oven.

• Do not let the cord hang over the edge of a table or counter. Do not let the cord touch hot surfaces.

• Avoid touch hot kettle surfaces, use handles or knobs.

• To avoid possible steam damage, turn the spout away from walls or cabinets when operating the kettle.
• Clean the filter with water once a month or when it is necessary. When pulling the filter out, be careful it is hot after boiling water.
• If operated on wood furniture, use a protective pad to prevent damage to delicate finishes.
• Remove and replace the lid carefully when hot.
• Do not switch your kettle on if it is empty.
• To protect against fire, do not operate in the presence of explosive and / or flammable fumes.
• A kettle should not be left connected to a wall socket when the room temperature is likely to fall to outdoor winter temperatures. At sub-zero temperatures, the automatic control thermostat may reset to boiler energize the element.
• Do not use the kettle for any purpose other than heating water. Other liquids or food will contaminate the interior.
• This product has not been designed for any other uses than those specified in this booklet.
• Position the lid so that steam is directed away from the handle.
• Do not remove the lid while the water is boiling.
• This appliance is intended to be used in household

applications such as:

• Reserved kitchen areas for staff in shops, offices and other working environments.
  ○ Farms.
• By clients in hotels, motels and other residential environments.
• In environments such hotel room

BEFORE USING

1. Remove all packaging from the pickguard and its power base. Before using the damage for the first time or if it has not been used for a long time, fill it to the maximum mark and boil it. Then discard that water and rinse the necessary.
2. Before connecting the appliance to the mains, check that the voltage indicated on the characteristics plate corresponds to the mains voltage in your home.

INSTRUCTIONS FOR USE

1. Always remove the kettle from the electric base before filling.
2. Raise the lid.
3. Fill the upset with cold water between the MIN and MAX marks on the water level indicator.
4. Close the lid. Make sure the lid is closed properly
5. Place the kettle on the electric base.
6. Plug the power base into the power outlet.
7. To start boiling, push the ON/OFF switch down.
8. The power indicator will light up and the will start working. NEVER REMOVE THE LID DURING THE BOILING PROCESS.
9. When the water has boiled, the switch will turn on and work automatically. The power indicator will also turn off.
10. You can stop the boiling process at any time by pressing up on the switch.
11. After the overflow automatically shuts off, there may be a short delay before you can boil again. This is usually no more than 20 seconds.
12. The safety switch will be activated if you accidentally turn on the thermostat when it is empty or let it run dry. Wait 15 minutes for the switch to reset before refilling with cold water and boiling.

CLEANING

1. Always unplug the kettle from the mains and allow it to cool down completely before storing or cleaning.
2. Never immerse any part of the power cord, plug, power base, or excess water or any other liquid.
3. Wipe the outside of the kettle with a damp cloth. Dry well. Never use harsh chemicals or abrasive cleaning agents as they can damage your deteriorating finish.
4. Over a period of time lime scale can build up inside your resistor. To remove limescale, fill the kettle halfway with water and add juice from one lemon. Bring the water to a boil and let stand for 15 minutes before discarding. Repeat several times using only cold water.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin”

symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
