KT 5011 - Kettle Orbegozo - Free user manual and instructions

Product Type	Electric Kettle
Brand	Orbegozo
Model	KT 5011
Capacity	1.7 L (estimated)
Power	2000 W (estimated)
Power Supply	220-240 V ~ 50-60 Hz
Dimensions (approx.)	22 x 15 x 25 cm
Weight (approx.)	1 kg
Material	Stainless steel and plastic
Automatic shut-off function	Yes
Dry boil protection	Yes
360° swivel base	Yes
Water level indicator	Yes
Removable anti-scale filter	Yes
Operating indicator light	Yes
Maintenance	Regular descaling recommended
Safety	Safety shut-off in case of overheating
Spare parts available	Lid, base, filter (subject to availability)

Frequently Asked Questions - KT 5011 Orbegozo

What is the capacity of the Orbegozo KT 5011 kettle?

The estimated capacity is 1.7 liters, which allows preparing several cups at once.

How to descale the kettle?

Use a commercial descaling agent following the instructions. Fill with water up to the lower mark to avoid overflow, bring to a boil, then rinse several times with clear water.

Why does the kettle turn off before the water boils?

This indicates that descaling is needed. Accumulated limescale disrupts temperature detection.

Can I heat liquids other than water?

No, the device is designed only to heat water. Other liquids or foods may damage it.

How to clean the outside of the kettle?

Unplug and let cool. Use a slightly damp cloth without abrasive products. Never immerse the base or kettle in water.

What to do if the kettle does not turn on?

Check the outlet and cord. If the problem persists, the safety shut-off may have been activated due to overheating. Let it cool for 15-20 seconds before using again.

How to remove the anti-scale filter?

The filter is removable. Wait for it to cool down after use, then gently remove it. Clean it under running water once a month.

Can the kettle be used without water?

No, never operate empty. The dry boil protection will turn it off automatically, but this may damage the device.

What does the indicator light mean?

The light turns on when the kettle is operating and turns off automatically once the water boils or if you manually turn it off.

Where to find spare parts?

Contact Orbegozo after-sales service via the official website. Parts such as the lid or base may be available on request.

USER MANUAL KT 5011 Orbegozo

White Kriga water heater with visible branding and control buttons (no text or symbols on body)

KT 5011

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

General warnings:

1. This appliance can be used by children aged from 8 years and above, if they have been given supervision or instruction concerning use of appliance in a safe way and understand the hazards involved. Cleaning and user maintenance must never been carried out by children, unless they are over 8 years and under supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid any hazard.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.
14. WARNING: In case of misuse, there is a risk of possible injury.

ATTENTION: This symbol show: Hot surface.

CAUTION: The surface can remain hot during or after use.

• The device should only be used with the supplied stand.
• If the unit is overfilled, boiling water may be projected.
• CAUTION: Make sure the kettle is switched off before you remove it from its holder.
• Switch off the plug from the outlet before filling, emptying or cleaning, or when not in use.
• Do not operate or place any part of this appliance on or near any hot surfaces such as gas or electric burner or in a heated oven.

• Do not let the cord hang over the edge of a table or counter. Do not let the cord touch hot surfaces.

• Avoid touch hot kettle surfaces, use handles or knobs.

• To avoid possible steam damage, turn the spout away from walls or cabinets when operating the kettle.
• Clean the filter with water once a month or when it is necessary. When pulling the filter out, be careful it is hot after boiling water.
• If operated on wood furniture, use a protective pad to prevent damage to delicate finishes.
• Remove and replace the lid carefully when hot.
• Do not switch your kettle on if it is empty.
• To protect against fire, do not operate in the presence of explosive and / or flammable fumes.
• A kettle should not be left connected to a wall socket when the room temperature is likely to fall to outdoor winter temperatures. At sub-zero temperatures, the automatic control thermostat may reset to boiler energize the element.
• Do not use the kettle for any purpose other than heating water. Other liquids or food will contaminate the interior.
• This product has not been designed for any other uses than those specified in this booklet.
• Position the lid so that steam is directed away from the handle.
• Do not remove the lid while the water is boiling.
• This appliance is intended to be used in household

applications such as:

- Reserved kitchen areas for staff in shops, offices and other working environments.

○ Farms.

- By clients in hotels, motels and other residential environments.

- In environments such hotel room

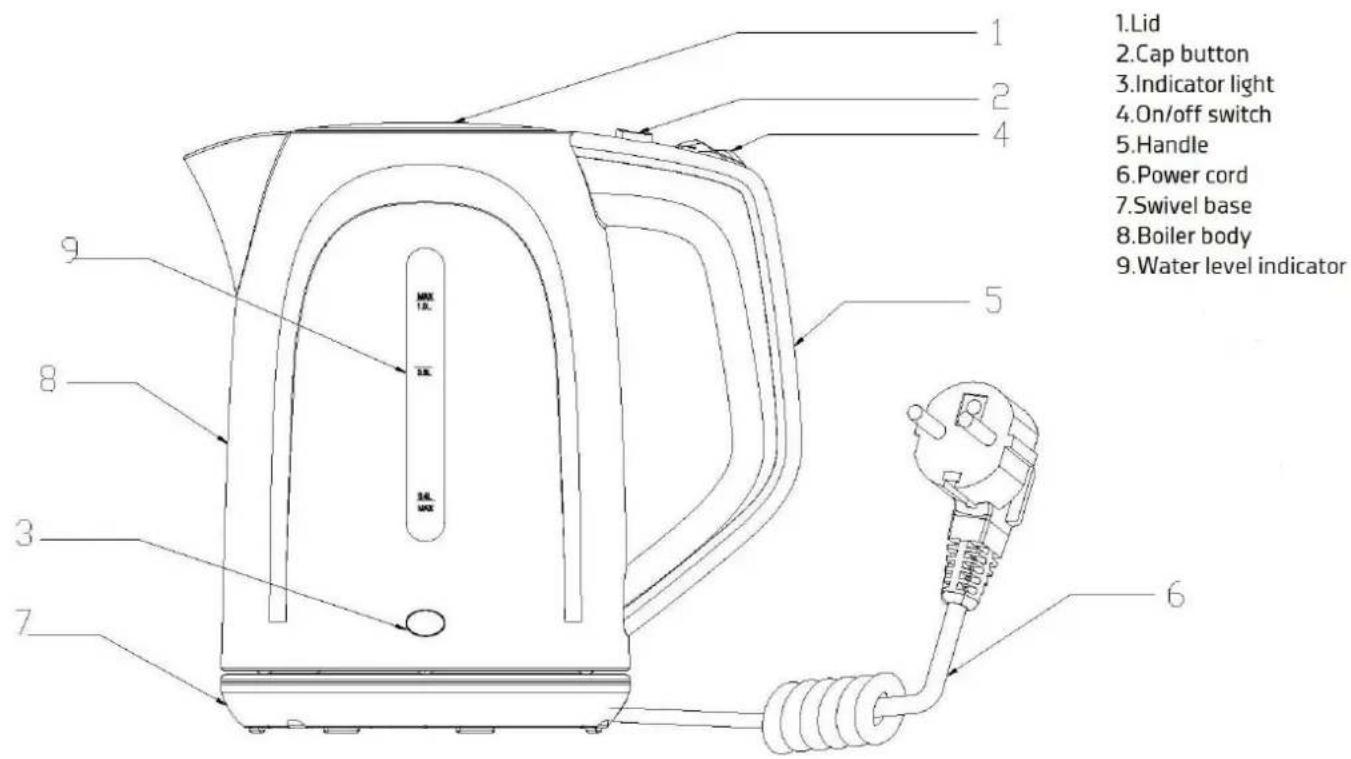

1.Lid 2.Cap button 3.Indicator light 4.On/off switch 5.Handle 6.Power cord 7.Swivel base 8.Boiler body 9.Water level indicator

INSTRUCTIONS FOR USE

Before using for the first time

- Before initial use, clean it by going through several boiling cycles, using clean water in each cycle, and filling the kettle to the upper mark, the water will reach boiling point after about 5 minutes, when the unit automatically shuts off.

Use

- Place the base on a firm and level surface,

- Pour the desired amount of clean water into the kettle. Do not touch any part of the kettle except the handle when the appliance is in use and make sure that the lid is securely closed. The amount of water can

be measured with the level indicator on the outside of the kettle. Always pay attention to the minimum and maximum levels and make sure that the lid is well closed.

• Place the body of the kettle on the base in such a way that it fits into the base contact unit.
• Insert the plug into the socket.
• Set the on/off switch to position "1" to start the heating process. The indicator light will turn on.
• As soon as the water reaches the boiling point, the ON/OFF switch automatically returns to the "0" position. The indicator light will turn off.

Note: The kettle can also be turned off manually by turning the ON/OFF switch to position "0".

- Hot water can now be safely poured into another container.

Safety shutdown

• This kettle is equipped with a safety switch to protect the appliance from damage in case of improper use. If the appliance accidentally runs without water or if all the water has evaporated, the safety switch will automatically turn it off.
• In such a case, unplug the plug from the wall outlet immediately and refill the kettle only after a proper cool down period of about 15-20 seconds.

Descaling

• If the appliance turns off before reaching the boiling point, it is a sign that descaling is necessary.
• Any normal descaling agent can be used, as long as the corresponding instructions are read. Do not fill the kettle to the top mark to avoid spillage if the descaling agent causes the water to foam.
• To thoroughly clean the kettle of any calcareous residue, let it go through several boiling cycles, using clean water in each cycle. Rinse the kettle with clean water afterwards.

CLEANING AND CARE

• Before cleaning the appliance, make sure it is disconnected from the power supply and has cooled down completely.
• Do not use abrasive or strong cleaning solutions.
• Do not immerse the base or the kettle in any liquid. To clean the exterior, you can use a slightly damp cloth.
• It is advisable to remove scale deposits from the kettle at regular intervals.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be

separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
