USER MANUAL Softpower Magbank LEXON

Simple line drawing of a rounded rectangular frame with a central circular button and a numbered label (7) at the bottom, no text or symbols present.

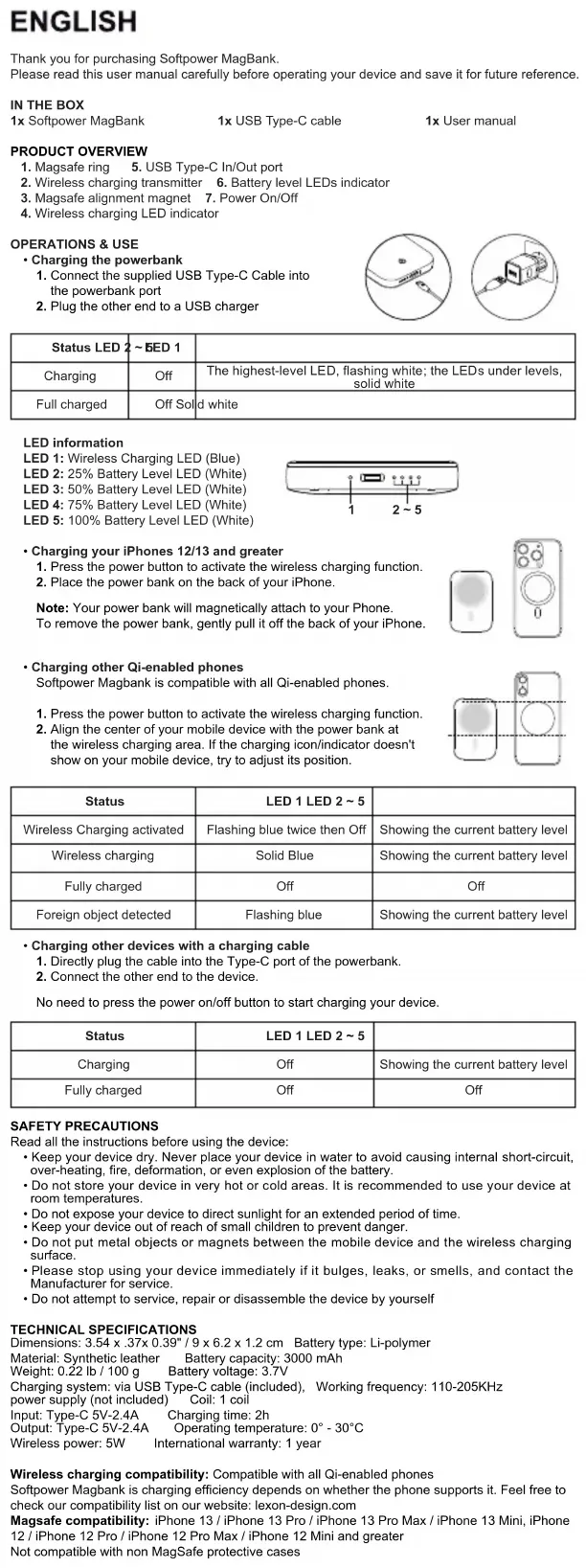

ENGLISH

Thank you for purchasing Softpower MagBank.

Please read this user manual carefully before operating your device and save it for future reference.

IN THE BOX

1. Magsafe ring 5. USB Type-C In/Out port
2. Wireless charging transmitter 6. Battery level LEDs indicator
3. Magsafe alignment magnet 7. Power On/Off
4. Wireless charging LED indicator

OPERATIONS & USE

- Charging the powerbank

1. Connect the supplied USB Type-C Cable into the powerbank port

2. Plug the other end to a USB charger

Status LED 2 ~ 5ED 1
Charging	Off	The highest-level LED, flashing white; the LEDs under levels, solid white
Full charged	Off Solid white

LED information

LED 1: Wireless Charging LED (Blue)

LED 2: 25% Battery Level LED (White)

LED 3: 50% Battery Level LED (White)

LED 4: 75% Battery Level LED (White)

LED 5: 100% Battery Level LED (White)

• Charging your iPhones 12/13 and greater

1. Press the power button to activate the wireless charging function.
2. Place the power bank on the back of your iPhone.

Note: Your power bank will magnetically attach to your Phone.

To remove the power bank, gently pull it off the back of your iPhone.

- Charging other Qi-enabled phones

Softpower Magbank is compatible with all Qi-enabled phones.

1. Press the power button to activate the wireless charging function.
2. Align the center of your mobile device with the power bank at the wireless charging area. If the charging icon/indicator doesn't show on your mobile device, try to adjust its position.

Status	LED 1 LED 2 ~ 5
Wireless Charging activated	Flashing blue twice then Off	Showing the current battery level
Wireless charging	Solid Blue	Showing the current battery level
Fully charged	Off	Off
Foreign object detected	Flashing blue	Showing the current battery level

- Charging other devices with a charging cable

1. Directly plug the cable into the Type-C port of the powerbank.

2. Connect the other end to the device.

No need to press the power on/off button to start charging your device.

Status	LED 1 LED 2 ~ 5
Charging	Off	Showing the current battery level
Fully charged	Off	Off

SAFETY PRECAUTIONS

Read all the instructions before using the device:

• Keep your device dry. Never place your device in water to avoid causing internal short-circuit, over-heating, fire, deformation, or even explosion of the battery.
• Do not store your device in very hot or cold areas. It is recommended to use your device at room temperatures.
• Do not expose your device to direct sunlight for an extended period of time.
• Keep your device out of reach of small children to prevent danger.
• Do not put metal objects or magnets between the mobile device and the wireless charging surface.
• Please stop using your device immediately if it bulges, leaks, or smells, and contact the Manufacturer for service.
• Do not attempt to service, repair or disassemble the device by yourself

TECHNICAL SPECIFICATIONS

Dimensions: 3.54 x .37x 0.39" / 9 x 6.2 x 1.2 cm Battery type: Li-polymer

Material: Synthetic leather Battery capacity: 3000 mAh

Weight: 0.22 lb / 100 g Battery voltage: 3.7V

Charging system: via USB Type-C cable (included), Working frequency: 110-205KHz

power supply (not included) Coil: 1 coil

Input: Type-C 5V-2.4A Charging time: 2h

Output: Type-C 5V-2.4A Operating temperature: 0° - 30°C

Wireless power: 5W International warranty: 1 year

Wireless charging compatibility: Compatible with all Qi-enabled phones

Softpower Magbank is charging efficiency depends on whether the phone supports it. Feel free to check our compatibility list on our website: lexon-design.com

Magsafe compatibility: iPhone 13 / iPhone 13 Pro / iPhone 13 Pro Max / iPhone 13 Mini, iPhone

12 / iPhone 12 Pro / iPhone 12 Pro Max / iPhone 12 Mini and greater

Not compatible with non MagSafe protective cases

EUROPEAN UNION

CE DIRECTIVE

CE

LEXON hereby declares that the device complies with the essential requirements and other relevant provisions of Directives 2014/53/EU & 2011/65/EU.

The original EU declaration of conformity may be found at: https://www.lexon-design.com/assets/certifications-ce-softpowermagbank.pdf

Radiated H-Field -2.92 dBuA/m (@10m)

TX/RX Frequency Range 110-148kHz(Only for EU&UK)

UK conformity assessment

UK CA

The object described above is in conformity with the relevant Union harmonisation legislation.

The original UK declaration of conformity may be found at: https://www.lexon-design.com/assets/certifications-ce-softpowermagbank.pdf

DISPOSAL AND RECYCLING INFORMATION

X

After the implementation of the European Directive 2012/19/EU in the national legal system, the following applies: electrical and electronic devices may not be dis-posed of with domestic waste. Consumers are obliged by law to return electrical and electronic device at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilizing old devices, you are making an important contribution to protecting our environment.

USA - FCC STATEMENT

FC

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Notice:

Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/ TV technician for help.

FCC RF exposure statement:

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

CANADIAN COMPLIANCE STATEMENT

This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:

1) This device may not cause interference, and

2) This device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

RF exposure statements This device complies with the ISEDRSS-102 RF exposure requirement set forth for an uncontrolled environment and are safe for intended operation as described in this manual.

All brands or product names are or may be trademarks or their respective owners.

Pictures and specifications are not contractual. Assembled in China.

FRANÇAIS

VUE D'ENSEMBLE DU PRODUIT

LEXON hereby declares that the device complies with the essential requirements and other relevant provisions of Directives 2014/53/EU & 2011/65/EU.

The original EU declaration of conformity may be found at:

https://www.lexon-design.com/assets/certifications-ce-softpowermagbank.pdf

https://www.lexon-design.com/assets/certifications-ce-softpowermagbank.pdf

Radiated H-Field -2.92 dBuA/m (@10m)

TX/RX Frequency Range 110-148kHz(Only for EU&UK)

UK conformity assessment

UK CA

The object described above is in conformity with the relevant Union harmonisation legislation.

The original UK declaration of conformity may be found at:

https://www.lexon-design.com/assets/certifications-ce-softpowermagbank.pdf

DISPOSAL AND RECYCLING INFORMATION

X

After the implementation of the European Directive 2012/19/EU in the national legal system, the following applies: electrical and electronic devices may not be dis-posed of with domestic waste. Consumers are obliged by law to return electrical and electronic device at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilizing old devices, you are making an important contribution to protecting our environment.

USA - FCC STATEMENT

FC

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Notice:

Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/ TV technician for help.

FCC RF exposure statement:

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

CANADIAN COMPLIANCE STATEMENT

This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:

1) This device may not cause interference, and

2) This device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

RF exposure statements This device complies with the ISEDRSS-102 RF exposure requirement set forth for an uncontrolled environment and are safe for intended operation as described in this manual.

All brands or product names are or may be trademarks or their respective owners.

Pictures and specifications are not contractual. Assembled in China.
