Novaflash 1000 - Flashlight Shada - Free user manual and instructions

Product type	Multifunction flashlight
Brand	Shada
Model	Novaflash 1000
Category	Flashlight
Power source	Rechargeable lithium-ion battery
Input voltage	220-240 V AC (mains charger) or 12 V DC (cigarette lighter)
Charging time	Approximately 4 hours
Charge indicator	Green LED lit when battery is fully charged
Protection rating	IP54
Light source	2 LED modules
Usage	Indoor only
Material	Durable plastic
Included accessories	USB cable, mains charger, cigarette lighter plug, user manual
Maintenance	Clean with a soft cloth and clean water. Do not use abrasive products
Safety	Do not look directly at the light beam, ensure good ventilation, do not cover, keep out of reach of children
Spare parts	No spare parts available
Repairability	Cannot be repaired. Do not open or disassemble
Warranty	Warranty expires in case of failure to follow instructions
Compliance	CE (LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU)
General information	CE marking, WEEE NL: 3505, DE: 37281017, AT: 40133

Frequently Asked Questions - Novaflash 1000 Shada

How to charge the Novaflash 1000 flashlight?

Use only the supplied mains charger or the cigarette lighter plug. Plug the USB cable into the charger and connect it to the flashlight. The green LED lights up when charging is complete.

What is the battery charging time?

The full charging time is approximately 4 hours. Wait for the green indicator to light up before first use.

Can I use the flashlight while it is charging?

The manual does not specify this possibility. It is recommended to fully charge the flashlight before first use and not to use it during charging to avoid any risk.

How to clean the Novaflash 1000 flashlight?

Clean the flashlight with a soft cloth and clean water. Do not use abrasive or corrosive cleaners.

What to do if the flashlight no longer works?

First check that the battery is charged. If the problem persists, do not attempt to repair it yourself. The product cannot be repaired and must be disposed of according to local regulations.

Can I replace the battery myself?

No, the battery is built-in and cannot be replaced by the user. Do not attempt to open the product.

Is the flashlight waterproof?

The flashlight has an IP54 rating, which means it is protected against water splashes and dust, but it is not waterproof. Use it only indoors.

How to store the flashlight for a long period?

If you do not use it for more than 6 months, fully recharge the battery before storing. Avoid extreme temperatures (hot or cold) to preserve battery life.

Is the flashlight repairable?

No, the product cannot be repaired. In case of malfunction out of warranty, dispose of it at an appropriate collection point.

What accessories are included with the flashlight?

The package contains: 1 multifunction flashlight with built-in battery, 1 USB cable, 1 220-240V mains charger, 1 cigarette lighter connection plug and the user manual.

USER MANUAL Novaflash 1000 Shada

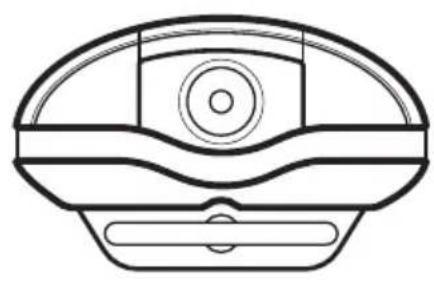

Technical line drawing of a mechanical device with a U-shaped component and a circular base (no text or symbols)

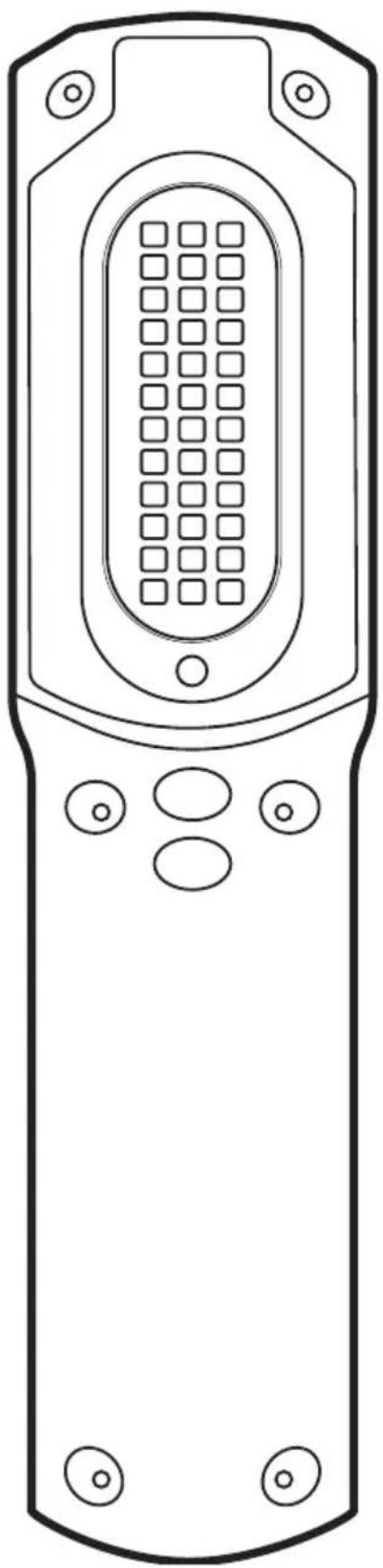

Line drawing of a mobile phone with an oval panel and control buttons (no text or symbols)

Line drawing of a mechanical component with no text or symbols

GB Table of contents 4
D Inhaltsverzeichnis 7
NL Inhoudsopgave 10
F Table des matières .13

TAB 1

Art. Nr.	700328
Total Output (worklight/flashlight) - Gesamtleistung (Arbeitsleuchte/Taschenlampe)Totale Output (werklamp/zaklamp) - Puissance totale (luminaire de travail/torch)	10/3W
Luminous flux (worklight/flashlight) - Lichtstrom (Arbeitsleuchte/Taschenlampe)Lichtstroom (werklamp/zaklamp) - Flux lumineux (luminaire de travail/torch)	1000/220lm
Battery - AkkuAccu - Pile	Li-lon -6.600mAh3,7V-24.4Wh
Charging time (h) - Ladezeit (Std)Oplaadtijd (u) - Temps de rechargement (h)	~4
Dimmable - Dimmbar - Dimbaar - Dimmable	100%/50%
Burning time (worklight/flashlight) (h) - Leuchtdauer (Arbeitsleuchte/Taschenlampe) (Std)Branduren (werklamp/zaklamp) (u) - Temps d'éclairage (luminaire de travail/torch) (h)	~3/~6
Degree of protection - SchutzartBeschermingsgraad - indice de protection	IP65
Input vcoltage - Eingangsspannungvoedingspanning - Tension d'entrée	USB-5V-max2A
Warm-up time (s) - Aufwärmzeit (s)Opwarmtijd (s) - Temps d'échauffement (s)
Switch cycles - SchaltzyklenSchakelcycli - Cycles de commutation	15.000x
LEDLifespan (h) - Lebensdauer (Std.)Levensduur (u) - Durée de vie (h)	30.000
Colour temperature - FarbtemperaturKleurtemperatuur - Température de couleur	6.500K
Colour rendering index (CRI) - Farbwiedergabeindex (CRI)Index kleurweergave (CRI) - Indice de rendu des couleurs (CRI)	Ra >80
Beam angle (worklight/flashlight) - Abstrahlwinkel (Arbeitsleuchte/Taschenlampe)Stralingshoek (werklamp/zaklamp) - Angle de rayonnement (luminaire de travail/torch)	90°/15°

GB Table of contents

Package contents 4

01 Manual identification.4
02 General 4
03 Unique identification of the product 4
04 Modification of the product 4
05 Security related information . 5
06 Conformity of the product with legislation 5
07 Storage of the Manual 5
08 Use of the product / Installation · 5
09 Operating the product .5
10 Product maintenance 5
11 Accessories, consumables, spare parts 6
12 Information about special tools, devices 6
13 Information about repair, replacement of parts 6
14 Instructions for disposal 6
15 Documentation......6
16 CE-Declaration 6
17 Explanation of symbols, concepts and particularities of the product....6

Package contents

1x Rechargeable multifunctional worklight
1x USB cable
1x 220-240V AC USB charger
1x 12/24V DC USB car charger.
1x Operating manual

01 Manual identification

Shada B.V, 7323-AM Apeldoorn, Kanaal Noord 350, The Netherlands.

www.shada.nl

Release date: 20180123 13:21

Article number: 700328

02 General

This product is designed for indoor use. It is equipped with 2 LED modules, Lithium-Ion battery, USB cable, charger and car charger.

03 Unique identification of the product

Rechargeable multifunctional worklight

Article number: 700328.

The product meets the requirements of protection class 3.

Level of protection IP54.

Further technical data can be found in table 1. („TAB 1“ on page 3)

04 Modification of the product

The product may not be changed or adapted. Do not use the product for other purposes than described in the manual.

05 Security related information

When using the product, make sure the unit is sufficiently ventilated, never cover the unit during operation and keep it out of reach of children or animals. This product is not a toy, LED lights are extremely bright and looking directly at the light source during operation can lead to serious eye damage. Any other use of the device than described in the manual may damage the product or cause danger to the user, e.g. due to a short circuit, fire or electric shock. The safety instructions must be observed at all times.

06 Conformity of the product with legislation

The warranty expires in the event of damage due to non-compliance with the safety instructions of the device. Furthermore, we are not liable for consequential damage, damage to objects or persons resulting from failure to observe the safety instructions and improper use/handling of the device due to wear and tear. Product design and specifications are subject to change without notice. All logos and trade names are registered trademarks of their respective owners and are hereby acknowledged as such.

07 Storage of the Manual

Please read the operating instructions carefully and completely before use. The operating instructions are part of the product, they contain important information on the commissioning and handling of the device. Keep all enclosed operating instructions for future reference. If the device is sold or passed on to third parties, you are obliged to pass on the operating instructions as these are lawfully part of the product.

08 Use of the product / Installation

Before use, check the completeness of the parts supplied and the intactness of the product. If damaged, it must not be put into operation.

Use only the provided charger and the car charger to charge the work light.

1. Charge the work light completely before the first use.

2. Connect the USB cable to the charger or the car charger.

3. When the work light is fully charged (4 hours) the indicator LED wil light up.

4. After use, store the work light indoors. Avoid storage in extremely high or low temperatures, as this will negatively affect the lifespan of the battery.

Attention: when the working light is stored longterm (>6 months), charge it regularly. This will prevent deep discharge of the battery. As this is normal for Lithium-Ion batteries, a deep discharge does not form grounds for reclamation.

09 Operating the product

The safety instructions and warnings must be observed to ensure both the perfect condition of the product and safe operation.

10 Product maintenance

The product can be cleaned with clear water and a soft cloth. Do not use detergents containing surface active agents or scouring agents.

11 Accessories, consumables, spare parts

For this product there are no accessories or replacement parts available.

12 Information about special tools, devices

You do not need any special tools to take this device into use.

13 Information about repair, replacement of parts

Do not open or disassemble product. The product can not be repaired. In case of a defect outside the warranty period, the device must be disposed of at an approved waste collection point.

14 Instructions for disposal

Old appliances marked with the pictured symbol must not be disposed of with the trash. You must return them to a waste collection center (inquire at your local community) or the retailer where they were purchased. They will ensure environmentally sound disposal.

15 Documentation

The product has been manufactured and supplied in compliance with all relevant regulations and directives that apply for all member states of the European Union. The product complies with all applicable specifications and regulations in the country of purchase. Formal documentation is available upon request. The formal documentation includes, but is not limited to the declaration of conformity, the material safety datasheet and the product test report.

16 CE-Declaration

This product complies with the following directives:

LVD: 2014/35/EU, EMC: 2014/30/EU, RoHS: 2011/65/EU

17 Explanation of symbols, concepts and particularities of the product

Action icon - Read this manual carefully and completely.

CE is the abbreviation for Conformité Européenne - And means Conforms to the European guidelines. With the CE-mark, the wmanufacturer confirms that this product complies with the current European guidelines.
