USER MANUAL PCVL 3065 ProfiCare

Reiniging WAARSCHUWING:

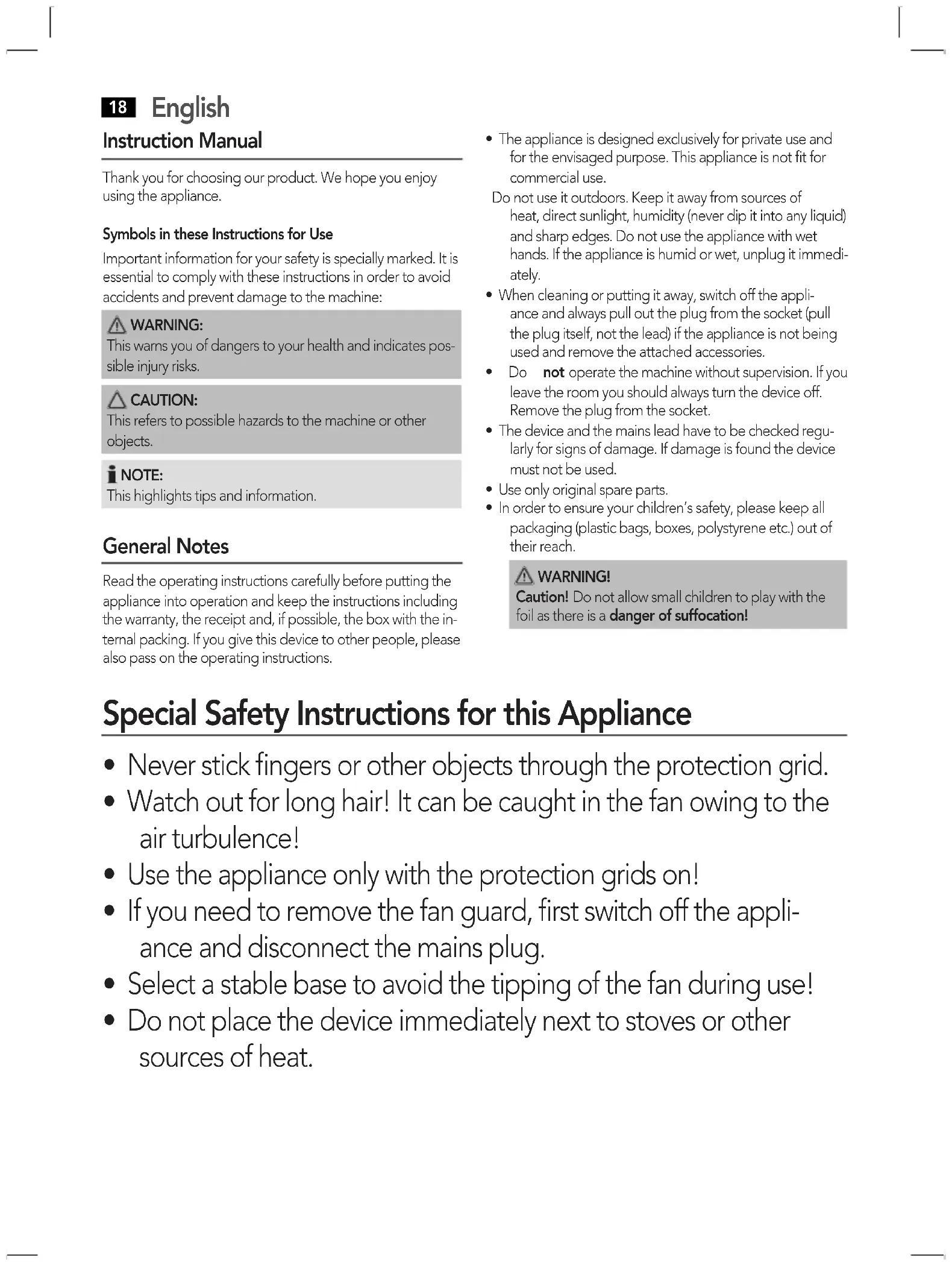

Instruction Manual Thank you for choosing our product. We hope you enjoy using the appliance.Symbols in these Instructions for UseImportant information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine: WARNING: This warns you of dangers to your health and indicates pos-sible injury risks. CAUTION: This refers to possible hazards to the machine or other objects. NOTE: This highlights tips and information. General Notes Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the in-ternal packing. If you give this device to other people, please also pass on the operating instructions.• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immedi-ately. • When cleaning or putting it away, switch off the appli-ance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.• The device and the mains lead have to be checked regu-larly for signs of damage. If damage is found the device must not be used.• Use only original spare parts.• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. WARNING! Caution! Do not allow small children to play with the foil as there is a danger of suffocation! Special Safety Instructions for this Appliance

• Never stick fingers or other objects through the protection grid.

• Watch out for long hair! It can be caught in the fan owing to the air turbulence!

• Use the appliance only with the protection grids on!

• If you need to remove the fan guard, first switch off the appli- ance and disconnect the mains plug.

• Select a stable base to avoid the tipping of the fan during use!

• Do not place the device immediately next to stoves or other sources of heat.English

• Do not repair the appliance by yourself. Always contact an au- thorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly quali- fied persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision. Putting into Service Electrical Connection

• Before inserting the plug into the socket. Make sure that the mains voltage to be used matches that of the device. You can find this information on the nameplate.

• Connect the device to a duly installed protective contact socket. Use Basic Settings Set the blower inclination angle before starting the device. You can adjust the inclination angle by tipping the blower casing with both hands. Operation To select the speed, please use the push-button switch on the back:

1. Remove the device from its packaging.

2. Remove all of the packaging material such as foils, filling

material, cable holders and cardboard packaging.

3. Check the scope of delivery.

4. Check the appliance for any transport damage to prevent

• The device comes fully assembled.

• There may still be dust or production residues on the surface of the device. We recommend that you quickly wipe off the housing with a damp cloth. Mains Cable Unwind the mains cable fully from the back of the appliance. Position The ideal position is a non-slip, flat surface.English

• Always remove the mains plug before cleaning the device.

• If you need to remove the safety guard: Always switch the device off and remove the mains plug.

• Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire. CAUTION

• Clean the outside of the device with a dry cloth without any additives.

• If the device is very dirty wet a cloth with water and then wipe the device dry once you have finished. Maintenance and Storage

• Clean the appliance as described.

• There are two hooks on the back of the appliance below the motor. Wind the mains cable around the two hooks.

• We recommend that the appliance is kept in its original packaging if you do not intend to use it for long periods.

• Always store the appliance out of the reach of children, in a well-ventilated and dry place. Technical Data Model: ....................................................................PC-VL 3065 WM Power supply: .........................................................220-240 V, 50 Hz Power consumption:.............................................................. 100 W Protection class: ................................................................................. I Net weight: ................................................................ approx. 4.9 kg The right to make technical and design modifications in the course of continuous product development remains reserved. This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equip- ment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutili- sation of electrical and electronic equipment. Information concerning where the equipment can be dis- posed of can be obtained from your local authority.Język polski
