Product type	Canister vacuum cleaner
Brand	Amica
Model	Akman VM 4011
Rated power	800 W
Maximum power	900 W
Supply voltage	220-240 V, 50 Hz
Net weight	4.5 kg
Collection type	Dust container (bagless)
Filter type	Washable inlet and outlet filters
Remote control	Yes - wrist control with + and - adjustments
Power adjustment	Electronic (3 levels: curtains, fabrics, hard floors/carpets)
Cable rewinder	Yes
Required batteries	2 AAA 1.5 V batteries (not supplied)
Included accessories	Turbo brush, metal tube, 2in1 crevice tool, parquet brush, universal brush nozzle
Telescopic tube length	Adjustable
Use	Domestic
Radio power	< -20 dBm on 433 MHz (remote control)
Tube material	Metal
Maintenance	Regular cleaning of the container and filters

Frequently Asked Questions - Akman VM 4011 AMICA

How to install batteries in the remote control?

Open the battery compartment cover on the handle, insert two AAA 1.5 V batteries respecting polarities (+ and -), then close. Batteries are not supplied.

How to pair the remote control with the vacuum cleaner?

Insert batteries into the remote control, plug in and turn on the vacuum cleaner. Press and hold the + and - buttons until the icons flash, then press a button on the remote. Pairing is then done.

How to clean the inlet filter?

Unplug the vacuum cleaner. Remove the filter by pulling it upward. Wash it with lukewarm water without detergent, then dry it completely before reinstalling.

Why has the suction power decreased?

Check if the dust container is full, if the filters are clogged, or if the hose or brush is blocked. Clean or empty the necessary components.

What accessories are included with the vacuum cleaner?

The appliance comes with a turbo brush, a metal tube, a 2in1 crevice tool (for crevices and upholstery), a parquet brush, a universal brush nozzle, and a hose.

Can this vacuum cleaner pick up liquids?

No, this vacuum cleaner is designed only for dry cleaning. Never vacuum liquids or flammable substances.

How to use the remote control on the handle?

After turning on the vacuum cleaner on the unit, use the + and - buttons on the handle to increase or decrease power. The On/Off button puts it in standby.

How to rewind the power cord?

Press the cord rewind button while holding the plug to avoid it hitting the appliance. Do not pull beyond the red mark.

How often should the filters be cleaned?

It is recommended to clean the inlet filter as soon as dirt is visible, and the outlet filter about once a month. Replace filters every 6 months.

What to do if the vacuum cleaner does not turn on?

First check the power supply and the fuse. Make sure the cord is not damaged. If the problem persists, contact qualified technical service.

USER MANUAL Akman VM 4011 AMICA

Front view of a black and red Amica vacuum cleaner (no visible text or symbols on body)

PL INSTRUKCJA OBSŁUGI 2

EN USER MANUAL 6

CS NÁVOD K OBSLUZE 10

SK NÁVOD NA OBSLUHU 14

Labeled diagram of a vacuum cleaner with numbered parts for identification

OBSŁUGA:

Close-up of a black and red compact vacuum cleaner with attached tubing (no visible text or symbols)

Close-up of a black and red compact vacuum cleaner with attached tubing (no visible text or symbols)

Close-up of a red and black vacuum cleaner device with control panel (no visible text or symbols)

Technical illustration of a mechanical device with internal components and a red rotation arrow indicating motion (no text or symbols)

Diagram of a car dashboard and air vent system with no visible text or symbols

Illustration of a faucet and a hanging plate with water droplets (no text or symbols)

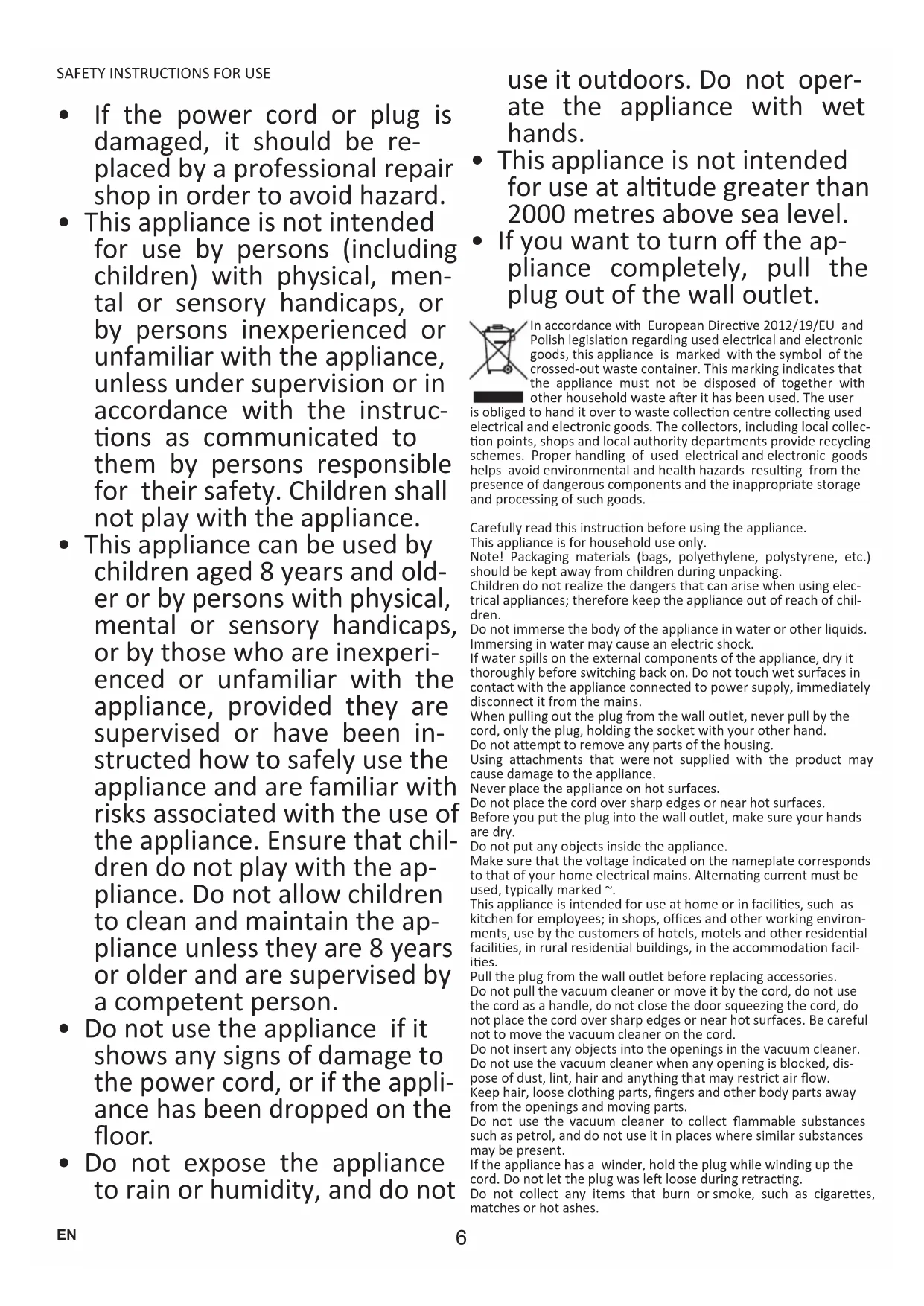

• If the power cord or plug is damaged, it should be replaced by a professional repair shop in order to avoid hazard.
• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.
• This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Do not allow children to clean and maintain the appliance unless they are 8 years or older and are supervised by a competent person.
• Do not use the appliance if it shows any signs of damage to the power cord, or if the appliance has been dropped on the floor.
• Do not expose the appliance to rain or humidity, and do not

use it outdoors. Do not operate the appliance with wet hands.

• This appliance is not intended for use at altitude greater than 2000 metres above sea level.
• If you want to turn off the appliance completely, pull the plug out of the wall outlet.

In accordance with European Directive 2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user

is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

Carefully read this instruction before using the appliance.

This appliance is for household use only.

Note! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

Children do not realize the dangers that can arise when using electrical appliances; therefore keep the appliance out of reach of children.

Do not immerse the body of the appliance in water or other liquids. Immersing in water may cause an electric shock.

If water spills on the external components of the appliance, dry it thoroughly before switching back on. Do not touch wet surfaces in contact with the appliance connected to power supply, immediately disconnect it from the mains.

When pulling out the plug from the wall outlet, never pull by the cord, only the plug, holding the socket with your other hand.

Do not attempt to remove any parts of the housing.

Using attachments that were not supplied with the product may cause damage to the appliance.

Never place the appliance on hot surfaces.

Do not place the cord over sharp edges or near hot surfaces.

Before you put the plug into the wall outlet, make sure your hands are dry.

Do not put any objects inside the appliance.

Make sure that the voltage indicated on the nameplate corresponds to that of your home electrical mains. Alternating current must be used, typically marked \~.

This appliance is intended for use at home or in facilities, such as kitchen for employees; in shops, offices and other working environments, use by the customers of hotels, motels and other residential facilities, in rural residential buildings, in the accommodation facilities.

Pull the plug from the wall outlet before replacing accessories.

Do not pull the vacuum cleaner or move it by the cord, do not use the cord as a handle, do not close the door squeezing the cord, do not place the cord over sharp edges or near hot surfaces. Be careful not to move the vacuum cleaner on the cord.

Do not insert any objects into the openings in the vacuum cleaner. Do not use the vacuum cleaner when any opening is blocked, dispose of dust, lint, hair and anything that may restrict air flow. Keep hair, loose clothing parts, fingers and other body parts away from the openings and moving parts.

Do not use the vacuum cleaner to collect flammable substances such as petrol, and do not use it in places where similar substances may be present.

If the appliance has a winder, hold the plug while winding up the cord. Do not let the plug was left loose during retracting.

Do not collect any items that burn or smoke, such as cigarettes, matches or hot ashes.

Do not use the vacuum cleaner without a dust bag and/or filters. If the opening, which sucks air, hose or telescopic tube are clogged, you should immediately turn off the vacuum cleaner. Before restarting the vacuum cleaner, first remove the blocking item.

Do not use the vacuum cleaner too close to heaters, radiators, cigarette butts, etc.

Before using the vacuum cleaner, remove sharp objects from the floor to avoid damaging the dust bag.

Do not collect fine particles such as: flour, gypsum, printer toners, etc., as this may clog filters and damage the vacuum cleaner.

Make sure that extension tube is fully withdrawn before you put away your vacuum cleaner either in vertical or horizontal position. NOTE:

Batteries are not included with the product. You need to purchase batteries to power the control unit integrated in the handle (2 x 1.5V AAA batteries).

Amica S.A. hereby declares that the type of radio emitting equipment, vacuum cleaner, models VM 4011/VM 4012/VM 4013/VM 4014 comply with Directive 2014/53/EU. The full text of the EU declaration of conformity is available on our website at: www.amica.pl.

Frequency bands 433.050-434.790MHz

The maximum power of a radio signal transmitted in a frequency band

<-20dBm

SPECIFICATION:

Power specification: AC 220-240V / 50Hz
Nominal power: 800W
Maximum power: 900W
Net weight: 4.5 kg*

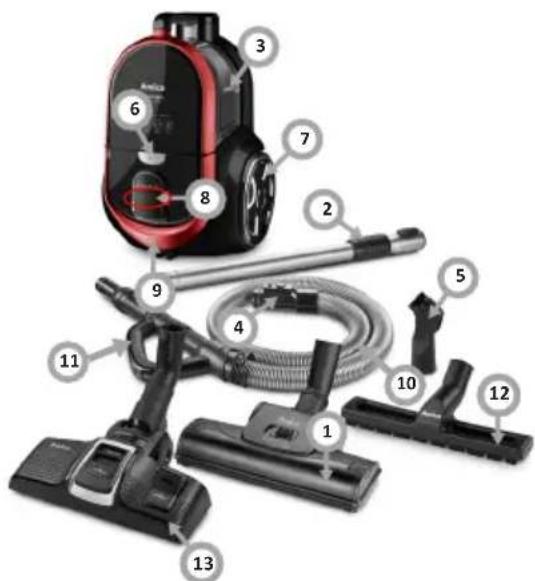

YOUR APPLIANCE:

1. Turbo brush
2. Metal tube
3. Dust bin
4. Hose connection
5. 2-in-1 crevice and book attachment
6. Dust container release button
7. Rear wheel
8. Speed control buttons
9. Power cord retract button
10. Hose
11. Handle controls
12. Parquet brush
13. 2-in-1 all-purpose suction brush

Labeled diagram of a vacuum cleaner with numbered parts for identification

OPERATE THE APPLIANCE:

Before first use

Always unplug the appliance before attaching or removing attachments!

• Before using this product, please install the batteries in the battery compartment of the control handle. Carefully open the battery compartment cover and insert two 1.5V AAA batteries. Close the battery compartment cover. Then connect the vacuum cleaner to the mains socket and press the on/off button on the vacuum cleaner to start it. Then press any control button and now the appliance can be controlled remotely from the handle.
• Note: When inserting batteries observe correct polarity of battery "+" and "-" terminals. If the vacuum cleaner is not used for a long time, remove the batteries from the battery compartment of the control handle.

Control speed using the handle

• The remote control handle has three buttons for operating the vacuum cleaner. The "+" and "-" buttons can be used to adjust the suction power of the vacuum cleaner. Use the button on the control handle to turn off the appliance.
• Note! No indicator on the remote control handle lights up when you press any button. For battery replacement, see chapter "Before using for the first time."
• Note! The remote control handle will only work if the power button on the appliance is pressed. If the vacuum cleaner does not respond to the control panel buttons on the handle despite the batteries being fully charged, you must pair the control panel with the vacuum cleaner. See the section: "Pair the handle control panel with the vacuum cleaner."

Pair the handle control panel with the vacuum cleaner.

- Pair the handle control panel with the vacuum cleaner: Insert the new batteries into the handle battery compartment (see section "Before first use") and connect the vacuum cleaner to the wall power outlet. Turn on the vacuum cleaner using the on/off button on the appliance. Hold down the "+" and "-" buttons until the indicators on the screen light up in sequence. Press the remote control button in the handle. Now the handle control panel is paired with the vacuum cleaner.

Assemble the appliance

Always unplug the appliance before attaching or removing attachments!

- Insert the end of the hose into the inlet opening.

Note! Figures are for illustrative purposes only. Individual models may vary.

* depending on model

Close-up of a black and red compact vacuum cleaner with attached tubing (no visible text or symbols)

• To remove the hose hold the end of the hose, press the tab on the connector and pull the hose out of the inlet.

- Hold the flexible hose coupler and insert it into the larger opening in the tube.

Close-up of a black and red compact vacuum cleaner with attached tubing (no visible text or symbols)

- Connect the telescopic tube with the hose and the brush.

- Extend the telescopic tube to the desired length.

- Before you start vacuuming, extend power cord cable to sufficient length and insert the plug into the wall socket. The yellow mark on the power cord indicates it is extended almost all the way. When you see the red mark do not pull the power cord any further.

- Use the on/off button to turn on the appliance. When you have finished using the appliance, press the on/off button to turn off the vacuum cleaner.

- Unplug the cord from the wall outlet.

- Wind up the connecting cord by pressing the power cord retract button. To do this hold the cord to prevent it from tangling or bumping the plug on the vacuum cleaner housing.

- Disconnect the suction attachment — cleaning head from the tube and disconnect the telescopic tube from the hose.

- Close the telescopic tube.

- Use the symbols on the display as a guide. Press the plus button (increases the suction power) or the minus button (reduces the suction power).

• Fabric curtains (lowest setting)

• Upholstery (sofa, high-end carpets and rugs)

• Hard floors (highest setting)

- Plain carpets

CLEANING AND CARE

Empty the dust bin

- Unplug the power cord from the power wall outlet before cleaning. Empty the dust container, when the vacuum cleaner becomes louder or when the suction power has decreased. Check if dust container is full after each use. If necessary, empty the container.

- Hold the dust container and the handle and press the release button.

Close-up of a red and black electric vacuum cleaner device (no visible text or symbols)

- Remove the dust container from the appliance.

- Open the top cover of the dust container, then empty the dust into the waste bin.

If the vacuum cleaner loses power, check how full the container is. If the dust container is not full, check whether the suction brush or the hose or tube is blocked with large items stopping the air flow. After removing any obstruction, start the appliance again.

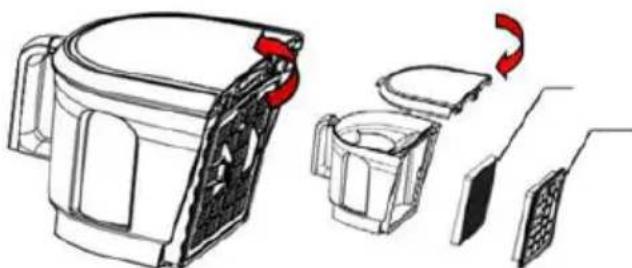

Clean and replace the inlet filter

• Before cleaning the filter, remove the power cord plug from the wall outlet.
• The filter shall be cleaned when there are visible stains on it, wash the filter in warm water with no detergent. Use it only when completely dry.
  • Always use the vacuum cleaner with a filter in place.

• Failure to install the filter may result in motor damage.

• Remove the filter by sliding it out of the guides upwards.

• Clean the filter or replace with a new one.

• Reinstall the filter by placing it back into the guides. Ensure the filter is completely dry before inserting it.

Technical illustration of a mechanical device with exploded view and assembly steps (no text or symbols)

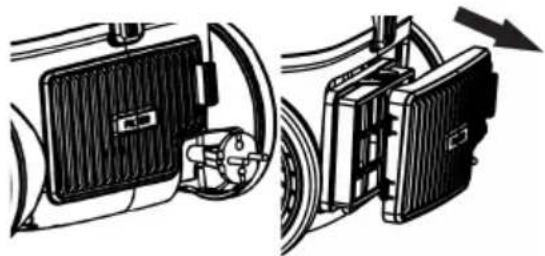

CLEAN AND REPLACE THE EXHAUST FILTER

• Before cleaning the filter, remove the power cord plug from the wall outlet.
• Clean the filter when it is clearly soiled. Shake dirt off the filter and then brush it with a soft bristle brush. Then rinse the filter in lukewarm water and do not use any detergent. Do not direct strong jet of water onto the filter. Use it only when

Note! Figures are for illustrative purposes only. Individual models may vary.

completely dry. If the filter is too dirty or damaged replace the filter with a new one.

• Depending on the intensity of use, it is recommended that you clean the filter once a month and replace it with a new one every six months.
  • Always use the vacuum cleaner with a filter in place.

• It is recommended that you only use original Amica filters for your vacuum cleaner.

• Open the air exhaust cover.

Diagram of a car dashboard and steering wheel assembly (no text or symbols)

1. Remove the filter from the back of the vacuum chamber.
2. Clean it or replace it with a new one.

Cleaning filters.

Rinse the filter with warm water and let dry completely.

Illustration of a faucet spraying water onto a surface and another panel with liquid droplets falling (no text or symbols)

In the event of any fault:

• Turn off the appliance.
• Unplug the appliance from power.
• By following the instructions given in the table below, you can correct some minor issues. Please check all points in the table before you refer the repair to customer service.

Problem Reason Remedy

1. The appliance does not work	No power Check the circuit breaker, reset if tripped, replace a blown fuse
2. Reduced suction power of the vacuum cleaner	Vacuum cleaner hose clogged	Remove dust, hair, and other obstructions that may reduce airflow.

If the problem is not solved, unplug the appliance from power and report the fault to the nearest service centre. Note! All repairs must be performed by qualified service technicians.

Labeled diagram of a vacuum cleaner with numbered parts for identification

OBSLUHA:

Close-up of a black and red compact vacuum cleaner with attached tubing and control buttons (no visible text or symbols)

Close-up of a red and black compact vacuum cleaner with attached tubing (no visible text or symbols)

Close-up of a red and black vacuum cleaner device with a white arrow indicating airflow direction (no visible text or symbols)

Diagram of a device's internal structure showing a fan blade, lid, and base plate assembly (no text or symbols)

Diagram of a car dashboard and steering wheel assembly (no text or symbols)

Illustration of a faucet spraying water onto a surface next to a hanging sheet of water (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

POUŽÍVANIE:

Pred prvým použitím

Close-up of a black and red compact vacuum cleaner with attached tubing (no visible text or symbols)

Close-up of a black and red compact vacuum cleaner with attached tubing (no visible text or symbols)

Close-up of a red and black handheld device with a white arrow pointing to a control panel (no visible text or symbols)

Technical illustration of a mechanical device with internal components and a red-handled rotation arrow (no text or symbols)

Diagram of car dashboard and steering wheel assembly (no text or symbols)

Illustration showing a faucet spraying water onto a surface and a hanging plate with liquid droplets (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

HANDHABUNG:

Close-up of a black and red compact vacuum cleaner with coiled tubing (no visible text or symbols)

Exterior view of a black and red Fentis vacuum cleaner (no text or symbols visible)

Top-down view of a red and black electric vacuum cleaner device (no visible text or symbols)

Technical illustration of a mechanical device with internal components and a red rotation arrow indicating motion (no text or symbols)

Diagram of a car dashboard and steering wheel assembly (no text or symbols)

Illustration of a faucet and a surface with water droplets, no text or symbols present

Labeled diagram of a vacuum cleaner with numbered parts for identification

FONCTIONNEMENT :

Close-up of a black and red compact vacuum cleaner with attached tubing (no visible text or symbols)

Close-up of a red and black compact vacuum cleaner with attached tubing (no visible text or symbols)

Top-down view of a red and black electric vacuum cleaner (no visible text or symbols)

Technical illustration of a mechanical device with exploded view and internal components (no text or symbols)

Diagram of a car interior showing front and rear views of the dashboard and steering wheel (no text or symbols)

Illustration of a faucet and a hanging sheet with water droplets (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

USO:

Antes de primer uso

Close-up of a black and red compact vacuum cleaner with attached tubing (no visible text or symbols)

Close-up of a red and black Fentis vacuum cleaner with attached tubing (no visible text or symbols)

Top-down view of a red and black handheld vacuum cleaner device (no visible text or symbols)

Diagram of a device with internal components and a red arrow indicating rotation (no text or symbols)

Diagram of car dashboard and steering wheel assembly (no text or symbols)

Illustration showing a faucet spraying water onto a surface and a hanging sheet of water with droplets (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

ОБСЛУЖВАНЕ:

Close-up of a black and red compact vacuum cleaner with attached tubing and ventilation ducts (no visible text or symbols)

Red and black compact vacuum cleaner with attached tubing (no visible text or symbols)

Top-down view of a red and black NACA vacuum cleaner device with control buttons and a gray arrow indicating airflow direction (no text or symbols on device body)

Technical illustration of a mechanical device with internal components and a red rotation arrow indicating motion (no text or symbols)

Diagram showing car dashboard and rear-mounted air conditioners with a directional arrow (no text or symbols)

Illustration of a faucet and a hanging plate with water droplets (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

KEZELÉS:

Close-up of a black and red compact vacuum cleaner with attached tubing (no visible text or symbols)

Close-up of a red and black compact vacuum cleaner with attached tubing (no visible text or symbols)

Top-down view of a red and black electric vacuum cleaner device (no visible text or symbols)

Technical illustration of a mechanical device with internal components and a red arrow indicating rotation (no text or symbols)

Diagram of car dashboard and steering wheel assembly (no text or symbols)

Illustration of a faucet and a hanging plate with water droplets (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

ЕКСПЛУАТАЦІЯ:

Close-up of a red and black electric vacuum cleaner with attached tubing (no visible text or symbols)

Close-up of a black and red compact vacuum cleaner with coiled tube, no visible text or symbols

Close-up of a red and black electric vacuum cleaner device (no visible text or symbols)

Technical illustration of a mechanical device with internal components and a red rotation arrow indicating motion (no text or symbols)

Diagram of a car dashboard and steering wheel assembly (no text or symbols)

Illustration of a faucet spraying water onto a surface and a hanging sheet with liquid droplets (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

OPERARE:

Close-up of a black and red compact vacuum cleaner with attached tubing (no visible text or symbols)

Close-up of a black and red compact vacuum cleaner with attached pipes and ventilation ducts (no visible text or symbols)

Top-down view of a red and black handheld vacuum cleaner device (no visible text or symbols)

Technical illustration of a mechanical device with internal components and a red directional arrow indicating rotation (no text or symbols)

Diagram showing car dashboard and steering wheel assembly (no text or symbols)

Illustration of a faucet spraying water onto a surface and another panel with liquid droplets (no text or symbols)
