AJMSGTND - Paint spray Aqua Joe - Free user manual and instructions

Brand	Aqua Joe
Model	AJMSGTND
Product type	Hose-end spray gun
Detergent tank capacity	0.5 liter
Number of spray patterns	7 (tornado, jet, detergent, mist, trickle, flat, shower)
Hose connection	Standard garden hose
Net weight	0.3 kg
Flow control	Water and detergent flow adjustment knob (from STOP to WATER or DETERGENT)
Trigger lock	Yes, for continuous spray without holding
Tank material	Transparent plastic with fl. oz. and ml graduations
Use	Spraying detergents, water, and cleaning products
Cleaning	Rinse the tank and spray water to remove residues
Warranty	2 years (limited warranty for residential use)
Customer service	Snow Joe + Sun Joe: 1-866-SNOWJOE (1-866-766-9563)
Wear parts	Not covered (belts, augers, chains, tines)

Frequently Asked Questions - AJMSGTND Aqua Joe

How to adjust the spray pattern?

Turn the spray pattern adjuster to choose from 7 options: tornado, jet, detergent, mist, trickle, flat, or shower (see Fig. 1).

How to use the trigger lock?

Press the lock for continuous spray. Release by pressing the trigger (Fig. 2).

How to control water and detergent flow?

Turn the knob left from STOP for water (counterclockwise increases), right for detergent (clockwise increases). See Fig. 3.

How to connect the garden hose?

Attach your standard garden hose to the gun's connector (Fig. 4).

How to clean the spray gun after use?

Detach the tank, empty detergent, rinse with water. Fill with water, spray to remove residues. Let dry before storage.

What is the detergent tank capacity?

The tank has a capacity of 0.5 liters, with graduations in fl. oz. and ml.

Is the spray gun warranted?

Yes, a limited 2-year warranty for residential use is offered. Register your product at snowjoe.com.

Can I use products other than detergents?

The device is designed for water and detergents. Do not use corrosive or flammable products.

How to contact customer service?

Call 1-866-SNOWJOE (1-866-766-9563) or email [e-mail].

What to do if the spray is uneven?

Check that the adjustment knob is not in STOP position, clean the tank and spray gun to remove obstructions.

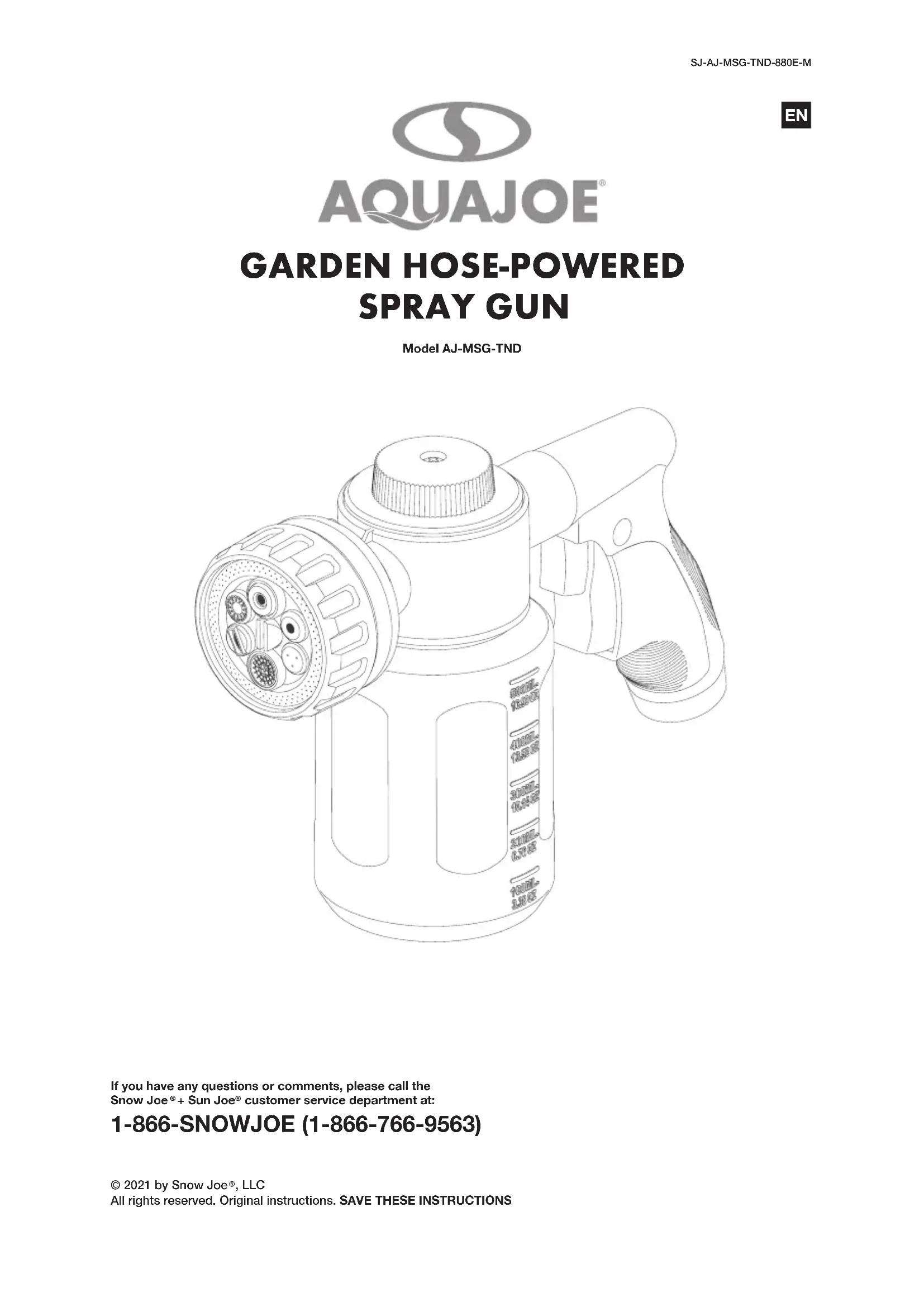

USER MANUAL AJMSGTND Aqua Joe

Line drawing of a handheld device with multiple ports and a cylindrical head (no text or symbols)

If you have any questions or comments, please call the

Snow Joe ^® + Sun Joe ^® customer service department at:

1-866-SNOWJOE (1-866-766-9563)

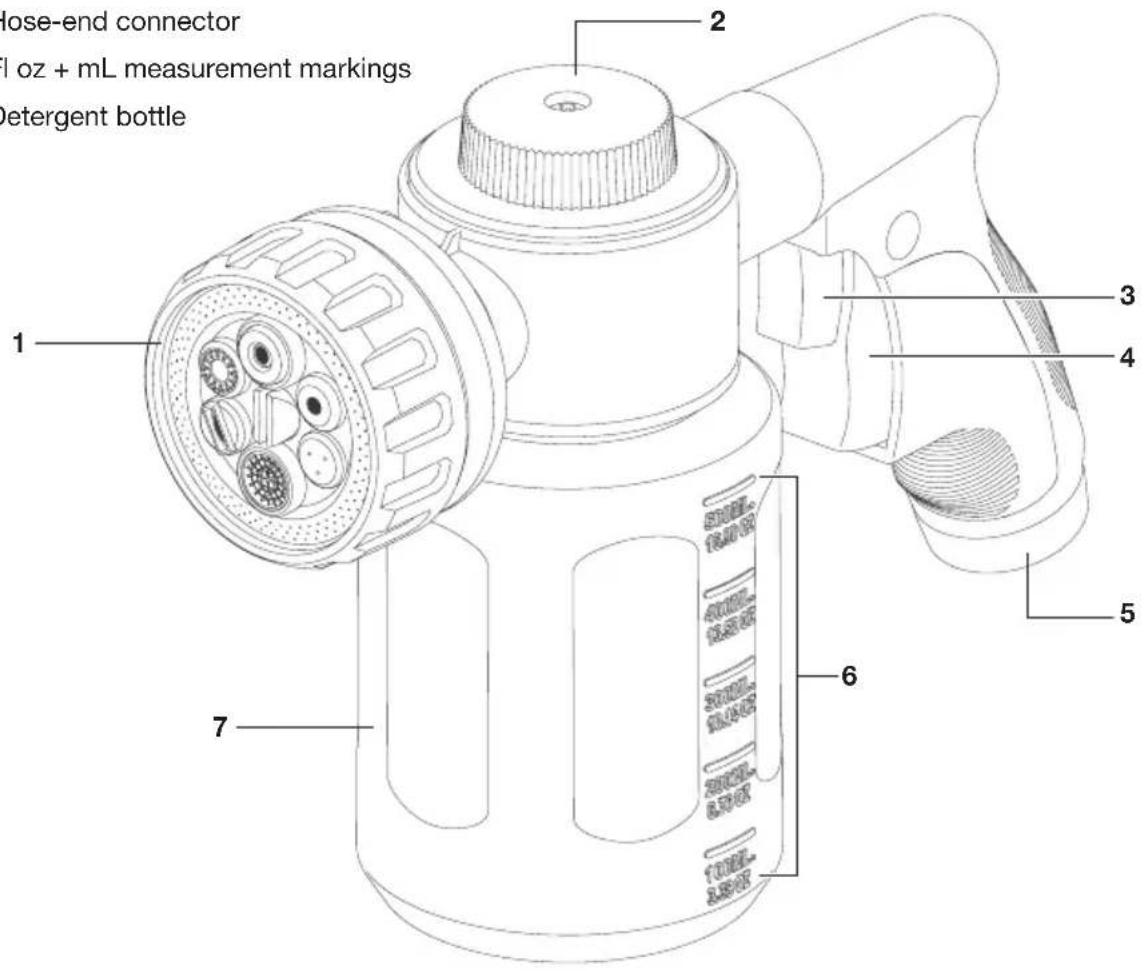

Know Your Garden Hose-Powered Spray Gun

Read the owner's manual and safety rules carefully before using your Garden Hose-Powered Spray Gun. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

1. Spray pattern adjuster
2. Adjustable soap + water flow knob
3. Trigger release
4. Trigger lock
5. Hose-end connector
6. Fl oz + mL measurement markings
7. Detergent bottle

lose-end connector 1 oz + mL measurement markings detergent bottle 2 3 4 5 6 7

Technical Data

Detergent Bottle Capacity .... 17 fl oz (0.5 L) Spray Patterns....7

Fitting Size ....Standard garden hose Net weight ....0.7 lbs (0.3 kg)

Operation

Four Selectable Spray Patterns

Use spray pattern adjuster to select desired spray pattern: tornado, jet, soap, mist, soaker, flat, shower (Fig. 1).

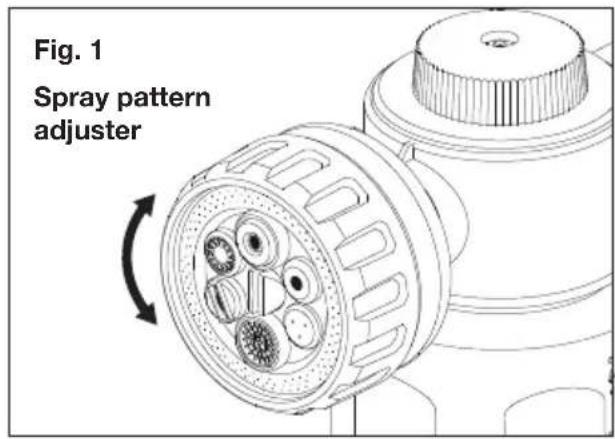

Fig. 1 Spray pattern adjuster

TORNADO

JET

SOAP

MIST

SOAKER

Simple diagram of a flat light source emitting a beam, labeled 'FLAT' below (no other text or symbols)

SHOWER

Starting + Stopping

1. With the water supply turned on, squeeze the trigger lock. It will automatically lock for continuous spray.

2. Disengage the trigger lock by squeezing the trigger release. (Fig. 2)

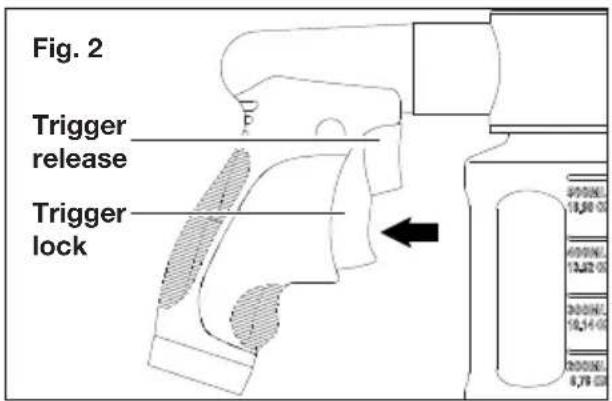

Fig. 2 Trigger release Trigger lock

Soap + Water Control

1. Adjust water flow by turning to the left of the STOP setting. Increase water flow by turning the knob counterclockwise. Decrease by turning clockwise (Fig. 3).
2. Adjust soap flow by turning to the right of the STOP setting. Increase soap flow by turning clockwise. Decrease by turning counterclockwise (Fig. 3).

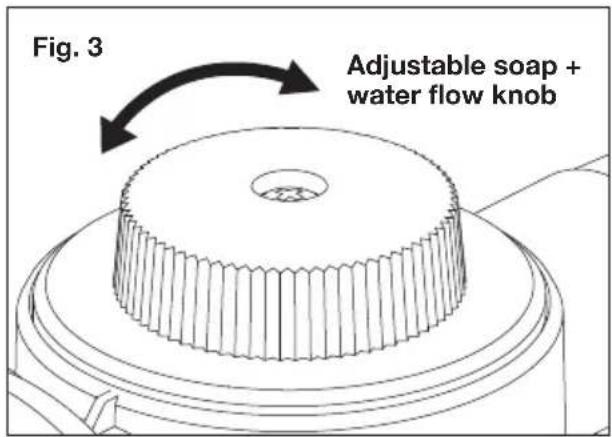

Fig. 3 Adjustable soap + water flow knob

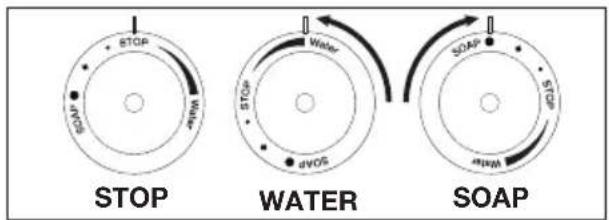

STOP STOP Water WAP SOAP WAP STOP WAP WAP STOP WAP WAP

Connecting to the Garden Hose

Attach your garden hose to the hose-end connector (Fig. 4).

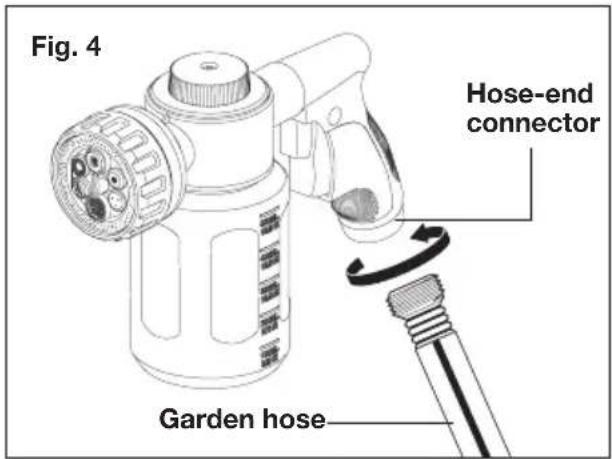

Fig. 4 Hose-end connector Garden hose

Cleaning + Maintenance

1. Detatch the detergent bottle, drain any remaining detergent and rinse with water to clean off residue.
2. Fill the detergent bottle with water, then reinstall. Spray the full bottle of water through the detergent bottle to clean any detergent residue from inside the bottle.
3. Detatch the detergent bottle from the spray gun. Rinse the outside of the bottle and sprayer completely to remove any detergent residue. Allow all parts to dry completely before storage.

Service + Support

If your Aqua Joe® AJ-MSG-TND Tornado Series Garden Hose-Powered Multi-Pattern Spray Gun requires service or maintenance, please call Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the registration card. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product: Model #: A | J | - | M | S | G | - | T | N | D | Serial #:

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
