USER MANUAL NQ70T5511DS SAMSUNG

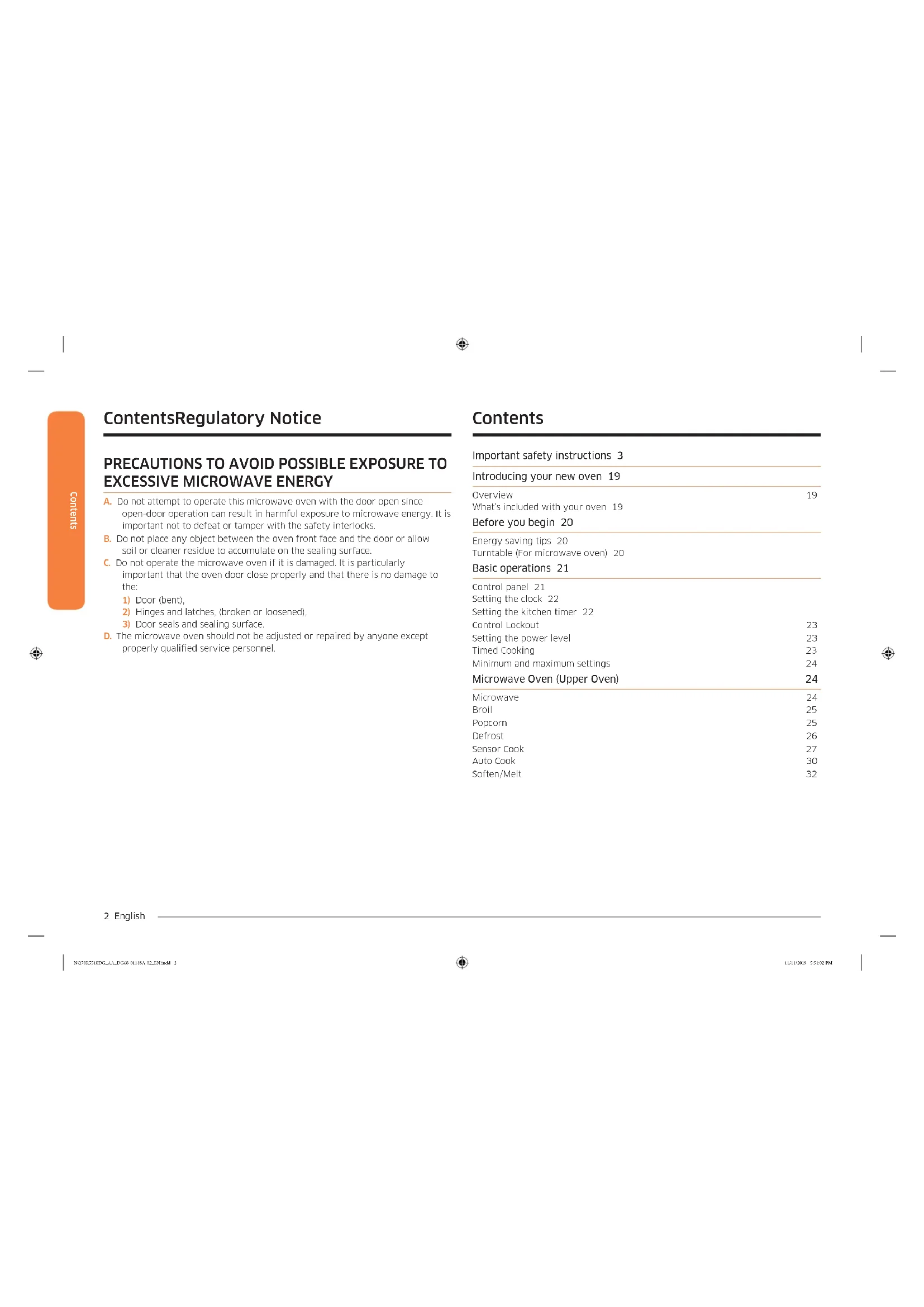

A. Do not attempt to operate this microwave oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. B. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on the sealing surface. C. Do not operate the microwave oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

2) Hinges and latches, (broken or loosened),

3) Door seals and sealing surface.

D. The microwave oven should not be adjusted or repaired by anyone except properly qualied service personnel. Contents Important safety instructions 3 Introducing your new oven 19 Overview 19 What’s included with your oven 19 Before you begin 20 Energy saving tips 20 Turntable (For microwave oven) 20 Basic operations 21 Control panel 21 Setting the clock 22 Setting the kitchen timer 22 Control Lockout 23 Setting the power level 23 Timed Cooking 23 Minimum and maximum settings 24 Microwave Oven (Upper Oven) 24 Microwave 24 Broil 25 Popcorn 25 Defrost 26 Sensor Cook 27 Auto Cook 30 Soften/Melt 32 NQ70R5510DG_AA_DG68-01148A-02_EN.indd 2 11/11/2019 5:51:02 PMEnglish 3 Important safety instructions

SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS

Oven (Lower Oven) 33 Timed Cooking 33 Delay Start 34 Turning the light on and off 34 Using the oven racks 34 Baking 36 Broiling 36 Using Bread Proof 37 Using Keep Warm 37 Using Settings 38 Using the Sabbath feature 40 Using Smart Control (Lower oven only) 41 Maintaining your appliance 42 Self-cleaning (Lower oven only) 42 Wall Oven Steam Clean 44 Care and cleaning of the oven 45 Removing the oven door (Lower oven only) 46 Replacing the oven door (Lower oven only) 47 Changing the oven light (Lower oven only) 48 Troubleshooting 49 Control Display 49 For the Microwave Oven 49 For the Lower Oven 52 Information codes 54 Warranty (U.S.A) 55 Warranty (CANADA) 57 Open Source Announcement 58 Important safety instructions Read and follow all instructions before using your oven to prevent the risk of re, electric shock, personal injury, or damage when using the oven. This guide does not cover all possible conditions that may occur. Always contact your service agent or the manufacturer about problems that you do not understand. WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS Warnings and important safety instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your oven. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 3 11/11/2019 5:51:02 PM4 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

Do NOT attempt. Do NOT disassemble. Do NOT touch. Follow directions explicitly. Unplug the power plug from the wall socket. Make sure the machine is grounded to prevent electric shock. Call a Samsung service center for help. Note These warning signs are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference.

CALIFORNIA PROPOSITION 65 WARNING

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov. Important safety symbols and precautions What the icons and signs in this user manual mean: WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage. CAUTION To reduce the risk of re, explosion, electric shock, or personal injury when using your oven, follow these basic safety precautions. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 4 11/11/2019 5:51:02 PMEnglish 5 Important safety instructions

SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS

Important safety instructions (Microwave Oven) WARNING To reduce risk of burns, electric shock, re, personal injury or exposure to excessive microwave energy:

1. Read all safety instructions before using the appliance.

2. Read and follow the specic “Precautions to avoid possible exposure to

excessive microwave energy” on page 2.

3. This appliance must be grounded. Connect only to properly grounded outlets.

See Important “Grounding instructions” on page 6 of this manual.

4. Install or locate this appliance only in accordance with the provided

installation instructions.

5. Some products such as whole eggs and sealed containers (for example, closed

glass jars) can explode if heated rapidly. Never heat them in a microwave oven.

6. Use this appliance only for its intended use as described in the manual. Do

not put corrosive chemicals or vapors in or on this appliance. This type of microwave oven is specically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.

7. As with any appliance, close supervision is necessary when it is used by

children. Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their ngers in the door.

8. Do not operate this appliance if it has a damaged cord or plug, if it is not

working properly, or if it has been damaged or dropped.

9. This appliance should be repaired or serviced only by qualied service

personnel. Contact the nearest authorized service facility for examination, repair, or adjustment.

10. Do not cover or block any openings in the appliance.

11. Do not tamper with or make any adjustments or repairs to the door.

12. Do not store this appliance outdoors. Do not use this product near water, for

example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.

13. Do not immerse the cord or plug in water.

14. Keep the cord away from heated surfaces (including the back of the oven).

15. Do not let the cord hang over edge of a table or counter.

16. When cleaning surfaces of the door and oven that come together when the

door closes, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth. Unplug the plug before cleaning the unit.

17. To reduce the risk of re in the oven cavity:

• Do not overcook food. Carefully attend the appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

• Remove wire twist-ties from paper or plastic bags before placing the bags in the oven.

18. If materials inside the oven ignite, keep the oven door closed, turn the oven

off, and disconnect the power cord, or shut off the power at the fuse or circuit breaker panel. If the door is opened, the re may spread.

19. Do not use the cavity for storage purposes. Do not leave paper products,

cooking utensils, or food in the cavity when not in use.

20. Liquids, such as water, milk, coffee, or tea can be overheated beyond the

boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury:

• Do not overheat liquid.

• Stir liquid both before and halfway through heating it.

• Do not use straight-sided containers with narrow necks.

• After heating, let containers with liquid stand in the microwave oven for a short time before removing.

• Use extreme care when inserting a spoon or other utensil into a container holding liquid. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 5 11/11/2019 5:51:03 PM6 English Important safety instructions

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

Important safety instructions

USE OF EXTENSION CORDS

A short power-supply cord is provided to reduce the risk of your becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and you can use them if you exercise care. If you use a long cord or extension cord:

1. The marked electrical rating of the cord set or extension cord should be at

least as great as the electrical rating of the appliance.

2. The extension cord must be a grounding-type 3-wire cord and it must be

plugged into a 3-slot outlet.

3. The longer cord should be arranged so that it will not drape over the

counter top or tabletop where it can be pulled on by children or tripped over accidentally. If you use an extension cord, the interior light may icker and the speed of the blower may vary when the microwave oven is on. Cooking times may be longer too.

21. Oversized foods or oversized metal utensils should not be inserted into the

microwave oven as they may create a risk of re or electric shock.

22. Do not clean with metal scouring pads. Pieces can burn off the pad and touch

electrical parts creating a risk of electric shock.

23. Do not store any materials, other than manufacturer’s recommended

accessories, in this microwave when not in use.

24. Do not cover the racks or any other part of the microwave oven with metal

foil. This will cause overheating of the microwave. GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electrical current. This appliance is equipped with a cord that includes a grounding wire and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING Improper use of the grounding plug can result in a risk of electric shock.

• Plug into a grounded 3 prong outlet. Do not remove the third (grounding) prong. Do not use an adaptor or otherwise defeat the grounding plug.

• Consult a qualied electrician or service person if you do not understand the grounding instructions or if you are not sure if the appliance is properly grounded.

• We do not recommend using an extension cord with this appliance. If the power-supply cord is too short, have a qualied electrician or serviceman install an outlet near the appliance. However, if it is necessary to use an extension cord, read and follow the “Use of Extension Cords” section below. Important safety instructions (Microwave Oven) NQ70R5510DG_AA_DG68-01148A-02_EN.indd 6 11/11/2019 5:51:03 PMEnglish 7 Important safety instructions

• Do not leave children alone. Never leave children alone or unattended in an area where this appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

• Never use your appliance for warming or heating the room.

• Do not use water on grease res. Turn off the oven to avoid spreading the ames. Smother the re or ames by closing the door or use a dry chemical, baking soda, or foam-type extinguisher.

• Avoid scratching or striking the glass doors and the control panel. Doing so may lead to glass breakage. Do not cook on a product with broken glass. Shock, re, or cuts may occur. Important safety instructions (Oven)

When using electrical appliances, you should follow basic safety precautions, including the following: CAUTION

• Use this appliance only for its intended purpose as described in this Owner’s Manual.

• Potentially hot surfaces include the oven vent opening, surfaces near the opening, and crevices around the oven door. Proper Installation - Be sure your appliance is properly installed and grounded by a qualied technician. User servicing - Do not repair or replace any part of the appliance unless specically recommended in this manual. All other servicing should be referred to a qualied technician. Always disconnect the power to the appliance before servicing by removing the fuse or switching off the circuit breaker. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 7 11/11/2019 5:51:03 PM8 English Important safety instructions

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

Important safety instructions

• Use only dry potholders. Placing moist or damp potholders on hot surfaces may result in burns from steam. Do not let the potholder touch hot heating elements. Do not use a towel or other bulky cloth instead of a potholder.

• Teach children not to play with the controls or any other part of the oven.

• For your safety, do not use high-pressure water cleaners or steam jet cleaners to clean any part of the oven.

• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualied persons to avoid creating a hazard.

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• If there is a re in the oven during self-cleaning, turn the oven off and wait for the re to go out. Do not force the door open. The introduction of fresh air at self-cleaning temperatures may lead to a burst of ame from the oven. Failure to follow these instructions may result in severe burns.

• If the oven is heavily soiled with oil, self-clean the oven before using the oven again. Leaving the oil in place creates a risk of re.

• Wipe up heavy soil on the oven bottom with a paper tower or rag before self-cleaning. Self-cleaning the oven when there is heavy soil on the oven bottom requires longer cleaning cycles and produces more smoke.

• Storage in or on the appliance. Do not store ammable materials in the oven or near the surface units. Be sure all packing materials are removed from the appliance before operating it. Keep plastics, clothes, and paper away from parts of the appliance that may become hot.

• Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. CHILD SAFETY WARNING

• This appliance is not intended for use by young children or inrm persons without the adequate supervision of a responsible adult.

• Young children should be supervised to ensure that they do not play with the appliance.

• Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their ngers in the door.

• During self-cleaning, the surfaces may get hotter than usual. Keep small children away from the oven when it is in the self- cleaning mode. WARNING Accessible parts may become hot during use. To avoid burns, young children should be kept away. ELECTRICAL SAFETY

• Use only the factory installed exible power cord to connect to the power supply. Do not use a 3rd party power supply cord kit.

• The appliance should be serviced only by qualied service personnel. Repairs carried out by unqualied individuals may cause injury or a serious malfunction. If your appliance is in need of repair, contact a Samsung authorized service center. Failure to follow these instructions may result in damage and void the warranty.

• Flush - mounted appliances may be operated only after they have been installed in cabinets and workplaces that conform to the relevant standards. This ensures that the appliances are installed in compliance with the appropriate safety standards.

• Unplug the oven from the AC wall outlet.

• Contact your local Samsung service center. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 9 11/11/2019 5:51:03 PM10 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

• Use care when opening the door. Let hot air or steam escape before you remove food from or put food into the oven.

• Protective liners. Do not use aluminum foil to line the oven bottoms, except as suggested in this manual. Improper installation of these liners may result in a risk of electric shock or re.

• Placement of oven racks. Always place oven racks in the desired location while the oven is cool. If the rack must be moved while the oven is hot, use potholders. Do not let the potholders come in contact with the hot heating element in the oven.

• Do not allow aluminum foil or a meat probe to contact the heating elements.

• During use, the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass. They can scratch the surface which may result in the glass shattering. OVEN

• DO NOT TOUCH THE HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN. Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch or let clothing or other ammable materials contact the heating elements or interior surfaces of the oven until they have had sufcient time to cool. Other surfaces of the appliance may become hot enough to cause burns. Among these surfaces are oven vent openings and surfaces near these openings, the oven door, and the window of the oven door.

• Do not heat unopened food containers. The build-up of pressure may cause the container to burst and result in injury.

• Do not use the oven to dry newspapers. If overheated, newspapers can catch re.

• Do not use the oven for a storage area. Items stored in an oven can ignite. Important safety instructions (Oven) NQ70R5510DG_AA_DG68-01148A-02_EN.indd 10 11/11/2019 5:51:03 PMEnglish 11 Important safety instructions

SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS

• Before operating the self-clean cycle, wipe grease and food soils from the oven. Excessive amounts of grease may ignite, leading to smoke damage to your home.

• Do not use any commercial oven cleaner or oven liner protective coating of any kind in or on the outside of the oven.

• Remove the nickel oven shelves from the oven before you begin the self-cleaning cycle or they may discolor.

• If the self-cleaning mode malfunctions, turn the oven off and disconnect the power supply. Have it serviced by a qualied technician.

• Excess spillage must be removed before you run the self- cleaning cycle. CAUTION Do not attempt to operate the oven during a power failure. If the power fails, always turn the oven off. If the oven is not turned off and the power returns, the oven may begin to operate again. Food left unattended could catch re or spoil. SELFCLEANING OVENS Do not clean the door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.

• Never keep pet birds in the kitchen. Birds are extremely sensitive to the fumes released during an oven self-clean cycle. Fumes may be harmful or fatal to birds. Move birds to a well-ventilated room.

• Clean only the parts listed in this manual in the self-clean cycle. Before self-cleaning the oven, remove the partition, racks, utensils, and any food. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 11 11/11/2019 5:51:04 PM12 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

• Do not cut or remove the ground prong from the power cord under any circumstances.

• Connect the oven to a circuit that provides the correct amperage.

• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or water (rain drops).

• This may result in electric shock or re.

• Do not use a damaged power cord or loose wall socket.

• This may result in electric shock or re.

• Do not pull or excessively bend the power cord.

• Do not twist or tie the power cord.

• Do not hook the power cord over a metal object, place a heavy object on the power cord, or insert the power cord between objects.

• This may result in electric shock or re. If the power cord is damaged, contact your nearest Samsung service center.

• This appliance must be installed by a qualied technician or service company.

• Failing to have a qualied technician install the oven may result in electric shock, re, an explosion, problems with the product, or injury.

• Unpack the oven, remove all packaging material and examine the oven for any damage such as dents on the interior or exterior of the oven, broken door latches, cracks in the door, or a door that is not lined up correctly. If there is any damage, do not operate the oven and notify your dealer immediately.

• Keep all packaging materials out of the reach of children. Children may use them for play and injure themselves.

• This appliance must be properly grounded.

• Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

• This may result in electric shock, re, an explosion, or problems with the product Important safety instructions (Oven) NQ70R5510DG_AA_DG68-01148A-02_EN.indd 12 11/11/2019 5:51:04 PMEnglish 13 Important safety instructions

SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS

• If materials inside the oven should ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the re may spread.

• Always observe safety precautions when using your oven. Never try to repair the oven on your own - there is dangerous voltage inside. If the oven needs to be repaired, contact an authorized Samsung service center near you.

• If you use the appliance when it is contaminated by foreign substances such as food waste, it may result in a problem with the appliance.

• Take care when removing the wrapping from food taken out of the oven.

• If the food is hot, hot steam may be emitted abruptly when you remove the wrapping and this may result in burns.

• If the appliance is ooded by any liquid, please contact your nearest Samsung service center. Failing to do so may result in electric shock or re.

• If the appliance produces a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact your nearest Samsung service center.

• Failing to do so may result in electric shock or re

• In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately. Do not touch the power cord. Do not touch the appliance.

• A spark may result in an explosion or re.

• Take care not to contact the oven door, heating elements, or any of the other hot parts with your body while cooking or just after cooking.

• Failing to do so may result in burns. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 13 11/11/2019 5:51:04 PM14 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

• Make sure that the appliance’s controls and cooking areas are out of the reach of children.

• Failing to do so may result in electric shock, burns, or injury.

• Do not touch the inside of the appliance immediately after cooking. The inside of the appliance will be hot.

• Failing to do so may result in burns.

• Do not use or place ammable sprays or objects near the oven.

• Flammable items or sprays can cause res or an explosion.

• Do not insert ngers, foreign substances, or metal objects such as pins or needles into inlets, outlets, or holes. If foreign substances are inserted into any of these holes, contact your product provider or nearest Samsung service center.

• Do not attempt to repair, disassemble, or modify the appliance yourself.

• Since a high voltage current enters the product chassis, it may result in electric shock or re.

• When a repair is needed, contact your nearest Samsung service center.

• If any foreign substance such as water has entered the appliance, contact your nearest Samsung service center.

• Failing to do so may result in electric shock or re.

• Do not touch the power cord with wet hands.

• This may result in electric shock.

• Do not turn the appliance off while an operation is in progress.

• This may cause a spark and result in electric shock or re.

• Do not let children or any person with reduced physical, sensory, or mental capabilities use this appliance unsupervised. Important safety instructions (Oven) NQ70R5510DG_AA_DG68-01148A-02_EN.indd 14 11/11/2019 5:51:04 PMEnglish 15 Important safety instructions

SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS

• Do not open the door when the food in the oven is burning.

• If you open the door, it causes an inow of oxygen and may cause the food to ignite.

• Do not apply excessive pressure to the door or the inside of the appliance. Do not strike the door or the inside or the appliance.

• Hanging on to the door may result in the product falling and cause serious injury.

• If the door is damaged, do not use the appliance. Contact a Samsung service center.

• Do not hold food in your bare hands during or immediately after cooking.

• Use cooking gloves. The food may be very hot and you could burn yourself.

• As the handle and oven surfaces may be hot enough to cause burns after cooking, use cooking gloves to protect your hands from burns.

• Do not tamper with or make any adjustments or repairs to the door. Under no circumstances should you remove the door or outer shell of the oven.

• Do not store or use the oven outdoors.

• Never use this appliance for purposes other than cooking.

• Using the appliance for any purpose other than cooking may result in re.

• Open the cap or stopper of sealed containers (herb tonic tea bottle, baby bottle, milk bottle and so on) before heating them. Make a hole in food items that have shells (eggs, chestnuts, etc.) with a knife before cooking them.

• Failing to do so may result in burns or injury.

• Never heat plastic or paper containers and do not use them for cooking.

• Failing to do so may result in re.

• Do not heat food wrapped in paper from magazines, newspapers, etc.

• This may result in re. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 15 11/11/2019 5:51:04 PM16 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

• Take care when heating liquids such as water or other beverages.

• Make sure to stir during or after cooking.

• Avoid using a slippery container with a narrow neck.

• Wait at least 30 seconds after heating before removing the heated liquid.

• Failing to do so may result in an abrupt overow of the contents and cause burns. USAGE CAUTIONS CAUTION

• If the surface is cracked, turn the appliance off.

• Failing to do so may result in electric shock.

• Dishes and containers can become hot. Handle with care.

• Hot foods and steam can cause burns. Carefully remove container coverings, directing the steam away your hands and face.

• Remove lids from baby food jars before heating. After heating baby food, stir well to distribute the heat evenly. Always test the temperature by tasting before feeding the baby. The glass jar or the surface of the food may appear to be cooler than the interior, which can be hot enough to burn an infant’s mouth.

• Take care as beverages or food may be very hot after heating.

• Especially when feeding a child, make sure the food or beverage has cooled sufciently. Important safety instructions (Oven) NQ70R5510DG_AA_DG68-01148A-02_EN.indd 16 11/11/2019 5:51:04 PMEnglish 17 Important safety instructions

SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS

• Do not stand on top of the appliance or place objects (such as laundry, an oven cover, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

• Items, such as a cloth, may get caught in the door.

• This may result in electric shock, re, problems with the product, or injury.

• Do not operate the appliance with wet hands.

• This may result in electric shock.

• Do not spray volatile substances such as insecticide onto the surface of the appliance.

• As well as being harmful to humans, it may also result in electric shock, re, or problems with the product.

• Do not put your face or body close to the appliance while cooking or when opening the door just after cooking.

• Take care that children do not come too close to the appliance.

• Failing to do so may result in children burning themselves.

• Do not place food or heavy objects over the edge of the oven door.

• If you open the door, the food or object may fall and this may result in burns or injury.

• Do not abruptly cool the door, the inside of the appliance, or a dish by pouring water over it during or just after cooking.

• This may result in damage to the appliance. The steam or water spray may result in burns or injury.

• Do not operate while empty except for self-cleaning.

• Do not defrost frozen beverages in narrow-necked bottles. The bottles can break. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 17 11/11/2019 5:51:05 PM18 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

• Do not scratch the glass of the oven door with a sharp object.

• This may result in the glass being damaged or broken.

• Do not store anything directly on top of the oven when it is in operation.

• Do not use sealed containers. Remove seals and lids before cooking. Sealed containers can explode due to the build up of pressure even after the oven has been turned off.

• Take care that food you are cooking in the oven does not come into contact with the heating element.

• This may result in re.

• Do not over-heat food.

• Overheating food may result in re.

• Use caution when opening or closing the door. Your ngers may be pinched, resulting in physical injury.

CRITICAL CLEANING WARNINGS

• Do not clean the appliance by spraying water directly on to it.

• Do not use benzene, thinner, or alcohol to clean the appliance.

• This may result in discoloration, deformation, damage, electric shock, or re.

• Take care not to hurt yourself when cleaning the appliance (externally or internally).

• You may hurt yourself on the sharp edges of the appliance.

• Do not clean the appliance with a steam cleaner.

• This may result in corrosion.

• Keep the inside of the oven clean. Food particles or spattered oils stuck to the oven walls or oor can cause paint damage and reduce the efciency of the oven. Important safety instructions (Oven) NQ70R5510DG_AA_DG68-01148A-02_EN.indd 18 11/11/2019 5:51:05 PMEnglish 19 Introducing your new oven What’s included with your oven This oven ships with different kinds of accessories that help you cook what you want. Accessories for oven Wire racks (2) * Wire racks Use these racks in the oven when baking and broiling. Introducing your new oven Overview

01 Control panel 02 Door latch 03 MWO door 04 Oven gasket 05 Oven door 06 Halogen lamp 07 Halogen lamp * 08 Shelf position NQ70R5510DG_AA_DG68-01148A-02_EN.indd 19 11/11/2019 5:51:05 PM20 English Before you begin Before you begin Before using the top and bottom ovens for the rst time, remove all the accessories, and then clean the ovens thoroughly. Then, set the lower oven to Bake, and run it at 400 °F for 1 hour. Next, set the microwave (top) oven to Broil for 1 hour. There will be a distinctive odor. This is normal. Ensure your kitchen is well ventilated during this conditioning period. Energy saving tips

• During cooking, the oven door should remain closed except when you turn food over. Do not open the door frequently during cooking to maintain the oven temperature and to save energy.

• If cooking time is more than 30 minutes, you can switch the oven off 5-10 minutes before the end of the cooking time to save energy. The residual heat will complete the cooking process.

• To save energy and reduce the time needed for re-heating the oven, plan oven use to avoid turning the oven off between cooking one item and the next.

• Whenever possible, cook more than one item at a time. Turntable (For microwave oven)

Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely. Accessories for microwave Roller ring * Turntable * Rack * Roller ring Put in the center of the base. It supports the turntable. Turntable Put on the roller ring with the center tting of the coupler. It serves as a cooking base. Rack Use this rack as appropriate to cook two dishes simultaneously. You can put a smaller dish on the turntable, and the other dish on the rack. You can also use this rack with the Broil function. NOTE Do not use wire racks with Microwave mode except where specically noted in this manual. NOTE

• Do not use the turntable without the roller ring.

• If you need an accessory marked with a *, you can buy it from the Samsung Contact Center (1-800-SAMSUNG (726-7864)). Introducing your new oven NQ70R5510DG_AA_DG68-01148A-02_EN.indd 20 11/11/2019 5:51:06 PMEnglish 21 Basic operations Basic operations Control panel READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this user manual.

01 Microwave: Use to select the Microwave function. 02 Broil: Use to select the Broil function. 03 Sensor Cook: Use to select the Sensor Cook function. 04 Popcorn: Use to select the Popcorn function. 05 Auto Cook: Use to select the Auto Cook function. 06 Defrost: Use to select the Defrost function. 07 Soften/Melt: Use to select the Soften/Melt function. 08 +30sec: Press to add operation time during Microwave, Broil, Speed Broil mode. 09 Power Level: Use to change the Microwave power level. 10 Timer Off (3sec): Use to set or cancel the kitchen timer. The kitchen timer does not start or stop cooking (upper microwave oven). 11 Cook Time: Touch and then use the number pad to set the amount of time you want your food to cook. The oven will shut off when the cooking time has run out (upper microwave oven). 12 Bake: Use to select the Bake function. 13 Broil Hi/Lo: Use to select the Broil function. 14 Bread Proof: Use to select the Bread Proof function. 15 Keep Warm: Use to select the Keep Warm function to keep cooked foods warm. 16 Self Clean 2/3/5h: Use to select the Self-cleaning function. 17 Steam Clean: Use to select the steam cleaning function of the oven. 18 Temp.: Use to change the temperature when the oven is operating (lower oven). 19 Timer Off (3sec): Use to set or cancel the kitchen timer. The kitchen timer does not start or stop cooking (lower oven). 20 Cook Time: Touch and then use the number pad to set the amount of time you want your food to cook. The oven will shut off when the cooking time has run out (lower oven). 21 Delay Start: Use to set the oven to start and stop automatically at a time you set. 22 Lock (3sec): Use to disable all oven functions. 23 Settings: Use to bring up the User Preference menu in the display. 24 Number Pad: Use to set any function requiring numbers such as the time of day on the clock, the timer, the oven temperature, the start time, and the length of operation for timed cooking, etc. 25 Clear: Use to cancel a previously entered temperature or time. 26 Clock: Use to set the time of day. 27 START/SET: Use to start any cooking or cleaning function in the oven. 28 STOP/CLEAR / OVEN OFF: Use to cancel all oven operations except the clock and timer. 29 Lamp: Use to turn the oven light on or off. 30 Smart Control: Use to select the Smart Control feature. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 21 11/11/2019 5:51:06 PM22 English Basic operations Basic operations Setting the clock The clock must be set to the correct time of day for the automatic oven timing functions to work properly.

• The time of day cannot be changed during timed cooking, delay-timed cooking, or a self-cleaning cycle.

• You can choose between a 12-hour or 24-hour display. The default is 12-hour. How to set the clock

2. Touch Clock to select AM or PM. (Skip this step if you are setting the clock to

24 hour display mode.)

3. Touch keys in the number pad to set the current time of day.

4. Touch Clock or START/SET to save the changes.

Setting the kitchen timer The kitchen timer serves as an extra timer that will beep when the set time has elapsed. It does not start or stop cooking functions. You can use the kitchen timer with any of the other oven functions. How to set the timer

1. Touch Timer Off (3sec).

2. Touch number keys in the number pad to set the hours and minutes. The timer

can be set for any amount of time from 1 minute to 9 hours and 59 minutes. If you make a mistake, touch Clear, and then enter the amount of time again.

4. When the set time has elapsed, the oven will beep and the display will show

End until you touch Timer Off (3sec). You can cancel the timer at any time by touching Timer Off (3sec). Oven or Microwave Oven The Combi Oven provides two operation modes: Oven and Microwave Oven. To select either Oven and Microwave Oven, touch the desired operation mode. Then, the control panel will be activated. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 22 11/11/2019 5:51:06 PMEnglish 23 Basic operations Control Lockout Control Lockout lets you lock the buttons on the touch pad so they cannot be activated accidently. Control Lockout also locks the lower oven door only so it cannot be opened. You can only activate Control Lockout when the oven is in standby mode. How to activate the Control Lockout

1. Cancel or turn off all other functions.

2. Touch Lock (3sec) for 3 seconds.

The oven will display “Loc” and the lock icon along with the current time. NOTE

• Control Lockout is available only when the oven temperature is under 400 °F.

• All other functions must be cancelled before you activate Control Lockout. How to unlock the controls Touch Lock (3sec) for 3 seconds. “Loc” and the lock icon will disappear from the display. NOTE It may take up to 10 seconds for the doors to unlock. Setting the power level

1. Touch Power Level to set the power level of the microwave.

2. Enter the power level you want by using the number pad.

You can set the power level from 10 % to 100 % in 10 % increments. Timed Cooking In Timed Cooking mode, the oven turns on immediately and cooks for the length of time you select. At the end of the cooking time, the oven turns off automatically.

• You can use Timed Cooking only with another cooking operation (Microwave, Broil, Speed Broil). How to set the oven for Timed Cooking

1. Touch the pad for the cooking operation you want, eg. Microwave.

Enter the power level or temperature you want, for example, 100 %, using the number pad.

2. Touch Cook Time. Enter the number of hours/minutes you want the oven to

stay on using the number pad. You can set the cooking time for any amount of time from 1 second to the maximum time for each function.

3. Touch START/SET to begin cooking.

The oven will continue to cook until the set amount of time has elapsed, then turn off automatically.

4. You can cancel a cook time at any time by touching STOP/CLEAR.

When Timed Cooking is done, the oven will beep. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 23 11/11/2019 5:51:06 PM24 English Microwave Oven (Upper Oven) Minimum and maximum settings All the features listed in the table below have minimum and maximum times, temperatures, and power level settings. A beep will sound each time a pad on the control panel is pressed and the entry is accepted. An error tone will sound in the form of a long beep if the entered temperature or time is below the minimum or above the maximum setting for the feature. Upper Microwave Oven

FEATURE TEMP./POWER RANGE MAX. TIME

Microwave Oven 10-100 % 1 Hr. 30 min. Broil - 1 Hr. 30 min. Lower Oven LOWER OVEN Bake 175 °F (80 °C) 550 °F (285 °C) Broil LO HI Bread Proof - 12 Hrs. Keep Warm - 3 Hrs. Self Clean 2 Hrs. 5 Hrs. Steam Clean 20 Min. 20 Min. Microwave Oven (Upper Oven) Microwave Microwaves are high-frequency electromagnetic waves that can be used to cook or reheat food without changing either the form or color of the food.

1. Put food in a microwave-safe container, and then place the container in the

center of the turntable. Close the door.

3. Touch Power Level, and then use the number pad to input a desired power

4. Touch Cook Time, and then use the number pad to input a desired cook

time. You can also use the +30sec button to add cooking time in 30 second increments. (Maximum cooking time is 1 Hr. 30 min.)

5. Touch START/SET to start cooking.

6. If you want to cancel Microwave cooking or if Microwave cooking is nished,

• Do not use wire racks with Microwave mode. Basic operations NQ70R5510DG_AA_DG68-01148A-02_EN.indd 24 11/11/2019 5:51:07 PMEnglish 25 Microwave Oven (Upper Oven) Popcorn You do not need to set either the cooking time or the power level. Once you have selected Popcorn and touched START/SET, the oven automatically sets the cooking time and starts to cook. The gas sensing animation effect shows the status of the sensing process.

2. Touch START/SET to start cooking.

3. If you want to cancel the Popcorn function or if the Popcorn function is

nished, touch STOP/CLEAR. CAUTION

• Use only microwave-safe cookware.

• Use oven gloves when taking out food. Code/Food Amount Instructions Popcorn 3.0-3.5 oz. 1 package Use only one microwave popcorn bag at a time. Be careful when removing the heated bag from the oven and when opening it. Broil The upper oven broil function uses a standard electronic heating element to broil food. It does not use microwave energy. When using the broil mode, do not put food in plastic, microwave-safe cookware. The cookware will melt. Use glass, ceramic, or metal cookware. To broil food, follow the steps below.

1. Put the rack on the turntable. Put the cookware containing the food on the

2. Touch Broil. If preheating is preferred, simply touch START/SET.

NOTE You cannot set the temperature in Broil mode.

3. Touch Cook Time, and then use the number pad to specify a cooking time.

(Maximum cooking time is 1 Hr. 30 min.)

4. Touch START/SET to start cooking.

5. If you want to cancel Broiling or if Broiling is nished, touch STOP/CLEAR.

CAUTION For the Broil function:

Fish 0.1-3.5 lbs. Shield the tail of a whole sh with aluminium foil. Turn the sh over when the oven beeps. This program is suitable for whole sh as well as for sh llets.

Bread 0.1-2.0 lbs. Put bread on a piece of paper towel. Turn over as soon as the oven beeps. This program is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. Defrost The oven provides 4 different defrosting programs for your convenience. The time and power levels are automatically adjusted according to your selection.

1. Put food in suitable cookware, then put the cookware on the turntable and

2. Touch Defrost, and then use the number pad to select a program.

3. Touch START/SET to move to the next step.

4. Use the number pad to select the weight of food.

5. Touch START/SET to start cooking.

6. If you want to cancel Defrost or if Defrost is nished, touch STOP/CLEAR.

• Use oven gloves when taking out food. Code/Food Amount Instructions

Meat 0.1-3.5 lbs. Shield the edges with aluminium foil. Turn the meat over when the oven beeps. This program is suitable for lamb, pork, steaks, chops, and ground meat. For ground meat, place the meat directly on the turntable tray on wax paper. Do not use an extra tray. Let stand, covered with foil, for 5–10 minutes.

Poultry 0.1-3.5 lbs. Shield the leg and wing tips with aluminium foil. Turn the poultry over when the oven beeps. This program is suitable for whole chicken as well as for chicken portions. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 26 11/11/2019 5:51:07 PMEnglish 27 Microwave Oven (Upper Oven) Code/Food Amount Instructions

Beverage 6 to 8 oz. (½ cup to 1 cup) Use a measuring cup or mug and do not cover. Place the beverage in the oven. After heating, stir well. Let the oven cool for at least 5 minutes before using it again.

Dinner Plate 1 serving Use only precooked, refrigerated foods. Cover the plate with vented (1 inch vent) plastic wrap or waxed paper tucked under the plate. If the food is not as hot as you would like after using the “Sensor” function, continue heating using additional time and power. Contents:

• 3-4 oz. meat, poultry, or sh (up to 6 oz. with bone)

Casserole 1 to 4 servings Cover the plate with vented (1 inch vent) plastic wrap. If the food is not as hot as you would like after using the “Sensor” function, continue heating using additional time and power. Stir the food once before serving. Contents: Casseroles: refrigerated Sensor Cook The 15 Sensor Cook features include/provide pre-programmed cooking times. You do not need to set either the cooking time or the power level. Once you have selected a program and touched START/SET, the oven automatically sets the cooking time and starts to cook. The gas sensing animation effect shows the status of the sensing process.

1. Put the food in the center of the turntable and close the door.

2. Touch Sensor Cook, and then use the number pad to select a program.

3. Touch START/SET to start cooking.

4. If you want to cancel Sensor Cook or if Sensor Cook is nished, touch STOP/

• Use oven gloves when taking out food. Code/Food Amount Instructions

Potato 1 to 5 ea. Pierce each potato several times with a fork. Place on the turntable in a spoke-like fashion. After cooking, let the potatoes stand for 3-5 minutes. Let the oven cool for at least 5 minutes before using it again.

Pizza 1 to 4 slices Place 1-4 pizza slices on a microwave safe plate with the wide ends of the slices towards the outside edge of the plate. Do not let the slices overlap. Do not cover. Let the oven cool for at least 5 minutes before using it again. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 27 11/11/2019 5:51:07 PM28 English Microwave Oven (Upper Oven) Microwave Oven (Upper Oven) Code/Food Amount Instructions

Rice 1 to 2 cups Add 1 cup of cold water for 1 cup of rice. Use a large glass pyrex bowl. Cover with vented (1 inch vent) plastic wrap. Rice doubles in volume during cooking. After the cooking time is over, stir before standing time, and then salt or add herbs and butter.

Mini Ravioli 8 to 14 oz. Put mini ravioli evenly into a microwave safe glass bowl. Cover with vented (1 inch vent) plastic wrap. Let stand for 2-3 minutes. Stir the food once before serving.

Fresh Vegetables 1 to 4 servings Place the fresh vegetables (broccoli orets, cauliower orets, zucchini, egg plants etc.) in a microwave safe ceramic, glass, or plastic dish and add 2-4 tbsp. water. Cover with vented (1 inch vent) plastic wrap while cooking and stir before letting stand. Let the oven cool for at least 5 minutes before using it again.

Fresh Root Vegetables 1 to 4 servings Place the fresh vegetables (carrots, leeks, potatoes, beet etc.) in a microwave safe ceramic, glass, or plastic dish and add 2-4 tbsp. water. Cover with vented (1 inch vent) plastic wrap while cooking and stir before letting stand. Let the oven cool for at least 5 minutes before using it again. Code/Food Amount Instructions

Pasta 1 to 4 servings Cover the plate with vented (1 inch vent) plastic wrap. If the food is not as hot as you would like after using the “Sensor” function, continue heating using additional time and power. Stir the food once before serving. Contents: Pasta: canned spaghetti

Soup 1 to 4 servings Cover the plate with vented (1 inch vent) plastic wrap. If the food is not as hot as you would like after using the “Sensor” function, continue heating using additional time and power. Stir the food once before serving. Contents: Soup: refrigerated

Frozen Breakfast 4 to 8 oz. Use this button for frozen sandwiches, breakfast entrees, pancakes, wafes, etc. Follow the package instructions for covering and standing. Let the oven cool for at least 5 minutes before using it again.

Frozen Dinner 13 to 18 oz. Remove the food from its wrapping and follow the instructions on the box for covering and letting stand. Let the oven cool for at least 5 minutes before using it again. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 28 11/11/2019 5:51:07 PMEnglish 29 Microwave Oven (Upper Oven) Notes on Sensor Cooking The Auto Sensor cooks your food automatically by detecting the amount of gases generated from the food while it is cooking.

• When food is cooked, many kinds of gases are generated. The Auto Sensor determines the proper time and power level by detecting these gases, eliminating the need to set the cooking time and power level.

• When a container is covered with its lid or plastic wrap during Sensor Cooking, the Auto Sensor will detect the gases generated after the container has been saturated with steam. NOTE If using cling lm or plastic wrap, leave a small opening (vent) near the edge of the dish for ventilation or pierce the plastic with a knife or fork in several places.

• Shortly before cooking ends, the microwave will begin to count down the remaining cooking time. This will be a good time for you to rotate or stir the food for even cooking if it is necessary.

• Before you begin Auto Sensor cooking, you can season food with herbs, spices, or browning sauces. A word of caution though: Salt or sugar may cause burn spots on food so these ingredients should be added after cooking. Utensils & covers

• To obtain good cooking results with the Auto Sensor function, follow the directions in the tables in this manual for selecting appropriate containers and covers.

• Always use microwave-safe containers and cover them with their lids or with plastic wrap. When using plastic wrap, turn back one corner to allow steam to escape at the proper rate.

• Always cover your microwave safe dish or container with its matching lid. If the dish or container does not have its own lid, use plastic wrap.

• Fill containers at least half full.

• Foods that require stirring or rotating should be stirred or turned toward the end of the Sensor Cook cycle, after the time has started to count down on the display. Code/Food Amount Instructions

Frozen Vegetables 1 to 4 servings Place the frozen vegetables in a microwave safe ceramic, glass, or plastic dish and add 2-4 tbsp. water. Cover with vented (1 inch vent) plastic wrap to cook. Stir before letting stand for 3-5 minutes. Let the oven cool for at least 5 minutes before using it again.

Canned Vegetables 1 to 4 servings Place the canned vegetables in a microwave safe ceramic, glass, or plastic dish. Cover with vented (1 inch vent) plastic wrap while cooking and stir before letting stand. Let the oven cool for at least 5 minutes before using it again. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 29 11/11/2019 5:51:07 PM30 English Microwave Oven (Upper Oven) Microwave Oven (Upper Oven) Auto Cook You do not need to set either the cooking time or the power level. You can adjust the size of the serving.

1. Put the food in the center of the turntable and close the door.

2. Touch Auto Cook, and then use the number pad to select the appropriate food

3. Touch START/SET to go to the next step.

4. Use the number pad to specify amount of servings.

5. Touch START/SET to start cooking.

6. If you want to cancel Auto Cook or if Auto Cook is nished, touch STOP/CLEAR.

• Use oven gloves when taking out food. Code/Food Amount Instructions

Bacon 1 serving: 2 slices 2 servings: 4 slices 3 servings: 6 slices Layer 2 paper towels on a microwave safe plate and arrange the bacon on the towels. Do not overlap bacon. Cover with an additional paper towel. Remove the paper towel immediately after cooking.

Hot dog 1 serving: 2 each 2 servings: 4 each Pierce the hot dogs 3 times with a fork. Place the hot dogs on a glass or ceramic plate, then place the plate on the rack. When the microwave beeps, add the buns and press start to continue. CAUTION

• After installing the oven and plugging it into an electrical outlet, do not unplug the power cord for 24 hours. The gas sensor needs time to stabilize in order to cook satisfactorily.

• It is not advisable to use the Auto Sensor cooking feature continuously. i.e. one cooking operation immediately after another.

• Install the oven in a well ventilated location for proper cooling and airow and to ensure the sensor will operate accurately.

• To avoid poor results, do not use the Auto Sensor cooking function when the room ambient temperature is above 90 °F or below 45 °F.

• Do not use a volatile detergent to clean your oven. Gas resulting from this detergent may affect the sensor.

• Avoid placing the oven near high moisture or gas emitting appliances, since this will interfere with the proper performance of the Auto Sensor.

• Always keep the inside of the oven clean. Wipe all spills with a damp cloth. This oven is designed for household use only. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 30 11/11/2019 5:51:08 PMEnglish 31 Microwave Oven (Upper Oven) Code/Food Amount Instructions

Frozen French Fries 12 oz. 16 oz. Place the frozen french fries on a glass or ceramic plate, then place the plate on the rack.

Frozen Chicken Nuggets 8 oz. 16 oz. Place the frozen chicken nuggets on a glass or ceramic plate, then place the plate on the rack.

Frozen Pizza, 6 inch 6 inch Place the pizza on the rack.

Frozen Pizza, 12 inch 12 inch Place the pizza on the rack.

Brush the chicken pieces with oil and seasonings. Place the pieces skin side down on the rack. When the microwave beeps, turn over bone-in chicken pieces, and then press Start to continue.

Hamburger 1 serving: 2 ea. 2 servings: 4 ea. (1 ea. = 4 oz.) Place the hamburgers on a glass or ceramic plate. Place the plate on the rack. When the microwave beeps, turn the hamburgers over, and then press Start to continue.

Salmon Steak 2 servings: 2 ea. 4 servings: 4 ea. (1 ea. = 5 to 6 oz.) Brush the salmon llets with oil and seasonings. Place the salmon llets on a glass or ceramic plate, then place the plate on the rack. Code/Food Amount Instructions

Oatmeal 1 serving: 1 pack 2 servings: 2 packs Follow the package directions for the recommended amount of water needed. Stir well before and afterwards.

Nachos 1 serving Arrange the tortilla chips uniformly on a glass or ceramic plate, then place the plate on the rack. Sprinkle evenly with cheese. Contents:

Baked Potato 1 serving: 2 each 2 servings: 4 each Pierce the potatoes 3 times with a fork. Place the potatoes on a glass or ceramic plate, then place the plate on the rack. After cooking, let the potatoes stand for 3-5 minutes.

Quinoa 1 serving: 1 cup 2 servings: 2 cups Follow the package directions for the recommended amount of water needed. If there are no directions, add an amount of water equal to the amount of Quinoa. Stir well before and after cooking.

Frozen Buffalo wings 1 serving: 12 oz. 2 servings: 16 oz. Place the frozen chicken wings on a glass or ceramic plate, then place the plate on the rack. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 31 11/11/2019 5:51:08 PM32 English Microwave Oven (Upper Oven) Microwave Oven (Upper Oven) Soften/Melt You do not need to set either the cooking time or the power level.

1. Put the food in the center of the turntable and close the door.

2. Touch Soften/Melt to select a program.

3. Touch START/SET to go to the next step.

4. Use the number pad to specify the weight of food.

5. Touch START/SET to start cooking.

6. If you want to cancel Soften/Melt or if Soften/Melt is nished, touch STOP/

• Use oven gloves when taking out food. Code/Food Amount Instructions

Unwrap the butter and cut the butter into several pieces. Place the butter on a microwave safe dish and cover with wax paper. Stir well afterwards.

Remove the butter from the packaging and place on a microwave safe dish.

Melt Chocolate 1 cup chips Place the chocolate chips in a microwave safe dish. When the microwave beeps, stir well, and then press Start to continue. Unless stirred, the chocolate chips will keep their shape even when the heating time is over. Code/Food Amount Instructions

Sirloin Steak, Medium 1 inch, 1.0 lb. Place the steak on the rack. When the microwave beeps, turn over the steak, and then press Start to continue. Let the steak rest for 5 minutes before slicing. Brush the steaks with oil and seasonings.

Sirloin Steak, Well done 1 inch, 1.0 lb. Place the steak on the rack. When the microwave beeps, turn over the steak, and then press Start to continue. Let the steak rest for 5 minutes before slicing. Brush the steaks with oil and seasonings.

Boneless Pork Chops 2 servings: 2 ea. 4 servings: 4 ea. (1 ea. = 5 to 6 oz.) Place the pork chops on the rack. When the microwave beeps, turn over the pork chops, and then press Start to continue. Brush the pork chops with oil and seasonings. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 32 11/11/2019 5:51:08 PMEnglish 33 Oven (Lower Oven) Oven (Lower Oven) Timed Cooking In Timed Cooking mode, the oven turns on immediately and cooks for the length of time you select. At the end of the cooking time, the oven turns off automatically.

• You can use Timed Cooking only with the Bake cooking operation. How to set the oven for Timed Cooking

1. Touch the pad for the cooking operation you want, eg. Bake.

Enter the temperature you want, for example, 400 °F, using the number pad. (The default temperature is 350 °F).

2. Touch Cook Time. Enter the number of hours/minutes you want the oven to

stay on using the number pad. You can set the cooking time for any amount of time from 1 minute to 9 hours and 59 minutes.

3. Touch START/SET to begin cooking. The temperature display will start to

change once the oven temperature reaches 175 °F. The oven will continue to cook until the set amount of time has elapsed, then turn off automatically.

4. You can cancel a cook time at any time by setting the cook time to 0 minutes.

(Touch Cook Time -> set cook time to 0 min -> touch START/SET) When Timed Cooking is done, the oven will beep. CAUTION Use caution with the Timed Cooking or Delay Start features. You can use these features to cook cured or frozen meats and most fruits and vegetables. For food that can easily spoil, such as milk, eggs, and unfrozen or fresh sh, meat, or poultry, chill them in the refrigerator rst. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in sickness from food poisoning. Microwave Oven (Upper Oven) Code/Food Amount Instructions

Soften Ice Cream 1 serving: 1 pint 2 servings: 1.5 quarts Remove the lid of the carton. Place the carton in the center of the microwave.

Soften Cream Cheese 4 oz. 8 oz. Unwrap the cream cheese and place on a microwave safe dish.

Melt Cheese 4 oz. 8 oz. Place the cheese in a microwave safe bowl and cover with wax paper. Stir well afterwards.

Melt Marshmallows 5 oz. 10 oz. Place the marshmallows in a large microwave safe dish. Stir well afterwards.

Melt Caramel 4 oz. 8 oz. Place the caramel in a large microwave safe dish. Stir well afterwards. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 33 11/11/2019 5:51:08 PM34 English Oven (Lower Oven) Oven (Lower Oven) Delay Start With Delay Start, the oven’s timer turns the oven on and off at times you select in advance.

• You can use Timed Cooking only with the Bake cooking operation.

• You can set the oven for a delay start before setting other cooking operations.

• The clock must be set to the current time. How to set the oven for delay start

1. Position the oven rack(s) and place the food in the oven.

2. Touch the pad for the cooking operation you want, eg. Bake.

4. Set the cooking time if you want. (Refer to the section on the Timed Cooking

feature on page 33).

5. Touch Delay Start. Use the number pad to set the time.

6. Touch START/SET. At the set time, a short beep will sound. The oven will begin

to cook. Turning the light on and off

• The oven light turns on automatically when the door is opened.

• The oven light turns off automatically when the door is closed.

• You can turn the oven and door light on and off manually by touching the

Using the oven racks Oven rack positions

Recommended rack position for cooking

TYPE OF FOOD RACK POSITION

Broiling hamburgers 6 Broiling meat or small cuts of poultry, sh 3-5 Bundt cakes, pound cakes, frozen pies, casseroles 4 or 3 Angel food cakes, small roasts

Turkey, large roasts, hams, fresh pizza

Centering baking pans in the oven as much as possible will produce better results. If baking with more than one pan, place the pans so each has at least 1˝ to 1½˝ of air space around it. When baking on a single oven rack, place the oven rack in position 3 or 4. See the gure on the left. When baking cakes and cookies on multiple racks, place the oven racks in positions 3 and 5. Using multiple oven racks Type of baking Rack positions Cakes and cookies 3 and 5 Before using the racks Each rack has stops that need to be placed correctly on the supports. These stops will keep the rack from coming completely out. Removing the racks

1. Pull the rack straight out until it stops.

2. Lift up the front of the rack, and then pull it out.

1. Place the end of the rack on the support.

2. Tilt the front end up and push the rack in.

• Do not cover a rack with aluminum foil or place aluminum foil on the oven bottom. This will hamper heat circulation, resulting in poor baking, and may damage the oven bottom.

• Arrange the oven racks only when the oven is cool. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 35 11/11/2019 5:51:09 PM36 English Oven (Lower Oven) Oven (Lower Oven) Baking The oven can be programmed to bake at any temperature from 175 °F to 550 °F. Baking temperature and time will vary depending on the ingredients and the size and shape of the baking pan used. Dark or nonstick coatings may cook faster with more browning. How to set the oven for baking

2. Enter the temperature you want using the number pad, eg. 3, 7, 5.

3. Touch Cook Time, and then use the number pad to set the cooking time.

4. Touch START/SET. The temperature display will start to change once the oven

temperature reaches 175 °F.

5. If you want to cancel baking or if you have nished, touch OVEN OFF.

Place food in the oven after preheating if the recipe calls for it. Preheating is very important for good results when baking cakes, cookies, pastry, and breads. After the oven has reached the desired temperature, the oven will beep 6 times. NOTE If you are using an oven thermometer in the oven cavity, the temperature registered by the thermometer may differ from the actual set oven temperature. How to adjust the temperature while cooking

3. Complete the entry by touching START/SET.

Broiling Broiling is a method of cooking tender cuts of meat by direct heat under the broil element of the oven. The high heat cooks quickly and gives a rich, brown outer appearance. Broil mode is best for meat, sh, and poultry up to 1” thick. How to set the oven for broiling

1. Touch Broil once for Hi or twice for Lo.

Use Lo to cook foods such as poultry or thick cuts of meat thoroughly without over-browning them.

2. To start broiling, touch START/SET.

Broil one side until the food is browned. Turn over and broil the other side.

3. Touch OVEN OFF once you have nished cooking or if you want to cancel

• This oven is designed for CLOSED DOOR broiling. The oven door must be closed during broiling.

• If you leave the oven door open for more than 2 minutes when the oven is on, all heating elements will shut off automatically.

• When you have nished cooking, the cooling fan will continue to run until the oven has cooled down.

• If you are using an oven thermometer in the oven cavity, the temperature registered by the thermometer may differ from the actual set oven temperature. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 36 11/11/2019 5:51:09 PMEnglish 37 Oven (Lower Oven) CAUTION Always broil with the oven door closed. Use care when opening the door. Let hot air or steam escape before you remove food from or put food into the oven. Broiling recommendation guide The size, weight, thickness, starting temperature, and your doneness preference will affect broiling times. This guide is based on meats at refrigerator temperature. Always use a broiler pan and its grid when broiling. Always preheat the oven for 5 minutes before broiling. Food Doneness Size Thickness Level Rack positon Cooking time (min.) 1st side 2nd side Hamburgers Medium 9 patties 3/4" Hi 6 3:00 2:00 Medium 9 patties 1" Hi 6 3:20 2:20 Beef steaks Rare - 1" Hi 5 5:00 4:00 Medium - 1- 1 1/2" Hi 5 6:00-6:30 4:30-4:00 Well done - 1- 1 1/2" Lo 4 7:00-8:00 4:00-5:00 Chicken pieces Well done 4.5 lbs. 1/2-3/4" Lo 3 16:00-18:00 13:00-15:00 Well done 2 lbs. 1/2-3/4" Lo 3 or 4 15:00-16:00 10:00-12:00 Pork chops Well done 1 lbs. 1" Lo 3 8:00-10:00 6:00-8:00 Fish llets Well done - 1/4-1/2" Lo 3 or 4 7:00-8:00 4:00-5:00 Using Bread Proof Bread Proof provides an optimal temperature for the bread proong process and therefore does not require a temperature adjustment. For the best results, always start the Bread Proof option with a cool oven.

3. Touch OVEN OFF at any time to turn off Bread Proof.

NOTE Use rack position 3 for Bread Proof. Using Keep Warm Keep Warm will keep cooked food warm for serving up to 3 hours after cooking has nished. After 3 hours, the feature will shut off automatically. You can use the Keep Warm feature without any other cooking operations or you can set it to activate after a timed or delay timed cooking operation. You should not use this feature to reheat cold food. How to use Keep Warm

3. Touch OVEN OFF at any time to turn the feature off.

How to set the oven to activate Keep Warm after a timed cooking

1. Set up the oven for Timed cooking.

(Refer to the Timed Cooking section on page 33.)

2. Touch Keep Warm before touching START/SET to begin cooking.

3. Touch OVEN OFF at any time to turn the feature off.

NQ70R5510DG_AA_DG68-01148A-02_EN.indd 37 11/11/2019 5:51:10 PM38 English Oven (Lower Oven) Oven (Lower Oven) Using Settings This function lets you control various electronic control settings. These settings include Temp Adjust, Temp Unit, Time of Day, 12 hour energy saving, Sound On/ Off, and Demo mode. The setting menu is only available when the oven is not being used (not cooking). Options Feature

1. Temp Adjust Lets you correct the temperature in the oven.

2. Temp Unit Lets you program the oven control to display

temperatures in Fahrenheit or Centigrade.

3. Time of Day Lets you set the clock to display the time of day in the 12

saving This feature automatically turns off the oven after 12 hours during baking functions or after 3 hours during a broil function.

5. Sound On/Off Lets you set the oven controls to operate silently.

0. Demo mode This option is for use by retail establishments for display

purposes only. Temp Adjust The temperature in the oven has been calibrated at the factory. When rst using the oven, be sure to follow recipe times and temperatures. If you think the oven is too hot or too cool, you can correct the temperature in the oven. Before correcting, test a recipe by using a temperature setting that is higher or lower than the recommended temperature. The baking results should help you to decide how much of an adjustment is needed. The oven temperature can be adjusted ±35 °F (±19 °C ). How to correct the oven temperature

1. Touch Settings, and then 1 on the number pad.

2. Touch Settings to set the temperature higher or lower than the current

3. Enter the adjustment you want to make using the number pad. (±35)

4. Touch START/SET to save the changes.

NOTE This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be retained in memory after a power failure. Temp Unit (Fahrenheit or Celsius temperature selection) You can program the oven control to display the temperature in Fahrenheit or Celsius. The oven has been preset at the factory to display in Fahrenheit. How to change the display from Fahrenheit to Celsius or Celsius to Fahrenheit

1. Touch Settings, and then 2 on the number pad.

NQ70R5510DG_AA_DG68-01148A-02_EN.indd 38 11/11/2019 5:51:10 PMEnglish 39 Oven (Lower Oven) Time of Day (12hr/24hr) The oven control can be programmed to display the time of day in the 12 hour or 24 hour mode. The oven has been preset at the factory to display in the 12 hour mode. How to change between the 12 and 24 hour time of day display

1. Touch Settings, and then 3 on the number pad.

12 hour energy saving If you accidently leave the oven on, this feature will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function. How to turn the 12 hour energy saving feature on or off

1. Touch Settings, and then 4 on the number pad.

Sound On/Off Using Sound On/Off, you can set the oven controls to operate silently. How to turn the sound on or off

1. Touch Settings, and then 5 on the number pad.

Demo mode This option is for use by retail establishments for display purposes only. (When Demo mode is on, the heating element is disabled and does not operate.) How to enable or disable the demo mode

1. Touch Settings, and then 0 on the number pad.

For further assistance, guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit http:\\www.star-k.org. You can use the Sabbath feature with baking only. The oven temperature may be set higher or lower after you set the Sabbath feature. (The oven temperature adjustment feature should be used only during Jewish holidays.) The display, however, will not change and tones will not sound when a change occurs. Once the oven is properly set for baking with the Sabbath feature active, the oven will remain on continuously until the Sabbath feature is cancelled. This will override the factory preset 12 hour energy saving feature. If the oven light is needed during the Sabbath, touch before activating the Sabbath feature. Once the oven light is turned on and the Sabbath feature is active, the oven light will remain on until the Sabbath feature is turned off. If the oven light needs to be off, be sure to turn the oven light off before activating the Sabbath feature. How to use the Sabbath feature

1. Touch Bake. The default temperature is 350 °F.

2. Enter the temperature you want, eg. 375 °F, by using the number pad.

The temperature display will start to change once the oven temperature reaches 175 °F.

4. Touch Bake and the Number 1 at the same time for 3 seconds.

The display will show SAb. Once SAb appears in the display, the oven will not beep or display any further changes. You may change the oven temperature once baking has started. Remember that the oven will not beep or display any further changes once the Sabbath feature is engaged.

5. You can turn the oven off at any time by touching OVEN OFF. This will turn

only the oven off. If you want to deactivate the Sabbath feature, touch Bake and the Number 1 at the same time for 3 seconds. SAb will disappear from the display. Do not to attempt to activate any other program feature except Bake while the Sabbath feature is active. ONLY the following key pads will function correctly with the Sabbath feature on: Number, Temp., START/SET and OVEN OFF. All other keys should not be used once the Sabbath feature is activated. You can change the oven temperature, but the display will not change and tones will not sound when a change occurs. (The oven temperature adjustment feature should be used only on Jewish holidays.) After changing the temperature while the unit is in Sabbath mode, there is a 15 second delay before the unit recognizes the change. You can set the Cook time function before activating the Sabbath feature. Should there be a power failure or interruption, the oven will shut off. When power is returned, the oven will not turn back on automatically. SAb will be displayed in the oven control display, but the oven will not operate. Food may be safely removed from the oven while it is still in the Sabbath mode, however the oven cannot be turned back on until after the Sabbath/ Holidays. After the Sabbath observance, turn OFF the Sabbath mode. Touch and hold both Bake and the Number 1 for at least 3 seconds simultaneously to turn the Sabbath mode off. The oven can then be used with all normal functions. Do not open the oven door or change the oven temperature for about 30 minutes after you have started Sabbath mode to allow the oven to reach the set temperature. Note that, for best performance, the oven fan operates only when the oven temperature is rising. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 40 11/11/2019 5:51:11 PMEnglish 41 Oven (Lower Oven) Using Smart Control (Lower oven only) To use the oven’s Smart Control, you must download the SmartThings app to a mobile device. Functions that can be operated using the SmartThings app may not work smoothly if communication conditions are poor or the oven is installed in a place with a weak Wi-Fi signal. Please refer to the following table for the main functions that can be operated from the app. When Smart Control on the oven is off Monitoring (Oven), Oven off When Smart Control on the oven is on. Monitoring (Oven), Oven start, Oven off, Error check How to connect the oven

1. Download and open the SmartThings app on your smart device.

2. Follow the app’s on-screen instructions to connect your oven.

3. Once the process is complete, the connected

icon located on your oven displays and the app will conrm you are connected.

4. If the connection icon does not turn on, follow the instruction in the app to

reconnect. To start the oven remotely Touch Smart Control. appears in the display. The oven can now be started and controlled remotely by a connected mobile device. When Smart Control is on you can:

• Remotely change oven settings (mode, time, temperature) using your mobile device.

• Remotely start the oven.

• Remotely turn off the oven.

• Once cooking starts, you can change the cooking time and temperature remotely. NOTE

• Important: Self clean mode cannot be started remotely.

• Opening the oven door or touching Smart Control will delete from the display and prevent you from turning the oven on or controlling the oven remotely.

• If is not shown in the display, you can still monitor the oven’s status and turn the oven off.

• When oven cooking is nished or cancelled, will turn off.

• If you use a microwave oven, you may not be able to use the Smart Control app due to Wi-Fi signal interference. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 41 11/11/2019 5:51:11 PM42 English Maintaining your appliance Maintaining your appliance Self-cleaning (Lower oven only) This self-cleaning oven uses high temperatures (well above cooking temperatures) to burn off leftover grease and residue completely or reduce them to a nely powdered ash that you can wipe away with a damp cloth. CAUTION

• During the self-cleaning cycle, the outside of the oven will become very hot to the touch. Do not leave small children unattended near the appliance.

• Some birds are extremely sensitive to the fumes given off during the self- cleaning cycle of any oven. Move birds to another well-ventilated room.

• Do not line the oven walls, racks, bottom, or any other part of the oven with aluminum foil. Doing so will result in poor heat distribution, poor baking results, and cause permanent damage to the oven interior. Aluminum foil will melt and adhere to the interior surface of the oven.

• The oven door locks during self-cleaning. Do not force the oven door open. This can damage the automatic door locking system. Use care when opening the oven door after the self-cleaning cycle is complete. Stand to the side of the oven when opening the door to allow hot air or steam to escape. The oven may still be VERY HOT. Before a self-cleaning cycle Fig. 1 Fig. 2 Don’t hand clean the oven door gasket. You may hand clean the door.

• We recommend venting your kitchen with an open window or using a ventilation fan or hood during the self- cleaning cycle.

• Remove the wire rack, broil pan, broil pan insert, all cookware, and any aluminum foil from the oven.

• Wipe up debris from the oven bottom. (Fig. 1)

• The silver-colored oven racks can be self-cleaned, but they will darken, lose their luster, and become hard to slide.

• Residue on the front frame of the oven and outside the gasket on the door will need to be cleaned by hand. Clean these areas with hot water, soap-lled steel-wool pads, or cleansers such as Soft Scrub. Rinse well with clean water and dry.

• Do not clean the gasket. The berglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, have it replaced. (Fig. 2)

• Make sure the oven light cover is in place and the oven light is off. NOTE Remove oven racks and accessories before starting the self-clean mode. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 42 11/11/2019 5:51:11 PMEnglish 43 Maintaining your appliance How to run a self-cleaning cycle

1. Select the length of time for the self-cleaning operation, eg. 3 hours.

Touch Self Clean 2/3/5h once for a 3 hour clean time, twice for a 5 hour clean time, or 3 times for a 2 hour clean time. (The default setting is 3 hours.)

2. Touch START/SET to start the self-cleaning cycle.

The motor-driven door lock will engage automatically. IMPORTANT: Both doors lock when you run a self cleaning cycle on either oven. NOTE

• You will not be able to start a self-cleaning cycle if the Control Lockout feature is activated or if the oven’s temperature is too hot.

• The oven doors lock automatically. The display will show the cleaning time remaining. You cannot to open the oven doors until the temperature drops to a safe/cool temperature.

• The self-clean feature can be used in only one oven at a time. While one oven is in self-cleaning mode, you cannot use the other oven for cooking.

3. When the self-cleaning cycle is done, End will appear in the display and the

oven will beep 6 times. How to delay the start of self-cleaning

1. Touch Self Clean 2/3/5h.

Select the desired self-clean time by touching Self Clean 2/3/5h.

2. Touch Delay Start.

3. Enter the time you want the self-clean cycle to start.

The display will show Delay, Self clean, and the Lock icon. The motor-driven door lock will engage automatically.

5. The Self-Cleaning cycle will turn on automatically at the set time.

How to turn off the self-cleaning feature If you need to stop or interrupt a self-cleaning cycle:

2. You will be able to open the oven door once the oven has cooled down for

approximately 1 hour. After a self-cleaning cycle

• You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools. (If white spots remain, remove them with a soap-lled steel wool pad and rinse thoroughly with a vinegar and water mixture.)

• If the oven is not clean after one cycle, repeat the cycle.

• You cannot set the oven for cooking until the oven is cool enough for the door to unlock. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 43 11/11/2019 5:51:11 PM44 English Maintaining your appliance Maintaining your appliance Wall Oven Steam Clean How to set the oven for steam-cleaning For light cleaning, the Steam-cleaning function saves time and energy. For heavier duty cleaning, use the self-cleaning function.

1. Remove all accessories from the oven.

2. Pour approximately 10 oz. (300 ml) of

water onto the bottom of the empty oven and close the oven door. Use tap water only, not distilled water.

When the operation is complete, the display will blink and a beep will sound.

There will be a signicant amount of water remaining on the bottom of the oven after a steam-cleaning cycle. Remove the residual water with a sponge or soft dry cloth. When steam-cleaning, use exactly 10 oz. of water since this produces the best results. NOTE If you press Steam Clean when the oven temperature is above 100 °F, Hot will appear in the display. Because these functions produce the best results when started while the oven is cool, we recommend that you wait until the oven has cooled down and Hot disappears from the display. After a steam-cleaning cycle

• Take care when opening the door after a steam-cleaning procedure has ended. The water on the bottom is hot.

• Open the oven door and remove the remaining water with a sponge. Do not leave the residual water in the oven for any length of time. Wipe the oven clean and dry with a soft cloth. Do not forget to wipe under the oven door seal.

• Use a detergent-soaked sponge, a soft brush, or a nylon scrubber to wipe the oven interior. Remove stubborn residue with a nylon scourer. You can remove lime deposits with a cloth soaked in vinegar.

• If the oven remains dirty, you can repeat the procedure once the oven has cooled.

• For heavy residue, such as grease left over from roasting, we recommend that you rub detergent into the residue before activating the steam-cleaning function.

• After cleaning, leave the oven door ajar at a 15° angle to allow the interior enamel surface to dry thoroughly. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 44 11/11/2019 5:51:12 PMEnglish 45 Maintaining your appliance Care and cleaning of the oven Cleaning painted parts and decorative trim

• For general cleaning, use a cloth with hot, soapy water.

• For more difcult residue and built-up grease, apply a liquid detergent directly onto the area and leave for 30 to 60 minutes. Wipe with a damp cloth and dry. Do not use abrasive cleaners on any oven surface. They can be scratched. Cleaning stainless steel surfaces

1. Shake a bottle of stainless steel appliance cleaner or polish well.

2. Place a small amount of stainless steel appliance cleaner or polish on a damp

cloth or damp paper towel.

3. Clean a small area, rubbing with the grain of the stainless steel if applicable.

4. Dry and buff with a clean, dry paper towel or soft cloth.

5. Repeat as necessary.

• Do not use a steel-wool pad. It will scratch the surface.

• If a mineral oil-based stainless steel appliance cleaner has been used before to clean the appliance, wash the surface with dishwashing liquid and water prior to using the stainless steel appliance cleaner or polish. Oven racks If the racks are left in the oven during a self-cleaning cycle, their color will turn slightly blue and the nish will be dull. After the self-cleaning cycle is complete and the oven has cooled, rub the sides of the racks with wax paper or a cloth containing a small amount of oil. This will help the racks glide more easily on their tracks. NOTE

• Do not clean in a dishwasher.

• If the rack becomes hard to remove or replace, lightly wipe the oven rack guides with cooking oil. Do not wipe cooking oil on the slides.

• If the rack becomes difcult to slide, the rack may need to be lubricated using a graphite lubricant.

• To order graphite lubricant., call Samsung Customer Care at 1-800-SAMSUNG (726-7864) or visit our homepage (www.samsung.com/us/support, www. samsung.com/ca/support, or www.samsung.com/ca_fr/support) and search for part number DG81-01629A.

• If you want to buy it directly, go to http://www.samsungparts.com. Oven door Don’t hand clean the oven door gasket. You may hand clean the door.

• Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse well. You may use a glass cleaner on the outside glass of the oven door. DO NOT immerse the door in water. DO NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT use oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on the outside of the oven door.

• DO NOT clean the oven door gasket. The oven door gasket is made of a woven material which is essential for a good seal. Care should be taken not to rub, damage, or remove this gasket. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 45 11/11/2019 5:51:12 PM46 English Maintaining your appliance Maintaining your appliance Removing the oven door (Lower oven only) CAUTION

• The door is very heavy. Be careful when removing and lifting the door.

• Do not lift the door by the handle. Use two hands to remove an oven door. WARNING You can’t remove the upper oven door for safety reasons.

A. Oven door hinge lock in locked position B. Oven door hinge lock in unlocked position

1. Prior to removing the oven door,

prepare a surface where you will place it. This surface should be at and covered with a soft blanket. You can also use the corner posts from your packaging material.

2. Open the oven door.

3. Locate the oven door hinge locks in

both corners of the oven door, and then rotate the hinge locks toward the oven door to the unlocked position. If the door hinge lock is not rotated fully (see illustration B on the left for an example of full rotation), you will not be able to remove the door properly.

4. Partially close the door to engage the

door latch locks. The door will stop at this point.

5. Using two hands, grasp the edges of

the oven door. Lift and pull the oven door toward you and remove. You may need to gently shift the door from side to side as you pull.

6. Set the oven door aside on the

prepared covered work surface with the oven door resting on its handle. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 46 11/11/2019 5:51:12 PMEnglish 47 Maintaining your appliance Replacing the oven door (Lower oven only) CAUTION The door is very heavy. You may need help lifting the door high enough to slide it into the hinge slots. Do not lift the door by the handle. WARNING You can’t replace the upper oven door for safety reasons.

A. Slot in the oven cavity for the door hinge lock

1. Using two hands, grasp the side edges

of the door at the midpoint. Face the oven cavity.

2. Locate the slots on each side of the

oven cavity for the door hinge locks.

3. Hold the door at a 45° angle, and then

align the door hinges with the slots in the lower front of the oven cavity. Slowly insert the door, making sure you maintain the 45° angle. You will know the door is engaged in the slot when you feel a slight drop.

4. Lower the oven door to the fully open

position. If the oven door does not open to a full 90°, repeat steps 1 through 3.

5. Locate the oven door hinge locks in

the corners of the oven door, and then rotate the hinge locks toward the oven cavity to the locked position. See Step 3 (illustration A) in the “Removing the oven door” section for the proper locked position.

6. Close the oven door.

7. When the hinges are properly installed

and the door is closed, there should be an even gap between the door and the control panel. If one side of the oven door is hanging lower than the other, the hinge on that side is not properly installed. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 47 11/11/2019 5:51:13 PM48 English Maintaining your appliance Maintaining your appliance Changing the oven light (Lower oven only) The oven light is a standard 40-watt appliance halogen bulb. It comes on when the oven door is open. When the oven door is closed, touch to turn the light on or off. It will not work during a self-cleaning. CAUTION Before changing the oven light, make sure to wear gloves to protect your hands.

tilt the broil heater down. To do this, turn the circular nut on the support counterclockwise while holding the broil heater. The broil heater should loosen and tilt down. CAUTION The broil heater is not a removable part. Do not force the broil heater down. Do not let it drop down.

2. While holding the glass cover with one

hand, insert a at-sharp tool such as a table knife between the glass and the frame to remove the glass cover.

3. Turn the bulb cap counterclockwise to

5. Place the bulb cap and glass cover back

into their position.

6. Return the broil heater back by

following step 1 in reverse order. CAUTION Before changing your oven light, disconnect the electrical power to the oven at the main fuse or circuit breaker panel. Make sure the oven and the halogen bulb are cool. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 48 11/11/2019 5:51:13 PMEnglish 49 Troubleshooting Troubleshooting Samsung works hard to ensure that you don’t have problems with your new electric oven. If you run into unexpected trouble, look rst for a solution in the tables starting below. If you’re still having trouble after trying the suggested solution, call Samsung at 1-800-SAMSUNG (726-7864). Control Display Symptom Possible cause Solution The display goes blank. A fuse in your home may be blown or the circuit breaker tripped. Replace the fuse or reset the circuit breaker. The buttons cannot be pressed properly.

• There is foreign matter caught between the buttons

• Touch model: There is moisture on the exterior

• The lock function is set

• Remove the foreign matter and try again.

• Remove the moisture and try again.

• Check whether the lock function is set. For the Microwave Oven Symptom Cause Action General The buttons cannot be pressed properly. Foreign matter may be caught between the buttons. Remove the foreign matter and try again. For touch models: Moisture is on the exterior. Wipe the moisture from the exterior. Child lock is activated. Deactivate Child lock. The oven does not work. Power is not supplied. Make sure power is supplied. Make sure the oven is plugged in. Check if a fuse has been blown or ciruit breaker has been tripped. The door is open. Close the door and try again. The door open safety mechanisms are covered in foreign matter. Remove the foreign matter and try again. The oven stops while in operation. The user has opened the door to turn food over. After turning over the food, press the Start button again to start operation. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 49 11/11/2019 5:51:13 PM50 English Troubleshooting Troubleshooting Symptom Cause Action The power turns off during operation. The oven has been cooking for an extended period of time. After cooking for an extended period of time, let the oven cool. The cooling fan is not working. Listen for the sound of the cooling fan. Trying to operate the oven without food inside. Put food in the oven. There is not sufcient ventilation space for the oven. There are intake/exhaust outlets on the front and rear of the oven for ventilation. Keep the gaps specied in the product installation guide. Several power plugs are being used in the same socket. Designate only one socket to be used for the oven. There is a popping sound during operation, and the oven doesn't work. Cooking sealed food or using a container with a lid may cause popping sounds. Do not use sealed containers as they may burst during cooking due to expansion of the contents. The oven exterior is too hot during operation. There is not sufcient ventilation space for the oven. There are intake/exhaust outlets on the front and rear of the oven for ventilation. Keep the gaps specied in the product installation guide. Objects are on top of the oven. Remove all objects on the top of the oven. The door cannot be opened properly. Food residue is stuck between the door and oven interior. Clean the oven and then open the door. Symptom Cause Action Heating including the Warm function does not work properly. The oven may not work, too much food is being cooked, or improper cookware is being used. Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated. Reduce the amount of food and start the function again. Use a cooking container with a at bottom. The thaw function does not work. Too much food is being cooked. Reduce the amount of food and start the function again. The interior light is dim or does not turn on. The door has been left open for a long time. The interior light may automatically turn off when the Eco function operates. Close and reopen the door or press the Cancel button. The interior light is covered by foreign matter. Clean the inside of the oven and check again. A beeping sound occurs during cooking. If the Auto Cook function is being used, this beeping sound means it's time to turn over the food during thawing. After turning over the food, press the Start button again to restart operation. The oven is not level. The oven is installed on an uneven surface. Make sure the oven is installed on at, stable surface. There are sparks during cooking. Metal containers are used during the oven/thawing functions. Do not use metal containers. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 50 11/11/2019 5:51:14 PMEnglish 51 Troubleshooting Symptom Cause Action When power is connected, the oven immediately starts to work. The door is not properly closed. Close the door and check again. There is electricity coming from the oven. The power or power socket is not properly grounded. Make sure the power and power socket are properly grounded.

through a door crack.

in the oven. There may be water or steam in some cases depending on the food. This is not an oven malfunction. Let the oven cool and then wipe with a dry dish towel. The brightness inside the oven varies. Brightness changes depending on power output changes according to function. Power output changes during cooking are not malfunctions. This is not an oven malfunction. Cooking is nished, but the cooling fan is still running. To ventilate the oven, the cooling fan continues to run for about 3 minutes after cooking is complete. This is not an oven malfunction. Symptom Cause Action Turntable While turning, the turntable comes out of place or stops turning. There is no roller ring, or the roller ring is not properly in place. Install the roller ring and then try again. The turn table drags while turning. The roller ring is not properly in place, there is too much food, or the container is too large and touches the inside of the microwave. Adjust the amount of food and do not use containers that are too large. The turn table rattles while turning and is noisy. Food residue is stuck to the bottom of the oven. Remove any food residue stuck to the bottom of the oven. Broiling Smoke comes out during operation. During initial operation, smoke may come from the heating elements when you rst use the oven. This is not a malfunction, and if you run the oven 2-3 times, it should stop. Food is on the heating elements. Let the oven cool and then remove the food from the heating elements. Food is too close to the grill. Put the food a suitable distance away while cooking. Food is not properly prepared and/or arranged. Make sure food is properly prepared and arranged. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 51 11/11/2019 5:51:14 PM52 English Troubleshooting Troubleshooting For the Lower Oven Symptom Possible cause Solution The oven will not turn on. The oven is not completely plugged into the electrical outlet. Make sure the electrical plug is inserted into a live, properly grounded outlet. A fuse in your home may be blown or a circuit breaker may have tripped. Replace the fuse or reset the circuit breaker. The oven controls have been set improperly. See the chapter on operating the oven starting on page 21. The oven is too hot. Allow the oven to cool. Incomplete service wiring. Call for service. Power outage. Check to see if the house lights will turn on. If necessary, call your local electric company for service. The oven light will not turn on. The light is loose or defective. • Tighten or replace the lamp.

• Call for service if the door light does not turn on. The switch operating the light is broken. Call for service. Symptom Possible cause Solution The oven smokes excessively during broiling. The oven controls have not been set properly. Refer to the section on operating the oven starting on page 21. The meat has been placed too close to the element. Reposition the rack to provide proper clearance between the meat and the element. Preheat the broil element for searing. The meat has not been properly prepared. Remove excess fat from the meat. Cut away fatty edges that may curl, leaving the lean intact. Grease has built up on oven surfaces. Regular cleaning is necessary when broiling frequently. Food does not bake or roast properly. The oven controls have not been set correctly. See the chapter on operating the oven starting on page 21. The oven rack has been positioned incorrectly or is not level. See the section on Using the oven racks starting on page

Incorrect cookware or cookware of improper size is being used. The oven temperature needs to be adjusted. See the Temp Adjust section on page 38. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 52 11/11/2019 5:51:14 PMEnglish 53 Troubleshooting Symptom Possible cause Solution Food does not broil properly. The serving size may not be appropriate. Refer to the Broiling recommendation guide for serving sizes on page 36, and then try again. The rack has not been properly positioned. See the Broiling recommendation guide on page 36. The cookware is not suited for broiling. Use suitable cookware. In some areas, the power (voltage) may be low.

• Preheat the broil element for 10 minutes.

• See the Broiling recommendation guide on page 36. The oven temperature is too hot or too cold. The oven temperature needs to be adjusted. See the section on adjusting the temperature on page 38. There is water dripping. You may see water or steam in some cases depending on the food you are cooking. This is not a product malfunction. Let the oven cool and then wipe with a dry dish towel. There is steam coming through the crack between the oven body and the door. Water is remaining in the oven. Symptom Possible cause Solution The oven will not self-clean. The oven temperature is too high to start a self-clean operation. Allow the oven to cool and then reset the controls. The oven controls have been set incorrectly. See the section on Self- cleaning on page 42. A self-cleaning cycle cannot be started if the oven lockout feature has been activated. Deactivate the oven lockout (see page 23). Excessive smoking during a self-cleaning cycle. There is excessive soiling in the oven. Touch OVEN OFF. Open the windows to rid the room of smoke. Wait until the self- cleaning cycle is cancelled. Wipe up the excessive soil and then start the self- cleaning cycle again. The oven door will not open after a self- cleaning cycle. The oven is too hot. Allow the oven to cool. The oven is not clean after a self-cleaning cycle. The oven controls were not set correctly. See the section on Self- cleaning on page 42. The oven was heavily soiled. Wipe up heavy spillovers before starting the self- cleaning cycle. Heavily soiled ovens may need to be self- cleaned again or for a longer period of time. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 53 11/11/2019 5:51:14 PM54 English Troubleshooting Troubleshooting Symptom Possible cause Solution A burning or oily odor is coming from the vent. This is normal for a new oven and will disappear in time.

• To speed the process, set a self-cleaning cycle for a minimum of 3 hours.

• See the section on Self- cleaning on page 42. Strong odor. An odor coming from the insulation around the inside of the oven is normal for the rst few times the oven is used. Operate the oven empty on the bake setting at 400 °F for 1 hour. The oven racks are difcult to slide. The shiny, silver-colored racks were cleaned in a self- cleaning cycle. Apply a small amount of vegetable oil to a paper towel, and then wipe the edges of the oven racks with the paper towel. The oven door is locked. The circuit breaker has been tripped or there was a power failure while the oven door was locked. Activate Control Lockout, and then unlock the control. See the Control Lockout section on page 23. Information codes Displayed Code Possible cause Solution C-d0 This code occurs if the control key is short for 1 minute. Clean the buttons and make sure there is no water on/ around them. Turn off the oven and try again. If the problem continues, contact a local Samsung service center. C-d1 This code occurs if the door lock is mispositioned. Touch OVEN OFF, and then restart the oven. If the problem persists, disconnect all power to the oven for at least 30 seconds and then reconnect the power. If this does not solve the problem, call for service. C-F0 This code occurs if communication between the Main and Sub PBA is interrupted. C-F2 This code occurs if communication between the Main and Touch is interrupted. C-10 The cooking sensor is open when the microwave is operating. The cooking sensor is short when the microwave is operating. C-20 The oven sensor is open when the oven is operating. The oven sensor is short when the oven is operating. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 54 11/11/2019 5:51:14 PMEnglish 55 Warranty Displayed Code Possible cause Solution C-21 This code occurs if the internal temperature rises abnormally high. Touch OVEN OFF, and then restart the oven. If the problem persists, disconnect all power to the oven for at least 30 seconds and then reconnect the power. If this does not solve the problem, call for service. C-30 The PCB sensor is open when the oven is operating. The PCB sensor is short when the oven is operating. C-31 This code occurs if the PCB temperature rises abnormally high. Call for service C-A2 The cooling motor is operating abnormally. Call for service. bAd LinE This code occurs if the power connection is plugged in improperly. Reconnect the power connection properly, and the message disappears. Warranty (U.S.A) PLEASE DO NOT DISCARD. THIS PAGE REPLACES THE WARRANTY PAGE IN

LIMITED WARRANTY TO ORIGINAL PURCHASER WITH PROOF OF PURCHASE This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period, starting from the date of original purchase, of: One (1) Year Parts and Labor Ten (10) Years Magnetron Part (Part Only) This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center to receive warranty service. SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer’s geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service. To receive in-home service, product must be unobstructed and accessible to the service agent. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 55 11/11/2019 5:51:14 PM56 English Warranty Warranty During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product’s warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG. This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modication or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product’s nishes; damage caused by abuse, misuse, overheating due to overcooking, glass tray or turntable, pest infestations, accident, re, oods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, uctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses); and reduced magnetron power output related to normal aging. The cost of repair or replacement under these excluded circumstances shall be the customer’s responsibility. Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues. Samsung will charge a repair fee for replacing an accessory or repairing cosmetic damage if the damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items this covers include:

• Dented, scratched, or broken door, handle, out-panel, or control panel

• Broken or lost tray, guide roller, coupler, lter, or wire rack Parts that SAMSUNG has determined can be replaced by the user may be sent to the customer for installation. In SAMSUNG’s discretion, an authorized servicer can be dispatched to perform such installation.

EXCLUSION OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state.

LIMITATION OF REMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG’S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME WAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state. SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, rm, or corporation with respect to this product shall be binding on SAMSUNG. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 85 Challenger Road Ridgeeld Park, NJ 07660 1-800-SAMSUNG (726-7864) and www.samsung.com/us/support Warranty (U.S.A) NQ70R5510DG_AA_DG68-01148A-02_EN.indd 56 11/11/2019 5:51:14 PMEnglish 57 Warranty Warranty (CANADA) PLEASE DO NOT DISCARD. THIS PAGE REPLACES THE WARRANTY PAGE IN

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: ONE (1) YEAR PARTS AND LABOR, FIVE (5) YEARS PARTS WARRANTY FOR MAGNETRON This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the CANADA. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Samsung will provide in-home service during the warranty period at no charge subject to availability within the contiguous CANADA. In home service is not available in all areas. To receive in home service, the product must be unobstructed and accessible to the service agent. If service is not available Samsung may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specied above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior nish; accidents, abuse, neglect, re, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG which damage this product or result in service problems; incorrect electrical line voltage, uctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations, and overheating or overcooking by user. This limited warranty shall not cover cases of incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or xing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product. NQ70R5510DG_AA_DG68-01148A-02_EN.indd 57 11/11/2019 5:51:15 PM58 English Warranty Open Source Announcement The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:oss.request@ samsung.com. It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required. The following URL http://opensource.samsung.com/opensource/SimpleConnectTP/ seq/0 leads to the download page of the source code made available and open source license information as related to this product. This offer is valid to anyone in receipt of this information. EXCEPT AS SET FORTH HEREIN THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics Canada Inc. 2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada 1-800-SAMSUNG (726-7864) and www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) Warranty (CANADA) NQ70R5510DG_AA_DG68-01148A-02_EN.indd 58 11/11/2019 5:51:15 PMMemo NQ70R5510DG_AA_DG68-01148A-02_EN.indd 59 11/11/2019 5:51:15 PMPlease be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT U.S.A Consumer Electronics 1-800-SAMSUNG (726-7864) www.samsung.com/us/support CANADA 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) DG68-01148A-02 Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows
