USER MANUAL SteamDryer DLGX2802W LG

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the dryer is installed correctly and safely. Leave these instructions near the dryer after installation for future reference.

STEAM DRYERS™ Secador con vapór

GUÍA DEL USUARIO E

Sanitization Performance of Residential Clothes dryer

To contact LG Electronics, 24 hours a day, 7 days a week:

1-800-243-0000

Or visit us on the Web at: us.lge.com

To contact LG Electronics, 24 hours a day, 7 days a week :

1-888-LGCANADA

Or visit us on the Web at : ca.lge.com

Silhouette of a formal dress with tuxedo and bow tie (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

Basic Safety Precautions 3

What to Do if You Smell Gas 4

California safe drinking water and toxic

enforcement act 4

Grounding Instructions ....5

Safety Instructions for Installation 5, 6

Safety Instructions for Steam Functions ....6

Safety Instructions for Connecting Electricity .....7

PARTS AND FEATURES

Special Features 8

Key Parts and Components 9

INSTALLATION INSTRUCTIONS

IMPORTANT: Read all installation instructions

completely before installing and operating your dryer! 10

Choose the Proper Location 10

Clearances 10

Installation With Optional

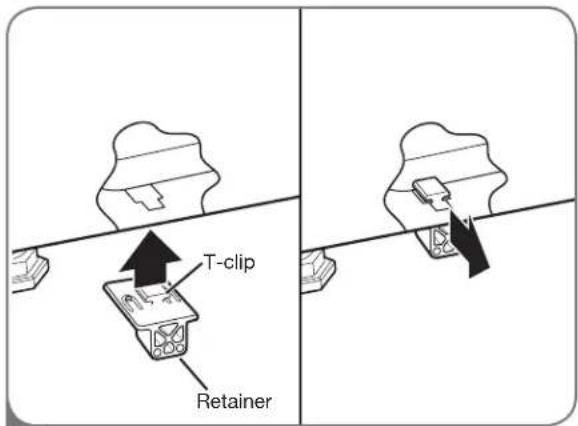

Pedestal Base or Stacking Kit 11

Optional Accessories 11

Leveling the Dryer 12

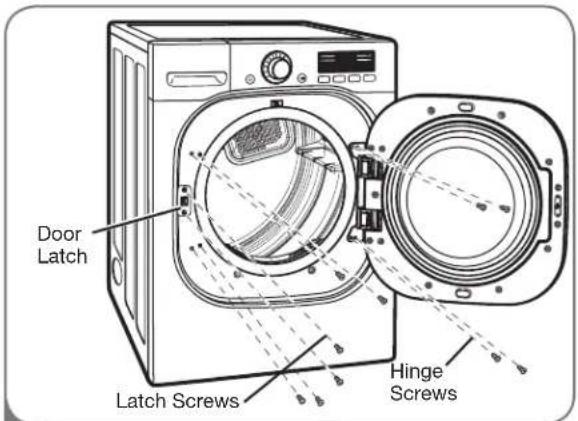

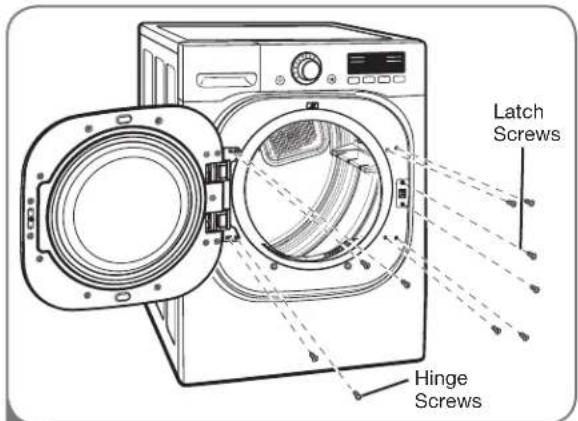

Reversing the Door Swing 12

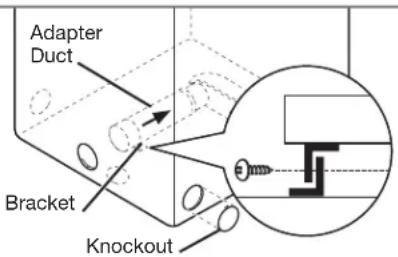

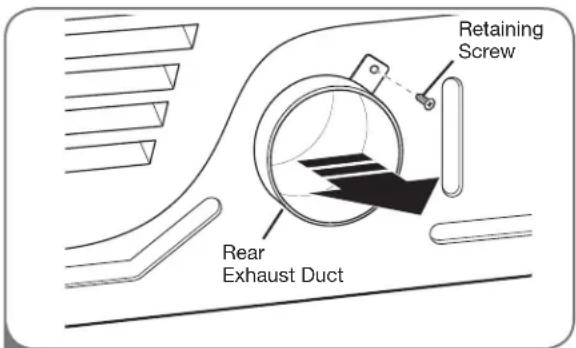

Changing the Dryer Vent Location 13

Venting the Dryer 14, 15

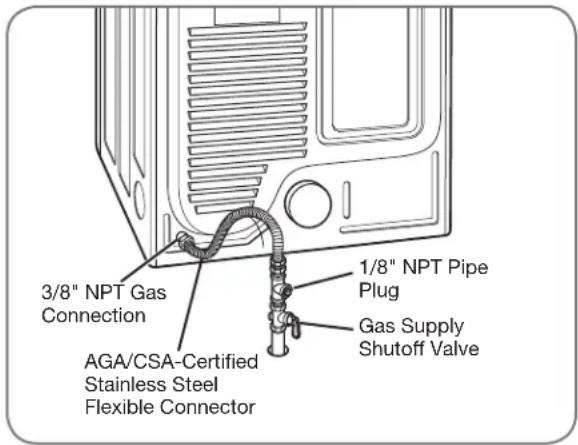

Connecting Gas Dryers 16, 17

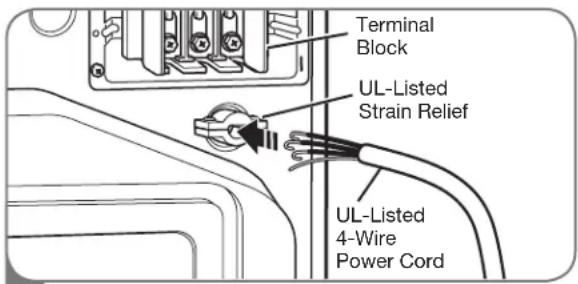

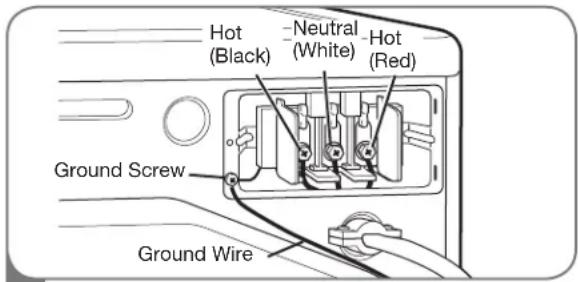

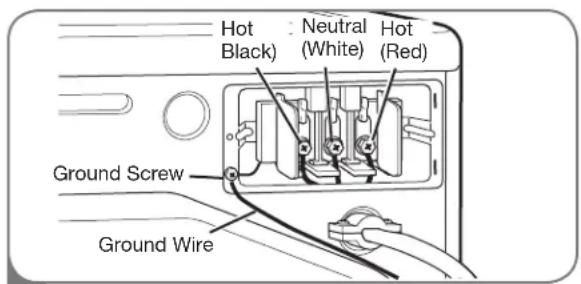

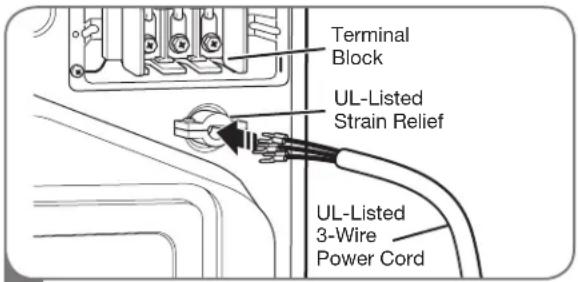

Connecting Electric Dryers 18-22

Special Requirements for Manufactured

or Mobile Homes 23

Final Installation Check 23

Flow Check (Duct condition test) 24

HOW TO USE

Sorting Loads 25

Loading the Dryer 25

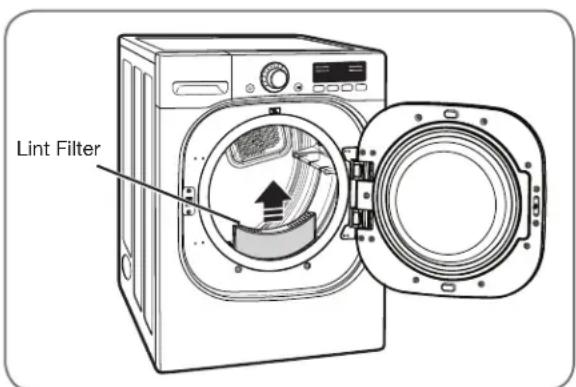

Check the Lint Filter Before Every Load 25

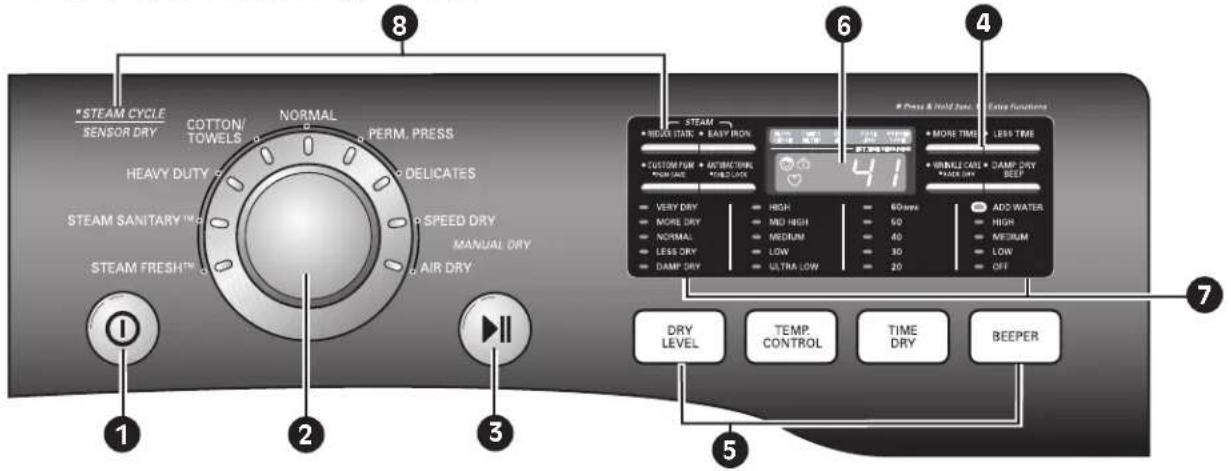

Control Panel Features 26

Cycle Guide 27

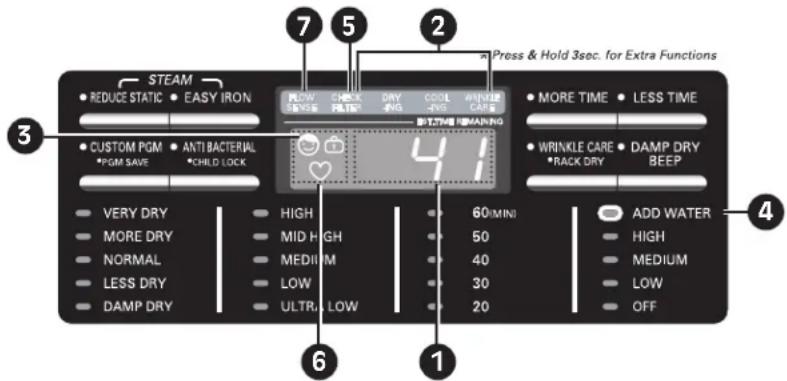

The Display 28

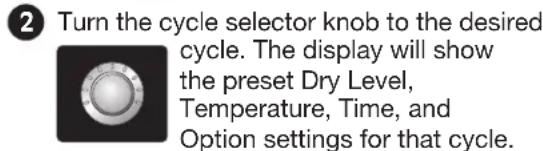

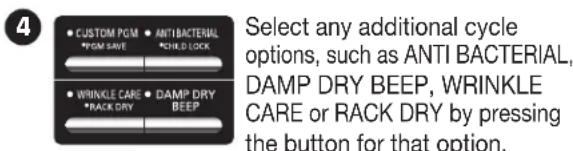

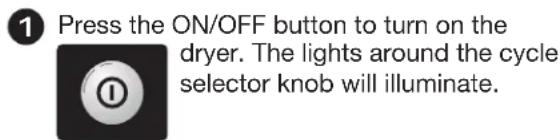

Operating the Dryer 29

Cycle Setting Buttons 29

Cycle Option Buttons 30

Special Functions 31

Custom Program 32

Steam Functions 32-34

Steam Cycle Guide 34

USER MAINTENANCE INSTRUCTIONS

Regular Cleaning 35

TROUBLESHOOTING

Before Calling for Service 36-38

THANK YOU!

Congratulations on your purchase

and welcome to the LG family. Your

new LG Dryer combines the most

advanced drying sensor technology

with simple operation and high

efficiency. By following the

operating and care instructions

in this manual, your dryer will

provide you with many years of

reliable service.

OPTIONAL ACCESSORIES

Optional Accessories 39

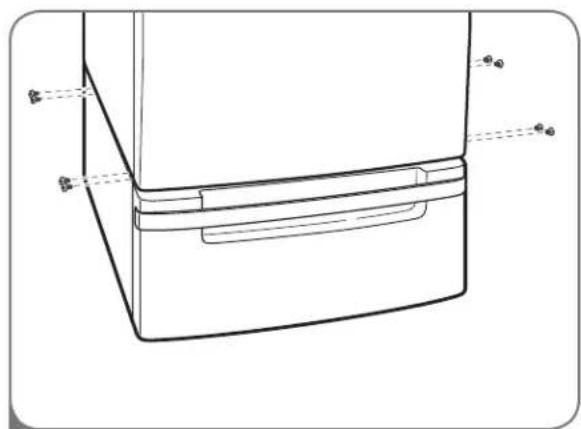

Pedestal Installation 40, 41

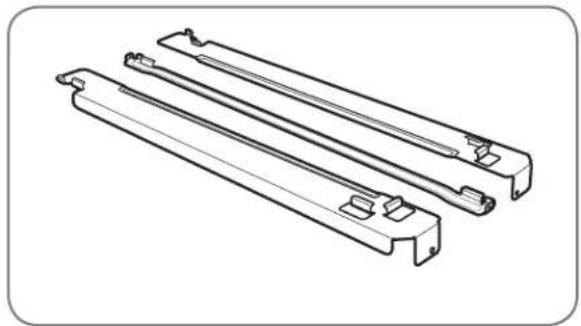

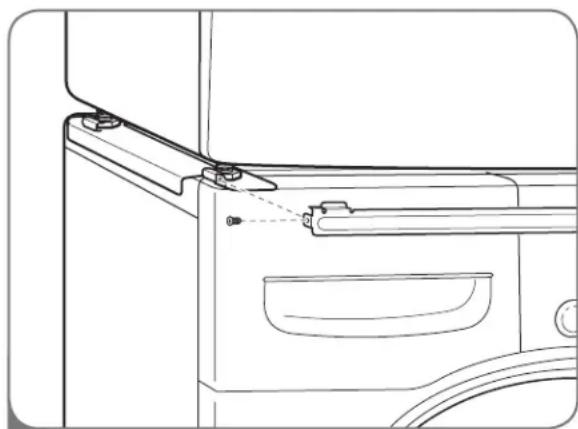

Stacking Kit Installation 42, 43

Key Dimensions and Specifications 43

WARRANTY 44, 45

Silhouette of a clothes hanger with a cloth and a spray bottle, no text or symbols present

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

Your Safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.

These words mean:

DANGER:

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING:

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

BASIC SAFETY PRECAUTIONS

WARNING:

To reduce the risk of fire, electric shock, or injury to persons when using this sautions, including the following:

• Read all instructions before using the dryer.
• Before use, the dryer must be properly installed as described in this manual.
• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances as they give off vapors that could ignite or explode.
• Do not reach into the dryer if the drum or any other part is moving.
• Do not repair or replace any part of the dryer or attempt any servicing unless specifically recommended in this Use and Care Guide or in published user-repair instructions that you understand and have the skills to carry out.
• Do not tamper with controls.

• Before the dryer is removed from service or discarded, remove the door to the drying compartment.

• Do not allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children.

• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
• Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
• Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.
• The interior of the dryer and exhaust vent should be cleaned periodically by qualified service personnel.
• Do not install or store the dryer where it will be exposed to the weather.
• Always check the inside of the dryer for foreign objects.
• Clean lint screen before or after each load.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

- Do not store or use gasoline or other fl ammable vapors and liquids in the vicinity of this appliance or any other appliances.

• Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

WHAT TO DO IF YOU SMELL GAS:

1. Do not try to light a match or cigarette, or turn on any gas or electrical appliance.
2. Do not touch any electrical switches. Do not use any phone in your building.

3. Clear the room, building, or area of all occupants.

4. Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions carefully.

5. If you cannot reach your gas supplier, call the fire department.

CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT ACT

This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects, or other reproductive harm and requires businesses to warn customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde, and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.

Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by properly venting the dryer to the outdoors.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance must be equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING — Improper

connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance must be connected to a grounded metal, permanent wiring system or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

Electrical shock can result if the dryer is not properly grounded.

SAFETY INSTRUCTIONS FOR INSTALLATION

⚠ WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

• Properly ground dryer to conform with all governing codes and ordinances. Follow details in the installation instructions. Electrical shock can result if the dryer is not properly grounded.
• Before use, the dryer must be properly installed as described in this manual. Electrical shock can result if the dryer is not properly grounded.
  • Install and store the dryer where it will not be exposed to temperatures below freezing or exposed to the weather.
• All repairs and servicing must be performed by an authorized servicer unless specifically recommended in this Owner's Guide. Use only authorized factory parts. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.

• To reduce the risk of electric shock, do not install the dryer in humid spaces. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.

• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload. Improper power circuit can melt, creating electrical shock and/or fire hazard.

• Remove all packing items and dispose of all shipping materials properly. Failure to do so can result in death, explosion, fire, or burns.
• Place dryer at least 18 in. above the floor for a garage installation. Failure to do so can result in death, explosion, fire, or burns.
• Keep all packaging from children. Packaging material can be dangerous for children. There is a risk of suffocation.
• Do not install nearby heat item. Such as stove, cooking oven. Failure to do so can cause deform, smoke and fire.
• Do not place candle and cigarettes on top of the product. Failure to do so can cause deform, smoke and fire.
• Remove all protective vinyl film from the product. Failure to do so can cause deform, smoke and fire.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

SAFETY INSTRUCTIONS FOR INSTALLATION

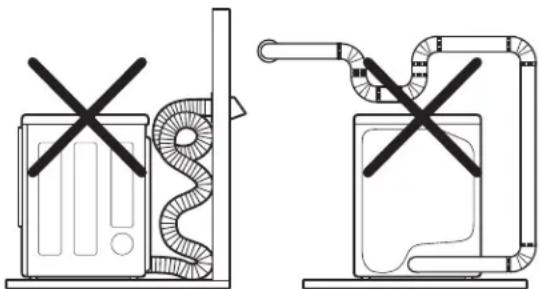

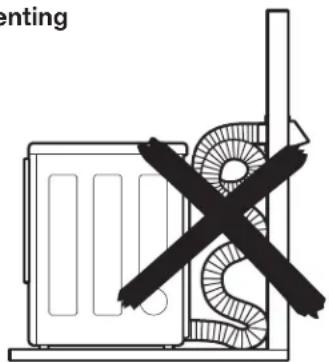

Exhaust/Ducting:

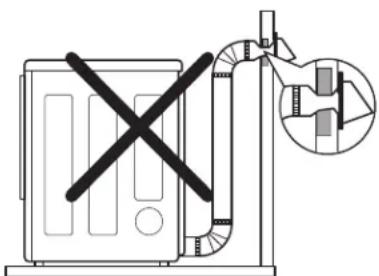

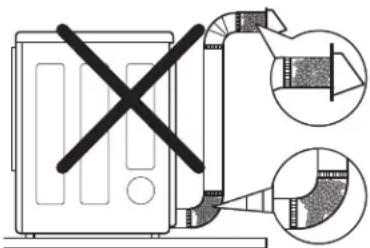

• Gas dryers MUST be exhausted to the outside. Failure to follow these instructions can result in fire or death.
• The dryer exhaust system must be exhausted to the outside of the dwelling. If the dryer is not exhausted outdoors, some fi ne lint and large amounts of moisture will be expelled into the laundry area. An accumulation of lint in any area of the home can create a health and fi re hazard.
• Use only rigid metal or fl exible metal 4-in. diameter ductwork inside the dryer cabinet or for exhausting to the outside. Use of plastic or other combustible ductwork can cause a fi re. Punctured ductwork can cause a fi re if it collapses or becomes otherwise restricted in use or during installation.

• Ductwork is not provided with the dryer, and you should obtain the necessary ductwork locally. The end cap should have hinged dampers to prevent backdraft when the dryer is not in use. Failure to follow these instructions can result in fire or death.

• The exhaust duct must be 4 in. (10.2 cm) in diameter with no obstructions. The exhaust duct should be kept as short as possible. Make sure to clean any old ducts before installing your new dryer. Failure to follow these instructions can result in fi re or death.

• Rigid or semi rigid metal ducting is recommended for use between the dryer and the wall. In special installations when it is impossible to make a connection with the above recommendations, a UL-listed fl exible metal transition duct may be used between the dryer and wall connection only. The use of this ducting will affect drying time. Failure to follow these instructions can result in fi re or death.
• DO NOT use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the effi ciency of the exhaust system. Secure all joints with duct tape. For complete details, follow the Installation Instructions. Failure to follow these instructions can result in fi re or death.

SAFETY INSTRUCTIONS FOR STEAM FUNCTIONS

⚠ WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

• Do not open the dryer door during steam cycles. Failure to follow these instructions can result in a burn hazard.

• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other fl ammable or explosive substances as they give off vapors that could ignite or explode. Failure to follow these instructions can result in fire or death.

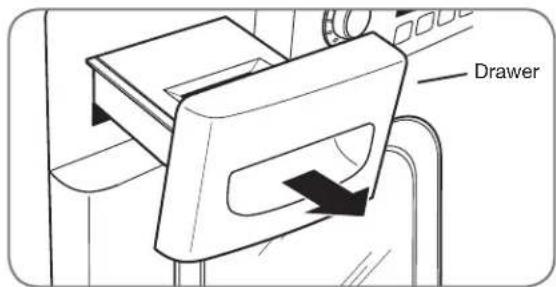

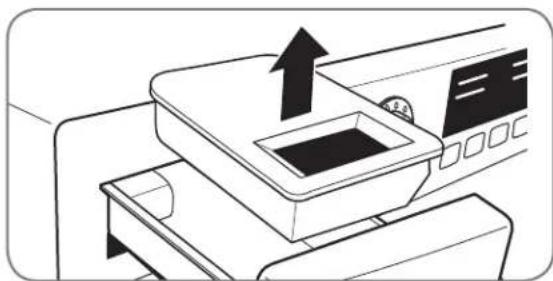

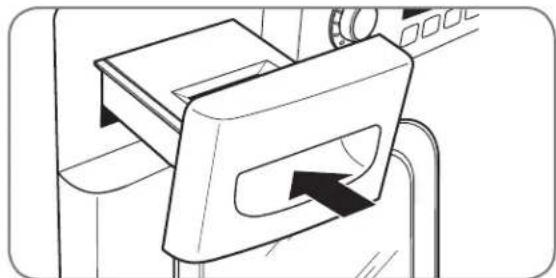

• Do not fi ll the steam feeder with gasoline, dry-cleaning solvents, or other fl ammable or explosive substances. Failure to follow these instructions can result in fi re or death.

• Do not touch the steam nozzle in the drum during or after the steam cycle. Failure to follow these instructions can result in a burn hazard.
• Do not fi ll the steam feeder with hot water (over 86°F/30°C). Failure to follow these instructions can result in a burn hazard.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

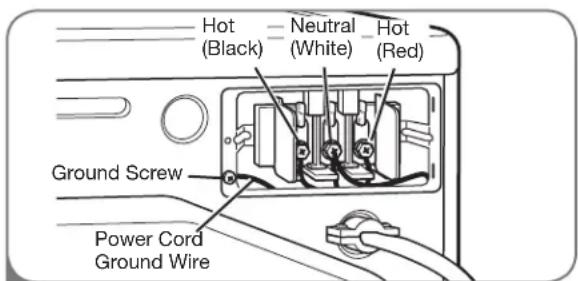

SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY

⚠ WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

• Do not, under any circumstances, cut or remove the ground prong from the power cord. To prevent personal injury or damage to the dryer, the electrical power cord must be plugged into a properly grounded outlet.
• For personal safety, this dryer must be properly grounded. Failure to do so can result in electrical shock or injury.
• Refer to the installation instructions in this manual for specific electrical requirements for your model. Failure to follow these instructions can create an electrical shock hazard and/or a fire hazard.
• This dryer must be plugged into a properly grounded outlet. Electrical shock can result if the dryer is not properly grounded. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Failure to follow these instructions can create an electrical shock hazard and/or a fire hazard.

• The dryer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

• Never unplug your dryer by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet. The power cord can be damaged, resulting in a risk of fire and electrical shock.

• Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. The power cord can melt, creating electrical shock and/or fire hazard.
• When installing or moving the dryer, be careful not to pinch, crush, or damage the power cord. This will prevent injury and prevent damage to the dryer from fire and electrical shock.

SAVE THESE INSTRUCTIONS

SPECIAL FEATURES

① EASY-TO-USE CONTROL PANEL

Rotate the Cycle Selector Knob to select the desired dry cycle. Add cycle options or adjust settings with the touch of a button.

② EASY-ACCESS REVERSIBLE DOOR

Wide-opening door provides easy access for loading and unloading. Door swing can be reversed to adjust for installation location.

3 ULTRA-CAPACITY STAINLESS STEEL DRUM WITH DRUM LIGHT

The ultra-large stainless steel drum offers superior durability. The drum is equipped with a yellow light that illuminates when the dryer door is open and turns off when the door is closed.

4 HELPFUL STEAM FUNCTIONS

LG's new steam technology allows you to inject fabrics with a swirling jet of hot steam to refresh clothes, reduce static, and make ironing easier. Simply select the STEAMFRESH™ cycle, or you can add a Steam option to selected cycles.

5 FLOW SENSE™ DUCT BLOCKAGE SENSING SYSTEM INDICATOR

The FLOW SENSE™ duct blockage sensing system detects and alerts you to blockages in the ductwork that reduce exhaust flow from the dryer. This improve operating efficiency and help minimize service calls, saving you money.

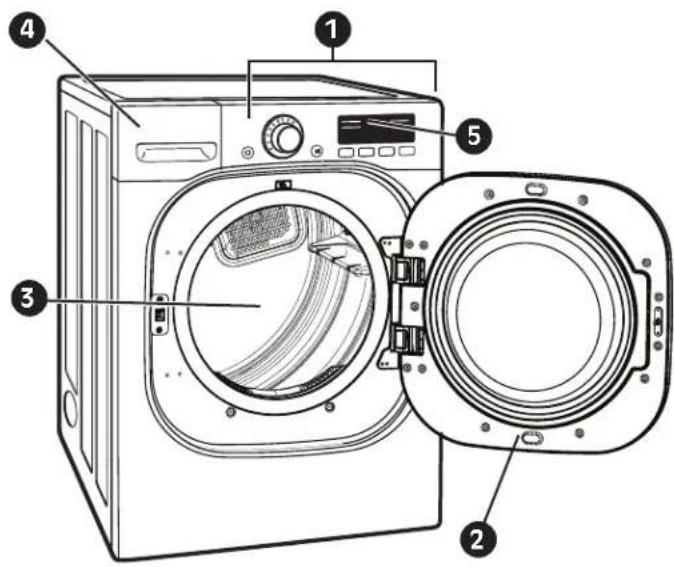

Diagram of a washing machine with numbered parts for identification and assembly reference

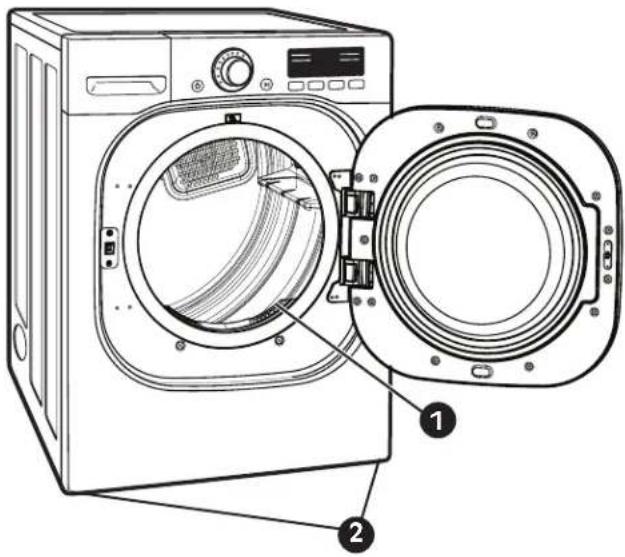

KEY PARTS AND COMPONENTS

In addition to the special features and components outlined in the Special Features section, there are several other important components that are referenced in this manual.

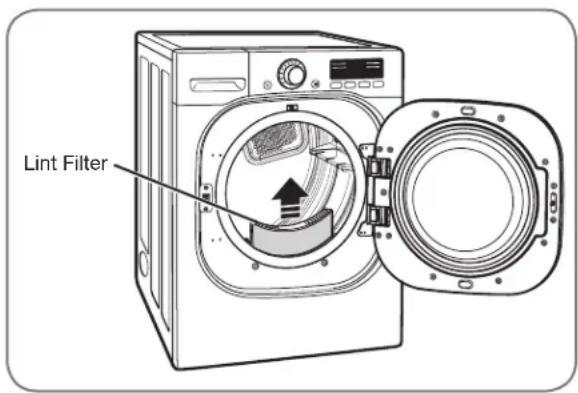

1 FRONT-MOUNT LINT FILTER

Front-mounted lint filter allows for easy access and cleaning after every load.

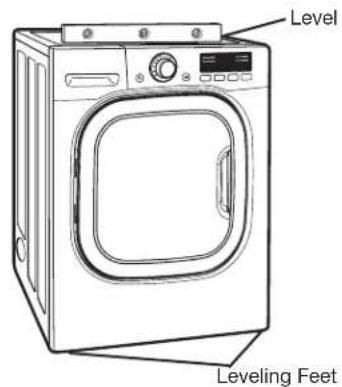

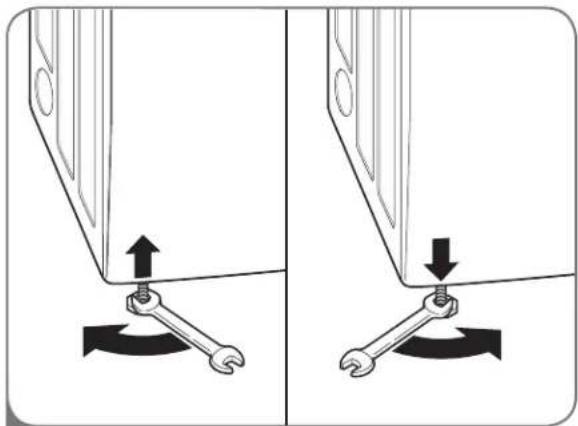

② LEVELING FEET

Four leveling feet (two in the front, and two in the back) adjust to improve dryer stability on uneven floors.

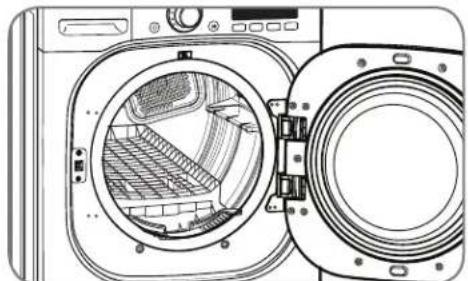

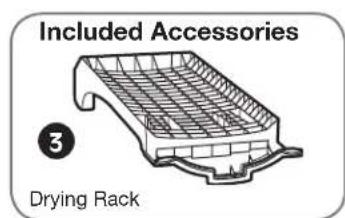

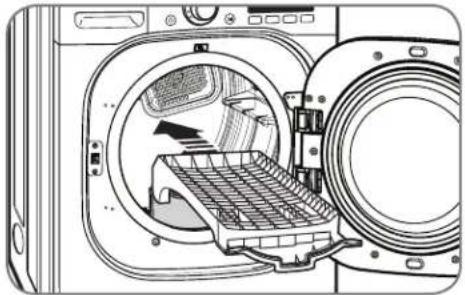

3 DRYING RACK

Use the drying rack with the RACK DRY cycle option. The drying rack allows items, such as sweaters, delicates, and gym shoes, to be placed in a flat position for drying.

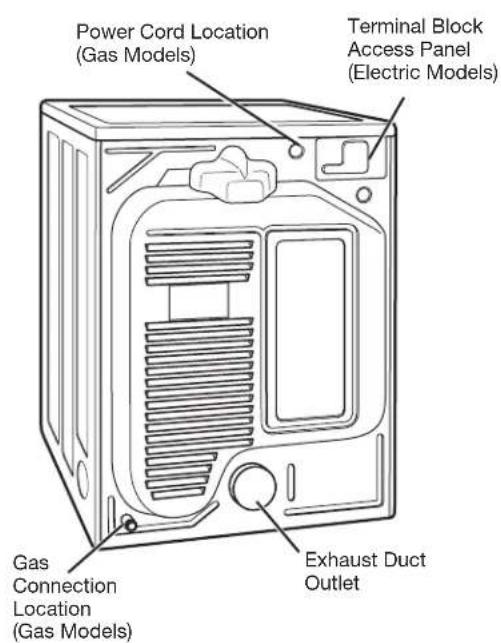

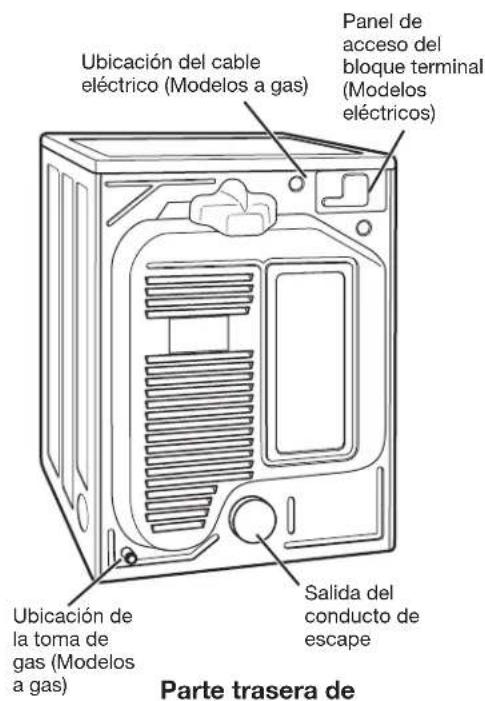

Diagram of a washing machine with labeled parts showing front and back views

Power Cord Location (Gas Models) Terminal Block Access Panel (Electric Models) Gas Connection Location (Gas Models) Exhaust Duct Outlet

Rear of Dryer

Included Accessories 3 Drying Rack

IMPORTANT: Read all installation instructions completely before installing and operating your dryer!

It is important that you review this entire manual before installing and using your dryer. Detailed instructions concerning electrical connections, gas connections, and exhaust requirements are provided on the following pages.

• Store and install the dryer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions.
• Choose a location with a solid, level floor.

• If the dryer is being installed in a garage, place the dryer at least 18 in. (46 cm) above the floor.

• Properly ground dryer to conform with all governing codes and ordinances.

• To reduce the risk of electric shock, do not install the dryer in damp or wet locations.
• If you are installing your dryer in a manufactured or mobile home, please refer to the section Special Requirements for Manufactured or Mobile Homes.

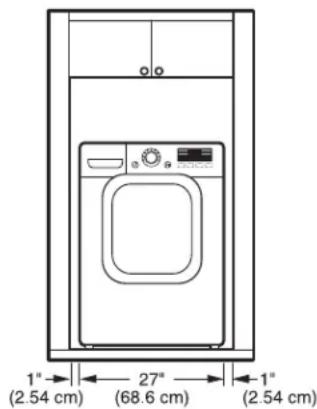

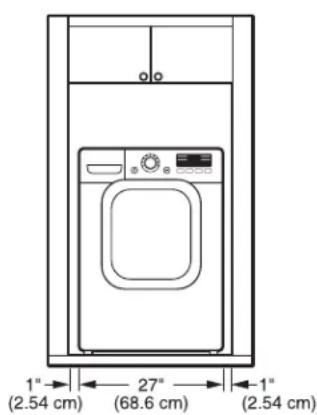

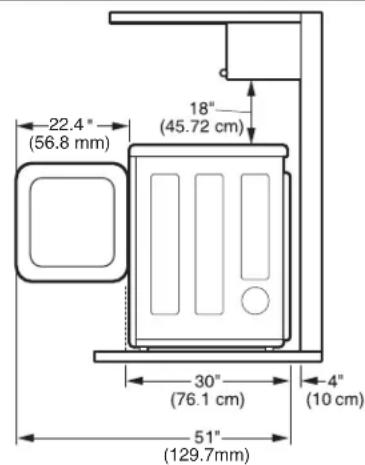

CLEARANCES

22.4" (56.8 mm) 18" (45.72 cm) 30" (76.1 cm) 4" (10 cm) 51" (129.7mm)

1" (2.54 cm) 27" (68.6 cm) 1" (2.54 cm)

3" (7.6 cm) 48 in.² (310 cm²) 24 in.² (155 cm²) 3" (7.6 cm) Closet Door Vent Requirements

• Most installations require a minimum 5 12 in. (14 cm) clearance behind the dryer for the exhaust ducting.
• Allow minimum clearances of at least 1 in. (2.5 cm) on the sides and back to minimize vibration and noise.
• Allowing additional clearance for installation and servicing is recommended.
• Be sure to allow for wall, door, or floor moldings that may increase the required clearances.
• Allow at least 24 in. (61 cm) in front of the dryer to open the door.

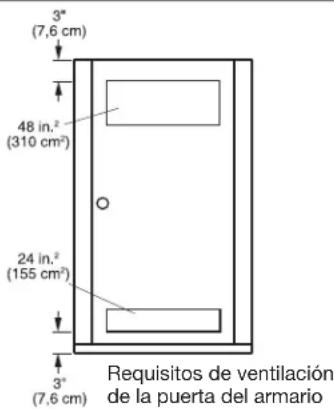

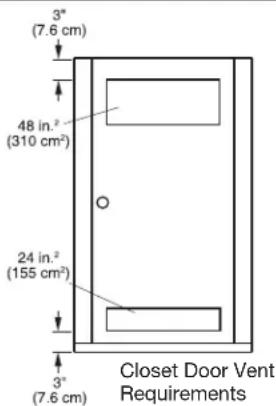

Additional Instructions for closet installations:

• The closet door must allow for suffi cient airfl ow. Refer to the diagram above for minimum vent opening requirements. A louvered door is also acceptable.
• Make sure that there is at least 18 in. (46 cm) of clearance above the dryer.

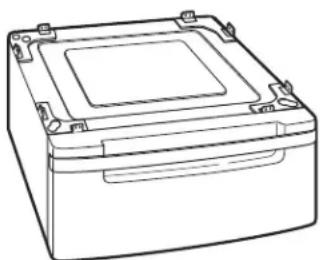

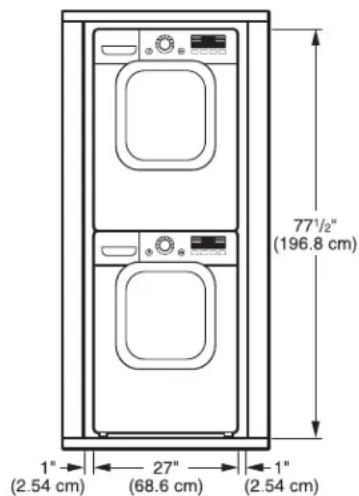

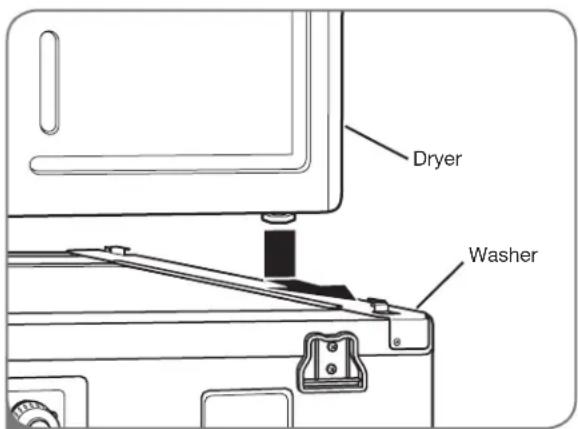

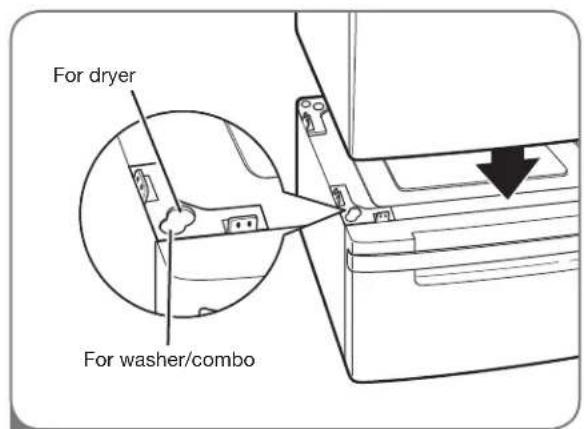

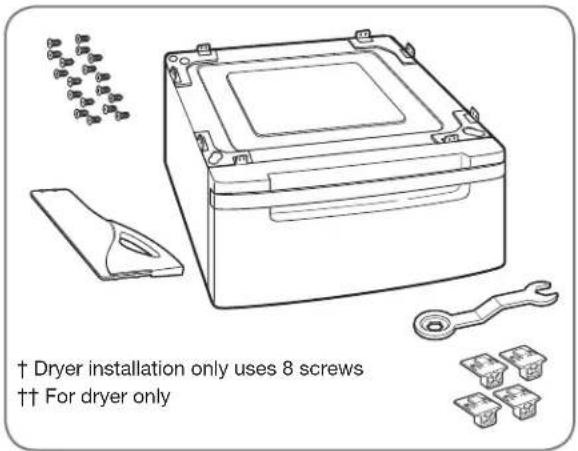

INSTALLATION WITH OPTIONAL PEDESTAL BASE OR STACKING KIT

IMPORTANT: If you are installing your dryer using an optional pedestal base or stacking kit, please refer to Optional Accessories in this manual or to the instructions for your pedestal or stacking kit before proceeding with the installation.

Required Dimensions for Installation With Pedestal

30" (76.1 cm) 4" (10 cm)

Required Dimensions for Installation With Stacking Kit

77½" (196.8 cm) 1" (2.54 cm) 27" (68.6 cm) 1" (2.54 cm)

OPTIONAL ACCESSORIES

For these and other LG products, contact your local LG dealer, or visit our Web site at us.lge.com.

Line drawing of a rectangular electronic device with a central square top and side slots (no text or symbols)

Pedestal (sold separately)

Stacking Kit (sold separately)

INSTALLATION INSTRUCTIONS

LEVELING THE DRYER

WARNING

• Wear gloves during installation.
• Failure to follow these instructions can result in injury.

To ensure that the dryer provides optimal drying performance, it must be level. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface.

NOTE: Adjust the leveling feet only as far as necessary to level the dryer. Extending the leveling feet more than necessary can cause the dryer to vibrate.

Level Leveling Feet

1 Position the dryer in the final location. Place a level across the top of the dryer.

- All four leveling feet must rest solidly on the floor. Gently push on the top corners of the dryer to make sure that the dryer does not rock from corner to corner.

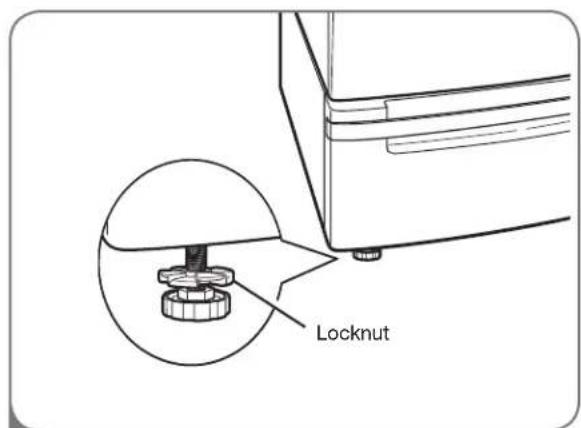

If you are installing the dryer on the optional pedestal, you must use the leveling feet on the pedestal to level the dryer. The dryer leveling feet should be fully retracted.

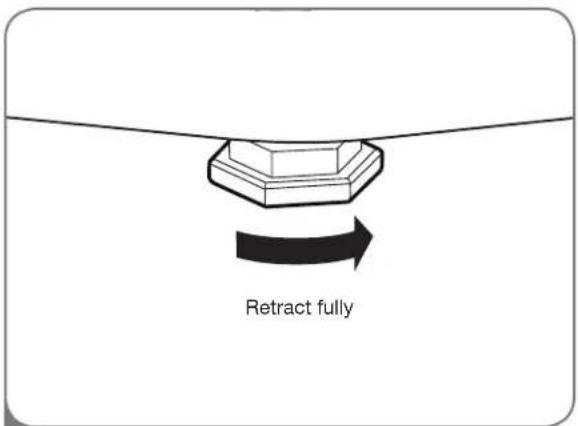

Diagram showing two mechanical components with arrows indicating movement or force, no text or symbols present

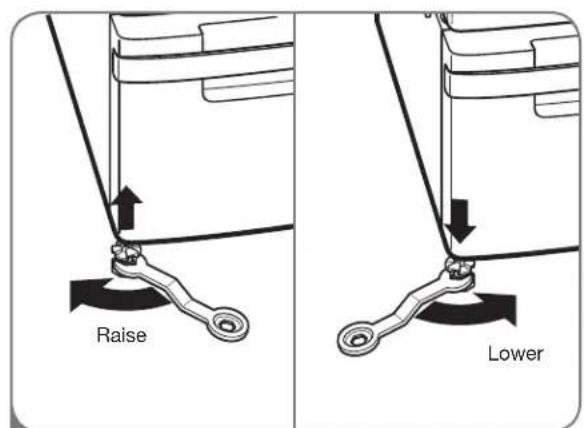

2 Use an adjustable wrench to turn the leveling feet. Turn clockwise to raise the dryer or counterclockwise to lower it. Raise or lower the leveling feet until dryer is level from side to side and front to back.

Make sure that all 4 leveling feet are in firm contact with the floor.

REVERSING THE DOOR SWING

The swing of the dryer door can be reversed to fit your installation location.

Door Latch Latch Screws Hinge Screws

1 Open the dryer door. Using a Phillips screwdriver, remove the 4 screws that secure the door hinge to the dryer door opening. Remove the 6 screws from the latch side of the dryer door opening, and remove the door latch.

Latch Screws Hinge Screws

2 Turn the door around so the hinge is reversed, and reattach the door using the 4 screws previously removed. Reinstall the door latch and the 6 screws.

Test the door swing to make sure the door moves freely and latches securely.

CHANGING THE DRYER VENT LOCATION

WARNING

• Use a heavy metal vent.
• Do not use plastic or thin foil duct.
• Clean old ducts before installing this dryer.
• Wear gloves during installation.
• Failure to follow these instructions can result in death or fire.

Your new dryer is shipped to vent to the rear. It can also be configured to vent to the bottom or side (right-side venting is not available on gas models).

An adapter kit, part number 383EEL9001B, may be purchased from your LG retailer. This kit contains the necessary duct components to change the dryer vent location.

Retaining Screw Rear Exhaust Duct

1 Remove the rear exhaust duct retaining screw. Pull out the exhaust duct.

OPTION 1: Side venting

Adapter Duct Bracket Knockout

2 Press the tabs on the knockout and carefully remove the knockout for the desired vent opening (right-side venting is not available on gas models). Press the adapter duct onto the blower housing and secure to the base of the dryer as shown.

Cover Plate Elbow 1½° (3.8 cm)

3 Preassemble a 4-in. (10.2 cm) elbow to the next 4-in. (10.2 cm) duct section, and secure all joints with duct tape. Be sure that the male end of the elbow faces AWAY from the dryer. Insert the elbow/duct assembly through the side opening and press it onto the adapter duct. Secure in place with duct tape. Be sure that the male end of the duct protrudes 1½ in. (3.8 cm) to connect the remaining ductwork. Attach cover plate to the back of the dryer with included screw.

OPTION 2: Bottom venting

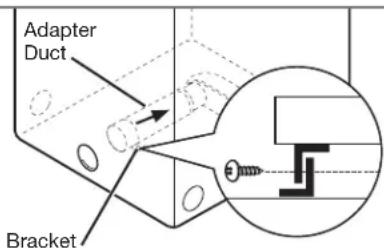

Adapter Duct Bracket

2 Press the adapter duct onto the blower housing and secure to the base of the dryer as shown.

Cover Plate Elbow

3 Insert the 4-in. (10.2 cm) elbow through the rear opening and press it onto the adapter duct. Be sure that the male end of the elbow faces down through hole in the bottom of the dryer. Secure in place with duct tape. Attach the cover plate to the back of the dryer with included screw.

VENTING THE DRYER

WARNING:

To reduce the risk of fire, electric shock, or injury to persons when using this sautions, including the following:

• Do not crush or collapse ductwork. Failure to follow these instructions can result in fire or death.
• Do not allow ductwork to rest on or contact sharp objects. Failure to follow these instructions can result in fi re or death.
• If connecting to existing ductwork, make sure it is suitable and clean before installing the dryer. Failure to follow these instructions can result in fi re or death.
• Venting must conform to local building codes. Failure to follow these instructions can result in fire or death.
• Gas dryers MUST exhaust to the outdoors. Failure to follow these instructions can result in fire or death.
• Use only 4-in. (10.2 cm) rigid or fl exible metal ductwork inside the dryer cabinet and for venting outside. Failure to follow these instructions can result in fi re or death.
• To reduce the risk of fire, combustion, or accumulation of combustible gases, DO NOT exhaust dryer air into an enclosed and unventilated area, such as an attic, wall, ceiling, crawl space, chimney, gas vent, or concealed space of a building. Failure to follow these instructions can result in fire or death.
• To reduce the risk of fi re, DO NOT exhaust the dryer with plastic or thin foil ducting. Failure to follow these instructions can result in fi re or death.

• In Canada, that the exhaust duct shall be 4in.(10.2 cm) in diameter with no obstructions. In the United States, the required exhaust duct diameter; The exhaust duct should be kept as short as possible. Make sure to clean any old ducts before installing your new dryer. Failure to follow these instructions can result in fire or death.

• Rigid or semirigid metal ducting is recommended for use between the dryer — and the wall. In special installations when it is impossible to make a connection with the above recommendations, a UL-listed fl exible metal transition duct may be used between the dryer and wall connection only. The use of this ducting will affect drying time. Failure to follow these instructions can result in fire or death.

• In Canada. that only those foil-type fl exible ducts, if any, specifi cally identifi ed for use with the appliance by the manufacturer shall be used. In the United States, that only those foil-type fl exible ducts, if any, specifi cally identifi ed for use with the appliance by the manufacturer and that comply with the Outline for Clothes Dryer Transition Duct, Subject 2158A, shall be used
• DO NOT use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the efficiency of the exhaust system. Secure all joints with duct tape. Failure to follow these instructions can result in fire or death.
• To maximize operating results, please observe the duct length limitations noted in the chart on page 15. Failure to follow these instructions can result in fire or death.
• Ductwork is not provided with the dryer. You should obtain the necessary ductwork locally. The end cap should have hinged dampers to prevent backdraft when the dryer is not in use. Failure to follow these instructions can result in fire or death.
• The Total length of fl exible metal duct shall not exceed 8 ft.(2.4m)

VENTING THE DRYER (cont.)

Ductwork

Wall Cap Type 90° Elbows	Number of	Max. Length of 4-In. Dia.Rigid Metal Duct
0Recommended	65 ft. (19.8 m)
	55 ft. (16.8 m)
	2	47 ft. (13.7 m)
	36 ft. (11.0 m)
	28 ft. (8.5 m)
UseOnly for ShortRun Installations	55 ft. (16.8 m)
	1	47 ft. (13.7 m)
	2	41 ft. (12.5 m)
	30 ft. (9.1 m)
	22 ft. (6.7 m)

NOTE: Deduct 6 ft. (1.8 m) for each additional elbow. It is not recommended to use more than four 90° elbows.

Routing and Connecting Ductwork

Follow the guidelines below to maximize drying performance and reduce lint buildup and condensation in the ductwork.

NOTE: Ductwork and fittings are NOT included and must be purchased separately.

• Use 4-in. (10.2 cm) diameter rigid or semirigid metal ductwork.
• The exhaust duct run should be as short as possible.
• Use as few elbow joints as possible.
• The male end of each section of exhaust duct must point away from the dryer.
• Use duct tape on all duct joints.
• Insulate ductwork that runs through unheated areas in order to reduce condensation and lint buildup on duct surfaces.

IMPORTANT: Failure to exhaust the dryer correctly will void the dryer's warranty.

Correct Venting

Line drawing of a heating unit with ductwork and ventilation slots (no text or symbols)

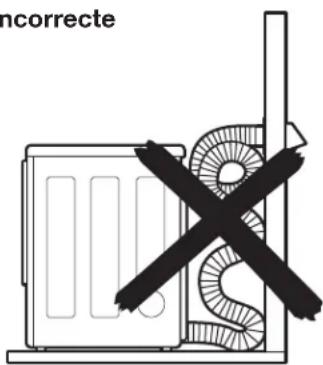

Incorrect Venting

enting

CONNECTING GAS DRYERS

WARNING:

To reduce the risk of fire, electric shock, or injury to persons when using this

appliance, follow basic precautions, including the following:

• Gas supply requirements: As shipped from the factory, this dryer is confi gured for use with natural gas. It can be converted for use with LP (Liquefi ed Propane) gas. Gas pressure must not exceed 13 in. water column.
• A qualified service or gas company technician must connect the dryer to the gas service. Failure to do so can result in fire, explosion, or death.
• Isolate the dryer from the gas supply system by closing its individual manual shutoff valve during any pressure testing of the gas supply. Failure to do so can result in fire, explosion, or death.
• Supply line requirements: Your laundry room must have a rigid gas supply line to your dryer. In the United States, an individual manual shutoff valve MUST be installed within at least 6 ft. (1.8 m) of the dryer, in accordance with the National Fuel Gas Code ANSI Z223.1 or Canadian gas installation code CSA B149.1. A 1/8-in. NPT pipe plug must be installed. Failure to do so can result in fire, explosion, or death.

• If using a rigid pipe, the rigid pipe should be 1/2-in. IPS. If acceptable under local codes and ordinances and when acceptable to your gas supplier, 3/8-in. approved tubing may be used where lengths are less than 20 ft. (6.1 m). Larger tubing should be used for lengths in excess of 20 ft. (6.1 m). Failure to do so can result in fire, explosion, or death.

• Connect the dryer to the type of gas shown on the nameplate. Failure to do so can result in fire, explosion, or death.

• To prevent contamination of the gas valve, purge the gas supply of air and sediment before connecting the gas supply to the dryer. Before tightening the connection between the gas supply and the dryer, purge remaining air until the odor of gas is detected. Failure to do so can result in fire, explosion, or death.
• DO NOT use an open fl ame to inspect for gas leaks. Use a noncorrosive leak-detection fl uid. Failure to do so can result in fi re, explosion, or death.
• Use only a new AGA- or CSA-certifi ed gas supply line with fl exible stainless steel connectors. Failure to do so can result in fi re, explosion, or death.
• Securely tighten all gas connections. Failure to do so can result in fire, explosion, or death.
• Use Tefl on® tape or a pipe-joint compound that is insoluble in Liquefi ed Petroleum (LP) gas on all pipe threads. Failure to do so can result in fire, explosion, or death.
• DO NOT attempt any disassembly of the dryer; any disassembly requires the attention and tools of an authorized and qualified service person or company. Failure to do so can result in fire, explosion, or death.

Electrical Requirements for Gas Models Only

WARNING:

To reduce the risk of fire, electric shock, or injury to persons when using this

appliance, follow basic precautions, including the following:

• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Failure to follow this warning can result in fi re, explosion, or death.
• For personal safety, this dryer must be properly grounded. Failure to follow this warning can result in fire, explosion, or death.

• The power cord of this dryer is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance. Failure to follow this warning can result in fire, explosion, or death.

• This dryer must be plugged into a 120-VAC, 60-Hz. grounded outlet protected by a 15-ampere fuse or circuit breaker. Failure to follow this warning can result in fire, explosion, or death.

• Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Failure to follow this warning can result in fi re, explosion, or death.

CONNECTING GAS DRYERS (cont.)

WARNING:

To reduce the risk of fire, electric shock, or injury to persons when using this sautions, including the following:

• Installation and service must be performed by a qualified installer, service agency, or the gas supplier. Failure to do so can result in fire, explosion, or death.
• Use only a new stainless steel flexible connector and a new AGA-certified connector. Failure to do so can result in fire, explosion, or death.
• A gas shutoff valve must be installed within 6 ft. (1.8 m) of the dryer. Failure to do so can result in fire, explosion, or death.

• The dryer is configured for Natural Gas when shipped from the factory. Make sure that the dryer is equipped with the correct burner nozzle for the type of gas being used (Natural Gas or Liquefied Petroleum). Failure to do so can result in fire, explosion, or death.

• If necessary, the correct nozzle (for the LP nozzle kit order part number 4948EL4002B) should be installed by a qualified technician and the change should be noted on the dryer. Failure to do so can result in fire, explosion, or death.

• All connections must be in accordance with local codes and regulations. Failure to do so can result in fire, explosion, or death.
• Gas dryers MUST exhaust to the outdoors. Failure to do so can result in fire, explosion, or death.

Connecting the Gas Supply

1 Make sure that the gas supply to the laundry room is turned OFF. Confirm that the type of gas available in your laundry room is appropriate for the dryer. The dryer is prepared for Natural Gas with a 3/8-in. NPT gas connection.
2 Remove the shipping cap from the gas connection at the back of the dryer. Be careful not to damage the threads of the gas connector when removing the shipping cap.
3 Connect the dryer to your laundry room's gas supply using a new flexible stainless steel connector with a 3/8-in. NPT fitting.
4 Securely tighten all connections between the dryer and your laundry room's gas supply. Turn on your laundry room's gas supply and check all pipe connections (both internal and external) for gas leaks with a noncorrosive leak-detection fluid.

Electrical Connection

Illustration of a hand holding an electrical outlet with two outlets (no text or symbols)

Plug dryer into a 120-VAC, 60-Hz. grounded 3-prong outlet.

3/8" NPT Gas Connection 1/8" NPT Pipe Plug AGA/CSA-Certified Stainless Steel Flexible Connector Gas Supply Shutoff Valve

High-Altitude Installations

The BTU rating of this dryer is AGA-certified for elevations below 10,000 feet.

If your gas dryer is being installed at an elevation above 10,000 feet, it must be derated by a qualified technician or gas supplier.

CONNECTING ELECTRIC DRYERS

⚠ WARNING: To help prevent fire, electric shock, serious injury, or death, the wiring and grounding must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70 and all applicable local regulations. Please contact a qualified electrician to check your home’s wiring and fuses to ensure that your home has adequate electrical power to operate the dryer.

Electrical Requirements for Electric Models Only

⚠ WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

• This dryer must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dryer. Failure to do so can result in fire, explosion, or death.
• The dryer has its own terminal block that must be connected to a separate 240 VAC, 60-Hertz, single-phase circuit, fused at 30 amperes (the circuit must be fused on both sides of the line). ELECTRICAL SERVICE FOR THE DRYER SHOULD BE OF THE MAXIMUM RATE VOLTAGE LISTED ON THE NAMEPLATE. DO NOT CONNECT DRYER TO 110-, 115-, OR 120-VOLT CIRCUIT. Heating elements are available for fi eld installation in dryers which are to be connected to an electrical service of a different voltage than that listed on the rating plate. Failure to follow these instructions can result in fi re, explosion, or death.

- If branch circuit to dryer is 15 ft. (4.5 m) or less in length, use UL (Underwriters Laboratories) listed No.-10 AWG wire (copper wire only), or as required by local codes. If over 15 ft. (4.50 m), use UL-listed No.-8 AWG wire (copper wire only), or as required by local codes. Allow sufficient slack in wiring so dryer can be moved from its normal location when necessary. Failure to do so can result in fi re, explosion, or death.

- The power cord (pigtail) connection between wall receptacle and dryer terminal block IS NOT supplied with dryer. Type of pigtail and gauge of wire must conform to local codes and with instructions on the following pages. Failure to follow these instructions can result in fire, explosion, or death.

- A 4-wire connection is required for all mobile and manufactured home installations, as well as all new construction after January 1, 1996. A 4-wire connection must be used where local codes do not permit grounding through the neutral wire. Failure to do so can result in fire, explosion, or death.

⚠ WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

• Do not modify the plug and internal wire provided with the dryer.
• The dryer should be connected to 4-hole outlet.

- If it does not fit the outlet, a proper outlet will need to be installed by a qualified electrician.

Special Electrical Requirements for Mobile or Manufactured Homes

⚠ WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

- Any installation in a manufactured or mobile home must comply with the Manufactured Home Construction and Safety Standards Title 24 CFR, Part 32-80 or Standard CAN/CSA0Z240 MH and local codes and ordinances.

- A 4-wire connection is required for all mobile and manufactured home installations, as well as all new construction after January 1, 1996. Failure to do so can result in fire, explosion, or death.

CONNECTING ELECTRIC DRYERS (cont.)

USA ONLY

⚠ WARNING:

• Connect the power cord to the terminal block. Each colored wire should be connected to same color screw. Wire color indicated on manual is connected to the same color screw in block. Failure to follow these instructions may result in a short or overload.
• Grounding through the neutral conductor is prohibited for: (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor.

Four-Wire Connection for Electric Dryers: Power Cord

• A 4-wire connection is required for all mobile and manufactured home installations, as well as all new construction after January 1, 1996.
• A UL-listed strain relief is required.

- Use a 30-amp, 240V, UL-listed power cord with #10 AWG-minimum copper conductor and closed loop or forked terminals with upturned ends.

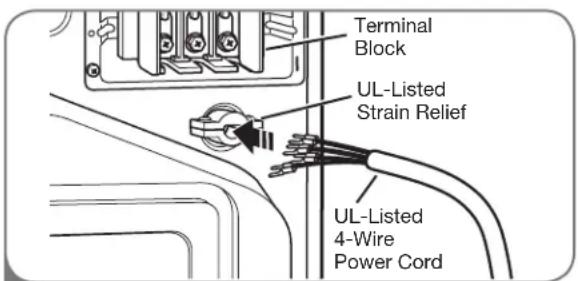

Terminal Block UL-Listed Strain Relief UL-Listed 4-Wire Power Cord

1 Remove the terminal block access cover on the upper back of the dryer. Install a UL-listed strain relief into the power cord through-hole; then thread a UL-listed, 30A, 240V, 4-wire, #10 AWG-minimum copper conductor power cord through the strain relief.

Hot (Black) Neutral (White) Hot (Red) Ground Screw Power Cord Ground Wire

2 Transfer the dryer's ground wire from behind the green ground screw to the center screw of the terminal block. Attach the two hot leads of the power cord to the outer terminal block screws. Attach the white neutral wire to the center terminal block screw. Attach the power cord ground wire to the green ground screw. TIGHTEN ALL SCREWS SECURELY. Reinstall the terminal block access cover.

CONNECTING ELECTRIC DRYERS (cont.)

USA ONLY

⚠ WARNING:

• Connect the power cord to the terminal block. Each colored wire should be connected to same color screw. Wire color indicated on manual is connected to the same color screw in block. Failure to follow these instructions may result in a short or overload.
• Grounding through the neutral conductor is prohibited for: (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor.

Four-Wire Connection for Electric Dryers: Direct Wire

• A 4-wire connection is required for all mobile and manufactured home installations, as well as all new construction after January 1, 1996.
• A UL-listed strain relief is required.

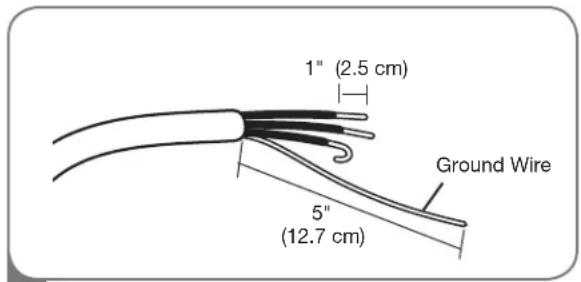

1" (2.5 cm) 5" (12.7 cm) Ground Wire

1 Remove 5 inches (12.7 cm) of the outer covering from the wire. Remove 5 inches of insulation from the ground wire. Cut off approximately 112 inches (3.8 cm) from the other three wires and strip 1 inch (2.5 cm) insulation from each wire. Bend the ends of the three shorter wires into a hook shape.

• Use UL-listed 4-wire #10 AWG-minimum copper conductor cable.
• Allow at least 5 ft (1.5 m) length to allow for removal and reinstallation of the dryer.

Terminal Block UL-Listed Strain Relief UL-Listed 4-Wire Power Cord

2 Remove the terminal block access cover on the upper back of the dryer. Install a UL-listed strain relief into the power cord through-hole; then thread the power cable prepared in Step 1 through the strain relief.

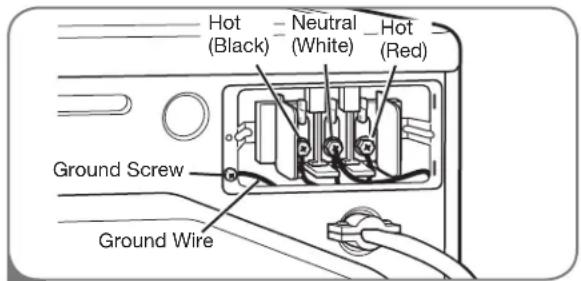

Hot (Black) - Neutral (White) - Hot (Red) Ground Screw Ground Wire

3 Transfer the dryer's ground wire from behind the green ground screw to the center screw of the terminal block. Attach the two hot leads of the power cable to the outer terminal block screws. Attach the white neutral wire to the center terminal block screw. Attach the power cable ground wire to the green ground screw. TIGHTEN ALL SCREWS SECURELY. Reinstall the terminal block access cover.

CONNECTING ELECTRIC DRYERS (cont.)

USA ONLY

⚠ WARNING:

• Connect the power cord to the terminal block. Each colored wire should be connected to same color screw. Wire color indicated on manual is connected to the same color screw in block. Failure to follow these instructions may result in a short or overload.
• Grounding through the neutral conductor is prohibited for: (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor.

Three-Wire Connection for Electric Dryers: Power Cord

• A 3-wire connection is NOT permitted on new construction after January 1, 1996.
• A UL-listed strain relief is required.

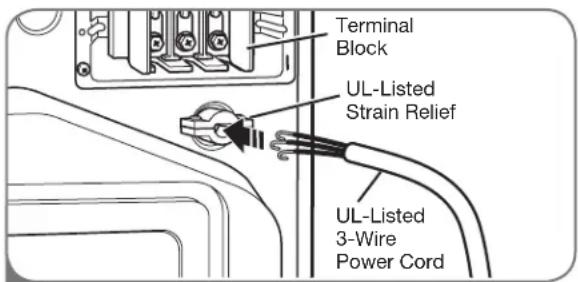

Terminal Block UL-Listed Strain Relief UL-Listed 3-Wire Power Cord

1

Remove the terminal block access cover on the upper back of the dryer. Install a UL-listed strain relief into the power cord through-hole; then thread a UL-listed, 30A, 240V, 3-wire, #10 AWG-minimum copper conductor power cord through the strain relief.

- Use a 30-amp, 240V, UL-listed power cord with #10 AWG-minimum copper conductor and closed loop or forked terminals with upturned ends.

Hot (Black) Neutral (White) Hot (Red) Ground Screw Ground Wire

2

Attach the two hot leads of the power cord to the outer terminal block screws. Attach the neutral wire to the center terminal block screw. Connect the external ground (if required by local codes) to the green ground screw. TIGHTEN ALL SCREWS SECURELY. Reinstall the terminal block access cover.

CONNECTING ELECTRIC DRYERS (cont.)

USA ONLY

⚠ WARNING:

• Connect the power cord to the terminal block. Each colored wire should be connected to same color screw. Wire color indicated on manual is connected to the same color screw in block. Failure to follow these instructions may result in a short or overload.
• Grounding through the neutral conductor is prohibited for: (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor.

Three-Wire Connection for Electric Dryers: Direct Wire

• A 3-wire connection is NOT permitted on new construction after January 1, 1996.
• A UL-listed strain relief is required.

1" (2.5 cm)

1 Remove 3½ inches (8.9 cm) of the outer covering from the wire. Strip 1 inch (2.5 cm) insulation from each wire. Bend the ends of the three wires into a hook shape.

• Use UL-listed 3-wire #10 AWG-minimum copper conductor cable.
• Allow at least 5 ft (1.5 m) length to allow for removal and reinstallation of the dryer.

Terminal Block UL-Listed Strain Relief UL-Listed 3-Wire Power Cord

2 Remove the terminal block access cover on the upper back of the dryer. Install a UL-listed strain relief into the power cord through-hole; then thread the power cable prepared in Step 1 through the strain relief.

Hot Black) Neutral (White) Hot (Red) Ground Screw Ground Wire

3 Attach the two hot leads of the power cord to the outer terminal block screws. Attach the neutral wire to the center terminal block screw. Connect the external ground (if required by local codes) to the green ground screw. TIGHTEN ALL SCREWS SECURELY. Reinstall the terminal block access cover.

SPECIAL REQUIREMENTS FOR MANUFACTURED OR MOBILE HOMES

Any installation in a manufactured or mobile home must comply with the Manufactured Home Construction and Safety Standards Title 24 CFR, Part 32-80 or Standard CAN/CSA0Z240 MH and local codes and ordinances. If you are uncertain whether your proposed installation will comply with these standards, please contact a service and installation professional for assistance.

• A gas dryer must be permanently attached to the floor.
• The electrical connection for an electric dryer must be a 4-wire connection. More detailed information concerning the electrical connection is provided in the section Connecting Electric Dryers.
• To reduce the risk of combustion and fire, the dryer must be vented to the outside.
• DO NOT vent the dryer under a manufactured home or mobile home.
• Electric dryers may be vented to the outside using the back, left, right, or bottom panel.

• Gas dryers may be vented to the outside using the back, left, or bottom panel. Gas dryers may not be vented to the outside using the right side panel because of the burner housing.

• The dryer exhaust duct must be affixed securely to the manufactured or mobile home structure, and the exhaust duct must be made of a material that will resist fire and combustion. It is recommended that you use a rigid or flexible metal duct.

• DO NOT connect the dryer exhaust duct to any other duct, vent, chimney, or other exhaust duct.
• Make sure the dryer has adequate access to outside fresh air to ensure proper operation. The opening for outside fresh air must be at least 25in^2 (163 cm²).
• It is important that the clearance of the duct from any combustible construction be at least 2 in. (5 cm), and when venting the dryer to the outdoors, the dryer can be installed with a clearance of 1 in. (2.5 cm) at the sides and back of the dryer.
• Please be aware that venting materials are not supplied with the dryer. You should obtain the venting materials necessary for proper installation.

FINAL INSTALLATION CHECK

Once you have completed the installation of the dryer and it is in its final location, confirm proper operation with the following tests and Duct Condition Testing on the following page.

Testing Dryer Heating

GAS MODELS

Close the dryer door, press the ON/OFF switch to turn the dryer on, and start the dryer on a heat setting. When the dryer starts, the igniter should ignite the main burner.

NOTE: If all air is not purged from the gas line, the gas igniter may turn off before the main burner ignites. If this happens, the igniter will reattempt gas ignition after approximately two minutes.

ELECTRIC MODELS

Close the dryer door, press the ON/OFF switch to turn the dryer on, and start the dryer on a heat setting. The exhaust air should be warm after the dryer has been operating for 3 minutes.

Checking Airflow

Effective dryer operation requires proper airflow. The adequacy of the airflow can be measured by evaluating the static pressure. Static pressure in the exhaust duct can be measured with a manometer, placed on the exhaust duct approximately 2 ft. (60.9 cm) from the dryer. Static pressure in the exhaust duct should not exceed 0.6 in. (1.5 cm). The dryer should be checked while the dryer is running with no load.

Checking Levelness

Once the dryer is in its final location, recheck the dryer to be sure it is level. Make sure it is level front to back and side to side, and that all 4 leveling feet are firmly on the floor.

FLOW CHECK (DUCT CONDITION TEST)

Your dryer features FlowSense ^™ , an innovative sensing system that automatically detects blockages and restrictions in dryer ductwork. Keeping ductwork clean of lint buildup and free of restrictions allows clothes to dry faster and reduces energy use.

NOTE: When the dryer is first installed, this test should be performed to alert you to any existing problems with the exhaust duct in your home. However, since the test performed during normal operation provides more accurate information on the condition of the exhaust duct than does the installation test, the number of bars displayed during the two tests may not be the same.

To activate the flow check (Duct condition test):

NOTE: Dryer heating test must be performed before proceeding. Then perform the duct condition test below:

1 Press and hold the DAMP DRY BEEP and TEMP. CONTROL buttons at the same time. While holding these buttons, press POWER ON/OFF.

2 The dryer will show InS in the number display to indicate that it is in duct condition testing mode.

Press START/PAUSE. The dryer will run for approximately 2 minutes to test for blockages or restrictions to air flow in the ductwork.

If "YES" is shown in the display, the ductwork is free from blockages or restrictions.

If “no” is shown in the display, the dryer ductwork has a blockage that needs to be removed immediately.

IMPORTANT: Do NOT interrupt the test cycle!

Correct Venting

Line drawing of a mechanical device with a vertical pipe and rectangular panel (no text or symbols)

Restricted or Blocked Airflow

Avoid long runs or runs with multiple elbows or bends.

Two schematic diagrams of industrial ventilation systems with no text or symbols

Check for blockages and lint buildup.

Diagram showing a device with a 'X' symbol crossed out, alongside two magnified insets illustrating internal structure.

Make sure the ductwork is not crushed or restricted.

Diagram of a device with a crossed X mark and a magnified inset showing internal components (no text or symbols)

Following are instructions for starting and using your new dryer. Please refer to specific sections of this manual for more detailed information. Important Warning: To reduce the risk of fire, electric shock, or injury to persons, read this entire manual, including the Important Safety Instructions, before operating this dryer.

SORTING LOADS

Fabric Care Labels

Most articles of clothing feature fabric care labels that include instructions for proper care.

Grouping Similar Items

For best results, sort clothes into loads that can be dried with the same drying cycle.

Different fabrics have different care requirements, and some fabrics will dry more quickly than others.

Fabric Care Labels
Tumble dry

Dry

Normal

Permanent Press / wrinkle resistant

Gentle/ delicate

Do not tumble dry

Do not dry (used with do not wash)

Heat setting

High

Medium

Low

No heat/air

LOADING THE DRYER

WARNING:

To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

• Check all pockets to make sure that they are empty. Items such as clips, pens, coins, and keys can damage both your dryer and your clothes. Flammable objects such as lighters or matches could ignite, causing a fire.
  Failure to do so can result in fire, explosion, or death.

• Never dry clothes that have been exposed to oil, gasoline, or other flammable substances. Washing clothes will not completely remove oil residues. Failure to obey this warning can result in fire, explosion, or death.

• Combine large and small items in a load.

• Damp clothes will expand as they dry. Do not overload the dryer; clothes require room to tumble dry properly.
• Close zippers, hooks, and drawstrings to prevent these items from snagging or tangling on other clothes.

CHECK THE LINT FILTER BEFORE EVERY LOAD

Always make sure the lint filter is clean before starting a new load; a clogged lint filter will increase drying times.

To clean, pull the lint filter straight up and roll any lint off the filter with your fingers. Do not rinse or wash the filter to remove lint. Push the lint filter firmly back into place. See "Care and Cleaning" for more information.

Always ensure the lint filter is properly installed before running the dryer. Running the dryer with a loose or missing lint filter may damage the dryer and articles in the dryer.

Lint Filter

CONTROL PANEL FEATURES

Following are instructions for starting and using your new dryer. Please refer to specific sections of this manual for more detailed information. Important Warning: To reduce the risk of fire, electric shock, or injury to persons, read this entire manual, including the Important Safety Instructions, before operating this dryer.

STEAM CYCLE SENSOR DRY COTTON/ TOWELS NORMAL PERM. PRESS HEAVY DUTY DELICATES STEAM SANITARY SPEED DRY MANUAL DRY STEAM FRESH™ AIR DRY 1 2 3 4 5 6 7 8 9 DRIY LEVEL TEMP. CONTROL TIME DRY BEEPER STEAM STEAM STATE EASY IRON 41 VERY DRY HIGH ADD WATER 60mm ADD WATER 40 MEDIUM LOW 30 LOW 20 FULLER DRY WIND BURGER WHIP COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLLAR WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK WIND COLD LUCK FIRELLA 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

1 POWER ON/OFF BUTTON

Press to turn the dryer ON. Press again to turn the dryer OFF.

NOTE: Pressing the ON/OFF button during a cycle will cancel that cycle and any load settings will be lost.

② CYCLE SELECTOR KNOB

Turn this knob to select the desired cycle. Once the desired cycle has been selected, the standard presets will be shown in the display. On MANUAL DRY cycles, these settings can be adjusted using the cycle settings buttons anytime before starting the cycle.

3 START/PAUSE BUTTON

Press this button to START the selected cycle. If the dryer is running, use this button to PAUSE the cycle without losing the current settings.

NOTE: If you do not press the START/PAUSE button to resume a cycle within 4 minutes, the dryer automatically turns off.

4 MORE TIME/LESS TIME BUTTONS

To adjust the drying time, use these buttons with MANUAL DRY, TIME DRY, and STEAMFRESH™ cycles, as well as the REDUCE STATIC and EASY IRON options. Press the MORE TIME button to increase the selected manual cycle time by a minute; press LESS TIME to decrease the cycle time by a minute.

5 CYCLE SETTING BUTTONS

Use these buttons to select the desired cycle settings for the selected cycle. The current settings are shown in the display. Press the button for that option to view and select other settings.

6 TIME AND STATUS DISPLAY

The display shows the settings, estimated time remaining, options, and status messages for your dryer.

7 OPTION BUTTONS

The OPTION buttons allow you to select additional cycle options. Certain buttons feature a special function (see the following pages for details) that can be activated by pressing and holding that option button.

8 HELPFUL STEAM FUNCTIONS

LG's new steam technology allows you to inject fabrics with a swirling jet of hot steam to refresh clothes, reduce static, and make ironing easier. Simply select the STEAMFRESH™ cycle, or you can add a STEAM option to selected cycles.

For detailed information about the individual options, please see the following pages.

CYCLE GUIDE

The cycle guide below shows the options and recommended fabric types for each cycle.

Type Cycle		Fabric Type	Dry Level	Temperature	Time in Min.	More Time/ Less Time	Wrinkle Care	Anti-Bacterial	Damp Dry	Reduce Static	Easy Iron
STEAM CYCLE / SENSOR DRY	STEAM FRESHTM	Comforter, Shirts, Trousers (except especially delicate fabrics)	Off	MID HIGH	20	●	●			●	●
					Adjustable
	STEAM SANITARYTM	Comforter, Bedding, children's clothing	Off	HIGH	39		●
	HEAVY DUTY	Jeans, heavyweight items	Normal	HIGH	54		●	●	●	●	●
			Adjustable
	COTTON/ TOWELS	Denims, towels, heavy cottons	Normal	MID HIGH	55		●	●	●	●	●
			Adjustable
	NORMAL	Work clothes, corduroys, etc.	Normal	MEDIUM	41		●	●	●	●	●
			Adjustable
	PERM. PRESS	Permanent press, synthetic items	Normal	LOW	36		●		●	●	●
			Adjustable
	DELICATES	Lingerie, sheets, blouses	Normal	LOW	32		●		●	●	●
			Adjustable
MANUAL DRY	SPEED DRY	For small loads with short drying times	Off	HIGH	25	●	●			●	●
				Adjustable	Adjustable
	AIR DRY	For irems that require heat-free drying such as plastics or rubber	Off	No Heat	30	●	●
					Adjustable
	TIME DRY	For general drying; time, temperature, and options can be set manually	Off	HIGH	40	●	●			●	●
				Adjustable	Adjustable
	RACK DRY	Wool sweaters, silk, lingerie	Off	Off	50	●
				ULTRA LOW LOW	Adjustable

Sensor Dry Cycles

Sensor Dry cycles utilize LG's unique dual sensor system to detect and compare the moisture level in clothes and in the air and adjust the drying time as needed to ensure superior results. The dryer automatically sets the dryness level and temperature at the recommended setting for each cycle. The estimated time remaining will be shown in the display.

Manual Dry Cycles

Use Manual Dry cycles to select a specific amount of drying time and a drying temperature. When a Manual Dry cycle is selected, the ESTIMATED TIME REMAINING display shows the actual time remaining in your cycle. You can change the actual time in the cycle by pressing MORE TIME or LESS TIME.

NOTE: To protect your garments, not every dry level, temperature, or option is available with every cycle.

THE DISPLAY

The display shows the settings, estimated time remaining, options, and status messages for your dryer. When the dryer is turned on, the light in the display will illuminate.

7 5 2 Press & Hold 3sec. for Extra Functions STEAM REDUCE STATIC EASY IRON FLOW CLEEK DRY COOL WRinkle SAVE REDING -ING -ING CARE TIME REMAINING MORE TIME LESS TIME CUSTOM PGM ANTI BACTERIAL PGM SAVE CHILD LOCK 41 Wrinkle CARE DAMP DRY RACK DRY BEEP VERY DRY HIGH 60(MINI) ADD WATER MORE DRY MID HIGH 50 HIGH NORMAL MEDIUM 40 MEDIUM LESS DRY LOW 30 LOW DAMP DRY ULTR LOW 20 OFF

① ESTIMATED TIME REMAINING

When the START/PAUSE button is pressed, the dryer will display the estimated (SENSOR DRY) or set time (TIME DRY) remaining, and begin tumbling.

NOTE: The cycle time on SENSOR DRY cycles may fluctuate as the dryer recalculates drying time for optimal results.

2 CYCLE COMPLETION INDICATOR WITH CHECK FILTER REMINDER

This portion of the display shows which stage of the drying cycle is currently underway (CHECK FILTER, DRYING, COOLING, or WRINKLE CARE).

3 CHILD LOCK INDICATOR

When CHILD LOCK is set, the Child Lock indicator will appear and all buttons are disabled except the ON/OFF button. This prevents children from changing settings while the dryer is operating.

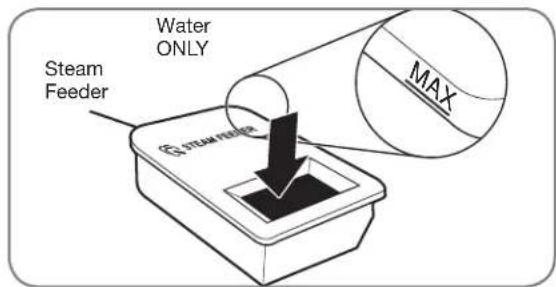

4 ADD WATER INDICATOR

If the steam feeder is lack for water, this error may be displayed. Fill the feeder and restart the cycle.

5 CHECK FILTER REMINDER

The display will show CHECK FILTER when the dryer is turned on as a reminder to check the filter. It turns off when the START/PAUSE button is pressed.

6 CUSTOM PROGRAM

If you have a special combination of settings that you use frequently, you can save these settings as a CUSTOM PROGRAM.

7 FLOW SENSE™ DUCT BLOCKAGE SENSING SYSTEM INDICATOR

The FLOW SENSE™ duct blockage sensing system detects and alerts you to blockages in the ductwork that reduce exhaust flow from the dryer. This improve operating efficiency and help minimize service calls, saving you money.

OPERATING THE DRYER

Once you have loaded the dryer:

1 Press the ON/OFF button to turn on the dryer. The lights around the cycle selector knob will illuminate.

2 Turn the cycle selector knob to the desired cycle. The display will show the preset Dry Level, Temperature, Time, and Option settings for that cycle.

3 If you would like to change the settings for that cycle, press the option button(s) to display additional settings for that option. Press the button again to cycle through the settings until the desired setting is highlighted.

DRY LEVEL TEMP CONTROL TIME DRY BEEPER

NOTE: To protect your garments, not every dry level, temperature, or option is available with every cycle.

4 CUSTOM PGM •PGM SAVE •ANTI BACTERIAL •CHILD LOCK WRINKLE CARE •PACK DRY •DAMP DRY BEEP Select any additional cycle options, such as ANTI BACTERIAL, DAMP DRY BEEP, WRINKLE CARE or RACK DRY by pressing the button for that option.

5 Press the START/PAUSE button to begin the cycle. The display will change, and the dryer will display the estimated (SENSOR DRY) or set time (MANUAL DRY) remaining

and start tumbling. To pause the cycle at any time, press PAUSE. To resume the cycle where it was stopped, press START/PAUSE again.

NOTE: If the dryer has been stopped for more than 8 minutes, the dryer will turn off automatically.

6 When the load is finished, the beeper (if set) will sound. If you have set the WRINKLE CARE option, the dryer will tumble the load periodically for up to 3 hours.

To prevent wrinkling, remove items from the dryer immediately after the end of the cycle.

7 Always clean the lint filter after every cycle.

To clean, pull the lint filter straight up and roll any lint off the filter with your fingers. Do not rinse or wash the filter to remove lint. Push the lint filter firmly back into place.

CYCLE SETTING BUTTONS

SENSOR DRY cycles have preset settings that are selected automatically. MANUAL DRY cycles have default settings, but you may also customize the settings using the cycle setting buttons. Press the button for that option to view and select other settings.

NOTE: To protect your garments, not every dryness level, temperature, or option is available with every cycle. See the Cycle Guide for details.

DRY LEVEL

Selects the level of dryness for the cycle. Press the DRY LEVEL button repeatedly to scroll through available settings.

• This option is only available with SENSOR DRY cycles.
• The dryer will automatically adjust the cycle time. Selecting VERY DRY or MORE DRY will increase the cycle time, while LESS DRY or DAMP DRY will decrease the cycle time.
• Use a LESS DRY or DAMP DRY setting for items that you wish to iron.

TEMP. CONTROL

Adjusts the temperature setting from ULTRA LOW to HIGH. This allows precise care of your fabrics and garments. Press the TEMP.

CONTROL button repeatedly to scroll through available settings.

TIME DRY

Allows you to manually select the drying time, from 20 to 60 minutes, in 10-minute increments. Use this for small loads or to remove

wrinkles. Use the MORE TIME/LESS TIME buttons to add or reduce the drying time in 1-minute increments.

BEEPER

Adjusts the volume of the end-of-cycle beeper, or turns off the beeper.

CYCLE OPTION BUTTONS

Your dryer features several additional cycle options to customize cycles to meet your individual needs. Certain option buttons also feature a special function (see the following page for details) that can be activated by pressing and holding that option button for 3 seconds.

To Add Cycle Options to a Cycle:

1 Turn on the dryer and turn the cycle selector knob to select the desired cycle.
2 Use the cycle settings buttons to adjust the settings for that cycle.
3 Press the cycle option button(s) for the option you would like to add. A confirmation message will be shown in the display.
4 Press the START/PAUSE button to start the cycle. The dryer will start automatically.

ANTI BACTERIAL

This option will add a high heat setting to reduce bacteria. It can only be used with the HEAVY DUTY, COTTON/

TOWELS, and NORMAL cycles.

NOTE: Do not use this cycle with delicate fabrics.

Certified by NSF

NSF International (formerly the National Sanitation Foundation), certifi es that ANTI BACTERIAL Option reduces 99.9% of bacteria on laundry, and none of bacteria will carry over onto the next laundry load.

WRINKLE CARE

Selecting this option will tumble the load periodically for up to 3 hours after the selected cycle, or until the door

is opened. This is helpful in preventing wrinkles when you are unable to immediately remove items from the dryer.

DAMP DRY BEEP

With this option, the dryer will beep when the load is approximately 80% dry. This allows you to remove

faster-drying lightweight items or items that you would like to iron or hang while still slightly damp.

SPECIAL FUNCTIONS

The option buttons also activate special functions, including CHILD LOCK, RACK DRY and LANGUAGE. Press and hold the option button marked with the special function for 3 seconds to activate.

\* RACK DRY

Use RACK DRY with items, such as wool sweaters, silk, and lingerie, that should dry flat. RACK DRY can also be used with items that should not be tumbled dry, such as gym shoes or stuffed animals. Press and hold the WRINKLE CARE button for 3 seconds to activate or deactivate the RACK DRY function.

NOTE: NEVER use the rack with a tumble dry cycle.

To Install the Drying Rack

① With the dryer door open, slide the rack into the dryer drum.

Line drawing of an open washing machine with internal components and a directional arrow indicating airflow (no text or symbols)

2 Make sure it is seated evenly on the edge of the inner door rim and resting flat on the inside of the dryer.

NOTE: Be sure to remove the drying rack after using the RACK DRY cycle.

Line drawing of an open washing machine with internal components (no text or symbols)

\* CHILD LOCK

Use this option to prevent unwanted use of the dryer or to keep cycle settings from being changed while the dryer is operating. Press and hold the ANTI BACTERIAL button for 3 seconds to activate or deactivate the CHILD LOCK function.

The lock icon will be shown in the display, and all controls are disabled except the ON/OFF button.

CUSTOM PROGRAM

If you have a special combination of settings that you use frequently, you can save these settings as a CUSTOM PROGRAM.

\* To Save a Custom Program:

1 Turn on the dryer and turn the cycle selector knob to select the desired cycle.
2 Use the cycle setting buttons to adjust the settings for that cycle.
3 Press the cycle option button(s) for the option you would like to add. A confirmation message will be shown in the display.
4 Press and hold the CUSTOM PROGRAM button for 3 seconds.

NOTE: You may only save one custom program at a time. Pressing and holding the CUSTOM PROGRAM button will overwrite any previously saved custom program.

To Recall a Custom Program:

1 Turn on the dryer.
2 Press the CUSTOM PROGRAM button.
3 Press the START/PAUSE button to start the cycle.

STEAM FUNCTIONS

To Fill the Steam Feeder

1 Pull out the drawer.

Drawer

2 Lift out the steam feeder.

Diagram of a printer's front panel with an arrow indicating the top portion (no text or symbols present)

3 Fill the steam feeder to MAX with water.

Steam Feeder Water ONLY MAX R. Steam feeder

4 Place the steam feeder in the drawer; then push in the drawer until it clicks into place.

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

IMPORTANT NOTES ABOUT STEAM CYCLES

Before using a Steam Cycle, the steam feeder must be filled with water up to the MAX line. If not, the ADD WATER light will blink. Make sure that the steam feeder is filled with water and the drawer is completely closed. Turn the dryer off then restart the Steam Cycle.

• Only use water. Do not fill the steam feeder with foreign substances, rinse agents, or detergents.
• Before moving the dryer, make sure the steam feeder is empty.
• Do not use distilled water; the water level sensor in the steam generator will not work.
• Be careful to put the Steam Feeder otherwise water will be overflow.
• Wipe up any spilled water around the Steam Feeder and the drawer before starting the dryer.

WARNING:

• Do not fill the steam feeder with liquids such as gasoline, dry-cleaning solvents, or other flammable or explosive substances. They give off vapors that could explode.
• Do not fill the steam feeder with hot water (over 86^ / 30^ ).
• Do not drink water from the steam feeder.

STEAM FUNCTIONS (cont.)

LG's new steam technology allows you to inject fabrics with a swirling jet of hot steam to refresh clothes, reduce static, and make ironing easier. Simply select the STEAMFRESH™ cycle, or you can add a Steam option to selected cycles.

Using the STEAMFRESH™ Cycle

STEAMFRESH™ uses the power of steam alone to quickly reduce wrinkles and odor in fabrics. It brings new life to wrinkled clothes that have been stored for an extended time and makes heavily wrinkled clothes easier to iron. STEAMFRESH™ can also be used to help reduce odors in fabrics.

NOTES:

• REDUCE STATIC or EASY IRON options can also be used during the STEAMFRESH™ cycle.
• Depending on the load (quantity of items), you may change the amount of time for the cycle by pressing the MORE TIME or LESS TIME button. The display will show 3, 5, or b/9.3 means 3 or fewer items, 5 is for 4 or 5 items, and b/9 indicates a large load such as a comforter.

To Use the STEAMFRESH™ Cycle:

1 Turn on the dryer and turn the cycle selector knob to select the STEAMFRESH™ cycle.
2 To add an option function, select REDUCE STATIC, EASY IRON, or WRINKLE CARE.
3 Depending on the load (quantity of items), steam time can be changed by pressing the MORE TIME or LESS TIME buttons.
4 Press START/PAUSE button to start the cycle.

To Add STEAM to a Standard Cycle:

1 Turn on the dryer and turn the cycle selector knob to select the desired cycle.
2 Use the cycle setting buttons to adjust the settings for that cycle.
3 Press the Steam option button for the Steam option you would like to add. Then adjust for the load size using the MORE TIME or LESS TIME buttons.
4 Press START/PAUSE button to start the cycle.

Using the Steam Options:

This option injects steam late in the drying cycle to reduce the static electricity caused by dry fabrics rubbing together. Change

the amount of time for the cycle by pressing the MORE TIME or LESS TIME button, depending on the load (quantity of items). The display will show the recommended number of items, such as 7, 9, 11, 14, 16, or 18.

The EASY IRON option provides uniform, properly dampened fabrics for ironing, which can save time and make ironing easier.

Change the amount of time for the cycle by pressing the MORE TIME or LESS TIME button, depending on the load (quantity of items). The display will show the recommended number of items, such as 1, 2, 3, 4, or 5.

The REDUCE STATIC and EASY IRON options can only be used with the HEAVY DUTY, COTTON/TOWELS, NORMAL and PERM. PRESS, DELICATES and TIME DRY cycles.

NOTES:

• When SENSOR DRY is selected with the REDUCE STATIC option, a DRY LEVEL of LESS or DAMP cannot be selected.
• The REDUCE STATIC or EASY IRON option may also be selected during TIME DRY cycles.
• After the Steam option is selected in TIME DRY, the MORE TIME or LESS TIME buttons will change the steam time ONLY.
• After pressing START/PAUSE, the MORE TIME or LESS TIME buttons will be disabled.

Using the STEAMSANITARY™ cycle

New STEAMSANITARY™ cycle is ideal for sanitizing non washable items quickly and easily using the power of steam alone. Recommend to use this cycle for cotton and polyester material. (Do NOT use for urethane foam, Down feathers or delicates items)

STEAM FUNCTIONS (cont.)

WARNING:

• Do not open the dryer door during Steam Cycles. Steam can cause severe burns.
• Do not fill the steam feeder with gasoline, dry-cleaning solvents, or other flammable or explosive substances. They give off vapors vapors that could explode.
• Do not drink water from the steam feeder.
• Do not fill the steam feeder with hot water (over 86^ / 30^ ).
• Do not touch the steam nozzle in the drum during or after the STEAM cycle.

IMPORTANT NOTES ABOUT STEAM CYCLES:

• Steam may not be clearly visible during the Steam Cycles. This is normal.
• Do not use STEAMFRESH™ with items such as wool, wool balnket, leather jackets, silk, wet clothes, lingerie, foam products, or electric blankets.
• For best results, load articles of similar size and fabric type. Do not overload.
• When the filter/duct is clogged, the Steam option may not have optimal results.
• When the Steam function is operating, the drum will stop to allow steam to stay in the drum.
• The steam feeder must be filled with water up to the MAX line. Otherwise, an Error message will be displayed.

STEAM CYCLE GUIDE

CYCLE	STEAM	DEFAULT TIME	TEMP.CONTROL	DRYLEVEL	FABRICSTATE	FABRIC TYPE	MAXIMUM AMOUNT
STEAMSANITARY		39 minutes			Dry	ComforterBeddingChildren's clothing	Single (1 each)3 lbs.
STEAMFRESH		20 minutes			Dry	ComforterShirts*	Single (1 each)5 each
	+REDUCESTATIC	10 minutesOnly reduce static			Dry	Shirts*	8 lbs.(18 Items.)
	+EASYIRON	12 minutes			Dry		Shirts* (5 each)
HEAVY DUTYCOTTON/TOWELSNORMALPERM.PRESSDELICATES	+REDUCESTATIC	Follow selectedcycle			Wet	Follow selectedcycle	8 lbs.(18 Items.)
	+EASYIRON				Wet	Follow selectedcycle	Shirts* (5 each)
TIME DRY	+REDUCESTATIC	45 minutes			Wet	Follow selectedtemp	8 lbs.(18 Items.)
	+EASYIRON	47 minutes			Wet	Follow selectedtemp	Shirts* (5 each)

*Shirt: 70% cotton/30% poly blend. Except especially delicate fabrics.
- When the lint filter or exhaust duct is clogged, steam options will not give proper results.
- For best results, load articles of similar size and fabric type. Do not overload.

USER-MAINTENANCE INSTRUCTIONS

REGULAR CLEANING

WARNING:

To reduce the risk of fire, electric shock, or injury to persons when using this sautions, including the following:

• Unplug the dryer before cleaning to avoid the risk of electric shock. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• Never use harsh chemicals, abrasive cleaners, or solvents to clean the washer. They will damage the finish.

Cleaning the Exterior

Proper care of your dryer can extend its life. The outside of the machine can be cleaned with warm water and a mild, nonabrasive household detergent.

Immediately wipe off any spills with a soft, damp cloth.

IMPORTANT: Do not use methylated spirits, solvents, or similar products.

Never use steel wool or abrasive cleansers; they can damage the surface.

Cleaning the Interior

Wipe around the door opening and seal with a soft, damp cloth to prevent lint and dust buildup that could damage the door seal.

Clean the window with a soft cloth dampened with warm water and a mild, nonabrasive household detergent; then wipe dry.

The stainless steel drum can be cleaned with a conventional stainless steel cleaner, used according to the manufacturer's specifications. Never use steel wool or abrasive cleansers; they can scratch or damage the surface.

Cleaning Around and Under the Dryer

Vacuum lint and dust from around the dryer and underneath it regularly. Vent ductwork should be checked for lint buildup and cleaned at least once per year. If any noticeable reduction in airflow or drying performance occurs, immediately check ductwork for obstructions and blockages.

Maintaining Ductwork

Vent ductwork should be checked for lint buildup and cleaned at least once per year. If any noticeable reduction in airflow or drying performance occurs, immediately check ductwork for obstructions and blockages. Contact a qualified technician or service provider.

Cleaning the Lint Filter

Lint Filter

Always clean the lint filter after every cycle.

To clean, open the dryer door and pull the lint filter straight up. Then:

1 Roll any lint off the filter with your fingers, or

2 Vacuum the lint filter, or

Illustration of a handheld device connected to a shield-like device (no text or symbols visible)

3 Wash the lint filter in warm, soapy water and allow to dry thoroughly before reinstalling.

NOTE: NEVER operate the dryer without the lint filter in place.

BEFORE CALLING FOR SERVICE

Your dryer is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If your dryer does not function properly or does not function at all, check the following before you call for service.

Problem Possible Causes Solutions
Dryer will not turn on	Power cord is not properly plugged in.House fuse is blown, circuit breaker has tripped, or power outage has occurred.	Make sure that the plug is plugged securely into a grounded outlet matching the dryer's rating plate.Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.
Dryer does not heat	House fuse is blown, circuit breaker has tripped, or power outage has occurred.Gas supply or service turned off (gas models only).	Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.Con rm that the house gas shutoff and the dryer gas shutoff are both fully open.
Greasy or dirty spots on clothes	Fabric softener used incorrectly.Clean and dirty clothes being dried together.Clean and dirty clothes being dried together.	Con rm and follow the instructions provided with your fabric softener.Make sure to use your dryer to dry only clean items, because dirty items can soil clean clothes placed in the same or subsequent loads.Stains on dried clothes are actually stains that weren't removed during the washing process. Make sure that clothes are being completely cleaned according to the instructions for your washer and detergent.
Display shows error code tE1 or tE2	Thermistor is malfunctioning.	Turn off the dryer and call for service.
Lint on clothes	Lint liter not cleaned properly.Laundry not sorted properly.Excess static in clothes.Dryer is overloaded.Tissue, paper, etc., left in pockets.	Make sure the lint liter is cleaned before every load. With some loads that produce high amounts of lint, it may be necessary to clean the filter during the cycle.Some fabrics are lint producers (i.e., a fuzzy white cotton towel) and should be dried separately from clothes that are lint trappers (i.e., a pair of black linen pants).See the Excess static in clothes after drying section below.Divide larger loads into smaller loads for drying.Check pockets thoroughly before washing and drying clothes.
Excess static in clothes after drying	Fabric softener not used or used incorrectly.Clothes dried too long (overdried).Drying synthetics, permanent press, or synthetic blends.	Use a fabric softener to reduce static electricity correctly. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.Overdrying a load of laundry can cause a buildup of static electricity. Adjust settings and use a shorter drying time, or use SENSOR DRY cycles.These materials can cause static buildup. Try using a fabric softener.

BEFORE CALLING FOR SERVICE (cont.)

Problem Possible Causes Solutions
Drying time is not consistent	Heat settings, load size, or dampness of clothing is not consistent.	The drying time for a load will vary depending on the heat setting, the type of heat used (electric, natural, or LP gas), the size of the load, the type of fabrics, the wetness of the clothes, and the condition of the exhaust ducts and lint filter.
Clothes take too long to dry	Load is not properly sorted.Large load of heavy fabrics.Dryer controls are not set properly.Lint filter needs to be cleaned.Exhaust ducts blocked, dirty, or duct run is too long.House fuse is blown, circuit breaker has tripped, or power outage has occurred.Dryer is overloaded.Dryer is underloaded.	Separate heavy items from lightweight items. Larger and heavier items take longer to dry.Heavy fabrics take longer to dry because they tend to retain more moisture. To help reduce and maintain more consistent drying times for large and heavy fabrics, separate these items into smaller loads of a consistent size.Use the appropriate control settings for the type of load you are drying.Make sure the lint filter is cleaned before every load. With some loads that produce high amounts of lint, it may be necessary to clean the filter during the cycle.Confirm that the exhaust ductwork is properly configured and free of debris, lint, and obstructions. Make sure that outside wall dampers can open properly and are not blocked, jammed, or damaged.Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.Divide larger loads into smaller loads for drying.If you are drying a very small load, add a few extra items to ensure proper tumbling action.
Clothes are wrinkled	Clothes dried too long (overdried).Clothes left in dryer too long after cycle ends.	Overdrying a load of laundry can lead to wrinkled clothes. Try a shorter drying time, and remove items while they still retain a slight amount of moisture.Remove items from the dryer immediately at the end of the cycle. Use the WRINKLE CARE option to continue tumbling clothes at the end of the cycle, for up to 3 hours.
Clothes are shrinking	Garment care instructions are not being followed.	To avoid shrinkage, please carefully follow the fabric care instructions for your garment, because some fabrics will naturally shrink when washed. Other fabrics can be washed but will shrink when dried in a dryer. Use a low or no heat setting and/or the RACK DRY option.
ADD WATER indicator light is on during the drying cycle	Water supply error.	Check steam feeder drawer:(1) Make sure steam feeder is filled with water to MAX line.(2) Make sure steam feeder is seated properly and drawer is fully closed.(3) Turn the dryer off then restart the Steam cycle.Do not use distilled water; the water level sensor in steam generator will not work.Pump not working. Unplug dryer and call for service.
Water drips from nozzle when Steam Cycle starts.	This is normal.	This is steam condensation. The dripping water will stop after a short time.

BEFORE CALLING FOR SERVICE (cont.)

Problem Possible	Causes Solutions
Steam doesn't generate but no error code is shown.	Water level error.	Unplug dryer and call for service.
Garments still wrinkled after STEAMFRESH^TM .	Too many or too different types of garments in dryer.	Small loads of 1 to 5 items work best.Load fewer garments. Load similar-type garments.
There are no creases left on garment after STEAMFRESH^TM .	The function of this cycle is to remove wrinkles from fabric.	Use an iron to make creases.
Garments have static after REDUCE STATIC.	This is normal.	Depends on individual moisture level in skin.
Garments are too damp or too dry after REDUCE STATIC.	Correct drying options not selected.	Select load weight manually before starting REDUCE STATIC option.
Garments are not uniformly damp after EASY IRON.	This is normal.	Depends on the amount or type of garments.
Water drips from door during Steam Cycle.	This is normal.	This is steam condensation on door surface.
Steam is not visible during Steam Cycle.	This is normal.	Steam vapor is diffi cult to see when the door is closed.
Drum does not turn during Steam Cycle.	This is normal.	The drum is turned off so that the steam vapor remains in the drum.
Cannot see steam vapor at the beginning of cycle.	This is normal.	Steam is released at different stages of the cycle for each option.
The display shows b/g.	MORE TIME button pressed.	Pressing the MORE TIME button several times will set the cycle for a large load such as a comforter.
Odors remain in clothing after STEAMFRESH^TM .	STEAMFRESH ^® did not remove odor completely.	Fabrics containing strong odors should be washed in a normal cycle.
FLOW SENSE indicator light is on during the drying cycle	Ductwork is too long or has too many turns/restrictions.Signifi cant blockage of the ductwork due to lint buildup or debris.	Install a shorter or straighter duct run. See the Installation Instructions.Ductwork should be checked/cleaned soon.Dryer can be used in this condition, but drying times may be longer.

OPTIONAL ACCESSORIES

For these and other LG products, contact your local LG dealer, or visit our Web site at us.lge.com.

Line drawing of a rectangular electronic device with mounting brackets and a central square casing (no text or symbols)

Pedestal

Give your LG washer and dryer a boost with matching 14-inch high pedestals. They feature a storage drawer for added convenience.

14" Pedestal Color

WDP3W White

WDP3R Wild Cherry Red

WDP3N Riviera Blue

Stacking Kit

If space is at a premium, use this kit to securely stack your LG front-load washer and dryer.

Stacking Kit Color

WSTK1 White

RSTK1 Wild Cherry Red

NSTK1 Riviera Blue

PEDESTAL INSTALLATION

The pedestal accessory includes:

• Drawer divider (1) • Wrench (1)
• Screws (18) †
• Retainers (4) ††

† Dryer installation only uses 8 screws †† For dryer only

Tools Needed for Installation:

• Phillips-head screwdriver
- Wrench (supplied)

To ensure safe and secure installation, please thoroughly follow the instructions below.

WARNING

• Incorrect installation can cause serious accidents.
• The appliances are heavy. Two or more people are required when installing the pedestal. There is a risk of serious back injury or other injuries.
• Do not allow children to play in or on the drawer. There is a risk of suffocation or injury.
• Do not step on the handle. There is a risk of serious injury.
• If appliances are already installed, disconnect them from all power, water, or gas lines and from draining or venting connections. Failure to do so can result in electrical shock, fi re, explosion, or death.
• When installing, gloves must be put on.

Retract fully

1 Make sure the leveling feet of the dryer are fully retracted.

NOTE: The appliance and pedestal assembly must be placed on a solid, sturdy, level floor for proper operation.

T-clip Retainer

2 Insert the T-clip of the 4 retainers into the dryer base as shown. Press up on the back of the clip and pull outward to lock into place.

PEDESTAL INSTALLATION (cont.)

For dryer For washer/combo

3 Place the dryer on the pedestal. Make sure the front and back feet are in the correct positions. The dryer feet will fit into the innermost positions as shown.

Line drawing of a refrigerator interior with handle and side panel (no text or symbols)

4 Make sure the screws on the pedestal align with the holes in the retainers, then install 4 screws on each side to securely attach the appliance to the pedestal.
NOTE: If the screws are not installed properly, noise and vibration may result.
Move the appliance to the desired location.

Raise Lower

5 Loosen the locknuts on all 4 leveling feet of the pedestal until you can turn them with the wrench. Turn clockwise to raise or counterclockwise to lower until the pedestal is level and all 4 feet are solidly against the floor.

Locknut

6 Securely tighten all locknuts by hand.
NOTE: Noise and vibration may result if locknuts are not tightened.
Be sure to connect the appliances to all water, power, or gas lines and draining or venting connections before operation.
If there is excessive vibration during the first operation after installation, slightly adjust the leveling feet.

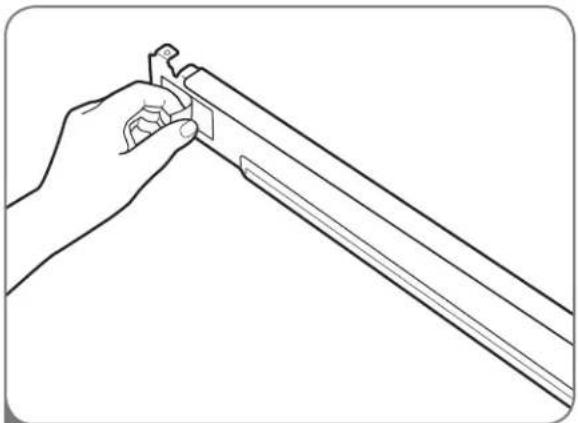

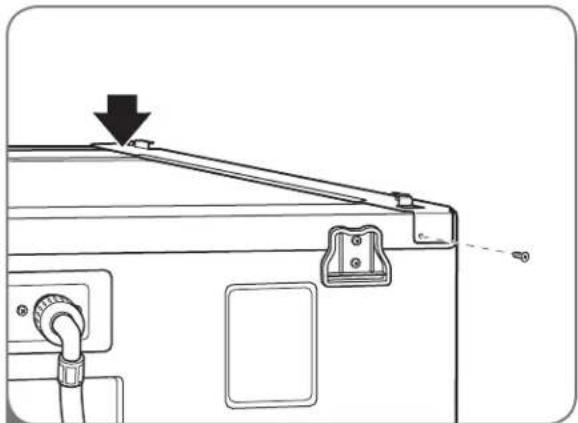

STACKING KIT INSTALLATION

This stacking kit includes:

• Two (2) side rails
• One (1) front rail
• Four (4) screws

Technical line drawing of three parallel metal bracket components (no text or symbols)

Tools Needed for Installation:

• Phillips-head screwdriver

To ensure safe and secure installation, please observe the following instructions.

WARNING

• Incorrect installation can cause serious accidents.
• The weight of the dryer and the height of installation make this stacking procedure too risky for one person. Two or more people are required when installing the stacking kit. There is a risk of serious back injury or other injuries.
• Do not use the stacking kit with a gas dryer in potentially unstable conditions such as a mobile home. Failure to follow this warning can result in serious injury.
• Place the washer on a solid, stable, level floor capable of supporting the weight of both appliances. Failure to follow this warning can result in serious injury.
• Do NOT stack the washer on top of the dryer. Failure to follow this warning can result in serious injury.
• If appliances are already installed, disconnect them from all power, water, or gas lines and from draining or venting connections. Failure to do so can result in electrical shock, fire, explosion, or death.

Line drawing of a hand holding a tool, no text or symbols present

1 Make sure the surface of the washer is clean and dry. Remove paper backing from the tape on one of the stacking kit side brackets.

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

2 Fit the side bracket to the side of the washer top as shown in the above illustration. Firmly press the adhesive area of the bracket to the washer surface. Secure the side bracket to the washer with a screw on the back side of the bracket. Repeat steps 1 and 2 to attach the other side bracket.

STACKING KIT INSTALLATION (cont.)

Dryer Washer

3 Place the dryer on top of the washer by fitting the dryer feet into the side brackets as illustrated. Avoid finger injuries; do not allow fingers to be pinched between the washer and dryer. Slowly slide the dryer toward the back of the washer until the side bracket stoppers catch the dryer feet.

Technical line drawing of a door handle assembly with mounting bracket and handle (no text or symbols)

4 Insert the front rail between the bottom of the dryer and the top of the washer. Push the front rail toward the back of the washer until it comes in contact with the side rail stoppers. Install the two remaining screws to secure the front rail to the side rails.

SPECIFICATIONS

KEY DIMENSIONS AND SPECIFICATIONS

The appearance and specifications listed in this guide may vary due to constant product improvements.

Steam DryerTM Models DLEX2801W, DLEX2801R, DLEX2801L, DLGX2802W, DLGX2802R, and DLGX2802L
Description Steam Dryer
Electrical Requirements*	Please refer to the rating label regarding detailed information.
Gas Requirements* NG: 4-10.5 inches WCLP: 8-13 inches WC (Gas Models only)
Dimensions 27" (W) X 30" (D) X 38 ^11/16 " (H), 51" (D with door open)68.6 cm (W) X 76.1 cm (D) X 98.3 cm (H), 129.7 cm (D with door open)
Net Weight 136.6 lbs. (62 kg)
Drying Capacity- Normal Cycle IEC 7.4 cu.ft. (22.5 lbs./10.2 kg)- Steam Cycle IEC 7.4 cu.ft. (8 lbs./3.6 kg)

*Refer to the rating plate on your dryer.

LG ELECTRONICS, INC. LG DRYER LIMITED WARRANTY - USA

Your LG Dryer will be will repaired or replaced, at LG's option, if it proves to be defective in material or workmanship under normal use, during the warranty period ("Warranty Period") set forth below, effective from the date ("Date of Purchase") of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the United States, including Alaska, Hawaii, and U.S. Territories.

WARRANTY PERIOD:

LABOR: One Year from the Date of Purchase.

PARTS: One Year from the Date of Purchase.

Replacement Units and Repair Parts may be new or remanufactured.

Replacement Units and Repair Parts are warranted for the remaining portion of the original unit's warranty period.

Dryer drum 10 years limited warranty

Parts only. Customer will be responsible for any labor or in-home service to replace defective parts.

HOW SERVICE IS HANDLED:

In-Home Service:

Please retain dealer's dated bill of sale or delivery ticket as evidence of the Date of Purchase for proof of warranty, and submit a copy of the bill of sale to the service person at the time warranty service is provided.

Please call 1-800-243-0000 and choose the appropriate option to locate your nearest LG Authorized Service Center.

Or visit our Web site at: http://www.lgservice.com.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

• Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house fuses or correct wiring, or correction of unauthorized repairs.
• Damages or operating problems that result from misuse, abuse, operation outside environmental specifications or contrary to the requirements of precautions in the Operating Guide, accident, vermin, fire, flood, improper installation, acts of God, unauthorized modification or alteration, incorrect electrical current or voltage, or commercial use, or use for other than intended purpose.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

CUSTOMER INTERACTIVE CENTER NUMBERS

To obtain Customer Assistance, Product Information, or Dealer or Authorized Service Center location:

Call 1-800-243-0000 (24 hours a day, 365 days per year), and select the appropriate option from the menu.

Or visit our Web site at: http://www.lgservice.com.

TO CONTACT LG ELECTRONICS BY MAIL:

LG Customer Interactive Center

P. O. Box 240007

201 James Record Road

Huntsville, Alabama 35824

ATTN: CIC

Product Registration Information

Model:

Serial Number:

Date of Purchase:

The model and serial number can be located on the rating plate inside the front door.

LG ELECTRONICS CANADA, INC. LG DRYER LIMITED WARRANTY - Canada

WARRANTY: Should your LG Dryer ("Product") fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada.

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified, the warranty will begin sixty (60) days from the date of manufacture).

Dryer

One (1) year from the date of original retail purchase

Parts and Labor (internal/functional parts only)

Dryer drum 10 years limited warranty

Parts only. Customer will be responsible for any labor or in-home service to replace defective parts.

- Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

- Replacement products and parts may be new or remanufactured.

• LG Authorized Service Center warranties their repair work for thirty (30) days.

LG CANADA'S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE.

This warranty gives you specific legal rights. You may have other rights which may vary from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of fuses or correction of wiring, or correction of unauthorized repairs/installation.
2. Failure of the product to perform during power failures and interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product owner's manual.
5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not approved or specified by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its intended purpose, or resulting from any water leakage due to improper installation.
8. Damage or Product failure caused by incorrect electrical current, voltage, commercial or industrial use, or use of accessories, components, or cleaning products that are not approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.
10. Damage or missing items to any display, open box, discounted, or refurbished Product.
11. Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses. Replacement of light bulbs, filters, or any consumable parts. Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use, in offices or recreational facilities) or contrary to the instructions outlined in the Product owner's manual.
13. Costs associated with removal of the Product from your home for repairs.
14. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including the Product owner's and installation manuals.
15. Accessories to the Product such as door bins, drawers, handles, shelves, etc.. Also excluded are parts besides those that were originally included with the Product.

All costs associated with the above excluded circumstances shall be borne by the consumer.

For complete warranty details and customer assistance, please call or visit our website:

Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the menu, or visit our website at http://www.lg.ca

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

Silhouette of a clothes hanger with a cloth and a spray bottle, no text or symbols present

LEA TODAS LA INSTRUCCIONES ANTES DE USAR

Diagram of a washing machine with numbered parts for identification and assembly reference

PieZaS Y comPonenTeS clave

Diagram of a front-loading washing machine with labeled parts showing internal components and opening status.

22.4" (56.8 mm) 18" (45.72 cm) 30" (76.1 cm) 4" (10 cm) 51" (129.7mm)

1" (2.54 cm) 27" (68.6 cm) 1" (2.54 cm)

3" (7,6 cm) 48 in.² (310 cm²) 24 in.² (155 cm²) 3" (7,6 cm) Requisitos de ventilación de la puerta del armario

30° (76.1 cm) 4" (10 cm)

Line drawing of a rectangular electronic device casing with mounting holes and a central square top (no text or symbols)

Diagram showing two mechanical components with wrench and nut attachments, no text or symbols present

Illustration of a hand holding an electrical outlet with two outlets (no text or symbols)

Line drawing of a vertical industrial machine with a curved duct and control panel (no text or symbols)

Two schematic diagrams of industrial ventilation systems with no text or symbols

Diagram illustrating a device with a crossed X mark and two magnified insets showing internal structures.

Diagram of a device with a crossed X mark and a magnified inset showing internal components (no text or symbols)

6 Programa PerSonaliZado (cuSTom Program)

Diagram of a washing machine showing internal components and airflow direction (no text or labels)

Line drawing of a washing machine with open door and internal compartments (no text or symbols)

Diagram of a printer's internal structure with an arrow indicating upward motion (no text or symbols)

Line drawing of a mechanical device with a clamped component and directional arrow (no text or symbols)

Illustration of a handheld device connected to a shield-like device with a hand holding the cable (no text or symbols)

Line drawing of a rectangular electronic device with a central square top and side slots (no text or symbols)

Pedestal

Line drawing of a refrigerator interior with handle and side panel (no text or symbols)

Raise Bajar

Technical line drawing of three parallel metal bracket components (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with mounting brackets and a handle (no text or symbols)

LG Customer Interactive Center

P. O. Box 240007

201 James Record Road

Huntsville, Alabama 35824

ATTN: CIC

Diagram of a washing machine with numbered parts for identification and assembly reference.

PIÉCES ET CARACTÉRISTIQUES

Line drawing of a rectangular electronic device casing with mounting brackets (no text or symbols)

Diagram showing two mechanical setups with arrows indicating force or movement, no text or symbols present

Diagram of a vertical pipe system with a labeled 'correcte' in the top-left corner (no other text or symbols)

Ventilation incorrecte

incorrecte

RACCORDEMENT DES SÉCHEUSES À GAZ

⚠AVERTISSEMENT

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

Line drawing of a mechanical device with a vertical pipe and rectangular panel (no text or symbols)

Two schematic diagrams of a device with no visible text, numbers, or symbols.

Diagram showing a device with a 'X' symbol crossed out, alongside three circular insets illustrating different components or functions.

Diagram showing a device with a black X mark and a magnified inset view of a device's internal structure.

Line drawing of an open washing machine with internal components and airflow direction (no text or symbols)

Line drawing of an open washing machine with internal compartments and ventilation slots (no text or symbols)

\* VERROUILLAGE POUR ENFANTS (CHILD LOCK)

PROGRAMME SPÉCIAL (CUSTOM PROGRAM)

Diagram of a printer's front panel with an arrow indicating the top view (no text or symbols present)

Line drawing of a device with an arrow pointing to a screen (no text or symbols)

IMPORTANTES REMARQUES SUR LES CYCLES VAPEUR :

Illustration of a handheld electronic device connected to a screen with a pen inserted (no text or symbols)

Line drawing of a rectangular electronic device with mounting holes and a central square casing (no text or symbols)

Piédestal

Technical line drawing of a refrigerator with labeled parts (no text or symbols present)

4

Technical line drawing of three parallel metal bracket components (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Technical line drawing of a mechanical device with a downward arrow indicating a component (no text or symbols present)

Technical line drawing of a door handle assembly with no visible text or symbols
