USER MANUAL IAN 297578 Playtive

3D rendered image of a gray and white hover chair with hanging legs and feet (no text or symbols visible)

3-IN-1 SWING

GE RE NI

3-IN-1 SWING

Instructions for use

PR 裁

BALANÇOIRE 3 EN 1

Before reading, told out the illustration page and got to know all of the functions of your crit.

(2)

GS/IE/NI Instructions and Safety Notice Page 05

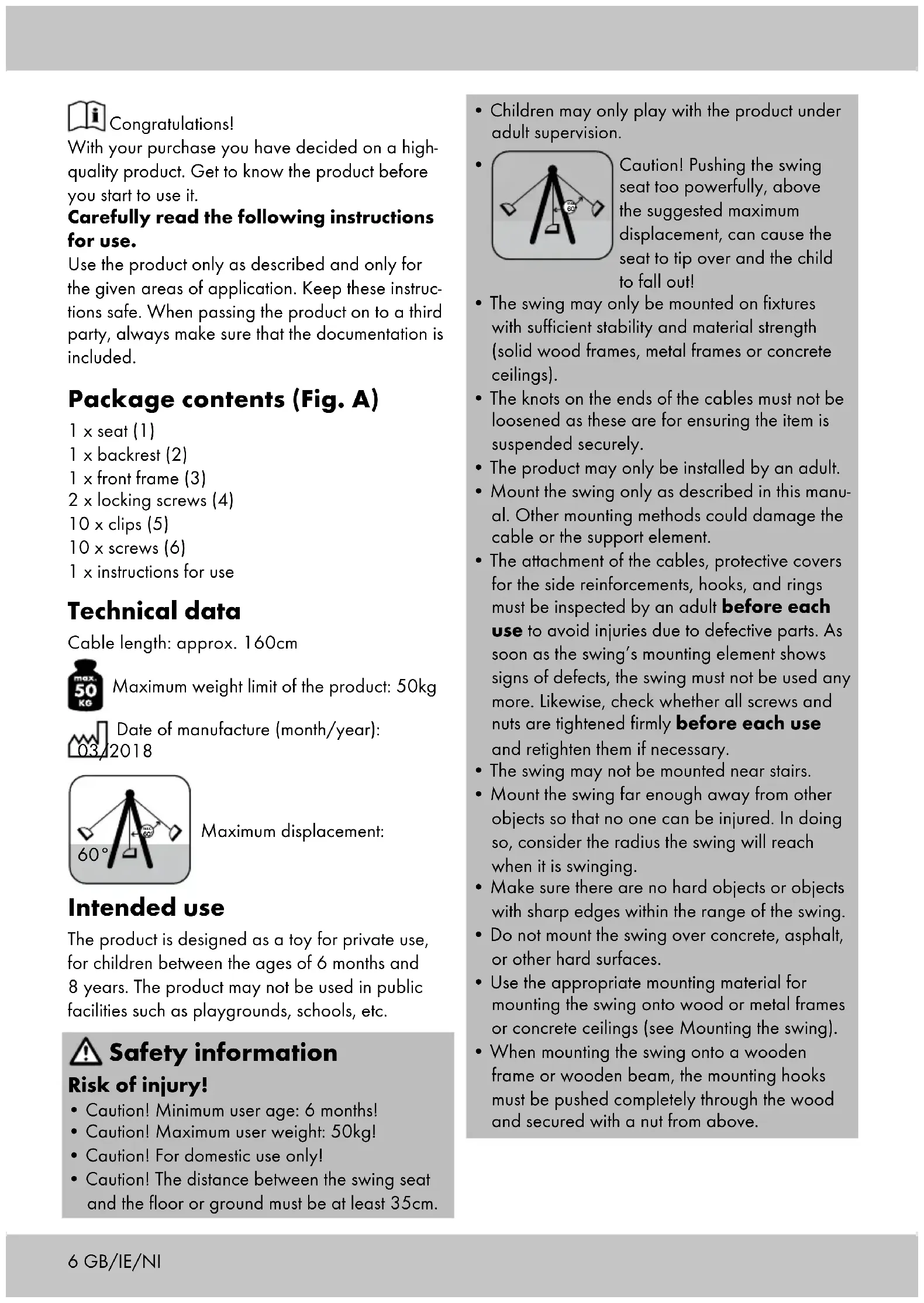

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Package contents (Fig. A)

1 x seat (1)

1 x backrest (2)

1 x front frame (3)

2 x locking screws (4)

10 x clips (5)

10 x screws (6)

1 x instructions for use

Technical data

Cable length: approx. 160cm

Maximum weight limit of the product: 50kg

Date of manufacture (month/year):

2018

60° 60°

Maximum displacement:

Intended use

The product is designed as a toy for private use, for children between the ages of 6 months and 8 years. The product may not be used in public facilities such as playgrounds, schools, etc.

Safety information

Risk of injury!

• Caution! Minimum user age: 6 months!

- Caution! Maximum user weight: 50kg!

- Caution! For domestic use only!

- Caution! The distance between the swing seat and the floor or ground must be at least 35cm.

• Children may only play with the product under adult supervision.

Diagram showing a lever system with weights and a 60-degree angle indicator

Caution! Pushing the swing seat too powerfully, above the suggested maximum displacement, can cause the seat to tip over and the child to fall out!

- The swing may only be mounted on fixtures with sufficient stability and material strength (solid wood frames, metal frames or concrete ceilings).

- The knots on the ends of the cables must not be loosened as these are for ensuring the item is suspended securely.

• The product may only be installed by an adult.

- Mount the swing only as described in this manual. Other mounting methods could damage the cable or the support element.

- The attachment of the cables, protective covers for the side reinforcements, hooks, and rings must be inspected by an adult before each use to avoid injuries due to defective parts. As soon as the swing's mounting element shows signs of defects, the swing must not be used any more. Likewise, check whether all screws and nuts are tightened firmly before each use and retighten them if necessary.

• The swing may not be mounted near stairs.

- Mount the swing far enough away from other objects so that no one can be injured. In doing so, consider the radius the swing will reach when it is swinging.

- Make sure there are no hard objects or objects with sharp edges within the range of the swing.

- Do not mount the swing over concrete, asphalt, or other hard surfaces.

- Use the appropriate mounting material for mounting the swing onto wood or metal frames or concrete ceilings (see Mounting the swing).

- When mounting the swing onto a wooden frame or wooden beam, the mounting hooks must be pushed completely through the wood and secured with a nut from above.

• Make sure your child is not wearing a helmet or clothing with strings or cords when using the product, as these may get caught and could injure the child.
• Do not jump off the swing while it is swinging. Only get off the swing when it has come to a complete stop.
• Ensure that there is enough space between the swing and other people and objects, so that no one can be injured.
• The product should be a suitable safe distance of at least 2m away from buildings, stairs, fences, walls, water, overhanging branches, washing lines, electrical wires, and other obstacles.
• Note that this product may become hot in strong sunlight.
• No technical alterations may be made to the product.

Mounting the swing

Only mount the swing on fixtures where you can guarantee sufficient stability with absolute certainty. For mounting, use at least 10mm sturdy screw hooks that are bent at least 540° or completely closed to prevent unintended release. In wooden beams, the mount must be pushed completely through the wood and secured from above to achieve a sufficiently secure connection.

Mounting the clips (Fig. J)

Mount the clips on the cables on both sides of the swing. The clips prevent your child's head or other body part from getting stuck in the cables.

1. Slide the yellow side piece all the way down, so as to position it as close as possible to the swing seat.
2. Loosen the screw on the pre-mounted clip (5) and slide the clip (5) all the way down, so that the respective side piece cannot ride up any more.
3. Fix the clip (5) in place with the screw (6) again.
4. Mount the remaining clips (5) by folding them up and fixing them in place with the screw (6) at evenly spaced intervals.

Note: Make sure that the tips of the screws do not protrude from the clips.

Mounting the board swing (Fig. B)

The board swing without the backrest (2) and the front frame (3) is suitable for children aged between 5 and 8 years.

Note: Observe the maximum weight of 50kg.

Chair swing (Fig. C)

The chair swing is suitable for children aged between 3 and 5 years.

1. Attach the backrest (2) to the seat (1) of the swing. Use the first hole (1a) on the swing seat (Fig. D).
2. Tighten the locking screw (4) firmly to secure the backrest (2).

Baby swing

The baby swing is suitable for children aged between 6 and 36 months.

1. Attach the backrest (2) to the seat (1) of the swing. Depending on the child's size or age, use either the first hole (1a) or the second hole (1b) on the swing seat (Fig. D).
2. Tighten the locking screw (4) firmly to secure the backrest (2) (Fig. C).
3. Attach the front frame (3) to the frontmost hole (1c) on the seat (Fig. E).
4. Tighten the locking screw (4) firmly to secure the front frame (3) (Fig. F).

Various mounting hooks

Only mount the swing on a suitable mount. These are:

No. 1: a closed mounting hook that is fastened to the swing element with a carabiner hook (Fig. G). No. 2: a round hook that is bent 540° to prevent unintended release (Fig. H).

Note! The eye of the mounting hook ① must be mounted crosswise to the swing direction so that the fastening element of the swing will not be damaged too heavily during use.

Adjusting the height of the swing (Fig. I)

The height of the seat can be adjusted using the ring on the upper end of the swing.

After you have adjusted the length of the cable, it will pull tight again under load.

Adjust the length of both cables so the swing is perfectly balanced.

Maintenance

Read the following maintenance information carefully and follow the instructions contained in it to avoid injuries due to defective parts.

• The swing elements, cables and fasteners must be checked regularly before each use for damage and wear.
• Check whether all screws and nuts are tight and retighten if necessary. All the protective covers for screws and other metal parts must be checked regularly before use and replaced if they are damaged.
• Defective parts may only be replaced in accordance with the manufacturer's instructions.

Storage and cleaning

Do not forget that regular maintenance and cleaning contribute to the safety and preservation of your swing.

The item must always be stored clean and dry, in a temperate storage space.

Clean with water only and wipe dry afterwards with a cloth.

IMPORTANT! Never clean the item with harsh cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations.

Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty. With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you. Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 297578

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

NI Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
