React Goggle - Bike SCOTT - Free user manual and instructions

Brand	SCOTT
Model	React Goggle
Product type	Ski / snowboard mask (Personal Protective Equipment category I)
Intended use	Ski, snowboard and other winter sports
Safety standard	EN 174:2001, CE, UKCA
UV protection	100% against UV rays
Screen categories	S0 (80-100%) to S4 (3-8%) depending on model
Optical protection index	Class 1
Anti-fog treatment	Yes, on all SCOTT winter masks (hydrophilic coating)
Screen change	Possible at room temperature, follow the manual instructions
Adjustment system	Adjustable strap with sliders, fit system with 4 positions
Helmet compatibility	Yes, the strap can be attached around a helmet
Cleaning	Warm water and mild soap, soft cloth or storage bag
Maintenance	Do not use solvents, do not machine wash, avoid temperatures >50°C
Lifespan	3 to 5 years after purchase, depending on use
Spare parts	Replacement screens, strap (use only SCOTT parts)
Contraindications	Do not use for direct observation of the sun, nor for driving on roads
Storage	In its case, away from heat and direct light
Manufacturer	SCOTT Sports SA, Route du Crochet 11, CH-1762 Givisiez, Switzerland
USA distribution	SCOTT USA Inc., 651 West Critchlow Drive, 84404 Ogden, USA

Frequently Asked Questions - React Goggle SCOTT

How to change the screen of the SCOTT React mask?

Screen change must be done at room temperature. For standard frames (except 1301, 1501, 2301), remove the screen by pulling the nasal part outward, then insert the new screen by pressing on the nasal part and clipping the edges. Make sure all tabs are properly inserted. For model 2301, locking is done with the cursor in the lower position.

How to clean my SCOTT React mask?

Use warm water and a little mild soap. Do not rub the wet screen; shake it to remove droplets then dab with a soft, clean cloth. Avoid paper tissues and solvents. The hydrophilic coating can be damaged by aggressive wiping.

Which screen category to choose for different conditions?

The categories range from S0 (clear, 80-100% transmission) suitable for dark or foggy conditions, to S4 (very dark, 3-8%) for very strong sunlight. S3 screens (Solar Blocker) are for sunny conditions, S2 (Enhancer) for medium light, and S1 (Illuminator) for low light. Light Sensitive screens adapt automatically.

How to adjust the mask to my face?

Place the mask on your face and fasten the strap around your head or helmet. Use the sliders to tighten or loosen the strap. The FIT SYSTEM with 4 positions allows adjusting the seal: rotate the two points at the bottom of the mask. Both sides must be adjusted identically.

Is the SCOTT React mask compatible with a helmet?

Yes, the mask strap can be attached around a ski or snowboard helmet. Make sure the strap is well adjusted to hold the mask in place without pressure points.

What is the lifespan of a SCOTT React mask?

SCOTT recommends replacing your product 3 to 5 years after purchase, depending on use. Regularly inspect the screen, strap and frame. If cracks or scratches appear, replace the part or the mask.

Can I use the SCOTT React mask for cycling?

No, this mask is designed only for winter sports like skiing and snowboarding. It is not suitable for cycling, driving on roads, or observing the sun directly.

How do I know if my screen is damaged?

Visually check: the screen must not be split, scratched or deformed. The frame must not have cracks. If you notice damage, immediately replace the defective part with an original SCOTT part.

Where can I buy replacement screens for my SCOTT React?

Replacement screens are available at SCOTT specialized retailers. Check the model code printed inside the frame (e.g. 2301 for React) to order the corresponding screen.

Does the SCOTT React mask protect against impacts?

It protects against snow, wind, dust and UV, but is not designed to withstand violent impacts from hard or sharp objects. No mask can guarantee total protection against all impacts.

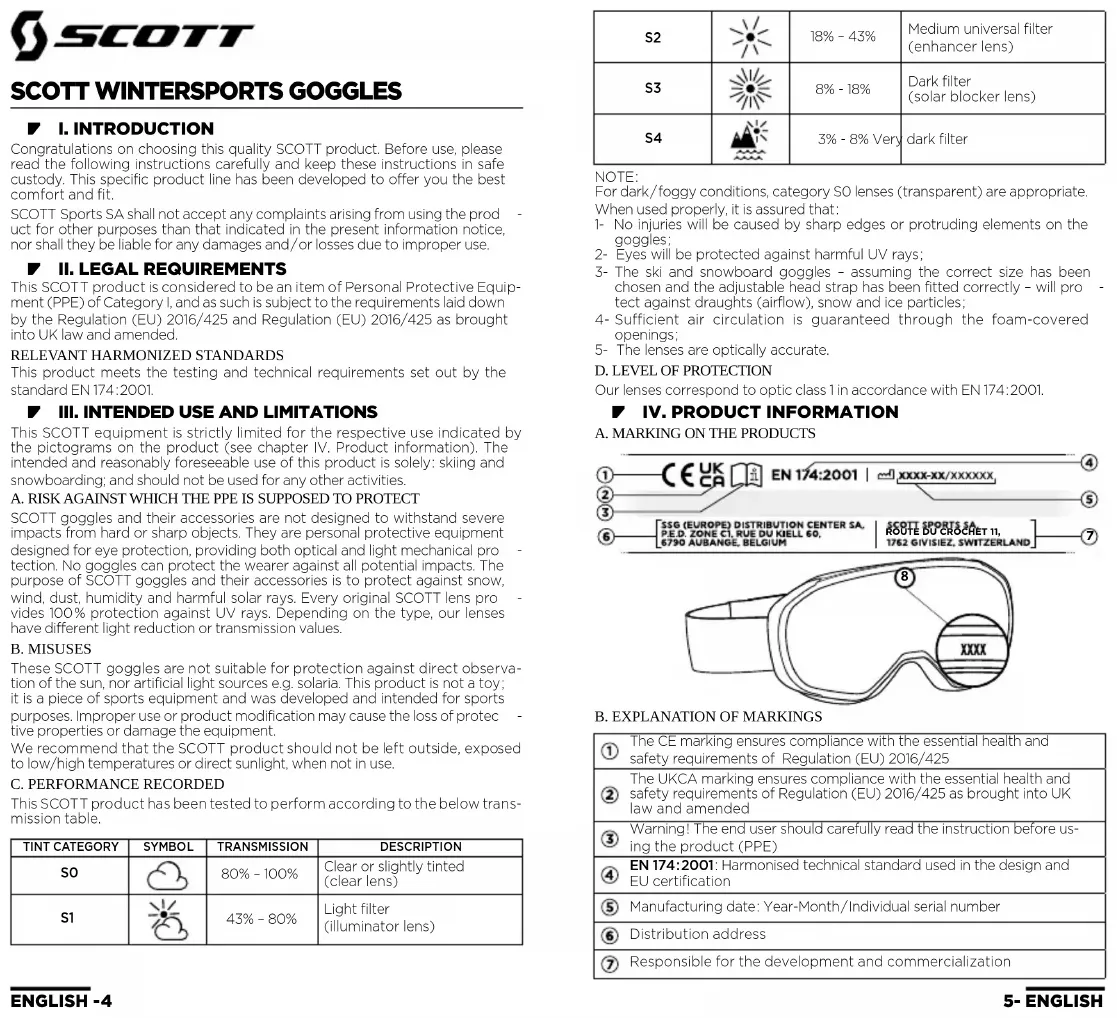

USER MANUAL React Goggle SCOTT

Congratulations on choosing this quality SCOTT product. Before use, please read the following instructions carefully and keep these instructions in safe custody. This specific product line has been developed to offer you the best comfort and fit.

SCOTT Sports SA shall not accept any complaints arising from using the product for other purposes than that indicated in the present information notice, nor shall they be liable for any damages and/or losses due to improper use.

II. LEGAL REQUIREMENTS

This SCOTT product is considered to be an item of Personal Protective Equipment (PPE) of Category I, and as such is subject to the requirements laid down by the Regulation (EU) 2016/425 and Regulation (EU) 2016/425 as brought into UK law and amended.

RELEVANT HARMONIZED STANDARDS

This product meets the testing and technical requirements set out by the standard EN 174:2001.

III. INTENDED USE AND LIMITATIONS

This SCOTT equipment is strictly limited for the respective use indicated by the pictograms on the product (see chapter IV. Product Information). The intended and reasonably foreseeable use of this product is solely: skiing and snowboarding; and should not be used for any other activities.

A. RISK AGAINST WHICH THE PPE IS SUPPOSED TO PROTECT

SCOTT goggles and their accessories are not designed to withstand severe impacts from hard or sharp objects. They are personal protective equipment designed for eye protection, providing both optical and light mechanical protection. No goggles can protect the wearer against all potential impacts. The purpose of SCOTT goggles and their accessories is to protect against snow, wind, dust, humidity and harmful solar rays. Every original SCOTT lens provides 100% protection against UV rays. Depending on the type, our lenses have different light reduction or transmission values.

B. MISUSES

These SCOTT goggles are not suitable for protection against direct observation of the sun, nor artificial light sources e.g. solaria. This product is not a toy; it is a piece of sports equipment and was developed and intended for sports purposes. Improper use or product modification may cause the loss of protective properties or damage the equipment.

We recommend that the SCOTT product should not be left outside, exposed to low/high temperatures or direct sunlight, when not in use.

C. PERFORMANCE RECORDED

This SCOTT product has been tested to perform according to the below transmission table.

TINT CATEGORY	SYMBOL	TRANSMISSION	DESCRIPTION
S0		80% - 100%	Clear or slightly tinted (clear lens)
S1		43% - 80%	Light filter (illuminator lens)

ENGLISH -4

S2		18% - 43%	Medium universal filter (enhancer lens)
S3		8% - 18%	Dark filter (solar blocker lens)
S4		3% - 8% Very dark filter

NOTE:

For dark/foggy conditions, category SO lenses (transparent) are appropriate. When used properly, it is assured that:

1- No injuries will be caused by sharp edges or protruding elements on the goggles;

2- Eyes will be protected against harmful UV rays;

3- The ski and snowboard goggles - assuming the correct size has been chosen and the adjustable head strap has been fitted correctly - will protect against draughts (airflow), snow and ice particles;

4- Sufficient air circulation is guaranteed through the foam-covered openings;

5- The lenses are optically accurate.

D. LEVEL OF PROTECTION

Our lenses correspond to optic class 1 in accordance with EN174:2001.

IV. PRODUCT INFORMATION

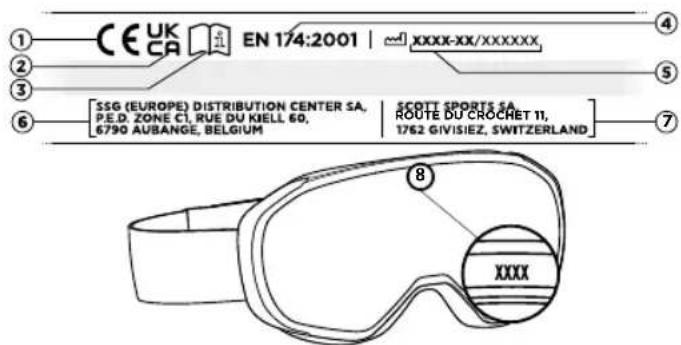

A. MARKING ON THE PRODUCTS

CE UK CA EN 174:2001 | XXXX-XX/XXXXXX SSG (EUROPE) DISTRIBUTION CENTER SA, P.E.D. ZONE CI. RUE DU KELL 60, 6790 AUBANGE, BELGIUM SCOTT SPORTS SA, ROUTE DU CROCHET 11, 1762 GIVISIEZ, SWITZERLAND XXXX

B. EXPLANATION OF MARKINGS

1	The CE marking ensures compliance with the essential health and safety requirements of Regulation (EU) 2016/425
2	The UKCA marking ensures compliance with the essential health and safety requirements of Regulation (EU) 2016/425 as brought into UK law and amended
3	Warning! The end user should carefully read the instruction before using the product (PPE)
4	EN 174:2001: Harmonised technical standard used in the design and EU certification
5	Manufacturing date: Year-Month/Individual serial number
6	Distribution address
7	Responsible for the development and commercialization

5- ENGLISH

Model identification

C. FURTHER MARKINGS

Below you can find each product is marked on the inside of the frame with a reference code. The model description of each code:

2301 SCOTT REACT

2250 SCOTT SPLIT OTG

2201 SCOTT FACTOR

2101 SCOTT SHIELD

2001 SCOTT VAPOR

1701 SCOTT WITTY

1702 SCOTT FAZE II

1601 SCOTT UNLIMITED II OTG

1602 SCOTT MUSE PRO

1603 SCOTT MUSE

1604 SCOTT MUSE PRO OTG

1501 SCOTT LCG COMPACT

1502 SCOTT FIX

1401 SCOTT LINX

1301 SCOTT LCG EVO

1203 SCOTT FACT

1250 SCOTT HABIT OTG

1104 SCOTT AGENT

0601 SCOTT 89X (CLASSIC, ASSET, ALTA)

D. SCOTT WINTER GOGGLE LENSES

	MARKETING NAME TINT CAT.	REF
AMPLIFIER	LIGHT SENSITIVE
	Light Sensitive Blue Chrome S2-S4	L154, L365
	Light Sensitive Bronze Chrome S1	S3 L155, L354
	Light Sensitive Red Chrome S2-S3	L162, L362
	SOLAR BLOCKER
	Solar Black Chrome	S3	L156, L355
	Solar Red Chrome	S3 L158, L368
	Solar Blue Chrome	S3 L102
	ENHANCER
	Enhancer Aqua chrome	S2	L165, L367
	Enhancer Blue chrome	S2	L163, L363
	Enhancer Rose chrome	S2	L164, L364
	Enhancer Purple Chrome	S2	L113, L322
	Enhancer Silver Chrome	S2	L114, L312
	Enhancer Teal Chrome	S2	L116, L356
	Enhancer Red Chrome	S2	L151, L350
	Enhancer Green Chrome S2	L110

ENGLISH -6

AMPLIFIER	Enhancer Yellow Chrome	S2	L357, L159
	Enhancer	S2	L119, L505, L711
	ILLUMINATOR
	Illuminator	S1	L120, L501
	Illuminator Red Chrome	S1 L153
	Illuminator Blue Chrome	S1	L161, L361

OTHERS COLORS
Night Enhancer	S1	L559
Clear	SO	L152, L504

The resistance to fogging is guaranteed on all SCOTT winter goggles. Light transmission curves are available at www.scott-sports.com.

▼ V. TIME OF OBSOLESCENCE

SCOTT Goggles have limited lifespan. For optimum safety, SCOTT recommends replacing your product three (3) to five (5) years after its purchasing date, depending on usage.

SCOTT Goggles or goggle lenses that are damaged or worn out must be replaced for safety reasons.

SCOTT shall not be liable for damages relating to the use of products which should have been replaced.

It is essential for the lens to be changed if it can no longer be guaranteed to work properly and provide good protection because of soiling, mechanical wear and tear or improper usage.

VI. INSTRUCTIONS FOR SIZING, FIT

For the SCOTT product to serve its purpose, it must cover the protected area correctly.

To obtain maximum comfort and protection, SCOTT goggles must be adjusted correctly.

The goggles should be placed on the user's face, and the strap around the head or the helmet. Adjust the strap by sliding the plastic sliders towards the face to tighten it, and towards the back of the head to loosen it.

A. CHANGING THE LENS

Please note that ideally the lens should be changed at room temperature so that the frame is sufficiently pliable.

Should you need a new lens, please make a note of the model code, which is marked inside the frame (IV. Product Information) and order the relevant replacement lens from your specialist retailer.

All goggles (excluding frames 1301, 1501, 2301)

1- Remove the lens from the frame by pulling the nose section away from the lens (1) and remove the lens it from each of the mounts.
2- When inserting the new lens, press the nose section together and insert the lens into the nose groove so that the mount engages.
3- Repeat the process on the lower (2) and on the upper edge (3) of the goggles.
4- Be sure that the entire lens is properly seated in the frame slot and all frame retention posts are fully engaged with the lens keyholes. If this is not the case, apply slight pressure to click it into place.

Diagram of an optical device with numbered components and a central measurement arrow

7- ENGLISH

Frames 1301, 1501, 2301

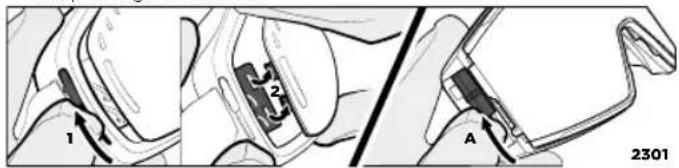

1- Lens removal: always hold the goggles on the outside of the frame with - out pinching the nose area

1 2 A 2301

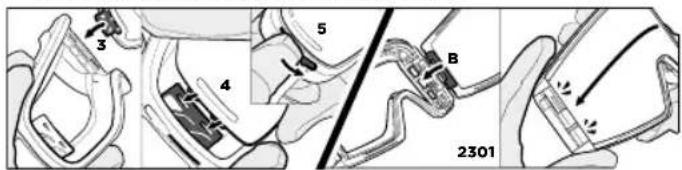

2- Lens installation: The lens is securely locked when the slider is at the very low position and the lens is fully sealing the frame

3 4 5 B 2301

VII. INSTRUCTIONS

Wear and tear, dirt or any kind of damage may compromise the effectiveness of the equipment. Contamination with foreign substances and improper care can seriously compromise the effectiveness of your equipment and reduce its performance.

A. CLEANING AND CARE

Depending on the model, the lenses have a hydrophilic coating, which prevents fogging-up. It is therefore important to proceed in accordance with the following directions:

1- In the event of slight soiling, the goggles can be cleaned sufficiently using the storage bag or a damp cloth.
2- In the event of heavy soiling, the goggles can be cleaned under running water and with a little soap. Please make sure that the wet lens is not wiped but that the water is merely shaken off and dabbed with a soft, clean cloth. Wiping can destroy the anti-fog coating. This can also occur if paper towels are used.
3- Particular care should be taken with mirrored lenses. Please ensure that there are no dust particles on the lens or the cleaning cloth when cleaning. 4- We strongly advise against the use of solvents.
5- Do not wash SCOTT goggles in the washing machine.

B. TRANSPORTATION & STORAGE

Whenever possible please store and transport your SCOTT goggles in the bag or box designed for this purpose. Only by doing so can you be certain that your goggle lens will remain undamaged for as long as possible. Please also note that the goggles should not be stored in places where they may be subjected to high levels of radiated heat. Storage in temperatures above 50°C is not recommended!

C. CHECKING OF WEAR AND TEAR

Inspect the goggles before the beginning of a season or after a fall to ensure the goggles are still intact. The lens must not be split, the strap must be securely fastened to the frame and the frame should not have any cracks. In the event that any such damage is found, the defective part must be replaced. Only original SCOTT spare parts may be used. Scratched or damaged lenses have to be replaced and must not be used again.

D. DISPOSAL

Dispose of the products in the domestic waste. Do not tamper or incinerate the product. This may lead to potential hazards.

ENGLISH -8

VIII. WARNING

• No SCOTT equipment can offer full protection against injury. Any contamination, alteration to the product or misuse could dangerously reduce the performance of the equipment.
• Do not use ski goggles in road and when driving.

IX. SALES

Responsible for the development and commercialization in the EU and worldwide is: SCOTT Soorts SA, Route du Crochet 11, CH-1762 Givislez, Switzerland. Distribution USA; SCOTT USA Inc., 651 West Critchlow Drive, 84404 Oqden, USA.

Importer for the UK: SCOTT Sports SA (UK Branch), Unit 3, Baker Road, Nelson Park West, Cramlington NE23 IWL, United Kingdom.

Distribution other countries: SSG (Europe) Distribution Center SA, P.E.D Zone C1, Rue du Kiell 60, 6790 Aubange, Belgium.

All information related to importers is available at www.scott-sports.com/company/distributors

X. HOMOLOGATION

Declarations of conformity are available at www.scott-sports.com/conformity

Assessed by:

- ITALCERT, Notified Body No. 0426, v. le Sarca 336-20126, Milano, Italy. - TÜV SÜD Product Service GmbH Zertifizierstelle, Ridlerstraße 65, 80339 MÜNCHEN, Germany. Prüfstellennummer 0123.

The product complies requirements of the Standard: EN 174:2001

This SCOTT product complies with the essential health and safety requirements of Regulation (EU) 2016/425 on Personal Protective Equipment (PPE Category I). Further, it complies with the health and safety requirements of Regulation (EU) 2016/425 on Personal Protective Equipment (PPE Category I) as brought into UK law and amended.

WWW.SCOTT-SPORTS.COM

©SCOTT SPORTS SA 2023. All rights reserved. Rev. 04 of 03.2022.

The information contained in this manual is in various languages but only

the English version will be relevant in case of conflict

UK CA CE

WARNING THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING BISPHENOLA, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P68WARNINGS.CA.GOV

9- ENGLISH

SCOTT

SCOTT WINTERSPORTS GOGGLES

I. EINLEITUNG

Diagram of a pair of eyeglasses with numbered labels and an arrow indicating motion direction

Rahmen 1301, 1501, 2301

WWW.SCOTT-SPORTS.COM

NORMES APPLICABLES HARMONISÉES

IV. INFORMATION PRODUIT

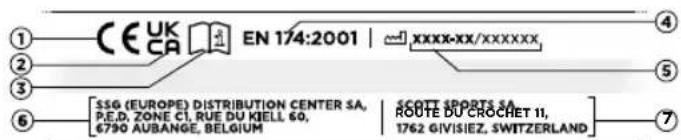

A. MARQUAGE SUR LE PRODUIT

CE UK CA EN 174:2001 | XXXX-XX/XXXXXX, SSG (EUROPE) DISTRIBUTION CENTER SA, P.E.D. ZONE C1, RUE DU KIELL 60, 6790 AUBANGE, BELGIUM SCOTT SPORTS SA, ROUTE DU CROCAET 11, 1762 GIVISIEZ, SWITZERLAND

8 XXXX

B. EXPLICATION DES SIGLES

Diagram of an eye safety system with numbered components and directional arrows indicating motion or flow.

Montures 1301, 1501, 2301

WWW.SCOTT-SPORTS.COM

www.scott-sports.com.

Diagram of a pair of eyeglasses with numbered labels and directional arrows indicating motion or movement.

Monturas 1301, 1501, 2301

WWW.SCOTT-SPORTS.COM

Diagram of a pair of eyeglasses with numbered labels and directional arrows indicating motion or movement.

Montature 1301, 1501, 2301

WWW.SCOTT-SPORTS.COM

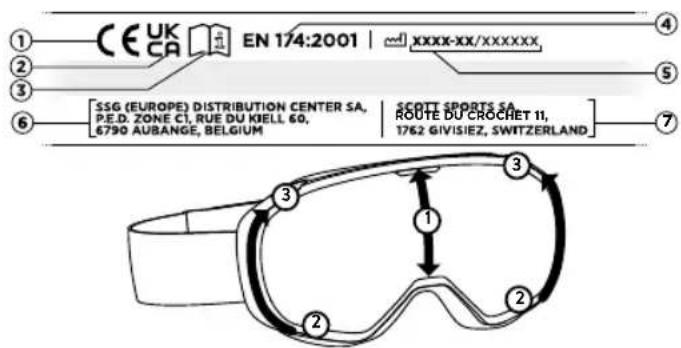

A. MÄRKNING PÅ PRODUKTERNA

CE UK CA EN 174:2001 | XXXX-XX/XXXXX SSG (EUROPE) DISTRIBUTION CENTER SA, P.E.D. ZONE CI. RUE DU KELL 60, 6790 AUBANGE, BELGIUM SCOTT SPORTS SA ROUTE DU CROCHET 11, 1762 GIVISIEZ, SWITZERLAND

B. FÖRKLARING AV MÄRKNINGAR

B. FÖRVARING OCH TRANSPORT

WWW.SCOTT-SPORTS.COM

A. MÆRKNING PÅ PRODUKTERNE

CE UK CA EN 174:2001 | XXXX-XX/XXXXXX, SSG (EUROPE) DISTRIBUTION CENTER SA, P.E.D. ZONE CL. RUE DU KIELL 60, 6790 AUBANGE, BELGIUM SCOTT SPORTS SA, ROUTE DU CROCHET 11, 1762 GIVISIEZ, SWITZERLAND

B. FORKLARING AF MÆRKNINGER

www.scott-sports.com/conformity

Bedømt:

- ITALCERT, bemyndiget organ nr. 0426, v. le Sarca 336-20126, Milano, Italien.

- TUV SUD Product Service GmbH, Daimlerstraße 11, 85748 Garching, Tyskland.

WWW.SCOTT-SPORTS.COM

©SCOTT SPORTS SA 2023. Alle rettigheder forbeholdes. Rev. 04 af 03.2022.

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

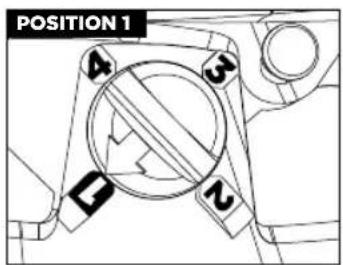

POSITION 1 4 3 2

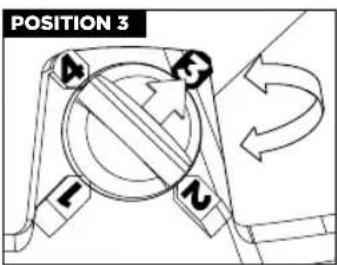

POSITION 3

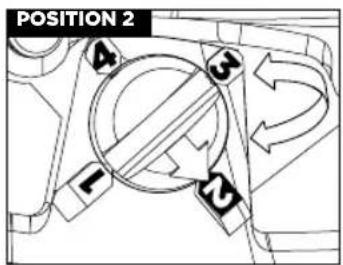

POSITION 2 A B C D

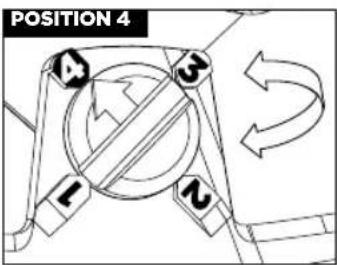

POSITION 4 1 2 3

SCOTT FIT SYSTEM -46

ADJUSTMENT INSTRUCTIONS

A screw driver or loose change will be needed to adjust the pivot points.

The fit system is a one time adjustment designed to increase seal and comfort against the face. Each of the 4 positions represents a different unique fit. This is achieved by rotating two pivot points located at the bottom side of the goggles. The factory setting for the FIT SYSTEM is position 1.

While there is not a recommended setting it is important to keep each pivot point in the same position on each side of the goggles. For example if you move a pivot point over to position 2 the second pivot should also move to position 2. Now find the position that best suits you, set it and get riding.

EINSTELLANLEITUNG
