Product type	Electric clipper
Brand	GAMA
Model	GBS Absolute Fade
Motor speed	5300 rpm
Battery life	120 minutes
Charging time (first)	12 hours
Charging time (subsequent)	90 minutes
Cutting height without comb	0.8 to 3.8 mm (adjustable by lever)
Cutting height with combs	1.5 / 3 / 4.5 / 6 / 10 / 13 / 19 / 25 mm
Power supply	Integrated rechargeable battery (Li-ion) + mains operation
Warranty	1 to 2 years according to Directive 1999/44/EC
Safety instructions	Do not use near water, do not immerse, unplug after use
Maintenance	Clean with provided brush, lubricate blade regularly
Repairability	Do not disassemble blade head (loss of warranty); replace head via manufacturer
Weight (estimated)	Approximately 400 g
Dimensions (estimated)	17 x 4 x 4 cm
Included accessories	Cutting combs (8), cleaning brush, lubricating oil, mains adapter

Frequently Asked Questions - GBS Absolute Fade GAMA

How long does it take to charge the battery for the first time?

The first charge must last 12 hours even if the LED indicator changes color before. Subsequent charges only require about 90 minutes.

Can I use the clipper plugged into the mains if the battery is empty?

Yes, the clipper can be used by plugging it directly into the mains adapter even if the battery is discharged.

How to clean the GBS Absolute Fade clipper?

Turn off and unplug the device. Remove the comb. Use the provided brush to remove hair between the blades. Never clean the parts under running water.

How often should I lubricate the blade?

For professional use, lubricate daily. For domestic use, lubricate at least once a month or more often depending on use. Put a few drops of oil on the blade, turn on for a few seconds, then wipe off excess.

What are the available cutting heights with the combs?

The combs allow the following lengths: 1.5 mm, 3 mm, 4.5 mm, 6 mm, 10 mm, 13 mm, 19 mm and 25 mm.

How to adjust the cutting height without comb?

Use the lever located on the left side of the device. Positioned upward, the cut is at 0.8 mm; downward, at 3.8 mm.

Can I replace the battery myself?

No, the battery is internal and must not be replaced by the user. Any attempt voids the warranty and presents a risk of fire or electrocution.

What to do if the clipper does not cut effectively despite maintenance?

If the blade is worn, contact the manufacturer to replace the entire cutting head. Do not disassemble the head yourself or you will lose the warranty.

Is the clipper waterproof?

No, it is not waterproof. Do not use it near water, do not immerse it, and do not clean it under the tap.

How to attach and remove the combs?

To attach, place the notch near the teeth of the comb on the blade, then push the base until it clicks. To remove, pull the tab at the base of the comb outward.

USER MANUAL GBS Absolute Fade GAMA

ABSOLUTE FADE GBS GAMA BARBER SERIES SINCE 1969

MODELLO

ABSOLUTE FADE

MODEL

Black and white photo of a GBS hairbrush with 'ABSOLUTE FADE' branding (no additional text or symbols visible)

MANUALE D'USO

LEGGERE E CONSERVARE

READ AND KEEP FOR FUTURE NEEDS

[e-mail] / www.gamaprofessional.com

INDICE / INDEX

ITA / ITALIANO: 03

EN / ENGLISH: 11

FR / FRANÇAIS: 18

ESP / ESPAÑOL: 26

PT / PORTUGUÉS: 33

RU / РУССКИЙ: 40

ΕΛΛ / ΕΛΛΗΝΙΚΑ: 48

PL / POLSKI: 56

SWE / SVENSKA: 63

DE / DEUTSCH: 70

ي برع / عربي : 77

ITA

3D rendered object with three circular holes and a central hole (no text or symbols)

PRIMA DELL'UTILIZZO:

Abstract black geometric shape on white background (no text or symbols)

Fig.2

Silhouette of a bear's head and shoulder (no text or symbols)

Close-up of a hairbrush and jawbone (no text or symbols visible)

LEVA REGOLABILE:

Illustration of a hand using a hairpin to cut a comb (no text or symbols visible)

COME E QUANDO LUBRIFICARE LA LAMA:

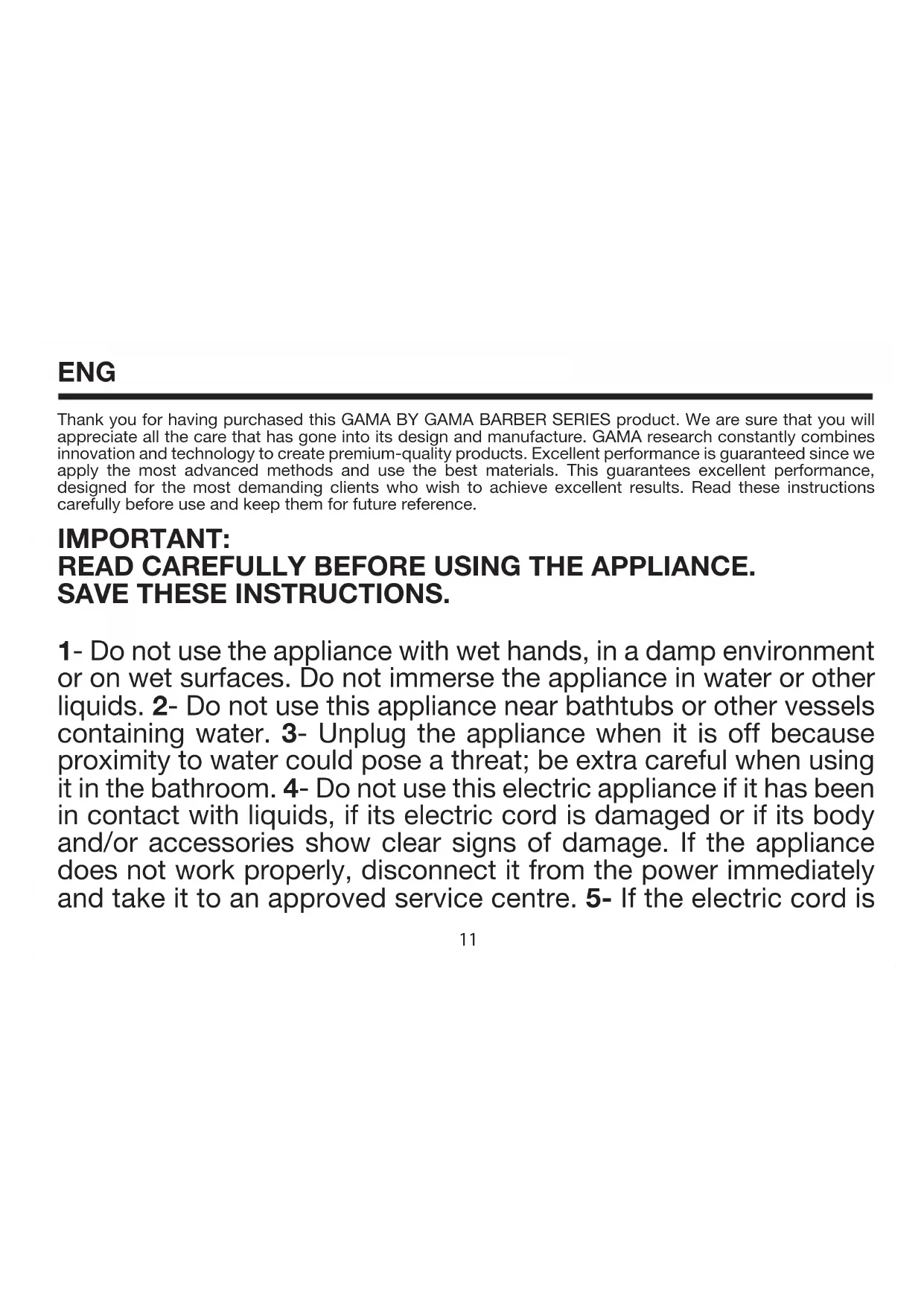

Thank you for having purchased this GAMA BY GAMA BARBER SERIES product. We are sure that you will appreciate all the care that has gone into its design and manufacture. GAMA research constantly combines innovation and technology to create premium-quality products. Excellent performance is guaranteed since we apply the most advanced methods and use the best materials. This guarantees excellent performance, designed for the most demanding clients who wish to achieve excellent results. Read these instructions carefully before use and keep them for future reference.

IMPORTANT:

READ CAREFULLY BEFORE USING THE APPLIANCE. SAVE THESE INSTRUCTIONS.

1- Do not use the appliance with wet hands, in a damp environment or on wet surfaces. Do not immerse the appliance in water or other liquids. 2- Do not use this appliance near bathtubs or other vessels containing water. 3- Unplug the appliance when it is off because proximity to water could pose a threat; be extra careful when using it in the bathroom. 4- Do not use this electric appliance if it has been in contact with liquids, if its electric cord is damaged or if its body and/or accessories show clear signs of damage. If the appliance does not work properly, disconnect it from the power immediately and take it to an approved service centre. 5- If the electric cord is

damaged, it must be replaced immediately by the manufacturer, an authorised service centre or similarly qualified persons in order to avoid a hazard. 6 - Keep the appliance and its electric cord away from sources of heat and from heat-sensitive surfaces (plastic, vinyl, etc.). 7- Do not hold or handle the appliance by the electric cord. Do not wind the electric cord around the appliance, bend it or twist it so as not to impair its correct functioning and thus damage the appliance. Lack of compliance with the above warnings and instructions could cause a short circuit and thus irreparable damage to the appliance, as well as put the user's safety at risk. 8- Unplug the appliance when not in use and allow it to cool down before storing it in a safe place. To disconnect the appliance, unplug the electric cord from the wall power outlet. 9- To clean the appliance, always disconnect it from the power outlet first and let it cool completely. When cleaning, do not use aggressive products containing phenylphenol. 10- This appliance should only be used for its intended purpose. 11- This appliance has especially sharp professional blades, so use it carefully to avoid injuries or lesions. 12- Always turn this appliance off before changing one of its accessories. 13- For additional protection the

installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

This appliance must not be used by people with reduced physical, motor or mental capacity (including children), or with limited knowledge of the appliance itself, unless such people have been trained for its use or are under adequate supervision to ensure their own safety. Children must be under supervision at all times to ensure that they do not play with the appliance.

Do not use this appliance near bathtubs or other vessels containing water.

CE

The symbol on the product or on the package indicates that the product should not be considered as normal domestic waste; once you have decided to dispose of it, it should be taken to the proper collection point for recycling electrical and electronic appliances. When you dispose of this product correctly, you help prevent potential negative consequences for the environment and health, which could derive from improper treatment of the product. For more detailed information on recycling this product, contact the municipal office, the local waste disposal service or the shop where it was purchased.

LIMITED WARRANTY:

Duration of warranty period: 1 or 2 years depending on customer category in compliance with Directive 1999/44/EC. For support service under warranty, please take the original purchase ticket / sales receipt to the shop where the product was purchased. The product will be repaired free of charge or immediately replaced with similar product of equal or greater value.

ABSOLLUTE FADE - Motor 5300 RPM

RECOMMENDATIONS FOR USE:

Before using the hair clipper the hair must be clean and dry. We recommend cutting small quantities of hair at a time, adjusting the cutting length gradually until finding the one you want. The blades risk getting stuck if too fast movements are made or if a lot of hair is cut at the same time. It can be used without attachment comb to trim beard, neck hair and sideburns.

BEFORE USING THE APPLIANCE:

Before charging the hair clipper for the first time we recommend fully discharging the battery and then fully charging it.

3D rendered mechanical component with three circular holes and curved surfaces (no text or symbols)

1. Make sure that the appliance is switched off.
2. Plug the appliance into the power outlet and then connect it to its adapter. The charging LED will light up and remain red for the whole charging process. As soon as the product is fully charged, the LED will change colour.
   Attention: to prolong battery life, the first charge should be much longer even if the LED changes colour.
   The first charge takes 12 hours. Subsequent charges take about 90 minutes. When fully charged, the battery will last about 120 minutes.

3. Disconnect the adapter from the outlet once it is fully charged.

4. The hair clipper may be used connected directly to the power outlet if the battery charge is depleted. It needs to be charged when the red charging LED, starts blinking.

The duration of the battery varies based on usage frequency and times. To increase the lifespan of the batteries, this procedure should be carried out at least twice every 12 months, discharging the battery completely and recharging it for the maximum time. If the appliance is not used often, remember in any case to carry out a charging cycle every so often during the year to keep it working efficiently. On the contrary, when the charging is finished, do not keep the appliance connected to the mains to prevent the battery from overcharging and damaging the appliance.

WARNING: Do not attempt to replace the internal battery of the hair clipper. This can lead to the risk of fire or electric shock. Tampering invalidates the warranty on the product.

CAUTION:

Lubricate the blade before the first use. Read the instructions contained in the section "HOW AND WHEN TO LUBRICATE THE BLADE"

USE INSTRUCTIONS:

• Insert the desired attachment. This operation should always be done with the hair clipper turned off.
• Turn on the hair clipper by pressing the (O/I) button.
• Turn off the hair clipper by pressing the (O/I) button

INSERTION OF COMBS:

The supplied combs have two snap on seats. One near the teeth of each comb (Fig. 1) and the other near the base of each comb (Fig. 2). To insert the combs in the hair clipper, set the snap on base near the teeth of the comb on the hair clipper blade and then push the base of the comb against the base of the blade head until you hear a slight click: insertion will be now be completed. Remove the combs using the tab located on the base of the comb, exerting an outward force.

Fig.1

Abstract black geometric shape on white background (no text or symbols)

Fig.2

Silhouette of a bear's head in profile, no text or symbols visible

CUTTING LENGTH ADJUSTMENT:

The ABSOLUTE FADE hair clipper offers the possibility of making finishing touches from 0.8 mm to 3.8 mm (if used without any guide comb attached and using the adjustment lever) and performing classic hair cuts with the following lengths: 1.5, 3, 4.5, 6, 10, 13, 19 and 25 mm.

Close-up of a hairbrush cutting through a mechanical component (no text or symbols visible)

ADJUSTABLE LEVER:

The lever for adjusting the cutting length is located on the left side of the body of the appliance (Fig. 3); this lever lets you adjust the cutting length to 0.8 mm if held upwards, i.e. towards the upper body of the appliance, or 3.8 mm if held downwards, i.e. towards the rear body of the appliance.

CLEANING AND MAINTENANCE:

A clean and properly lubricated hair clipper considerably improves its capacity and cutting precision. DO NOT CLEAN ANY PART OF THE APPLIANCE UNDER RUNNING WATER.

CLEANING THE HEAD:

Before any cleaning operation, make sure that the appliance is properly turned off and disconnected from the power outlet. Remove the accessory if it is inserted. Using the special brush supplied, remove any hair residues between the blades and the back of the blade head.

NEVER DISASSEMBLE THE HEAD INTO ITS INTEGRAL PARTS OR YOU WILL INVALIDATE THE WARRANTY ON THE ENTIRE PRODUCT.

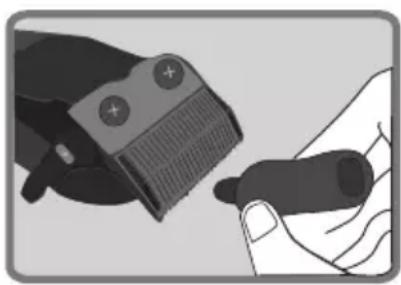

HOW AND WHEN TO LUBRICATE THE BLADE:

Before the first use we recommend lubricating the blade with a drop of the oil found in the package or with any other lubricating oil (make sure that it is not too viscous).

Illustration of a hand holding a small object next to a pair of scissors (no text or symbols visible)

Turn the hair clipper upside down (Fig.4) so that oil does not drip on the appliance. Lubricate the blade with a few drops of oil. Turn the appliance on for a few seconds so that the oil is distributed evenly along the entire blade. Then, using a dry cloth, eliminate any excess oil residues. For professional users, the lubrication process must be carried out daily. In case of domestic use, it can be carried out monthly or more frequently, depending on the type of use of the product.

BLADE DURATION:

The duration of the blade varies based on usage frequency and times. Although correct maintenance is performed, if the cutting efficiency is compromised, contact the manufacturer to have the entire head replaced.

On the website www.gamaprofessional.com you can find all product and instruction manuals with related warnings and information.

The date of production of this model mentioned on the box label in the format: XXX - number of goods part; XX - day; XX - month; XX - year

FR

3D rendered mechanical component with three circular holes and a central fastener (no text or symbols)

Abstract black silhouette of a stylized bird or wing (no text or symbols)

Fig.2

Silhouette of a bear-like animal head (no text or symbols)

Close-up of a black hairpin with serrated edge and textured grip (no visible text or symbols)

LEVIER RÉGLABLE :

Illustration of a hand holding a small object with a comb, no text or symbols present

COMMENT ET QUAND LUBRIFIER LA LAME :

Illustration of a curved device with three circular ports and a handle (no text or symbols)

Abstract black geometric shape with layered, curved forms (no text or symbols)

Fig.2

Silhouette of a person holding an object, possibly a lamp or lamp (no text or symbols visible)

Close-up of a hairbrush cutting a black object (no text or symbols visible)

PALANCA REGULABLE:

Illustration of a hand holding a small object with a comb-like tool, no text or symbols present

CÓMO Y CUÁNDO LUBRICAR LA CUCHILLA:

3D rendered object with three circular holes and a curved base (no text or symbols)

Abstract black-and-white graphic of layered curved shapes (no text or symbols)

Fig.2

Silhouette of a hand holding an object, no text or symbols visible

REGULAÇÃO DE CORTE:

Close-up of a black hairpin with serrated edge and textured grip (no visible text or symbols)

ALAVANCA REGULÁVEL:

Illustration of a hand using a hairpin to clean or store items (no text or symbols visible)

COMO E QUANDO LUBRIFICAR A LÂMINA:

3D rendered mechanical component with three circular holes and a central slot (no text or symbols)

Abstract black geometric shape on white background (no text or symbols)

Рис.1

Silhouette of a stylized animal head in profile (no text or symbols)

Рис.2

Close-up of a black hairpin with serrated edge and textured grip (no visible text or symbols)

РЫЧАГ РЕГУЛИРОВКИ

Illustration of a hand holding a small object with a hairpin, next to a pair of scissors (no text or symbols visible)

3D rendered image of a curved mechanical component with three circular holes (no text or symbols)

Abstract black geometric shape on white background (no text or symbols)

Eik.2

Silhouette of a bear's head and shoulder (no text or symbols)

РУΘΜΙΣΗ ΚΟΠΗΣ:

Close-up of a black hairpin with serrated edge and textured body (no text or symbols visible)

Illustration of a hand holding a small tool next to a computer mouse (no text or symbols visible)

3D rendered mechanical component with three circular holes and a central knob (no text or symbols)

Abstract black geometric shape resembling a stylized letter or symbol, no text or symbols present

Silhouette of a bird's head and neck (no text or symbols)

REGULACJA CIĘCIA:

Close-up of a hairpin and comb (no text or symbols visible)

REGULOWANA DŻWIGNIA:

Illustration of a hand holding a small object with a brush, no text or symbols present

3D rendered image of a curved mechanical component with three circular holes (no text or symbols)

Abstract black-and-white graphic of layered curved shapes, no text or symbols present

Simple grayscale illustration of a hand holding a piece of bread (no text or symbols)

INSTÄLLNING AV KLIPPLÄNGD:

Close-up of a hairbrush and comb with serrated edges (no text or symbols visible)

INSTÄLLNINGSBAR SPAK:

Illustration of a hand holding a small object with a hair clip, no text or symbols present

3D rendered image of a curved mechanical component with three circular holes (no text or symbols)

Abstract black geometric shape on white background (no text or symbols)

Fig. 1

Abstract grayscale illustration of a stylized human figure (no text or symbols)

Fig. 2

SCHNITTEINSTELLUNG:

Close-up of a hairbrush and jawbone (no text or symbols visible)

Illustration of a hand holding a small object with a textured grip, no text or symbols present

LEBENSDAUER DER KLINGE:

Abstract black-and-white graphic of layered curved shapes (no text or symbols)

2 الشكل

Silhouette of a bear-like animal head (no text or symbols)

ضبط مستوى القص:

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

عمر الشفرة:
