USER MANUAL 873546 Westfalia

Product photo of a kitchen brush and a glass bowl with whisk, no visible text or symbols

Original Instructions

Stainless Steel Stick Blender Set

Article No. 87 35 46

Illustration of a person in a plaid suit standing in water with a pipe, holding a tool, while another person is behind (no text or symbols present)

Dear Customer

This manual belongs to the product. It contains important notes on operating the unit.

Please pass it on along with the unit if it is handed over to a third party! Please familiarize yourself with the proper usage of the device by reading and following each chapter of this manual, in the order presented.

Keep these operating instructions for future reference.

Please read the safety instructions!

These instructions will make it easier for you to handle the device appropriately and help prevent misunderstandings and possible damage or injury.

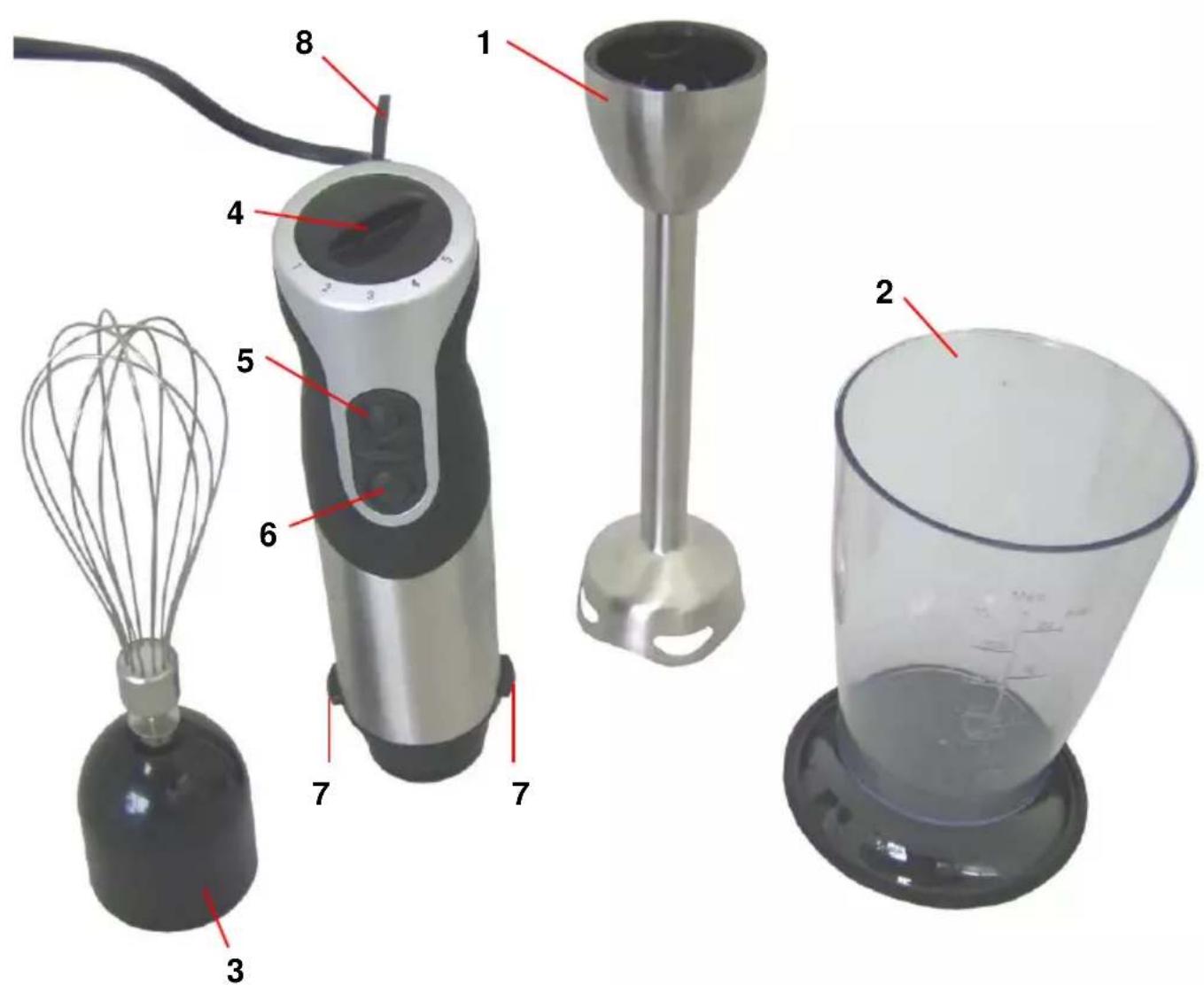

Labeled diagram of a kitchen appliance with numbered parts including a blender, whisk, and clear glass

Before the first Use ......Page 14

Operating the Blender Stick ...... Page 14

Operating the Beater......Page 15

Cleaning......Page 15

Storing......Page 15

Technical Data Page 16

Please note the following safety notes to avoid malfunctions, damage or physical injury:

• Please read this manual carefully and use the unit only according to this manual.
  ■ Before starting the unit, make sure the operating voltage stated on the type label corresponds to the power mains voltage available in your area.
• Be very careful when the unit is used near or in the presence of children or persons in need of supervision.
• Use the unit only for blending foodstuff. Keep all parts of the unit clean as they come into direct contact with food.
• Do not lead the cable around sharp corners or over hot surfaces. Do not let the motor unit, cord or plug get wet.
• Never pull on the power cable, but grasp the plug itself to unplug. Avoid handling with wet hands.
• The blade is very sharp! Handle with care. Do not touch the blade during use. Keep fingers, hair, clothing and objects away from the blade.
• Do not use the unit outdoors or close to open flames, heaters or other hot objects.
• Pull the power cord and turn off the unit before assembling, disassembling or cleaning the unit.
• The unit is only intended for domestic use and not for continuous professional operation.
• Do not blend hot oil or hot fats and broiling liquids. Risk of burn! Make sure that liquids cannot enter the ventilation slots.
• Only use the delivered blender sticks with this motor unit. Do not use other accessory with this motor unit.
  ■ Before cleaning or storing the unit, allow it to cool down.

Safety Notes

• If the unit or the power cable is damaged, the unit must not be operated any further, but should be repaired by a professional.
• Do not disassemble the unit and do not try to repair it yourself. The unit does not contain parts serviceable by you.

Close-up of a mechanical component with a central cylindrical feature and a red vertical line labeled 'A' (no text or symbols on the object itself)

Close-up of a metallic cylindrical component with a red arrow pointing to a small feature labeled 'B' (no text or symbols on the object itself)

Before the First Use

■ Before the first use, familiarise yourself with the unit. Read the safety notes and use the unit only according to this manual.
- Remove all packaging from the unit and the accessories. Do not leave packaging materials lying around; plastic bags may become a deadly toy for small children.
- Clean all parts as described as in the chapter “Cleaning”.

Operating the Blender Stick

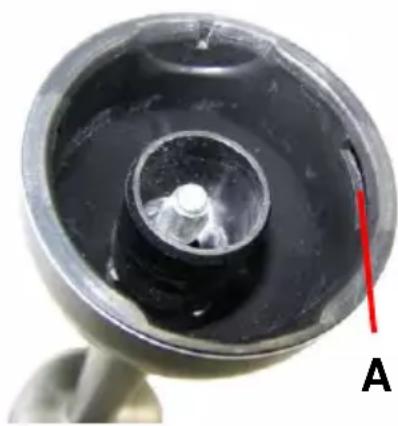

1. The inner side of the stainless steel blender stick (1) has totally 4 notches (A). The motor unit is equipped with 2 locking pins (B).

Close-up of a metallic mechanical component with a central cylindrical feature and a red vertical line labeled 'A' (no text or symbols on the main subject)

Close-up of a metallic cylindrical component with a red arrow pointing to a small feature labeled 'B' (no text or symbols on the object itself)

1. When inserting the stainless steel blender stick (1) into the motor unit, make sure the locking pins (B) fit exactly with the corresponding notches (A). When inserting the blender stick correctly into the motor unit, the blender stick is already engaged. Please do not turn furthermore.

2. Plug the power plug into a wall socket. Place the blender stick (1) in the measuring cup (2). Immerse the blade fully into foodstuff or liquid before switching the blender stick on in order to avoid splashing.

3. Push the ON button I for normal speed or push the ON button II for Turbo speed. As long as you keep the resp. ON button pressed the blender stick rotates.

Operation

1. When pressing the ON button I and turning the speed regulator (4), you can adjust the running speed. Preferably start with setting 1 and change the speed according to your requirements. Hint: The speed regulator can only be used with the ON button I.
2. After use, first remove the plug from the wall socket and then detach the blender stick from the motor unit by pressing both releasing buttons (7) simultaneously.

Operating the Beater

The beater (3) is also equipped witch 4 notches, so the locking pins (7) on the motor unit will fit exactly into these notches. For locking the beater make sure the locking pins (B) on the motor unit fit exactly into these notches.

Hints:

• When blending directly in the pan while cooking pay attention not to overheat the blender.
• When blending some hard foods like herbs, garlic, carrots, potato etc. please add in the container a few water. Start blending solid food in smaller quantities and add more food to achieve good blending.
• Do not immerse the blender stick for more than 15 cm into liquids to avoid liquid to come in contact with the motor unit.
• Do not operate the blender stick for more than 60 seconds continuously. Let the unit cool down before next use.

Cleaning

■ Before cleaning, please pull the power plug and allow the unit to cool down!
- Do not immerse the motor unit in water or any liquids!
- Use only a moist cloth to clean the motor unit. Allow the unit to dry fully before next use.

Operation

• After processing very salty and acidic food you should rinse the blade right away. Do not touch the blade while cleaning. It is very sharp. When processing food with colour, like carrots or beetroot the blade may become discoloured. Please clean the blade with vegetable oil to remove the discolouring.
• Do not use metal or sharp items to clean the unit, because these may damage the surfaces. Do not use aggressive chemicals.

Storing

You can hang up the motor unit by the provided hanging loop (8), so you will have it always ready to hand.

Technical Data

Rated Voltage: 230 V\~50 Hz

Nominal Power: 1000 W

Power Consumption in 0.117 W

OFF Mode

Protection Class: II

Weight: 915 g

Noise Level: < 85 dB(A)

Power Consumption: 0.117 W

Max. Operating Time Blending: KB = 1 Min. ON / 1 Min. OFF

Max. Operating Time Stirring: KB = 2 Min. ON / 2 Min. OFF

Degree of Protection: IPX0

declare by our own responsibility that the product

Edelstahl Stabmixer Set

Stainless Steel Stick Blender Set

Artikel № 87 35 46

Article No. 87 35 46

is according to the basic requirements, which are defined in the European Directives and their amendments.

2011/65/EU Restriction of the Use of certain hazardous Substances in electrical and electronic Equipment (RoHS)

2009/125/EC Energy-related Products (ErP)

The technical documentations are on file at the QA department of the Westfalia Werkzeug-company.

Symbol of a trash bin crossed with no text or labels

Werter Kunde,

Please help avoiding refuse.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled.

Please do not discharge it in the garbage bin, but check with your local council for recycling facilities in your area.
