Product Type	Microwave with Grill
Brand	Toshiba
Model	MWMG20P(BK)
Power Supply	230 V ~ 50 Hz
Microwave Input Power	1270 W
Microwave Output Power	800 W
Grill Input Power	1000 W
Capacity	20 L
Turntable Diameter	255 mm
External Dimensions (W x H x D)	440 x 259 x 334 mm
Net Weight	11.43 kg
Power Levels	5 microwave + 1 grill + 3 combos
Functions	Microwave, Grill, Combi

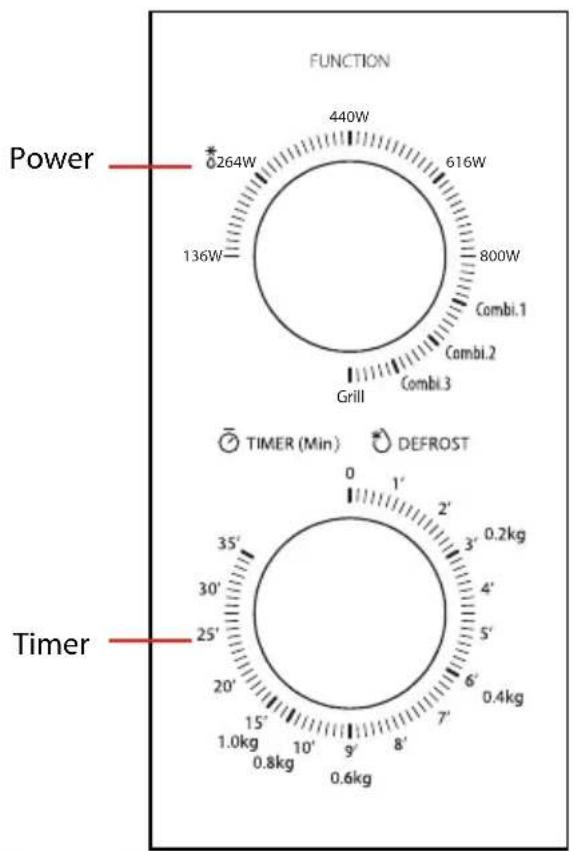

Control Type	Rotary knobs (power and timer)
Timer	Up to 30 minutes
Child Safety	Yes (adult supervision required in combo mode)
Interior Material	Stainless steel
Included Accessories	Glass tray, rotating ring, rack
Cleaning	Damp cloth, avoid abrasive cleaners
Warranty	2 years

Frequently Asked Questions - MWMG20P(BK) TOSHIBA

What utensils can I use in this microwave?

Use only microwave-safe utensils: heat-resistant glass, microwave-safe plastic, paper, etc. Avoid metal, aluminum, metal ties, paper bags, and styrofoam. Check with the utensil test: heat 250 ml of water with the empty utensil for 1 minute at full power; if it becomes hot, do not use.

How do I clean the inside of the oven?

Unplug the appliance. Clean the interior with a damp cloth after each use. For stubborn stains, place a cut lemon in 300 ml of water and heat for 10 minutes at 100%, then wipe. Never use abrasive cleaners or metal scrapers.

Can I use the grill at the same time as the microwave?

Yes, the oven offers 3 combination modes: Combi 1 (80% grill + 20% microwave), Combi 2 (70% grill + 30%), and Combi 3 (60% grill + 40%). Adjust the mode according to the food.

What if the oven does not start?

Check that the plug is properly inserted. Wait 10 seconds after unplugging. If the fuse has blown or the circuit breaker has tripped, replace the fuse or reset the breaker. Make sure the door is fully closed. If the problem persists, contact customer service.

Is it safe to heat liquids?

Yes, but beware of delayed eruptive boiling. Stir or shake liquids and check temperature before consumption. Never heat liquids in sealed containers.

Can I cook eggs?

No, do not cook eggs in their shells or whole hard-boiled eggs as they may explode even after cooking.

How do I install the turntable?

Place the rotating ring assembly in the center of the oven, then the glass tray on top. Ensure the turntable shaft fits correctly. Always use the tray during cooking.

What is the maximum power?

The maximum output power in microwave mode is 800 W, and in grill mode it is 1000 W. Power levels are adjustable from 136 W (low) to 800 W (high).

How do I defrost food?

Use the Medium Low power level (264 W, 33% power) to defrost. Place food in a suitable container and monitor regularly. You can also use combination mode to defrost and cook simultaneously.

What to do in case of smoke?

Turn off or unplug the appliance immediately. Keep the door closed to smother flames. Do not open the oven until the smoke has cleared. If the problem persists, have the appliance repaired by a professional.

USER MANUAL MWMG20P(BK) TOSHIBA

Black Toshiba microwave oven with control knobs and a blank front panel (no visible text or symbols on main body)

INHALTSVERZEICHNIS

PRODUKTSICHERHEIT

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Homepage: www.midea-home.com

[e-mail] [FR]

[e-mail] [IT]

65760 Eschborn, Germany

HORNO MICROONDAS MANUAL DE INSTRUCCIONES MW2-MG20PF(BK)/GE

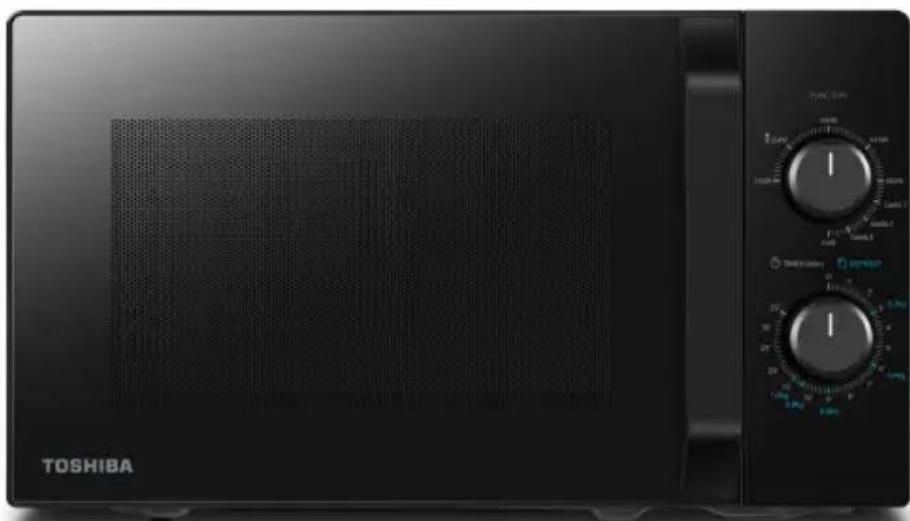

Black Toshiba microwave oven with control knobs and a digital display (no visible text or symbols on main body)

CONTENIDOS

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

[e-mail] [FR]

[e-mail] [IT]

Black Toshiba microwave oven with control knobs and a blank front panel (no visible text or symbols on main body)

SOMMAIRE

SÉCURITÉ DU PRODUIT

CONSIGNES DE SÉCURITÉ IMPORTANTES...... FR-3

PRÉSENTATION DU PRODUIT

PRECAUTIONS POUR EVITER L'EXPOSITION POSSIBLE A L'ENERGIE

MICROONDE EXCESSIVE FR-7

POUR RÉDUIRE LE RISQUE DE BLESSURES ...... FR-8

MATÉRIAUX QUE VOUS POUVEZ UTILISER DANS UN FOUR À

MICRO-ONDES.... FR-11

MATERIAUX A EVITER DANS LE FOUR A MICROONDE.... FR-11

INSTRUCTIONS D'UTILISATION

MISE EN OEUVRE DU MICROONDE.... FR-12

FONCTIONNEMENT.... FR-15

ENTRETIEN

DÉPANNAGE.... FR-16

CLAUSES DE GARANTIE/SERVICE.... FR-17

REMARQUE

AVANT DE FAIRE FONCTIONNER CE PRODUIT, LIRE, COMPRENDRE ET SUIVRE CES INSTRUCTIONS.

ASSUREZ-VOUS DE GARDER CE MANUEL POUR Y FAIRE RÉFÉRENCE À L'AVENIR

CONSIGNES DE SÉCURITÉ IMPORTANTESAD

AVERTISSEMENT

Simple line drawing of a round object with diagonal hatching and two legs (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

[e-mail] [FR]

[e-mail] [IT]

Black Toshiba microwave oven with control knobs and a blank front panel (no visible text or symbols on main body)

CONTENTS

PRODUCT SAFETY

IMPORTANT SAFETY INSTRUCTIONS ...... EN-3

PRODUCT INTRODUCTION

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY...... EN-6

TO REDUCE THE RISK OF INJURY TO PERSONS ...... EN-7

MATERIALS YOU CAN USE IN MICROWAVE OVEN ...... EN-10

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN ...... EN-10

INSTRUCTION FOR USE

SETTING UP YOUR OVEN ...... EN-11

TROUBLE SHOOTING EN-15

WARRANTY CONDITIONS / SERVICE EN-16

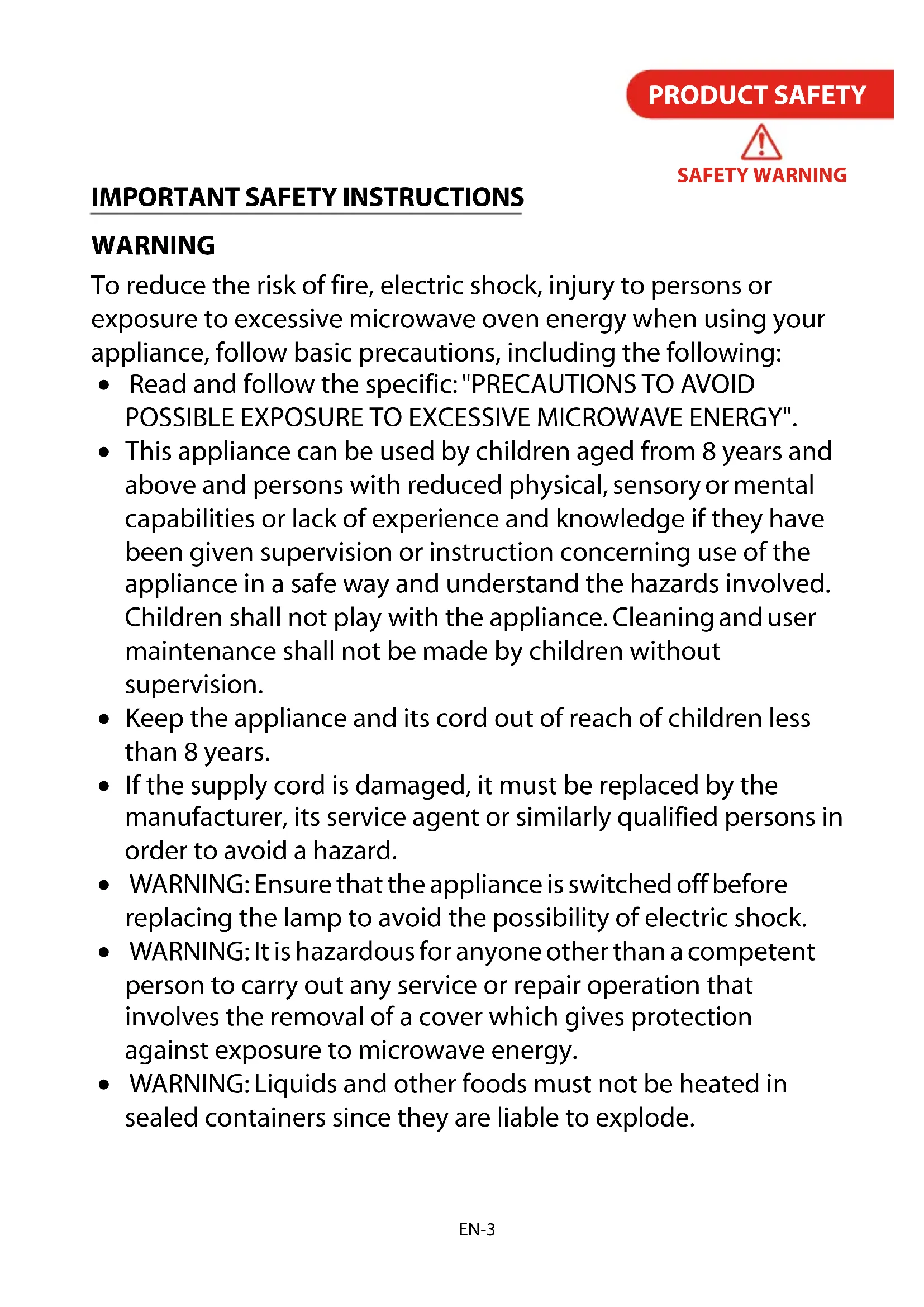

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

• Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of reach of children less than 8 years.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

- WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

IMPORTANT SAFETY INSTRUCTIONS

• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• Only use utensils that are suitable for use in microwave ovens.
• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• The oven should be cleaned regularly and any food deposits removed.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)
• The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
• This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- by clients in hotels, motels and other residential type environments;

IMPORTANT SAFETY INSTRUCTIONS

o farm houses;

o bed and breakfast type environments.

- The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

• The appliance is intended to be used freestanding.
• The rear surface of appliances shall be placed against a wall.
• The temperature of accessible surfaces may be high when the appliance is operating.
• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)
• The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
• Metallic containers for food and beverages are not allowed during microwave cooking.
• The appliance shall not be cleaned with a steam cleaner.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, theoven must not be operated until it has been repaired by a competent person.

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

SPECIFICATIONS

Model:	MW2-MG20PF(BK)/GE
Rated Voltage:	230V~ 50Hz
Rated Input Power(Microwave):	1270W
Rated Output Power(Microwave):	800W
Rated Input Power(Grill):	1000W
Oven Capacity:	20L
Turntable Diameter:	ø 255mm
External Dimensions:	440mmx334mmx259mm
Net Weight:	Approx. 11.43 kg

TO REDUCE THE RISK OF INJURY TO PERSONS

GROUNDING INSTALLATION DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

CAUTION

PERSONAL INJURY HAZARD

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

UTENSILS

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

UTENSILS REMARKS

Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may causethe turntable to break.	√
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.	√
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.	√
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.	√
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.	√
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.	√
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.	√
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.	√
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.	√
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.	√
Thermometers	Microwave-safe only (meat and candy thermometers).	√
Wax paper	Use as a cover to prevent splattering and retain moisture.	√

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

UTENSILS REMARKS

Aluminum ray	May cause arcing. Transfer food into microwave-safe dish.	✕
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.	✕
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.	✕
Metal twist ties	May cause arcing and could cause a fire in the oven.	✕
Paper bags	May cause a fire in the oven.	✕
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.	✕
Wood	Wood will dry out when used in the microwave oven and may split or crack.	✕

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

Instruction Manual 1 A F G E D C B A) Control panel B) Turntable sh C) Turntable ring D) Glass tray E) Observation F) Door assemb

Grill Rack (Can not be used in microwave function and must be placed on the glass tray)

A) Control panel

B) Turntable shaft

C) Turntable ring assembly

D) Glass tray

E) Observation window

F) Door assembly

G) Safety interlock system

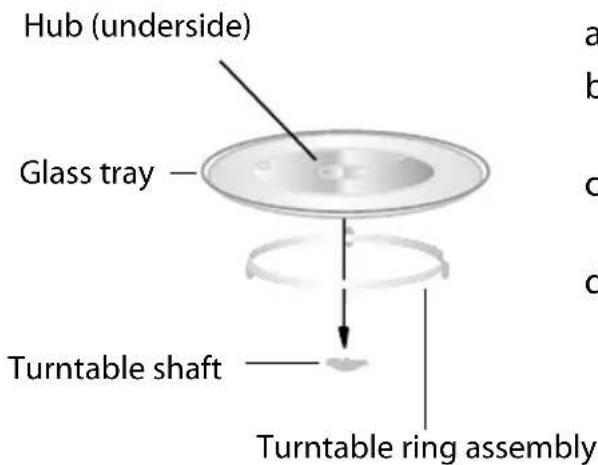

TURNTABLE INSTALLATION

Hub (underside) Glass tray Turntable shaft Turntable ring assembly

a. Never place the glass tray upside down.

b. Both glass tray and turntable ring assembly must always be used during cooking.

c. All food and containers of food are always placed on the glass tray for cooking.

d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

COUNTERTOP INSTALLATION

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

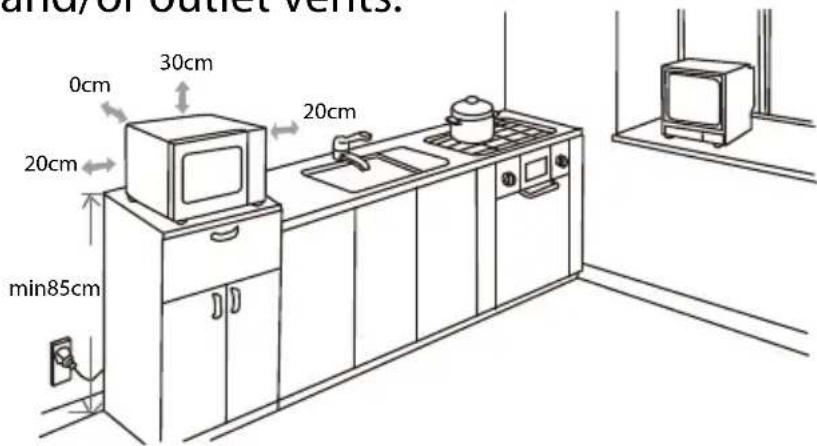

INSTALLATION

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

and/or outlet vents. 0cm 30cm 20cm 20cm min85cm

(1) The minimum installation height is 85cm.

(2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.

(4) Blocking the intake and/or outlet openings can damage the oven.

(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

SETTING UP YOUR OVEN

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

Warning symbol depicting steam rising inside a triangle, commonly used in safety or hazard prevention.

OPERATION

CONTROL PANEL AND FEATURES

Operation Instructions

FUNCTION Power *264W 440W 616W 136W Combi.1 800W Combi.2 Grill Combi.3 TIMER (Min) DEFROST Timer 0 1' 2' 3' 0.2kg 35' 30' 25' 20' 15' 10' 9' 8' 7' 6' 5' 4' 3' 2' 1' 0 Timer (Min) Timer 0.6kg 0.8kg 1.0kg 10' 9' 8' 15' 7' 0.4kg 0.2kg

1. To set cooking power by turning the power knob to desired level.
2. To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
3. The microwave oven will automatically start cooking after power level and time are set.
4. After the cooking time is up, the unit will "Dong" to stop.
5. If the unit is not in use, always set time to "0".

Function/Power Output Application
(136W) Low	17% micro.	Soften ice cream
(264W)Med. Low (Defrost)	33% micro.	Soup stew, soften butter or defrost
(440W) Med	55% micro.	Stew, fish
(616W) Med. High	77% micro.	Rice, fish, chicken, ground meat
(800W) High	100% micro.	Reheat, milk, boil water, vegetables, beverage
Grill	100% grill	Sausage, Lamb, Kabobs, Seafood, Steak
Combi. 1	80% grill 20% micro.	Chicken pieces, Chicken breasts, Pork chops
Combi. 2	70% grill 30% micro.	Whole chicken
Combi. 3	60% grill 40% micro.	Baken bread, Slice food

NOTICE

• When removing food from the oven, plaase ensure that the oven turning the timer switch to 0 (zero).
• Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

TROUBLE SHOOTING

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible	Cause Remedy
Oven can not be started.	(1) Power cord not plugged in tightly. Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances
Oven does not heat.	(4) Door not closed well.	Close door well.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

WARRANTY CONDITIONS / SERVICE

We congratulate you on the new device and hope you enjoy it.

Should you find a problem for the product, please contact our customer service:

Midea Europe GmbH

Tel.: [phone]

In case of service:

Homepage: www.midea-home.com

Email: [e-mail] [DE]

[e-mail] [ES]

[e-mail] [FR]

[e-mail] [IT]

In case of a malfunction, enter your exact address, telephone number, sales contract number and device type (from the rating plate of the device).

A precise description of the error saves you and us time and money. If you have any special questions, please contact the customer service center.

Before you contact the service:

Please check whether it is not an operating error or a cause that has nothing to do with the function of your device.

Please note the information in the operating instructions and check whether:

• The power plug is connected
• The power plug may be damaged
• The door (s) of the device is / are firmly closed

Guarantee conditions

This device was manufactured and tested using the most modern methods. The manufacturer fulfills independently of the statutory warranty obligation of the seller / dealer for a period of 24 months, valid from the day of purchase, 12 months for commercial use, guarantee of flawless material and flawless manufacturing.

The warranty claim expires if the buyer or a third party intervenes. Damage caused by improper handling or operation through incorrect installation or storage, through improper installation or connection, as well as due to force majeure or other external influences, are not covered by the guarantee.

We reserve the right to repair, replace the defective parts or exchange the device in the event of a complaint. Replaced parts and devices become our property.

Only when the manufacturer's intended use through rework or replacement of the device cannot be achieved, can the buyer within 6 months of warranty period, apply from the day of purchase, get a reduction in the purchase price or extension of the purchase contract.

WARRANTY CONDITIONS / SERVICE

Claims for damages, also with regard to consequential damage, are excluded, if they are intentional or based on gross negligence.

If the customer service is used unnecessarily or without authorization, we will charge this for our customer services usual time and reward. Complaints are closed immediately after detection.

The buyer must prove the warranty claim by presenting the purchase receipt. This guarantee promise is valid within the Federal Republic of Germany.

Imported by

Midea Europe GmbH

65760 Eschborn, Germany
