USER MANUAL Series 7 795 cc3 BRAUN

Series 7 Series 7 Series 7

trimmer lock lock lock

click! Series 7 Series 7 Series Series

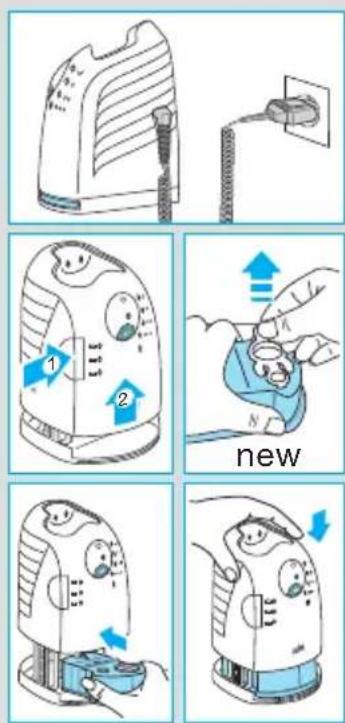

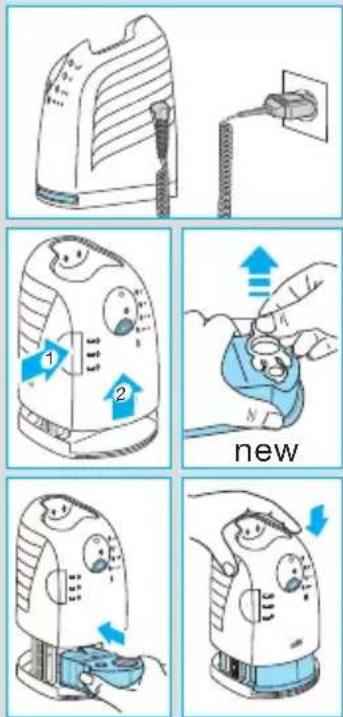

• Using the special cord set p, connect the station power socket 6 to an electrical outlet.

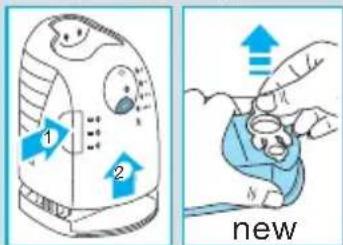

• Press the lift button 2 to open the housing.

• Hold the cleaning cartridge 7 down on a fl at, stable surface (e.g. table).

• Carefully remove the lid from the cartridge.

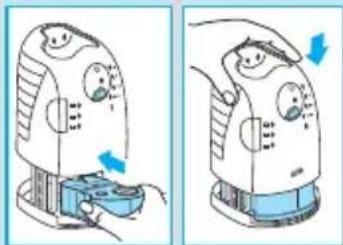

• Slide the cartridge into the base of the station as far as it will go.

• Slowly close the housing by pushing it down until it locks. The cleaning fl uid display 1 will show how much fl uid is in the cartridge: up to 30 cleaning cycles available up to 7 cleaning cycles remaining new cartridge required Charging and cleaning the shaver Insert the shaver head down into the cleaning station. (The contacts u on the back of the shaver will align with the contacts 3 in the cleaning station). If required, the Clean&Renew station will auto- matically charge the shaver. The hygiene status of the shaver will also be analyzed and one of the following cleaning program indicators 5 will light up: new fast cl

4. For best shaving results, we

recommend cleaning after each shave. Whilst cleaning is in progress, the respective cleaning program indicator will blink. Each cleaning program consists of several cycles, where cleaning fl uid is fl ushed through the shaver head and a heat drying process dries the shaver. Depending on the program selected the total cleaning time will range from 32 to 43 minutes. The cleaning programs should not be inter- rupted. Please note that whilst the shaver is drying, the shaving head may be hot and wet. When the program is fi nished, the blue « » indicator will light up. Your shaver is now clean and ready for use. Fast cleaning Push the fast clean button D to activate the fast clean program without drying. This program takes about 25 seconds only and is recommended when you do not have time to wait for one of the automatic cleaning programs. If you remove the shaver just after the program has fi nished, wipe off the shaver head with a tissue to avoid dripping. Stand-by mode 10 minutes after completing the charging or cleaning session, the Clean&Renew station switches to the stand-by mode: The indicators of the Clean&Renew station turn off. Shaver display The shaver display z shows the charge status of the battery on the left, and the hygiene status on the right. (6 dark segments are shown on each side when the battery is fully charged and the shaver is hygienically clean).

99973404_795cc_S4-50.indd 1599973404_795cc_S4-50.indd 15 06.07.11 15:0106.07.11 15:0116 Battery segments: During charging or when using the shaver, the respective battery segments will blink. When fully charged all 6 segments are shown. With decreasing charge the segments gradually disappear. Low charge indicator: The low charge indicator provided with a red frame blinks to indicate that the charge has dropped below 20%. The remaining battery capacity is suffi cient for 2 to 3 shaves. Hygiene segments: All 6 hygiene segments will appear after the shaver has been cleaned in the Clean&Renew station. When the shaver is being used, the hygiene segments will gradually disappear. Once the shaver is returned to the station, the system will automatically select the appropriate cleaning program and restore the segments to maximum hygiene. Given that rinsing the shaver under tap water is not as hygienic as the cleaning station, the hygiene segments will only restore themselves when the shaver has been cleaned in the Clean&Renew station. Charging information

• A full charge provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth.

• The best environmental temperature for charging is between 5 °C to 35 °C. Do not expose the shaver to temperatures higher than 50 °C for extended periods of time. Personalizing your shaver Personalizing your shaver With the (–)

buttons you can choose the best setting for shaving different areas of your face and as per your specifi c needs. The different settings are indicated by the pilot light incorporated in the on/off switch w:

• white (for a thorough comfortable shave in sensitive areas of your face such as neck)

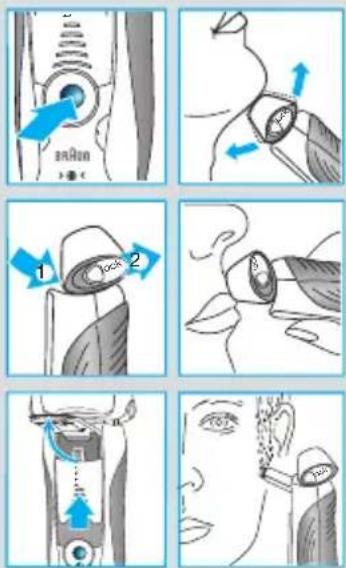

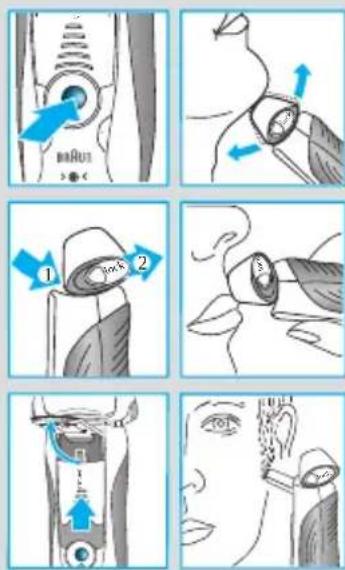

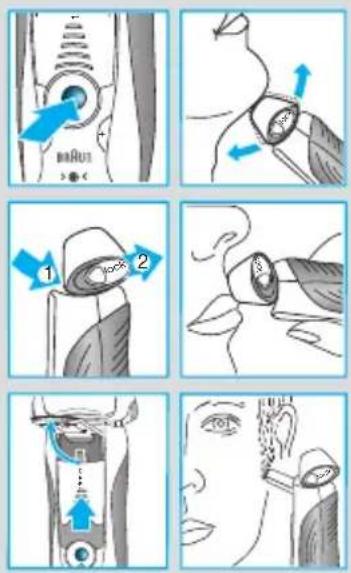

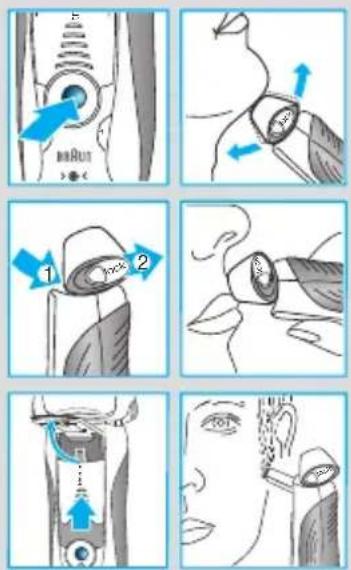

normal 99973404_795cc_S4-50.indd 1699973404_795cc_S4-50.indd 16 06.07.11 15:0106.07.11 15:0117 For a thorough and fast shave we recommend the (+) setting. When switching on next time, the last used setting will be activated. How to use Press the on/off switch w to operate the shaver:

• The pivoting shaver head and fl oating foils automatically adjust to every contour of your face.

• To shave hard to reach areas (e.g. under the nose) slide the shaver head «lock» switch 0 to the back position to lock the pivoting head at an angle.

• To trim sideburns, moustache or beard, slide the pop-out long hair trimmer upwards. Tips for the perfect shave For best shaving results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.

2. At all times, hold the shaver at right angles

3. Stretch your skin and shave against the

direction of your beard growth. Shaving with the cord If the shaver has run out of power (discharged), and you do not have the time to recharge it in the Clean&Renew station, you may also shave with the shaver connected to an electrical outlet via the special cord set. Cleaning Automatic cleaning After each shave, return the shaver to the Clean&Renew station and proceed as described above in the section «Before shaving». All charging and cleaning needs are then automatically taken care of. With daily use, a cleaning cartridge should be suffi cient for about 30 cleaning cycles. The hygienic cleaning cartridge contains alcohol, which once opened will naturally evaporate slowly into the surrounding air. Each cartridge, if not used daily, should be replaced after approximately 8 weeks.

trimmer lock lock lock

99973404_795cc_S4-50.indd 1799973404_795cc_S4-50.indd 17 06.07.11 15:0106.07.11 15:0118 The cleaning cartridge also contains lubricants, which may leave residual marks on the outer foil frame after cleaning. However, these marks can be removed easily by wiping gently with a cloth or soft tissue paper. Manual cleaning The shaver head is suitable for cleaning under running tap water.

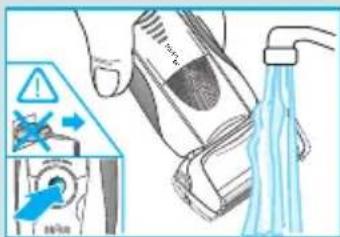

Warning: Detach the shaver from the

power supply before cleaning the shaver head in water. Rinsing the shaving head under running water is an alternative way to keep the shaver clean, especially when travelling:

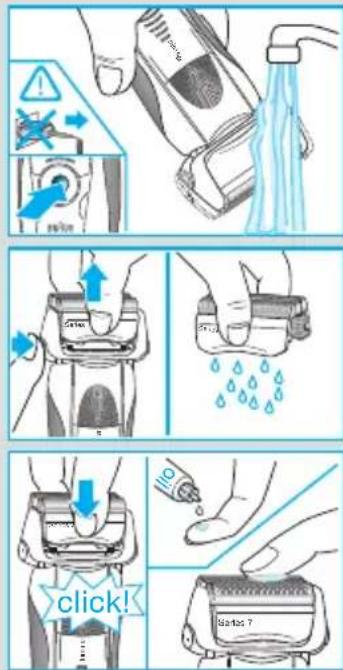

• Switch the shaver on (cordless) and rinse the shaving head under hot running water. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.

• Next, switch off the shaver, press the «release» button 9 to remove the Foil & Cutter cassette 8 and let it dry.

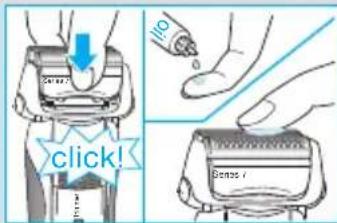

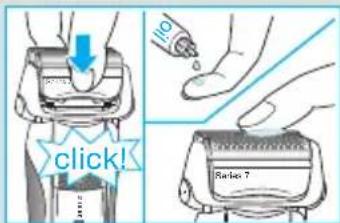

• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil on top of the Foil & Cutter cassette. Alternatively, you may clean the shaver using the brush provided:

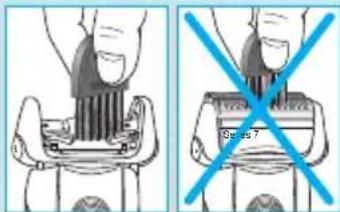

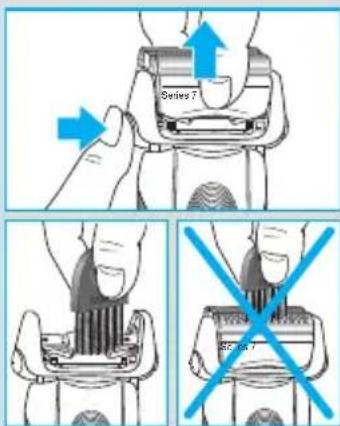

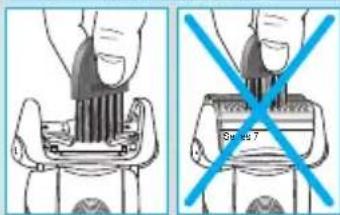

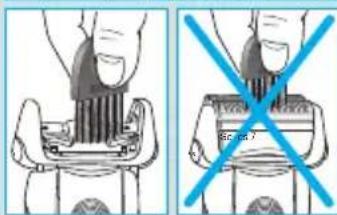

• Switch off the shaver. Remove the Foil & Cutter cassette 8 and tap it out on a fl at surface. Using the brush, clean the inner area of the pivoting head. However, do not clean the cassette with the brush as this may damage it. Cleaning the housing From time to time clean the housing of the shaver and the Clean&Renew station with a damp cloth, especially inside the cleaning chamber where the shaver rests. Replacing the cleaning cartridge After having pressed the lift button 2 to open the housing, wait for a few seconds before removing the used cartridge to avoid any dripping. Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution. oil trim

click! Series 7 Series 7 Series Series

reset To maintain 100% shaving performance, re- place the Foil & Cutter cassette 8, when the replacement symbol lights up on the shaver display z (after about 18 months) or when cassette is worn. The replacement symbol will remind you during the next 7 shaves to replace the Foil & Cutter cassette. Then the shaver will automatically reset the display. After you have replaced the Foil & Cutter cassette, use a ball-pen to push the reset button t for at least 3 seconds to reset the counter. While doing so, the replacement light blinks and goes off when the reset is complete. The manual reset can be done at any time. Accessories Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette 70S

• Cleaning cartridge Clean&Renew CCR Environmental notice This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. The cleaning cartridge can be disposed with regular household waste. Subject to change without notice. For electric specifi cations, see printing on the special cord set.

2. Cleaning cartridge is

in use for more than 8 weeks.

1. When cleaning the shaver head

with water only use hot water and from time to time some liquid soap (without abrasive substances). Remove foil & cutter cassette to let it dry.

2. Change cleaning cartridge at

least every 8 weeks. Battery performance dropped significantly.

1. Foil and cutter are

worn which requires more power for each shave.

Shaver head is regularly cleaned with water but not lubricated.

1. Renew foil & cutter cassette.

2. If the shaver is regularly cleaned

with water, apply a drop of light machine oil on top of the foil once a week for lubrication. Shaving performance dropped significantly.

1. Foil and cutter are

2. Personal setting of

shaving performance has been changed.

3. Shaving system is

2. For a thorough and fast shave

into hot water with a drop of dish liquid. Afterwards rinse it properly and tap it out. Once dry apply a drop of light machine oil on the foil. Shaver turns off after 1 minute shaving time with fully charged battery. Foil and cutter are worn which requires more power than the motor can deliver. The appliance turns off. – Renew foil & cutter cassette. – Regularly oil the shaving system, especially when cleaning with water only. Battery segments in the display are skipped with decreasing battery capacity. Foil and cutter are worn which requires more power for each shave. – Renew foil & cutter cassette. – Regularly oil the shaving system, especially when cleaning with water only. Shaving parts have been changed recently but replacement symbol lights up. Reset button has not been pushed. – Push the reset button for at least 3 seconds to reset the counter. 99973404_795cc_S4-50.indd 2099973404_795cc_S4-50.indd 20 06.07.11 15:0106.07.11 15:0121

Shaving system is still wet after cleaning program has been completed.

Clean&Renew station is clogged.

2. Cleaning cartridge

has been used for quite a while.

1. Clean the drain with a wooden

toothpick. Regularly wipe the tub clean.

2. The alcohol proportion has

decreased while the oil proportion has increased. Remove residue with a cloth. Cleaning does not start when pressing the start button. 1 Shaver is not placed properly in the Clean&Renew station.

2. Cleaning cartridge

contains not enough cleaning fluid (display lights red).

1. Insert shaver into the

Clean&Renew station (contacts of the shaver need to align with contacts in the station).

2. Insert new cleaning cartridge.

3. Press start button again.
