Product type	Electric shaver
Brand	Braun
Model	Series 5 5190cc
Power supply	Integrated rechargeable battery, cordless use, special cord with integrated safety power supply
Battery life	Up to 50 minutes of shaving after full charge
Water use	Washable under running water, usable in bath or shower (cordless)
Shaving system	Foil and shaver head with MultiHeadLock (5 lockable positions)
Trimmer	Integrated long hair trimmer, retractable
Travel lock	Electronic lock to prevent accidental start
Display	Indicators: lock symbol, charge segments, cleaning indicator, battery symbol
Clean&Charge station	Integrated self-cleaning system: cleans, charges, lubricates, disinfects and dries the shaver
Cleaning programs	Short economical, normal, intensive (up to 3 minutes)
Manual cleaning	Under hot water with non-abrasive liquid soap, or using a brush (do not brush the cassette)
Maintenance	Apply one drop of oil per week if washed with water
Spare parts	Shaver cassette: 52S/52B (replace every 18 months); Cleaning cartridge: CCR; Braun Shaver cleaning lotion
Warranty	2 years, with free consumer service (0 800 944 802)
Safety	Cordless use only; do not use with damaged cord or head; children aged 8 and older under supervision; cleaning fluid flammable
Charging temperature	Recommended between 5°C and 35°C
Included accessories	Special power cord, protection cap, travel pouch (depending on model), Clean&Charge station

Frequently Asked Questions - Series 5 5190cc BRAUN

How to use the Clean&Charge station?

Place the dry, foam-free shaver in the station, aligning the contact pins. Charging starts automatically. For cleaning, press the start button. Select the desired program (short, normal, intensive). Cleaning lasts up to 3 minutes, then drying takes several hours.

How to manually clean the shaver?

Turn on the shaver and rinse the head under hot water. Optionally use non-abrasive liquid soap. Rinse well and let the shaver run for a few seconds. Turn off, remove the shaver cassette and let it dry. If you regularly clean with water, apply one drop of oil to the foil once a week.

How to change the shaver cassette?

Press the cassette ejection button (2) to remove it. Insert a new suitable shaver cassette (ref. 52S/52B) until it clicks into place. It is recommended to replace it every 18 months for optimal performance.

What to do if the shaver does not recharge?

Check that the ambient temperature is between 5°C and 35°C. Ensure the special cord is properly plugged in. If the shaver has not been used for a long time, wait a few minutes for charging to start automatically.

How to activate the travel lock?

Press and hold the on/off button for 3 seconds. A beep sounds and the lock symbol briefly appears. To unlock, repeat the operation.

What is the battery life?

A full charge provides up to 50 minutes of cordless shaving. Battery life varies depending on beard length and density as well as ambient temperature.

How to use the long hair trimmer?

Press the release button (8) on the back of the shaver and slide the trimmer upwards. It allows trimming sideburns, mustache and beard.

What to do if automatic cleaning does not start?

Make sure the shaver is correctly positioned in the station (contact pins aligned). Check that the cleaning cartridge is not empty (red indicator blinking). If the station is in standby, press the start button a second time.

How to replace the cleaning cartridge?

Press the release button (14) to open the housing. Wait a few seconds, remove the used cartridge. Insert a new cartridge (ref. CCR) by pushing until it clicks. Close the housing. The cartridge should be replaced approximately every 4 weeks with daily use, or after 8 weeks if not used.

What is the battery lifespan?

The battery is designed to last several years. If its performance noticeably decreases, it may indicate that the shaver cassette is worn (replace it) or the head lacks lubrication. If the problem persists, contact an authorized Braun service center.

USER MANUAL Series 5 5190cc BRAUN

(Sharecall charged at local rates)

www.service.braun.com

Illustration of a handheld electric shaver with open lid and buttons, labeled '5195cc' (no other text or symbols)

E

Three-panel illustration showing a hand using a digital brush to press or adjust the device, with no visible text or symbols.

F

English

Our products are designed to meet the highest standards of quality, functionality and design. Thank you for your trust in Braun's quality and we hope you enjoy your new Braun product.

Read these instructions completely, they contain safety information. Keep them for future reference.

Warning

Your appliance is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. Only use the special cord set provided with your appliance.

If the appliance is marked ➡—C 492, you can use it with any Braun power supply coded 492-XXXX.

This appliance is suitable for cleaning under running water and use in a bathtub or shower. For safety reasons it can only be operated cordless.

Detach the shaver from the power supply before using it with water.

Do not shave with a damaged foil or cord.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Clean&Charge Station

To prevent the cleaning fluid from leaking, ensure that the Clean&Charge Station is placed on a flat surface. When a cleaning cartridge is installed, do not tip, move suddenly or transport the station in any way as cleaning fluid might spill out of the cartridge. Do not place the station inside a mirror cabinet, nor place it on a polished or lacquered surface.

The cleaning cartridge contains a highly flammable liquid so keep it away from sources of ignition. Do not expose to direct sunlight and cigarette smoking nor store it over a radiator.

Do not refill the cartridge and use only original Braun refill cartridges.

Shaver

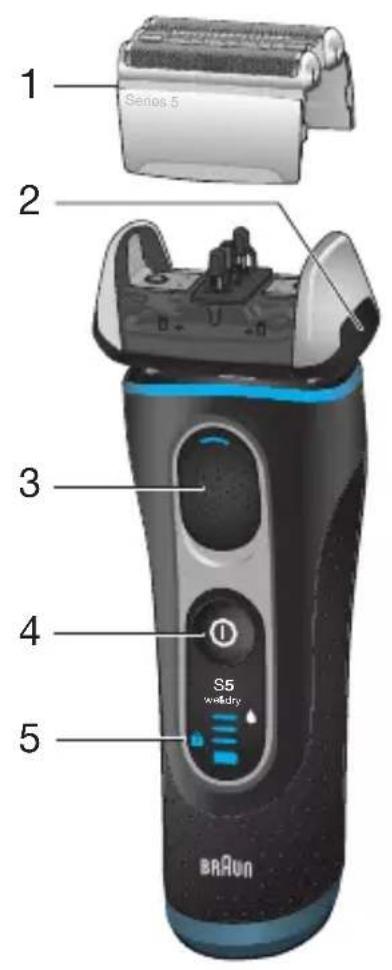

1 Foil & Cutter cassette
2 Cassette release button
3 MultiHeadLock switch
4 On/off switch
5 Shaver display

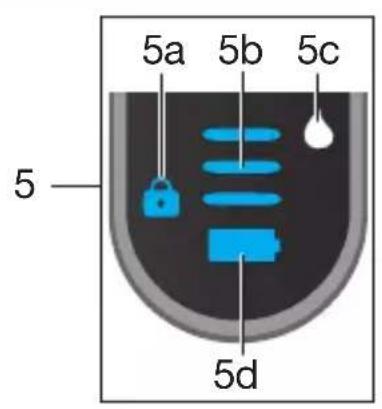

5a Lock symbol (travel lock)
5b Charging segments
5c Cleaning indicator
5d Battery symbol

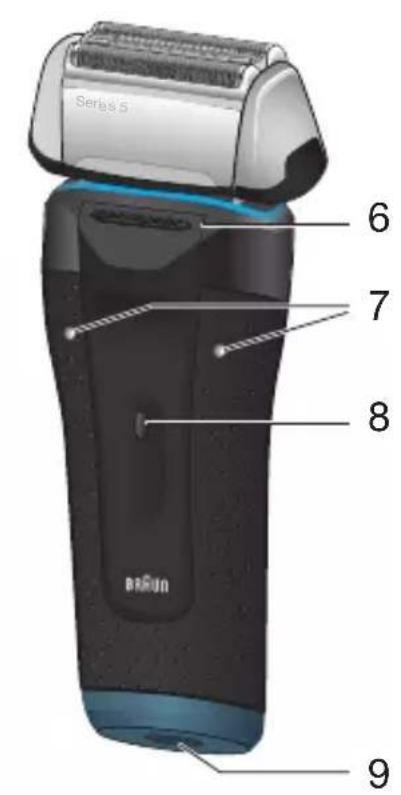

6 Long hair trimmer
7 Shaver-to-station contacts
8 Release button for long hair trimmer
9 Shaver power socket
10 Special cord set (design can differ)

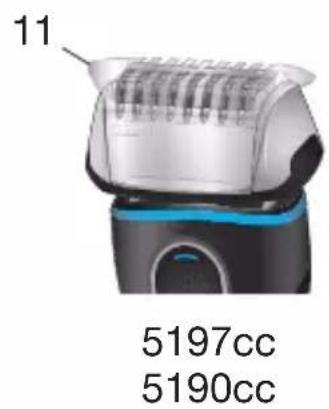

11 Protection cap*

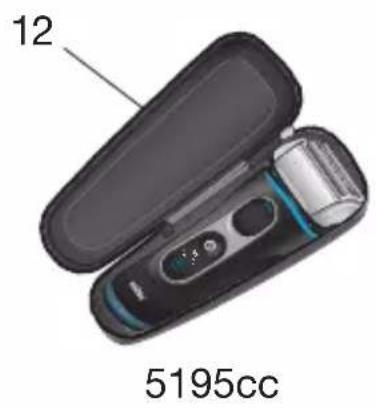

12 Travel case*

* not with all models

First use and Charging

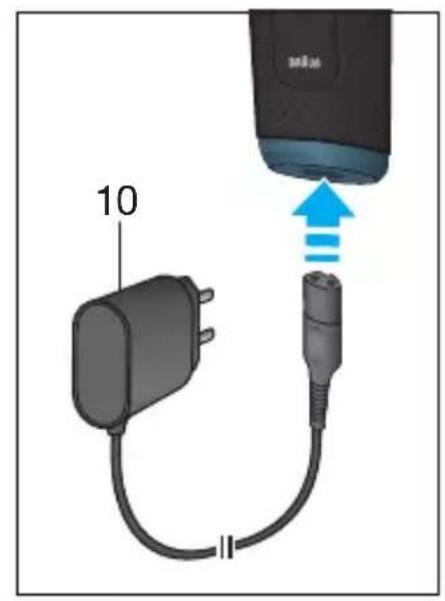

Connect the shaver to an electrical outlet by snapping the special cord set (10) into the shaver power socket (9) or via the Clean&Charge Station (see Chapter «Clean&Charge Station»).

Basic operating information

• A full charge provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth and environmental temperature.
• Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for storage and shaving is 15 °C to 35 °C.
• Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.
• When the shaver will be connected to an electrical outlet, it may take some minutes until the display illuminates.

Charging / low charge

The charge status is shown in the shaver display (5).

• During charging the respective charging segment (5b) will blink.
• When the shaver is fully charged and connected to an electrical outlet, all 3 charging segments will light up for a few seconds. Then the display turns off.

- The battery symbol (5d) will flash red, when the battery is running low. You should be able to finish your shave. With switching off the shaver a beep sound reminds of the low charge status.

Using the shaver

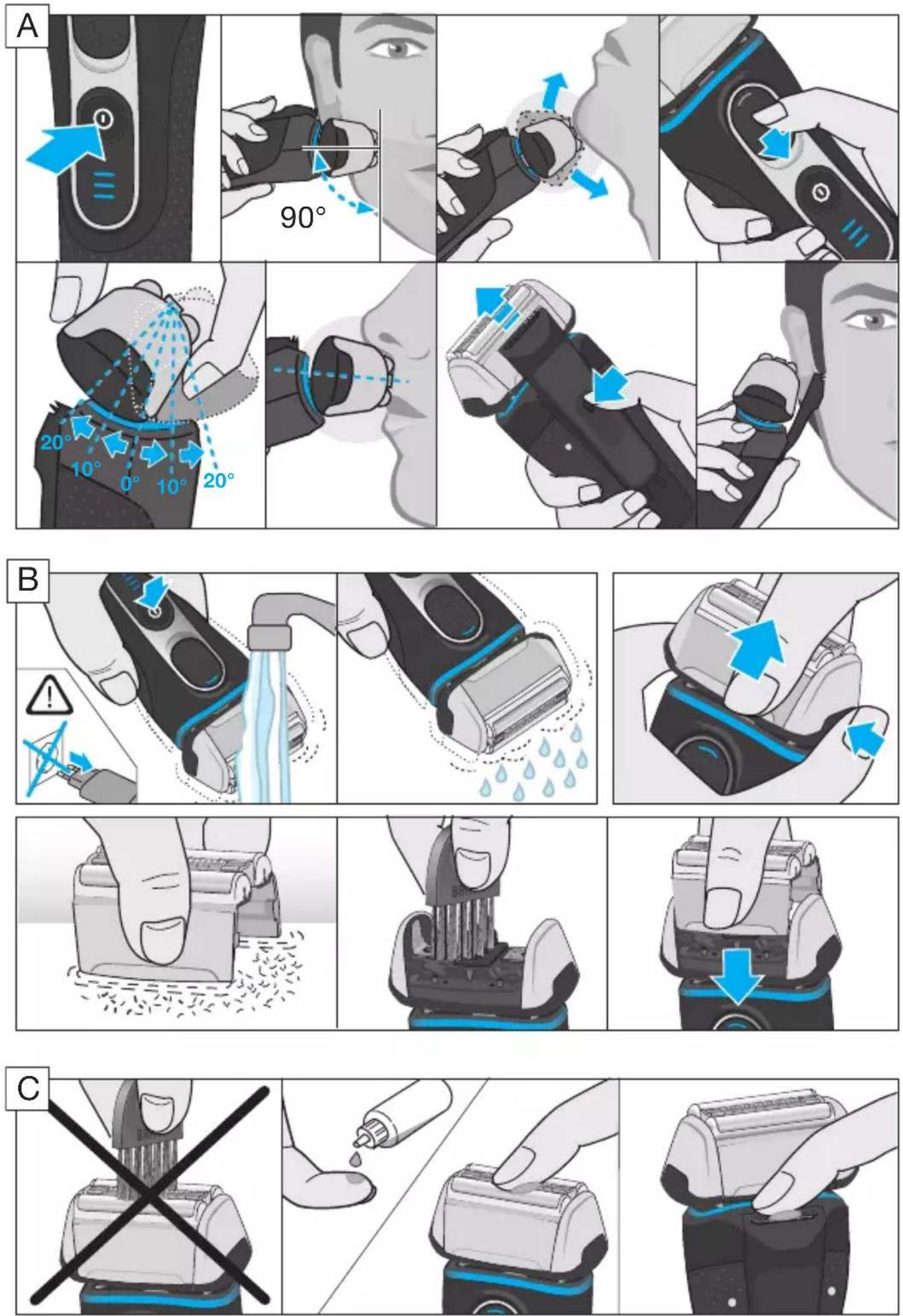

Press the on/off switch (4) to operate the shaver.

Tips for a perfect dry shave

For best results, Braun recommends you to follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at the right angle (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

MultiHeadLock switch (head lock)

• To shave hard-to-reach areas (e.g. under the nose) slide the MultiHeadLock switch (3) down to lock the shaver head. The shaver head can be locked in five positions.
• To change position, move the shaver head with your thumb and forefinger back or forth. It will automatically click into the next position.
• For automatic cleaning in the Clean&Charge Station the head lock should be released.

Long hair trimmer

To trim sideburns, moustache or beard press the release button (8) and slide the long hair trimmer (6) upwards.

Travel lock

The lock symbol (5a) lights up in the display when the shaver has been locked to avoid unintended starting of the motor (e.g. for storing it in a suitcase).

• Activation: By pressing the on/off switch (4) for 3 seconds the shaver is locked. This is confirmed by a beep sound and the lock symbol in the display. Afterwards the display turns off.
• Deactivation: By pressing the on/off switch for 3 seconds again the shaver is unlocked.

Manual cleaning of the shaver

Cleaning under running water

- Switch on the shaver (cordless) and rinse the shaver head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.

• Next, switch off the shaver, press the release button (2) to remove the Foil & Cutter cassette (1) and let it dry.
• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil on top of the Foil & Cutter cassette.

The shaver should be cleaned after each foam usage.

Cleaning with a brush

Switch off the shaver. Remove the Foil & Cutter cassette (1) and tap it out on a flat surface. Using the brush, clean the inner area of the pivoting head. Do not clean the cassette with the brush as this may damage it!

Clean&Charge Station (C&C)

The Clean&Charge Station has been developed for cleaning, charging, lubricating, disinfecting, drying and storing your Braun shaver.

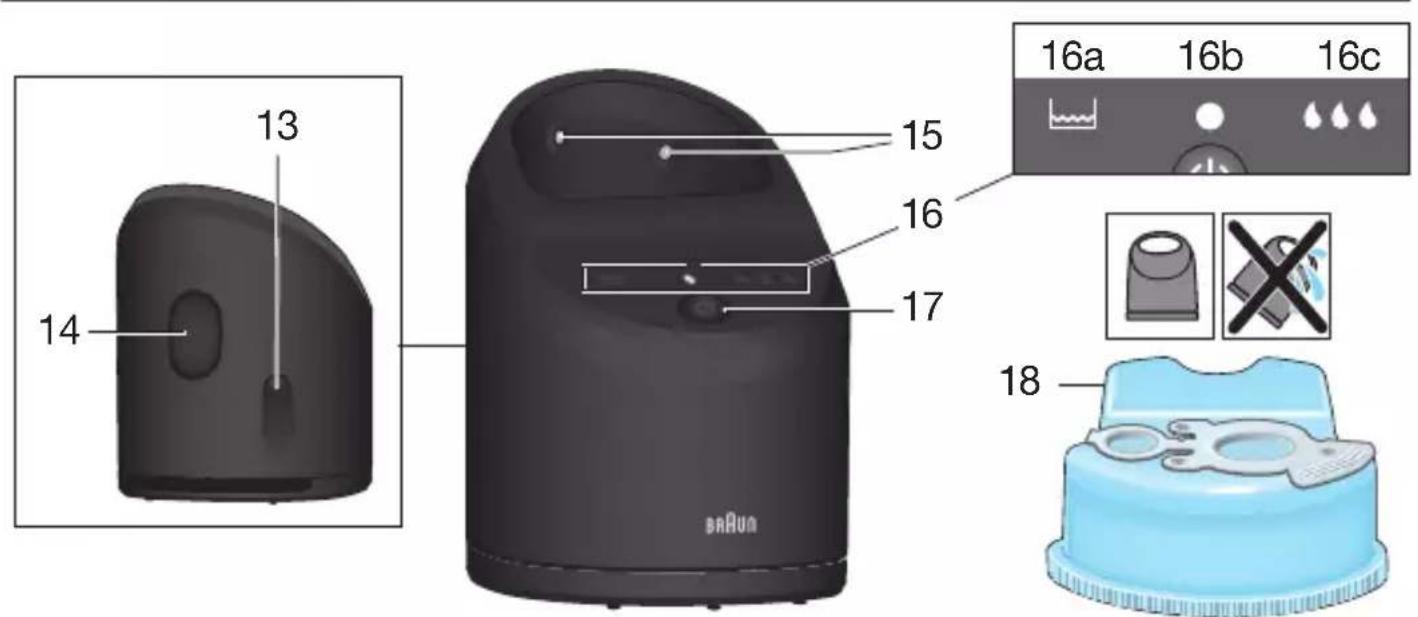

13 Station power socket
14 Lift button for cartridge exchange
15 Station-to-shaver contacts
16 Clean&Charge Station display
16a Level indicator
16b Status light
16c Cleaning program indicators
17 Start button
18 Cleaning cartridge

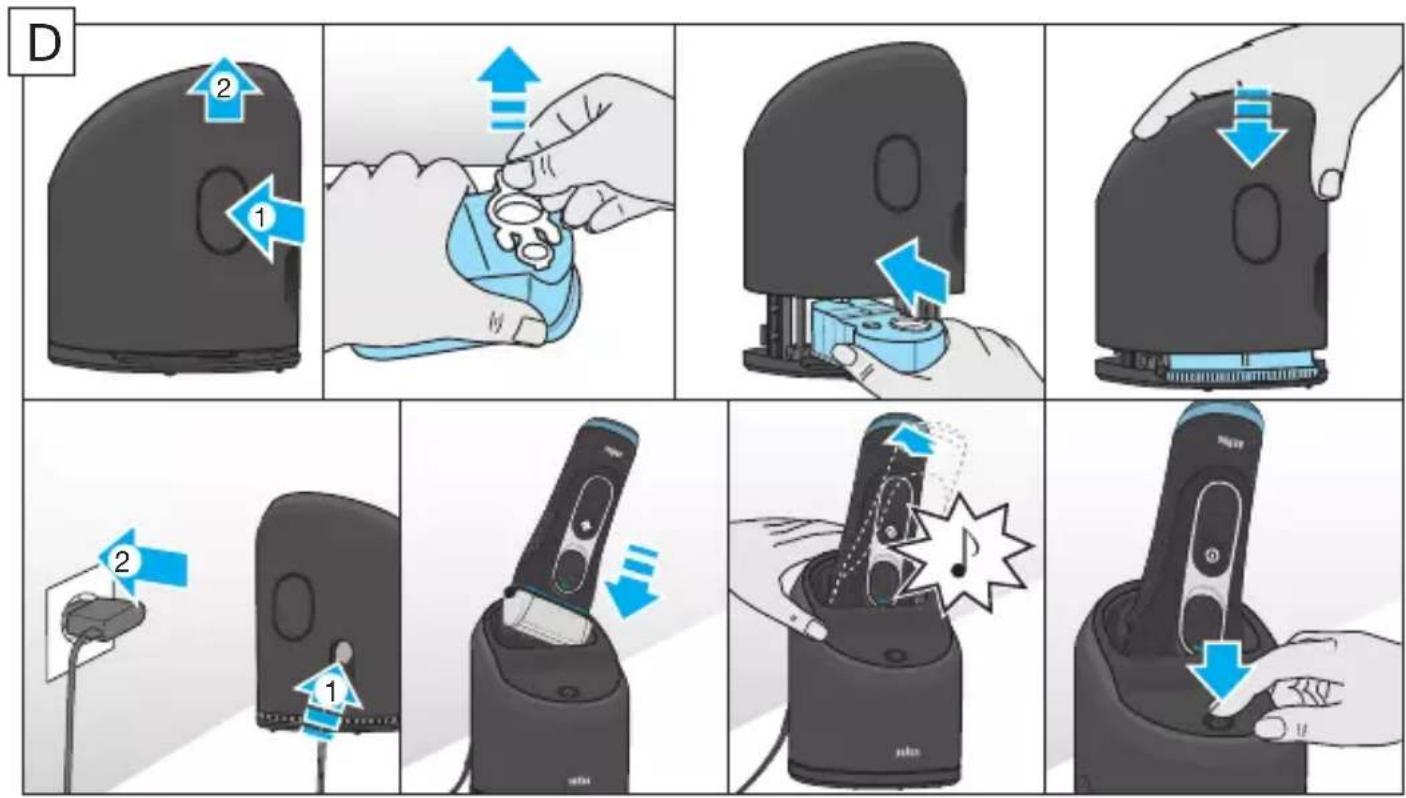

Installing the C&C

• Remove the protection foil from the C&C display.
• Press the lift button (14) at the rear side of the C&C to lift up the housing.
• Hold the cleaning cartridge (18) down on a flat, stable surface (e.g. table).
• Carefully remove the lid from the cartridge.
• Slide the cartridge from the rear side into the base of the station until it snaps into place.
• Slowly close the housing by pushing it down until it locks.
• Using the special cord set (10), connect the station power socket (13) to an electrical outlet.

Using the C&C

Important: The shaver needs to be dry and free from any foam or soap residue!

Insert the shaver in the C&C upside down, with the front showing and released head lock (3).

The contacts (7) on the back of the shaver need to align with the contacts (15) in the C&C. Push the shaver in the correct position. A beep sound confirms that the shaver sits properly in the C&C.

The C&C analyzes the hygiene status. The status is shown by the cleaning program indicators (16c) in the C&C display (16).

Charging the shaver in the C&C

Charging will start automatically when the shaver has been placed in properly.

Cleaning the shaver in the C&C

When the cleaning indicator (5c) lights up in the shaver display, insert the shaver into the C&C, as described above.

Cleaning programs

short economical cleaning
▲▲ normal level of cleaning
high intensive cleaning

Start automatic cleaning

Start the cleaning process by pressing the start button (17). If status light (16b) does not shine (C&C switches to stand-by after ca. 10 minutes), press start button twice. Otherwise cleaning will not start. For best shaving results, we recommend cleaning after each shave.

Each cleaning program consists of several cycles, where cleaning fluid is flushed through the shaver head. Depending on your Clean&Charge Station model and/or program selected, the cleaning time takes up to 3 minutes. During this time the status light blinks. Leave the shaver in the station for drying. It takes several hours until remaining moisture evaporates depending on the climatic conditions.

After completing the cleaning and charging procedure, all indicators turn off.

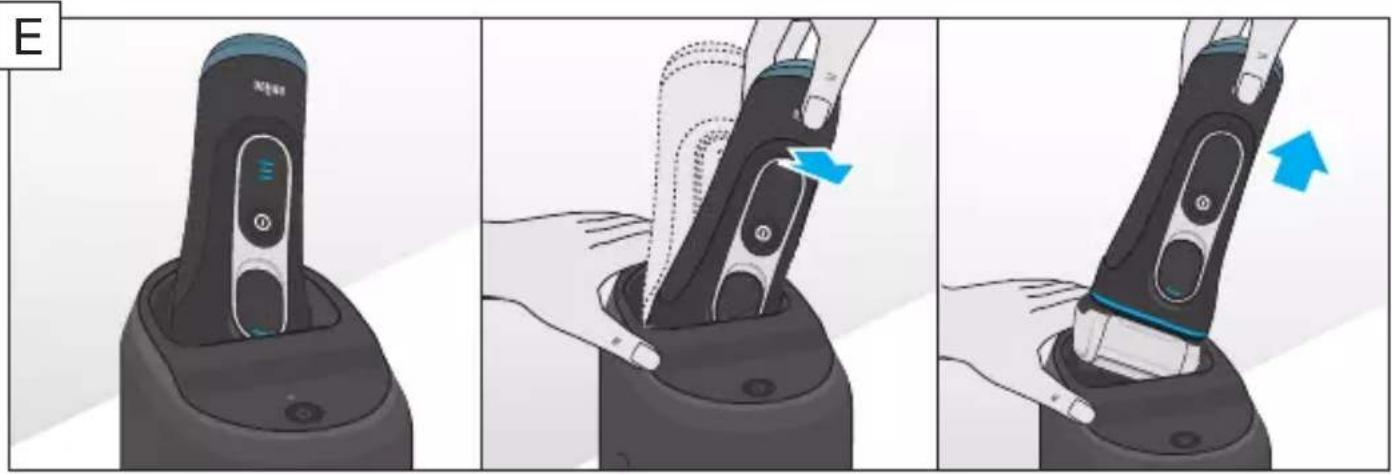

Removing the shaver from the C&C

Hold the C&C with one hand and tilt the shaver slightly to the front to release it.

Cleaning cartridge / Replacement

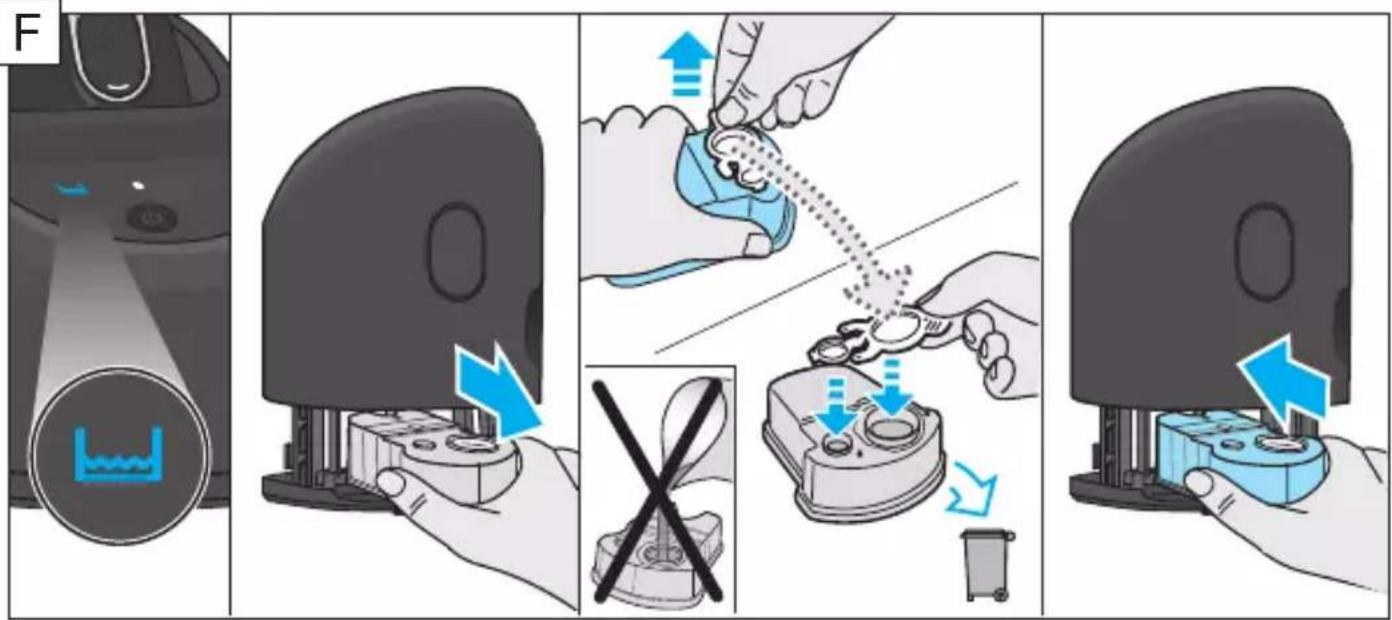

When the level indicator (16a) lights up permanently red, the remaining fluid in the cartridge is sufficient for about 3 more cycles. When the level indicator blinks red, the cartridge needs to be replaced - about every 4 weeks when used daily.

After having pressed the lift button (14) to open the housing, wait for a few seconds before removing the used cartridge to avoid any dripping. Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution.

The hygienic cleaning cartridge contains ethanol or isopropanol (specification see cartridge), which once opened will naturally evaporate slowly. Each cartridge, if not used daily, should be replaced after approximately 8 weeks to ensure optimal disinfection. The cleaning cartridge also contains lubricants for the shaving system, which may leave residual marks on the outer foil frame and the cleaning chamber of the C&C. These marks can be removed easily by wiping gently with a damp cloth.

Accessories

Braun recommends changing your shaver's Foil & Cutter cassette every 18 months to maintain your shaver's maximum performance.

Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette: 52S/52B
• Cleaning Cartridge: CCR
• Braun Shaver cleaner spray

Environmental notice

Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

The cleaning cartridge can be disposed of with regular household waste.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Trouble-Shooting

Problem Possible	reason Remedy
SHAVER
Shaver does not charge completely and keeps blinking.	Ambient temperature is out of valid range.	Recommended ambient temperature for charging is 5 °C to 35 °C.
Charging does not start when connected to power socket.	1. Sometimes charging could start delayed (e.g. after long storage).2. Ambient temperature is out of valid range.3. Special cord set is not plugged in properly.	1. Wait a few minutes, if charging will start automatically.2. Recommended ambient temperature for charging is 5 °C to 35 °C.3. Special cord set needs to snap into place.
Unpleasant smell from the shaver head.	1. Shaver head is cleaned with water.2. Cleaning cartridge is in use for more than 8 weeks.	1. When cleaning the shaver head with water only use hot water and from time to time some liquid soap (without abrasive substances). Remove Foil & Cutter cassette to let it dry.2. Change cleaning cartridge at least every 8 weeks.
Battery performance dropped significantly.	1. Foil and cutter are worn which requires more power for each shave.2. Shaver head is regularly cleaned with water but not lubricated.	1. Renew Foil & Cutter cassette.2. If the shaver is regularly cleaned with water, apply a drop of light machine oil on top of the foil once a week for lubrication.
Shaving performance dropped significantly.	1. Foil and cutter are worn.2. Shaving system is clogged.	1. Renew Foil & Cutter cassette.2. Soak the Foil & Cutter cassette into hot water with a drop of dish liquid. Afterwards rinse it properly and tap it out. Once dry apply a drop of light machine oil on the foil.
Shaver head is damp.	1. Drying time after automatic cleaning was too short.2. Drain of the Clean&Charge Station is clogged.	1. Clean directly after shaving to allow enough time for drying.2. Clean the drain with a wooden tooth-pick.
CLEAN&CHARGE STATION
Cleaning does not start when pressing the start button.	1. Shaver is not placed properly in the Clean&Charge Station.2. Cleaning cartridge contains not enough cleaning fluid (display blinks red).	1. Insert shaver into the Clean&Charge Station and push it to the rear side of the station (contacts of the shaver need to align with contacts in the station).2. Insert new cleaning cartridge. Press start button again.
Increased consumption of cleaning fluid.	Drain of the Clean& Charge station is clogged.	– Clean the drain with a wooden tooth-pick.– Regularly wipe the tub clean.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase.

Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.
