HRG466XB - Lawn mower Honda - Free user manual and instructions

Product type	Battery-powered self-propelled lawn mower (HRG466XB)
Model	Honda HRG466XB
Cutting width	46 cm
Cutting height	6 positions from 20 to 74 mm
Grass bag capacity	50 L
Dimensions (L x W x H)	1470 x 497 x 980 mm
Weight (without battery)	27 kg
Motor	Brushless DC 3-phase, 1800 W max
Transmission	Fixed single speed type, forward speed 0.89 m/s
Power supply	Honda battery pack (sold separately): DP3640XA (4Ah), DP3660XA (6Ah), DPW3660XA (6Ah all-weather), DPW3690XA (9Ah all-weather)
Charger	CV3680XA (sold separately)
Main functions	Rear collection, mulching, rear discharge
Sound level (guaranteed)	92 dB(A)
Vibration	1.33 m/s²
Maintenance and cleaning	Clean the cooling fins and battery compartment with a soft dry brush. Wash the grass bag with a water jet. Do not use a pressure washer.
Safety	Cutting blade control lever, battery cut-off key, motor thermal protection
Spare parts and repairability	Genuine Honda parts: grass bag, wheels, cutting blade, battery pack, charger. Repairs at an authorized dealer.
General information	Warranty and privacy policy available at the dealer. The user manual is provided.

Frequently Asked Questions - HRG466XB Honda

What is the battery runtime?

The runtime depends on the cutting height, density, and moisture of the grass. With a 6Ah battery, expect approximately 30 to 45 minutes. Use mulching mode or increase the cutting height to extend runtime.

How to adjust the cutting height?

Remove the battery cut-off key and battery pack. Pull the adjustment lever toward the wheel and place it in the desired groove. 6 positions from 20 to 74 mm are available. Do not cut more than one third of the grass height.

How to change the blade?

Remove the key and battery. Tilt the machine on the side of the yellow button. Remove the two bolts (14 mm wrench) and washers. Install the new blade with a tightening torque of 54 N·m. Use a torque wrench.

How to use the self-propulsion system?

The HRG466XB is self-propelled. Press the yellow button and push the cutting blade control lever to start rotation. Then push the drive clutch lever to move forward. Release it to stop forward movement.

How to switch from collection to mulching?

Release the cutting and drive levers. Press the unlock button and turn the grass discharge control lever. Position [3] = collection/rear discharge, position [4] = mulching. Mulching finely chops the grass and deposits it on the lawn.

What to do if the machine does not start?

Check that the battery cut-off key is in the ON (I) position and that the battery is charged and properly inserted. If the battery pack is too hot or too cold, let it return to room temperature. Refer to the troubleshooting chart in the manual.

How to maintain the machine after use?

Remove the key and battery. Clean the underside of the deck with a brush and scraper. Wash the grass bag with a water jet (no pressure washer). Clean the cooling fins and battery compartment.

How to store the mower at the end of the season?

Remove the battery and store it in a dry place away from sunlight. Clean the machine thoroughly. Store it in a dry, humidity-free location. Do not place objects on top. Refer to the battery storage instructions.

What are important safety precautions?

Read the manual thoroughly. Wear sturdy shoes, long trousers, gloves, and hearing protection. Never mow on slopes greater than 20°. Keep hands and feet away from the blade. Remove the key before any adjustments.

Where to find spare parts?

Contact an authorized Honda dealer. Recommended genuine parts include: grass bag (ref. 81320-VH4-R11), wheels, standard blade (ref. 72511-VH4-R90), batteries, and charger. Use only Honda parts.

USER MANUAL HRG466XB Honda

You have just purchased a Honda battery powered lawnmower and we thank you for your confidence in us.

This manual has been written to familiarize you with your machine, to enable you to use it in the best possible conditions and to carry out its maintenance.

Our aim is to make you benefit to the full from technological advances, from new equipment and materials and from our experience. This is why we regularly make improvements to our models. Thus, the specifications and information contained in this manual may be modified without prior notice and without obligation to update it.

The illustrations in this manual show the most suitable model to represent the topic dealt with.

The other illustrations common to all types are based on the HRG466XB.

If you have a problem, or if you have any questions concerning the machine, contact your servicing dealer.

Keep this manual handy so you can refer it at any time. If you sell the machine, be sure that the manual accompanies it.

We recommend that you read the guarantee policy to fully understand your rights and responsibilities. The guarantee policy is a separate document provided by your dealer.

No reproduction, even partial, may be made of this publication without prior written authorisation.

SAFETY INSTRUCTIONS

For your own safety and operating comfort, it is highly recommended that you read this manual in full.

Pay attention to these symbols and their meaning:

WARNING

Indicates a high risk of severe personal injury or death if instructions are not followed.

CAUTION:

- Indicates a possibility of personal injury or equipment damage if instructions are not followed.

NOTE: Source of useful information.

HOW TO IDENTIFY YOUR MACHINE

	CATEGORY	SERIES	TYPE	OPTION
Sample	HRG	416XB	PE	EA
Description	HRG= Lawnmower		P= Push type	EA= Destination Europe
			S= Self propelled type	UA= Destination Australia

The model of your battery powered lawnmower is indicated on its "Identification label" (see page 4) by a series of letter.

Honda France Manufacturing S.A.S. - Pôle 45 - Rue des Châtaigniers 45140 ORMES - FRANCE - All rights reserved

HONDA

OWNER'S MANUAL

ORIGINAL INSTRUCTION

Battery powered lawnmower

HRG416XB • HRG466XB

Line drawing of two Honda lawn mower machines, shown from top and side views (no text or symbols)

Dedicated battery pack and charger for these machines are needed for operation. They are sold separately.

CONTENTS

Foreword....1

Safety instructions.... 2

Safety stickers.... 4

Identification of machine 4

General description....4

Preparation and checks before use 5

Selecting the cutting mode (HRG466XB only) 8

Mowing 9

Operating hints and tips 9

Maintenance 11

Troubleshooting 15

Storage 15

Transport....16

Useful information....16

Technical specifications 17

Major Honda distributor addresses.... 18

"UK Declaration of Conformity" CONTENT OUTLINE ... 19

"EC Declaration of Conformity" CONTENT OUTLINE ... 20

SAFETY INSTRUCTIONS

TO BE FOLLOWED CAREFULLY

Read carefully before using the machine.

WARNING

Indicates a high risk of severe personal injury or death if instructions are not followed.

CAUTION:

- Indicates a possibility of personal injury or equipment damage if instructions are not followed.

NOTE: Source of useful information.

A) TRAINING

1) Read the instructions carefully. Become familiar with the controls and the proper use of the machine. Learn how to stop the motor quickly.
2) Never allow children or persons unfamiliar with these instructions to use the machine. Local regulations can restrict the minimum age of the operator.
3) Never use the machine:

- when people, especially children or pets are nearby.

- if the operator has taken medicine or substances that may impair his ability to react and be attentive.

4) Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
5) Never attempt to modify the machine. It can cause an accident as well as damage to the machine. Tampering with the machine voids the EU type-approval of this machine.

B) PREPARATIONS

1) While mowing, always wear sturdy footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals.

Avoid wearing clothing that is loose fitting or has hanging cords or ties.

To reduce the effects of vibration, wear anti vibration gloves.

To reduce the effects of noise, wear ear defenders.

2) Thoroughly inspect the entire work area and remove anything that could be thrown by the machine or damage the cutting unit or motor (stones, branches, iron wire, bones, etc.).
3) Before use, always inspect generally and in particular to see that the cutting-means, screws and cutting unit are not worn or damaged. Replace damaged or worn cutting-means and screws in their entirety to preserve balance. Replace damaged or unreadable stickers.
4) Before use check the battery pack for signs of damage or aging. Do not use the machine if the battery pack is damaged or worn.
Check the battery terminals are not to be short-circuited.
5) Do not operate without either discharge cover or grass catcher in place.

C) OPERATION

1) Mow only in daylight or good artificial light.
2) Avoid mowing wet grass or when it is raining.
3) Make sure you have a steady foothold on slopes.
4) Never run, always walk; do not let the machine pull you.

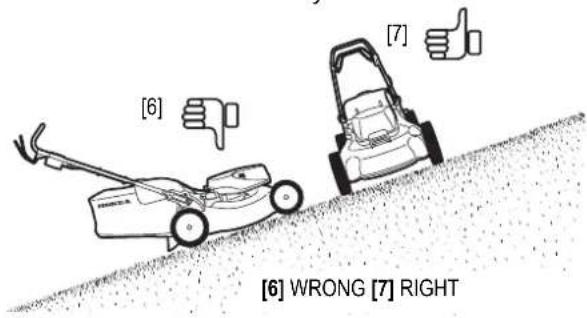

5) Always mow transversely on slopes and never up and down.
6) Be extremely carefully when changing directions on slopes.
7) Never mow on overly steep slopes. Do not mow on slopes of more than 20° (36%).

8) Be extremely careful when pull the machine toward you.
9) Stop the cutting-means if the machine has to be tilted for transportation when crossing surfaces other than grass, and when transporting the machine to and from the area to be used.
10) Never operate the machine with damaged guards or without the grass catcher or stone-guard.
11) Start up the motor carefully according to the instructions, keeping feet away from the cutting-means.
12) Do not incline the machine when starting the motor, unless necessary for start up. In this event, do not incline it more than is absolutely necessary and only lift the part that is far from the operator. Always ensure that both hands are in the working position before lowering the machine again.
13) Do not start the machine when standing in front of the discharge opening.
14) Never place your hands and feet near or under rotating parts. Keep away from the discharge opening.
15) Do not transport the machine while the power source is running.
16) Remove the isolator key and the battery pack or switch the isolator key to the off (O) position:

• whenever you leave the machine.
• before clearing blockages or unclogging chute.
• before checking, cleaning or working on the machine.
• after striking a foreign object. Inspect the machine for damage and make repairs before restarting and operating the machine.

If the machine starts to vibrate abnormally, check immediately.

• inspect for damage.
• replace or repair any damaged parts.
• check for and tighten any loose parts.

17) Stop the motor:

• whenever you remove or reattach the grass catcher.
• whenever you adjust the cutting height.

18) Do not fix the isolator key with a strap to the machine.

19) When mowing, always keep a safe distance from the rotary cutting-means, given by the length of the handle.
20) WARNING - If something breaks or an accident occurs during mowing, turn off the motor immediately and move the machine away to prevent further damage; if an accident occurs with injuries or third parties are injured, carry out the first aid measures most suitable for the situation immediately and contact the medical authorities for any necessary health care. Carefully remove any debris that might cause damage or harm persons or animals should it not be seen.
21) The levels for noise and vibration indicated in this manual are the maximum values for using the machine. The use of an unbalanced cutting-means, an excessive speed of movement and a lack of maintenance have a significant effect on sound emissions and vibration. It is therefore necessary to take preventive measures to eliminate all possible damage due to high noise levels, and stresses due to vibrations; please ensure that the machine is well maintained, wear an anti-noise helmet. Take breaks during the work.

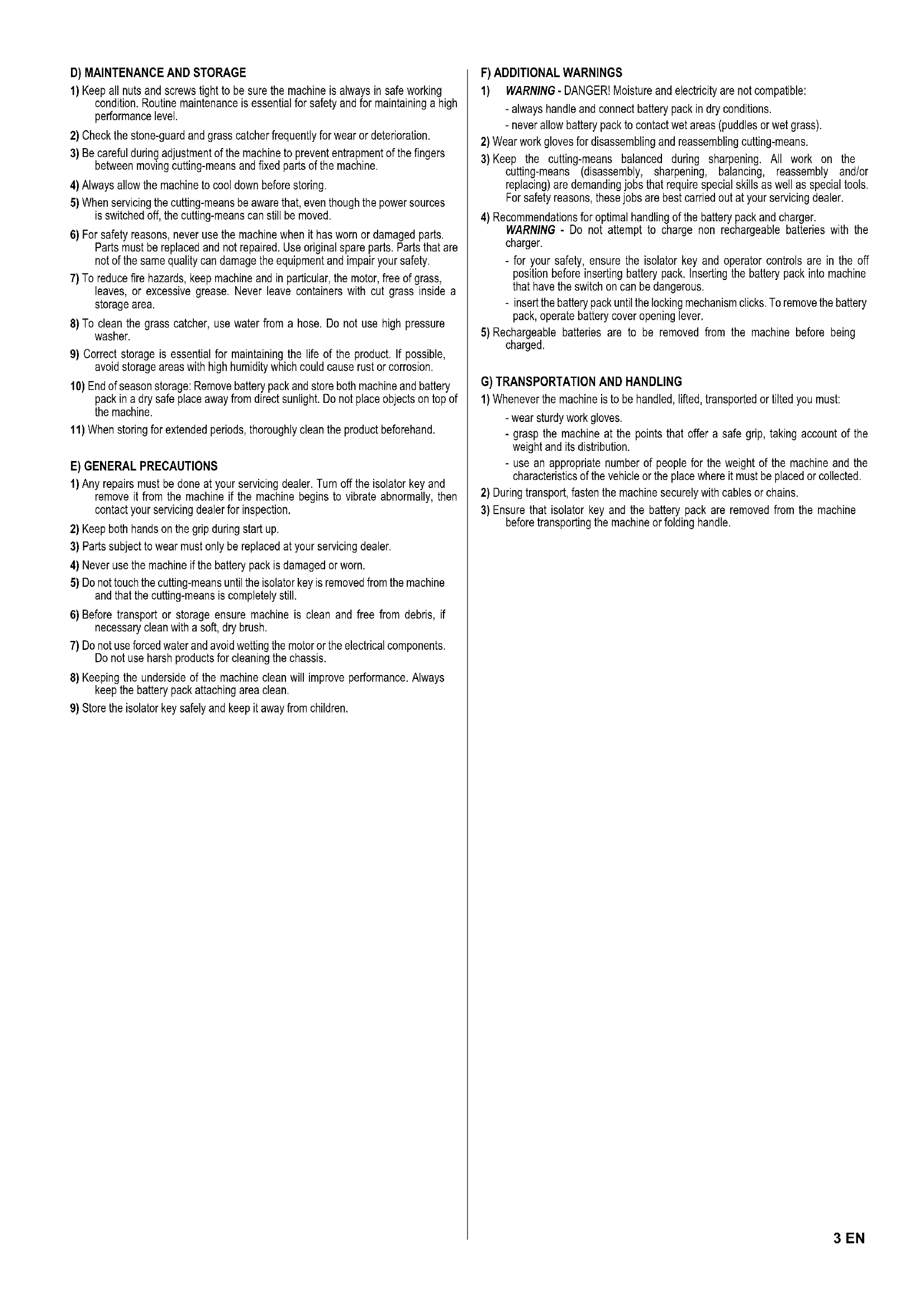

1) Keep all nuts and screws tight to be sure the machine is always in safe working condition. Routine maintenance is essential for safety and for maintaining a high performance level.
2) Check the stone-guard and grass catcher frequently for wear or deterioration.
3) Be careful during adjustment of the machine to prevent entrapment of the fingers between moving cutting-means and fixed parts of the machine.
4) Always allow the machine to cool down before storing.
5) When servicing the cutting-means be aware that, even though the power sources is switched off, the cutting-means can still be moved.
6) For safety reasons, never use the machine when it has worn or damaged parts. Parts must be replaced and not repaired. Use original spare parts. Parts that are not of the same quality can damage the equipment and impair your safety.
7) To reduce fire hazards, keep machine and in particular, the motor, free of grass, leaves, or excessive grease. Never leave containers with cut grass inside a storage area.
8) To clean the grass catcher, use water from a hose. Do not use high pressure washer.
9) Correct storage is essential for maintaining the life of the product. If possible, avoid storage areas with high humidity which could cause rust or corrosion.
10) End of season storage: Remove battery pack and store both machine and battery pack in a dry safe place away from direct sunlight. Do not place objects on top of the machine.
11) When storing for extended periods, thoroughly clean the product beforehand.

E) GENERAL PRECAUTIONS

1) Any repairs must be done at your servicing dealer. Turn off the isolator key and remove it from the machine if the machine begins to vibrate abnormally, then contact your servicing dealer for inspection.
2) Keep both hands on the grip during start up.
3) Parts subject to wear must only be replaced at your servicing dealer.
4) Never use the machine if the battery pack is damaged or worn.
5) Do not touch the cutting-means until the isolator key is removed from the machine and that the cutting-means is completely still.
6) Before transport or storage ensure machine is clean and free from debris, if necessary clean with a soft, dry brush.
7) Do not use forced water and avoid wetting the motor or the electrical components. Do not use harsh products for cleaning the chassis.
8) Keeping the underside of the machine clean will improve performance. Always keep the battery pack attaching area clean.
9) Store the isolator key safely and keep it away from children.

F) ADDITIONAL WARNINGS

1) WARNING - DANGER! Moisture and electricity are not compatible:

- always handle and connect battery pack in dry conditions. - never allow battery pack to contact wet areas (puddles or wet grass).

2) Wear work gloves for disassembling and reassembling cutting-means.
3) Keep the cutting-means balanced during sharpening. All work on the cutting-means (disassembly, sharpening, balancing, reassembly and/or replacing) are demanding jobs that require special skills as well as special tools. For safety reasons, these jobs are best carried out at your servicing dealer.
4) Recommendations for optimal handling of the battery pack and charger. WARNING - Do not attempt to charge non rechargeable batteries with the charger.

- for your safety, ensure the isolator key and operator controls are in the off position before inserting battery pack. Inserting the battery pack into machine that have the switch on can be dangerous.

- insert the battery pack until the locking mechanism clicks. To remove the battery pack, operate battery cover opening lever.

5) Rechargeable batteries are to be removed from the machine before being charged.

G) TRANSPORTATION AND HANDLING

1) Whenever the machine is to be handled, lifted, transported or tilted you must:

• wear sturdy work gloves.
• grasp the machine at the points that offer a safe grip, taking account of the weight and its distribution.
• use an appropriate number of people for the weight of the machine and the characteristics of the vehicle or the place where it must be placed or collected.

2) During transport, fasten the machine securely with cables or chains.

3) Ensure that isolator key and the battery pack are removed from the machine before transporting the machine or folding handle.

SAFETY STICKERS

Your machine must be used with care. Therefore, decals have been placed on the machine, to remind you pictorially of main precautions to take during use. Their meaning is explained below.

These decals are considered as a part of the machine. Should one become detached or unreadable, contact your servicing dealer for its replacement.

We also recommend that you read the safety advice carefully (see page 2).

Destination Europe(PEEA, SEEA)	Destination Australia(PEUA, SEUA)

[1] WARNING: Read the owner's manual before using the machine.

[2] Risk of projections: Keep third persons away from the area during use.

[3] Risk of cuts. Rotating cutting-means: Do not put hands or feet inside the cutting-means enclosure. Switch the isolator key to the off (O) position and remove the isolator key and the battery pack before adjusting, cleaning and before leaving the product unattended for any period. The cutting-means continue to rotate after the motor is switched off.

[4] Do not operate without either discharge cover or grass catcher in place.

IDENTIFICATION OF MACHINE

Destination Europe (PEEA, SEEA)

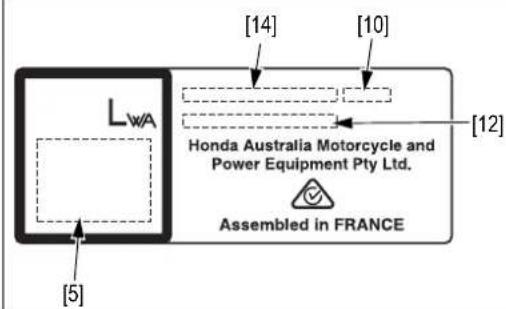

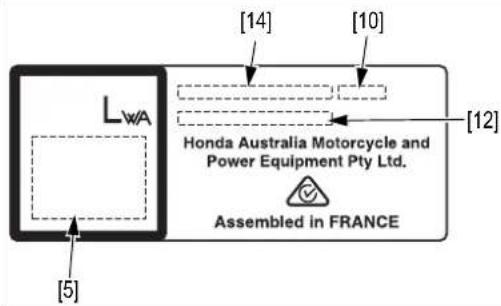

Destination Australia (PEUA, SEUA)

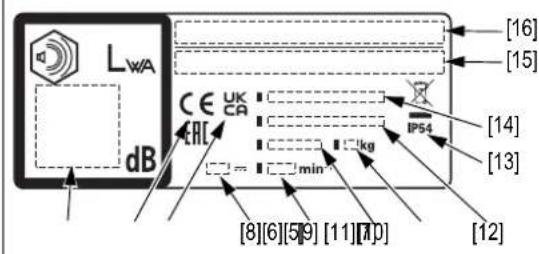

[5] Sound power level
[6] CE marking
[7] UK conformity assessed mark (for United Kingdom)
[8] Rated voltage
[9] Recommended motor speed in min -1

[10] MONTH AND YEAR of manufacture

[11] Mass in kilograms

[12] Frame serial number (Type and serial number of Declaration of Conformity)
[13] IP code (moisture and dust ingress resistance (only guaranteed with battery installed))
[14] Model - Type
[15] Authorized representative name and address
[16] Name and address of the manufacturer

GENERAL DESCRIPTION

Battery pack and charger
*Dedicated battery pack and charger for these machine are needed for operation. They are sold separately.

Technical line drawings of two mechanical components with labeled parts [31] and [32], no readable text or symbols beyond labels.

EQUIPMENT IDENTIFICATION

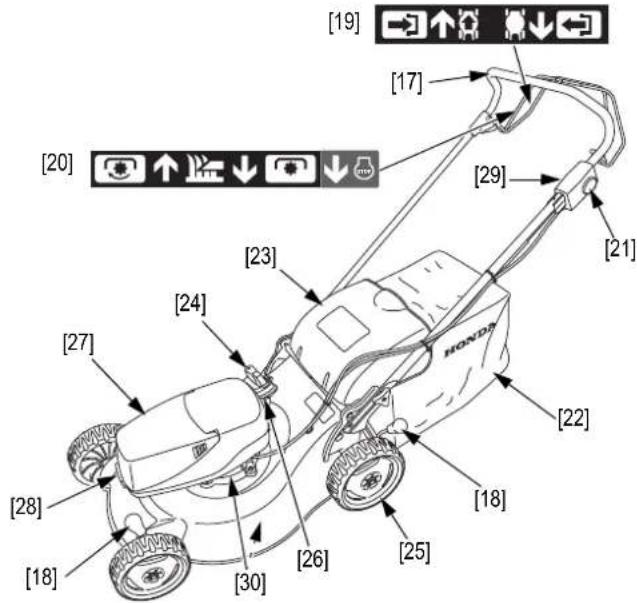

CONTROLS FUNCTIONS

[17] Handle

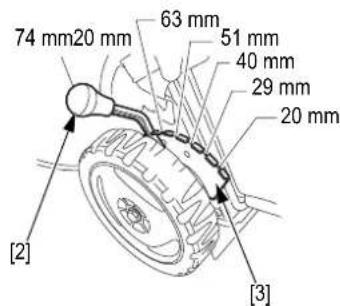

[18] Lever for adjusting the cutting height. . . . . . . . . . . . . . . . . . . . . . . . Selects the desired cutting height
[19] Drive clutch lever (HRG466XB only).... Controls the transmission which drives the rear wheels
[20] Cutting-means control lever ..... Stops and starts the cutting-means rotation
[21] Yellow button.... Controls the motor by a dual action switch to prevent starting it accidentally
[22] Grass catcher.... Collects the cut grass
[23] Discharge cover .... Protects from the projections
[24] Clip director (HRG466XB only) . . . Switching mulching/rear discharge
[25] Rear wheels
[26] Isolator key
[27] Battery cover
[28] Battery cover opening lever
[29] Battery indicator
[30] Motor cooling fins
[31] Battery pack
[32] Charger

Do not dispose of electric equipment together with household waste material. If electrical appliances are disposed of in landfills or dumps, substances can leak and react and enter into the foodchain, damaging your health and well-being. For further information on the disposal of this product, please contact your servicing dealer or your nearest domestic waste collection service.

PREPARATION AND CHECKS BEFORE USE

WARNING

To carry out this series of checks, place the machine on stable and level ground with the isolator key [1] and the battery pack removed from the machine.

ASSEMBLY OF THE HANDLE

1. Ensure that the grass catcher is not installed.

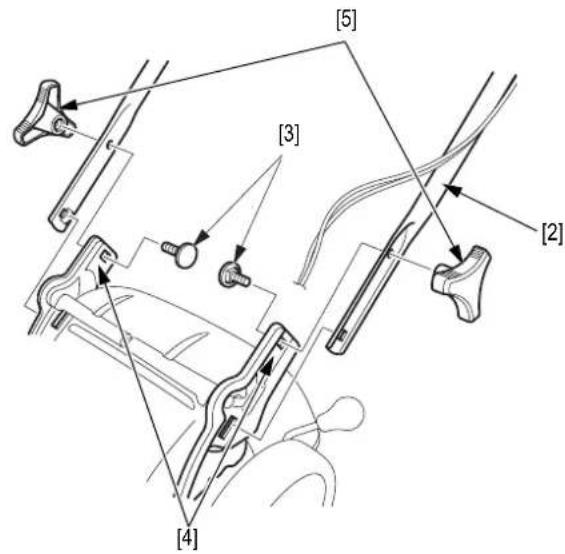

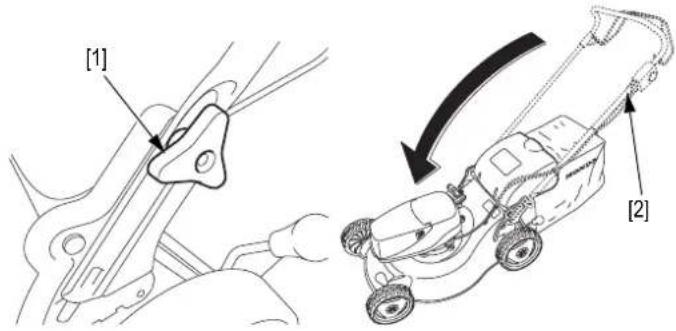

2. Attach the handle [2] to the deck frame so that the cable(s) is/are on the left side.
3. Install the two bolts [3] to the handle fixing points [4] from the inside of the handle. Fix them with two handle fixing knobs [5]. Make sure the knobs are securely tightened.

ASSEMBLY OF THE GRASS CATCHER

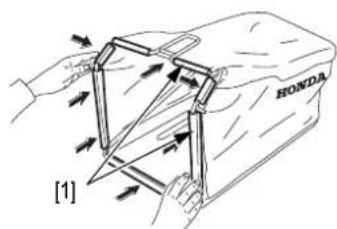

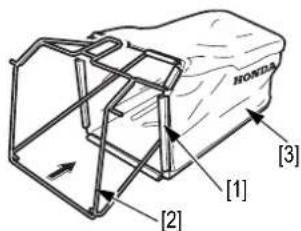

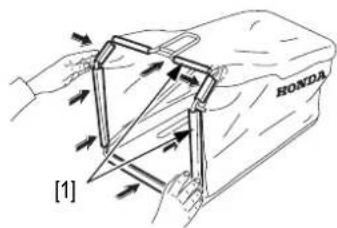

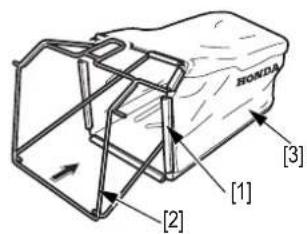

Insert the frame [2] into the grass catcher fabric [3] and fit the plastic edges [1] to the frame.

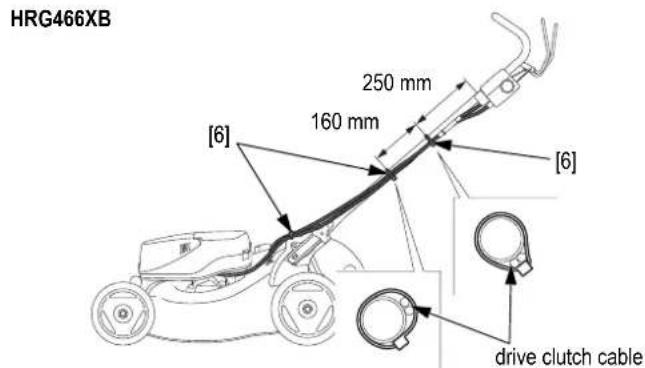

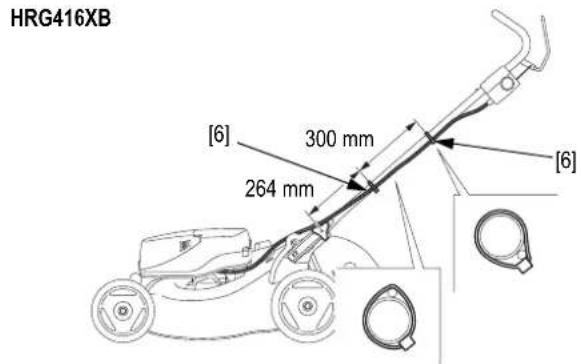

1. Check that the cable(s) pass(es) over the left handle fixing knob and are attached to the left side of the handle with tie straps [6] as shown in the figure.

CHECKING THE GRASS CATCHER

WARNING

Before use, ensure that the grass catcher closing device is correctly closed (discharge cover).

Even in normal use, the grass catcher tends to wear. Regularly check that it is not frayed or torn. A worn out grass catcher must be replaced. Replace a damaged grass catcher with Honda Genuine parts.

Grass catcher removal:

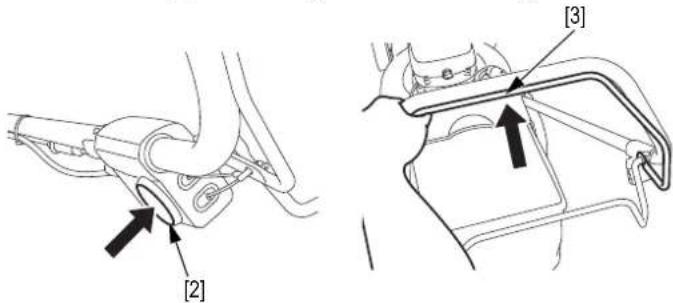

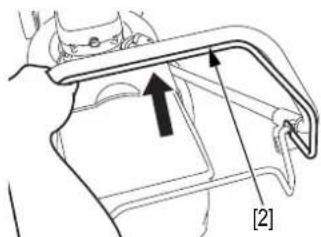

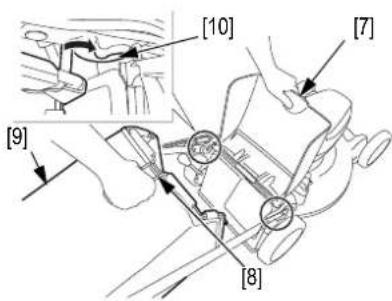

1. Raise discharge cover [7], grasp handle [8] and remove grass catcher [9] while keeping it in an upright position.

Grass catcher fitting:

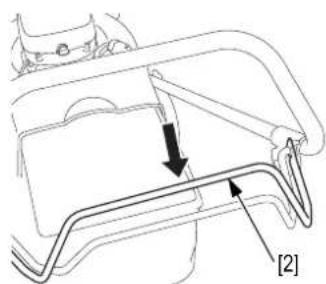

1. Raise the discharge cover and hook the front of the grass catcher on the

machine's attachment lugs [10].

NOTE:

• The machine operates like a vacuum cleaner; it blows air into the grass catcher sucking up the grass cuttings. Empty the grass catcher before it is full to help emptying and minimizing the dropping of grass cuttings. Bagging performance will diminish after the grass catcher becomes about 90% full.
• HRG466XB only: Mulching is a natural fertilisation technique. The grass is no longer collected in the grass catcher, but is finely ground and deposited on the lawn. The grass cuttings chopped up in this way decompose in the sun and form a natural humus which can produce a quarter of the annual fertilisation requirement of your lawn.
• In addition to its fertilising role, mulching protects the ground, limits evaporation of water during hot periods and relieves you of the task of collecting the grass.

PREPARATION OF THE BATTERY PACK

A charged battery pack must be installed to the machine to operate the machine. Please refer to the page 6 for handling of the battery pack.

INSTALLATION AND REMOVAL OF THE BATTERY PACK

WARNING

Do not handle with wet hand, or under rain condition.

CAUTION:

• When you close the battery cover, please pay attention to avoid pinching your finger by battery cover.
• For the each action, please pay attention to avoid any injured.
  • Always use Honda battery pack.

Installation:

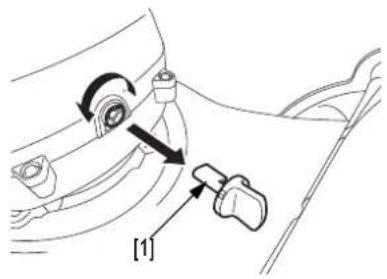

1. Turn the isolator key [1] to the off (O) position [2] and remove the key from the motor.

1. Push the battery cover opening lever [3] to open the battery cover [4].

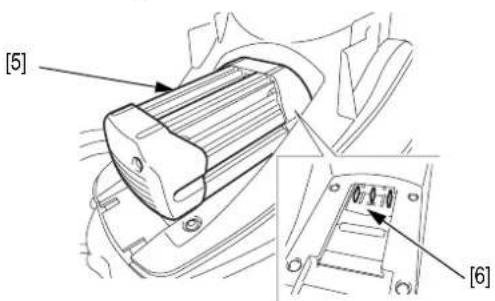

1. Ensure that the battery pack attaching area is clean. Install the battery pack [5] to the terminal [6]. Push the battery pack until you hear clicking sound.

1. Close the battery cover securely.

NOTE:

Whenever you open the cover, always confirm that the battery is well connected before closing it.

Removal:

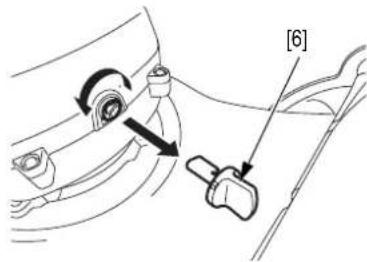

1. Turn the isolator key to the off (O) position and remove the key from the motor.
2. Push the battery cover opening lever to open the battery cover. When the cover is opened, the battery pack comes off from the terminal simultaneously.
3. Pick up the battery pack.
4. Close the battery cover securely.

CHECKING BATTERY LEVEL

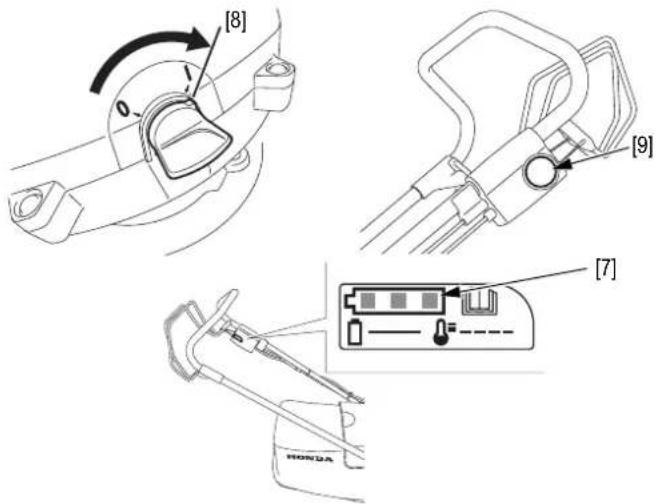

Battery level can be confirmed with the battery indicator [7] on the left side of the handle.

1. Install the battery pack to the machine.
2. Insert the isolator key to the motor and turn the key to ON (I) position [8].
3. Press the yellow button [9], then the battery indicator will come on.

1. Remaining battery capacity is displayed in 3 levels.

LEDs behavior of battery indicator

• LEDs show battery pack and machine status.
• When the battery is installed and isolator key is on, the LEDs will come on by operating the yellow button or cutting-means control lever.
• LEDs light for approximately 48 seconds.
• While the machine is running, LEDs do not light.

LEDs show machine or battery pack condition as following.

1 LED on

0% < state of charge ≤ 30%

2 LED on

30% < state of charge ≤ 60%

3 LED on

60% < state of charge ≤ 100%

Blinking 1 LED

State of charge 0% = Empty

Blinking 3 LED

Motor shut off due to motor overheating or battery pack overheating.

Turn the isolator key to off (O) and let the machine cool down for 30 to 60 minutes.

Charge the battery pack if the battery level is low.

See annexed instructions for battery pack and charger.

CHARGING THE BATTERY PACK

See annexed instructions for battery pack and charger.

CHECKING CUTTING-MEANS CONDITION

To check cutting-means condition:

1. Ensure that the isolator key and the battery pack are removed from the machine.
2. Tilt the machine to the right so the yellow button side [1] is up.
3. Check if the cutting-means is showing signs of wear. It is necessary to replace the cutting-means when the recesses join together, or when a crack appears, or if it is bent.

Line drawing of a lawn mower with labeled parts [1] (no text or symbols on the diagram itself)

NORMAL BENT

EXCESSIVELY WORN CRACKED

• Check that cutting-means bolts are not loose (see "Maintenance" chapter page 11).
• To replace or remove the cutting-means, refer to the procedure described in the "Maintenance" chapter page 11.

WARNING

Never operate the machine with a worn, damaged, split or dented cutting-means. Pieces of cutting-means which breaks off and is thrown outwards can cause serious personal injuries.

NOTE: Cutting-means wear is increased when the machine is used on sandy soils. Inspect the cutting-means more often when the machine is used in these conditions.

ADJUSTING CUTTING HEIGHT

To change the cutting height:

1. Remove the isolator key and the battery pack or switch the isolator key to the off (O) position.

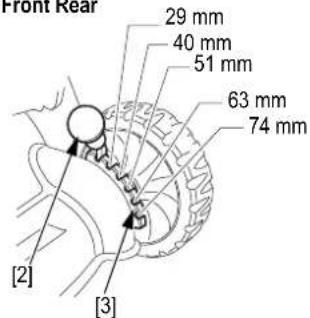

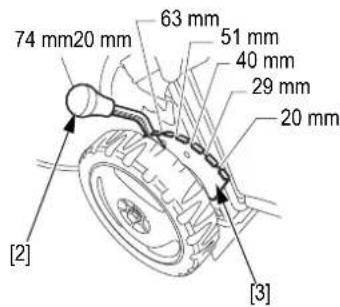

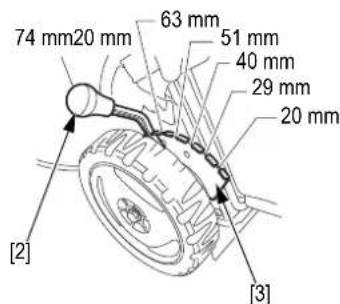

2. Pull the adjusting lever [2] towards the wheel and place it in the adjustment groove [3]. Adjusting lever and adjustment grooves are near the front left and rear left wheel.

Front Rear

The cutting height settings are approximate values, the actual height of the cut grass varies with the lawn and ground condition. To choose the cutting height, check how the lawn looks after mowing a small area and adjust the cutting height where necessary.

NOTE:

• Do not cut more than 1/3 of the initial height of the grass in one passage as brown spots will appear. The cut will be cleaner and this will limit the possibility of cutting-means and chute blackage.
• If the lawn is too high, mow at the maximum permissible height of the machine. Mow the lawn again 2 or 3 days later.
• The depth of the roots is proportional to the height of the grass cuttings: the shorter the cut, the shallower the roots.
• Choose a cutting height suited to the use of the lawn: leisure, sport: 5 cm or more, ornamental: 1 to 3 cm.
• Only some species of lawn can endure short cuts. If a lawn is cut too short, it is fragile and susceptible to dryness. Please ask the advice of a specialist.

CHECKING THE CUTTING-MEANS BOLT TIGHTENESS

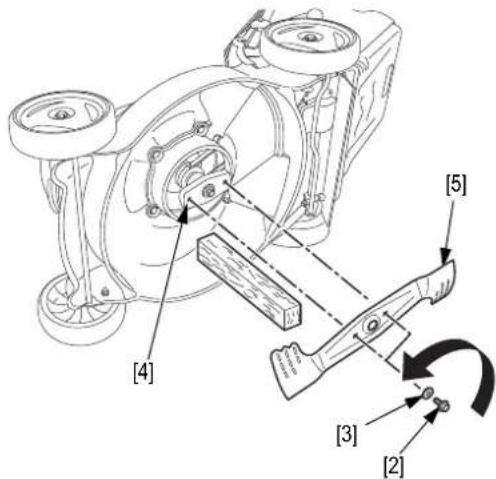

See "CUTTING-MEANS FITTING AND REMOVAL" (page 12).

Check that there is no malfunction, abnormal noise or abnormal vibration by rotating and stopping the motor.

If there is malfunction, abnormal noise or abnormal vibration from the motor, stop using it immediately, contact your servicing dealer.

CHECKING AROUND THE MACHINE

Check and clean the debris, grass or any other foreign object around the machine.

SELECTING THE CUTTING MODE (HRG466XB ONLY)

SWITCHING THE CLIP DIRECTOR

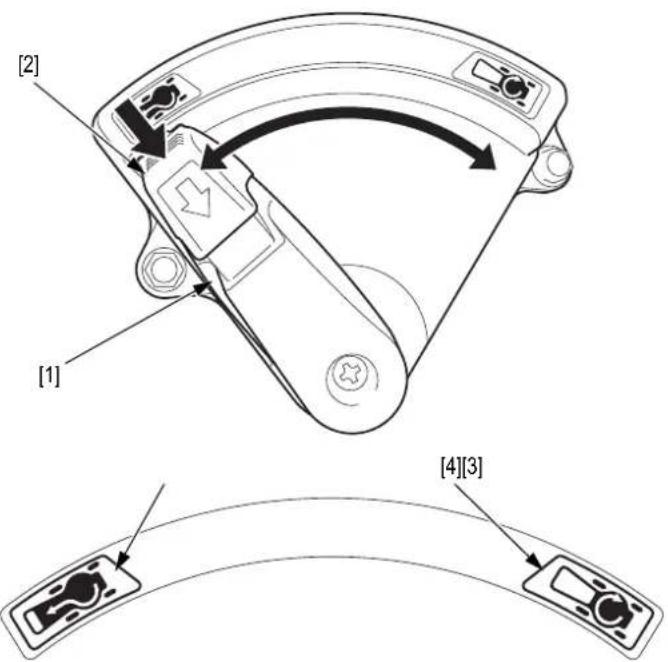

The cutting mode can be switched by operating the clip director [1].

1. Release the cutting-means control lever and the drive clutch lever.
2. Push the unlock button [2] and turn the clip director lever to select the cutting mode.

• Grass collection / Rear ejection position [3]: all the grass cuttings are ejected at the rear of the machine, the grass cuttings are not mulched. With the grass catcher, the ejected grass will be collected into the grass catcher. Without grass catcher, the grass will be ejected to the ground. See page 5 to mounting or removing the grass catcher.
• Mulching position [4] : the grass is not ejected at the rear of the machine, but is finely cut and deposited on the lawn. The grass cuttings chopped up in this way decompose and form a natural compost which can produce a quarter of the annual fertilisation requirement of your lawn.

NOTE:

• Mulching is a natural fertilisation technique. The grass is no longer collected in the grass catcher, but is finely cut and deposited on the lawn.
• In addition to its fertilising role, mulching protects the cut, limits evaporation of water during hot periods and relieves you of the task of collecting the grass.

REAR EJECTION

If you do not want to collect the cut grass, the machine can be used without the grass catcher in the mulching position [3]. In this case, the grass ejected is guided to the ground by the discharge cover.

Line drawing of a person using a lawn mower (no text or symbols present)

MOWING

HRG416XB and HRG466XB are battery powered products. When squeezing the cutting-means control lever while pressing the yellow button, motor and cutting-means will start turning immediately.

TO ROTATE THE CUTTING-MEANS

Ensure that the charged battery pack is installed to the machine (page 6).

1. Insert the isolator key to the motor and turn the key to ON (I) position [1].

1. While pressing the yellow button [2], push the cutting-means control lever [3]. The cutting-means start rotating.

1. Release the yellow button. Hold the cutting-means control lever to keep the cutting-means rotating.

TO STOP THE CUTTING-MEANS ROTATION

1. Release the cutting-means control lever [3]. The cutting-means rotation stops.

If you leave the machine, or stop the working, etc., do the following step.

1. Turn the isolator key to off (O) position [4] and remove the isolator key [5] from the motor.

Remove the battery pack if necessary (page 6).

OPERATING HINTS AND TIPS

WARNING

Take special care when mowing on uneven or irregular ground. The machine may tip over and cutting-means may throw out objects which were hidden.

Keep the 4 wheels firmly on the ground.

Control the direction of the machine using the handle and not by exerting pressure on the cutting-means enclosure with your foot.

CAUTION:

- When mowing around an obstacle, be careful that the cutting-means does not hit it. Never push the machine directly over an object.

- When mowing an uneven area, do not let yourself be pulled along by the machine. Hold the handle firmly and control its movements.

MOWING PROCEDURE

Read the safety instructions before starting to mow.

Using self-propelling system (HRG466XB only):

WARNING

Always release the drive clutch lever when engaging the cutting-means control lever. If drive clutch is engaged, the machine will move when the motor is started.

1. Start the motor and engage the cutting-means.

- While pressing the yellow button [1], push the cutting-means control lever [2]. The cutting-means start rotating.

1. Push the drive clutch lever completely.

1. To stop the machine moving forward.

- Release the drive clutch lever.

1. To stop the cutting-means rotating.

- Release the cutting-means control lever.

Push by hand to propel the machine (All types):

WARNING

Always release the drive clutch lever when engaging the cutting-means control lever. If drive clutch is engaged, the machine will move when the motor is started.

1. Start the motor and engage the cutting-means.

- While pressing the yellow button [1], push the cutting-means control lever [2]. The cutting-means start rotating.

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

1. Push the handle by hand to mow the lawn.

2. To stop the cutting-means rotating.

- Release the cutting-means control lever.

NOTE: It is possible to refrain from using the forward drive while mowing in areas with a narrow surface (lanes, borders, etc.).

NOTE: The area of cut (battery duration) depends on lawn conditions, grass density, moisture content, grass length and height of cut. Switching the machine on and off frequently during cutting will also reduce the area of cut (battery duration).

To improve the area of cut (battery duration) it is recommended to cut more frequently, raise the cutting height and use land drive at normal walking pace.

This model is fitted with thermal protection device.

- Function: to prevent overheating and damage to the motor, caused by abnormal use.

- Triggering of the protection device: when the machine is overloaded, the power supply to the motor is shut down immediately.

Procedure to follow when the protection device is triggered:

- Release the yellow button.

- Remove the battery pack.

- Check what caused the issue and eliminate it: cutting height too low (grass too high and/or dense), foreign object preventing the free rotation of the cutting-means etc.

- Allow the machine to cool down in a cool environment (for from 30 to 60 minutes).

Precautions before starting up the machine again:

- Remove the battery pack.

- Check that the cutting-means is able to move freely (using protective gloves).

- Check the safety conditions in the surrounding area (objects on the lawn, persons or animals in the vicinity).

- Install the battery pack.

- Enable the yellow button.

- Restart your machine and confirm the problem disappeared. If problem remains, contact your servicing dealer.

NOTE:

• Mowing frequency: once a week for a lawn intended for leisure purposes, twice a week for an ornamental lawn.
• If possible, mow the lawn in the afternoon or evening before sprinkling, as the grass must be dry. If dust levels are too high, mow the lawn when the grass is dry, but the ground is still damp.
• Choose a cutting height adapted to the terrain (see page 7).
• For a regular cut, you should overlap the part that has already been cut by a few centimetres [1], and increase this overlap zone if the cutting height is high.
• To achieve maximum efficiency, follow the suggested path.
• If your terrain does not have a regular shape or involves several obstacles, divide it into internal parcels which you can mow in the recommended direction.

[2] Catching: turn in a clockwise direction to achieve the maximum efficiency.

[3] Mulching (HRG466XB only): turn in an anti-clockwise direction.

Top-down schematic of a car with wheels and a labeled dimension [1] (no text or symbols beyond the label)

[3][2]

EMPTYING THE GRASS CATCHER

When the grass catcher becomes full, grass collection is no longer efficient (the sound of the machine changes and the grass catcher is no longer puffed up by the air from the cutting-means).

HRG466XB:

1. Release the cutting-means control lever and drive clutch lever.

HRG416XB:

1. Release the cutting-means control lever.

All models:

1. Remove the grass catcher (see page 5).

2. Empty the grass catcher:

3. Hold the grass catcher by the metal handle [4].

4. Grasp grass catcher [5] and shake the grass catcher to remove the grass.

CAUTION:

• To reduce the fire risk, never leave grass cuttings or leaves in the grass catcher, or in or near buildings. Decomposing grass cuttings causes a high temperature rise.

WARNING

Before use, check that the grass catcher closing device is correctly positioned (discharge cover).

MAINTENANCE

Regular maintenance helps to extend the life of your machine.

WARNING

To carry out this series of service, place the machine on stable and level ground with the isolator key [6] and the battery pack removed from the machine.

NOTE: To assure a longer lifetime and more efficient operation, the underside of the machine must be kept clean and free of grass debris by cleaning with a brush and scraper. After use the machine must be cleaned thoroughly before being stored.

DRIVE CLUTCH CABLE INSPECTION (HRG466XB ONLY)

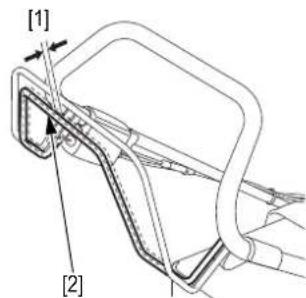

Measure the free play [1] on the tip of drive clutch lever [2] as shown.

Free play: within 1 to 5 mm

If the free play is not within the limit, adjust the cable.

1. Loosen the locknut [3].
2. Loosen or tighten the cable as necessary so that a free play [1] of 1 to 5 mm is achieved.
3. Retighten the locknuts [3] and recheck the free play [1].
4. Start the motor. Push the drive clutch lever and release it. Check that the machine start and stop correctly.

NOTE: If the clutch does not engage correctly even when the cable is correctly adjusted, the system may need to be repaired. Take the machine to your servicing dealer.

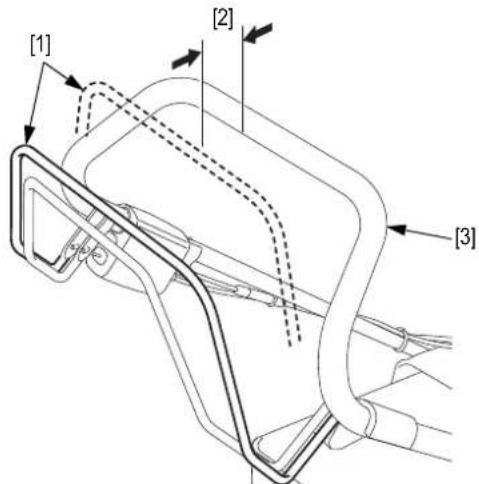

CUTTING-MEANS CONTROL CABLE INSPECTION

The motor must be switched on or off when the cutting-means control lever [1] is positioned between the specified position [2]. Specified position: between 30 to 60mm from the handle [3].

NOTE: If the motor is switched on or off outside of the specified position, the system may need to be repaired. Take the machine to your servicing dealer.

CUTTING-MEANS FITTING AND REMOVAL

CUTTING-MEANS REMOVAL

1. Ensure that isolator key and the battery pack are removed from the machine.

2. Tilt the machine so that the yellow button side faces upwards [1].

Line drawing of a lawn mower with labeled parts [1] (no text or symbols on the diagram itself)

1. Use a 14 mm socket wrench and remove the 2 cutting-means bolts [2] and special washers [3] from the cutting-means holder [4]. Use a wooden block to prevent the cutting-means from turning when removing the bolts.

2. Remove the cutting-means [5].

CUTTING-MEANS INSTALLATION

1. Clean dirt and grass from around the cutting-means mounting area.

2. Install cutting-means [1] using the 2 cutting-means bolts [2] and special washers [3] as shown.

Cutting-means bolt torque: 54 N·m

Fit the special washers with their convex side, marked "OUT", facing the bolts.

The cutting-means bolts are specially designed for this application and must not be replaced with other bolts.

1. Tighten the cutting-means bolts with a torque wrench. Use a wooden block [4] to prevent the cutting-means from turning.

CAUTION:

- If you do not have a torque wrench, ask your servicing dealer to tighten the cutting-means bolts for you before you use the machine.

- If the cutting-means bolts are too tight or too slack, they may break or unscrew.

CUTTING-MEANS REPLACEMENT

Line drawing of a hand holding a wooden strip with a tool, no text or symbols present

CAUTION:

• Cutting-means balance is critical to proper machine performance. Replace any cutting-means that is damaged or out of balance.
• Use only genuine Honda replacement cutting-means.

CUTTING-MEANS SHARPENING

CAUTION:

- To avoid weakening the cutting-means, causing it to become unbalanced or getting a bad quality of cut, the cutting-means should be sharpened by competent personnel at your servicing dealer.

1. Sharpen the cutting-means cutting edges with a file. File the top side only. Maintain the original bevel for a fine cutting edge. File both ends evenly to maintain cutting-means balance.
2. After sharpening, test the cutting-means balance using a screwdriver as shown above. If either side dips slightly below the horizontal, file that side. Replace the cutting-means if it dips excessively.

MOTOR COOLING FINS AND BATTERY LOCATION CLEANING

1. Clean dirt and grass from around the motor cooling fins and battery location area with a soft, dry brush as shown in the figure.

Battery location

Line drawing of a mechanical component with a circular inset highlighting internal structure (no text or symbols)

Motor cooling fins

Technical line drawing showing internal components of a vehicle, including a circular opening and mechanical assembly (no text or symbols)

GRASS CATCHER CLEANING AND REPLACEMENT

GRASS CATCHER FABRIC CLEANING

CAUTION:

• Washing with a high pressure washer or steam jet will damage the grass catcher fabric.
• Blocked mesh will prevent the grass from entering the grass catcher fabric.
  • To clean the grass catcher fabric, we recommend washing it using a water jet directed from the outside to the inside of the grass catcher fabric. The grass catcher fabric must be completely dry before being used again. If the grass catcher fabric is damp, it will become clogged very quickly.

Line drawing of a person using a bag to lift a rope (no text or symbols)

WARNING

Objects struck by the cutting-means may be thrown through a torn or damaged grass catcher.

Objects thrown out by the cutting-means can cause serious injuries. Always replace a torn or damaged grass catcher.

GRASS CATCHER FABRIC REPLACEMENT

The grass catcher fabric tends to wear even in normal conditions of use. Regularly check that it is not frayed or torn. Replace a damaged grass catcher fabric with Honda Genuine parts.

1. Detach the plastic edges [1] of the worn grass catcher fabric [3] and remove the grass catcher's frame [2].
2. Insert the frame into the new grass catcher fabric and fit the plastic edges [1] to the frame.

CLEANING

Before transport or storage ensure machine is clean and free from debris, if necessary clean with a soft, dry brush or a rag. To clean the grass catcher, use water from a hose. Do not use high pressure washer. Do not use detergent for cleaning the machine. Keeping the underside of the machine clean will improve performance.

Keeping the battery pack attaching area clean.
Make sure that the system for attaching and connecting the battery pack is free of dirt and grass chipping.

Do not use forced water and avoid wetting the motor or the electrical components.

Do not use harsh products for cleaning the chassis.

Line drawing of a grass mower with a cross mark indicating explosion or explosion (no text or symbols)

MAINTENANCE SCHEDULE

REGULAR SERVICE PERIOD (3)		Each use	Every 100 hours of use or each year	Every 150 hours of use or 2 year	Refer to page
Perform at every indicated month or operating hour interval, whichever comes first.
Cutting means bolts tightness Check ●					12
Cutting means (Deformation / damage)	Check ●				7
Grass catcher	Check	●			5,11,14
Drive clutch cable (HRX466XB only)	Check ● 11
	Adjust ●(1) -
Cutting-means control cable Check ●					12
Drive belt	Check ●(1)(2) -
Ratchet (HRX466XB only)	Grease		●(2)		-
Motor cooling fins	Clean	●			13
Battery location	Clean	●			13
Motor rotation condition	Check	●			7
Overall machine outside	Check	●			7

(1) Replace as necessary.
(2) These items should be serviced by your servicing dealer, unless you have the proper tools and are mechanically proficient. Refer to Honda shop manual for service procedures.
(3) For commercial use, log hours of operation to determine proper maintenance intervals.

TROUBLESHOOTING

Possible cause Correction
Battery pack discharged. Battery pack charging.
Isolator key not fully located.	Check isolator key is fully in the ON (I) position.
Battery pack not fully inserted. Fully insert battery pack.
Battery pack too hot / cold.	Allow battery pack to warm up / cool down - Check battery LED display.
Faulty battery pack. Replace battery pack with a new one.

MACHINE FUNCTIONS INTERMITTENTLY

Possible cause Correction
Internal wiring of product damaged. Contact your servicing dealer.
Motor / Electronics thermal protector has activated.	Allow motor / Electronics to cool and increase height of cut.
External cabling damaged. Contact your servicing dealer.

MOTOR START AND THEN STOPS IMMEDIATELY

Possible cause Correction
Battery pack not fully charged.	Check battery pack display - Charge battery pack if necessary.
Isolator key not fully located.	Check isolator key is fully in the ON (I) position.
Battery pack not fully inserted. Fully insert battery pack.
Cutting-means wound with tough long grass.	Switch off isolator key and unblock the cutting-means.
Battery pack too hot / cold.	Allow battery pack to warm up / cool down - Check battery LED display.

AREA OF CUT (BATTERY DURATION) NOT LARGE ENOUGH

Possible cause Correction
Height of cut too low. Increase height of cut.
Grass too high. Increase height of cut.
Grass is dense.	Increase height of cut or cut grass more frequently.
Used battery pack life cycle. Replace battery	pack with a new one.
Low battery level.	Ensure that battery pack is fully charged before use.

MOWING AND BAGGING PROBLEMS

Possible cause Correction
Machine is moving too fast or grass is too high or too dense.	Move slower when possible or increase the cutting height.
Machine is moving too fast for lawn conditions.	Contact your servicing dealer.(Except pushing the machine.)
Grass catcher overfilled or clogged.	Empty the grass catcher. Wash the grass catcher if it is clogged with dirt (pages 11 and 14).
Machine deck is clogged.	Clean out the machine deck (page 12).
Cutting-means dull, worn, or damaged.	Sharpen or replace the cutting-means if necessary (page 13).
Wrong cutting-means installed.	Install correct cutting-means (page 12).

VIBRATIONS

Possible cause Correction
Cutting-means loose, bent, damaged, or unbalanced by improper sharpening.	Tighten loose cutting-means bolts.If cutting-means is found to be bent or damaged, take the machine to your servicing dealer for inspection (page 13).
Mechanical damage, such as a bent motor shaft.	Maintenance of these points must be carried out by your servicing dealer.

STORAGE

PREPARATION FOR STORING THE MACHINE

Ensure that isolator key and the battery pack are removed from the machine before storing the machine.

Correct storage is essential for maintaining the life of the product. If possible, avoid storage areas with high humidity which could cause rust or corrosion.

End of season storage:

• Remove battery pack and store both machine and battery pack in a dry safe place away from direct sunlight.
• Do not place objects on top of the machine.
• When storing for extended periods, thoroughly clean the product beforehand.

NOTE: See annexed instructions for battery pack storage procedures.

TRANSPORT

TRANSPORTING THE MACHINE

WARNING

Ensure that isolator key and the battery pack are removed from the machine before transporting the machine or folding handle.

To facilitate the operation:

1. Remove the grass catcher (see page 5).
2. Turn the handle fixing knobs [1] and fold back the handle [2].

NOTE:

While folding the handle, check that the cables are not kinked, twisted, stretched or pinched.

LOADING THE MACHINE

CAUTION:

• To prevent losing control of or damaging the machine, do not use the drive system when going up or down a loading ramp.
- To prevent damaging the drive system, do not engage the clutch when the machine is rolling backwards.
- Transport the machine in normal horizontal position with its 4 wheels flat on the vehicle platform.
• We recommend that you use a loading ramp or that you get someone to help you load and unload the machine.
- Adjust the loading ramp so that it is inclined at an angle of less than 15^ (26%).
- When transporting the machine, immobilise it using straps and place chocks under the wheels.
- The straps must not touch the following parts of the machine: drive clutch lever, cutting-means control lever, and all the control cables.

USEFUL INFORMATION

FIND AN AUTHORIZED DEALER

Please refer to the European Internet site: http://world.honda.com/

CURRENT PARTS, OPTIONAL ATTACHMENT AND CONSUMABLES

To buy one of the original parts listed below, or any other part, please contact your servicing dealer.

	HRG416XB HRG466XB
Current parts
[1] Grass catcher 813	20-VH3-R11 813	20-VH4-R11	Grass catcher only (without frame)
[2] Rear wheel 42710	-VH3-R10 42710	-VH3-R20
[3] Front wheel 44710	-VH3-R10
[4] Standard cutting-means	72511-VH3-R90	72511-VH4-R90	Requires use of a dynamometric key
[5] Battery pack	DP3640XA (Standard 4A)DP3660XA (Standard 6A)DPW3660XA (All weather 6A)DPW3690XA (All weather 9A)
[6] Charger CV3680XA

[6] Charger CV3680XA

WARNING

For your safety, it is strictly prohibited to install any other attachment than the ones listed above and especially designed for your machines' model and type.

TECHNICAL SPECIFICATIONS

MODEL HRG416XB HRG466XB
TYPES PEEA PEUA SEEA SEUA
GENERAL CHARACTERISTICS
Description code MCEF MCDF
Function Cutting of grass
Dimensions L x W x h mm 1 415 x 453 x 980 1 470 x 497 x 980
Weight (*) kg		23	27
Track FR/RR mm		369 / 395	419 / 439
Cutting width cm		41	46
Cutting heights settings mm		6 positions (20 to 74 mm)
Rear/Front wheel diameter mm		178 / 212
Grass catcher capacity ℓ		42	50
Sound pressure level at operator's ears (in accordance with EN60335-2-77:2010) dB(A)		79	-	80.2
Measuring uncertainty dB(A)		1.00	-	1.00
Measured sound power level (in accordance with directives 2000/14/EC, 2005/88/EC) dB(A)		88.76	-	90.63
Measuring uncertainty dB(A)		0.65	-	1.41
Sound power level guaranteed (in accordance with directives 2000/14/EC, 2005/88/EC) dB(A)		89	-	92
Vibration test (in accordance with EN60335-2-77:2010)(**) m/s2		1.07	-	1.33
Measuring uncertainty m/s2		0.56	-	0.51
MOTOR
Type		3-PHASE DC BRUSHLESS
Max out put power W		1 000	1 800
Rotation number at no load (with cutting-means) min-1		2 900 ± 40	2 800 ± 40
TRANSMISSION
Type		-	1 Speed fix type
Engine to drive		-	V-belt
Number of speeds		-	Single speed
Forward speed m/s		-	0.89
Lubrication		-	Oil bath and splash
Recommended oil		-	10W40
Oil capacity cc		-	65

(*) Without battery.
(**) Values for a machine equipped with a grass catcher, in a grass collector position.

AVANT-PROPOS

Line drawing of two Honda lawn mower machines, shown from top and side views (no text or symbols)

Technical line drawings of two mechanical components with labeled parts [31] and [32], no readable text or symbols beyond labels.

IDENTIFICATION DE L'EQUIPEMENT COMMANDES FONCTIONS

MONTAGE DU BAC DE RAMASSAGE

NOTE :

Line drawing of a lawn mower with labeled parts, showing blade and handle (no text or symbols)

NORMAL DEFORME

USURE EXCESSIVE FENDILLE

Line drawing of a person using a lawn mower (no text or symbols present)

TONTE

PROCEDURE DE TONTE

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Top-down schematic of a vehicle showing front wheel, rear wheels, and dashboard (no text or symbols)

[3][2]

VIDAGE DU BAC DE RAMASSAGE

Line drawing of a lawn mower with labeled parts [1] (no text or symbols on the diagram itself)

INSTALLATION DE L'ORGANE DE COUPE

Line drawing of a hand holding a wooden strip with a tool, no text or symbols present

ATTENTION :

Technical line drawing of a mechanical component with a circular inset view showing internal structure (no text or symbols)

Technical line drawing showing internal components of a vehicle, including a handle and gear assembly (no text or labels)

NETTOYAGE ET REMPLACEMENT DU BAC DE RAMASSAGE

NETTOYAGE DU TISSU DU BAC DE RAMASSAGE

ATTENTION :

Line drawing of a person using a bag to lift a rope (no text or symbols)

AVERTISSEMENT

NETTOYAGE

Line drawing of a lawn mower with a cross mark indicating explosion or explosion (no text or symbols)

PROGRAMME D'ENTRETIEN

Line drawing of two Honda lawn mower machines, shown from top and side views (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

HINWEIS:

Three identical schematic diagrams of electronic components or connectors, each with a labeled connection point and no text or symbols.

1 LED ein

0% < Ladezustand ≤ 30%

2 LED ein

30% < Ladezustand ≤ 60%

3 LED ein

60% < Ladezustand ≤ 100%

1 LED blinkt

Ladezustand 0% = leer

3 LEDs blinken

Line drawing of a lawn mower with labeled parts [1] (no text or symbols on the diagram itself)

STARK VERSCHLISSEN GERISSEN

Line drawing of a person using a lawn mower (no text or symbols present)

MÄHEN

MÄHVORGANG

Diagram of a car interior showing a handle and seat with arrows indicating direction (no text or symbols)

Top-down schematic of a vehicle chassis with labeled component [1] (no text or symbols beyond label)

[2]

[3]

Line drawing of a lawn mower with labeled parts [1] (no text or symbols on the diagram itself)

Line drawing of a hand holding a wooden strip with a small circular mark on its surface (no text or symbols)

VORSICHT:

Technical line drawing of a mechanical component with a circular inset view showing internal structure (no text or symbols)

Motorkühlrippen

Technical line drawing of a car interior showing internal components and a magnified view of the dashboard (no text or symbols)

Line drawing of a person handling a bag with a cloth (no text or symbols)

! WARNING

REINIGUNG

Line drawing of a motor with a warning symbol (no text or labels)

WARTUNGSPLAN

VORSICHT:

Line drawing of two Honda lawn mower machines, shown from top and side views (no text or symbols)

Technical line drawings of two mechanical components with labeled parts [31] and [32], no readable text or symbols beyond labels.

MONTAGGIO DEL SACCO DI RACCOLTA

VERIFICA DEL SACCO DI RACCOLTA

! AVVERTENZA

NOTA:

Three identical schematic diagrams showing electrical or mechanical components with no text or symbols

1 LED acceso

Line drawing of a lawn mower with labeled parts, showing blade and handle (no text or symbols)

Line drawing of a person using a lawn mower (no text or symbols present)

RASATURA

Diagram of a car interior showing a handle and seat with arrows indicating direction (no text or symbols)

Top-down schematic of a car with visible suspension components and a labeled dimension [1] (no text or symbols beyond the label)

[3][2]

SVUOTAMENTO DEL SACCO DI RACCOLTA

Line drawing of a lawn mower with labeled parts [1] (no text or symbols on the diagram itself)

Line drawing of a hand holding a wooden strip with a tool, no text or symbols present

ATTENZIONE:

Line drawing of a mechanical component with a circular inset showing internal structure (no text or symbols)

Technical line drawing showing internal components of a vehicle's dashboard and intake manifold (no text or symbols)

PULIZIA E SOSTITUZIONE DEL SACCO DI RACCOLTA

PULIZIA DEL SACCO DI RACCOLTA

ATTENZIONE:

Line drawing of a person using a handheld device to lift a bag (no text or symbols)

! AVVERTENZA

PULIZIA

Line drawing of a motorcycle with a cross symbol indicating explosion or explosion (no text or labels)

ATTENZIONE:

Line drawing of two Honda lawn mower machines, shown from top and side views (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

BENAMING VAN DE ONDERDELEN

ONDERDEEL FUNCTIE

MONTEREN VAN DE GRASVANGER

NB:

Three identical schematic diagrams showing electronic components or connectors without any text or symbols

1 Led aan

0% < laadniveau ≤ 30%

2 Led aan

30% < laadniveau ≤ 60%

3 Led aan

60% < laadniveau ≤ 100%

Led 1 knippert

Laadniveau 0% = accu leeg

Led 3 knippert

Line drawing of a lawn mower with labeled parts [1] (no text or symbols on the diagram itself)

NORMAAL VERBOGEN

OVERMATIG VERSLETEN GEBARSTEN

Line drawing of a person using a lawn mower (no text or symbols present)

MAAIEN

MAAI-INSTRUCTIES

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Top-down schematic of a car with visible wheels and suspension components (no text or symbols)

LEGEN VAN DE GRASVANGER

Line drawing of a lawn mower with labeled parts [1] (no text or symbols on the diagram itself)

MONTEREN VAN HET MAAIMES

Line drawing of a hand holding a wooden strip with a tool, no text or symbols present

VOORZICHTIG:

Line drawing of a mechanical component with a circular inset showing internal structure (no text or symbols)

Motorkoelribben

Technical line drawing of a car interior showing internal components and structural details (no text or symbols)

REINIGEN EN VERVANGEN VAN DE GRASVANGER REINIGEN VAN DE GRASVANGERZAK

VOORZICHTIG:

Line drawing of a person using a bag to lift a rope (no text or symbols)

WAARSCHUWING

REINIGEN

Line drawing of a motor with a cross mark indicating explosion or damage, no text or symbols present

ONDERHOUDSSCHEMA

VOORZICHTIG:

Line drawing of two Honda lawn mower machines, shown from top and side views (no text or symbols)

Avsedd för Australien (PEUA, SEUA)

Technical line drawings of two mechanical components with labeled parts [31] and [32], no readable text or symbols beyond labels.

IDENTIFIERING AV UTRUSTNINGEN

REGLAGE FUNKTIONER

[17] Handtag
[18] Spak för justering av klipphöjden .
[19] Drivkopplingsspak (endast HRG466XB)
[20] Knivkopplingsspak
[21] Gul knapp
[22] Gräsuppsamlare
[23] Utkastarkåpa.
[24] Klippväljare (endast HRG466XB)

[25] Bakhjul

MONTERA GRÄSUPPSAMLAREN

Line drawing of a lawn mower with labeled parts [1] (no text or symbols on the diagram itself)

KRAFTIGT SLITEN SPRUCKET

JUSTERING AV KLIPPHÖJD

Line drawing of a person using a lawn mower (no text or symbols present)

KLIPPNING

STOPPA KNIVARNAS ROTATION

KLIPPNING

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Top-down schematic of a vehicle showing front wheel, rear wheel, and side-mounted sensors (no text or symbols)
    subgraph["3"][2]
        B1["Start"] --> B2["Path 1"]
        B2 --> C2["Path 2"]
    end

TÖMMA

GRÄSUPPSAMLAREN

MONTERA OCH TA BORT KNIVARNA

TA BORT KNIVARNA

Line drawing of a lawn mower with labeled parts [1] (no text or symbols on the diagram itself)

MONTERA KNIVARNA

Line drawing of a hand holding a wooden strip with a tool, no text or symbols present

OBSERVERA:

Line drawing of a mechanical component with a circular inset showing internal structure (no text or symbols)

Motorns kylflänsar

Technical line drawing showing two views of a car interior with internal components (no text or symbols)

RENGÖRING OCH BYTE AV GRÄSUPPSAMLAREN RENGÖRING AV GRÄSUPPSAMLAREN

OBSERVERA:

Line drawing of a person using a bag to clean or wash (no text or symbols)

! WARNING

BYTA GRÄSUPPSAMLARENS TYG

RENGÖRING

Line drawing of a toy car with a cross mark and exhaust pipe, no text or symbols present

UNDERHÅLLSSCHEMA

Major Honda distributor addresses

Harju County Estonia

Tel.: [phone]

Fax: [phone]

[e-mail]

BELARUS

JV "Scanlink" Ltd.

Montazhnikov lane 4th, 5-16

Minsk 220019

Republic of Bela

Tel: [phone]

Fax: [phone]

[e-mail]

BELGIUM

Honda Motor Europe Ltd

Doornveld 180-184

1731 Zellik

Tel.: [phone]

Fax: [phone]

http://www.honda.be

[e-mail]

BULGARIA

Premium Motor Ltd

Andrey Lyapchev Blvd no 34

1797 Sofia

Bulgaria

Tel.: [phone]

Fax: [phone]

http://www.hondamotor.bg

[e-mail]

CROATIA

AS Domžale Moto center d.o.o.

Brezence

Sl-8216 Mirna Peč

Tel.: [phone]

http://www.honda-as.com

[e-mail]

CYPRUS

Powerline Products Ltd

Cyprus - Nicosia

Vasilias 18 2232 Latsia

Tel.: [phone]

[e-mail]

http://www.powerlinecy.com

CZECH REPUBLIC

BG Technik cs, a.s.

U Zavodiste 251/8

15900 Prague 5 - Velka

Chuchle

Tel.: [phone]

Fax: [phone]

http://www.honda-stroje.cz

DENMARK

TIMA A/S

Ryttermarken 10

DK-3520 Farum

10442 Athens, Greece

Tel: [phone]

Fax: [phone]

[e-mail]

HUNGARY

MP Motor Co., Ltd.

Kamaraerdei ut 3.

2040 Budaors

Tel.: [phone]

Fax: [phone]

http://www.hondakisgepek.hu

[e-mail]

IRELAND

Two Wheels Ltd

M50 Business Park, Ballymount

Dublin 12

Tel.: [phone]

Fax: [phone]

http://www.hondaireland.ie

[e-mail]

ISRAEL

Mayer's Cars and Trucks Co.Ltd. -

Honda Division

Shevach 5, Tel Aviv, 6777936

Israel

[phone]

[e-mail]

ITALY

Honda Motore Europe Ltd

The Associated Motors

Company Ltd.

New Street in San Gwakkin Road

Mrlehel Bypass, Mrlehel QRM17

Tel.: [phone]

Fax: [phone]

[e-mail]

NORWAY

Berema AS

P.O. Box 454 1401 Ski

Aries Power Equipment

Puławska 467

02-844 Warszawa

Tel.: [phone]

Fax: [phone]

http://www.ariespower.pl

http://www.grow.com.pt

[e-mail]

ROMANIA

Agrisorg SRL

Sacadat Str Principala

Nr 444/A Jud. Bihor

Romania

Tel.: [phone]

[e-mail]

SERBIA &

MONTENEGRO

AS Domžale Moto center d.o.o.

Brezence

SI-8216 Mirna Peč

Tel.: [phone]

http://www.honda-as.com

[e-mail]

SLOVAK REPUBLIC

Honda Motor Europe Ltd

SPAIN & all Provinces

Greens Power Products, S.L.

Polligono Industrial Congost –

UK Declaration of Conformity

The undersigned, *2, representing the manufacturer, herewith declares that the machinery described below fulfils all the relevant provisions of:

Outdoors Regulations 2001 SI 2001 No. 1701

Electrical and Electronic Equipment Regulations 2012 SI 2012 No. 3032

Description of the machinery

Model	Type	Serial number
*1	*1

Manufacturer:

Authorized representative and able to compile the technical documentation

Cain Road, Bracknell, Berkshire,

RG12 1HL, United Kingdom

References to applied standards

The Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001 - SI 2001 No. 1701

	Measured sound power (dB(A)):	Guaranteed sound power (dB(A)):	Noise parameter (cm/min-1):	Conformity assessment procedure:
*1	*1	*1	*1	*2

Done at:

ORMES – FRANCE

Date:

*2

*2

President

Honda France Manufacturing S.A.S.

*2:

*2:

*2:

*2:

"EC Declaration of Conformity" CONTENT OUTLINE "Déclaration CE de Conformité" DESCRIPTION DE TABLE DES MATIERES "EG-Konformitätserklärung" INHALTSÜBERSICHT DESCRIPCIÓN GENERAL DEL CONTENIDO DE LA "Declaración de Conformidad CE" DESCRIZIONE DEL CONTENUTO DELLA "Dichiarazione CE di Conformità" OVERZICHT INHOUD "EC-conformiteitsverklaring"

EC Declaration of Conformity

1. The undersigned, *2, representing the manufacturer, herewith declares that the machinery described below fulfils all the relevant provisions of:

substances in electrical and electronic equipment

1. Description of the machinery

a) Product: Battery powered lawnmower
b) Function: Cutting of grass

c) Model d) Type e) Serial number
*1	*1

1. Manufacturer and able to compile the technical documentation

1. Reference to applied standards

2. Outdoor Noise Directive

	a) Measured sound power (dB(A)):	b) Guaranteed sound power (dB(A)):	c) Noise parameter (cm/min-1):	d) Conformity assessment procedure:
*1	*1	*1	*1	*2

e) Notified body: *2

1. Done at: ORMES - FRANCE

2. Date: *2

^*2

President

Honda France Manufacturing S.A.S.

Français. (French)Déclaration CE de Conformité1. Le sousigné, “2, représentant du constructeur, déclare que la machine décrit ci-dessous répond à toutes les dispositions applicables de* Directive Machine 2006/42/CE* Directive 2014/30/EU en lien avec la compatibilité électromagnétique* Directive 2000/14/CE – 2005/88/CE des émissions sonores dans l'environnement des matériels destinés à être utilise à l'extérieur des bâtiments* Directive 2011/65/EU - (UE) 2015/863 relative à la limitation de l'utilisation de certaines substances dangereuses à la limitation de l'utilisation de certaines substances dangereuses à la limitation de l'utilisation de certaines substances dangereuses à la limitation de l'utilisation de certaines substances dangereuses à la limitation de l'utilisation de certaines substances dangereuses à la limitation de l'utilisation de certaines substances dangereuses à la limitation de l'utilisation de certaines substances dangereuses à la limitation de l'utilisation de certaines substances dangereuses à la limitation de l'utilisation de certaine électroniques2. Description de électroniques2. Description de électroniques2. Description de électroniques2. Description de électroniques2. Description de électroniques2. Description de électroniques2. Description de électroniques2. Description de électroniques2. Description de électroniques2. Description de électroniques2. Description de électroniques2. Description de électroniques2. Description de électroniques2. Description de électroniques2. Description de étronique d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU et d'ÉU, etc.		Italiano (Italian)Dichiarazione CE di Conformità1. Il sottoscritto, “12 in rappresentanza del costruttore, dichiara qui di seguito che la macchina sotto descritta sodiclla tutte le disposizioni pertinenti delle:* Diretiva machine 2006/42/CE* Diretiva 2014/30/UE sulla compatibilità eletromagnetica* Diretiva sulla emissione acustica delle macchine e attrezzature destinale a funzionare all'aperto 2000/14/CE – 2005/88/CE* Diretiva 2011/65/EU - (UE) 2015/863 sulla restrizione dell'uso di determinate sostenze pericolose nelle apparecchiature elettriche ed elettroniche2. Descrizione della macchinaa) Prodotto: Rasaerta a batteriab) Funzione : Taglio di erbac) Modello d) Tipo e) Numero di serie3. Costruttore e competente per la compilazione della documentazione tecnica4. Riferimento alle norme applicale5. Diretiva sulla emissione acustica delle macchine e attrezzature destinato a funzionare all'apertoa) Livello di potenza sonora misurab) Livello di potenza sonora garantiloc) Parametri emissione acustiad) Procedura di valutazione della conformitàe) Organismo notificato6. Fatto a7. Data	Deutsch (German)EG-Konformitätserklärung1. Der Unterzeichner, “2 der den Hersteller vertritt, erklärt hiermit dass das hierunter genannte Macchine allen einschägigen Bestimmungen der * entspricht.* Maschinenrichtlinie 2006/42/EG* Richtlinie 2014/30/EU über die elektromagnetische Verträglichkeit* Gerauschrichtlinie im Freien 2000/14/EG – 2005/88/EG* Richtlinie 2011/65/EU - (EU) 2015/863 zur Beschränkung der Verwendung bestimmter gefährlicher Stoffe in Elektro- und Elektronikgräten2. Beschreibung der Maschinaa) Produkt: Akku Rasenmäherb) Funktion : Gras schneidenc) Modell c) Typ e) Seriennummer3. Hersteller und in der Position, die technische Dokumentation zu erstellen4. Verweis auf aufwendbare Standards5. Gerauschrichtlinie im Freiena gemessene Lautstärke6) Schalleistungspegolc) Geräuschvorgabe9) Konformitätsbewertungs Ablaufe) Benannte Stelle6. Ort7. Datum
Nederlands (Dutch)EG-verklaring van overeenstemming1. Ondergetakende, “2, vertegenwoordiger van de constructeur, verklaart hiormae dat het hieronder beschreven machine voldost aan alle toepasselijke bepalingen van:* Richtlijn 2006/42/EG betreffende machines* Richtlijn 2014/30/EU betreffende elektromagnetische overeenstemming* Richtlijn 2000/14/EG – 2005/88/EG betreffende geluidsemissie (openlucht)* Richtlijn 2011/65/EU - (EU) 2015/863 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur2. Beschrijving van de machinea) Product: Accu grasmaierb) Functie : gras maalenc) Model d) Typo e) Seriennummer3. Fabrikant en in staat om de technische documentatie samen to stellen4. Referentie voor toegepasste normen5. Geluidsemisiericiertlijn (openlucht)a) Gemeten geluidsvermögensniveaub) Gewaarborgd geluidsvermögensniveauc) Geluidsparameterd) Conformiteitsbeoordelingsproceduree) Aangemelde instantie6. Plaats7. Datum		Dansk (Danish)EU OVERENSTEMMELSEERKLÆRING1. UNDERTEGNEDE, “2, SOM REPRESENTERER PRODUCENTEN, EERKÆRER HERMED AT MASKINEN, SOMER BESKREVET NEDENFOR, OPFYLDER ALLE RELEVANTE BESTEMMELSER IF∅LGE:* MÁSKINDIREKTIV 2006/42/EF* DIREKTIV 2014/30/EU OM ELEKTROMAGNETISK KOMPATIBILITET* DIREKTIV OM ST∅JEMISSION 2000/14/EF – 2005/88/EF* direktiv 2011/65/EU - (EU) 2015/863 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr2. BESKRIVELSE AF PRODUKTETA) PRODUKT : Batterdrevan pianeklipperB) ANVENDELSE : GR/ESKILIPNINGC) MODEL d) TYPE E) SERIENUMMER3. PRODUCENT OG I STAND TIL AT UDARBEJDE DEN TEKNISKE DOKUMENTATION4. HENVISNING TIL ANVENDTE STANDARDERS. DIRECTIV OM ST∅JEMISSION FRA MASKINER TIL UDEND∅RS BRUGA) MÄLT LYDEFFEKTNIVEAUB) GARANTERET LYDEFFEKTNIVEAUCST∅UPARAMETERPROCEDURE FOR OVERENSTEMMELSESVURDERINGE) BEMYNDIGET ORGAN6. STED7. DATO
Svenska (Swedish)EG-forskrån om överensstämmeise1. Untertecknad, “2, representant für tillverkaren, deklarerar härmed alt maskinen beskriven nedan fullföljer alla relevanta bestämmelser ent:* Direktiv 2006/42/EG gällande maskiner* Direktiv 2014/30/EU på elektramagnetisk kompatibiliet* Direktiv 2000/14/EG – 2005/88/EG gällande buller utomhus* direktiv 2011/65/EU - (EU) 2015/863 om begrænsning av användning av vissa farliga ämmen i elektrisk och elektronisk utrustning2. Maskinbeskrivinga) Produkt: Battendriven gräsklippareb) Funktion: gräsklippingc) Modell d) Typo e) Serionummer3. Tillverkare och aka kunna sammanställa teknisk dokumentationen.4. Referens för tillämpad standard5. Direktiv för buller utomhusa) Uppmät tijudnlväb) Garanterad tijudnlväc) Buller parameterd) Förfarande för bedömninge) Annälda organ6. Ulfärdat vid7. Datum		Español (Spanish)Declaración de Conformidad CE1. El firmante, “2, en representación del fabricante, adjunto declara que la máquina abajo descrita, cumple las cláusulas relevantos de:* Directiva 2006/42/CE de maquinaria* Directiva 2014/30/UE sobre compatibiliad electromagnética* Directiva 2000/14/CE – 2005/88/CE de ruido exterior* Directiva 2011/65/EU - (UE) 2015/863 sobre restricciones a la utilización de determinadas sustancias pelgrosas en aparatos eléctricos y eléctricos2. Descripción de la máquinaa) Producto: Cortacésped de bateriaib) Fundón : Cortar el csíspodc) Modelo d) Typo e) Número do serie3. Fabricante que puede compilar el expediente técnico4. Referencia a normas aplicadas5. Directiva sobre ruido exteriora) Potencia sonora Medidab) Potencia sonora Garantizada) Parámetros ruido6. Procedimiento evaluación conformidadeOrganismo notificado7. Facha	CE -Declarate de Conformiate1. Subsemmatul “2, representand producatorul, declar prin prezenita faptul ca echipamentul descris mai jos indeplinesto toate conditile nécesare din:* Directiva 2006/42/CE privind echipamentul* Directiva 2000/14/CE – 2005/88/CE privind poluarea fonica in spatiu deschiselectronice2. Dascrivona echipamentuluib) Domeniu de utilizare : funclerea ierbiiC) Model d) Tip e) Serie produs5. Directiva privind poluarea fonica in spatiu inchisa) Puterea acustica masuratab) Putere acustica maxim garantatac) Indice poluare fonicac) Procedura de evaluare a conformitatii) Notificari6. Emisa la7. Data
Português (Portuguese )Declaração CE de Conformidade1. O abaixo assimado, “2, representant da fabricante, declara que a máquina abako descrita cumpre todas as estipulações relevantes da:* Direcrtiva 2006/42/CE de máquina* Direcrtiva 2014/30/UE relativa à compatibiliadete electromagnética* Direcrtiva 2000/14/CE – 2005/88/CE da ruido exterior* Direcrtiva 2011/65/EU – (UE) 2015/863 relativa à restrição do uso de determinadas substâncias perigosas em equipamentos eléctricos e eléctronicos2. Descrição da máquinaa) Produito: Corta-relva a bateriaib) Função : oorte de relvaC) Modelo d) Typo e) Número de série3. Fabricante com capacidade para compilar documentação técnica4. Referência às normas aplicadas5. Directiva de ruido exteriora) Potência sonora medidab) Potência sonora garantidac) Parametro da ruido6. Procedimento de avaliação da conformidadee) Organismo notificado6. Felo em7. Data		Polski (Polish)* Dyrektywy maszynowej 2006/42/WEDyrektywy 2011/65/UE - (UE) 2015/863 w sprawie ograniczenia elektrycznym i elektronicznyma) Produkt: Kosiarka akumulatorowac) Model d) Typo e) Numer serjinytechnicznej4. Odniesienie do zastosowanych norma) Zmierzony poziom mocy akustycznejb) Gwarantowany poziom mocy akustyczneje) Jednostka notyfikowana6. Miejsce7. Data	Suomi / Suomen kieli (Finnish)EY-VAATIMUSTENMUKAI/SUUSVAKUUTUS1. Allekirjüttanut valmistajen edustaja “2 vakuuttaa táten, että alla manittu kone/tuote tiytáš kaikki seuravia määrälyksiä:* Kone directivi 2006/42/EY* Direktiv: 2014/30/EU sähkömagneettinen yhtensopluvus* Direktiv: 2000/14/EY – 2005/88/EY ympäristön melu* direktivi 2011/65/EU – (EU) 2015/863 lettyjen vaarallisten aineiden käytön rajotlamisesla sjähkö-ja elektronikkalaitleissa2. TUOTTEEN KUVAUSA) Tuoto: Akkukäyttöinen ruhonoleikkurib) Toimino: ruhon leikausc) Mall d) TYPPPI e) SARJANUMERO3. Valmistaja ja teknisten dokumentien laatia4. Vittaus sovelletuhin standardehina5. Yimpäristön mekudirektiviA) Mitattu melutasob) Todennmukainen melutasoc) Meiu parametiniD) Yhönnmukaisauden arvioinnin manetolmäe) Tiedonantoelin6. TEHTY7. PÄIVÄMÄÄRÄ
Magyar ( Hungarian )gyártolt gép megfelel az ősszes, alább felsorolt direktivának:* 2006/42/EK Direktivának berendezésekre* Irányely 2014/30/EU megfelelnek az elektromágneses* 2003/14/EK – 2005/88/EK Direktivának kültári zajszintre* Tanács 2011/65/EU - (EU) 2015/863 egyes veszélyes anyagok elektromos és elektronikus berendezésekoen való alkalmazássnak korlátozásláról2. A gép létrásac) Modell d) Tipus e) Sorozatszám4 Referencia az alkalmazott szabványokhoz5. Kültéril zajszint Direktivac) Zajszint paramétere) Kijelölt szervezet6. Kellezes helye 7. Kellezés ideje		Costina (Czech)b) Funkice : Sekání trávy4. Odkaz na platné standardyb) Garantovaný akustický výkonc) Parametr hlukue) Notifikovaná osoba6. Podepsáro v 7. Datum	6. Vieta 7. Datums
ES vyhlásenie o zhodeuvodený strojové je v zhode s nasledovnými smernicami:* Smermica 2009/42/ES (Strojne zariadenia)* Smermica 2014/30/EU na elektromagnetickú kompatibilitu* Smermica 2000/14/ES – 2005/88/ES (Emsie hlukuj2. Popis strojab) Funkcia : Kosenie trávya) Nameraná hladina akustického výkonuc) Rozmerd) Procedura posudzovania zhodye) Notifikovaná osoba6. Miesto 7. Datum		Eesti (Estonian) EU vastavusdeklaratsioon1. Allakrjuranu, *2. kinnitab tootja volltatud eslindajana, et allipool kirjeldatud masina vastab kölkjdole alljärgnevate direktlivde såtetele:* Masinate direktiv 2006/42/EU* Elektromagnetise ühliduvuse direktiv 2014/30/EL* Válismüra direktiv 2000/14/EU – 2005/88/EU* direktiv 2011/65/EU - (EL) 2015/863 teatavate ohtlike ainete kasulamise pilramise kohia elektri- ja elektroomikaseadmeles2. Seadmele kirjeldusa) Toode: Akutoitel murunildukb) Funktsiooon : muru niltminec) Mudeł d) Túlp e) Seerlanumber3. Tootja, kes on pådev tätma tehnilist dokumentatsiooni4. Viide kohaldatud standarditele5. Válismüra direktivaa) Möödsutud helivõimsuse taseb) Lubatud helivõimsuse tasec) Müra parameelerd) Vastavushindamismenelluse) Teavitatud asutus6. Koht 7. Kuupăev	ES izjava o skladnosti1. Spodaj podpisani, *2. kl predstavljam proizvajalca. izjavljam da spodaj opisana stroj ustroza visem navedenim direktivam:* Direktiva 2006/42/ES o strojh* Direktiva 2000/14/ES – 2005/88/ES o hrupnosti* Direktiva 2011/65/EU - (EU) 2015/863 o omejevanju uporabe2. Opis najpravaa) Proizvod: Baterijska koslinica4. Skilc na uporabljene standarde5. Direktiva o hrupnostic) Parameterd) Postopeke) Postopek opravil6. Kraj 7. Datum
EB altikties deklaracijac) Modellis d) Tipas e) Sarijos numerisb) Garantuojamas garso galingumo lygisd) Tipas6. Vieta 7. Data			Norsk (Norwegian)EF- Samsvarserklæring1. Underlegnede, *2 representerer produsentlen og herved erkkerer at maskinen beskrevet nodenfor innfir relevant informasjon fra følgonde forskrifter.* Maskindirektivet 2006/42/EF* Direktiv 2014/30/EU om Elektromagnetisk kapabilitet* Direktiv om stay utendars 2000/14/EF – 2005/88/EF* Direktiv 2011/65/EU - (EU) 2015/863 om restriksjoner av bruk av visse farlige matrialer i elektrisk og elektronisk utstyr.2. Beskrivelse av produkta) Produkt: Batteridrevet gressklipperb) Funksson : Klippe grassc) Modell d) Typo e) Seriorummer3. Produsenti og i stand til å utarbeide den tekniske dokumentasjonen4. Henvisning til brukte standarder5. Utendars direktiv får støya) Målt stayb) Meiks støyc) Konstant støyd) Verdi vurderings prosedyree) Gjeridene kjaretayikropstrømme/skrog6. Sted 7. Dato
Türk (Turkish)etmektedir:* Elektromanyetik uyumlulukla ilgili 2014/30/AB no’lu yönnetmelik4. Uygulanan standartlara istinadena) Ökülén ses gücüb) Garanti editlon ses gücüc) Gürlütü parametrosi		Islenska(Icelandic)EB-Samnemisyfiiryising1. Undímtiður, Mr *2, fyrir hönd framleitândans, lýsir hér með yír pví ad velim sem lýst er hér ad neban samzremist ollum gildandi akvedčum tliskpunar:*LeIöbelningar fyrir vélbúnað 2006/42/EB*TILSKIPUN 2014/30/EU VARDANDI SAM/H/EFNI RAFSEGULSV/BS*LeIöbelningar um havábamengun 2000/14/EB – 2005/88/EB* Tilskipun 2011/65/EU - (EU) 2015/863 varandi leibtbeiningar um notkun á haftulogum ofnum í raf og raftuinda búnači2. Lysing á vélbúnaðia) Őkutelek. Rafdinlín slátuvélb) Virkni: Gras slegðc) Gerő d) Tegund e) Serlai numer3. Framleidón og fær um ad taxa saman těkniskjölin4. Tívilsun til viðeigandi stáola5. Leiðbeiningar um havábamenguna) Meidur hávača styrkurb) Stáofestur hávača styrkurc) Hávača borytliokiíd) Stáofesting á gadsaatóllume) Merkingar6. Gerí hjá 7. Dagsetning	Hrvatski(Croatian)EK Izjava o sukladnosti* Propisa za strojeve 2006/42/EK* Propisa 2014/30/EU na elektromagnetsku kompatibilnost* Propisa o bucl na otvorenome 2000/14/EK – 2005/88/EK opasnih supstanci u elektricoj i elektronskoj opremi.2. Opis strojevaa) Proizvod: Akumulatorska kosillica za travub) Funkconalnost; rezanje travec) Model d) Tip e) Serljeski broj4. Referencija na primijenjene standarde5. Propis o bucl na otvorenhomec) Parameter buked) Postupak za ocjenu sukladnost6. U 7. Datum

HONDA
