USER MANUAL KS 45053 Güde

EU Declaration of Conformity

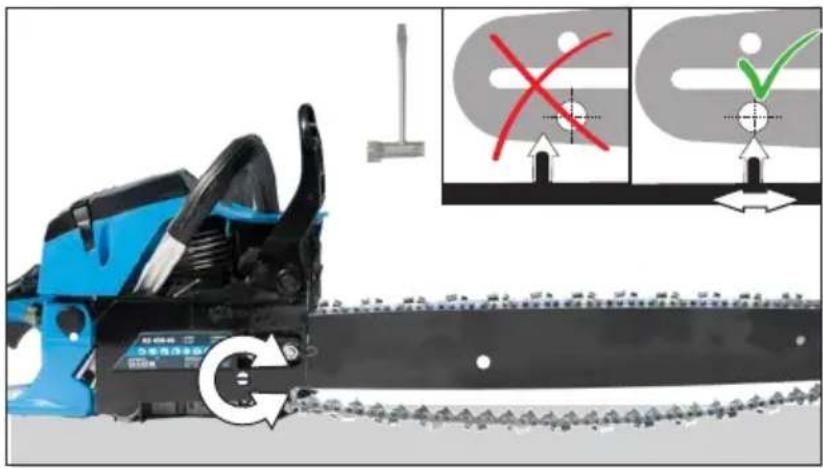

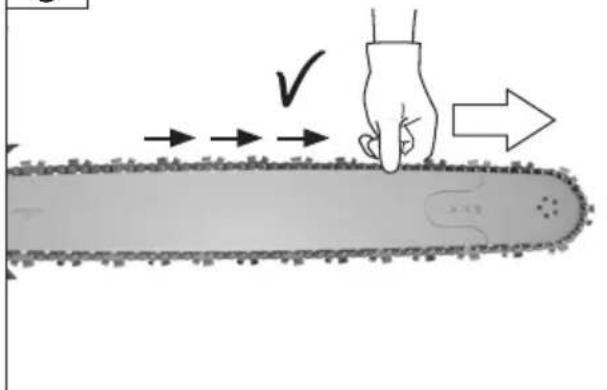

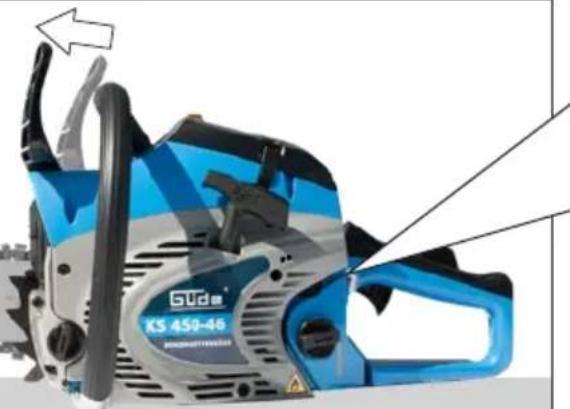

ASSEMBLY OF CHAIN BAR AND CHAIN

ASSEMBLY OF CHAIN BAR AND CHAIN

ASSEMBLY OF CHAIN BAR AND CHAIN

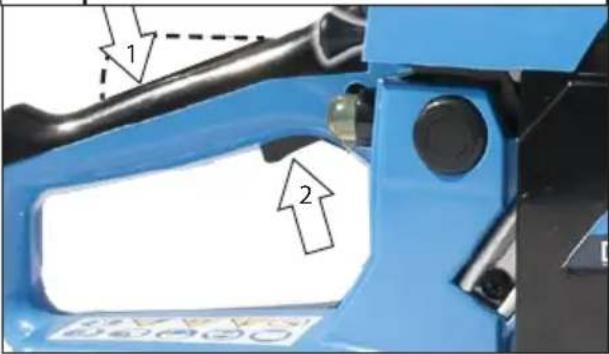

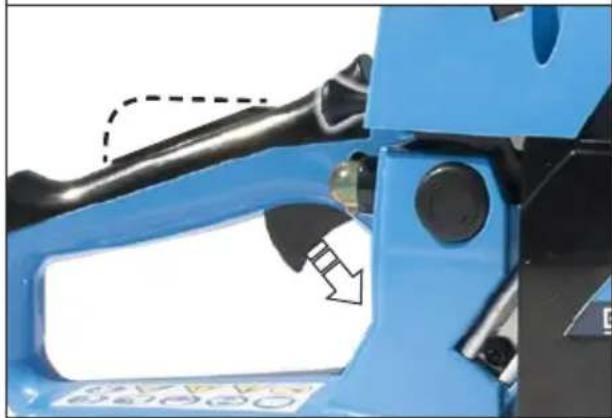

Pull rmly the starting rope approx. 3-5 times till the rst noise of running is evident.

Chain runs out briey after switching o!

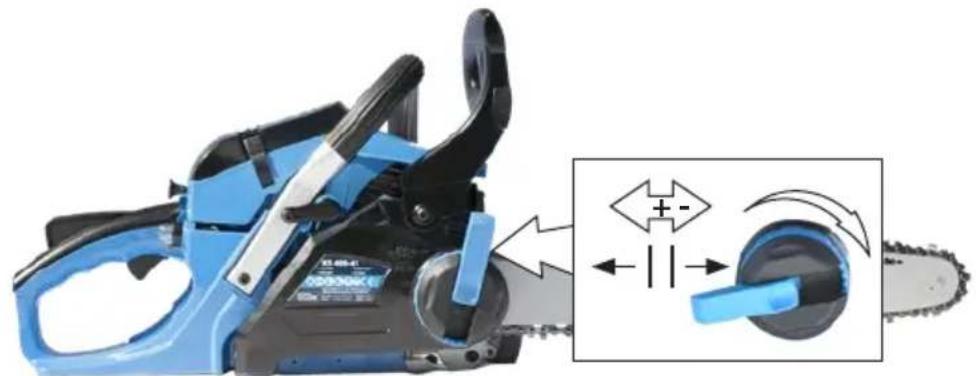

CHAIN LUBRICATION ADJUSTMENT

CLEAN OR REPLACE THE AIR FILTER

99 dB (A) 99 dB (A) 99 dB (A) Measured sound power level L

At work place, Measured according to ISO 22868, Uncertainty K=3 dB (A),

Measured according to 2000/14/EC, 2005/88/EC

Measured according to EN ISO 22867, Uncertainty K=1,5 m/s

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and

may increase above the level given in this information sheet. The vibration emission level may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. An accurate estimate of the vibratory load shouldalso take into account the times when the tool isshut down or when it is running but not actually inuse. This may signicantly reduce the vibratoryload over the total working period. Identify additional safety measures to protect theoperator from the eects of vibration such as:maintain the tool and the accessories, keep thehands warm, organisation of work patterns.32

Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. The operator is responsible for accidents or risks to third parties. Persons over 18 years of age can only workon the appliance.An exception includes youngsters trained in order to reachknowledge under supervision of the trainer duringoccupational education. In case of any doubts about connection and operation refer please to our customer center You should get used to your new chain saw by making simple cuts on securely supported wood. Do this whenever you have not operated the saw for some time. Some regions have regulations that restrict the use of the machine. Check with your local authority for advice. Never allow children or people unfamiliar with the instructions to use the machine. Local regulations may restrict the age of the operator. WARNING! When using the chain saw, the safety rules must be followed. For your own safety and that of bystanders, you must read and fully understand these instructions before operating the chain saw. You should attend a professionally organized safety course in the use, preventative actions, rst-aid, and maintenance of chain saws. Please keep these instruc

tions safe for later use WARNING! D o not use the appliance if you are tired, ill, under inuence of drugs, alcohol drinks or medi- caments. Device description

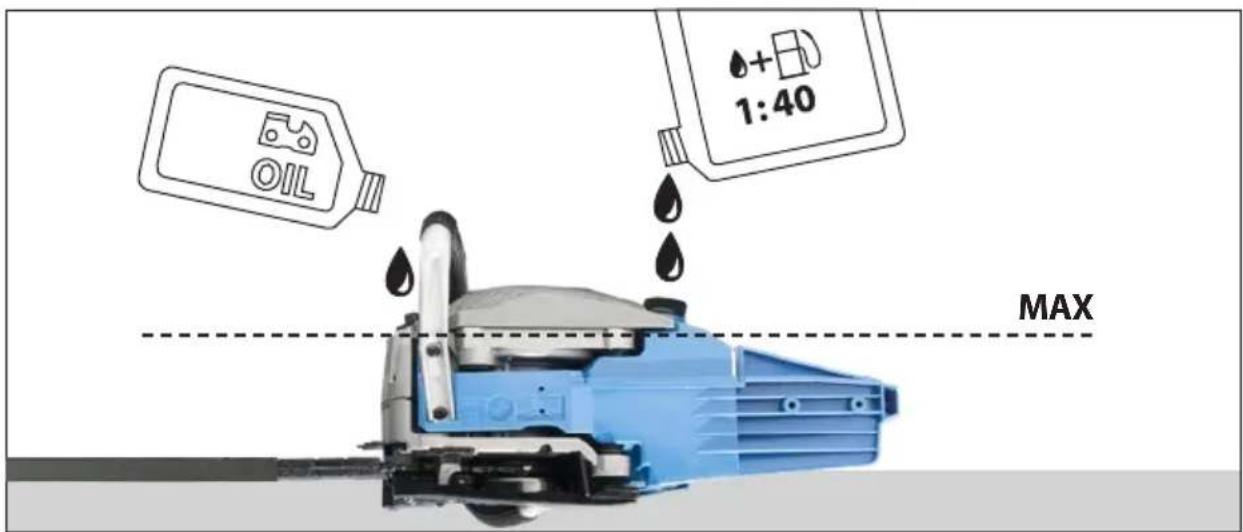

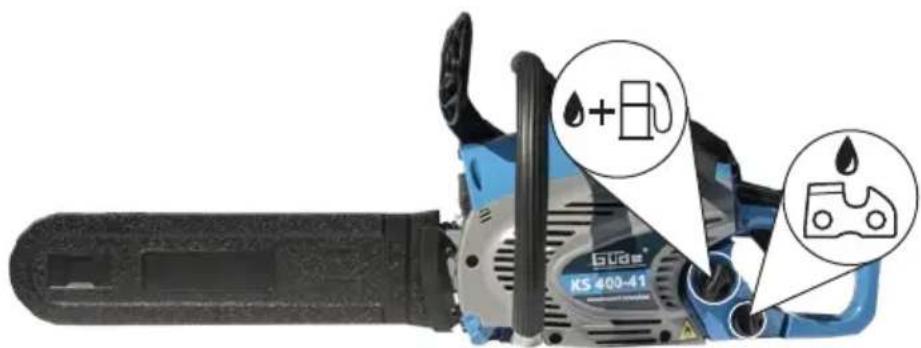

Chain oil top-up funnel

Saw bar Specied Conditions Of Use The chainsaw may only be used for cutting wood – across the bres, with regard to the technical speci- cations and safety instructions. Do not use the chain saw for any purpose not listed in the speci ed conditions of use. It is not to be used for professional tree services. The chain saw is not to be used by children or by persons not wearing adequate personal protective equipment and clothing. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. Use the appliance only outside, never use it in conned and bad ventilated areas. Residual risks Damage to health arising from vibrations to hand and arms if the device is used for a long time or if the device is not guided and evaluated properly. Vibration damping systems are no guaranteed protection against white nger disease or carpal tunnel syndrome. Therefore, it is necessary to care- fully check the state of your ngers and wrist if you hav e regularly used the appliance for a long time. If any symptom of the diseases above appears, seek medical advice immediately. To reduce the white nger disease risk, keep your hands warm and take regular breaks during your work. Hearing damage A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors! Risk of poisoning!! Exhaust gases, fuel and lubricants are toxic.Inhaling exhaust gases may be fatal! Do not operate the unit in closed spaces where dan

gerours carbon monoxide gases may accumulate.

Risk of re!! Never operate the unit near highly ammable materials. Fuel is highly ammable. Keep the fuel in suitable containers only. The appliance may only be refuelled outdoors and not near open re or burning cigarettes. Refuel the engine only when switched o. Refuel before starting the appliance. If the engine is run

ning or still hot, it must not be refuelled or the tank

ver opened. After use, let the unit cool down for at least 10 minutes before refuelling. Make sure the fuel does not overow. If the fuel overows, the engine must not be started. Remove any dirt from the appliance and prevent any att

empt at ignition until fuel fumes have evaporated. Replac e all fuel tank and container caps securely. Fuel tank to be emptied outdoors only. Fuel must not come into contact with clothing. If your clothing has come into contact with fuel, change the clothing immediately. Risk of explosion! Petrol and petrol vapours are highly ammable, explosive. Do not work with the unit in an environment with a risk of explosion where there are ammable liquids, gases or dust. Refuel the engine only when switched o. Do not store any fuel near the unit. Never keep the unit with petrol in the tank inside a building where petrol vapours could get in contact with open re or sparks. Danger of injury ! Contact with the saw chain can cause casualties. Never touch moving chain by hands. Danger of kickback ! Kickback can lead to casualties. Danger of burns ! Chain and guiding groove warm up in operation. Emergency procedure Conduct a rst-aid procedure adequate to the injury and summon qualied medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help,state the following pieces ofinformation

1. Accident site, 2. Accident type, 3. Number of injured

persons, 4. Injury type(s) Symbols WARNING / Caution! Read the operating instructions to reduce the risk of injury. Wear eye protective goggles ! Wear ear protectors! Wear protective helmet ! Wear gloves! Wear safety cut through resistant shoes with safety sole and steel toe ! Wear protective clothing with cut through resistant ply ! Warning against dangerous kickback Keep distance of persons! Observe to keep out of dangerous zone Risk of re!: Prohibited smoking and open re using. Switch o the engine before any work on it. Warning against dangerous voltage Warning about inammable substances CE marking

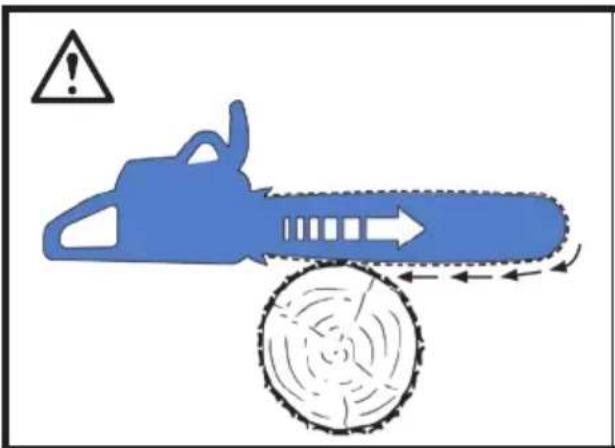

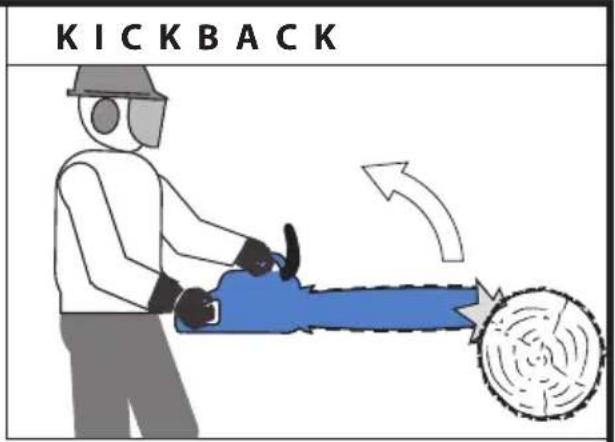

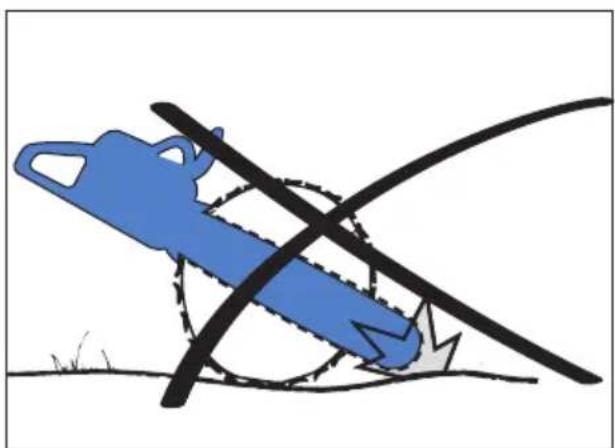

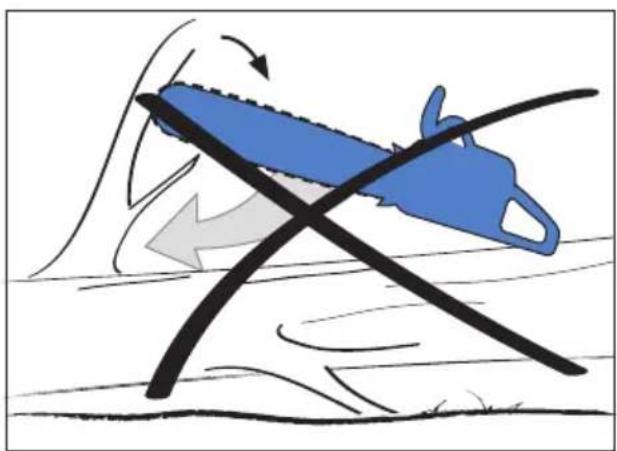

are in conict with the designation may lead to dangerous situations. Backlash causes and prevention: Backlash may take place when the saw bar point touches an item or when the wood bends and the saw chain gets stuck in the cutting. In many cases, a contact with the bar point may lead to a situation when the operator unexpectedly bends backward and the bar is ejected upward toward the operator as a result. Sticking of the saw chain on the upper edge of the bar may throw the bar intensely o toward the operator. Each such reaction may lead to losing control over the saw and you may get seriously injured. Do not fully rely on the safety equipment tted in the chain- saw. As the chainsaw user, you should take various measures t o be able to work without any accident and injury. Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avo- ided by taking proper precautions as given below.

Hold the saw rmly with both hands; clamp the chainsaw handle with thumbs and ngers. Position your body and arms so that you could absorb the back impact. If appropriate measures are taken, the operator is able to control the back impact force. Never drop the chainsaw.

• Avoid abnormal body posture and do not cut above the shoulder level. This will prevent a contact with the bar point and the chainsaw will be controlled better in unexpected situations.

• Spare bars and saw chains specied by the manufacturer to be used at all times. Wrong spare bars and saw chains may lead to chain overloading and/or backlash.

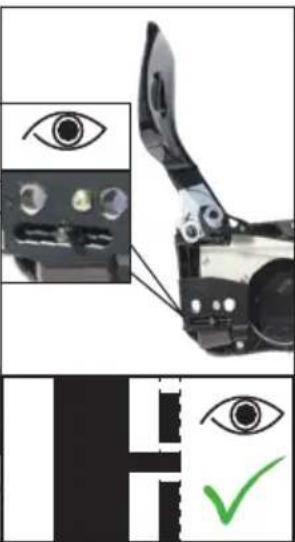

• Follow the manufacturer instructions for chain- saw sharpening and maintenance. Too low depth limiters incr ease the tendency to back impact. Observe national regulations and instructions for chain saws operation. Take care to prevent from fuel and oil leakage during transport. The dust that arises when working with this tool can be detrimental to health and therefore not reach the body. Wear a suitable dust protection mask. Check the tension frequently. The length of the chain depends on the temperature. The length of the chain depends on the temperature. Checking the chain brake Engage the chain brake by rotating your left hand around the front handle. Allow the back of your hand to push the chain brake lever/hand guard toward the bar while the chain is rotating rapidly. Be sure to maintain both hands on the saw handles at all times. WARNING! If the chain brake does not stop the chain immediately, or if the chain brake will not stay in the run position without assistance, bring the chain Safety instructions

WARNING Read all safety warnings and all instructions. Failu- re to follow the warningsand instructions may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference.

• Keep all parts of your body in safe distance from the saw when running. Before starting the saw, make sure the saw chain does not touch anything. A moment of inattention when working with the chainsaw is able to cause the saw chain to catch your clothes or parts of your body.

• Use your right hand to hold the chainsaw by its rear handle and your left hand to hold it by its front handle. Holding the chainsaw the opposite way increases the risk of injury and you must not do that.

• Wear protective glasses and ear protectors. Further, wearing head, hand and leg protection equipment is recommended. Suitable protective clothing minimises the risk of injury by thrown- away wood chips and possible contact with the saw chain.

• Do not work on trees with the chainsaw.There is a risk of injury when working on a tree.

• Provide safe posture at all times and use the chainsaw only when standing on a solid, safe and level surface. A slippery or unstable surface, such as ladder, may lead to loss of balance or loss of control over the chainsaw.

• When cutting a tense branch, be sure to know that the branch will bounce back. If tension in the wood bres gets released, the tense branch may hit the operator and/or cause a loss of control over the chainsaw.

• Be especially careful when cutting scrubs and saplings. Thin material may get caught in the chainsaw and hit you or you may lose your balance.

• Carry the chainsaw by the front handle in a switched-o condition and the saw chain must be deected from your body. Fit a protection cover on the chainsaw whenever it is transported or stored. Careful chainsaw treatment reduces the likelihood of an accidental contact with the running saw chain.

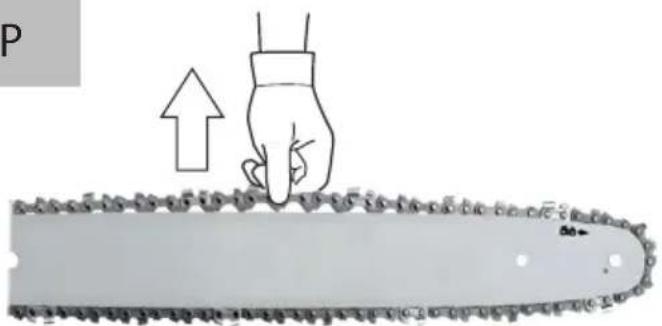

• Follow the lubrication, chain tension and accessory equipment replacement instructions. A chain that is not tightened or lubricated in a professional manner may crack or increase the risk of backlash.

• Keep the handles dry, clean and with no oil and fat. Handles dirty with fat or oil are slippery and lead to loss of control.

• Wood to be cut only. Do not use the chainsaw for works for which it has not been designed – example: do not use the chainsaw to cut plastic material, masonry or building materials not made of wood. Using the chainsaw for works that35 ENGLISH

saw to an service station for repair prior to use. Check all screw and plug-in connections and protective equipment if rm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation. It is strictly prohibited to disassemble, modify and purposely remove the protective equipment on the unit and t other protective equipment instead. The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts. Provide adequate lighting or good lighting conditions when working with the machine. Be careful when going backwards – risk of tripping! Do not run! Immediately remove cut bran- ches/knots from the work area to prevent injuries.

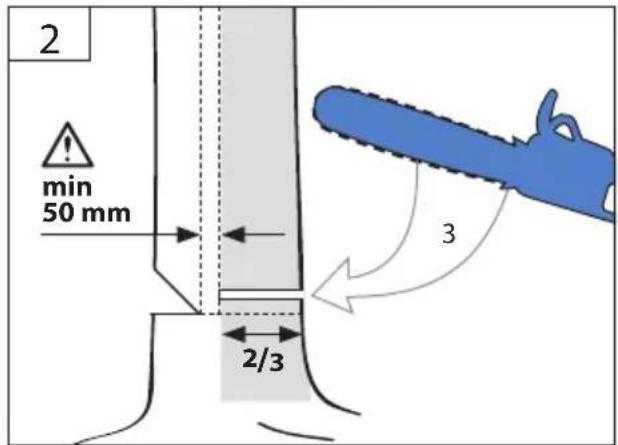

tch out for falling branches! The ON/OFF switch and safety switch must not be locked. Work instructions Felling a tree Whenbucking and felling operations are beingper- formed by two or more persons atthe same time, thefelling oper ations should be separated from the buckingoperation by a distance of at least twice the height of thetree beingfelled.Treesshould not be felled in a manner that wouldendanger any person, strike anyutility line, or cause anyproperty damage.If thetree does make contact with any utility line, thecompany should be notiedimmediate- ly.Thechain saw operator should keep on the uphill side ofthe terrain as the treeis likely to roll or slide downhillafter it is felled. An escape path should be planned and cleared as necessary before cuts are started. The escape path should extend back and diagonally to the rear of the expected line of fall. Before felling starts, consider the natural lean of the tree, the location of larger branches, and the wind direction to judge which way the tree will fall. Remove dirt, stones, loose bark, nails, staples, and wire from the tree. Do not attempt to fell trees which are rotten or have been damaged by wind, re, lightning, etc. This is extremely dangerous and should only be completed by professional tree surgeons.

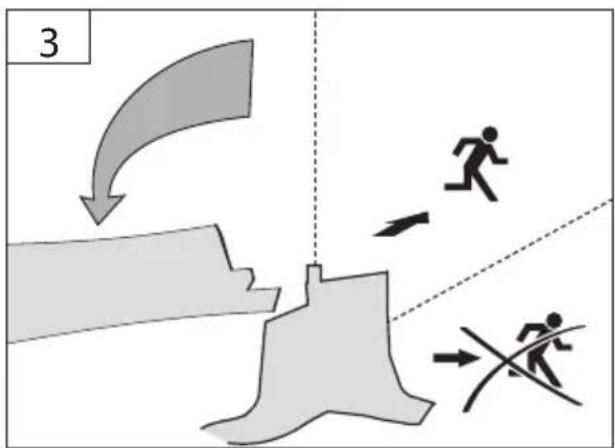

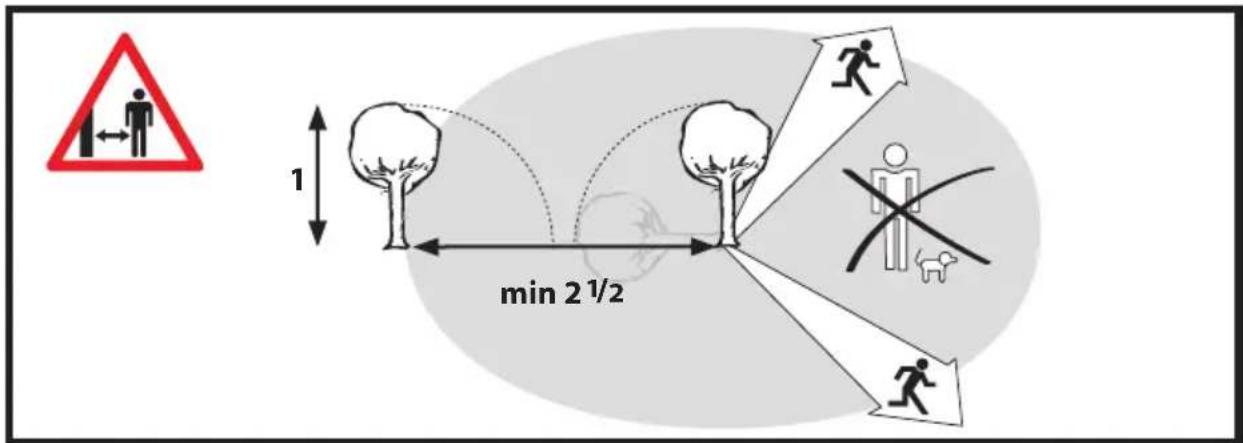

1. An escape path should be planned and cleared

as necessary before cuts are started. The escape path should extend back and diagonally to the rear of the expected line of fall. Before felling starts, consider the natural lean of the tree, the location of larger branches, and the wind direction to judge which way the tree will fall.

2. Remove dirt, stones, loose bark, nails, staples,

and wire from the tree. Do not attempt to fell trees which are rotten or have been damaged by wind, re, lightning, etc. This is extremely dangerous and should only be completed by professional tree surgeons. When the tree begins to fall remove the chain saw from the cut, stop the motor, put the chain saw down, anf use the retreat path planned. Be alert for falling overhead limbs and watch your footing. Removing buttress roots A buttress root is a large root extending from the trunk of the tree above the ground. Remove large buttress roots prior to felling. Make the horizontal cut into the buttress rst, followed by the vertical cut. Remove the resulting loose section from the work area. Follow the correct tree felling procedure after you have removed the large buttress roots. Bucking a log Bucking is cutting a log into lengths. It is important to make sure your footing is rm and your weight is evenly distributed on both feet. When possible, the log should be raised and supported by the use of limbs, logs or chocks. Follow the simple directions for easy cutting. When the log is supported along its entire length, it is cut from the top (overbuck). When the log is supported on one end, cut 1/3 the diameter from the underside (underbuck). Then make the nis

hed cut by overbucking to meet the rst cut. When the log is suppor ted on both ends, cut 1/3 the diameter from the top (overbuck). Then make the nished cut by underbucking the lower 2/3 to meet the rst cut. When bucking on a slope always stand on the uphill side of the log. To maintain control when “cutting through”, release the cutting pressure near the end of the cut without relaxing your grip on the chain saw handles. Don’t let the chain contact the ground. After completing the cut, wait for the saw chain to stop before you move the chain saw. Always stop the motor before moving from tree to tree. After completing the cut, wait for the saw chain to stop before you move the chain saw. Always stop the motor before moving from tree to tree. Limbing a tree Limbing is removing the branches from a fallen tree. When limbing, leave larger lower limbs to support the log o the ground. Remove the small limbs in one cut. Branches under tension should be cut from the bottom up to avoid bindingthe chain saw. Cutting springpoles A springpole is any log, branch, rooted stump, or sapling which is bent under tension by other wood so that it springs back if the wood holding it is cut or removed. On a fallen tree, a rooted stump has a high potential of springing back to the upright position during the bucking cut to separate the log from the stump. Watch out for springpoles—they are dan

gerous. Springpoles are dangerous and could strike the opera tor, causing the operator to lose control of36 the chain saw. This could result in severe or fatal injury to the operator. This should be done by trained users. Krallenanschlag

The integral bumper spike may be used as a pivot when making a cut. It helps to keep the body of the chain saw steady while cutting. When cutting, push the machine forward until the spikes dig into the edge of the wood, then by moving the rear handle up or down in the direction of the cutting line it can help ease the physical strain of cutting. Maintenance Switch the engine o and remove the socket plug before any work on the engine. Wait until the unit has cooled down. Repairs and works specied in these Instructions may only be performed by qualied authorised sta. Use only original accessories and original spare parts. Biodegradable oil for chains to be used only. Keep the device, in particular the air vents, clean at all times. Never spray water on the device body! Never clean the machine and its components with solvents, ammable or toxic liquids. Us only a damp cloth making. Apply environment-friendly oil to all moving parts. After each use, clean the saw and sword chain careful

ly. Wipe it with a cloth moistened in oil or apply metal trea tment spray on it. Blunt, bent or damaged chains and swords must be replaced. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insucient mainte

nance and care can lead to unforeseen accidents and injuries

If necessary, a list of spare parts can be found at www. guede.com. Machine to be stored in a dry place. Guarantee Warranty period of 12 months applies to commercial use and 24 months applies to private use and com- mences on the day of purchase of the device. The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be sub- mitted for any claim in the guarantee period. The guar antee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee. Important information for the customer Please be sure to know that returning the product in or after the warranty period must be made in the original packaging. Service Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureau- cracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Tel.: [phone] / 700-360 Fax: [phone] E-Mail: [e-mail] ENGLISH EN37 Inspection and maintenance plan Generally Complete saw Plastic body Saw chain Chain saw bar Chain saw wheel Chain break Clutch Regularly clean the outer part Let regularly checked by authorized workshop Check for cracks and ssures Let regularly sharpen. Clean regularly Clean regularly Regular functional test Regular functional test (Chain can not move in idle run). Before any start-up Saw chain Chain saw bar Chain lubrication Chain break Follow-up brake ON/OFF switch Oil tank cap Check for damages and sharpness Check the chain tension Functional test Functional test Functional test Functional test Check for tightness In case damage let repaired in authorized workshop After every take out of service Chain saw bar Bar xture Clean the oil top-up opening Clean above all guiding oil groove Storage Chain oil tank Saw chain / Chain saw bar Complete saw Drain Dismount, clean and lubricate slightly by oil Clean the saw guiding groove Cleaned chain saw store safely in dry room - out of children reach. Let the chain saw checked by authorized workshop after long term storage (remaining oil can be resinous and clog the oil pump valve) ENGLISH EN38 ENGLISH

Failure removal Failures Causes Removal The motor does not start 1. Put the operational switch to OFF position

4. Sooted spark plug (carbon residues on

electrodes), electrodes distance too big

6. Damaged spark plug contact, faulty

1. Put the operational switch to ON

2. Top-up fully the fuel tank

3. Reduce throttle, start couple times, in

case of necessity dismantle spark plug, clean and dry it

4. Clean the spark plug, check the plug

thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm

5. Let the carburettor cleansed, blow

through by air in authorized workshop

6. let changed in authorized workshop

7. Check the switch-o button, cable and

ignition module, poss. Let replaced in authorized workshop, let adjusted gap to 0.3-0.4 mm Idle speed too high 1. Cold engine 1. Heat up slowly, poss. Close slightly choke Engine does not give max. output

1. Sooted spark plug (carbon residues on

electrodes), electrodes distance too big

4. Exhaust, exhaust channel of cylinder

7. Bad fuel/oil mix (too much oil)

1. Clean the spark plug, check the plug

thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm

2. Let the carburettor cleansed, blow

through by air in authorized workshop

4. Let the exhaust dismantle and clean

in authorized workshop, let clean the carbon residues

5. let changed in authorized workshop

6. Let replaced cylinders, pistons and

piston rings in authorized workshop, let the cylinders ground with end lap and let installed oversize piston

7. Fill the fuel tank according to the

(0.3-0.4 mm) let adjusted in authorized workshop Motor can not be swit- ched o

1. Light-grey spark plug with traces of

burning (melting pearls)

2. residues of carbon in the combustion

2. Let cleaned the cylinder head, piston

top and cylinder channels in autho- rized workshop The chain runs despite idling
