Product type	Vacuum cleaner with bag
Brand	Koenic
Model	KVC 7321
Power supply	220-240 V ~, 50-60 Hz
Rated power	700 W
Protection class	II
Dust bag type	Swirl® Y101®
Motor filter	Washable, clean regularly
Exhaust air filter	Washable, clean regularly
Included accessories	Floor brush, dusting brush, round furniture brush, square furniture brush, hard floor brush, crevice nozzle, suction hose, telescopic tube
Telescopic tube	With length-adjustable lock button
Adjustable suction power	Yes, by slider on the body and flap on the handle
Automatic cable rewinder	Yes, with retraction button
Bag full indicator	Yes, red indicator on the lid
Parking system	Yes, bracket to attach floor brush to the appliance
Intended use	Vacuuming dry dust and dirt, domestic use
Dimensions (approx.)	45 x 30 x 30 cm
Weight (approx.)	5 kg
Cable length (approx.)	6 m

Frequently Asked Questions - KVC 7321 Koenic

How to replace the dust bag?

Open the lid, remove the old bag from the holder, insert a new Swirl® Y101® bag, and close the lid. The red indicator shows when to replace the bag.

How to clean the filters?

Remove the motor filter and exhaust air filter, tap them to remove dust. Do not wash the filters with water. Reassemble after cleaning.

What to do if suction power decreases?

Check if the dust bag is full, if the filters are clogged, or if the tube or brush is blocked. Clean or replace the affected parts.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for vacuuming dry dust. Never vacuum liquids, as this could damage the appliance.

How to adjust the suction power?

Use the slider on the vacuum cleaner body (min to max position) or the variable suction flap on the handle to reduce suction according to the surface.

How to use the hard floor brush?

Attach the hard floor brush (part I) to the tube. Press the rocker switch of the floor brush to retract the brushes and avoid scratches on hard floors.

How to rewind the power cord?

Press the automatic retraction button (0) while guiding the cable. Keep the cable taut for proper winding.

Where to find replacement dust bags?

Use compatible Swirl® Y101® bags. You can purchase them online or in appliance stores.

Can the vacuum cleaner be used by children?

Yes, from age 8 under adult supervision. Children must not play with the appliance or perform cleaning without supervision.

What to do if the power cord is damaged?

Do not repair yourself. Contact an authorized service center to replace the cord to avoid any risk.

USER MANUAL KVC 7321 Koenic

Black vacuum cleaner with coiled hose and wheels (no visible text or symbols)

Deutsch 3 1/2007-14 Bruch 13 17 Russell 18-27 Furds 29 37 Mags 28 35 Bücks 16 17 Schulzer 36 42 Risik 14-47 Arl. gsk. 40-57 Sversa 29 57 Lakka 29-57

M. K. 2017, 2018, 65, March 2
(2) 10.35

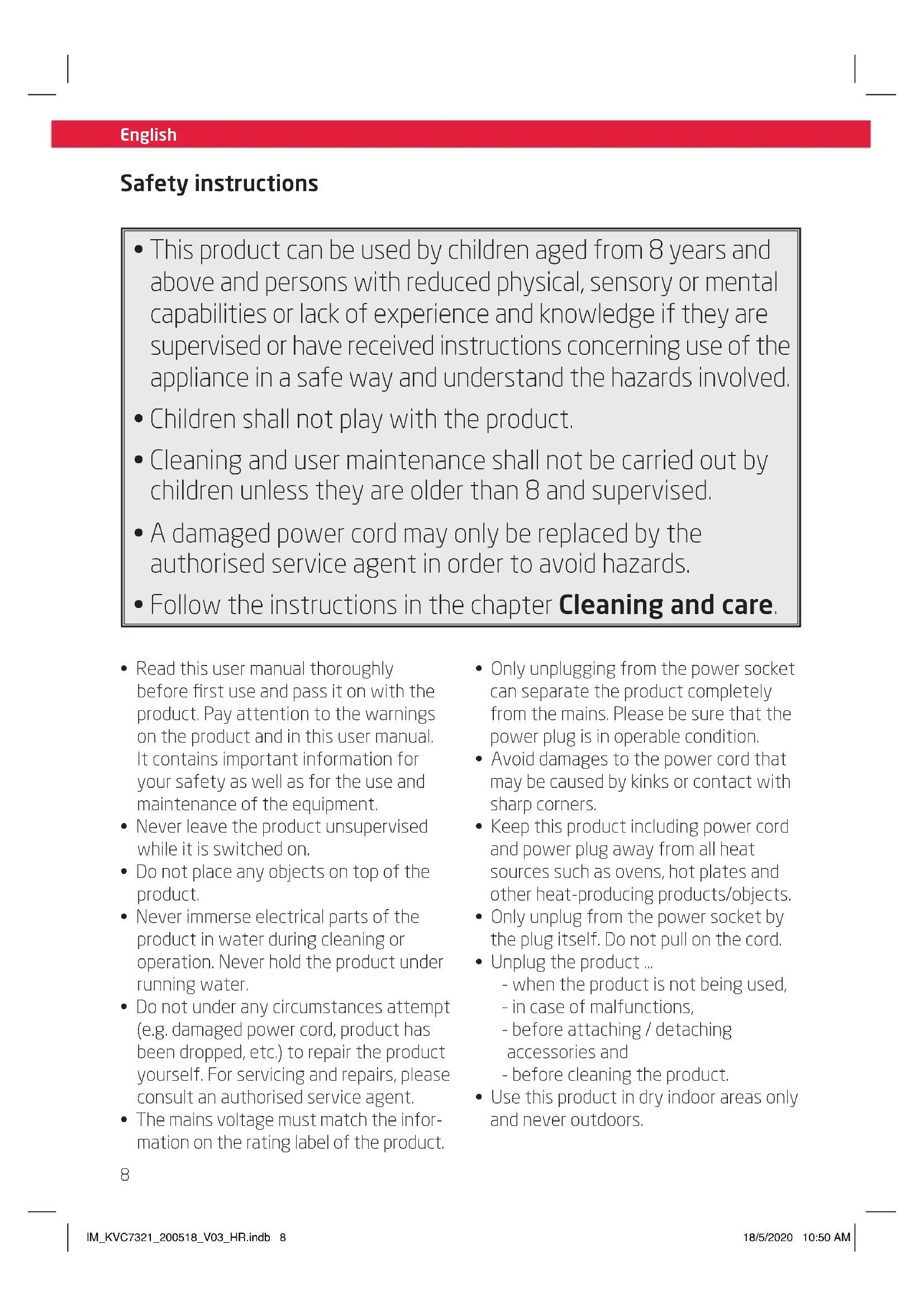

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have received instructions concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are older than 8 and supervised.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• Follow the instructions in the chapter Cleaning and care.

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt (e.g. damaged power cord, product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

• The mains voltage must match the information on the rating label of the product.

• Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• Use this product in dry indoor areas only and never outdoors.

Safety instructions

• This product is not intended for commercial use. It is designed for household use only.
• Do not allow the product to operate unsupervised.
• Make sure that the motor unit and supply cord do not become wet.
• Use accessories supplied with the device or recommended by the manufacturer only!
• This product is suitable only for private use.
  • Always switch the product off before disconnecting it from mains supply.
• Let the product cool down sufficiently before storing.
• Do not cover the product while in use. Fire hazard!
• Do not suck up liquids with the product. Do not suck up lit cigarettes, hot ashes, matches, etc. Fire hazard!
• Do not suck up inflammable or explosive materials and gases. The product must not be used in rooms with explosive gases or liquids.
• Be especially careful when cleaning the stairs.
• When in use, keep the product away from clothes and body parts (fingers, hair, face).
• Do not try to clean people or animals with the product.
• Attention! In the event of a malfunction as a result of electrostatic discharge and momentary electrical surges, unplug the appliance and plug it in again.

English

Congratulations!

Thank you for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The vacuum cleaner is designed only to vacuum dry dust and dirt. Using it for anything else can damage the device or cause injury. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Delivery Contents

1 x Vacuum cleaner with dust bag
1 x Floor nozzle
1 x Crevice nozzle
1 x Upholstery nozzle round brush
1 x Upholstery nozzle square brush
1 x Hard floor brush
1 x User manual
1 x Warranty card

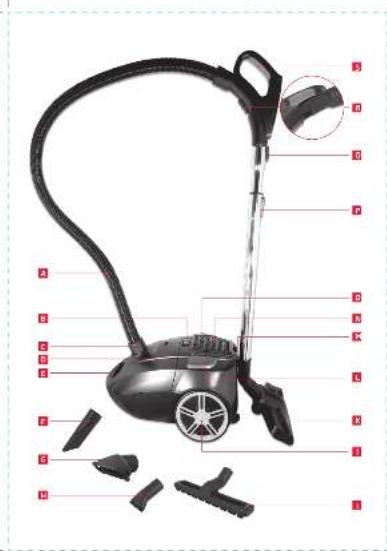

Controls and components

A Suction hose
B Suction power slide control min - max
c Suction tube bracket
D Cover with dust bag fill level indicator
E Carrying handle
F Crevice nozzle
G Upholstery nozzle square
H Upholstery nozzle round
Hard floor brush
J Wheel
K Floor nozzle
On/Off button
M Telescopic tube holder
N Exhaust air filter
0 Cable retraction button
P Telescopic tube with locking mechanism
Q Suction tube handle release button
R Variable suction flap
S Suction tube handle

incl. 1 x micro textile dust bag (not shown)

Assembling the vacuum cleaner

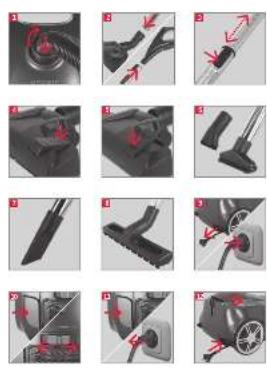

Fig. 1 Insert the suction hose into the hose connection and rotate it to the right (bayonet lock). Make sure, that it has clicked into place.

Fig. 2 Place the floor nozzle on the lower end and the suction tube handle on the upper end of the telescopic tube.

Fig. 3 Adjust the telescopic tube to the desired length, by sliding the locking mechanism up and then pushing the telescopic tube out or pushing it together.

Use of the accessories provided Floor nozzle (Part K)

Fig. 4 To vacuum hard floors, press the toggle switch down.

Fig. 5 To vacuum carpeted areas, press the toggle switch again in order to retract the brushes.

Upholstery nozzle round/square (Part G, H)

Fig. 6 For vacuuming upholstered furniture, mattresses, cushions, curtains, etc.

Crevice nozzle (Part F)

Fig. 7 For vacuuming folds, crevices and corners.

Hard floor brush (Part I)

Fig. 8 For vacuuming hard and wooden floors. Use the hard floor brush to protect the floor from being scratched.

Operation

Fig. 9 Pull out the connection cable to the desired length and insert the power plug into a receptacle.

Fig. 10 Press the On/Off switch to turn the vacuum cleaner on/off. Select the suction power with the suction power slide control min - max.

Suction power	Suitable for
Low Curtains
Medium	Upholstery cushions (sofa, high class carpets, rugs and runners)
Normal Normal carpets
Medium strong Long-haired carpets
Strong Hard floors (highest setting)

Tip: Depending on your need, you can vary the suction power by adjusting the suction flap on the handle.

Fig.11 Switch the vacuum cleaner off after use and unplug it when you have finished working.

Fig.12 Wind the power cable around the cable storage device by pressing the automatic cable retraction switch. While you are doing this keep the cable taut, if possible.

English

Parking system for pauses in vacuuming

Fig. 13 You can store the telescopic tube with the floor nozzle on the vacuum cleaner for short pauses in vacuuming. Insert the floor nozzle with the parking attachments into the parking system.

Transport and storage

Fig. 14 To carry your vacuum cleaner grasp it by the handle. To store your vacuum cleaner, the suction tube with the floor nozzle can be mounted on the back of the vacuum cleaner in an upright position.

Cleaning and care

Warning

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water.

Changing dust bag

Fig. 15 If the dust bag fill indicator is colored red or if the suction power diminishes, the dust bag must be changed and the filters must be cleaned. Open the lid and put it out. Remove the dust bag by taking it out of the dust bag holder. Insert a new dust bag into the dust bag holder and close the lid.

Cleaning the motor filter

Fig. 16 Remove the motor filter and tap it to remove the dust. Then re-insert it. Reassemble all of the components that have previously been removed. Assembly is carried out in reverse order.

Warning

Never use the vacuum cleaner without a motor filter, as otherwise, the motor will soon get dirty and will be subject to wear. If the motor filter gets dirty, the suction power will diminish.

Cleaning the exhaust air filter (Part N)

Fig.17 Open the flap, take the filter out and tap it to remove the dust. Assembly is carried out in reverse order. Insert the filter in the right direction so that the correct side is facing the motor.

Technical data

Rated Voltage : 220 - 240 V\~

Rated input power : 700 W

Rated frequency : 50-60 Hz

Protection class : II

Dust bag :Swirl® Y101®

• This is a general purpose vacuum cleaner
• The Erp test method is according to (EU) No 666/2013 & EN 60312-1:2017
- Please refer to below website for detail technical information, or contact the manufacturer for technical document:

www.koenic-online.com
