USER MANUAL TEO 8 THOMSON

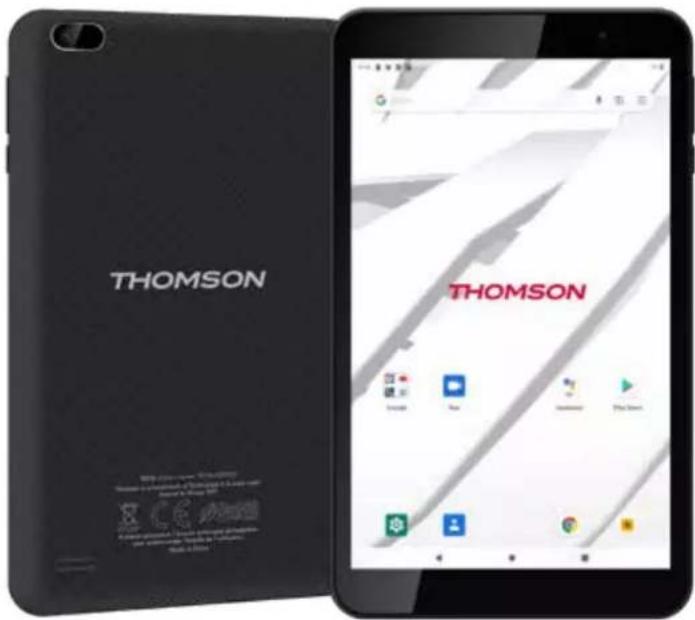

TEO - 8-inch tablet Designed for Android

• Table of contents Safety & Regulatory Statements p. 2
• Safety Precautions p. 3
• Box Contents p. 4
• Unit at a Glance p. 6
• Getting Started p. 7
• About Applications p. 8
• About Applications p. 8
• Connecting to the Internet p. 9
• Connecting to Wireless Internet p. 9
• Email p. 10
• Manually Conguring an Email account p. 11
• Transferring Files p. 12
• Troubleshooting p. 12
• Specications p. 14
• Legal and Trademark Notices Safety & Regulatory Statements The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important ope-ration and servicing instructions in the literature accompa-nying the appliance. For recycling or disposal information about this product, please contact your local authorities. L WARNING: To prevent re or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet.Protect your hearing: Hearing experts advise against the con-stant use of personal stereos played at high volume. Constant exposure to high volumes can lead to hearing loss. If you should experience ringing in the ears or hearing loss, discontinue use and seek medical advice.Note: If the product suddenly has no response or powers off, an electrostatic discharge may be the cause. In this circumstance, please follow the procedures below for recovery:Turn off the unit by pushing and holding the slide but- ton at the right (Power off Power off position) for 15 seconds. L Turn on the unit againt At full volume, prolonged listening to the portable audio device may damage the user’s hearing.3 Safety Precautions 1 Please protect the device away against moisture and dust. 2 Do not leave the device in a high-temperature environ- ment, especially a closed car in hot weather. 3 Do not drop or strike the device. 4 Do not shake the device violently, particularly the LCD screen, as this may cause the display to malfunction. 5 Please make sure to carefully adjust the earphone vo- lume; excessive volume may be harmful to your hea- ring. 6 Please charge the device when The power icon shows that the battery is nearly at The device turns itself off automatically and will not come back on. There is no response when operating the buttons. Attention: Please use only the charger provided by the manufacturer; other chargers may damage the device. 7 Do not disconnect the device from your PC when down- loading, uploading or formatting as this may cause pro- gramming errors in the device. 8 Do not disassemble the device yourself; only allow an expert to do so. 9 Do not use alcohol, thinner or benzene-based chemicals to clean the surface of the device. 10 Do not use the device in places where its use is prohi- bited, like aircraft. 11 Please make sure to always back up your device. The manufacturer is not responsible for lost les or data after damage to or repair of the device. 12 The manufacturer reserves all the rights to the techno- logy and design of the device and has no obligation to inform the user if new versions or designs have been developed. 13 The device is NOT waterproof; please keep it away from moisture at all times. 14 This device will take approximately 20 seconds to power up; please don't try to operate the device during this period.4 Box Contents p. 142

3. A power USB charger

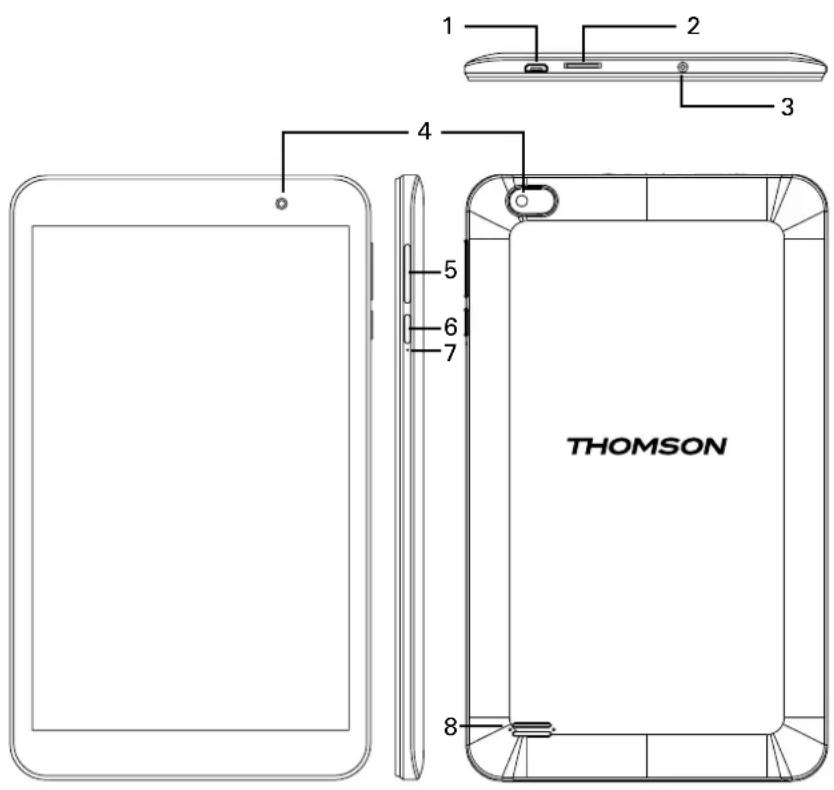

Features Browse the Web. Visit your favorite websites Check your e-mail Keep in touch with friends and family Watch YouTube videos Browse the world’s most popular videosharing community Read your favorite books Download thousands of books with the included E-book reader* Discover thousands of apps for Android Games, applications, and more with Google play Connect to the Internet wirelessly High-speed Wi-Fi 802.11 b/g/n networking Enjoy your media library anywhere Portable powerhouse plays popular music, video,and photo formats microSD memory card reader Increase your storage capacity (up to 32 GB supported) Built-in camera Convenient front-facing (VGA) and rear camera(2MP) Automatic orientation detection Read any way you want; the display adjusts automatically! Reading books in the ePub format requires the included E- book reader application. Streaming video quality will be affected by the source, and the quality and condition of your network connection.6 Unit at a Glance

Connect to a USB device or a computer to transfer data (e.g. music, videos,photos, les). Connect to a USB device

Load external Micro SD-cards here.

Audio output connection for headphones.

Press VOL+ to increase the volume level. Press VOL- to decrease the volume level.

Press to turn the unit on, or to turn the screen on or off. Press and hold to access the Power Off menu.

Press this button to force off the system when the device is halted.

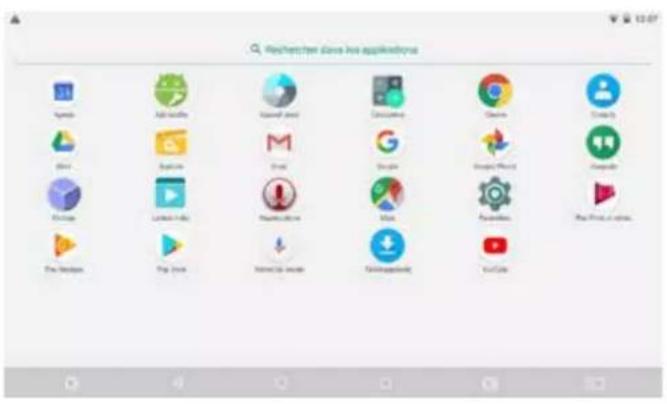

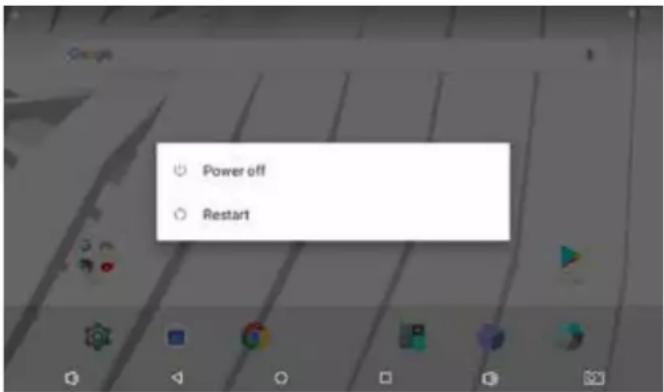

Getting Started Turning the Tablet on or off To turn the tablet on: Press and hold the Power key until the LCD screen turns on.Wait until the Home screen appears; the tablet is now ready for use. To turn the tablet off: 1.Press and build the Power key until the power off menu appears. 2.Touch the screen “Power off” to turn off the tablet Turning the Screen On or off (standby) When the tablet is on, you can turn off the screen to conserve battery power.Simply press the Power key once to turn the screen off. Press the Power key again to turn the screen back on. L To conserve batterypower, the screen can be set to turn off au- tomatically when the tablet is not in use (between 15 seconds and 30 minutes). This screen timeout option can be found in the display menu.8 About Applications To open an application,touch the application icon on the home screen or in the Launcher where you can swipe up the icon on the home screen to get in. Launcher screen: L The screen show above is for illustrative purposes only. Re- serves the right to modify and improve the nal list of applica- tions available on the tablet. About Applications Preinstalled Applications Some applications have been installed on your tablet for your convenience. These applications include: Browse the web Perform simple mathematical operations Take pictures or videos with the front facing camera Check your e-mail. Play music. Access the Settings menu to adjust the ta- blet’s options.9 Preinstalled Applications Installing Applications You can also download an install additional from the de- vice’s applications marketplace,the web browser or other sources. The tablet must be set to allow installation of applications from non-Market sources.The Unknown sources option can be set in the Application settings menu. Connecting to the Internet Connecting to Wireless Internet

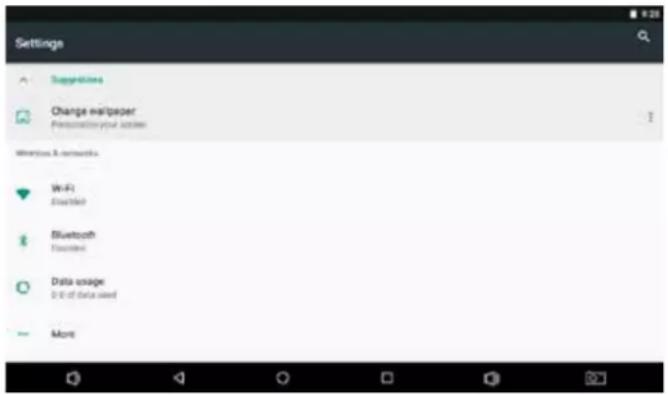

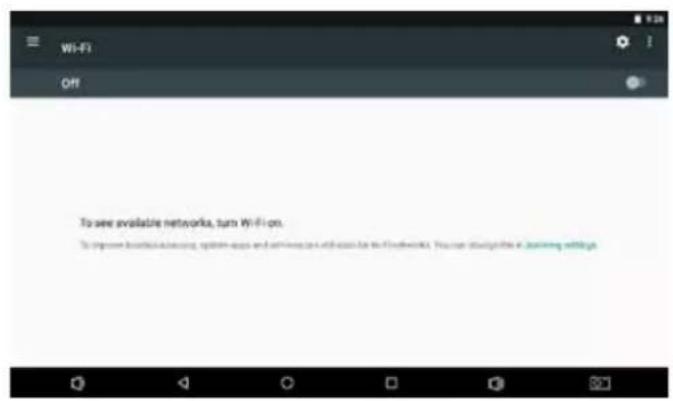

setting and slide it to the On position.

3. Select a network from the list of available networks. To

refresh the list of available networks, press ,select Refresh button. To manually add a network,select the Add Network button.

4. Select Connect from the pop up menu.10

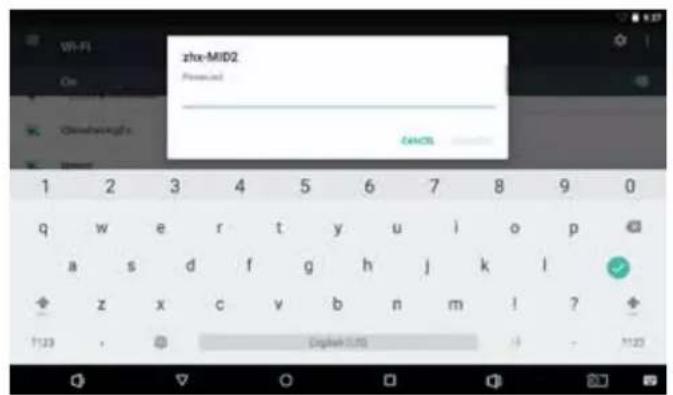

5. If the network is secured with a password,enter the

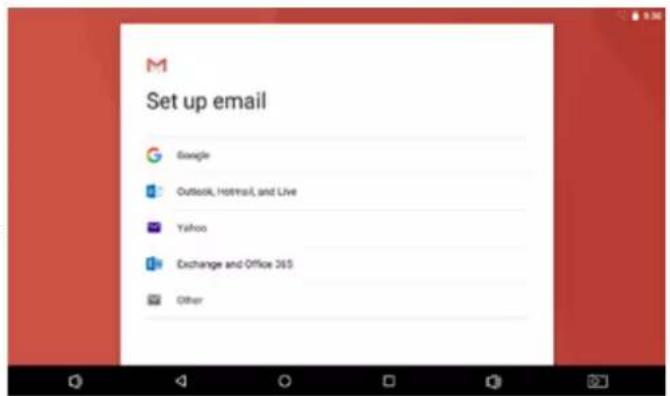

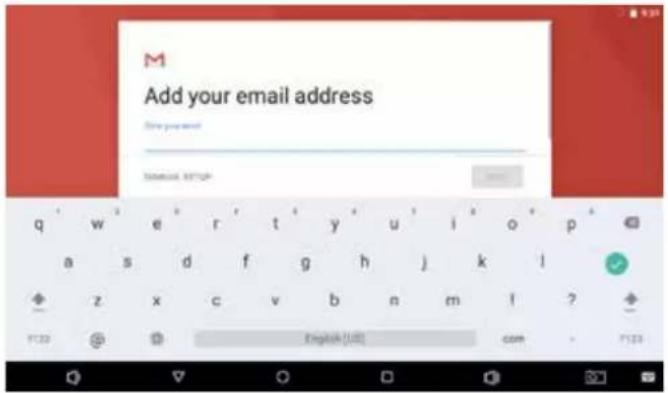

password to continue. Once nished connecting, the dis- play will show Connected under the name of the network. To conserve battery life, turn off Wi-Fi when nor in use. Email Setting Up an Email account 1.Press Gmail icon under App menu. 2.Press Add an email address, enter your email address,press Next, then input password. If this does not work,you will need to manually congure your account. Before attempting to congure manually, re-enter your email and password to make sure they are correct.11 Manually Conguring an Email account It is recommended to consult an IT professional before at- tempting to manually congure your email address.

1. To set up your email manually,detailed information is re-

quired.Check your provider’s website or phone support for individual provider information.

2. The rst thing you will need to determine is the server

type.While most servers are POP3,IMAP and Exchange are also supported services.

3. Enter your email address and password then press Next.

4. Fill in all information for the Incoming server portion of

5. Press Next and the app will test your settings.Wi-Fi is re-

quired to be active for this step.

6. Fill in all information for the Outgoing server settings.

7. Press Next and the app will test your settings.Wi-Fi is re-

quired to be active for this step.12 Transferring Files Transferring Files with a Computer To begin transferring les to your computer,plug one end of the included Mini-USB to USB cord into the unit, and the other into the USB port on a computer. You will now be able to transfer les Troubleshooting

1.1 Device can not connect to Wi-Fi

Ensure the wireless network is working by testing it using another wireless device. Ensure the device and the wireless router is within the range of the wireless network to be connected too.Walls or other obstructions will reduce the possible distances between wireless devices. Ensure the security password being used is correct.

1.2 Device doesn’t turn on

You can not turn on the device when the battery charge is below the critical level,please charge the battery. Use a needle or paper clip to reset unit on the side of the device and check if it is restarting is normally or not. Check if the charger is connected correctly.

When running multiple applications,using the screen on its brightest setting, or when being charged,this device can get quite hot.This is normal and should nor cause any inconve- nience when in use.

1.4 System has anomalies and doesn’t work cor-

rectly Installing some third-party applications may cause the sys- tem not to operate correctly.Press the RESET button and perform a system reset to resolve this issue.13

1.5 Cannot set E-mail Account or registration appli-

cation Ensure that the MID is connected to a Wi-Fi network and can connect to the Internet. Ensure you E-email settings have been entered correctly for the account being accessed. Make sure your system time and local time are correct.

Use a needle or paper clip to reset unit on the side of the device,then check if the record function works correctly.

1.7 The stand-by time of the device is too short

The duration of the lithium battery varies with environmen- tal temperature changes and the service conditions.If the environment temperature is too low or too high,the dura- tion of the battery will be affected.It is recommended to use this device at normal temperature. Battery life is dependent on usage.High volume,WIFI,and the frequent use may cause the battery to be drained at a higher rate.

1.8 No sound via earphone

Please check if the volume setting is 0. Please check if audio le is broken,and try to play another audio le to conrm.If the audio le is broken,it may cause severe noise or static.

1.9 The color distortion of video or picture display

Use a needle or paper clip to reset unit on the back of the device to solve this issue.

1.10 Can not copy les

Please check if the device is connected to the computer cor- rectly. Please check if the memory space is full. Please check if the USB cable is broken.

1.11 Other troubles Please follow up the steps as

below to x the other troubles before you return the MID/Tablet PC to us: Step1 : Use a needle or paper clip to reset unit on the side of the device,then check if the function works correctly Step2 : Upgrade the rmware from the PC and restart the device and then check if the function works correctly14 Specications Processor Rockchip RK3326

Storage 8/16/32/64GB ash built-in ( depend of model ) microSD card slot (max.32GB supported) Display IPS 8” (1280 x 800), 5 point multi-touch Capacitive touch screen Wi-F i Networking LAN 802.11 b/g/n Audio Output 3.5mm headphone PC Interface Micro USB port x 1 Additional Features Built-in microphone Front facing camera(VGA) - rear(2MP) 1x1.0W speaker Power Rechargeable Li-poly battery power 3.7V 4000mAh Adapter(DC 5V, 2A) Legal and Trademark Notices This product has been manufactured and sold under the responsi- bility of Group SFIT. THOMSON, and the THOMSON logo are trademarks of Technicolor (S.A.) or its afiates and are used under license by Group SFIT. Any other product, service, company, trade or product name and logo referenced herein are neither endorsed nor sponsored by Technicolor (S.A.) or its afiates. Google, Android, Google Play, YouTube and other marks are trad- marks of Google LLC. All other trademarks and logos are property of their respective owners unless indicated otherwise.TEO - 8-inch tablet Designed for Android
