MVW124 - Food Warmer Hatco - Free user manual and instructions

Product Type	Mini Vertical Heated Display (Warmer)
Brand and Model	Hatco MVW124
Dimensions (L x D x H)	149 mm x 202 mm x 425 mm (5-7/8" x 8" x 16-3/4")
Net Weight	5 kg (12 lb)
Power Supply	120 V~, 150 W, 50/60 Hz, NEMA 5-15P plug
Power Cord	Detachable, length 1,829 mm (6 ft)
Maximum Cascading Capacity	Up to 8 units (1,200 W max)
Key Functions	Holding preheated pre-packaged food warm, 30 min preheat, adjustable thermostat (1-7)
Heating Type	Three-sided enveloping heat from heating element
Materials	Steel, aluminum, and composite materials
Hood	Folding transparent plastic hood with door magnet
Controls	I/O switch (on/off) with indicator light, rotary thermostat
Installation	Countertop or wall mount (kit optional)
Operating Conditions	Indoor, ambient temperature ≥ 21°C, avoid drafts and grease
Safety Clearances	At least 25 mm (1") from walls or flammable materials
Maintenance and Cleaning	Daily cleaning: turn off, unplug, cool down; wipe metal and plastic surfaces with a damp soft cloth; no abrasives, no glass cleaner on plastic
Available Accessories	Wall mount kit, power cord (610 mm), adjustable distribution piece
Spare Parts and Repairability	Use only genuine Hatco parts; contact Hatco service (800-558-0607); no user-serviceable parts
Warranty	1 year parts and labor + 1 additional year parts for heating elements (metal sheath)
General Information	Certified for commercial use, online registration recommended

Frequently Asked Questions - MVW124 Hatco

What is the power supply voltage of the Hatco MVW124?

The Hatco MVW124 operates on 120 V~, 150 W, with a NEMA 5-15P plug. Ensure the device is plugged into a suitable grounded outlet.

What is the maximum cascading capacity for multiple units?

Up to eight MVW mini displays can be connected to a single electrical outlet using optional power cords. The total power must not exceed 1,200 W.

How do I install the wall mount kit?

The kit includes a wall bracket, two screws, two wing bolts, and two washers. Attach the bracket to the wall on wood studs or hollow walls, then slide the unit onto the fasteners. Maintain a spacing of 279 mm (11") between mounting holes.

How do I clean the Hatco MVW124?

Turn off the unit, unplug it, and let it cool. Wipe all metal and composite surfaces with a damp soft cloth. For the plastic hood, use water and mild soap without paper or glass cleaner. Dry with a soft cloth.

Why is my unit not heating enough?

Check the thermostat setting: turn it clockwise toward 7 to increase temperature. Also ensure the unit is plugged in and the switch is on I (on). If the problem persists, contact Hatco service.

What types of food can I use with the MVW124?

This warmer is designed to hold pre-packaged, non-hazardous, preheated foods warm. It is not suitable for cooking or reheating raw foods.

What should I do if the power cord is damaged?

Never use a frayed or worn cord. Replace it only with a genuine Hatco cord (part numbers 02.18.757.00 or 02.18.756.00). Contact Hatco for parts.

Can I use an extension cord with the MVW124?

It is not recommended to use an extension cord. Plug the unit directly into a grounded wall outlet. If necessary, use an optional Hatco power cord specially designed for cascading.

What is the recommended preheating time?

Before inserting food, let the unit preheat for about 30 minutes with the hood closed and thermostat set to the desired temperature.

How do I register the warranty for my Hatco?

Go to www.hatcocorp.com, select Parts & Service, then Warranty Registration. Fill out the online form to activate your warranty and avoid delays if needed.

USER MANUAL MVW124 Hatco

Register Online! (see page 2)

Technical line drawing of a mechanical bracket or enclosure with mounting holes and curved internal components (no text or symbols)

Technical line drawing of a mechanical component with curved and rectangular features (no text or symbols)

WARNING

Do not operate this equipment unless you have read and understood the contents of this manual! Failure to follow the instructions contained in this manual may result in serious injury or death. This manual contains important safety information concerning the maintenance, use, and operation of this product. If you're unable to understand the contents of this manual, please bring it to the attention of your supervisor. Keep this manual in a safe location for future reference.

English = p 2

ADVERTENCIA

Important Owner Information ....2

Introduction....2

Important Safety Information....3

Model Description....4

All Models....4

Model Designation....4

Specifications....5

Plug Configuration....5

Electrical Rating Chart 5

Dimensions 5

Installation....6

General 6

Operation....7

General 7

Maintenance 8

General 8

Daily Cleaning....8

Troubleshooting Guide 9

Options and Accessories....10

Limited Warranty....11

Authorized Parts Distributors......Back Cover

IMPORTANT OWNER INFORMATION

Record the model number, serial number, voltage, and purchase date of the unit in the spaces below (specification label located on the back of the unit). Please have this information available when calling Hatco for service assistance.

Model No. ____

Serial No. ____

Voltage

Date of Purchase

Register your unit!

Completing online warranty registration will prevent delay in obtaining warranty coverage. Access the Hatco website at www.hatcocorp.com, select the Parts & Service pull-down menu, and click on "Warranty Registration".

Business

Hours: 7:00 AM to 5:00 PM Central Standard Time (CST)

(Summer Hours: June to September—

7:00 AM to 5:00 PM CST Monday–Thursday

7:00 AM to 4:00 PM CST Friday)

Telephone: [phone]

E-mail: [e-mail]

Fax: [phone] (Parts and Service)

414-671-3976 (International)

24 Hour 7 Day Parts and Service Assistance available in the United States and Canada by calling 800-558-0607.

Additional information can be found by visiting our web site at www.hatcocorp.com.

INTRODUCTION

Hatco Mini Vertical Warmers are specially designed to hold preheated, non-hazardous, packaged snack foods at point-of-sale locations. The small footprint of the unit allows placement of the unit in a variety of locations.

Available wall-mounting and multi-unit installation options provide additional installation flexibility.

Hatco Mini Vertical Warmers are products of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance, and optimum performance. Every unit is inspected and tested thoroughly prior to shipment.

This manual provides the installation, safety, and operating instructions for Mini Vertical Warmers. Hatco recommends all installation, operating, and safety instructions appearing in this manual be read prior to installation or operation of a unit.

Safety information that appears in this manual is identified by the following signal word panels:

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to personal injury.

Read the following important safety information before using this equipment to avoid serious injury or death and to avoid damage to equipment or property.

WARNING

ELECTRIC SHOCK HAZARD:

• Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.
• Turn OFF power switch, unplug power cord, and allow unit to cool before performing any cleaning, adjustments, or maintenance.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Unit is not weatherproof. Locate unit indoors where ambient air temperature is a minimum of 70^ (21°C).
• Do not clean unit when it is energized or hot.
• Do not steam clean or use excessive water on unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.
• Do not pull unit by power cord.
• Discontinue use if power cord is frayed or worn.
• Do not attempt to repair a damaged power cord.
• Replace power cord and jumper power cord only with Hatco P/Ns 02.18.757.00 and 02.18.756.00. Unit receptacles intended for use only with other Hatco MVW family members. Maximum load shall not exceed 1200 watts.
• This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.
• Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

FIRE HAZARD: Locate unit a minimum of 1" (25 mm) from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur.

Make sure all operators have been instructed on the safe and proper use of unit.

This unit is not intended for use by children or persons with reduced physical, sensory, or mental capabilities. Ensure proper supervision of children and keep them away from unit.

This unit has no “user-serviceable” parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350; fax [phone]; or International fax [phone].

CAUTION

BURN HAZARD: Some exterior surfaces on unit will get hot. Use caution when touching these areas.

Locate unit at proper counter height in an area that is convenient for use. Location should be level to prevent unit or its contents from falling accidentally and strong enough to support weight of unit and contents.

NOTICE

Standard and approved manufacturing oils may smoke up to 30 minutes during initial startup. This is a temporary condition. Operate unit without food product until smoke dissipates.

Do not locate unit in an area subject to excessive temperatures or grease from grills, fryers, etc. Excessive temperatures could cause damage to unit.

Do not locate unit in area with excessive air movement around unit. Avoid areas that may be subject to active air movements or currents (i.e., near exhaust fans/hoods, air conditioning ducts, and exterior doors).

Damage to any countertop material caused by heat generated from Hatco equipment is not covered under the Hatco warranty. Contact manufacturer of countertop material for application information.

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch finish of unit, marring its appearance and making it susceptible to soil accumulation.

IMPORTANT—DO NOT use paper towel or glass cleaner to clean plastic surfaces. Paper towel and glass cleaner may scratch the material. Wipe off plastic surfaces using a soft, clean, water-dampened cloth.

Clean unit daily to avoid malfunctions and maintain sanitary operation.

All Models

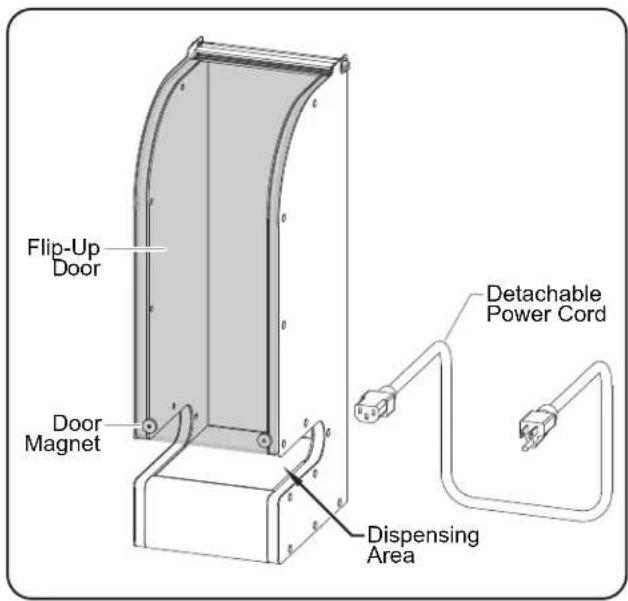

Hatco Mini Vertical Warners are constructed of easy-to-clean steel, aluminum, and composite materials. Features include a 3/4-surround blanket-style heating element, a clear plastic flip-up door, and a 6' (1829 mm) detachable power cord. Controls include a Power I/O (on/off) Switch and a Temperature Control.

Available accessories for the Mini Vertical Warmer include a wall mount kit, a jumper power cord, and a dispensing insert. Refer to the OPTIONS AND ACCESSORIES section for details.

Model MVW-12-4

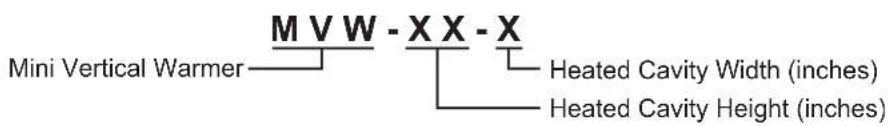

MODEL DESIGNATION

Plug Configuration

Units are supplied from the factory with a detachable electrical power cord and plug. Plugs are supplied according to the application.

WARNING

ELECTRIC SHOCK HAZARD: Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install the proper voltage and size electrical receptacle.

NOTE: The specification label is located on the back of the unit. See label for serial number and verification of unit electrical information.

NEMA 5-15P
Plug Configuration

NOTE: Receptacle not supplied by Hatco.

Electrical Rating Chart

Model Voltage Watts* Plug Configuration Unit Weight

MVW-12-4 120 150 NEMA 5-15P 12 lbs. (5 kg)

* For multiple unit installations using the accessory jumper power cords, the maximum electrical load shall not exceed 1200 watts (eight units).

Dimensions

Model	Width (A)	Depth (B)	Height (C)	Base Width (D)	Base Depth (E)	Chamber Width (F)	Dispense Height (G)	Fill Height (H)
MVW-12-4 5-	7/8" (149 mm)	8" (202 mm)	16-3/4" (425 mm)	5-1/2" (139 mm)	7-1/8" (180 mm)	4-5/8" (117 mm)	1-1/2" (38 mm)	8-11/16" (221 mm)

Front View

Side View

General

Mini Vertical Warmers are shipped from the factory fully assembled and ready for use. Use the following procedure to install the unit.

WARNING

ELECTRIC SHOCK HAZARD:

• Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.
• Unit is not weatherproof. Locate unit indoors where ambient air temperature is a minimum of 70^ (21°C).

FIRE HAZARD: Locate unit a minimum of 1" (25 mm) from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur.

CAUTION

Locate unit at proper counter height in an area that is convenient for use. Location should be level to prevent unit or its contents from falling accidentally and strong enough to support weight of unit and contents.

NOTICE

Do not locate unit in an area subject to excessive temperatures or grease from grills, fryers, etc. Excessive temperatures could cause damage to unit.

Do not locate unit in area with excessive air movement around unit. Avoid areas that may be subject to active air movements or currents (i.e., near exhaust fans/hoods, air conditioning ducts, and exterior doors).

Damage to any countertop material caused by heat generated from Hatco equipment is not covered under the Hatco warranty. Contact manufacturer of countertop material for application information.

1. Remove the unit from the box.

NOTE: To prevent delay in obtaining warranty coverage, complete online warranty registration. See the IMPORTANT OWNER INFORMATION section for details.

1. Remove tape and protective packaging from all surfaces of the unit.

2. Place the unit in the desired location.

3. Locate the unit in an area where the ambient air temperature is constant and a minimum of 70^ F ( 21^ C). Avoid areas that may be subject to active air movements or currents (i.e., near exhaust fans/hoods, air conditioning ducts, and exterior doors).

4. Make sure the unit is at the proper counter/wall height in an area convenient for use.
5. For countertop units: Make sure the countertop is level and strong enough to support the weight of the unit and food product. Make sure the unit is positioned securely on the countertop.

6. For wall-mounted units: Make sure the unit is installed using the proper hardware for either wood stud or hollow-wall installation (refer to the OPTIONS AND ACCESSORIES section for installation details).

7. Install any accessories that came with the unit. Refer to the OPTIONS AND ACCESSORIES section for details.

General

Use the following procedures to operate a Mini Vertical Warmer.

WARNING

Read all safety messages in the Important Safety Information section before operating this equipment.

NOTICE

Standard and approved manufacturing oils may smoke up to 30 minutes during initial startup. This is a temporary condition. Operate unit without food product until smoke dissipates.

Startup

1. Plug the female end of the detachable power cord into the power inlet on the back of the unit.
2. Plug the male end of the detachable power cord into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. See the SPECIFICATIONS section for details.

Plugging in the Unit

CAUTION

BURN HAZARD: Some exterior surfaces on unit will get hot. Use caution when touching these areas.

1. Move the Power I/O Switch (on/off) to the I (on) position. The indicator light on the switch glows when the unit is on.

2. Turn the Temperature Control to the desired temperature setting.

3. Turning the control clockwise toward "7" increases the temperature.

4. Turning the control counterclockwise toward "1" decreases the temperature.

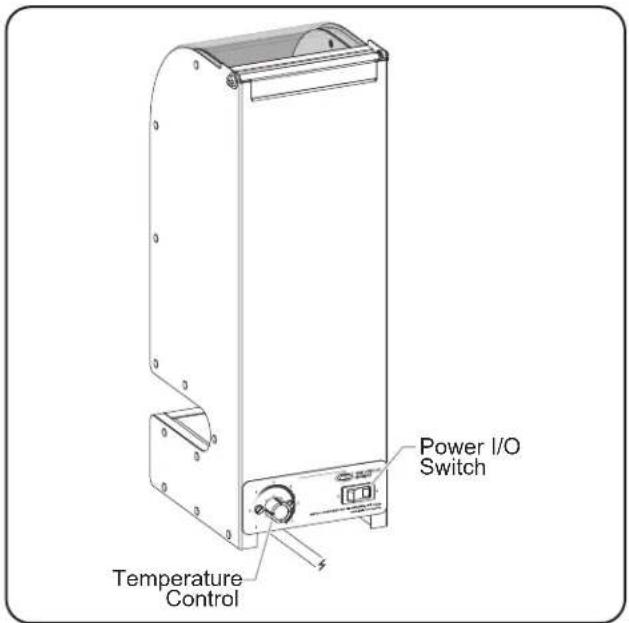

Operator Controls

1. Allow the warmer to preheat for approximately 30 minutes.
2. Lift the flip-up door and load pre-heated, pre-packaged food product into the warmer.

Loading the Mini Vertical Warmer

Shutdown

1. Move the Power I/O Switch (on/off) to the O (off) position. The indicator light on the switch will shut off.

General

Mini Vertical Warmers are designed for maximum durability and performance, with minimum maintenance.

WARNING

ELECTRIC SHOCK HAZARD:

• Turn OFF power switch, unplug power cord, and allow unit to cool before performing any cleaning, adjustments, or maintenance.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Do not clean unit when it is energized or hot.
• Do not steam clean or use excessive water on unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.
• Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

This unit has no “user-serviceable” parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350; fax [phone]; or International fax [phone].

NOTICE

Clean unit daily to avoid malfunctions and maintain sanitary operation.

Daily Cleaning

To preserve the finish of the Mini Vertical Warmer, perform the following cleaning procedure daily.

NOTICE

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch finish of unit, marring its appearance and making it susceptible to soil accumulation.

IMPORTANT—DO NOT use paper towel or glass cleaner to clean plastic surfaces. Paper towel and glass cleaner may scratch the material. Wipe off plastic surfaces using a soft, clean, water-dampened cloth.

1. Move the Power I/O Switch (on/off) to the O (off) position, unplug the power cord, and allow the unit to cool.
2. Remove all unused product and the dispensing insert, if installed.
3. Wipe down all metal and composite surfaces with a water-dampened, non-abrasive cloth.
4. Clean the plastic flip-up door using soft cleaning cloths, mild soap, and water. NOTICE: Do not use paper towel or glass cleaner on plastic surfaces—scratching may occur.
5. Wipe dry the entire unit using a non-abrasive, dry cloth.

WARNING

This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.

WARNING

ELECTRIC SHOCK HAZARD: Turn OFF power switch, unplug power cord, and allow unit to cool before performing any cleaning, adjustments, or maintenance.

Symptom Probable Cause Corrective Action
Unit not hot enough. Temperature Control set too low. Adjust Temperature Control to a higher setting.
Unit too hot.	Temperature Control set too high.	Adjust Temperature Control to a lower setting.
	Temperature Control not working properly.	Contact Authorized Service Agent or Hatco for assistance.
	Voltage supplied is incorrect. Verify correct voltage is supplied to unit. Low supply voltage will cause improper heating.
No heat.	Unit turned off.	Turn on unit.
	Circuit breaker tripped.	Reset circuit breaker. If circuit breaker continues to trip, contact Authorized Service Agent or Hatco for assistance.
	Temperature Control not working properly.	Contact Authorized Service Agent or Hatco for assistance.
	Heating element not working. Contact Authorized Service Agent or Hatco for assistance.
	Power I/O Switch (on/off) not working.	Contact Authorized Service Agent or Hatco for assistance.

Troubleshooting Questions?

If you continue to have problems resolving an issue, please contact the nearest Authorized Hatco Service Agency or Hatco for assistance. To locate the nearest Service Agency, log onto the Hatco website at www.hatcocorp.com and click on Find Service Agent, or contact the Hatco Parts and Service Team at:

Telephone: [phone] or 414-671-6350

e-mail: [e-mail]

Fax: [phone] or 414-671-3976

Wall Mount Kit

The Mini Vertical Warmer wall mount kit includes hardware for wood stud installation or hollow wall installation. Use the following parts and procedure to mount a Mini Vertical Warmer on a wall.

Parts Included

Item Quantity

Wall Mount Bracket 1

Mounting Screw 2

Toggle Bolt, 2" (51 mm) 2

Washer 2

Installation Procedure

NOTE: The Mini Vertical Warmer must be fastened to a wall covered by a minimum of 3/8" thick sheathing.

1. Determine the mounting location for the Mini Vertical Warmer. Make sure the mounting location meets the requirements listed in the INSTALLATION section of this manual.
2. Determine and mark the height for the unit installation.

- There are two mounting holes that are centered and vertically-aligned on the wall mount bracket. Mark the wall height where the top, center of the unit should be located.

1. Measure down 3/4" (18 mm) from the unit height mark made in the previous step, and mark the top mounting hole location.
2. Using a level and tape measure, measure down 11" (279 mm) from the top mounting hole location. Mark the bottom mounting hole location, making sure that it is vertically aligned with the top mounting hole.

Slip bracket holes over hinge screws.

Attaching the Wall Brackets

1. Locate the wood stud positions in the wall.

2. If the mounting location aligns with a wood stud position, go to step 6.

3. If the mounting location does not align with a wood stud position, go to step 7 for hollow wall installation.

4. For wood stud installation, install the included mounting screws into the wall at each marked location, leaving the head of the screw out from the wall a distance of 1/16" (1.5 mm).

5. For hollow wall installation, install the included toggle bolts with washers into the wall.

a. Drill a 1/2" (13 mm) pilot hole in the wall at each marked location.
b. Remove the wing section from each included toggle bolt and place one of the included washers on each bolt.
c. Thread the wing section back onto each toggle bolt approximately one quarter of the length of the bolt. The wing tips should be pointing toward the head of the bolt.
d. Squeezing the wing tips together, insert each toggle bolt into the pre-drilled pilot holes in the wall until the wing tips spring out on the opposite side of the wall.
e. Tighten each toggle bolt until the washer against the head of the bolt is out from the wall a distance of 1/16" (1.5 mm).

1. Install the wall mount bracket onto the back of the unit.

2. Pull out slightly on each side of the bracket and slip the holes on the bracket over the flip-up door hinge screws.

3. Snap the bottom of the bracket underneath the cutout at the bottom of the unit.

4. Lift the unit and hook the two mounting holes on the wall mount bracket over the corresponding mounting screws/toggle bolts in the wall. Make sure the bracket on the unit is fully seated on the mounting screws/toggle bolts.

- The washers on the toggle bolts should be positioned on the wall side of the bracket.

Jumper Power Cord

A 2' (610 mm) jumper power cord is available as an accessory that provides a power connection from one Mini Vertical Warmer to another. A total of eight units can be connected together off of one electrical receptacle. The male plug on the jumper cord connects to the power outlet on the

upstream unit, and the female plug connects to the power inlet on the downstream unit. Each unit remains independently-controlled.

Installing a Jumper Power Cord

Up to eight Mini Vertical Warmers can be powered by a single electrical receptacle through the use of multiple jumper power cords.

Three units connected by two jumper power cords

Dispensing Insert

The dispensing insert accessory allows different sizes and styles of packaging to be used with the Mini Vertical Warmer. The insert clips onto the bottom of the flip-up door and is height adjustable to allow only one item out of the warmer at a time.

Simple 3D diagram of a rectangular object with two vertical connectors and square supports at the bottom (no text or symbols)

LIMITED WARRANTY

1. PRODUCT WARRANTY

Hatco warrants the products that it manufactures (the "Products") to be free from defects in materials and workmanship, under normal use and service, for a period of one (1) year from the date of purchase when installed and maintained in accordance with Hatco's written instructions or 18 months from the date of shipment from Hatco. Buyer must establish the Product's purchase date by registering the Product with Hatco or by other means satisfactory to Hatco in its sole discretion.

Hatco warrants the following Product components to be free from defects in materials and workmanship from the date of purchase (subject to the foregoing conditions) for the period(s) of time and on the conditions listed below:

a) One (1) Year Parts and Labor PLUS One (1) Additional Year Parts-Only Warranty:

Conveyor Toaster Elements (metal sheathed)

Drawer Warmer Elements (metal sheathed)

Drawer Warmer Drawer Rollers and Slides

Strip Heater Elements (metal sheathed)

Display Warmer Elements (metal sheathed air heating)

Holding Cabinet Elements (metal sheathed air heating)

Heated Well Elements — HW and HWB Series

(metal sheathed)

b) One (1) Year Parts and Labor PLUS Four (4) Years Parts-Only Warranty:

3CS and FR Tanks

c) One (1) Year Parts and Labor PLUS Nine (9) Years Parts-Only Warranty on:

Electric Booster Heater Tanks

Gas Booster Heater Tanks

d) Ninety (90) Day Parts-Only Warranty:

Replacement Parts

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR PATENT OR OTHER INTELLECTUAL PROPERTY RIGHT INFRINGEMENT. Without limiting the generality of the foregoing, SUCH WARRANTIES DO NOT COVER: Coated incandescent light bulbs, fluorescent lights, heat lamp bulbs, coated halogen light bulbs, halogen heat lamp bulbs, xenon light bulbs, LED light tubes, glass components, and fuses; Product failure in booster tank, fin tube heat exchanger, or other water heating equipment caused by liming, sediment buildup, chemical attack, or freezing; or Product misuse, tampering or misapplication, improper installation, or application of improper voltage.

2. LIMITATION OF REMEDIES AND DAMAGES

Hatco's liability and Buyer's exclusive remedy hereunder will be limited solely, at Hatco's option, to repair or replacement using new or refurbished parts or Product by Hatco or a Hatco-authorized service agency (other than where Buyer is located outside of the United States, Canada, United Kingdom, or Australia, in which case Hatco's liability and Buyer's exclusive remedy hereunder will be limited solely to replacement of part under warranty) with respect to any claim made within the applicable warranty period referred to above. Hatco reserves the right to accept or reject any such claim in whole or in part. In the context of this Limited Warranty, "refurbished" means a part or Product that has been returned to its original specifications by Hatco or a Hatco-authorized service agency. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer's sole expense. HATCO WILL NOT BE LIABLE, UNDER ANY CIRCUMSTANCES, FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING BUT NOT LIMITED TO LABOR COSTS OR LOST PROFITS RESULTING FROM THE USE OF OR INABILITY TO USE THE PRODUCTS OR FROM THE PRODUCTS BEING INCORPORATED IN OR BECOMING A COMPONENT OF ANY OTHER PRODUCT OR GOODS.

Simple 3D diagram of a rectangular object with two vertical supports and a small square base (no text or symbols)

1. GARANTIE DU PRODUIT

Byassee Equipment Co. Phoenix 602-252-0402

CALIFORNIA

Industrial Electric Commercial Parts & Service, Inc. Huntington Beach 714-379-7100

Chapman Appl. Service San Diego 619-298-7106 P & D Appliance Commercial Parts & Service, Inc. S. San Francisco 650-635-1900

COLORADO

Hawkins Commercial Appliance Englewood 303-781-5548

FLORIDA

Whaley Foodservice Repair Jacksonville 904-725-7800

3Wire Nass Service Co., Inc. Orlando 407-425-2681

B.G.S.I. Pompano Beach 954-971-0456

Comm. Appliance Service Tampa 813-663-0313

GEORGIA

TWC Services Mableton 770-438-9797

Heritage Service Group Norcross 866-388-9837

Southeastern Rest. Svc. Norcross 770-446-6177

HAWAII

Burney's Comm. Service, Inc. Honolulu 808-848-1466

Food Equip Parts & Service Honolulu 808-847-4871

ILLINOIS

Parts Town Lombard 708-865-7278

Eichenauer Elec. Service Decatur 217-429-4229

Midwest Elec. Appl. Service Elmhurst 630-279-8000

Cone's Repair Service Moline 309-797-5323

INDIANA

GCS Service Indianapolis 800-727-8710

IOWA

Goodwin Tucker Group Des Moines 515-262-9308

KENTUCKY

Service Solutions Group Lexington 859-254-8854

Service Solutions Group Louisville 502-451-5411

LOUISIANA

Chandlers Parts & Service Baton Rouge 225-272-6620

MARYLAND

Electric Motor Service Baltimore 410-467-8080

GCS Service Silver Spring 301-585-7550

MASSACHUSETTS

Ace Service Co., Inc. Needham 781-449-4220

MICHIGAN

Bildons Appliance Service Detroit 248-478-3320

Commercial Kitchen Service Bay City 989-893-4561

Midwest Food Equip. Service Grandville 616-261-2000

MINNESOTA

GCS Service Minnetonka 800-822-2303

x20365

MISSOURI

General Parts Kansas City 816-421-5400

Commercial Kitchen Services St. Louis 314-890-0700

Kaemmerlen Parts & Service St. Louis 314-535-2222

NEBRASKA

Anderson Electric Omaha 402-341-1414

NEVADA

Burney's Commercial Las Vegas 702-736-0006

Hi. Tech Commercial Service N. Las Vegas 702-649-4616

NEW JERSEY

Jay Hill Repair Fairfield 973-575-9145

Service Plus Flanders 973-691-6300

NEW YORK

Acme American Repairs, Inc. Brooklyn 718-456-6544

Alpro Service Co. Brooklyn 718-386-2515

Appliance Installation Buffalo 716-884-7425

Duffy's Equipment Services, Inc. Buffalo 800-836-1014

3Wire Northern Plattsburgh 800-634-5005

Duffy's Equipment Services, Inc. Sauquoit 800-836-1014

J.B. Brady, Inc. Syracuse 315-422-9271

NORTH CAROLINA

Authorized Appliance Charlotte 704-377-4501

OHIO

Akron/Canton Comm. Svc. Inc. Akron 330-753-6634

Service Solutions Group Oncinnati 513-772-6600

Commercial Parts and Service Columbus 614-221-0057

Electrical Appl. Repair Service Brooklyn Heights 216-459-8700

E. A. Wichman Co. Toledo 419-385-9121

OKLAHOMA

Hagar Rest. Service, Inc. Oklahoma City 405-235-2184

Krueger, Inc. Oklahoma City 405-528-8883

OREGON

Ron's Service, Inc. Portland 503-624-0890

PENNSYLVANIA

Elmer Schultz Services Philadelphia 215-627-5401

FAST Comm. Appl. Service Philadelphia 215-288-4800

Appliance Installation & Service Pittsburgh 412-809-0244

K & D Service Co. Harrisburg 717-236-9039

Electric Repair Co. Reading 610-376-5444

RHODE ISLAND

Marshall Electric Co. Providence 401-331-1163

SOUTH CAROLINA

Whaley Foodservice Repair Lexington 803-996-9900

TENNESSEE

Camp Electric Memphis 901-527-7543

TEXAS

GCS Service Fort Worth 800-433-1804

Armstrong Repair Service Houston 713-666-7100

Cooking Equipment Specialist Mesquite 972-686-6666

Commercial Kitchen Repair Co. San Antonio 210-735-2811

UTAH

La Monica's Rest. Equip. Service Murray 801-263-3221

VIRGINIA

Daubers Norfolk 757-855-4097

Daubers Springfield 703-866-3600

WASHINGTON

3Wire Restaurant Appliance Seattle 800-207-3146

WISCONSIN

A.S.C., Inc. Madison 608-246-3160

A.S.C., Inc. Milwaukee 414-543-6460

CANADA

ALBERTA

Key Food Equipment Service Edmonton 780-438-1690

BRITISH COLUMBIA

Key Food Equipment Service Vancouver 604-433-4484

Key Food Equipment Service Victoria 250-920-4888

MANITOBA

Air Rite, Inc. Winnipeg 204-895-2300

NEW BRUNSWICK

EMR Services, Ltd. Moncton 506-855-4228

ONTARIO

R.G. Henderson Ltd. Toronto 416-422-5580

Choquette - CKS, Inc. Ottawa 613-739-8458

QUÉBEC

Choquette - CKS, Inc. Montreal 514-722-2000

Choquette - CKS, Inc. Québec City 418-681-3944

UNITED KINGDOM

Marren Group Northants [phone]

HATCO CORPORATION

P.O. Box 340500

Milwaukee, WI 53234-0500 U.S.A.

800-558-0607 414-671-6350

Parts and Service Fax [phone]

International Fax [phone]

[e-mail]

www.hatcocorp.com

Register your unit online!

See IMPORTANT OWNER INFORMATION section for details.
