USER MANUAL PCDKP 1211 PROFICOOK

Exterior view of a two-whe� electric stove with red heating screens and control knobs (no text or symbols visible)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

Contents

Overview of the Components ....3

General Notes......30

Special Safety Precautions for this Appliance 30

Unpacking the Appliance 32

Overview of the Components 32

Electrical Connection 32

Using the Hotplate 33

Cleaning 33

Storage....34

Technical Data....34

Disposal....34

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the plastic foil. There is a danger of suffocation!

Special Safety Precautions for this Appliance

You will find the following symbol with warning character on the appliance:

WARNING: Hot surface!

Danger of burns!

During operation and afterwards, the temperature of the accessible surfaces will be very high.

WARNING:

Glass-ceramic surface! If the surface is damaged or has cracks the appliance must be switched off to avoid the hazard of electrical shocks.

CAUTION:

• To prevent damage, do not place any rough or uneven objects onto the glass ceramic surface.
• Avoid dropping hard or pointed utensils onto the glass ceramic surface.
• Please do not operate the appliance with an external timer or a separate remote control system.
• Place the appliance on an even, moisture and heat-resistant surface.
• Use a heat resistant plate when placing on sensitive surfaces.
• Do not move the appliance when it is in operation.
• Due to the rising heat and vapours the appliance should not be operated under wall cupboards.
• Keep the appliance at a safe distance from easily inflammable objects such as furniture, curtains, etc. (30 cm). Under no circumstances should the appliance be installed in cupboards.
• Do not heat empty pots on the cooking zone as this may lead to dangerous overheating.
• Ventilation: Always keep the ventilation slots clear.
• During and after use, ensure that the power cord does not come into contact with the hot surface of the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
- Children under the age of 8 must be kept away from both the appliance and the power cable.
- Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CAUTION:

This appliance is not designed to be immersed in water during cleaning. Please follow the instructions provided in the chapter "Cleaning".

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging materials such as films, filler material, cable clips and carton.
3. To prevent hazards, check the appliance for any transport damage. Do not put a damaged appliance into operation. Return it to the dealer immediately.

NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning".

Overview of the Components

1 Handle
2 Air outlet
3 Glass ceramic surface (large)
4 Power cable with plug
5 Glass ceramic surface (small)
6 Air outlet
7 Handle
8 Temperature control (small cooking surface)
9 Indicator lamp (heating)
10 Temperature control (large cooking surface)
11 Housing

Electrical Connection

Connected Wattage

The total power consumption of this appliance can be up to 2800 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION: Overload!

Do not use extension cables or multiple sockets as the power consumption of this appliance is too high for these.

Connection

• Before inserting the mains plug into the socket check whether the voltage which you intend to use corresponds to that of the appliance. Please see the label on the appliance for details.
• Only connect the appliance to a correctly installed safety socket.

Using the Hotplate

NOTE:

You can use the following description for both cooking surfaces.

Switching On/Off

The appliance is switched on with the thermostatic controller.

- The appliance is switched off when the thermostatic controller is set to min.

Notes for Cooking Utensils

- For optimum use of energy, use only pots / pans with a flat bottom (see Fig.).

- The cooking utensil never should be smaller than the hotplate. This wastes energy.

Operation

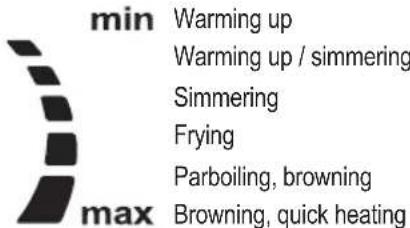

Use the continuously thermostatic controller to select the temperature of the hotplate depending on the intended use:

min Warming up Warming up / simmering Simmering Frying Parboiling, browning max Browning, quick heating

i NOTE:

• The indicator lamp indicates the heating up of the hot-plate. It is switched on and off during operation. This is normal and indicates that the temperature is controlled and maintained by the thermostatic controller.
• Due to the large number of qualitatively different cookware (quality, size or material thickness), the actually achieved cooking temperature may deviate from the set temperature. Individual cooking behaviour always has to be taken into account accordingly.

Switching Off

1. Set the thermostatic controller to min.
2. Remove the mains plug from the socket.
3. Let the appliance cool down before storing it.

WARNING: Danger of burns!

Because of the heat radiated during cooking, dangerously high temperatures may occur at the cooking zone after the cooking cycle.

Cleaning

WARNING:

• Always remove the mains lead before cleaning!
- Wait until the appliance has cooled down completely!
- Under no circumstances should you immerse the appliance in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• Make sure that no fluid matter gets into any of the openings of the housing. This might damage the appliance or result in an electric shock.

Hotplate

• Remove food residues with a moist cloth or a paper towel while still warm.
• Clean the hotplate with a soft sponge and a small amount of water, and dry it thoroughly with a soft cloth.

Housing

Clean the housing after use using a slightly moist cloth.

Storage

• Only store the appliance clean and after it has cooled down.
• During longer periods of non-use we recommend storing the appliance in its original packaging.
• Always store the appliance in a well-ventilated and dry place out of reach of children.

Technical Data

Model: PC-DKP 1211

Power supply: 220 - 240 V\~, 50 / 60 Hz

Power consumption: 2800 W

Protection class:....I

Net weight: .... approx. 3.6 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and is manufactured according to the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
