Product type	Wet and dry vacuum cleaner
Brand and model	Clarke Maxxi II
Power supply	220-240 V ~ 50/60 Hz
Power	1250 W (35 L model) / 2400 W (55/75 L 2-motor model)
Tank capacity	35 L (35 model) / 55 or 75 L (55/75 model)
Weight	12.5 kg (35 L) / 24.5-28 kg (55/75 L)
Electrical protection class	II (double insulation)
Protection rating	IP24
Air flow	48 L/s (35 L model) / 45-72 L/s (55/75 L model)
Vacuum (pressure)	20 kPa (35 L model) / 18-21 kPa (55/75 L model)
Suction power	250 W (35 L model) / 220-390 W (55/75 L model)
Sound level (IEC 704)	81-84 dB(A) depending on model
Vibration	< 1.5 m/s²
Usage	Indoor, commercial and domestic
Functions	Dry and wet vacuuming
Float system	Yes, automatic shut-off in wet vacuuming
Filters	Washable cartridge filter, motor filter, optional dust bag
Supplied accessories	Hose, tubes, suitable nozzle
Maintenance	Regular filter cleaning, draining and rinsing the tank
Safety	Double insulation, do not vacuum flammable liquids, use only indoors
Warranty	According to general terms and conditions of sale

Frequently Asked Questions - Maxxi II Clarke

Can I vacuum liquids with this vacuum cleaner?

Yes, the Maxxi II is designed for wet vacuuming. Make sure to install the float and appropriate filters before use. Never vacuum liquids without the float.

How to clean the cartridge filter?

The cartridge filter can be shaken, brushed or washed with water. Let it dry completely before reinstalling. A wet filter can damage the motor.

What if the vacuum cleaner produces foam?

Immediately stop the vacuum. Use a chemical anti-foaming agent recommended by the manufacturer. If the machine has two motors, use only one motor to reduce foam formation.

How to drain the tank after wet vacuuming?

Unplug the vacuum. For the 35 L model, tilt the tank backwards to pour out liquids. For 55/75 L models, use the drain hose or drain plug. Clean the float after each use.

Can I use non-original dust bags?

It is strongly recommended to use original bags and filters to ensure optimal suction power and avoid damaging the appliance. Performance depends on the quality of the filters.

How to maintain the float?

Unplug the appliance. Remove the float cage by turning left. Wipe the valve and cage with a damp cloth. Check the motor filter and replace if clogged. Reassemble by aligning the arrows.

What are the important safety instructions?

Read the manual before use. Do not vacuum flammable liquids or burning objects. Do not use with a damaged cord. Unplug before any maintenance. Keep away from children without supervision.

How to store the vacuum cleaner after use?

Unplug the cord and wrap it around the handle or hooks. Store the appliance in a dry, frost-free place. Some models have storage compartments for accessories.

What if the cord is damaged?

Do not use the vacuum. The special cord must be replaced with an identical cord available from authorized service centers. Have it replaced by qualified personnel.

How to recycle the vacuum cleaner at end of life?

Do not dispose of the appliance with household waste. In accordance with European directive 2002/96/EC, return it to a collection point for used electrical appliances to be recycled in an environmentally friendly way.

USER MANUAL Maxxi II Clarke

Operating instructions

MAXXI II

Warning symbol: black exclamation mark inside a triangle (no text or numbers)

Clarke®

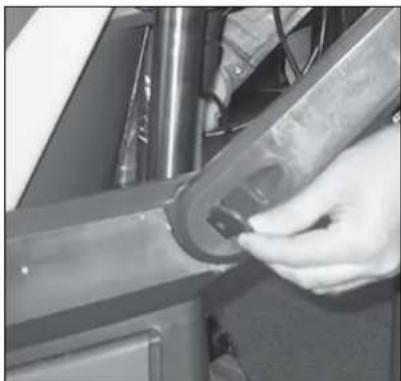

Handle adjusting

Close-up of a hand adjusting a car interior panel, no visible text or symbols

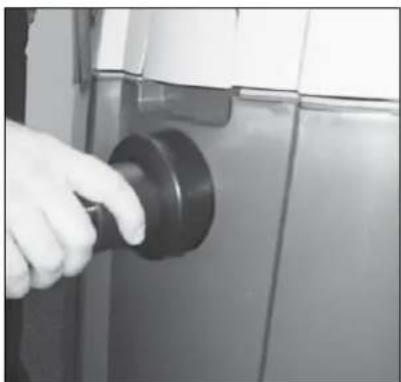

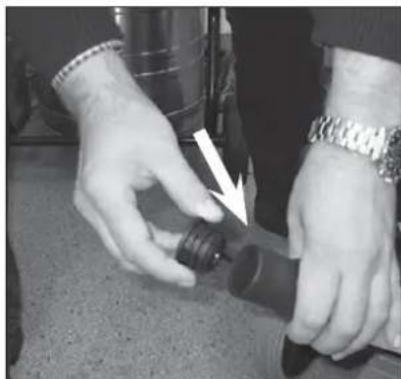

Hose handling

Before operation. Wet pick-up Before operation. Dry pick-up

Close-up of a mechanical device with a cylindrical component inserted into a transparent chamber (no visible text or symbols)

Close-up of hands assembling a mechanical component with a white arrow pointing to a component (no visible text or symbols)

Switch on

Close-up of a hand holding a black cylindrical object with an arrow pointing to it, against a dark background (no text or symbols visible)

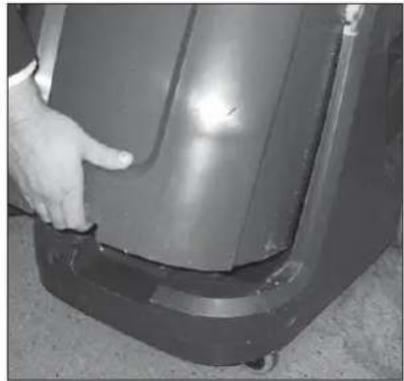

Emptying MAXXI II - 35

Hand holding a black circular object on a door panel (no visible text or symbols)

Close-up of two black square keys with 'I' labels, one being held by a finger (no text or symbols on keys)

Person operating a portable device with a circular button, no visible text or symbols

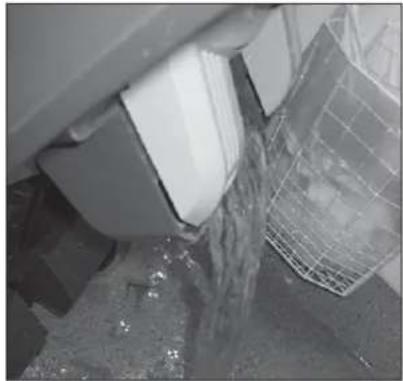

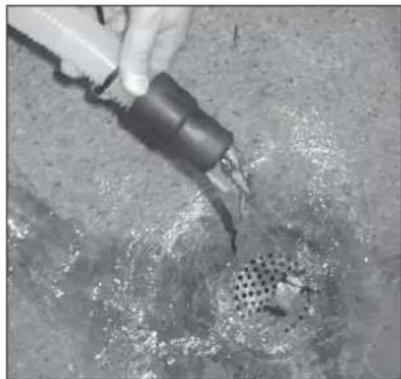

Emptying by drainhose MAXXI II - 55/75

Person operating a portable electronic device with a circular dial and indicator lights, no visible text or symbols

Person pouring liquid from a container onto a concrete floor (no visible text or symbols)

Close-up of a hand operating a handheld device inside a vehicle or industrial machine (no visible text or symbols)

Close-up of a hand operating a handheld device inside a vehicle or machine (no visible text or symbols)

Close-up of hands adjusting a mechanical component with an arrow indicating motion (no visible text or symbols)

Hand pouring liquid into a pipe in a water channel, with a perforated drain visible (no text or symbols)

Emptying by spout MAXXI II - 55/75

Close-up of a person's hand placing a small object on a vehicle wheel (no visible text or symbols)

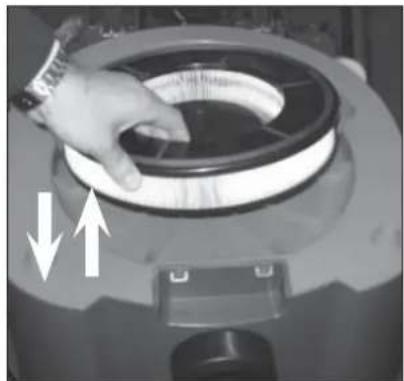

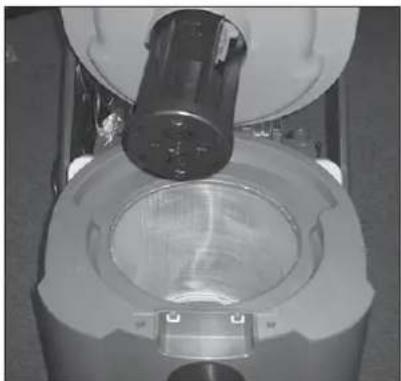

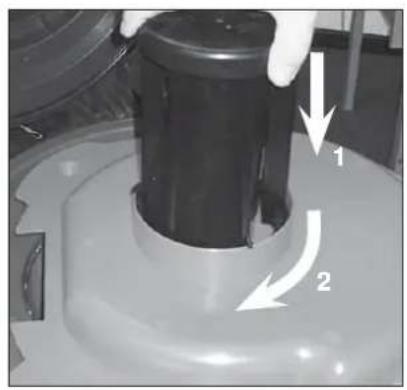

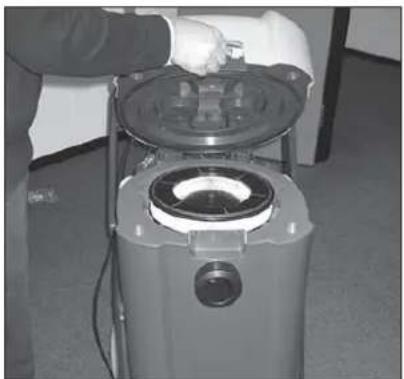

Cartridge filter

Close-up of a hand pointing at a car door panel, no visible text or symbols

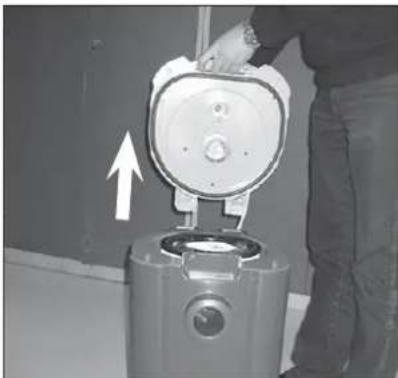

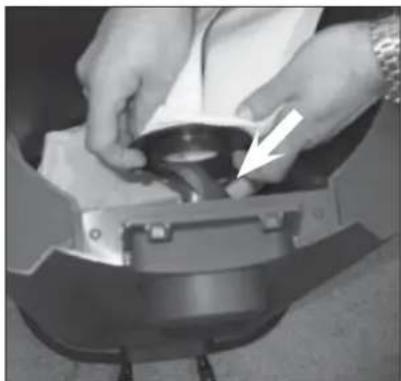

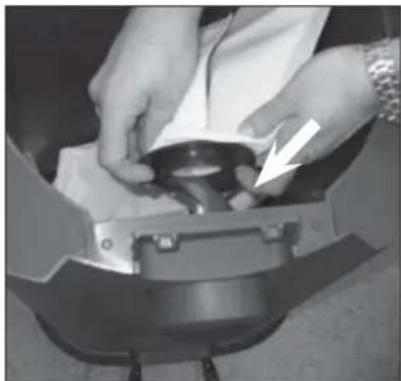

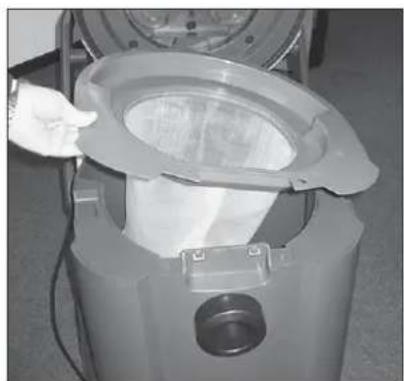

Dust bag replacement

Close-up of a mechanical component with fluid flowing through it, no visible text or symbols

Close-up of hands assembling a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

Close-up of a hand holding a fiber optic cable inside a mechanical device, with directional arrows indicating motion (no text or symbols visible)

Three sheets of paper with abstract geometric patterns, no visible text or symbols

Sack filter/wet filter

Close-up of a white fabric or material sample with no visible text or symbols

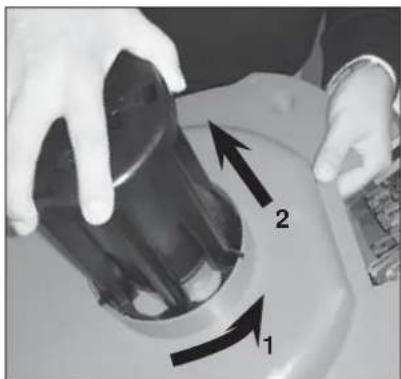

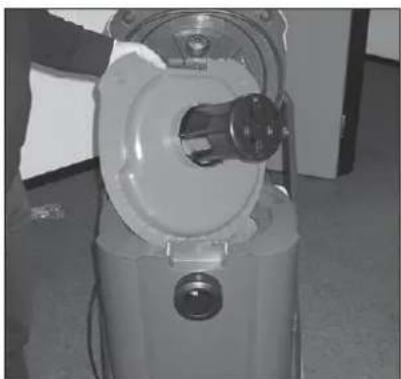

Float

Person placing a lid into a cylindrical device (no visible text or symbols)

Close-up of a medical or laboratory instrument with a metallic component and circular housing (no visible text or symbols)

Person in white hood and gloves handling a small object with a downward arrow (no text or symbols visible)

Close-up of hands holding a transparent cylindrical object with directional arrows labeled 1 and 2 (no text or symbols on the object itself)

Person operating a portable appliance with a lid and control panel (no visible text or symbols)

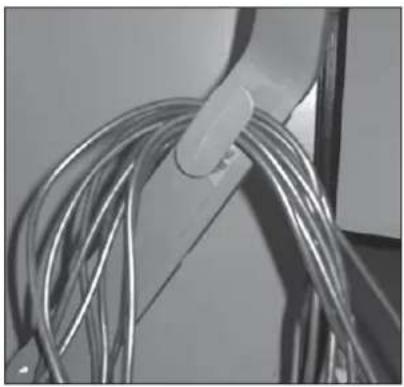

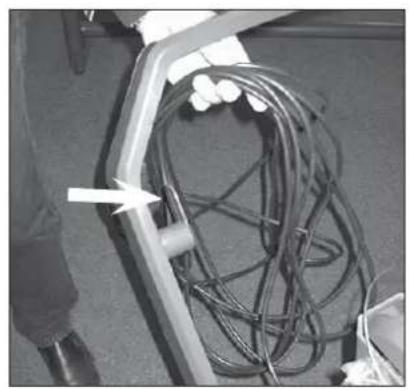

Cord handling

Close-up of a mechanical component with two directional arrows indicating motion (no text or symbols)

Person handling a bundle of cables or wires on a table, with one cable being inserted (no visible text or symbols)

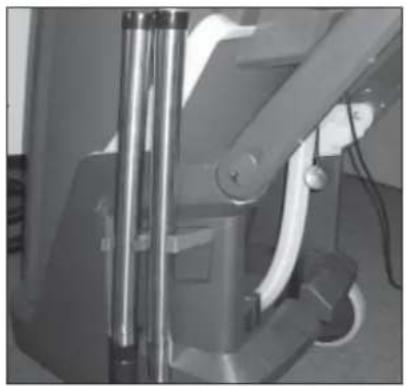

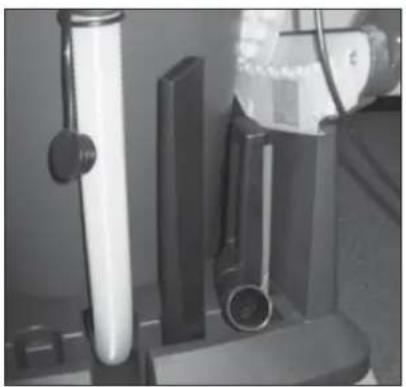

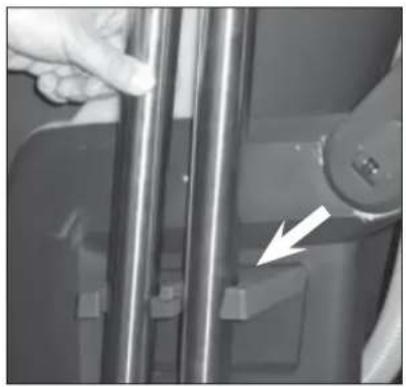

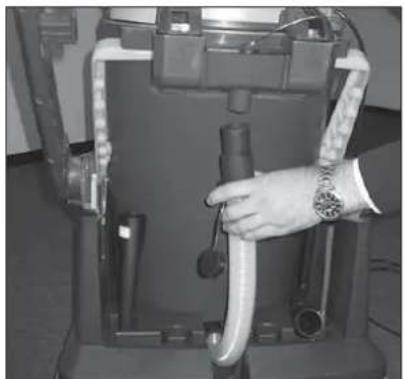

Storage

Close-up of bundled metallic wires with a white plastic clip attached (no text or symbols visible)

Close-up of a hand adjusting metal pipes with a white arrow pointing to a small component (no text or symbols visible)

Close-up of a mechanical device with metallic components and a curved arm (no visible text or symbols)

Close-up of laboratory equipment including a cylindrical tube and mechanical components (no visible text or symbols)

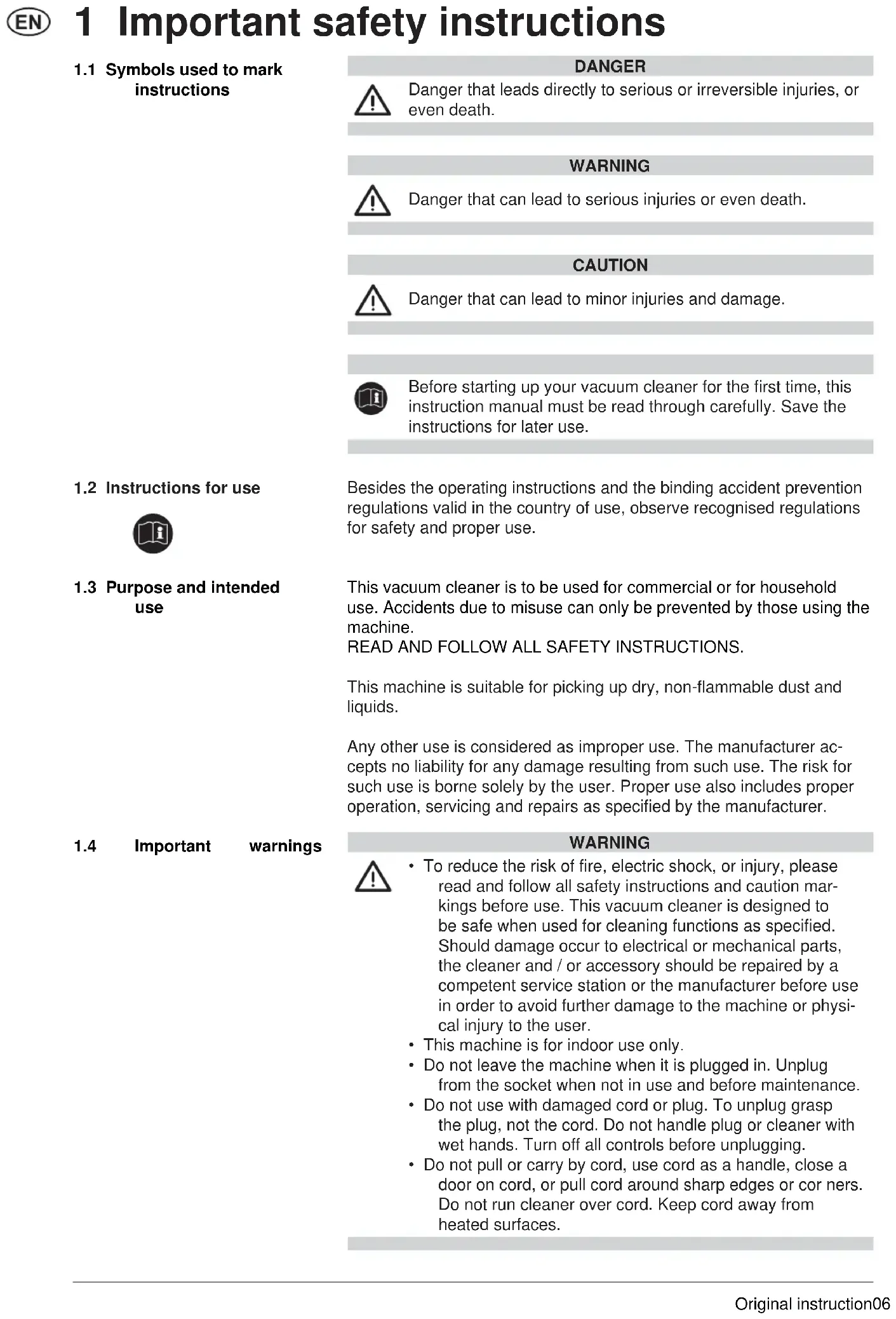

EN 1 Important safety instructions

1.1 Symbols used to mark instructions

DANGER

Danger that leads directly to serious or irreversible injuries, or even death.

WARNING

Danger that can lead to serious injuries or even death.

CAUTION

Danger that can lead to minor injuries and damage.

Before starting up your vacuum cleaner for the first time, this instruction manual must be read through carefully. Save the instructions for later use.

1.2 Instructions for use

Besides the operating instructions and the binding accident prevention regulations valid in the country of use, observe recognised regulations for safety and proper use.

1.3 Purpose and intended use

This vacuum cleaner is to be used for commercial or for household use. Accidents due to misuse can only be prevented by those using the machine.

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

This machine is suitable for picking up dry, non-flammable dust and liquids.

Any other use is considered as improper use. The manufacturer accepts no liability for any damage resulting from such use. The risk for such use is borne solely by the user. Proper use also includes proper operation, servicing and repairs as specified by the manufacturer.

1.4 Important warnings

WARNING

- To reduce the risk of fire, electric shock, or injury, please read and follow all safety instructions and caution markings before use. This vacuum cleaner is designed to be safe when used for cleaning functions as specified. Should damage occur to electrical or mechanical parts, the cleaner and / or accessory should be repaired by a competent service station or the manufacturer before use in order to avoid further damage to the machine or physical injury to the user.

• This machine is for indoor use only.
• Do not leave the machine when it is plugged in. Unplug from the socket when not in use and before maintenance.
• Do not use with damaged cord or plug. To unplug grasp the plug, not the cord. Do not handle plug or cleaner with wet hands. Turn off all controls before unplugging.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run cleaner over cord. Keep cord away from heated surfaces.

WARNING

• Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts. Do not put any objects into openings or use with opening blocked. Keep openings free of dust, lint, hair, and anything else that could re du ce the flow of air.
• This machine is not suitable for picking up hazardous dust.
• Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall be supervised to make sure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Use extra care when cleaning on stairs.
• Do not use unless filters are fitted.
• If the cleaner is not working properly or has been dropped, da ma ged, left out doors, or dropped into water, re turn it to a service center or dealer.
• If foam or liquid escapes from the machine, switch off immediately.

1.5 Double-insulated appliances

CAUTION

• Use only as described in this manual and only with the manufacturer's re com men ded attachments.
• BEFORE YOU PLUG IN YOUR CLEANER, check the rating plate at the cleaner to see if the rated vol ta ge agrees within 10% of the voltage available.
• This appliance is provided with double insula tion. Use only identical re pla ce ment parts. See instructions for serving double insulated appliances.

In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a mean for grounding be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement parts for a double-insulated appliance must be identical to the parts they replace. A double insulated appliance is marked with the words "DOUBLE INSULATION" or "DOUBLE INSULATED." The symbol (square within a square) may also be used on the product.

The machine is equipped with a specially designed cord which if damaged, must be replaced by a cord of the same type. This is available at authorised service centres and dealers and must be installed by trained personnel.

CAUTION

• Wet cleaner shall always have the Cartridge Filter, Wet Filter and the Float System mounted in the machine during both WET AND DRY operations. Please also notice that the fill factor at the container may vary using a sack filter during wet pick-up operations.
• Clean the water level limiting device regularly and examine it for signs of damage.
• This machine shall be stored indoors only.

2 Control / Operation

2.1 Starting and operating of the machine

Check that the electrical switch is switched off (in position 0). Check that suitable filters are installed in the machine. Then connect the suction hose into the suction inlet at the machine by pushing the hose forward until it fits firmly in place at the inlet. Then connect the two tubes with the hose handle, twist the tubes in order to ensure that they are properly fitted. Attach suitable nozzle to the tube. Choose nozzle depending on what type of material that is to be picked-up. Connect the plug into a proper electrical outlet. Put the electrical switch into position 1 in order to start the motor. Some variants have two motors/fan units and two electrical switches - one switch for each motor.

2.2 Before wet pick-up

CAUTION

The machine is equipped with a float system that shuts off the airflow through the machine when the maximum liquid level is reached. Never pick up liquid without the float body in place. To control: Loosen the latch at the front of the motor top. Then open the motor top. Check that the float basket and float valve are mounted at the filter plate. Remounting: Put back the motor top to the container. Then tighten the latch so that the motor top is properly secured. Always use a chemical defoamer when picking up water containing foaming detergents. Use a defoamer recommended by the detergent manufacturer. During wet suction of foam: On two-motor-machines always run the machine with only one motor on, in order to avoid extreme foaming and ensure the fill factor of the container.

2.3 Wet pick up The machine is equipped with a float body that shuts of the airflow
through the machine when the maximum liquid level is reached. You will then hear a noticeable change of the sound from the motor and notice that the suction power decreases. When this occurs, switch the machine off. Disconnect the machine from the socket.

2.4 Emptying after wet pick-up

Before emptying the container, unplug the vacuum cleaner. Always empty and clean the container and the float system after picking-up liquids. Never pick up liquid without the float system and filter(s) installed in the machine.

2.5 Emptying: MAXXI II 35 I

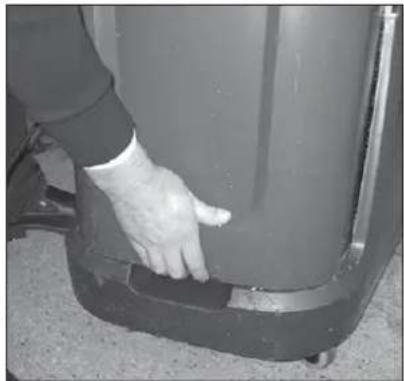

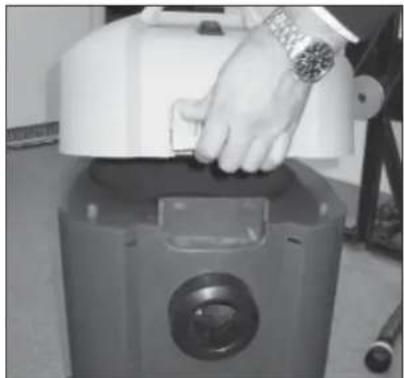

Release the front latch by pulling the lower parts outwards so that the motor top is released. Open the motor top and lift off. Remove the float system and filter(s) from the cleaner.

Disconnect the hose from the inlet by pulling out the hose.

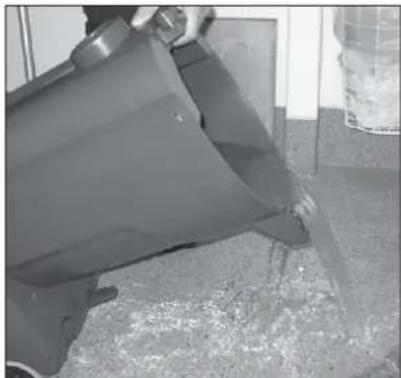

Empty by tilting the container backwards and pour the liquids into a floor drain or similar. Wipe the float valve and float basket with a damp cloth before the motor top is reinstalled to the container.

Put back the filter(s) and the motor top to the container. Secure the motor top with the front latch.

2.6 Emptying: MAXXI II 55/75 I

Drain hose: MAXXI II have a draining hose. Detach the drain hose from the bracket by pulling hose downwards from the cleaner. Place the drain hose end near a floor drain and then remove the plug at hose end. The natural pressure will then drain the liquids from the container. Emptying from the container spout: Take off the rubber cap at the back of the container. The drain hose must be attached during emptying from the container. Grasp with one hand at the handle at the lower part of the container and release the lock. To avoid movement of the trolley - place one foot at the basepart of the trolley. Then tilt the container backwards and pour the liquids into a floor drain or similar.

Open up the motor top and wipe the float valve and the float basket with a damp cloth.

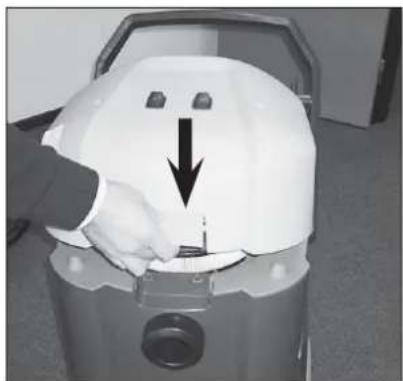

Close the motor top to the container. Secure front latch.

CAUTION

Be careful not to interfere hands, fingers etc. with the tilting mechanism during emptying the container.

2.7 Emptying after dry pick-up

Remove the electrical plug from the socket before emptying after dry pick-up. Check the filters and dustbag regularly. Release the latch by pulling them outwards so that the motor top is released. Open up the motor top from container.

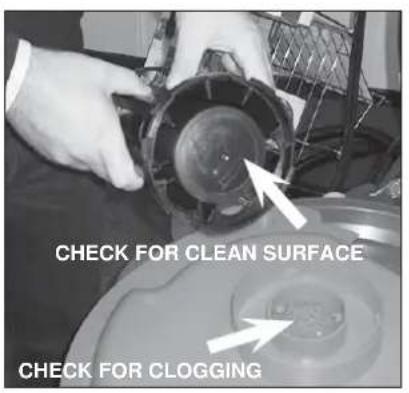

Cartridge filter: To clean the filter you can either shake, brush or wash it. Wait until it is dry before you reuse it. Check the motor filter, replace it if it is clogged.

Dustbag: check bag to ensure the fill factor. Replace dust bag if necessary. Remove the old bag. The new bag is fitted by passing the cardboard piece with the rubber membrane through the vacuum inlet. Make sure that the rubber membrane is passing past the heightening at the vacuum inlet.

After emptying: Close motor top to the container. Secure with the front latch. Never pick up dry material without cartridge filter or sackfilter and dustbag fitted in the machine. The suction efficiency of the vacuum cleaner depends on the size and quality of the filter and dust bag. Therefore - use only Original filter and dust bags.

3 Maintenance

3.1 Maintenance of the float system

Remove the electrical plug from the socket before performing maintenance. Always empty and clean the container and the float system after picking-up liquids. Release the front latch by pulling it outwards so that the motor top is released. Open up motor top from container. Then loosen the float basket by turning the basket to the left. Remove the complete float system from motor top. A filter is located in front of the motor inlet. Check this motor filter. Replace with new filter if filter is clogged. Wipe the float valve and float basket with a damp cloth before the motor top is reinstalled to the container. Then reinstall the float valve to the float basket. Make sure that the sealed surface of the float valve is installed upwards in direction towards the motor top. To mount the float basket - fit the arrow at the basket to the arrow. Then secure the float basket by turning it to the right.

3.2 Maintenance

Remove the plug from the socket before performing maintenance. Before using the machine make sure that the frequency and voltage shown on the rating plate correspond with the mains voltage.

Specifications and details are subject to change without prior notice. The accessories shown in the pictures may vary from model to model.

Always keep the cleaner in a dry place. The cleaner is designed for continuous heavy work. Depending on the number of running hours – the dust filters should be renewed. Keep the container clean with a dry cloth, and a small amount of spray polish.

For details of after sales service contact your dealer.

4 After using the cleaner

4.1 After use Remove the plug from the socket when machine is not in use. Wind up the cord starting from the machine. The power cord can be wound up around the handle/hooks located on the motor top or at the container. Some variants have special storage places for accessories.

4.2 Transport - Before transporting the dirt tank, close all the locks. - Eventually take off the motor top/container from the trolley (MAXXI II 55/75). - Do not tilt the cleaner if there is liquid in the dirt tank. - Do not use a crane hook to lift the cleaner.

4.3 Storage Store the appliance in a dry place, protected from frost.

4.4 Warranty Our general conditions of business are applicable with regard to the guarantee.

Unauthorised modifications to the appliance, the use of incorrect brushes in addition to using the appliance in a way other than for the intended purpose exempt the manufacturer from any liability for the resulting damage.

4.5 Recycling the cleaner Make the old cleaner unusable.

1. Unplug the cleaner.
2. Cut the power cord.
3. Do not discard of electrical appliances with household waste.

As specified in European Directive 2002/96/EC on old electrical and electronic appliances, used electrical goods must be collected separately and recycled ecologically.

Only applicable to UK. Please read these essential instructions

This vacuum cleaner is designed, developed and rigorously tested to function efficiently and safely when properly maintained and used in accordance with the following instructions. These instructions have been prepared with safety and efficiency paramount.

The machine operator must be trained by a suitably qualified instructor and must understand these instructions for use, and be made aware of any relevant regulations and legislation in force at the time of use.

CAUTION

This machine is not suitable for use in explosive or inflammable atmospheres or where such atmospheres are likely to be produced by the presence of volatile liquid or inflammable gas or vapour.

In no circumstances should the power supply cord be wrapped around fingers or any part of the operators person. The electrical supply plug must not be subjected to undue stress by pulling on the power supply cord.

Your MACHINE must only be connected to an electrical supply of the same voltage and frequency as indicated on the rating plate. Ensure that the plug fitted to the end of the power supply cord is suitable for your supply socket, if not refer to the information contained in 'Electrical Connections', or consult a qualified electrician. The electrical installation from which the supply is drawn must be maintained to current Institute of Electrical Engineers wiring regulations.

Only applicable to UK. Regular servicing and inspection

Regular servicing and inspection of your machine must be carried out by suitably qualified personnel in accordance with relevant legislation and regulations. In particular, electrical tests for earth continuity, insulation resistance, and condition of the flexible cord should be checked frequently.

In the event of any defect, the machine MUST be withdrawn from service, completely checked and repaired by an authorized service technician.

Only applicable to UK. Electrical connections

CAUTION

DOUBLE-INSULATED MACHINES - IMPORTANT:

This 240 volt 50 Hz. machine are fitted with a 13 amp. 3 pin moulded plug. The plug is fitted with a 13 amp. detachable fuse. The correct replacement for the fuse is identified by marking or colour coding. Only fuses that are ASTA approved to BS 1362 should be fitted. Never use the plug without the fuse cover fitted. Replacement fuse covers are available at any electrical retail outlet.

If the available socket outlet is not suitable for the plug supplied, the plug must be cut off and an appropriate plug fitted. The plug thus cut off MUST BE DESTROYED for safety reasons before being disposed of. Machines built for other voltages and frequencies are not normally supplied with a fitted plug.

If it is necessary to fit a plug, the wires in this power supply cord are coloured in accordance with the following code:

Only applicable to UK. Blue-neutral brown-live

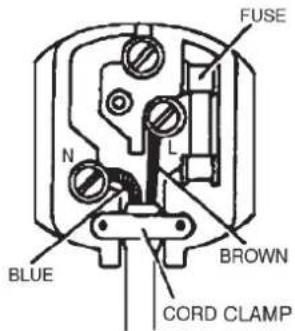

TO CONNECT THE NEW PLUG:

If using a three-pin plug, do not make any connection to the terminal in the plug which is marked with the letter 'E' or by the safety earth symbol or coloured green or green & yellow. This machine is double-insulated and no earth connection is necessary.

The blue wire must be connected to the terminal in the plug which is marked with the letter 'N' or is coloured black or blue.

The brown wire which must be connected to the terminal in the plug which is marked with the letter 'L' or is coloured red or brown.

If the plug to be fitted does not conform to the above notation then consult a qualified electrician.

Specifications

		MAXXI II 35	MAXXI II 55/751 motor	MAXXI II 55/752 motor	MAXXI II 35	MAXXI II 55/751 motor	MAXXI II 55/752 motor	MAXXI II 35	MAXXI II 55/751 motor
Possible voltage, V 220-240V 220-240V 220-240V 220-240V 220-240V 220-240V 220-240V 220-240V 220-240V 220-240V 220-240V 220-240V
Power Piec W 1250 1250	2400 1100 1	100 2000 1250							1200
Protection grade (moist, dust)		IP24 IP24	IP24 IP24 IP24	IP24 IP24 IP24
Protection class (electrical)		II ☐	II ☐ II II	II II II ☐	☐	☐	☐	☐	☐
Airflow	litres/sec		48	48		72	45		40
Vacuum	kPa 20	20 21 20 18 19 20 18
Suction power	W	250	250	390	220	170	340	250	200
Sound pressure IEC 704	dB(A)+/-2	81 82 84	81 82 84 81 82
Sound pressure BS 5415	dB(A)+/-2	62 64 66	62 64 66 62 64
Vibration ISO 5349	m/s2	<1,5 +/- 1	<1,5 +/- 1	<1,5 +/- 1	<1,5 +/- 1	<1,5 +/- 1	<1,5 +/- 1	<1,5 +/- 1	<1,5 +/- 1
Tank capacity	litres	35	55/75	55/75	35	55/75	55/75	35	55/75
Weight	kg	12,5	24,5/27	25,5/28	12,5	24,5/27	25,5/28	12,5	24,5/27

Specifications and details are subject to change without prior notice.

14600 21st Avenue North

Plymouth, MN 55447-3408

www.clarkeus.com

Phone: [phone]

Fax: [phone]

©2013 Nilfi sk-Advance, Inc.
