Prep'Line 852315 - Knife TEFAL - Free user manual and instructions

USER MANUAL Prep'Line 852315 TEFAL

Illustration of a pair of kitchen utensils, one with a loop handle and the other with a zigzag handle (no text or symbols)

F GB NL D E P I GR N DK FIN S TR AR IR

Illustration of two hands holding a pair of sawaws, enclosed in a circular frame (no text or symbols)

Fig 1

Illustration of hands using a power switch to cut a saw, with a red arrow indicating the cutting direction (no text or symbols present)

Fig 2

Illustration of a hand using a knife to cut food on a cutting board, with a red arrow indicating the process (no text or symbols present)

Fig 3

Fig 4*

Illustration of hands using a saw to cut a piece, with red arrows indicating the process (no text or symbols)

Fig 5

Description

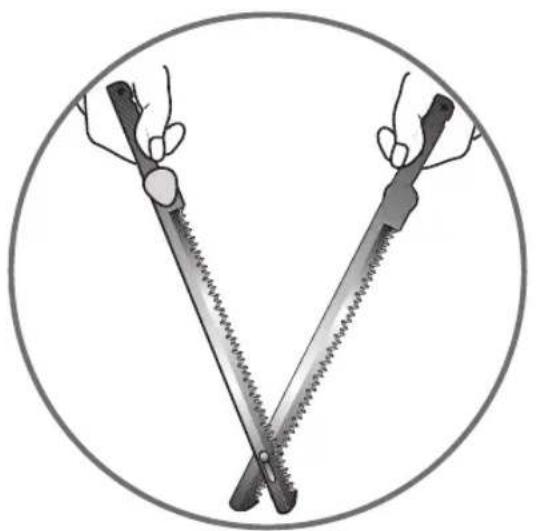

1. Take the two knives by their non-cutting ends.
   Hook the two knives together by sliding the rivet of one of them into the opening of the other (fig. 1). The protections must be outside the knives.

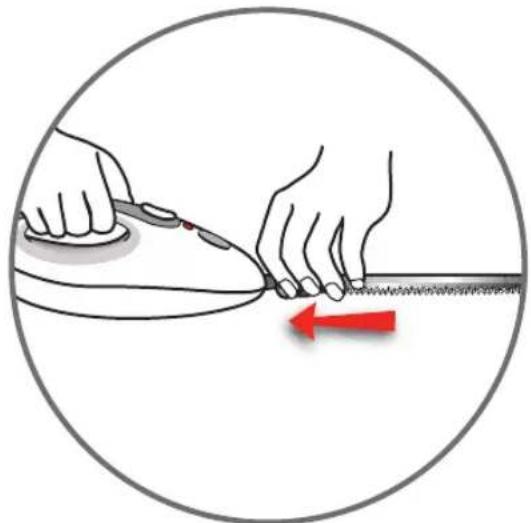

2. With the appliance unplugged, introduce the ends of the knives fully (cutting edge downwards) into the motor unit (4) while pinching the protections (5) (fig. 2). Once in place, release pressure to allow the knives to clip into place. When this happens, you will hear a slight click.

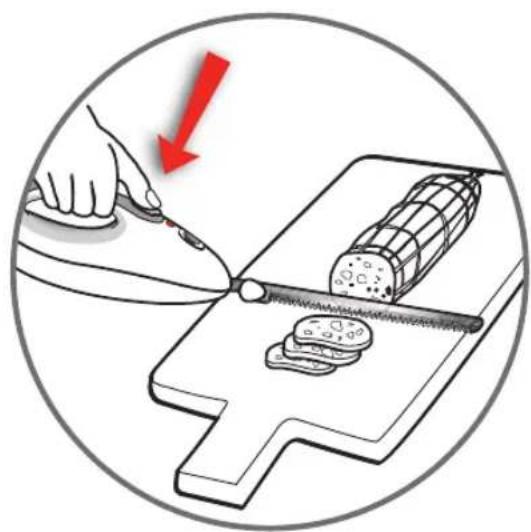

3. To slice with standard knives (fig. 3):

Plug in the appliance. The light (2) will come on. Start by pressing switch (1).

Place the knives on the food to be sliced and press (down3).

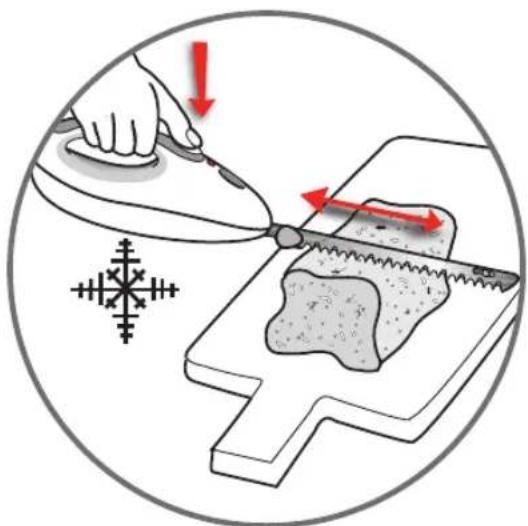

1. To slice with frozen products. 4) (according to model):

Plug in the appliance. The light (2) will come on. Start by pressing switch (1).

Place the knives on the food to be sliced and draw backwards and forwards ease cutting.

Do not use the appliance continuously for more than 10 minutes.

Unplug the appliance before removing the knives. Please keep children away from the appliance and the knives.

1. To disassemble the knives, UNPLUG the appliance; press the knife ejection button (3), take the knives, pinching the protections (5) and pull to remove them from the motor un(ifg. 5).

Cleaning

• Slide the knives to separate them.
• Wash with soapy water, rinse and wipe before storing them in their plastic sheaths.
• Knives can be washed in the dishwasher.

Safety instructions

• This appliance complies with applicable technical rules and standards.
• This appliance is not designed to be used by people (including children) with impaired physical, sensorial or mental capacities, or by persons with little or r experience or knowledge, unless they can benefit, through someone responsible for their safety, from surveillance or instructions prior to using the appliance.
• It is appropriate to watch over children to make certain that they do not play with the appliance.
• It is designed to run only on alternating current. Please check before first use that the mains power supply corresponds to that indicated on the appliance's rating plate.
• Do not place or use this appliance on a hot plate or close to a flame (gas cooker).
• Only use this product on a stable work surface protected from being splashed with water.

• Unplug the appliance:

• if it is not working correctly,

• before any cleaning or maintenance,

• after use.

• Never pull on the power supply cord to unplug the appliance.

• Only use an extension cord if you have already checked that it is in good working order.

• An electrical household appliance must not be used:

• if it has fallen,

• if the power supply cord is damaged,
• if the knife is damaged or incomplete.

- If the power supply cord is damaged, it must be replaced by the manufacture its after-sales department or a person with similar qualification to avoid any risk of danger.

- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

In such cases and for all other repairs YOU MUST contact an authorised repair

This product is designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

Electrical or electronic product at end of service life

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Let's all help protect the environment!

Your appliance contains many recyclable materials that can be re-used.

Take it to a collection point or, failing this, to a certified service centre for it to be re-processed.

Helpline:

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

0845 602 1454 - UK

[phone] - Ireland

or consult our website: www.groupeseb.co.uk
