Product type	Oscillating tower fan
Brand	Domo
Model	DO8148
Power supply	Mains 220–240 V ~ 50/60 Hz
Power	Not specified (estimated 50–60 W)
Speeds	3 speeds (low, medium, high)
Oscillation	4 angles: 30°, 90°, 180°, 360°
Timer	Up to 8 hours (1 h, 2 h, 4 h, 8 h)
Special functions	Natural (simulates natural breeze) and Sleep (progressive slowdown)
Controls	Touch panel + remote control with CR2032 battery included
Tilt	Adjustable angle up or down (30°, 60°, 90°)
Remote range	5 meters
Modes	Normal ventilation, Natural, Sleep
Displays	Indicator lights for each function
Safety	Automatic shut-off via timer; protective grille
Care and cleaning	Soft damp cloth; do not immerse or use abrasive products
Warranty	2 years on the device, 6 months on accessories/wear parts
Repairability	Repairs exclusively by the manufacturer or its authorized service
Package contents	Fan, base, remote control, CR2032 battery, manual
Weight and dimensions	Not specified

Frequently Asked Questions - DO8148 DOMO

How to adjust the fan speed?

Press the speed adjustment button on the touch panel or remote control. Each press increases the speed. The fan has 3 speeds: low, medium, and high. The corresponding indicator light turns on to show the selected speed.

How to use the timer?

Press the timer button to set an automatic shut-off duration. Each press increases the time: 1h, 2h, 4h, then up to 8h. A fifth press deactivates the timer. Once the time has elapsed, the fan automatically stops.

How to activate oscillation?

Press the oscillation button. Each press changes the oscillation angle between 30°, 90°, 180° and 360°. The indicator shows the selected angle. An additional press deactivates oscillation.

What to do if the remote control stops working?

First check the insertion of the CR2032 battery and its orientation. If necessary, replace it. The remote control has a range of 5 meters; make sure you are within this area and without obstacles. Use the controls on the touch panel in the meantime.

How to clean the fan?

Always unplug the device before cleaning. Use a soft damp cloth for the exterior. Do not use abrasive or harsh products. Avoid any water infiltration into the motor. Do not disassemble the device for cleaning.

Can I use the fan outdoors?

No, this device is designed for indoor household use only. Do not use it in wet or humid places, nor near a bathtub or water reservoir.

The device makes an abnormal noise, what should I do?

Check that no object is obstructing the grille or the blade. Make sure the fan is on a stable and level surface. If the noise persists, unplug the device and contact after-sales service. Do not attempt to repair it yourself.

How to use the sleep function?

Press the function button twice until the sleep indicator lights up. The fan diffuses a natural breeze whose speed decreases every 30 minutes. You can choose the maximum, medium, or low speed via the speed button.

What is the range of the remote control?

The remote control works up to 5 meters away. Ensure there are no obstacles between the remote control and the device's receiver.

What battery to use for the remote control?

The remote control uses a CR2032 button cell (3V). It is included in the packaging. To install it, open the battery compartment, insert the battery respecting the polarity (+) and close it.

USER MANUAL DO8148 DOMO

Close-up of a white and black electric fan with visible blades and grille (no text or symbols)

DO8148

Handleiding Tafelventilator

Mode d'emploi Ventilateur de table

Gebrauchsanleitung Tischventilator

Instruction booklet Table fan

Manual de instrucciones Ventilador de mesa

Istruzioni per l'uso Ventilatore da tavolo

Návod k použití Stolní ventilátor TURBO

Návod na použitie Stolný ventilátor TURBO

Two simple symbols: a warning triangle with an exclamation mark and an open book with a blank pages (no text or labels)

Diagram showing three-step assembly steps of a mechanical clamp or clip device, labeled 1 to 4 with directional arrows and numbered components.

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Diagram showing three-step assembly steps of a device with labeled parts and directional arrows indicating movement.

Warning symbol for a trash bin with crossed and uncorrected lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

White rectangular electronic device with a small black pointer on the side (no visible text or symbols)

6

Close-up of a textured, curved surface with concentric rings and a horizontal line (no text or symbols)

7 8 9 10 11

8 9 10 11 12 7

Diagram showing three-step assembly steps of a device with labeled parts and directional arrows indicating movement.

Warning symbol for a trash bin with crossed and uncorrected lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

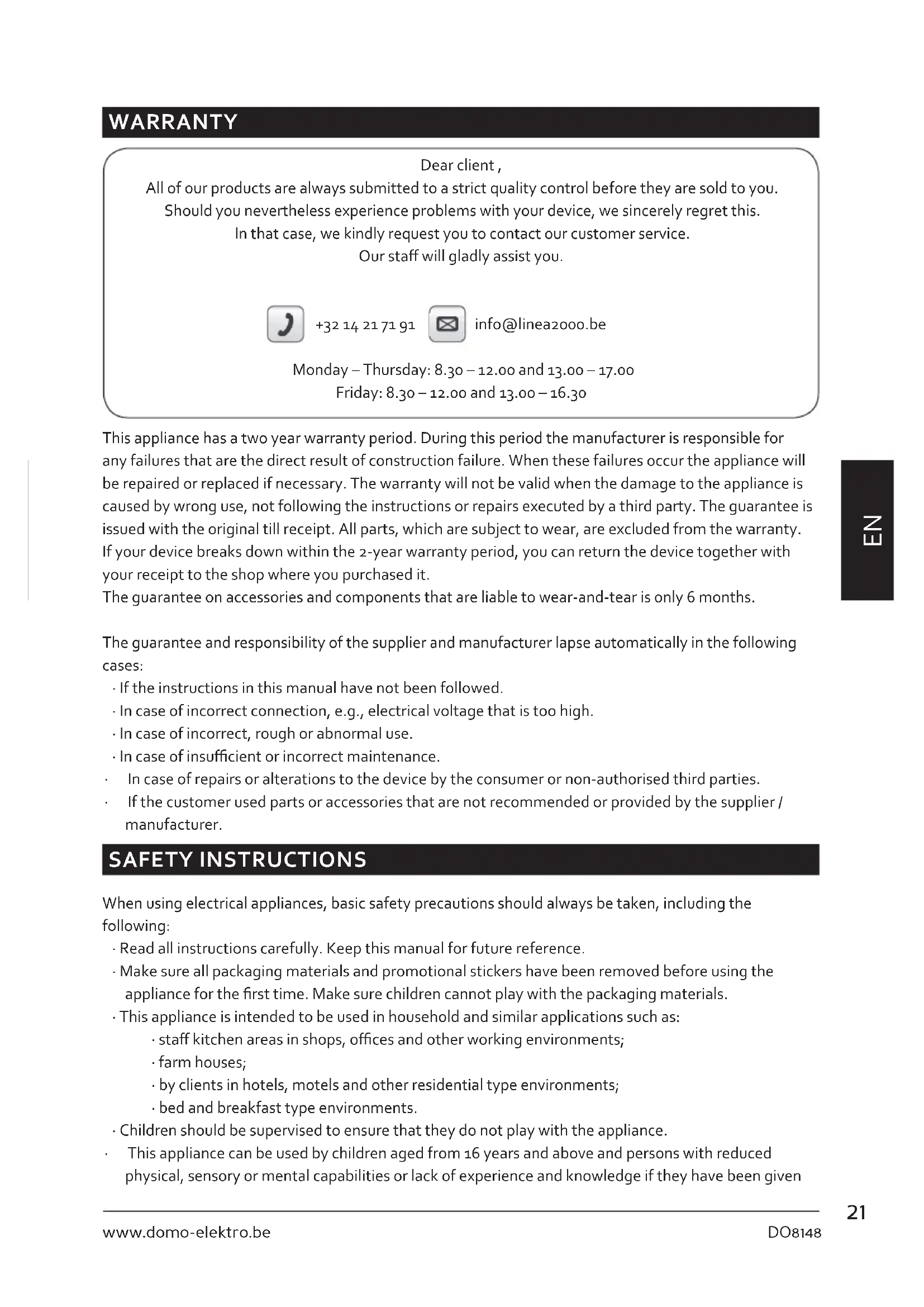

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
• In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;
· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

• Attention: This appliance cannot be used with an external timer or a separate remote control.

- Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.

- Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.

- Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

· Do not leave a working appliance unattended.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

- Do not use the appliance outdoors.

- Only use the appliance for its intended use.

· Always use the appliance on a steady, dry and level surface.

- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· All repairs should be carried out by the manufacturer or its aftersales service.

· Never immerse the appliance, the cord or the plug in water or any other liquid.

- Make sure that children do not touch the cord or appliance.

- Keep the cord away from sharp edges and hot parts or other heat sources.

· Before use, remove all packaging materials and any promotional stickers.

- Do not insert any objects into the fan, as this may cause electric shock, injuries or damage to the appliance. Do not block or tamper with the fan when it is operating.

- Do not use this fan in any wet or humid areas. Do not place the fan too close to a bath tub or any other water container.

SAVE THESE INSTRUCTIONS.

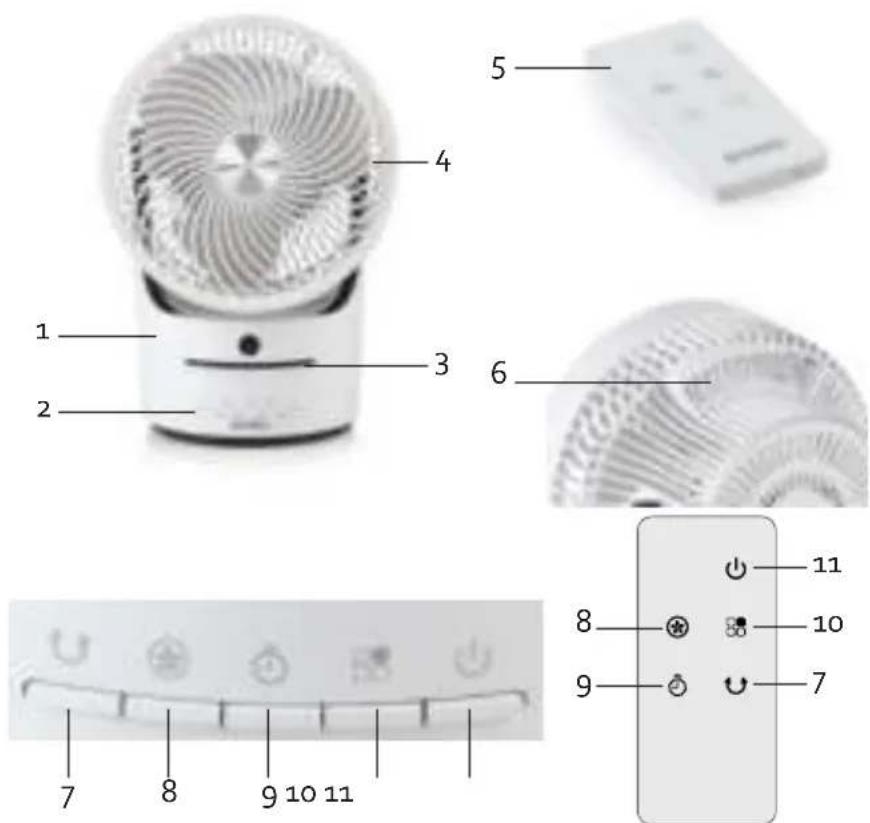

PARTS

1. Base
2. Control panel
3. Indicator lights
4. Grill with fan blades
5. Remote control
6. Handle/holder for remote control

CONTROL PANEL/REMOTE CONTROL

1. Oscillation button
2. Knob for setting speed
3. Timer
4. Mode knob
5. On/Off button

Diagram of a fan with numbered parts and labeled buttons, including front panel, rear panel, and control panel.

BEFORE THE FIRST USE

• Carefully remove the device from the packaging. Remove any promotional stickers.
  · Clean the outside of the device with a soft damp cloth.

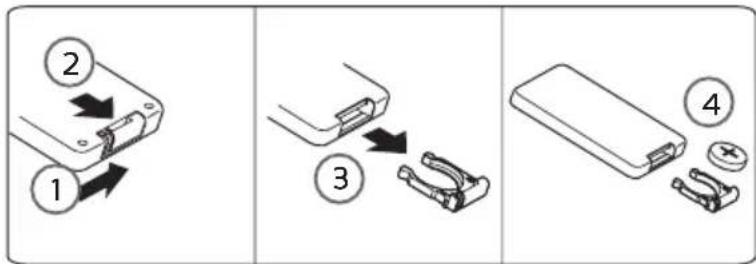

  Before using the appliance with the remote control, a coin cell battery (CR2032) must be placed in the remote control. This is provided. Follow the instructions below.

Diagram showing three-step assembly steps of a device with labeled parts and directional arrows indicating movement.

· The remote control has a range of 5 metres.

USE

Plug the power cord into a socket. A beep indicates that the device is in standby mode. You can control the fan from the control panel or with the remote control. Each time a button is pressed, the device emits an audible signal and an indicator light lights up to indicate that the desired setting has been implemented.

ON/OFF BUTTON

Press this button to turn the device on or off. The corresponding indicator light lights up ⏻. The fan starts working at the lowest speed or at the last set speed. This can be seen from the indicator light that illuminates.

BUTTON FOR SPEED SETTINGS

Press this button to set the speed as desired. Each press of the button will increase the speed. The fan has 3 speeds. The selected speed can be seen by means of the indicator light that illuminates.

· Low speed
· Medium speed
· High speed

OSCILLATION BUTTON

Press this button to turn the oscillation on or off. With oscillation, the device rotates alternately to the left and to the right to distribute the air better. Press the button to increase the amount of oscillation. There are 4 oscillation settings. You can see the chosen setting from the indicator light that illuminates.

· 30° oscillation 30
· 90° oscillation 90
· 180° oscillation 180
· 360° oscillation 360

TIMER

Press the timer button to set the timer to a maximum of 8 hours. Each press of the button will increase the time. The selected time is indicated by the indicator light that illuminates.

• Press this button once to set the timer for 1 hour.
• Press this button twice to set the timer for 2 hours. 2
• Press this button three times to set the timer for 4 hours.
• Press this button four times to set the timer for 8 hours. 8
• Press this button a fifth time to turn off the timer.

Afterwards, the fan switches itself off automatically.

MODE KNOB

In addition to the normal ventilation mode, the fan also has two other modes: natural and sleep. Using this button, it is possible to switch the ventilation mode from the natural mode to the sleep mode.

Natural mode

Press the mode button once to activate the natural mode. The corresponding indicator light illuminates ⬆. The fan simulates a natural breeze by systematically alternating between different speeds.

The button for the speed settings allows you to choose from three speeds within the natural mode. The selected speed will be in operation most often.

Sleep mode

Press the mode button twice to activate the sleep mode. The corresponding indicator light illuminates 🌐. Thefandistributesanaturalbreezethatdecreasesinspeedeveryhalfhour.

Thespeedsettingsbuttonallowsyoutochoosefromthreespeedswithinthesleepmode.

• Highest speed: the fan operates for 30 minutes at the highest natural mode speed, then switches to the medium natural mode speed mode for 30 minutes and then works at the low natural mode.
• Medium speed: the fan operates in the medium natural mode speed for 30 minutes and then switches to the low natural mode speed.
• Low speed: the fan works in the same cycle as the low natural mode speed.

Press the mode button a third time to switch back to ventilation mode.

FAN DIRECTION

You can adjust the ventilation direction up or down by 30^ , 60^ or 90^ . This is done by pushing the fan head up or down. You will hear a click when the fan head is correctly positioned.

CLEANING AND MAINTENANCE

• This fan requires very little maintenance. Never try to repair the fan yourself. If it is defective, have it checked and/or repaired by a qualified person.
  · Prior to assembling the fan or cleaning it, remove the plug from the outlet.
• Keep the rear grill free of dust and other substances in order to allow free circulation of the air around the motor. Do not disassemble the fan to remove dust from the motor.
  · You may clean the exterior of the machine with a soft moist cloth.
  · Never use corrosive or abrasive products to clean the machine.
  · Make sure that no water gets into the motor of the machine.

ENVIRONMENTAL GUIDELINES

Warning symbol for a trash bin with crossed and uncorrected lines, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.
