Product type	Surge-protected power strip with remote control
Brand	EnerGenie
Model	EG-SP5-U6B-RM
Number of outlets	5 Schuko (German) outlets
USB ports	2 USB 5 V DC ports, total current up to 2 A
Input voltage	250 V AC, 50 Hz
Maximum total current	16 A
Maximum power	3680 W (16 A × 230 V)
Surge protection	Up = 1.2 kV (L-N, L-G, N-G); Uoc = 4 kV
Child protection	Safety shutters on outlets
Housing material	High-quality flame-retardant plastic
Remote control range	Up to 10 m
Standby consumption	0.6 W
Cable length	1.8 m
Dimensions (L × l × H)	421 mm × 61 mm × 44 mm
Net weight	0.73 kg
Wall mounting	Can be mounted using mounting holes
Warranty	36 months
Maintenance and cleaning	Unplug the device before cleaning. Use a dry, soft cloth. Do not use abrasive products or liquids.
General information	Compliant with European standards (CE). Do not dispose of with household waste. Recycle according to local regulations.

Frequently Asked Questions - EGSP5U6BRM EnerGenie

How to use the remote control with the power strip?

The remote control allows you to turn the power strip's outlets on or off remotely. Point the remote at the receiver (located on the power strip) and press the corresponding button. The range is up to 10 meters.

What is the maximum power the power strip can handle?

The power strip can handle a total load of 16 A at 250 V AC, i.e., a maximum power of 3680 W. Do not exceed this limit to avoid overheating risks.

Can I charge my devices via the USB ports?

Yes, the two USB ports provide a voltage of 5 V DC with a maximum total current of 2 A. They are suitable for charging smartphones, tablets, and other small devices.

Does the power strip protect against power surges?

Yes, it offers surge protection with protection levels: Up = 1.2 kV for L-N, L-G, and N-G modes, and Uoc = 4 kV. This protects your equipment from voltage spikes.

Is the power strip suitable for children?

Yes, the outlets are equipped with safety shutters that prevent insertion of foreign objects. This provides additional protection for children.

How do I clean the power strip?

Before any cleaning, unplug the power strip from the wall outlet. Use a dry, soft cloth to dust. Never use liquid or abrasive products.

Can I mount the power strip on the wall?

Yes, the power strip has mounting holes on the back. You can fix it to the wall using appropriate screws (not included). Make sure the location is dry and accessible.

What is the standby power consumption of the power strip?

In standby mode, the power strip consumes only 0.6 W, which allows energy savings when devices are turned off via the remote control.

What to do if the remote control stops working?

First check the remote control battery. Replace it if necessary. Make sure no obstacles block the signal between the remote and the power strip. If the problem persists, contact customer service.

How to dispose of the power strip at the end of its life?

Do not dispose of the power strip with household waste. Take it to an electronic waste collection point in accordance with local regulations. Recycling helps protect the environment.

USER MANUAL EGSP5U6BRM EnerGenie

Black electrical power strip with five socket ports and a control panel (no visible text or symbols)

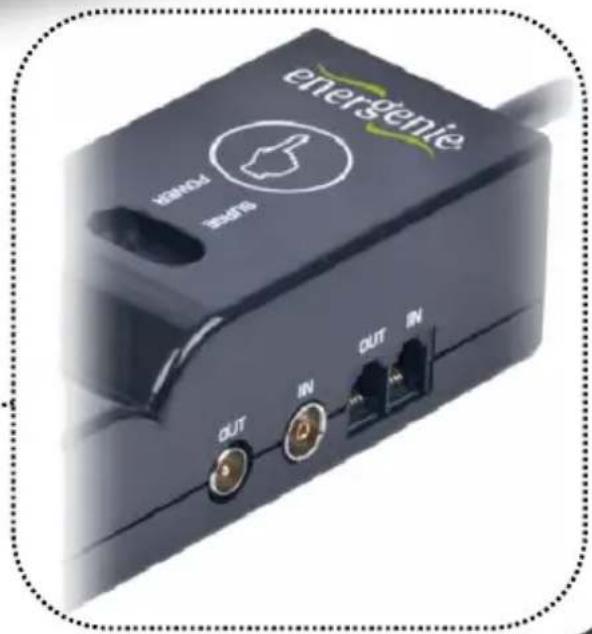

energenie WARNING OUT IN OUT IN

EG-SP5-TNCU6B-RM, EG-SP5-U6B-RM REMOTE CONTROLLED 5 SOCKET SURGE PROTECTOR

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Image displaying a grid of national flags including the European Union, Germany, Switzerland, Austria, Netherlands, Belgium, France, Russia, and Ukraine.

CE NoHS MADE IN CHINA

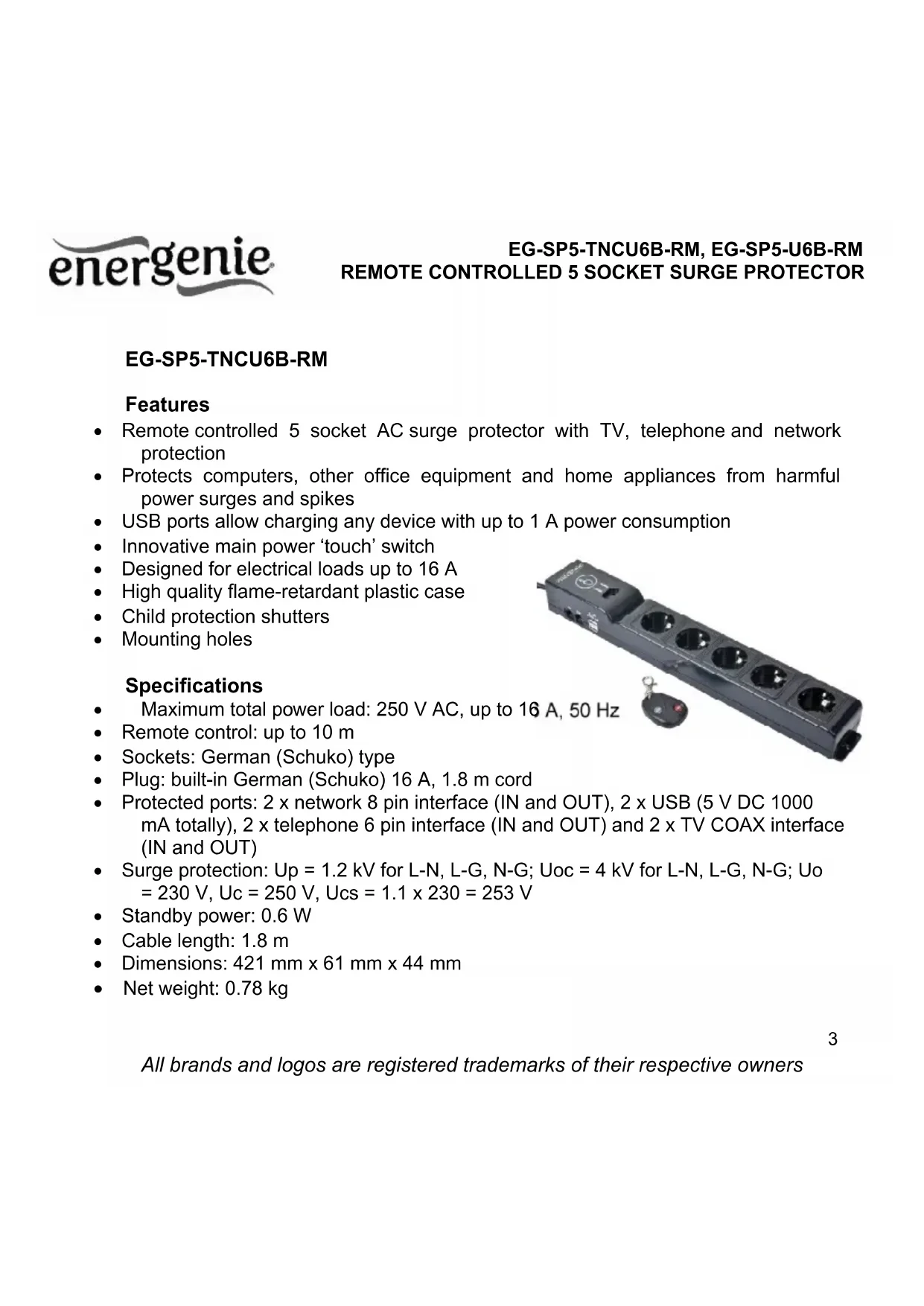

EG-SP5-TNCU6B-RM

Features

• Remote controlled 5 socket AC surge protector with TV, telephone and network protection
• Protects computers, other office equipment and home appliances from harmful power surges and spikes
  • USB ports allow charging any device with up to 1 A power consumption
  • Innovative main power 'touch' switch
• Designed for electrical loads up to 16 A
  • High quality flame-retardant plastic case
  • Child protection shutters
• Mounting holes

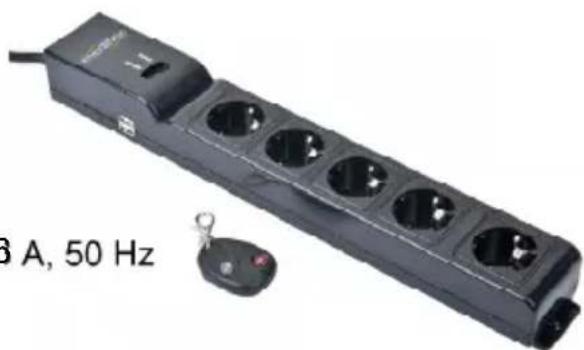

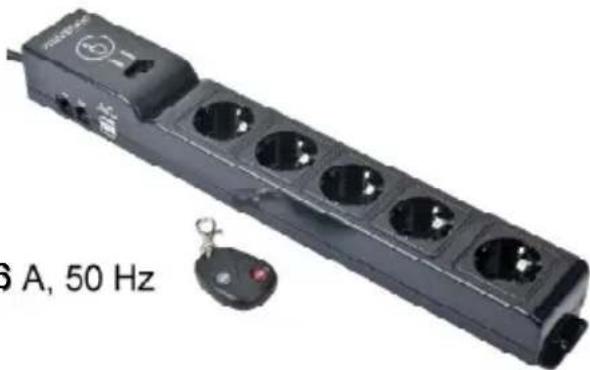

Black power strip with six slots and a key, labeled '6 A, 50 Hz' (no other text or symbols)

Specifications

• Maximum total power load: 250 V AC, up to 16 A, 50 Hz
• Remote control: up to 10 m
- Sockets: German (Schuko) type
• Plug: built-in German (Schuko) 16 A, 1.8 m cord
- Protected ports: 2 x network 8 pin interface (IN and OUT), 2 x USB (5 V DC 1000 mA totally), 2 x telephone 6 pin interface (IN and OUT) and 2 x TV COAX interface (IN and OUT)
- Surge protection: Up = 1.2 kV for L-N, L-G, N-G; Uoc = 4 kV for L-N, L-G, N-G; Uo = 230 V, Uc = 250 V, Ucs = 1.1 x 230 = 253 V
• Standby power: 0.6 W
• Cable length: 1.8 m
• Dimensions: 421 mm x 61 mm x 44 mm
• Net weight: 0.78 kg

EG-SP5-U6B-RM

Features

• 5 socket AC surge protector with remote control
• Protects computers, other office equipment and home appliances from harmful power surges and spikes
  • USB ports allow charging any device with up to 2 A power consumption
• Designed for electrical loads up to 16 A
  • High quality flame-retardant plastic case
  • Child protection shutters
• Mounting holes

Black power strip with six slots and a key, labeled '3 A, 50 Hz' (no other text or symbols)

Specifications

• Maximum total power load: 250 V AC, up to 16 A, 50 Hz
• Remote control: up to 10 m
- Sockets: German (Schuko) type
• Plug: built-in German (Schuko) 16 A, 1.8 m cord
• USB ports: 2 pcs, 5 V DC, total current up to 2 A
• Standby power: 0.6 W
• Cable length: 1.8 m
• Dimensions: 421 mm x 61 mm x 44 mm
• Net weight: 0.73 kg

- Surge protection: Up = 1.2 kV for L-N, L-G, N-G; Uoc = 4 kV for L-N, L-G, N-G; Uo = 230 V, Uc = 250 V, Ucs = 1.1 x 230 = 253 V

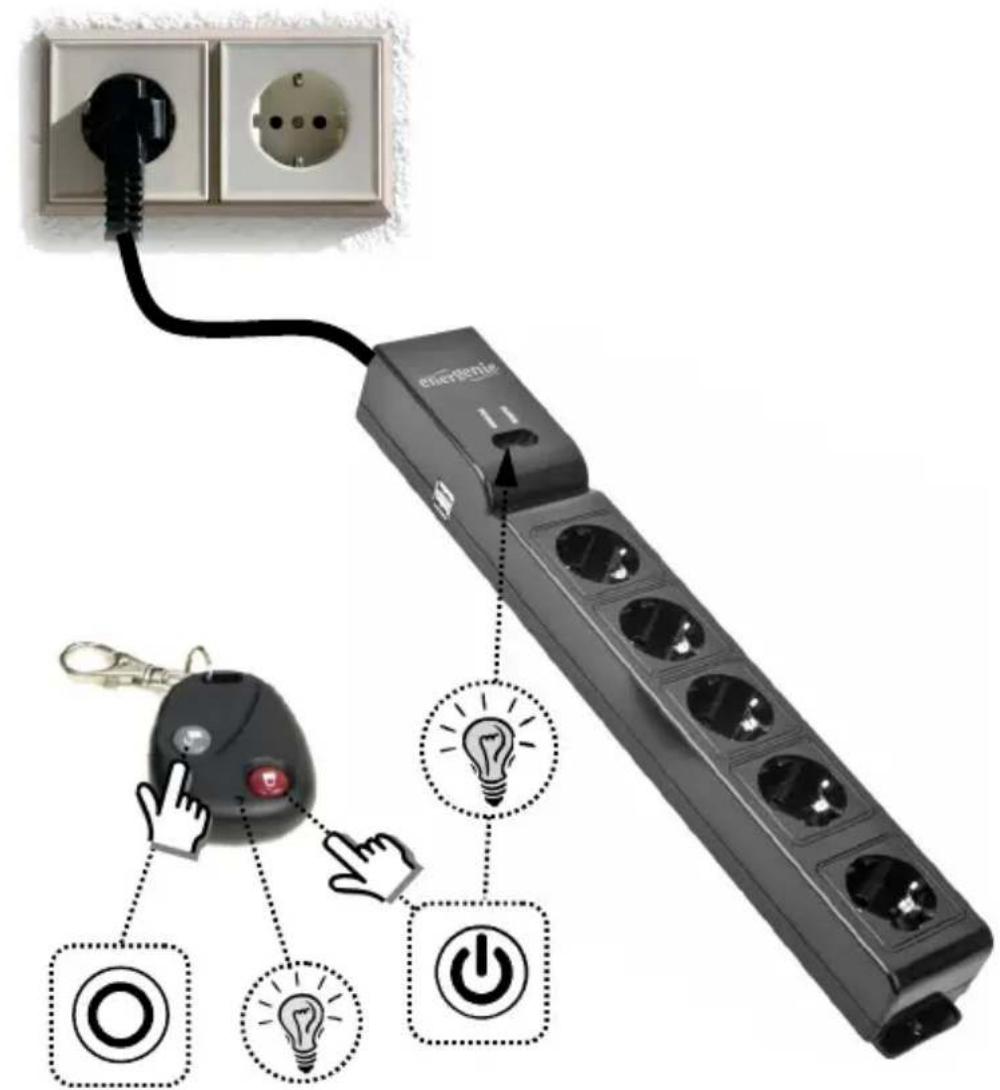

① EG-SP5-U6B-RM EG-SP5-TNCU6B-RM

Diagram showing connections between a power strip with labeled components including a plug, switch, and indicator lights.

All brands and logos are registered trademarks of their respective owners

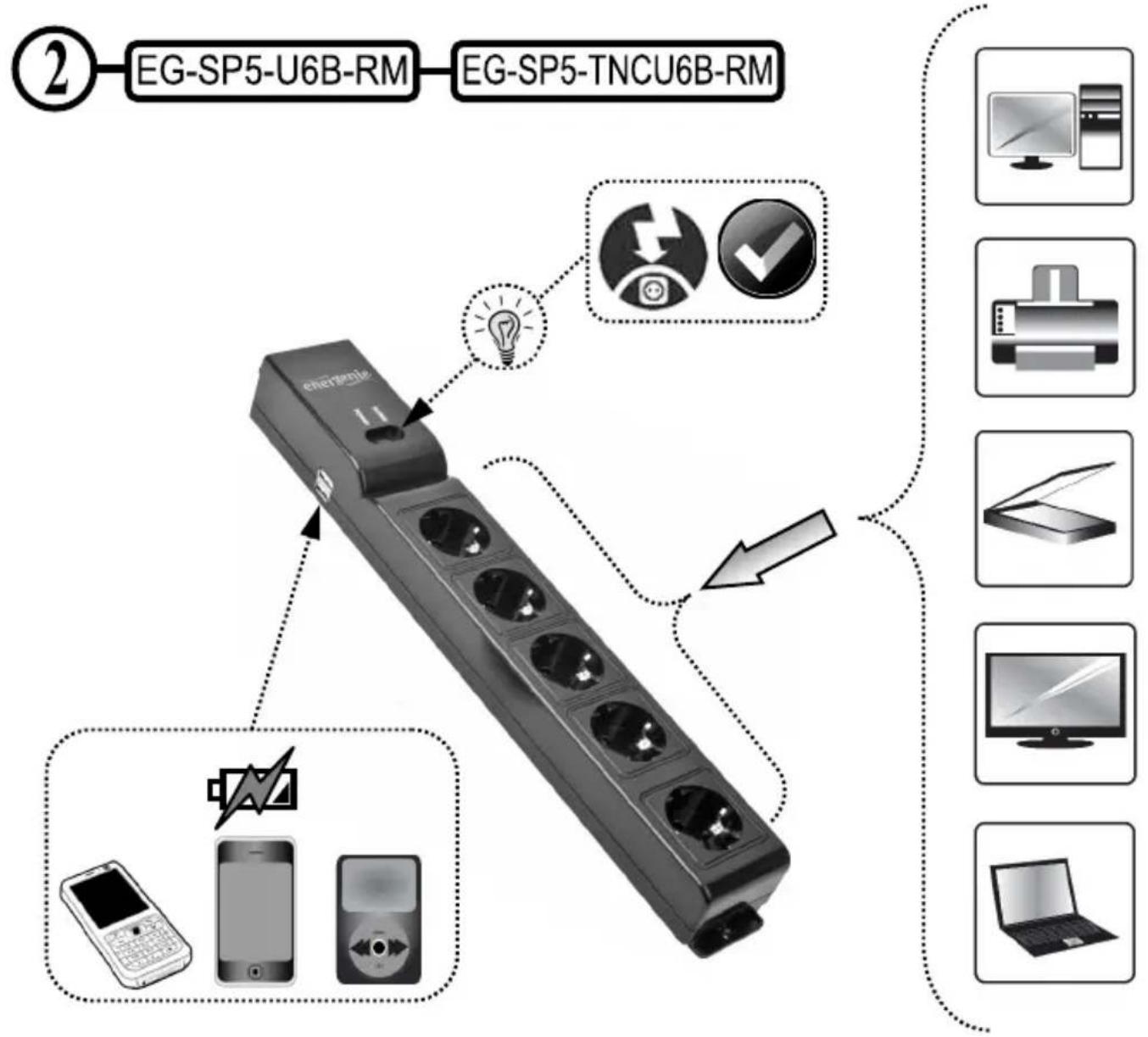


All brands and logos are registered trademarks of their respective owners

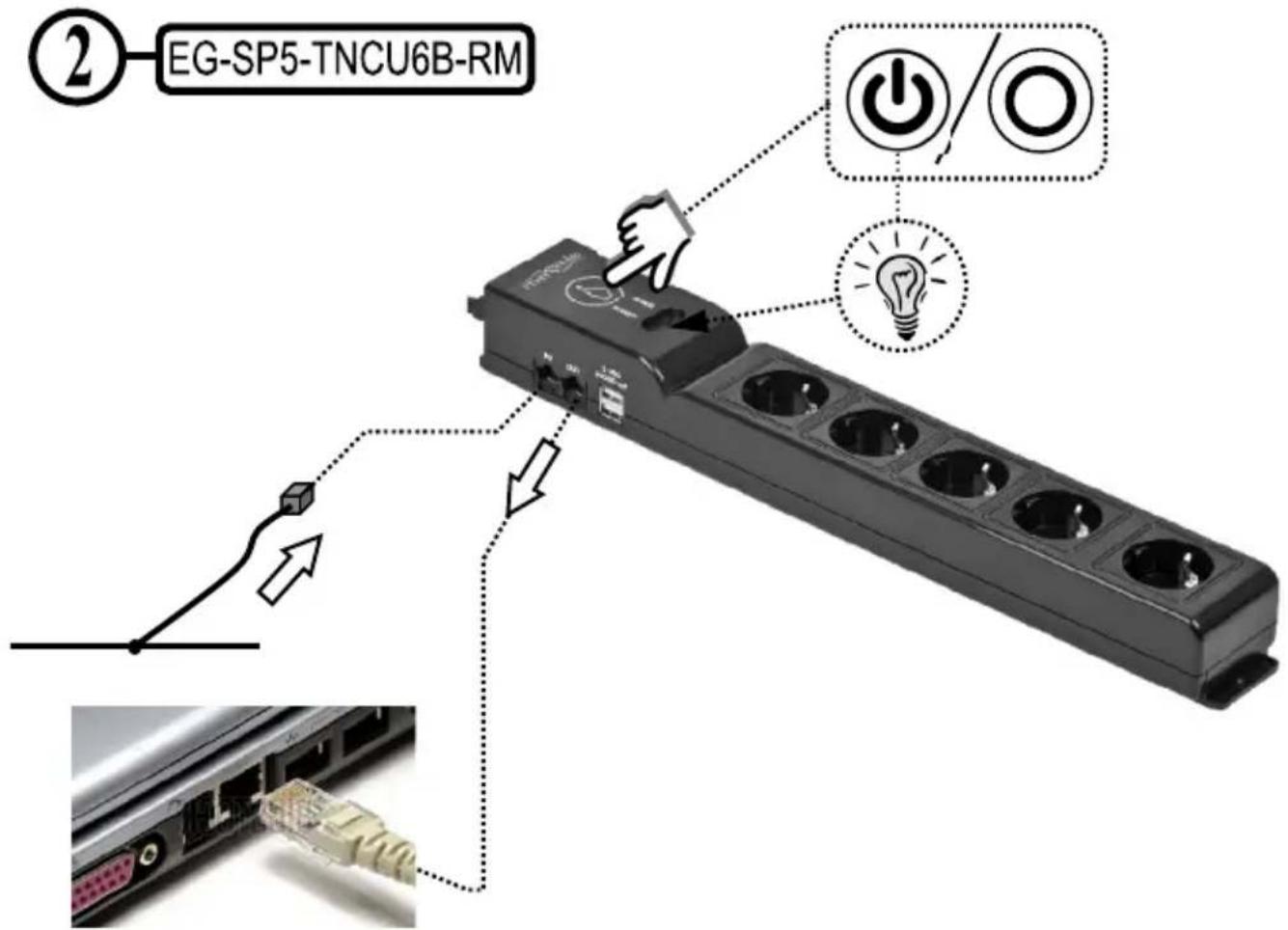

② EG-SP5-TNCU6B-RM POWER Power/○ Power/○

All brands and logos are registered trademarks of their respective owners

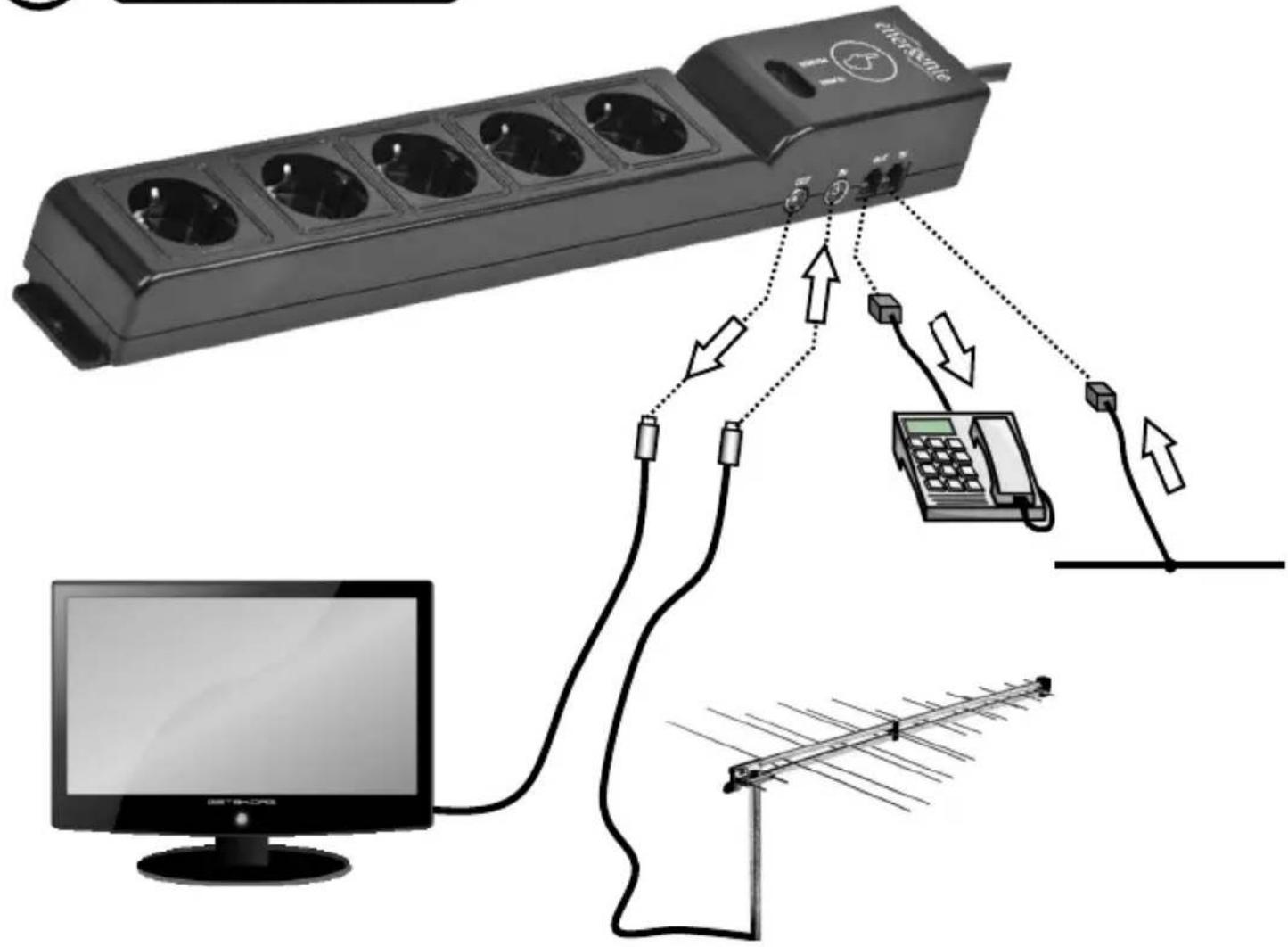

③ EG-SP5-TNCU6B-RM

All brands and logos are registered trademarks of their respective owners

energenie

EG-SP5-TNCU6B-RM, EG-SP5-U6B-RM REMOTE CONTROLLED 5 SOCKET SURGE PROTECTOR

All brands and logos are registered trademarks of their respective owners

EC Declaration of Conformity

We hereby certify that the following product complies with all the relevant

Safety Requirements of § 4 EMVG and of the Directives 2006/95/EC; 93/68/EEC and 2004/108/EC.

Applicant :

Gembird Europe BV

Wittevrouwen 56,

1358CD, Almere, The Netherlands

Equipment :

Computer parts

Model Nos. :

EG-SP5-U6B-RM

Product description :

EG-SP5-U6B-RM Remote controlled 5 socket surge

protector

European standards:

EN55022:2006; EN55024:1998+A1:2001+A2:2003; EN61000-3-2:2006;

EN61000-3-3:2008; EN60335:2002+A13:2008; EN55014:2006;

EN55014-2:1997+A2:2008

The following manufacturer/WITHIN Europe is responsible for this declaration:

Gembird Europe BV

Wittevrouwen 56, 1358CD, Almere, The Netherlands

Tel: [phone]. Fax: [phone]

Director

Authorized signature

EC Declaration of Conformity

We hereby certify that the following product complies with all the relevant

Safety Requirements of § 4 EMVG and of the Directives 2006/95/EC; 93/68/EEC and 2004/108/EC.

Applicant :

Gembird Europe BV

Wittevrouwen 56.

1358CD, Almere, The Netherlands

Equipment :

Computer parts

Model Nos. :

EG-SP5-TNCU6B-RM

Product description :

EG-SP5-TNCU6B-RM Remote controlled 5 socket

surge protector

European standards:

EN55022:2006; EN55024:1998+A1:2001+A2:2003; EN61000-3-2:2006;

EN61000-3-3:2008; EN60335:2002+A13:2008; EN55014:2006;

EN55014-2:1997+A2:2008

The following manufacturer/WITHIN Europe is responsible for this declaration:

Gembird Europe BV

Wittevrouwen 56, 1358CD, Almere, The Netherlands

Tel: [phone]. Fax: [phone]

Director

Authorized signature

Waste disposal:Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.	Entsorgungshinweise: Werfen Sie dieses Gerät nicht in den Hausmüll. Unsachgemäße Entsorgung kann sowohl der Umwelt als auch der menschlichen Gesundheit schaden. Informationen zu Sammelstellen für Altgeräte erhalten Sie bei Ihrer Stadtverwaltung oder einer autorisierten Stelle für die Entsorgung von Elektro-und Elektronikgeräten.
Richtlijnen m.b.t. afvalverwerkingBatterijen en accu’s dienen als klein-chemisch afval afgeleverd te worden bij toegewezen afvalverzamelpunten (zie www.afvalgids.nl). U dient ervoor te zorgen dat de batterijen/accu’s leeg zijn en dus geen stroom meer kunnen leveren. Let op, de batterijen/accu’s dienen onbeschadigd ingeleverd te worden.Gooi dit product niet weg in uw vuilnisbak. Dit kan zowel het milieu als de menselijke gezondheid schade toebrengen. Informatie over het inleveren van dit product kunt u inwinnen bij uw gemeentelijke vuilnisdienst of andere geautoriseerde instelling in uw buurt.	Traitement des déchets:Ne jetez pas cet appareil dans les déchets domestiques. Un traitement inapproprié peut être dommageable à l’environnement et à la santé humain.Vous trouvez des informations sur les centres de rassemblement des appareils vieux chez l’administration municipale ouchez un centre autorisé pour le traitement des appareils électriques ou électroniques.
WARRANTY CONDITIONS	GARANTIE BEDINGUNGEN
The warranty period is 36 months and begins with the sale to the end user. The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products	Die Garantie beträgt 36 Monate ab Verkaufsdatum an den Endverbraucher. Das Kaufdatum und der Gerätetyp sind durch eine maschinell erstellte Kaufquittung zu belegen. Bitte bewahren Sie Ihren Kaufbeleg daher für die Dauer der Garantie auf, da er Voraussetzung für eine eventuelle Reklamation ist. Innerhalb der Garantiezeit werden alle Mängel, wahlweise durch den Hersteller entweder durch Instandsetzung, Austausch mangelhafter Teile oder im Austausch, behoben. Die Ausführung der Garantieleistung bewirkt weder eine Verlängerung noch einen Neubeginn der Garantiezeit. Eine Garantieleistung entfällt für Schäden oder Mängel die durch unsachgemäße Handhabung oder durch äußere Einwirkung (Sturz, Schlag, Wasser, Staub, Verschmutzung oder Bruch) herbeigeführt wurden. Verschleißteile (z.B. Akkus) sind von der Garantie ausgenommen.
