USER MANUAL FN114474.1 Emerio

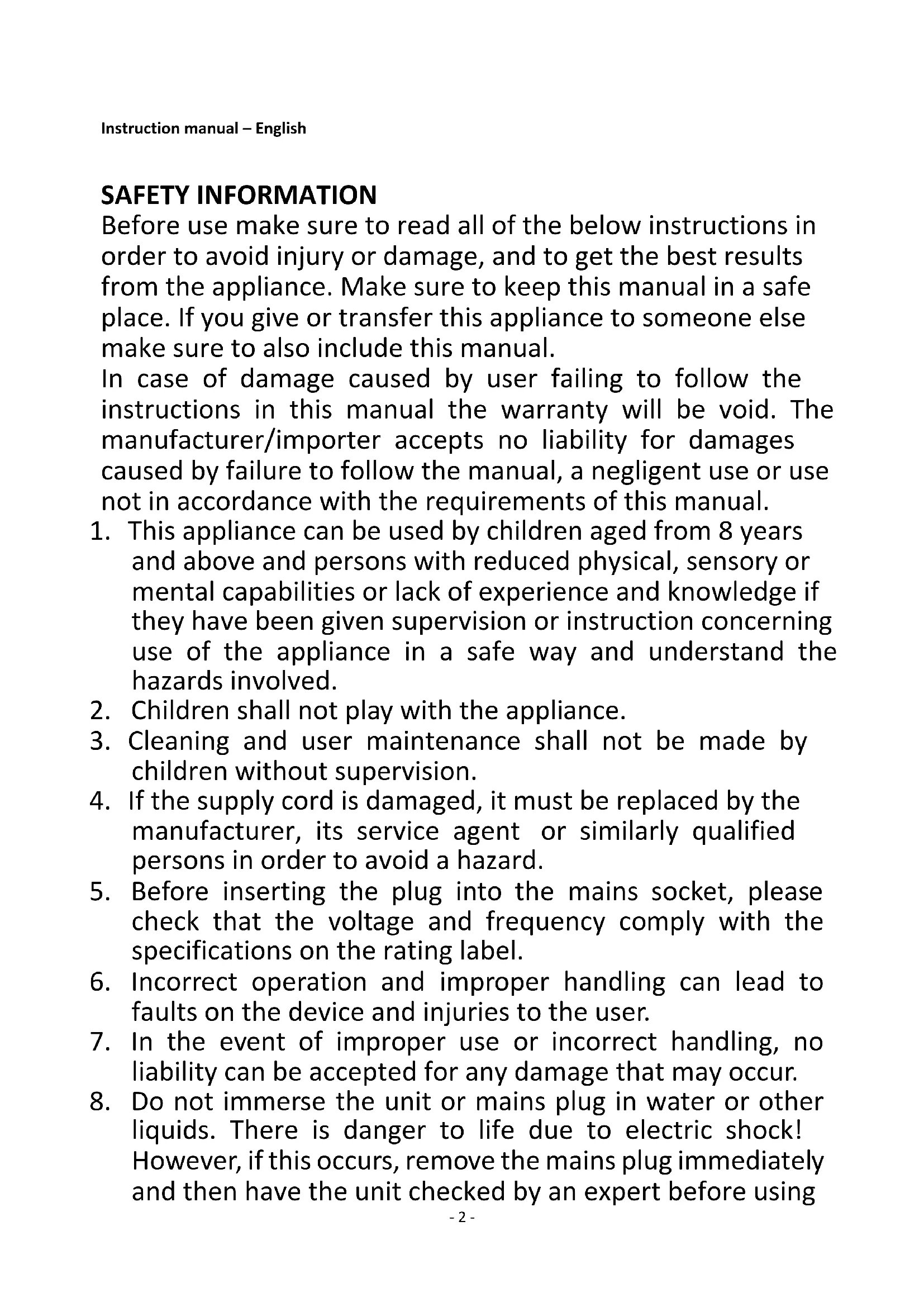

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children without supervision.

4. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

6. Incorrect operation and improper handling can lead to

faults on the device and injuries to the user.

7. In the event of improper use or incorrect handling, no

liability can be accepted for any damage that may occur.

8. Do not immerse the unit or mains plug in water or other

liquids. There is danger to life due to electric shock! However, if this occurs, remove the mains plug immediately and then have the unit checked by an expert before using- 3 - it again.

9. Do not operate the device if the mains cable or the mains

plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.

10. Never remove the mains plug from the socket by pulling on

the mains cable, or with wet hands.

11. Ensure that the mains cable does not hang over sharp

edges or become trapped.

12. Keep the appliance away from damp, and protect from

13. Keep the appliance away from hot objects (e.g. hotplates)

14. Keep the appliance and its cord out of reach of children less

15. Use the appliance on a flat, dry and heat resistant surface.

16. Never leave the device unattended during use.

17. Do not store or operate the appliance in the open air.

18. Keep the appliance in a dry place, inaccessible to children

19. Never put fingers or any other objects through the fan

guards when the fan is running.

20. Never operate the product without the fan guards in place,

as serious personal injury may result.

21. The appliance must be assembled completely before use.

22. Watch out for long hair! It can be caught in the fan owing

to the air turbulence.

23. Do not point the air flow to the people for a long time.

24. After assembly, do not remove the guards during use or

3. Blade fastening screw

5. Guard fastening screw

11. Upper standing shaft

12. Lower standing shaft

ASSEMBLING INSTRUCTIONS Base and Standing Shaft Assembly

1. Attach the lower standing shaft (12) onto the standing base (13). Use screws and washers (14) to fix the shaft

2. Insert the upper standing shaft (11) into the lower standing shaft (12), turning the upper standing shaft (11)

clockwise to tighten the connection of two shafts. The Whole Assembly

1. Remove the blade fastening screw (3) and guard fastening screw (5) from the motor shaft (7) spindle.

2. Fit the rear guard (6) by positioning with the location pins. Secure the guard onto the motor body with the

guard fastening screw (5).

3. Place the fan blade (4) onto the motor shaft by matching the slot with the shaft pin (8). Fix the blade by

tightening the blade fastening screw (3) in a counter-clockwise direction. Check that the fan blade can rotate freely by turning it with your hand.

4. Put the front guard (2) against the rear guard (6) and fix with the clamping ring (1). Make sure the clamping

ring is set properly at the rim of the fan guards. Tighten the screw on the clamping ring. OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.

3. The fan is switched on and off by pressing the speed control buttons, i.e. 0 = Off, 1 = Low air flow speed, 2

= Medium air flow speed, 3 = High air flow speed.

4. Tilting Angles: By pushing the fan-guard, you can adjust the fan to the preferred elevation.

CAUTION: Press only one of the speed control buttons at a time. Permanent damage to the switch housing may result if two or more of the buttons are pressed simultaneously. CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable

2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down- 5 -

with a damp cloth and dry it carefully. Always take out the mains plug first.

3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

Declare that the product detailed below: Information requirements Information to identify the FN-114474.1 to which the information relates to [Stand Fan] Description Symbol Value Unit Maximum fan flow rate

3,0 meters/sec Measurement standard for service value IEC 60879:2019 – Comfort fans and regulators for household and similar purposes – Methods for measuring performance Contact details for obtaining more information Emerio B.V. Oudeweg 115 2031 CC Haarlem The Netherlands

Satisfies the requirement of the Council Directives: COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans
