PCMCIAXESATA22 - Network card / adapter Gembird - Free user manual and instructions

Product Type	eSATA ExpressCard Adapter
Brand	Gembird
Model	PCMCIAXESATA22
Interfaces	2 external eSATA ports
SATA Standard	SATA II (3 Gbit/s), backwards compatible with SATA 1.0a
Chipset	Sil3132
Form Factor	ExpressCard 34 mm
Dimensions	116 x 34 x 22 mm
Net Weight	38 g
Main Features	Adds two external eSATA ports to a laptop
Power Supply	Via ExpressCard bus
Installation	Hot-plug and Plug-and-Play
Support	NCQ, Port Multiplier with FIS switching
Warranty	36 months
Care and Cleaning	Clean with a dry, soft cloth. Avoid moisture and abrasive products.
Safety	Disconnect the adapter before cleaning. Avoid shocks and extreme temperatures.
Repairability	Not user-repairable. Contact Gembird after-sales service for any repairs.

Frequently Asked Questions - PCMCIAXESATA22 Gembird

Which operating systems are compatible with this adapter?

The adapter is compatible with any operating system that supports native ExpressCard and SATA devices, such as Windows, Linux, and macOS.

Can I connect an internal hard drive via an eSATA cable?

Yes, provided you use an appropriate adapter cable (e.g., eSATA to internal SATA) and the drive is powered separately, as the eSATA port does not provide power.

Is the adapter compatible with SATA III drives?

Yes, it is backwards compatible with SATA III, but the speed will be limited to SATA II standard (3 Gbit/s).

How do I install the adapter?

Gently insert the adapter into the ExpressCard 34 mm slot of your laptop. The operating system will automatically detect the new hardware and install the necessary drivers.

My drive is not recognized, what should I do?

First, check the eSATA cable connections, ensure the drive is powered and that the adapter is fully inserted. Try restarting the computer or updating the Sil3132 chipset drivers.

What types of devices can I connect?

You can connect external hard drives, SSDs or eSATA optical drives, provided they are equipped with an eSATA interface.

Does the adapter support hot-plugging?

Yes, the adapter supports hot-plug, allowing you to connect or disconnect devices without turning off the computer.

What is the maximum transfer speed?

The maximum speed is 3 Gbit/s (SATA II), which is sufficient for most hard drives and SSDs.

Can I use a port multiplier?

Yes, the adapter supports Port Multiplier with FIS switching, allowing multiple drives to be connected via a single eSATA port.

What is the recommended eSATA cable length?

It is recommended to use eSATA cables with a maximum length of 2 meters to ensure reliable transmission.

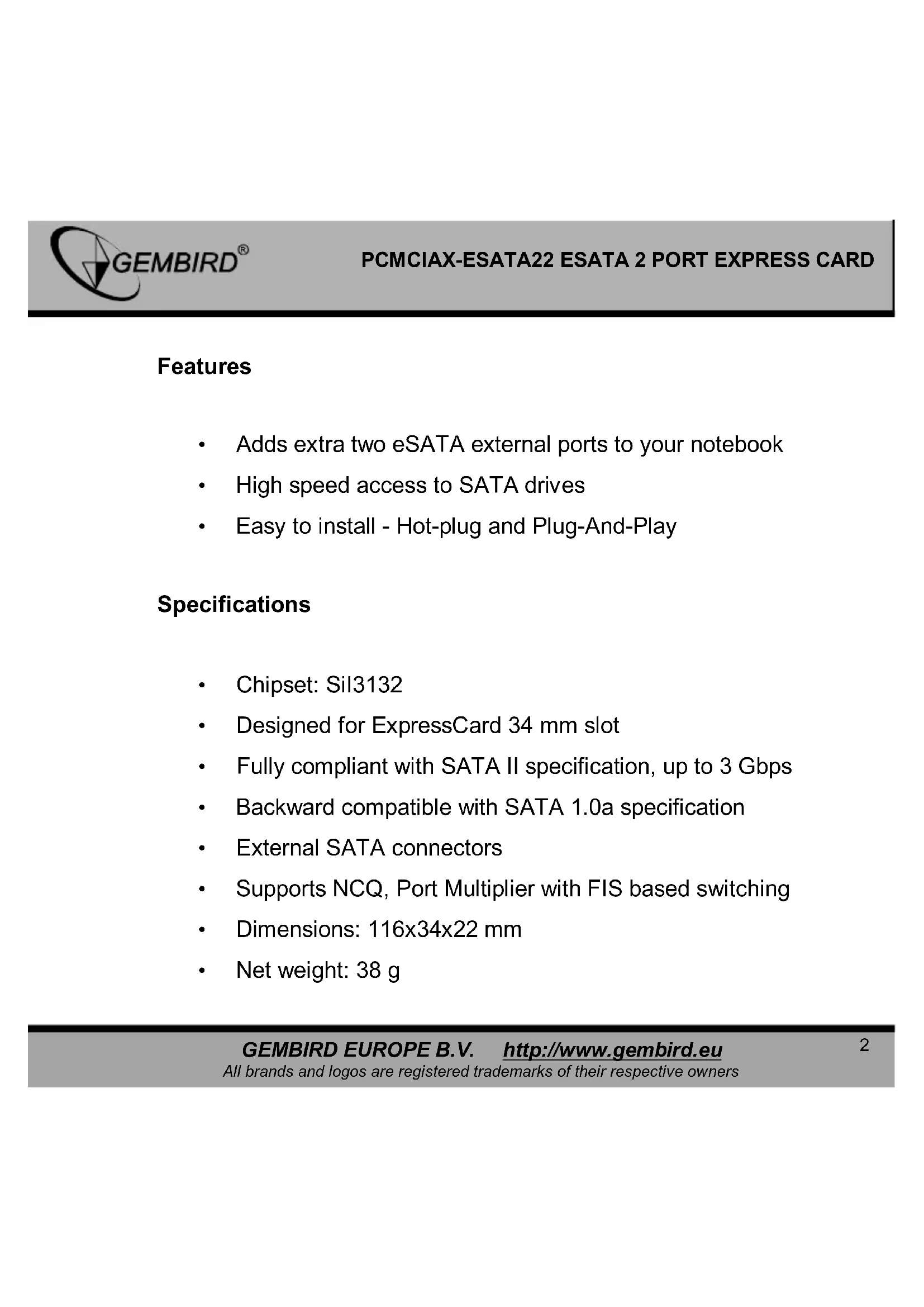

USER MANUAL PCMCIAXESATA22 Gembird

• Adds extra two eSATA external ports to your notebook
  • High speed access to SATA drives
  • Easy to install - Hot-plug and Plug-And-Play

Specifications

• Chipset: Sil3132
• Designed for ExpressCard 34 mm slot
  • Fully compliant with SATA II specification, up to 3 Gbps
  • Backward compatible with SATA 1.0a specification
  • External SATA connectors
  • Supports NCQ, Port Multiplier with FIS based switching
  • Dimensions: 116x34x22 mm
• Net weight: 38 g
