VT3216 - Pest control V-TAC - Free user manual and instructions

Product type	Flying insect killer
Brand	V-TAC
Model	VT3216
Use	Indoor only (homes, businesses, restaurants, hospitals, etc.)
Working principle	UV light attraction and electrocution on high voltage metal grid
Input voltage	220-240 V AC, 50/60 Hz (common estimate)
Grid voltage	2200-2500 V
Light source	UV (ultraviolet) tube replaceable only by manufacturer (not user-replaceable)
Target insect type	Flies, mosquitoes, moths, and other flying pests
Coverage area	About 30-50 m² (estimate for standard household use)
Housing material	High voltage metal grid with protective outer mesh
Color	Not specified (usually white or black)
Recommended installation height	At least 2.0 meters from the ground
Weight	About 1.5 kg (estimate)
Dimensions (W x H x D)	About 30 x 40 x 10 cm (estimate)
Power	Mains powered with on/off switch
Cleaning	Removable collection tray: empty weekly; high voltage grid: brush every two weeks (unit unplugged)
Part replacement	UV tube not user-replaceable; at end of life, the unit must be discarded
Safety	Do not touch energized grid, do not use outdoors, keep out of reach of children, unplug before maintenance
Ingress protection rating	IP20 (dry indoor use, estimate)
Warranty	Not specified, refer to local supplier

Frequently Asked Questions - VT3216 V-TAC

How does the V-TAC VT3216 insect killer work?

The device attracts flying insects with a UV tube, then electrocutes them via a high voltage metal grid (2200-2500 V). No chemicals are used.

What type of insects does the device target?

It is effective against flies, mosquitoes, moths, and other flying pests found indoors.

Is it safe for humans and pets?

Yes, the UV tube is harmless to humans and animals. The outer mesh protects against accidental contact with the high voltage grid. However, the device should be installed out of reach of children.

Where should I place the device for maximum effectiveness?

Place it indoors, at least 2 meters from the ground, in a dark room where other light sources are turned off. Avoid drafts and damp areas.

How do I clean the insect killer?

First unplug the device. Empty the collection tray weekly. Clean the high voltage grid every two weeks with a suitable brush. Never use water.

Can I replace the UV tube when it stops working?

No, the tube is not user-replaceable. If the lamp stops working, the entire unit must be discarded in accordance with regulations.

What should I do if the device does not turn on?

Check that the socket is powered and the switch is in the ON position. If the problem persists, contact a qualified electrician or customer service. Do not attempt to repair it yourself.

Does the device make noise?

A slight crackling sound may be heard when insects are electrocuted, but normal operation is silent.

Can I use the device outdoors?

No, the device is designed for indoor use only. It is not waterproof and must not be exposed to rain or humidity.

How do I know when to empty the tray?

Inspect the tray regularly. Empty it at least once a week or whenever it is visibly full of dead insects to maintain effectiveness.

USER MANUAL VT3216 V-TAC

INSTALLATION INSTRUCTION

WARNING!

• The appliance is indoor use only.
- It is not suitable for use in barns, stables and similar locations.
- The appliance is not to be used in locations where flammable vapors or explosive dust is likely to exist.
- Only hang or mount the appliance on a place where children can't reach. (Above 2.0 m).
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Please make sure to turn off the power before starting the installation.
- The lamps in this appliance cannot be replaced. Scrap the appliance when the lamps cease to operate
- High voltage 2200\~2500V. Never touch the high tension grid when the appliance is working. The appliance should be kept away and out of reach from children.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

OPERATING INSTRUCTION:

• Check the local voltage before powering the device. Plug in the appliance under normal input voltage and turn on the switch to the ON side to start the appliance. To shut down the appliance please turn the switch to OFF side and pull out the plug to cut the power supply. DO NOT intend to touch the internal high voltage grids when the device is powered on due to risk of electric shock. Never put metal objects inside the grids while the device is powered On/Off.
• Repair should be carried out by the manufacturer or qualified electricians. Never remove any fixed part of the appliance to make any internal adjustment to avoid electric shock. If the supply cord, the lamp, starters or other part of appliance is damaged, the manufacturer, its service agent or similarly qualified person must replace it in order to avoid a hazards.
• Unplug the appliance before cleaning. Use suitable brush to clean the high voltage metal and throw away accumulated insects on collection tray every week. Be sure to cut off electricity when cleaning and repairing the machine.
• Make sure that your local voltage and frequency is suitable for the machine. Ensure earthing-connection to prevent damage or danger.
• Don't touch the high-voltage grid by fingers or metal.
• Non waterproof, no washing by water, no placing in rain. Not suitable for use in garages, stables and similar environment. Can be cleaned each twice weeks by a brush to clean the high voltage.
• Not for use in inflammable and/or explosive locales and the similar environment.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

INTRODUCTION

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.

• The insect killer attracts flying insects (flies, moths, mosquitoes, and other pests) via the UV light, and electrocutes them through the electrically charged, high voltage metal grids. The insect killer is designed with high efficiency and safety, with non-clogging killing grid non-rust, cracked or fade surface.
• The UV (Ultraviolet Rays) light tube is completely harmless to humans and pets.
• The outer mesh protects the user from touching the high tension grid.
• No chemicals are utilized in this equipment -- no fumes, no smell, no sprays, no mess, and pollution-free. Ideal for indoor use (residences, factories, restaurants, butcher's storage, hospitals, etc.)
• Please turn off all other light source in the room for the best performance..

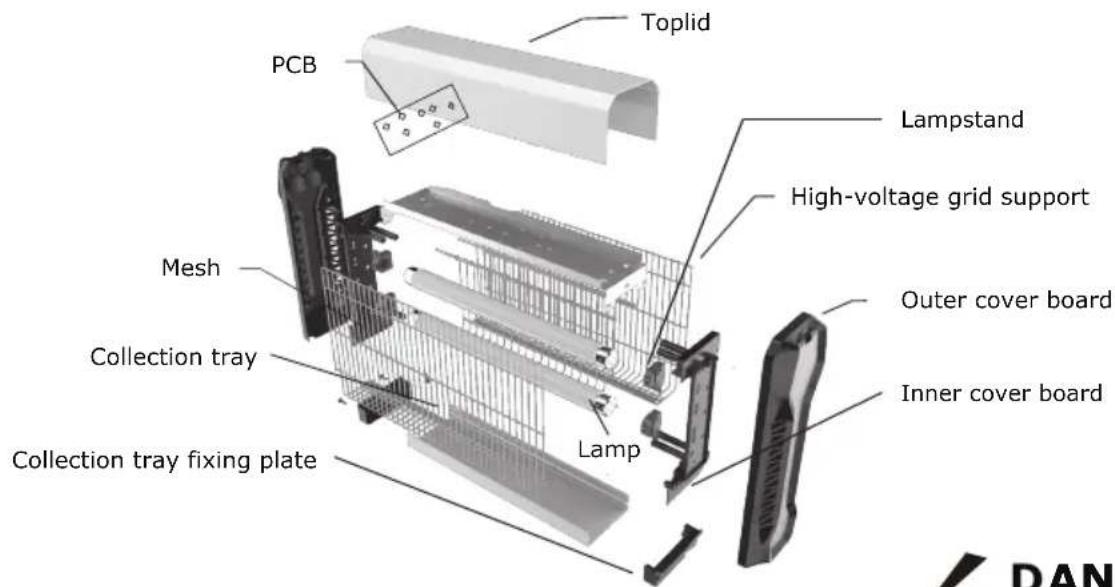

PCB Toplid Lampstand High-voltage grid support Mesh Collection tray Collection tray fixing plate Outer cover board Inner cover board Lamp

TECHNICAL DATA:

DANGEROUS VOLTAGE

Model No VT	-3216 VT-3220 VT-3	230 VT-3240
Power 16W	20W 30W 40W
Tubes 2*8W	UV Tubes 2*10W	UV Tubes 2*15W UV	Tubes 2*20W UV Tubes
Coverage Area	50m^2 80m^2 100m^2	150m^2
Size	354x93.5x280mm	397x93.5x280mm	502x93.5x280mm	655x93.5x280mm
Lamp Life	Up to 80,000 Hours	Up to 80,000 Hours	Up to 80,000 Hours	Up to 80,000 Hours
Input Power	AC 220-240V, 50/60 Hz
