VT3230 - Pest control V-TAC - Free user manual and instructions

Product Type	UV Insect Exterminator
Brand	V-TAC
Model	VT3230
Usage	Indoor only (residential, commercial, warehouses)
Attraction Method	UV Light (ultraviolet rays)
Elimination Method	Electrocution by high-voltage metal grid
Grid Voltage	2200 ~ 2500 V
Power Supply	Mains (check local voltage before connecting)
Switch	On/Off
Recommended Mounting Height	Above 2.0 m (out of reach of children)
Grid Material	High-voltage metal, anti-clog surface
Collection Tray	Yes, to collect dead insects
Cleaning	Brush the high-voltage grid every two weeks; dispose of insects from tray weekly
Lamp Replacement	Non-replaceable – dispose of the device at end of life
Safety	Outer protective grid; disconnect power before cleaning; do not touch grid when energized
Repairs	Must be carried out by the manufacturer or a qualified electrician
Operating Environment	Do not use in humid, flammable, or explosive areas
Impact on Humans and Pets	UV lamp harmless; high-voltage grid dangerous – avoid any contact
Chemicals	None – no vapors, odors, aerosols
Certifications	Not specified

Frequently Asked Questions - VT3230 V-TAC

Where to install the V-TAC VT3230 exterminator?

Install the device indoors, at least 2 meters above the ground, out of reach of children. Avoid humid, flammable, or explosive areas. For optimal effectiveness, turn off other light sources in the room.

Is the UV light dangerous for humans or pets?

No, the UV tube is designed to be completely harmless to humans and pets. However, do not look directly at the light source for prolonged periods.

How to clean the collection tray and high-voltage grid?

Always unplug the device before cleaning. The collection tray should be emptied weekly. The high-voltage grid can be cleaned every two weeks using a suitable brush. Never use water.

Can I replace the UV lamp myself?

No, the lamps in this device are not replaceable. When the lamp stops working, the entire device must be disposed of according to local regulations.

Can the device be used outdoors?

No, the device is designed for indoor use only. It is not waterproof and must not be exposed to rain or moisture.

What types of insects are attracted and eliminated?

The device attracts flying insects such as flies, moths, mosquitoes, and other pests. It electrocutes them via the high-voltage grid.

What to do if the power cord is damaged?

If the power cord or any other part is damaged, it must be replaced by the manufacturer, its service agent, or a qualified person to avoid any hazard.

Is the device safe for use around children?

The device must be installed out of reach of children (above 2 m). Children should not play with the device. Cleaning and maintenance should not be performed by children without supervision.

Why is my device not working after plugging in?

Check that the switch is in the ON position and that the local voltage matches specifications. If the problem persists, contact a qualified electrician or the manufacturer. Do not attempt to repair yourself.

Can I use the device in a barn or stable?

No, the device is not suitable for use in barns, stables, or similar environments due to dust, fumes, or humidity.

USER MANUAL VT3230 V-TAC

INSTALLATION INSTRUCTION

WARNING!

• The appliance is indoor use only.
- It is not suitable for use in barns, stables and similar locations.
- The appliance is not to be used in locations where flammable vapors or explosive dust is likely to exist.
- Only hang or mount the appliance on a place where children can't reach. (Above 2.0 m).
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Please make sure to turn off the power before starting the installation.
- The lamps in this appliance cannot be replaced. Scrap the appliance when the lamps cease to operate
- High voltage 2200\~2500V. Never touch the high tension grid when the appliance is working. The appliance should be kept away and out of reach from children.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

OPERATING INSTRUCTION:

• Check the local voltage before powering the device. Plug in the appliance under normal input voltage and turn on the switch to the ON side to start the appliance. To shut down the appliance please turn the switch to OFF side and pull out the plug to cut the power supply. DO NOT intend to touch the internal high voltage grids when the device is powered on due to risk of electric shock. Never put metal objects inside the grids while the device is powered On/Off.
• Repair should be carried out by the manufacturer or qualified electricians. Never remove any fixed part of the appliance to make any internal adjustment to avoid electric shock. If the supply cord, the lamp, starters or other part of appliance is damaged, the manufacturer, its service agent or similarly qualified person must replace it in order to avoid a hazards.
• Unplug the appliance before cleaning. Use suitable brush to clean the high voltage metal and throw away accumulated insects on collection tray every week. Be sure to cut off electricity when cleaning and repairing the machine.
• Make sure that your local voltage and frequency is suitable for the machine. Ensure earthing-connection to prevent damage or danger.
• Don't touch the high-voltage grid by fingers or metal.
• Non waterproof, no washing by water, no placing in rain. Not suitable for use in garages, stables and similar environment. Can be cleaned each twice weeks by a brush to clean the high voltage.
• Not for use in inflammable and/or explosive locales and the similar environment.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

INTRODUCTION

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.

• The insect killer attracts flying insects (flies, moths, mosquitoes, and other pests) via the UV light, and electrocutes them through the electrically charged, high voltage metal grids. The insect killer is designed with high efficiency and safety, with non-clogging killing grid non-rust, cracked or fade surface.
• The UV (Ultraviolet Rays) light tube is completely harmless to humans and pets.
• The outer mesh protects the user from touching the high tension grid.
• No chemicals are utilized in this equipment -- no fumes, no smell, no sprays, no mess, and pollution-free. Ideal for indoor use (residences, factories, restaurants, butcher's storage, hospitals, etc.)
• Please turn off all other light source in the room for the best performance..

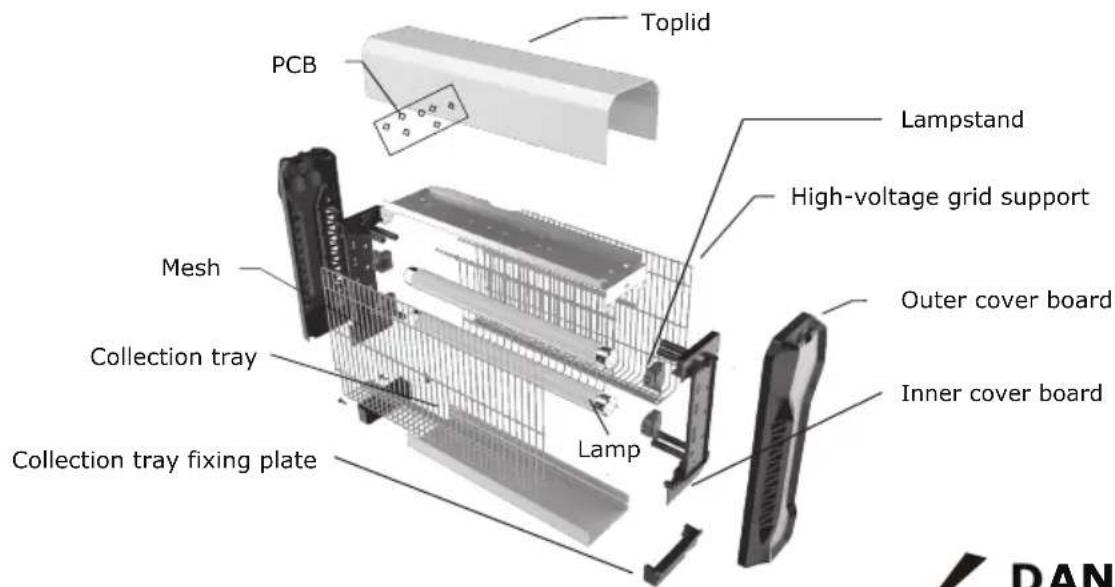

Toplid PCB Lampstand High-voltage grid support Mesh Collection tray Lamp Outer cover board Inner cover board Collection tray fixing plate

TECHNICAL DATA:

DANGEROUS VOLTAGE

Model No VT	-3216 VT-3220 VT-3	230 VT-3240
Power 16W	20W 30W 40W
Tubes 2*8W	UV Tubes 2*10W	UV Tubes 2*15W UV	Tubes 2*20W UV Tubes
Coverage Area	50m^2 80m^2 100m^2	150m^2
Size	354x93.5x280mm	397x93.5x280mm	502x93.5x280mm	655x93.5x280mm
Lamp Life	Up to 80,000 Hours	Up to 80,000 Hours	Up to 80,000 Hours	Up to 80,000 Hours
Input Power	AC 220-240V, 50/60 Hz

INTRODUCTION
