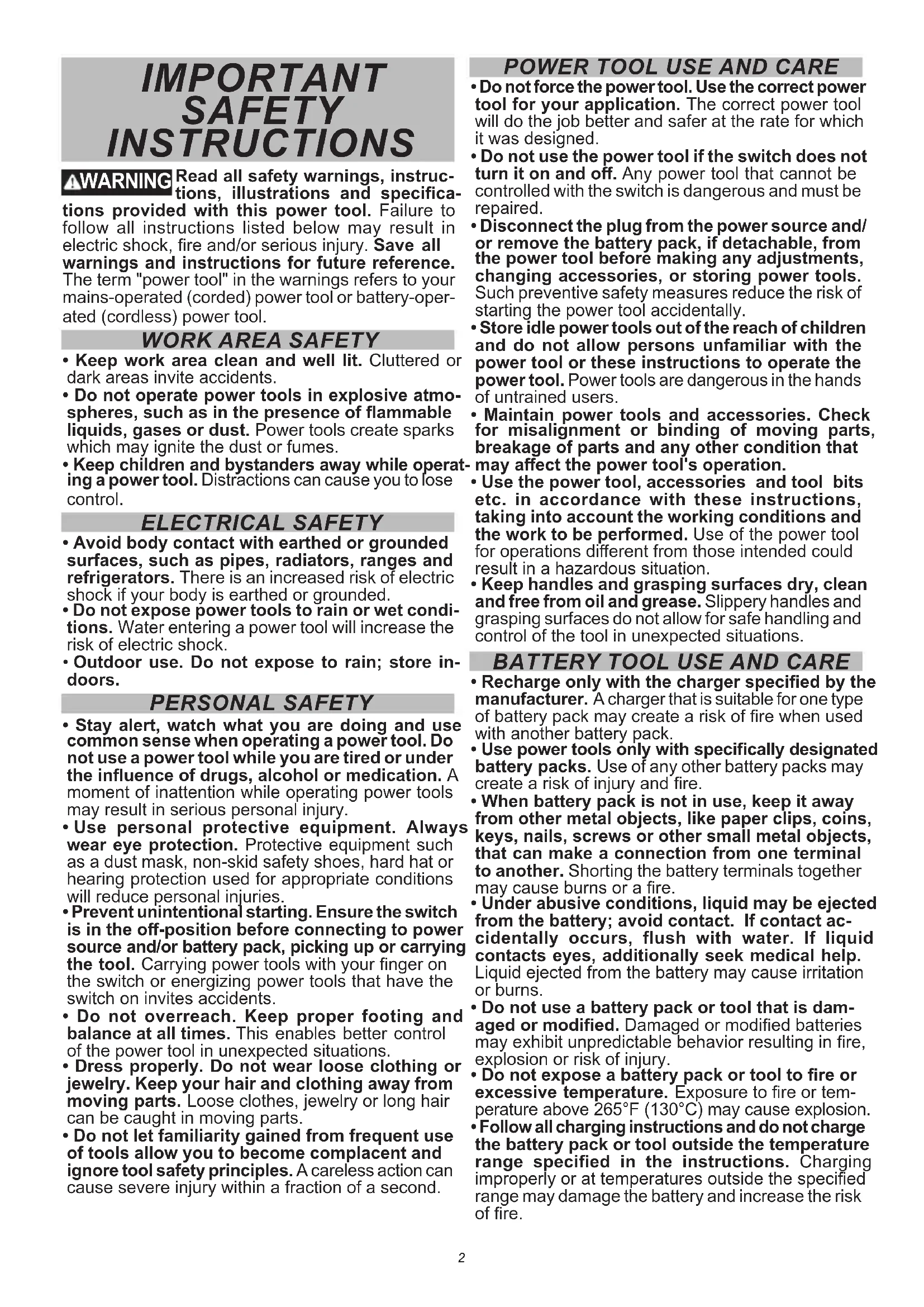

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmo- spheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operat- ing a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet condi- tions. Water entering a power tool will increase the risk of electric shock.

• Outdoor use. Do not expose to rain; store in- doors. PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energizing power tools that have the switch on invites accidents.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may a󰀨ect the power tool's operation.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations di󰀨erent from those intended could result in a hazardous situation.

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

• Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

• Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact ac- cidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is dam- aged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

• Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or tem- perature above 265°F (130°C) may cause explosion.

• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specied in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re.3 SERVICE

• Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

WARNING Risk of re or explosion. Do not use flammable liquids such as gasoline, solvents, or gas-producing chemicals. Do not use tool around spark, ame, or smoke. Chemical may ignite.

• These products are suitable for pesticide ap- plications (such as insecticides, fungicides, or herbicides), fertilizers, and water supply applications, when used in accordance with these instructions and those supplied with the chemicals.

• Do not use bleach, caustic (alkali) self-heating or corrosive (acid) liquids in this sprayer. Do not pour hot or boiling liquids into the tank. These can corrode metal parts, weaken the tank and hose causing a leak.

• Always ll the tank with water rst, before adding chemicals.

• To reduce the risk of re, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in uid or allow a uid to ow inside them. Do not place or store tool where it can fall or be pulled into a tub or sink. Corrosive or conductive uids, such as seawater, certain industrial chemicals, and bleach or bleach containing products, etc., can cause a short circuit.

• Electric shock hazard. Never spray toward electrical outlets.

• Spray area must be well ventilated to avoid hazardous fumes build-up.

• Avoid spraying on windy days. Spray can be blown onto people, plants, or objects that should not be sprayed.

• Do not store chemicals in the tank. Chemicals can degrade seals and hoses. Drain and clean after each use.

• Remove gloves before handling battery packs. Chemicals are harmful to plastics.

• Maintain your power tool. Thoroughly inspect inside and outside and examine all compo- nents before each use. Check for cracked and deteriorated hoses, leaks, clogged nozzles, and missing or damaged parts. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Always unplug the charger and remove the battery pack from the charger or tool before performing any maintenance, storing, or draining the tool. Never disassemble the tool, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs.

• Do not eat or smoke while handling or operating the tool. After use, wash with hot, soapy water to help reduce the risk of health hazards due to exposure to chemicals.

• Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.

• Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles. READ AND SAVE ALL INSTRUCTIONS

FOR HOUSEHOLD USE. SYMBOLOGY Volts Direct Current Read operator's manual PPE Wear personal protective equipment (PPE) according to the chemical manufacturer's instructions. Wear eye protection Wear gloves Do not use ammable liquids

UL Listing for Canada and U.S.4 ASSEMBLY WARNING Recharge only with the charger specied for the battery. For spe- cic charging instructions, read the operator's manual supplied with your charger and battery. Removing/Inserting the Battery To remove the battery, push in the release buttons and pull the battery pack away from the tool. WARNING Always lock the trigger or remove the battery pack any time the tool is not in use. To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place. WARNING Only use accessories specically recommended for this tool. Others may be hazardous. Connecting the Spray Wand to the Trigger Handle

1. Insert the spray wand into the trigger

handle until rmly seated.

2. Slide the nut onto the threaded

coupling and hand tighten securely.

3. Pull on the spray wand to be certain

it is properly secured.

4. Place the assembled trigger handle

back into the wand storage pocket. Connecting the Nozzles Select and screw on nozzle by job type. When using the adjustable nozzle, adjust spray pattern as desired by tightening/loosening the nozzle. Filling the Tank WARNING Remove powered head from tank before lling or cleaning. Follow chemical manufacturer's instructions for mixing, use, and handling of chemicals. Always ll the tank with water rst, before adding chemicals.

1. Remove battery pack.

2. Remove the tank from the powered head and set

on a level surface away from the powered head to prevent exposing to harsh chemicals.

3. Unscrew and remove

the tank cap; ensure strainer is seated in opening. A removable strainer prevents de- bris from entering the tank that can clog or damage the pump.

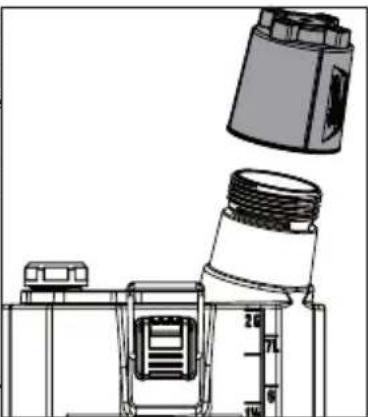

4. Fill the tank. Use the

volume markings on the side of the tank as a guide.

5. Reinstall the tank cap.

6. Reinstall the tank.

7. Label tank contents accordingly during each use.

Only put recommended liquids in tank. Installing the Tank

1. Remove battery pack.

2. Secure tank to the powered head with front and

back tank latches; ensuring the powered head is rmly seated, and all seals are aligned. FUNCTIONAL DESCRIPTION

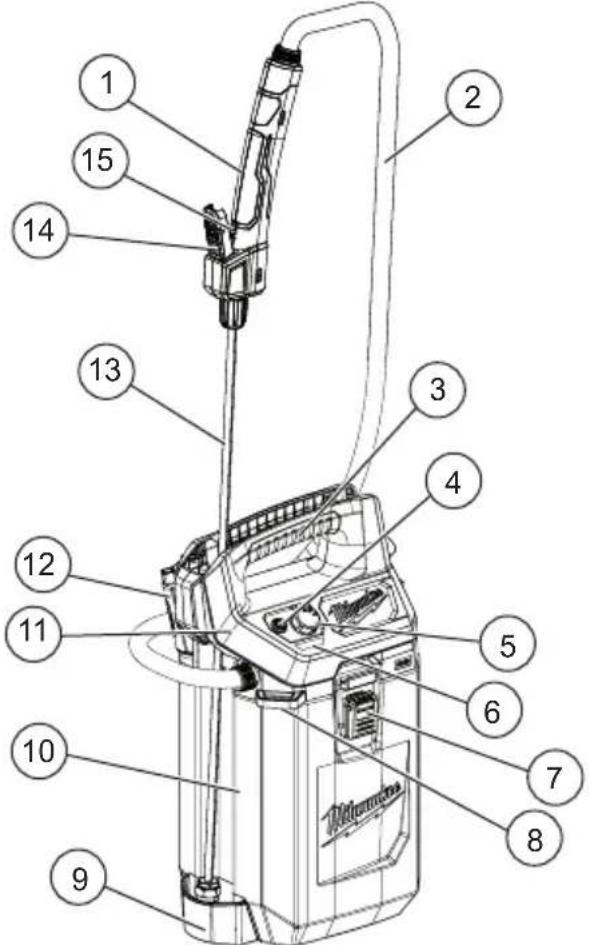

9. Wand storage pocket

SPECIFICATIONS Cat. No. ..................................................... 2528-20 Volts.............................................................. 12 DC Battery Type .................................................M12™ Charger Type................................................M12™ 1 Gal. Tank Cat. No. ............................. 49-16-2761 2 Gal. Tank Cat. No. ............................. 49-16-2762 Flow Rate ....................................... 0.1 to 0.3 GPM Full Weight (1 Gallon) ....................................16 lbs Full Weight (2 Gallon) ....................................25 lbs Recommended Ambient Operating Temperature ....................32°F to 125°F5 OPERATION WARNING To reduce the risk of injury, always wear personal protective equip- ment (PPE) according to the chemical manufac- turer's instructions. Always wear proper eye protection marked to comply with ANSI Z87.1. Fuel Gauge To determine the amount of charge left in the battery, turn the tool ON. The Fuel Gauge will light up for 2-3 seconds. When less than 10% of charge is left, 1 light on the fuel gauge will ash 4 times. To signal the end of charge, 1 light on the fuel gauge will ash 8 times and the tool will not run. Charge the battery pack. If the battery becomes too hot, the fuel gauge lights will ash and the tool will not run. Allow the battery to cool down. Adjusting the Flow Rate Select the desired ow from Low (1) to High (3), de- pending on the job and the chemical manufacturer's instructions. Setting Flow Rate Pressure 1 0.1 GPM Low 2 0.2 GPM Medium 3 0.3 GPM High Trigger Lock-O󰀨 To avoid accidental spraying, engage the trigger lock-o󰀨. Trigger Lock-O󰀨 Trigger

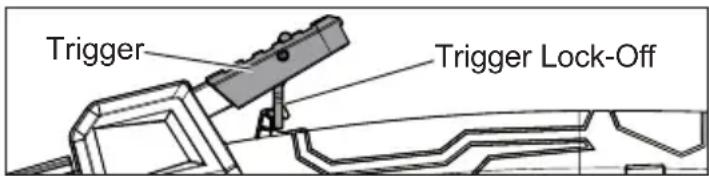

1. Push down the lock-o󰀨 at the end of the trigger.

2. Hook the lock-o󰀨 tab under the trigger.

3. To release, push the lock-o󰀨 tab back into the

trigger, and unhook. Turning the Sprayer ON/OFF

1. Before turning ON, check for any leaks around

tank, spray wand, hose, and other components before use.

the trigger. The sprayer may be operated with trigger handle attached to carrying handle.

4. To stop the ow of liquid at the spray wand, release

again. NOTE: Be aware some spray material may remain inside the spray wand and drip out. To drain, turn o󰀨 the tool, then pull the trigger and point the tool down until dripping stops. Spraying

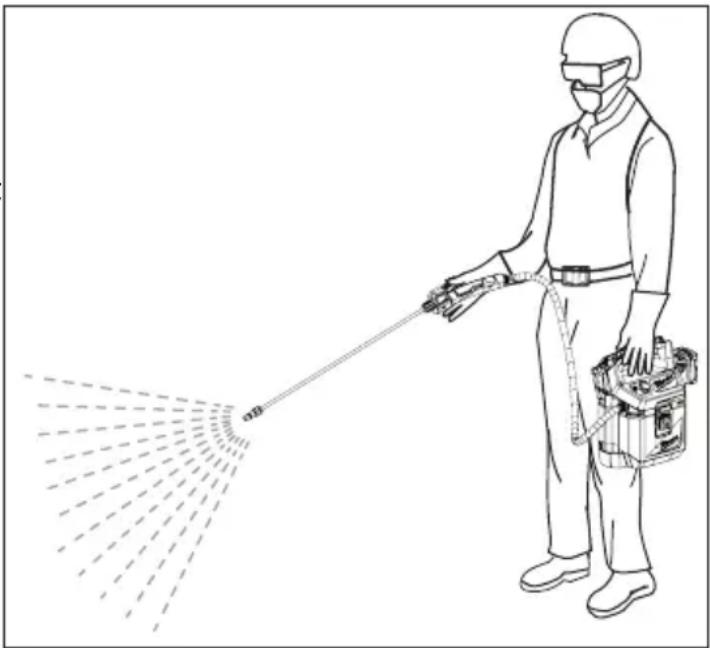

• Pull the trigger and begin sweeping the nozzle from side to side, coating the desired surface evenly in ac- cordance with chemical manufacturer's instructions. NOTE: Make sure to stand far enough from the object being sprayed to prevent the spray from splashing back onto you.

• Always empty, clean, and drain the tank after every use as directed in the Maintenance section.

• Thoroughly clean the sprayer before storing or before switching to a di󰀨erent chemical.

• When you are nished with the sprayer, thoroughly wash your hands and any area where skin has been exposed to the spray. WARNING Before using any chemicals and/ or solutions, read and follow all original manufacturer instructions. Read all Safety Data Sheets (SDS) and container labels provided with the chemical. Chemicals can cause serious bodily injury, and/or property damage. Wear personal protective equipment (PPE) ac- cording to the chemical manufacturer's instruc- tions. Always wear eye protection. MAINTENANCE Maintaining Tool Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may a󰀨ect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection. If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work prop- erly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs.6 Storage Protect from freezing, store indoors. Store spray wand securely in wand storage pocket. Store the sprayer in a secure, well-ventilated indoor space with the tank empty. Repairs For repairs, return the tool, battery pack and charger to the nearest authorized service center. ACCESSORIES WARNING Use only recommended accesso- ries. Others may be hazardous. For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878) Monday-Friday, 7:00 AM - 6:30 PM CST or visit www.milwaukeetool.com Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions. Email: [e-mail] Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notications regarding your tool purchases.

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeetool.ca WARNING To reduce the risk of personal in- jury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to ow inside them. Do not use bleach as a cleaning agent. Cleaning Clean dust and debris from any vents. Keep tool clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain clean- ing agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household deter- gents containing ammonia. Never use ammable or combustible solvents around tools. Draining and Cleaning the Tank, Hose, and Spray Wand If there is any liquid left in the tank after spraying, the tank should be drained before cleaning. Do not store chemicals in the tank. Tank must be cleaned before using another liquid. Do not mix liquids. Follow the chemical manufacturer's instructions for proper cleaning, storage and/or disposal of excess liquid. To Drain:

1. Remove battery pack.

2. Remove the powered head from tank.

3. Empty the tank into a suitable container through

the ll area. WARNING! Always wear personal protective equipment (PPE) according to the chemical manufacturer's instructions. Always wear eye protection. To Clean:

1. Remove battery pack.

2. Remove the powered head from tank and set

on a level surface away from the tank to prevent exposing the powered head to harsh chemicals.

3. Fill the tank about one-third full with clean water.

Replace the cap and gently slosh the water around the tank.

4. Install the tank and spray the water until the tank

has been emptied. Make sure to direct the spray toward an area that will not be damaged by residue chemicals in the tank.

5. Repeat the procedure with clean water until the

tank is thoroughly clean. Wash outside of nozzles and dry with cloth.

6. Wipe the outside of the tank with a clean, dry cloth.

7. Allow all pieces to completely dry before reinstall-

ing parts and storing the sprayer. Always reinsert strainer before replacing tank cap.7 LIMITED WARRANTY USA & CANADA Every MILWAUKEE Outdoor Power Equipment Product* (see excep- tions below) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an outdoor power equip- ment product which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of three (3) years** after the date of purchase unless otherwise noted. Return of the outdoor power equipment to a MILWAUKEE factory Service Center location or participating MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents. Normal Wear: Many outdoor power equipment products need periodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to mower blades, trimmer head, trimmer head spool, cutting lines, blades, chains, blower tubes, brushes, o-rings, and seals. *This warranty does not cover Cordless Battery Packs or Recondi- tioned Product. There are separate and distinct warranties available for these products. **The warranty period for SWITCH TANK™ tank assemblies, hoses, handles, and wands are one (1) year from the date of purchase. MILWAUKEE does not cover freight or labor charges associated with the inspection and testing of outdoor power equipment products which are found by MILWAUKEE not to be a valid warranty claim. A valid warranty claim must be substantiated by the discovery of defective material or workmanship by MILWAUKEE. ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON- TRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CON- SEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EX- CLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS
