USER MANUAL DO337IP DOMO

Digital kitchen scale with a black digital display showing 1200 units, placed on a black square base (no text or symbols on the main subject)

DO337IP

Handleiding Inductiekookplaat

Mode d'emploi Plaque de cuisson à induction

Gebrauchsanleitung Induktionskochplatte

Instruction booklet Induction cooking plate

Manual de instrucciones Placas de inducción

Istruzioni per l'uso Piastra a induzione

Návod k použití Indukční varič - jednoplotýnkový

Návod na použitie Indukčný varič - jednoplatničkový

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Simple line drawing of a cooking pot with a U-shaped tube attached (no text or symbols)

min. 12 cm max. 26 cm

Three identical line drawings of a cooking pot with handles and crossed handles, shown from different angles (no text or symbols)

GEBRUIK

Two hand-drawn diagrams showing correct and incorrect finger positioning, with checkmark and cross symbols (no text or labels)

AANSLUITEN

200 W 40

0 W 600 W

800 W 100

00 W 1200

W 1400 W

1600 W 18

00 W 2000

W

Simple icon of a magnifying glass on a black background, no text or symbols present

- + 4

Simple icon of a magnifying glass on a dark background, no text or symbols present

- + 4

TIMER

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Simple line drawing of a cooking pot with a curved handle (no text or symbols)

min. 12 cm max. 26 cm

Three identical line drawings of a cooking pot with handles and handles, each with a crossed-out cross symbol (no text or labels)

UTILISATION

on signal. ✓ ×

BRANCHER

200 W 400 W 600 W 800 W 1000 W 1200 W 1400 W 1600 W 1800 W 2000 W

Simple icon of a magnifying glass on a black background, no text or symbols present

- + 4

Simple icon of a magnifying glass on a black background, no text or symbols present

- + 4

MINUTERIE

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Three identical line drawings of cooking pots with crossed x-line marks, no text or symbols present.

Simple line drawing of a cooking pot with a coiled tube (no text or symbols)

min. 12 cm max. 26 cm

GEBRAUCH

Diagram showing two hand gesture options: checkmark and cross, likely for correct or incorrect task instructions.

ANSCHLIESSEN

200 W 400 W 600 W 800 W 1000 W 1200 W 1400 W 1600 W 1800 W 2000 W

Simple icon of a magnifying glass on a black background, no text or symbols present

- + 4

Simple icon of a magnifying glass on a black background, no text or symbols present

- + 4

TIMER

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

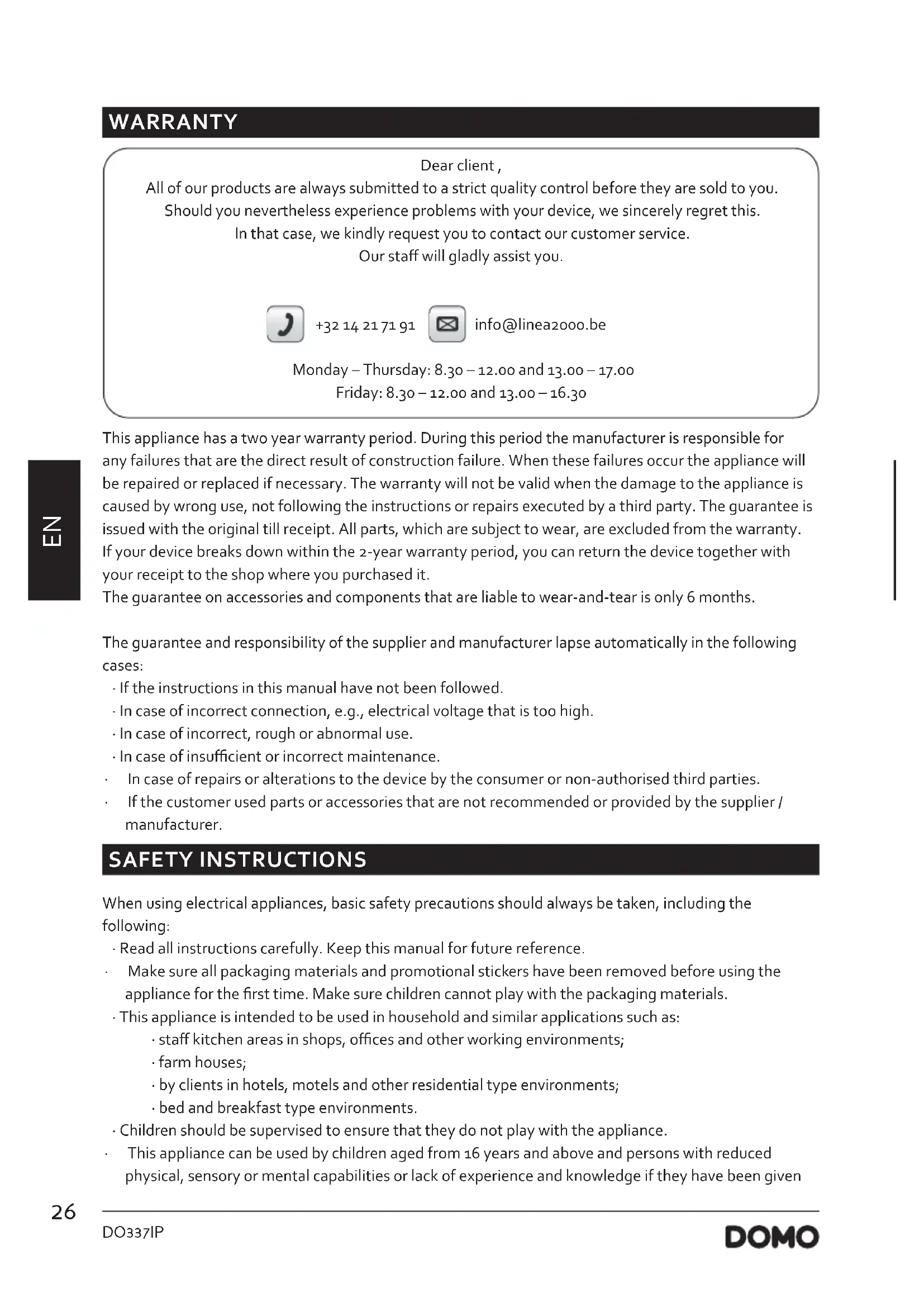

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
• In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;
· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

· All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- The appliance may not be used with an extension lead or a multiple socket.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

· Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

△CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

· Never place the device on metal or a flammable surface (e.g. table cloth, carpet, etc.).
- Do not block the ventilation slots of the device. This may overheat the device. Keep a min. distance of 10 cm (2.5 inches) to walls or other items.
- Do not place the induction hotplate next to devices or objects, which react sensitively to magnetic fields (e.g. radios, TVs, cassette recorders, etc.).
- Do not place induction hotplates next to open fires, heaters or other sources of heat.
· Make sure that the mains connection cable is not damaged or squashed beneath the device.
- Make sure that the mains connection cable does not come into contact with sharp edges and/or hot surfaces.
- If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
- Metallic objects such as knives, forks, spoons and lids should not be placed on the hotplate since they can get hot.
- Do not place any magnetically objects like credit cards, cassettes etc. on the glass surface while the device is in operation.
- On order to avoid overheating, do not place any aluminium foil or metal plates on the device.
- Do not insert any objects like wires or tools into the ventilation slots. Attention: this may cause electric shocks.
- Do not touch the hot surface of the plate. Please note: the induction hotplate does not heat up itself during cooking, but the temperature of the cookware heats up the hotplate!
- Do not heat up any unopened tins on the induction hotplate. A heated tin could explode; therefore remove the lid under all circumstances beforehand.
- Scientific tests have proven that induction hotplates do not pose a risk. However, persons with a pacemaker should keep a minimum distance of 60 cm to the device while it is in operation.
- The control panel reacts to touch, not requiring any pressure at all.
· Each time a touch is registered, you hear a signal or beep.
· Never heat empty pots or pans. Empty containers may become damaged or deformed.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

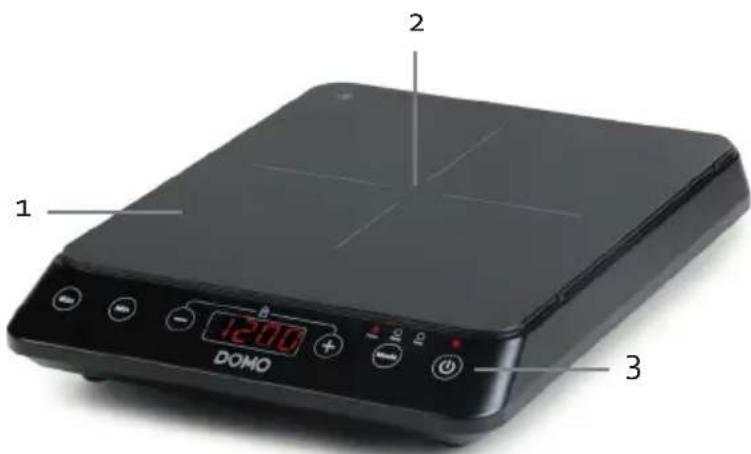

PARTS

1. Glass plate
2. Cooking zone
3. Controller

CONTROLLER

1. Display
2. Power indicator light
3. Temperature indicator light
4. Timer indicator light
5. On-off indicator light
6. Maximum button
7. Minimum button
8. Decrease button
9. Increase button
10. Mode knob
11. On/Off button

1 2 3 1200 DOMO

Max 9 10 11 12 13 14 4 5 6 7 8 Power Temp Time Mode Power Power

BEFORE THE FIRST USE

- Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.

· Always use the appliance on a steady, dry and level surface.
- Use pots and pans that are suited for induction hobs. This can be tested easily. The bottom of your pots and pans must be magnetic. Take a magnet and place it on the bottom of your pot or pan, if it sticks the bottom is magnetic and the pot is suited for ceramic cooking plates.
- The cooking zone has a diameter of 18 cm. The diameter of your pot or pan must be at least 12 cm, but no larger than 26 cm.
- Make sure the bottom of your pot is not deformed. If the bottom is hollow or convex, the heat distribution will not be optimal. If this makes the hob too hot, it may break.

Simple line drawing of a cooking pot with a handle (no text or symbols)

min. 12 cm max. 26 cm

Three identical line drawings of a cooking pot with handles and handles, each with a crossed-out cross symbol (no text or labels)

USE

The control panel is equipped with touch-screen operation. You do not need to press any buttons - the appliance will respond to touch. Make sure that the control panel is always clean. Each time it is touched, the appliance will respond with a signal.

Diagram showing two hand gesture options: one with a checkmark and another with an X mark, both on a horizontal line.

CONNECTING

When you place the plug in the outlet, you will hear a signal. You will then see 'OFF' on the display.

USE

1. When operating the device, please put on a pan/pot firstly. Note: Always place the pot or pan in the centre of the hotplate.
2. Press and hold the on-off button to turn the cooking plate on. You hear a signal and 4 dashes [----] appear on the display. The on-off indicator light illuminates. The device switches off automatically if you haven't entered a setting after 60 seconds.
3. Press the mode knob to start heating. The default power setting 1200 W is turned on and the power indicator is illuminated.
4. You adjust the setting using the decrease/increase buttons. You can choose from 10 different settings. The selected setting is shown on the display.

200 W 400 W 600 W 800 W 1000 W 1200 W 1400 W 1600 W 1800 W 2000 W

1. Press the on/off button again to turn off the appliance. The ventilation stays on for a while to cool down.

Simple icon of a magnifying glass on a black background, no text or symbols present

- + 4

⚠ Attention: the appliance will sound several times if the correct pot is not on the hob and will then automatically switch off after one minute. The display shows the error message [Eo].

TEMPERATURE

Instead of displaying in power setting, you can also choose to display in temperature expressed in °C.

1. Before turning on the appliance, you must first place a pot or pan on the cooking surface. Attention: always place the pot or pan in the middle of the hob.
2. Press and hold the on-off button to turn the cooking plate on. You hear a signal and 4 dashes [----] appear on the display. The on-off indicator light illuminates. The device switches off automatically if you haven't entered a setting after 60 seconds.

3. Press the function button three times to start heating. The default setting of 180^ C is switched on and the temperature indicator light is illuminated.

4. You adjust the setting using the decrease/increase buttons. You can choose from 10 different settings. The selected setting is shown on the display.

60°C 80°C

C 100°C 120°C

140°C

160°C 180°C

C 200°C 220°C

240°C

1. Press the on/off button again to turn off the appliance. The ventilation stays on for a while to cool down.

Simple icon of a magnifying glass on a black background, no text or symbols present

- + 4

TIMER

• First, set the desired power or temperature as described previously.
• Press the function button to set the timer. The timer indicator light illuminates. You will then see '[oo]' on the display.
• Set the desired time by pressing the decrease/increase buttons. You can set the timer between 1 and 180 minutes. It is not necessary to confirm the desired setting. If you don't enter any more settings for a few seconds, the timer is set.

- After setting the desired time, the timer will appear on the display alternating with the selected temperature setting or power setting. The power/temperature and timer lights also light up alternately.

· If you want to turn off the timer, set it to o.

- When the timer is ready, the hob switches off automatically.

Mode

MINIMUM/MAXIMUM BUTTON

The cooking plate is equipped with two quick buttons

Press the minimum button to operate the appliance at minimum power, i.e. 200 W.

Press the maximum button to operate the appliance at maximum power, i.e. 2000 W.

CHILDPROOF LOCK

Press the decrease and increase buttons at the same time to activate the child lock. You will then see 'L' on the display. Only the on-off button works when this feature is enabled. Other buttons will not respond. To deactivate this feature, press and hold the decrease and increase buttons again.

PROBLEMS AND SOLUTIONS

Error message Cause
Eo · There is no pot or pan on the cooking plate.· The pot or pan used is not suitable for induction.
E01 · Temperature is too high.· A short circuit occurred because the temperature was too high.
E02 · Temperature is too high.· A short circuit occurred because the temperature was too high.
E03 The electrical grid voltage does not correspond with the appliance voltage.

CLEANING AND MAINTENANCE

• Pull the power plug prior to cleaning the device. Allow the appliance to cool down. Do not use any caustic cleaning agents and make sure that no water penetrates the device.
• To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.
• Wipe off the surface with a damp cloth or use a mild, non-abrasive soap solution.
• Wipe off the casing and the operating panel with a soft cloth or a mild detergent.
  Do not use any petrol products to not damage the plastic parts and the casing/operating panel.
• Do not use any flammable, acidity or alkaline materials or substances near the device, as this may reduce the service life of the device and lead to deflagration when the device is turned on.
• Make sure that the bottom of the cookware does not scrape across the surface of the ceramic field, although a scratched surface does not impair the use of the device.
  · Make sure that the device was properly cleaned before storing it in a dry place.
  • Make sure that the control panel is always clean and dry. Do not leave any objects lying on the hob.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Simple line drawing of a cooking pot with a coiled tube (no text or symbols)

min. 12 cm max. 26 cm

Three identical line drawings of a cooking pot with handles and crossed handles, no text or symbols present.

USO

Two hand-drawn diagrams showing a checkmark and a cross, no text or symbols present

CONECTAR

200 W 400 W 600 W 800 W 1000 W 1200 W 1400 W 1600 W 1800 W 2000 W

Simple icon of a magnifying glass on a black background, no text or symbols present

- + 4

Simple icon of a magnifying glass on a black background, no text or symbols present

- + 4

TEMPORIZADOR

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a cooking pot with a coiled tube (no text or symbols)

min. 12 cm max. 26 cm

Three identical line drawings of a cooking pot with handles and handles, each with a crossed-out cross symbol (no text or labels)

UTILIZZO

Two hand-drawn diagrams showing correct and incorrect states (no text or symbols)

COLLEGARE

200 W 40

0 W 600 W

800 W 100

00 W 1200

W 1400 W

1600 W 18

00 W 2000

W

Simple icon of a magnifying glass over a black square background, no text or symbols present.

- + 4

Simple icon of a magnifying glass on a black background, no text or symbols present

- + 4

TIMER

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a cooking pot with a handle (no text or symbols)

min. 12 cm max. 26 cm

Three identical line drawings of a cooking pot with handles and handles, each with a cross mark on the side (no text or symbols)

POUŽITÍ

Diagram showing two hand-drawn outline shapes with checkmark and cross symbols, likely illustrating correct and incorrect writing or drawing instructions.

PŘIPOJENÍ DO EL. SÍTĚ

200 W 400 W 600 W 800 W 1000 W 1200 W 1400 W 1600 W 1800 W 2000 W

Simple icon of a magnifying glass on a black background, no text or symbols present

- + 4

Simple icon of a magnifying glass on a black background, no text or symbols present

- 4

ČASOVAČ

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a cooking pot with a coiled tube (no text or symbols)

min. 12 cm max. 26 cm

Three identical line drawings of a cooking pot with handles and a cross mark, no text or symbols present.

POUŽITIE

Two hand-drawn diagrams showing correct and incorrect states (no text or symbols)

PRIPOJENIE DO EL. SIETE

200 W 400 W 600 W 800 W 1000 W 1200 W 1400 W 1600 W 1800 W 2000 W

Simple icon of a magnifying glass on a black background, no text or symbols present

- + 4

Simple icon of a magnifying glass on a black background, no text or symbols present

- + 4

ČASOVAČ

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical white objects with transparent caps, possibly milk or similar beverage (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker, and a rectangular container (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
