AC1008 - Controller IFM - Free user manual and instructions

Product Type	AS-i DeviceNet Controller
Brand	IFM
Model	AC1008
Power Supply	24 V DC (terminals +24 V, 0 V)
Mounting	DIN Rail 35 mm
Protection Rating	IP20
Display	4-digit LED digital display
Controls	2 buttons: MODE and SET
Interfaces	1 AS-i master, DeviceNet (Group 2 Only), RS232
Number of AS-i masters	1 (model AC1008)
Operating Modes	Cyclic polling, Bit strobe, Change of state, Cyclic
Configuration	Via explicit messages (DeviceNet) or locally
Main Functions	AS-i master control, DeviceNet gateway, signal preprocessing, watchdog monitoring
Supervisor Communication	Gateway mode with higher-level system
AS-i Voltage	AS-i 1+ / AS-i 1- and AS-i 2+ / AS-i 2- (dual circuit for master 2 on AC1014)
Ground Connection	PE terminal mandatory
Maintenance	Clean with a dry cloth, avoid dust
Safety	Disconnect power before connection, do not reverse negative potentials
Manufacturing	Made in Germany
Standard	Compliant with ODVA specification

Frequently Asked Questions - AC1008 IFM

How to connect the power supply of the AC1008 controller?

Turn off the installation. Connect +24 V to the +24 V terminal and 0 V to the 0 V terminal. Never connect the negative potentials to each other or to ground. Ensure a good ground connection via the PE terminal.

How to configure the controller for gateway operation?

Configuration is done via explicit DeviceNet messages. Use mode 'd' to set the DeviceNet baud rate, and mode 'C' for data lengths. The factory setting (C1=16, C2=16, CC=00) corresponds to gateway mode. After modification, briefly turn the controller off and on or confirm address A to activate changes.

What does the flashing of the CTRL LED mean?

The CTRL LED indicates the controller status: it is on in RUN mode (program processing active) and off in STOP mode (processing stopped). Flashing may indicate an error; check the error messages on the display.

How to assign an address to an AS-i slave?

Use mode 5 to assign address 0 to a slave, or mode 6 to assign a new address to slave 0. First select the mode and master, then the SET button to confirm. Automatic addressing must be enabled (mode 7).

What to do in case of 'Addressing not possible' error?

This error appears if automatic addressing is not active, if slaves are missing, or if protected mode is not active. Check the setting of mode 7 (automatic addressing) and ensure all slaves are present. Activate protected mode if necessary.

How to set the transmission speed of the RS232 serial interface?

Select mode 'b' with MODE, then press SET to choose the speed: b_48 (4800 baud), b_96 (9600), b192 (19200 - default), b384 (38400), b576 (57600), b624 (62400). Confirm with SET.

How to update the configuration after parameter modification?

After modifying parameters (e.g., data lengths or baud rate), either turn the controller off and on, or confirm address A (mode A) so that the new values are applied.

What is the role of gateway mode?

Gateway mode allows the controller to communicate with a higher-level system (supervisor). AS-i data is transmitted via DeviceNet. The controller performs signal preprocessing and cyclic or change-of-state exchange.

How to interpret the error messages displayed on the controller?

The display shows error codes (e.g., E1, E2, etc.). Refer to the manual for the meaning: for example, 'F1' indicates a DeviceNet bus error, 'F3' a different software version between AS-i bundles. The list of faulty slaves can be accessed via mode 1.

How to reset the AC1008 controller to factory settings?

There is no direct factory reset function. To restore default settings, manually set the modes: address 063 (mode A), speed 19200 baud (mode b), data lengths C1=16, C2=16, CC=00 (mode C). Turn the controller off and on.

USER MANUAL AC1008 IFM

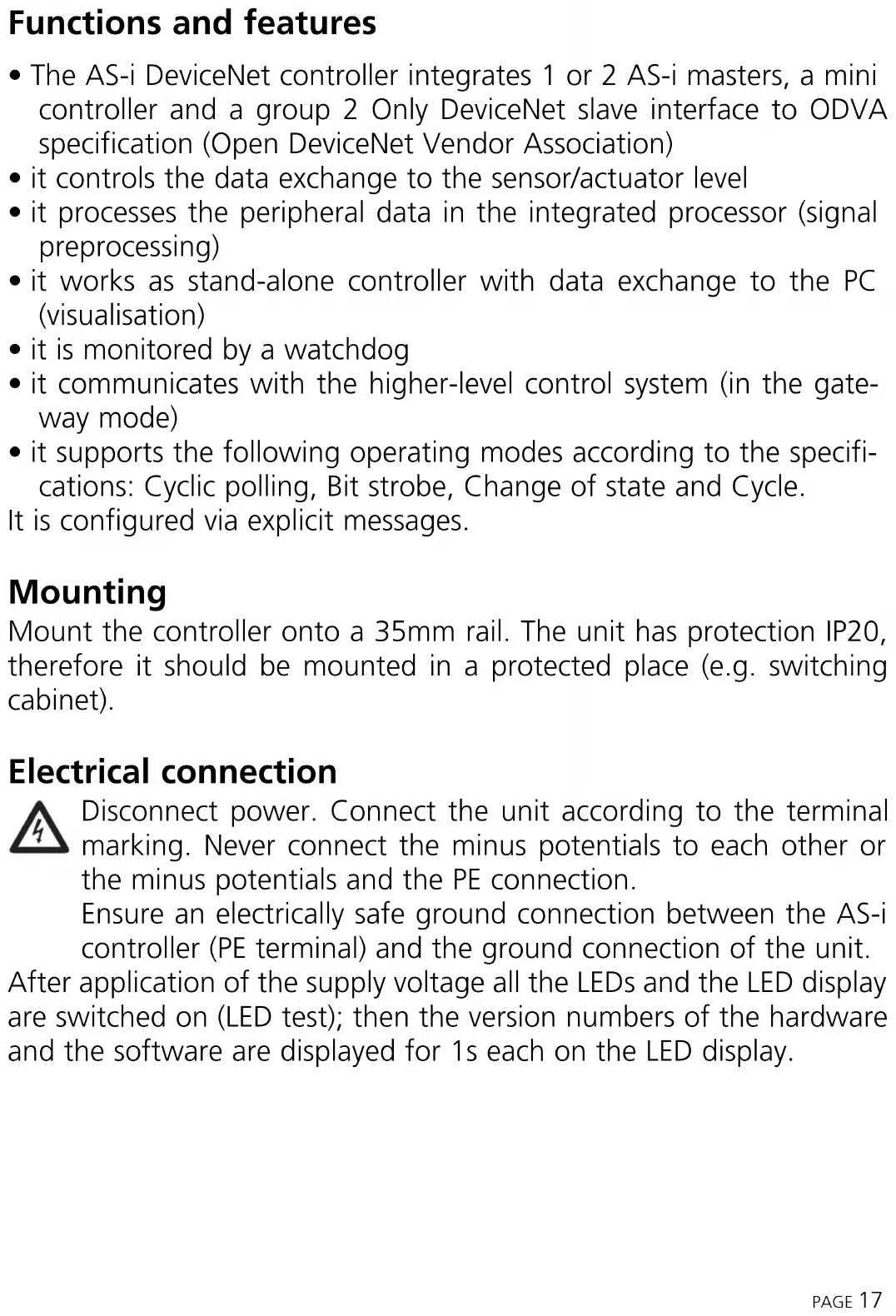

Functions and features

• The AS-i DeviceNet controller integrates 1 or 2 AS-i masters, a mini controller and a group 2 Only DeviceNet slave interface to ODVA specification (Open DeviceNet Vendor Association)
• it controls the data exchange to the sensor/actuator level
• it processes the peripheral data in the integrated processor (signal preprocessing)
• it works as stand-alone controller with data exchange to the PC (visualisation)
• it is monitored by a watchdog
• it communicates with the higher-level control system (in the gateway mode)
• it supports the following operating modes according to the specifications: Cyclic polling, Bit strobe, Change of state and Cycle.
  It is configured via explicit messages.

Mounting

Mount the controller onto a 35mm rail. The unit has protection IP20, therefore it should be mounted in a protected place (e.g. switching cabinet).

Electrical connection

Disconnect power. Connect the unit according to the terminal marking. Never connect the minus potentials to each other or the minus potentials and the PE connection.

Ensure an electrically safe ground connection between the AS-i controller (PE terminal) and the ground connection of the unit.

After application of the supply voltage all the LEDs and the LED display are switched on (LED test); then the version numbers of the hardware and the software are displayed for 1s each on the LED display.

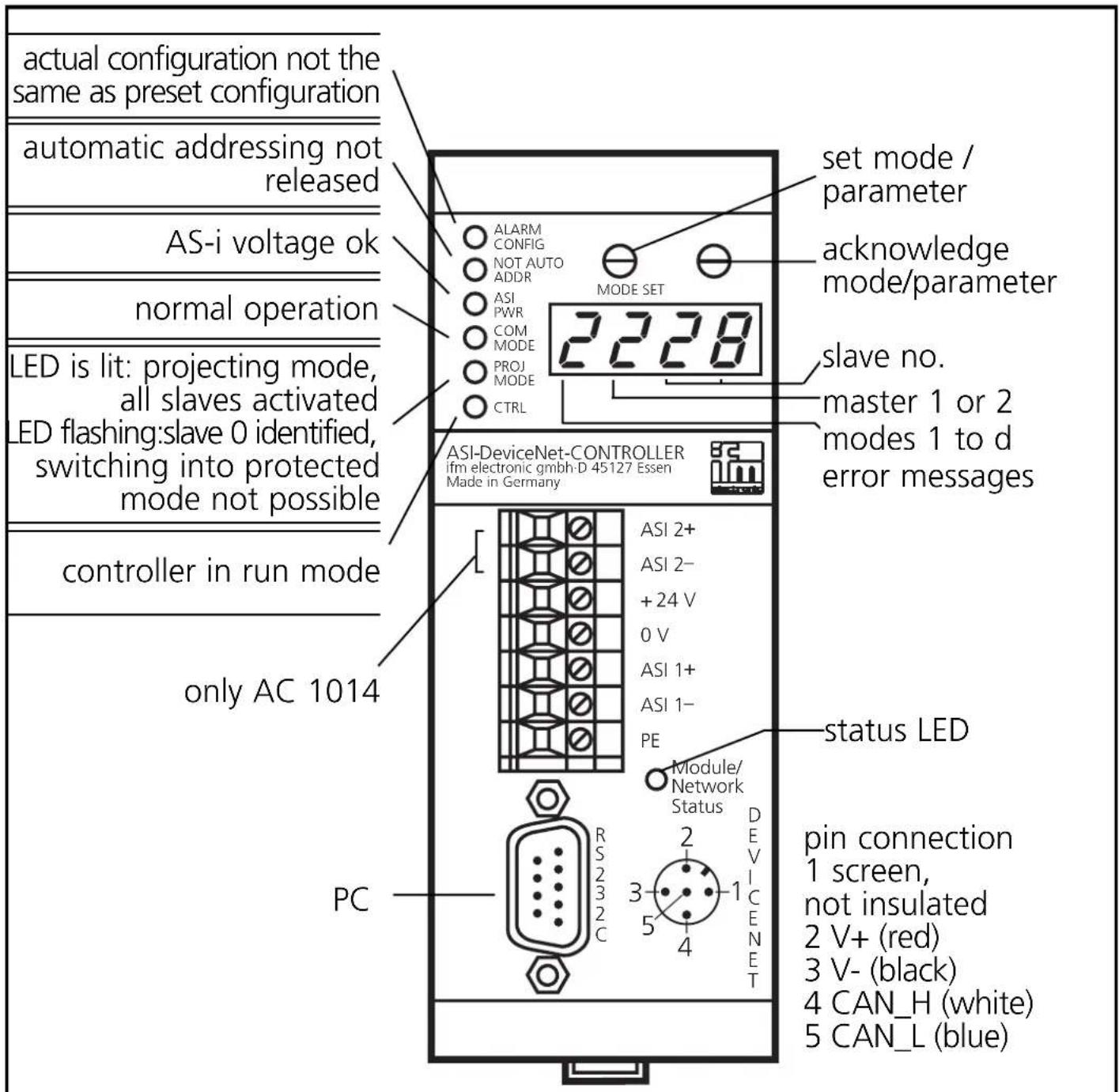

Operating and display elements

actual configuration not the same as preset configuration automatic addressing not released AS-i voltage ok normal operation LED is lit: projecting mode, all slaves activated LED flashing:slave 0 identified, switching into protected mode not possible controller in run mode only AC 1014 PC ALARM CONFIG NOT AUTO ADDR ASI PWR COM MODE PROJ MODE CTRL 2228 MODE SET set mode / parameter acknowledge mode/parameter slave no. master 1 or 2 modes 1 to d error messages ASI-DeviceNet-CONTROLLER ifm electronic gmbh-D 45127 Essen Made in Germany ASI 2+ ASI 2- +24 V 0 V ASI 1+ ASI 1- PE Module/ Network Status 2 3 4 DEVICE NET status LED pin connection 1 screen, not insulated 2 V+ (red) 3 V- (black) 4 CAN_H (white) 5 CAN_L (blue)

Status LED|Colour Meaning

Module/ Network Status	off	DeviceNet voltage not ok or MAC ID test not terminated
	green flashing	controller is online, master allocation not ok
	green	controller is online, master allocation ok
	red flashing	time-out error during data transmission
	red	serious error: controller address allocated twice or bus-off status of the controller or faulty data telegram

Diagnosis / adjustment

The AS-i controller is served via the higher-level host (PC). Some functions are accessible locally:

Mode	Action Operating steps
1	Store list of failed slaves see error messages
2	Display detected slaves 0/1, 0/2, 2 - 4
3	Display projected slaves 0/1, 0/2, 2 - 4
4	Display activated slaves 0/1, 0/2, 2 - 4
5	Allocate address 0 to a slave 0/1, 0/2, 5
6	Allocate an address to slave 0 0/1, 0/2, 6
7	Auto addressing on / off	0/1, 7
8	Project slaves	0/1, 0/2, 8
9	Program processing run/stop	0/1, 9
A	Address controller	0/1, A
b	Set transfer rate of the serial interface	0/1, B
C	Set data lengths	0/1, C
d	Set DeviceNet baud rate	0/1, d
	Locking/unlocking modes > 4	locking/unlocking

Assignment of the status nibbles:

Bit no.	Meaning	= 1	= 0
7	signal preprocessing	running	stopped
6	AS-i power / configuration	not o.k.	o.k.
5	running up finished	yes	no
4	reserved

0/1 Select mode

1	Mode Set (STCC)Press several times until requested mode is displayed		Mode display flashing
2	Mode Set Acknowledgment of the requested mode		Display of the selected mode,display master 1 flashing

0/2 Select master:

1

Mode SetAcknowledgment of master 1

Display master 1,display of 1st slave flashing

or:

1

Mode Set Press once

→

Display of master 2 flashing

2

Mode SetAcknowledgment of master 2

→

Display master 2,display of 1st slave flashing

2/4 Display identified, projected and activated slaves

1

Select mode and master (operating steps 0/1 and 0/2)

2101Display master 1, display of 1st slave

2

Mode SetPress several times

→

Display of other slaves

5 Allocate address 0 to a slave

1	Select mode and master (operating steps 0/1 and 0/2)		Display master, display of 1st slave flashing
2	Mode SetPress several times until requested slave is displayed		5 107Display of slave flashing (here slave 7)
3	Mode SetPress once (= acknowledgment)		5 107Address 0 is stored for selected slave

Automatic addressing must be switched off (mode 7).

6 Allocate an address to slave 0

1	Select mode and master (operating steps 0/1 and 0/2)		Display master,first free slave address flashing
2	Mode SetPress several times until requested address is displayed		Display of selected address flashing (here address 24)
3	Mode SetPress once (= acknowledgment)		New address for slave 0 is stored

7 Auto addressing on/off

= automatic addressing OFF

= simple automatic addressing ON (1 slave can be addressed automatically)

= multiple automatic addressing ON (several slaves can be addressed automatically)

1	Select mode (operating step 0/1)		Display of preset value flashing
2	Mode SetPress several times until requested setting is displayed		7 1 8 8 Display of newly selected setting flashing (here 1)
3	Mode SetPress once (= acknowledgment)		7 1 8 8 New setting is stored

8 Project slaves

1	Select mode and master (operating steps 0/1 and 0/2)		Display master, display project mode flashing
2			New configuration is stored

9 Program processing run/stop

= program processing running (RUN mode) (LED "CTRL" = on)

= program processing stopped (STOP mode) (LED "CTRL" = off)

1	Select mode (operating step 0/1)		9C-1Display of mode and preset value
2	Mode SetPress until requested setting is displayed		Display of newly selected setting (here STOP)
3	Mode SetPress once (= acknowledgment)		9C-5New setting is stored

A Address controller (default address = 063)

1	Select mode(operating step 0/1)		Display of preset address flashing
2	Mode SetPress several times until requested address is displayed		A004Display of new address flashing (here 004)
3	Mode SetPress once (= acknowledgment)		A004New address is stored

The address is only valid for the RS232 interface.

b Set transfer rate of the serial interface

1	Select mode(operating step 0/1)		Display of preset value flashing
2	Mode SetPress several times until requested setting is displayed		Display of newly selected setting flashing (here 96)
3	Mode SetPress once (= acknowledgment)		New setting is stored

Possible settings:b_48 (= 4800 baud), b_96 (= 9600 baud), b192 (= 19200 baud = default), b384 (=38400 baud), b576 (= 57600 baud), b624 (= 62400 baud).

C Set data lengths for the DeviceNet coupling

1	Select mode(operating step 0/1)		Display of preset value flashing
2	Mode SetPress several times until requested setting is displayed		Display of newly selected setting flashing
3	Mode SetPress once		Display of set data length
4	Mode SetPress several times until requested setting is displayed		Display of newly selected setting flashing
5	Mode SetPress once (= acknowledgment)		New setting is stored

Possible settings:

C1 = AS-i 1:0 ... 16 bytes data length in steps of 1 byte

C2 = AS-i 2: 0 ... 16 bytes data length

CC = signal preprocessing: 0,4,8,12,16,24,28 or 32 bytes data length

Setting in the factory (corresponds to the Gateway mode)

C1 = 16

C2 = 16

CC = 00

Disconnect the controller once to activate the changed data or confirm the controller address A once again.

d Set the DeviceNet baud rate

1	Select mode (operating step 0/1)		Display of preset value flashing
2	Mode SetPress once		Display of the baud rate
3	Mode SetPress several times until requested setting is displayed		Display of newly selected setting flashing
4	Mode SetPress once (= acknowledgment)		New setting is stored

Locking/unlocking modes > 4

1	Select mode (operating step 0/1)		Display of the selected mode
2	Mode Set Press twice		Display of locking flashing
3	Mode Set Press once (= acknowledgment)		Display locking active

Unlocking: Press both buttons for approx. 5s; as acknowledgment digit 1 is flashing in the LED display.

Error messages

Display of missing/defective slaves

(digit 2 = master; digits 3 and 4 = slave no.); the slaves are displayed at intervals of seconds.

The list of failed slaves can be stored until the slaves have been replaced.

- Press the SET button twice (for the list of master 1) or SET -MODE - SET (for the list of master 2). The lowest address of the error list is displayed flashing.

- Replace the failed slave by a slave with the same configuration and with the address 0; it will receive the indicated address; (the function “automatic addressing” must be activated). If other addresses are displayed, proceed in the same way until the list has been completed.

- The function will be ended when the slaves have been replaced or the SET button has been pressed.

Bus error: field bus (DeviceNet) not active or not connected

Software version AS-i string 1 ≠AS-i string 2

Error during initialisation of the Profibus interface module

AS-i master 2: operating mode already active

AS-i master 2: addressing mode already active

AS-i master 2: error during the setting of the new address

AS-i master 2: error during the deletion of the old address

AS-i master 2: slave with old address does not exist

AS-i master 2: slave with new address exists

AS-i master 2 offline/slave 0 exists

AS-i master 2 not in the projecting mode

AS-i master 2 not in the projecting mode

AS-i master 2 not in the projecting mode/configuration data not valid

AS-i master 2 not in the projecting mode

AS-i master 2: offline

AS-i master 2: parameter value invalid

AS-i master 1: operating mode already active

AS-i master 1: addressing mode already active

AS-i master 1: error during the setting of the new address

	AS-i master 1: error during the deletion of the old address
	AS-i master 1: slave with old address does not exist
	AS-i master 1: slave with new address exists
	AS-i master 1 offline/slave 0 exists
	AS-i master 1 not in the projecting mode
	AS-i master 1 not in the projecting mode
	AS-i master 1 not in the projecting mode/ configuration data not valid
	AS-i master 1 not in the projecting mode
	AS-i master 1 offline
	AS-i master 1: parameter value invalid
	Master 2 does not exist
	No plc program loaded
	No entry in LDS (list of detected slaves)
	No entry in LPS (list of projected slaves)
	No entry in LAS (list of activated slaves)
	No free slave address available
	Key handling disabled
	Function only possible in the projecting mode

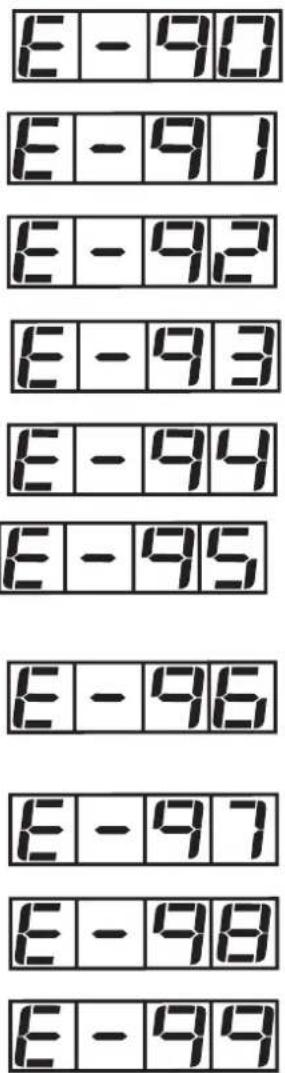

E - 90 E - 91 E - 92 E - 93 E - 94 E - 95 E - 96 E - 97 E - 98 E - 99

Slave 0 does not exist

Target address already allotted

New address could not be allotted

Multiple automatic addressing not active

I/O configuration ≠projected configuration

Incorrect ID code (does not correspond to projected value)

Addressing not possible since "automatic addressing" has not been activated

Addressing not possible, slaves are missing

Protected operating mode is not active

Slave 0 already exists

Controllers with one master (AC1008)

Input Rating

24V DC 80mA

Output Rating

± 3V DC

Electrical ratings

Controllers with two masters (AC1014)

Input Rating

24V DC 80mA

Output Rating

± 2 × 3V DC
