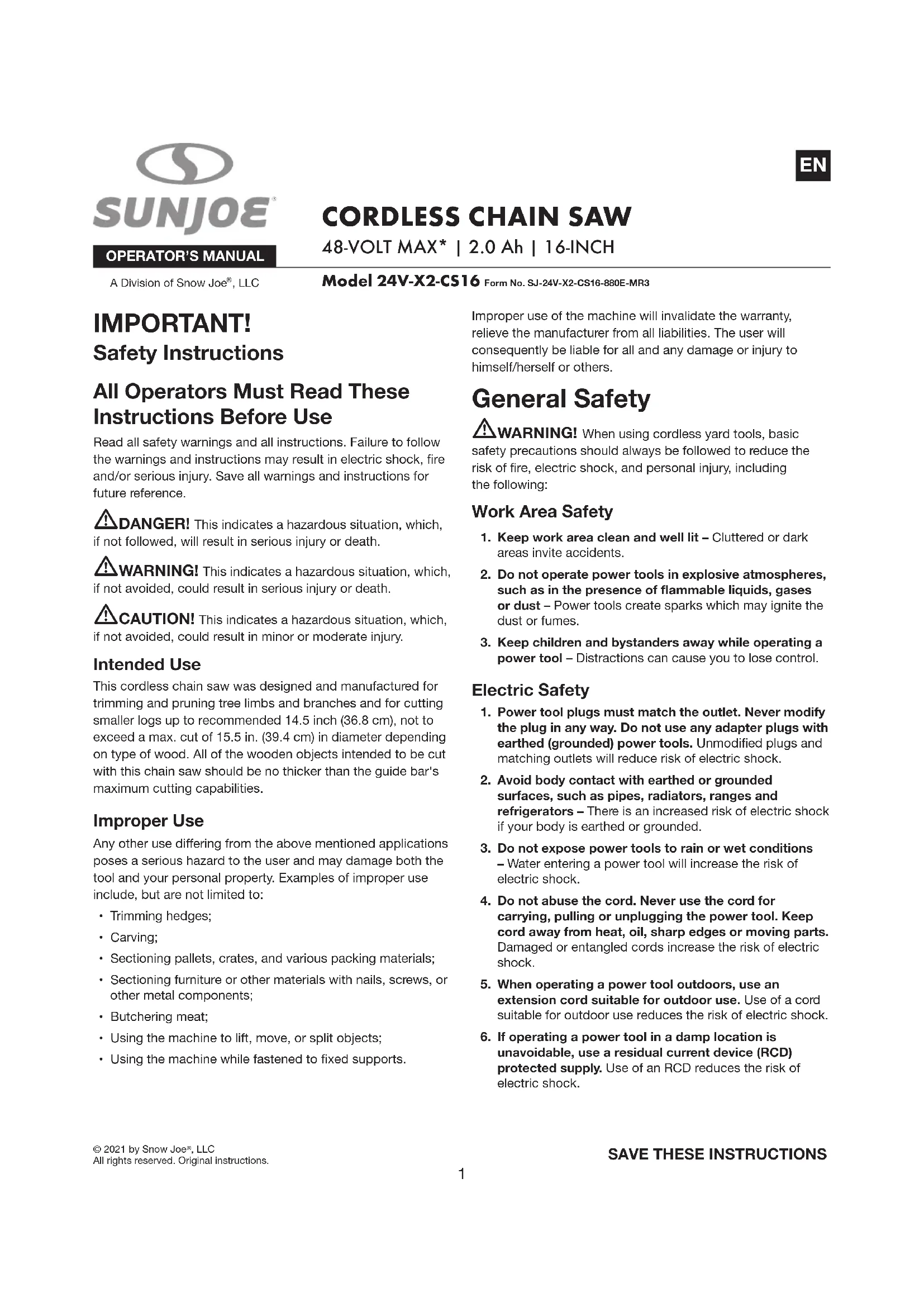

USER MANUAL BDLA0201 Sun Joe

© 2021 by Snow Joe , LLCAll rights reserved. Original instructions.

SAVE THESE INSTRUCTIONS

A Division of Snow Joe

48-VOLT MAX* | 2.0 Ah | 16-INCH IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. mDANGER! This indicates a hazardous situation, which, if not followed, will result in serious injury or death. mWARNING! This indicates a hazardous situation, which, if not avoided, could result in serious injury or death. mCAUTION! This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury. Intended Use This cordless chain saw was designed and manufactured for trimming and pruning tree limbs and branches and for cutting smaller logs up to recommended 14.5 inch (36.8 cm), not to exceed a max. cut of 15.5 in. (39.4 cm) in diameter depending on type of wood. All of the wooden objects intended to be cut with this chain saw should be no thicker than the guide bar's maximum cutting capabilities. Improper Use Any other use diering from the above mentioned applications poses a serious hazard to the user and may damage both the tool and your personal property. Examples of improper use include, but are not limited to:

• Sectioning pallets, crates, and various packing materials;

• Sectioning furniture or other materials with nails, screws, or other metal components;

• Using the machine to lift, move, or split objects;

• Using the machine while fastened to xed supports. Improper use of the machine will invalidate the warranty, relieve the manufacturer from all liabilities. The user will consequently be liable for all and any damage or injury to himself/herself or others. General Safety mWARNING! When using cordless yard tools, basic safety precautions should always be followed to reduce the risk of re, electric shock, and personal injury, including the following: Work Area Safety

1. Keep work area clean and well lit – Cluttered or dark

areas invite accidents.

2. Do not operate power tools in explosive atmospheres,

such as in the presence of ammable liquids, gases or dust – Power tools create sparks which may ignite the dust or fumes.

3. Keep children and bystanders away while operating a

power tool – Distractions can cause you to lose control. Electric Safety

1. Power tool plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.

2. Avoid body contact with earthed or grounded

surfaces, such as pipes, radiators, ranges and refrigerators – There is an increased risk of electric shock if your body is earthed or grounded.

3. Do not expose power tools to rain or wet conditions

– Water entering a power tool will increase the risk of electric shock.

4. Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

5. When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

6. If operating a power tool in a damp location is

unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.2 Personal Safety

1. Stay alert, watch what you are doing and use common

sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication – A moment of inattention while operating power tools may result in serious personal injury.

2. Use personal protective equipment. Always wear

eye protection – Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

3. Prevent unintentional starting. Ensure the switch is

in the o-position before connecting battery packs, picking up or carrying the tool – Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents.

4. Remove any adjusting key or wrench before

turning the power tool on – A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

5. Do not overreach. Keep proper footing and balance at

all times – This enables better control of the power tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing and gloves away from moving parts – Loose clothes, jewellery or long hair can be caught in moving parts.

7. If devices are provided for the connection of dust

extraction and collection facilities, ensure these are connected and properly used – Use of dust collection can reduce dust-related hazards. Power Tool Use and Care

1. Do not force the power tool. Use the correct power

tool for your application – The correct power tool will do the job better and safer at the rate for which it was designed.

2. Do not use the power tool if the switch does not turn

it on and o – Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

3. Disconnect the battery packs from the power

tool before making any adjustments, changing accessories, or storing power tools – Such preventive safety measures reduce the risk of starting the power tool accidentally.

4. Store idle power tools out of the reach of children and

do not allow persons unfamiliar with the power tool or these instructions to operate the power tool – Power tools are dangerous in the hands of untrained users.

5. Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and any other condition that may aect the power tool’s operation. If damaged, have the power tool repaired before use – Many accidents are caused by poorly maintained power tools.

6. Keep cutting tools sharp and clean – Properly

maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

7. Use the power tool, accessories etc. in accordance

with these instructions, taking into account the working conditions and the work to be performed – Use of the power tool for operations dierent from those intended could result in a hazardous situation. Battery tool use and care

1. Recharge only with the charger specied by the

manufacturer – A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

2. Use power tools only with specically designated

battery packs – Use of any other battery packs may create a risk of injury and re.

3. When battery packs are not in use, keep them away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another – Shorting the battery terminals together may cause burns or a re.

4. Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help – Liquid ejected from the battery may cause irritation or burns. Service Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Chain Saw Safety Warnings

• Keep guards in place. Protective guards should be checked periodically to ensure they are properly tted and in correct working order.

• Do not grasp the exposed cutting blade or cutting edges when picking up or holding the saw. Be sure to encase the cutting bar in its protective sheath when not in use.

• Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating the chain saw may cause entanglement of your clothing or body with the saw chain.

• Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand conguration increases the risk of personal injury and should never be done.3

• Hold the power tool by insulated gripping surfaces only, because the saw chain may contact hidden wiring. Saw chains contacting a "live" wire may make exposed metal part of the power tool "live" and give the operator a electric shock.

• Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and feet is recommended. Adequate protective clothing will reduce personal injury by ying debris or accidental contact with the saw chain.

• Do not operate the chain saw in a tree. Operation of a chain saw while up in a tree may result in personal injury.

• Always keep proper footing and operate the chain saw only when standing on a xed, secured and level surface. Slippery or unstable surfaces such as ladders may cause a loss of balance or control of the chain saw.

• When cutting a limb that is under tension, be cautious of spring back. When the tension in the wood bers is released, the spring-loaded limb may strike the operator and/or throw the chain saw out of control.

• Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you o balance.

• Carry the chain saw by the front handle with the chain saw switched o and away from your body. When transporting or storing the chain saw, always t the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.

• Follow instructions for lubricating, chain tensioning and changing accessories. An improperly tensioned or poorly lubricated chain may either break or increase the chance for kickback.

• Keep handles dry, clean and free from oil and grease. Greasy, oily handles are slippery and can cause loss of control.

• Cut wood only. Do not use the chain saw for any other purpose. For example, do not use the chain saw to cut plastic, masonry or non-wood building materials. Using the chain saw in these incorrect ways could result in serious damage to you and your tool. Causes and operator prevention of kickback Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury. Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

• Maintain a rm grip (right hand on the rear handle and left hand on the front handle with thumbs and ngers encircling the respective handles) and position your body and arms to allow you to resist kickback forces. Kickback forces can be controlled by the operator if proper precautions are taken. Do not let go of the chain saw.

• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the unit in unexpected situations.

• Only use replacement bars and chains specied by the manufacturer. Incorrect replacement of bars and chains may cause chain breakage and/or kickback.

• Never use a dull or loose chain. Keep the chain sharp and properly tensioned.

• Follow the manufacturer’s sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback. Battery & Charger Safety Instructions We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries that are safe, durable and have a high energy density. The battery cells have a wide range of safety devices. Each individual cell is initially formatted and its electrical characteristic curves are recorded. This data is then used exclusively to be able to assemble the best possible battery packs. Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if undamaged cells are used. Incorrect handling of the battery pack can cause cell damage. IMPORTANT! Analyses conrm that incorrect use and poor care of high-performance batteries are the main factors responsible for personal and/or product damage. mWARNING! Use only approved replacement batteries; other batteries may damage the cordless chain saw and cause it to malfunction, which can lead to serious personal injury. mWARNING! Do not use a battery pack or appliance that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury. Do not modify or attempt to repair the appliance or the battery packs except as indicated in the instructions for use and care.4 Have your battery packs serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the battery pack is maintained. mCAUTION! To reduce the risk of injury, charge the 24V iON+ lithium-ion battery pack only in its designated 24V iON+ lithium-ion charger. Other types of chargers present risk of re, personal injury and damage. Do not wire a battery pack to a power supply plug or car cigarette lighter. Such misuse will permanently disable or damage the battery pack.

• Avoid dangerous environments – Do not charge the battery packs in rain, snow or in damp or wet locations. Do not use the battery packs or charger in the presence of explosive atmospheres (gaseous fumes, dust or ammable materials) because sparks may be generated when inserting or removing the battery pack, which could lead to a re.

• Charge in a well-ventilated area – Do not block the charger vents. Keep them clear to allow for proper ventilation. Do not allow smoking or open ames near a charging battery pack. Vented gases may explode. NOTE: The safe temperature range for the battery is 41°F – 105ºF (5°C – 40.5°C). Do not charge the battery outside in freezing weather; charge it at room temperature.

• Maintain charger cord – When unplugging the charger, pull the plug, not the cord, from the receptacle to reduce the risk of damage to the electrical plug and cord. Never carry the charger by its cord or yank it by the cord to disconnect it from the receptacle. Keep the cord away from heat, oil and sharp edges. Make sure the cord will not be stepped on, tripped over or subjected to damage or stress when the charger is in use. Do not use the charger with a damaged cord or plug. Replace a damaged charger immediately.

• Do not use an extension cord unless it is absolutely necessary – Using the wrong, damaged or improperly wired extension cord poses a risk of re and electric shock. If an extension cord must be used, plug the charger into a properly wired 16 gauge or larger extension cord with the female plug matching the male plug on the charger. Make sure that the extension cord is in good electrical condition.

• Charger 24VCHRG-DPC is rated for 120 volt AC only – The charger must be plugged into an appropriate receptacle.

• Use only recommended attachments – Use of an attachment not recommended or sold by the battery charger or battery pack manufacturer may result in risk of re, electric shock or personal injury.

• Unplug charger when not in use – Make sure to remove battery packs from unplugged chargers. mWARNING! To reduce the risk of electric shock, always unplug the charger before performing any cleaning or maintenance. Do not allow water to ow into the charger. Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.

• Do not burn or incinerate battery packs – Battery packs may explode, causing personal injury or damage. Toxic fumes and materials are created when battery packs are burned.

• Do not crush, drop or damage battery packs – Do not use the battery packs or charger if they have sustained a sharp blow, been dropped, run over or have been damaged in any way (i.e. pierced with a nail, hit with a hammer, stepped on, etc.).

• Do not disassemble – Incorrect reassembly may pose a serious risk of electric shock, re or exposure to toxic battery chemicals. If the batteries or charger are damaged, contact an authorized Snow Joe

dealer or call the Snow Joe

• Battery chemicals cause serious burns – Never let a damaged battery pack contact the skin, eyes or mouth. If a damaged battery pack leaks battery chemicals, use rubber or neoprene gloves to safely dispose of it. If skin is exposed to battery uids, wash the aected area with soap and water and rinse with vinegar. If eyes are exposed to battery chemicals, immediately ush with water for 20 minutes and seek medical attention. Remove and dispose of contaminated clothing.

• Do not short circuit – A battery pack will short circuit if a metal object makes a connection between the positive and negative contacts on the battery pack. Do not place a battery pack near anything that may cause a short circuit, such as paper clips, coins, keys, screws, nails and other metallic objects. A short-circuited battery pack poses a risk of re and severe personal injury.

• Store your battery packs and charger in a cool, dry place – Do not store the battery packs or charger where temperatures may exceed 105ºF (40.5ºC), such as in direct sunlight or inside a vehicle or metal building during the summer. Information about the battery

1. The battery packs supplied with your cordless chain saw

are only partially charged. The battery packs have to be charged completely before you use the tool for the rst time.

2. For optimum battery performance, avoid low discharge

cycles by charging the battery packs frequently.

3. Store the battery packs in a cool place, ideally at 77°F

(25°C) and charged to at least 40%.

4. Lithium-ion batteries are subject to a natural aging

process. The battery packs must be replaced at the latest when its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable of meeting the high power requirements needed for the proper operation of your chain saw, and therefore pose a safety risk.

5. Do not throw battery packs into an open re as this poses

a risk of explosion.

6. Do not ignite the battery packs or expose them to re.

7. Do not exhaustively discharge batteries. Exhaustive

discharge will damage the battery cells. The most common cause of exhaustive discharge is lengthy storage or non-use of partially discharged batteries. Stop working as soon as the performance of the batteries falls noticeably or the electronic protection system triggers.5 Place the battery packs in storage only after they have been fully charged.

8. Protect batteries and the tool from overloads. Overloads

will quickly result in overheating and cell damage inside the battery housing even if this overheating is not apparent externally.

9. Avoid damage and shocks. Immediately replace batteries

that have been dropped from a height of more than one meter or those that have been exposed to violent shocks, even if the housing of the battery pack appears to be undamaged. The battery cells inside the battery may have suered serious damage. In such instances, please read the waste disposal information for proper battery disposal.

10. If the battery packs suer overloading and overheating,

the integrated protective cuto will switch o the equipment for safety reasons. IMPORTANT! Do not press the ON/OFF switch any more if the protective cut-o has been activated. This may damage to the battery packs.

11. Use only original battery packs. The use of other batteries

poses a re risk and may result in injuries or an explosion. Information about the charger and the charging process

1. Please check the data marked on the rating plate of the

battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate. Never connect it to a dierent mains voltage.

2. Protect the battery charger and its cord from damage.

Keep the charger and its cord away from heat, oil and sharp edges. Have damaged cords repaired without delay by a qualied technician at an authorized Snow Joe

dealer or call the Snow Joe

the plug in any way. Do not use any adapter plugs with grounded appliances. Unmodied plugs and matching outlets will reduce the risk of electric shock.

4. Keep the battery charger, battery packs and the cordless

tool out of the reach of children.

5. Do not use the supplied battery charger to charge other

6. During periods of heavy use, the battery packs will

become warm. Allow the battery packs to cool to room temperature before connecting it to the charger to recharge.

7. Do not overcharge batteries. Do not exceed the maximum

charging times. These charging times only apply to discharged batteries. Frequent insertion of a charged or partially charged battery pack will result in overcharging and cell damage. Do not leave batteries in the charger for days on end.

8. Never use or charge batteries if you suspect that it has

been more than 12 months since the last time they were charged. There is a high probability that the battery pack has already suered dangerous damage (exhaustive discharge).

9. Charging batteries at a temperature below 41°F (5°C) will

cause chemical damage to the cells and may cause a re.

10. Do not use batteries that have been exposed to heat

during the charging process, as the battery cells may have suered dangerous damage.

11. Do not use batteries that have suered curvature or

deformation during the charging process or those that exhibit other atypical symptoms (gassing, hissing, cracking, etc.).

12. Never fully discharge the battery packs (maximum

recommended depth of discharge is 80%). A complete discharge of the battery packs will lead to premature aging of the battery cells. Protection from environmental inuences

1. Wear suitable work clothes. Wear safety goggles.

2. Protect your cordless tool and the battery charger from

moisture and rain. Moisture and rain can cause dangerous cell damage.

3. Do not use the cordless tool or the battery charger near

vapors and ammable liquids.

4. Use the battery charger and cordless tools only in dry

conditions and at an ambient temperature of 41ºF – 105°F (5°C – 40.5°C).

5. Do not keep the battery charger in places where the

temperature is liable to reach over 105°F (40.5°C). In particular, do not leave the battery charger in a car that is parked in the sunshine.

6. Protect batteries from overheating. Overloads,

overcharging and exposure to direct sunlight will result in overheating and cell damage. Never charge or work with batteries that have been overheated – replace them immediately, if possible.

7. Store the charger and your cordless tool only in dry

locations with an ambient temperature of 41ºF – 105°F (5°C – 40.5°C). Store your lithium-ion battery packs in a cool, dry place at a temperature of 77°F (25°C). Protect the battery packs, charger and cordless tool from humidity and direct sunlight. Only place fully charged batteries in storage (charged to at least 40%).

8. Prevent the lithium-ion battery packs from freezing.

Battery packs that were stored below 32°F (0°C) for more than 60 minutes must be discarded.

9. When handling batteries, be wary of electrostatic

charge. Electrostatic discharges can damage the electronic protection system and the battery cells. Avoid electrostatic charging and never touch the battery poles.6 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

MANUAL(S) – Read, understand and follow all instructions in the user manual(s) before attempting to assemble and operate. SAFETY ALERT – Indicates a precaution, a warning or a danger. The moving part will continuously run for several seconds after you turn o the machine. WARNING! Do not expose the unit to rain or wet conditions. CAUTION! Avoid contacting the guide bar tip with any object. Tip contact may cause the guide bar to move suddenly upward and backwards, which may cause serious injury to the user.

WEAR EYE AND HEARING

PROTECTION – For protection against injury, wear ear defenders, safety goggles, and head protection. WARNING! Two hands are always to be used when operating the chain saw. Correct direction of cutting teeth. Keep bystanders and children a safe distance away. Symbols Symbols Descriptions Descriptions Indoor use only. Only use battery charger indoors.

DANGER! ROTATING BLADES – Keep hands and feet away from openings while the saw is running. Wear safety footwear at all times to provide protection against objects that may accidentally fall on feet. Wear safety gloves during use to protect hands.7 Know Your Cordless Chain Saw Read the owner’s manual and safety instructions carefully before operating cordless chain saw. Compare the illustration below to the cordless chain saw in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. Technical Data Motor ................................................................... 1200 W brush Battery Voltage Max* .................................... 48V D.C. (2 x 24V) Battery Capacity .............................................................. 2.0 Ah Charger Input .............................................................. 120V AC, 60 Hz, 160 W Charger Output .............................................. 26V DC, 2 x 2.2A Charge Time Max ................................ 55 min per battery pack Bar/Chain Length .......................................... 16 inch (40.6 cm) Oil Tank Capacity ............................................... 5 oz (150 ml) Cutting Thickness ................................. Max: 15.5 in. (39.4 cm) Recommended:14.5 in. (36.8 cm) Net Weight .......................................................... 12.7 lbs (5.8 kg) *Initial no-load voltage, when fully charged, peaks at 48 volts; nominal voltage under typical load is 43.2 volts. FRONT

(24VBAT-LTE) featuring exclusive EcoSharp

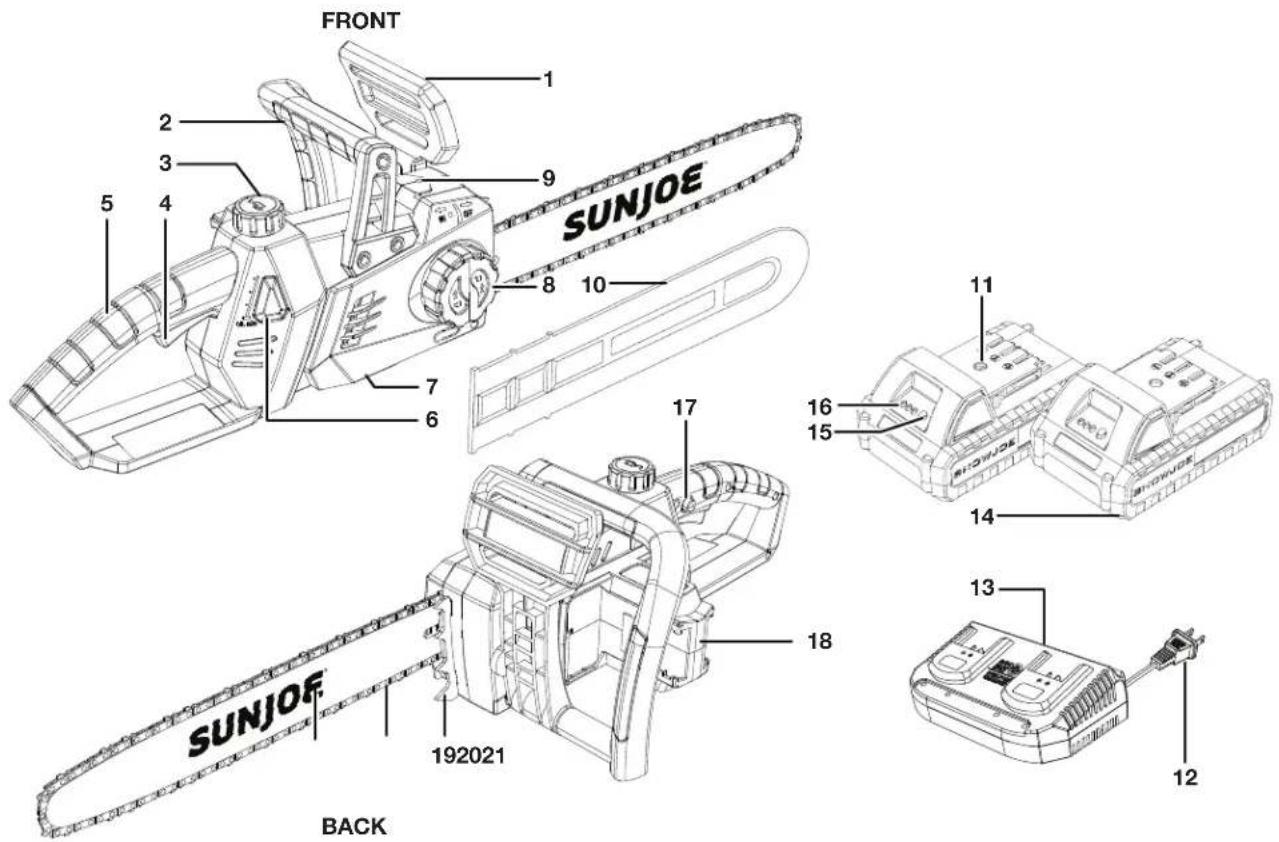

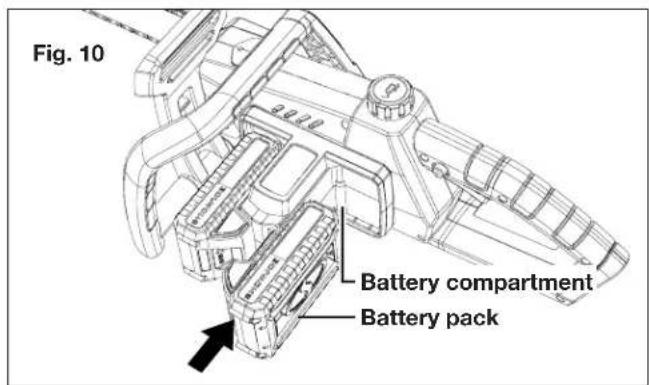

18. Battery compartment

• Cordless chain saw with chain and bar

• Manual with registration card

1. Carefully remove the cordless chain saw and check to see

that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you nd damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new cordless chain saw. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations. IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suocation risk! Battery Pack Operation The equipment is powered by 2 lithium-ion batteries. The battery packs are completely sealed and maintenance free. mWARNING! The chain saw can only be powered by both of the batteries together. Use one battery cannot provide sucient power to the tool. Make sure to use two batteries of the same voltage and the same capacity. Using the tool with batteries of dierent capacity will cause damage to the batteries. mWARNING! Before rst use, the batteries require at least 55 mins charge time for each to be fully charged. When the batteries are at low capacity, recharge for 55 mins again for each before resuming operation. Battery Charge Level Indicator The battery packs are equipped with a push button for checking the charge level. Simply press the push button to read o the battery charge level from the LEDs of the battery indicator:

• All 3 level monitoring LEDs are lit: Battery charge level is high.

• 2 level monitoring LEDs are lit: Battery charge level is decreasing. Stop work as soon as possible.

• 1 level monitoring LED is lit: Battery is at. Stop work IMMEDIATELY and charge the battery. Otherwise the battery’s service life will be greatly shortened. NOTE: If the charge level button does not appear to be working, connect the battery to the charger and charge as needed. NOTE: Immediately after using the battery packs, the charge level buttons may display a lower charge than they will if checked a few minutes later. The battery cells “recover” some of their charge after resting. Charger Operation

WARNING! Charge only 24V iON+ lithium-ion battery packs with their compatible 24V iON+ lithium-ion charger. Other types of batteries may cause personal injury and damage. To reduce the risk of electric shock, do not allow water to ow into the charger's AC/DC plug. When to Charge the iON+ 24VBAT-LTE Lithium-Ion Batteries NOTE: The iON+ 24VBAT-LTE lithium-ion battery packs do not develop a "memory" when charged after only a partial discharge. Therefore, it is not necessary to run down the battery pack before connecting it with the charger.

• Use the battery charge indicator lights to determine when to charge your iON+ 24VBAT-LTE lithium-ion battery packs.

• You can "top-o" your battery packs' charge before starting a big job or after a long day of use. Charge level button The battery is at 30% capacity and requires charging The battery is at 60% capacity and requires charging soon The battery is at full capacity Light IndicatorsLights9 Charging the Batteries

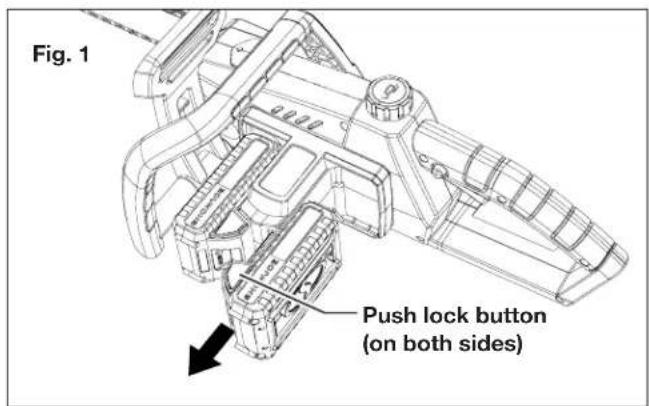

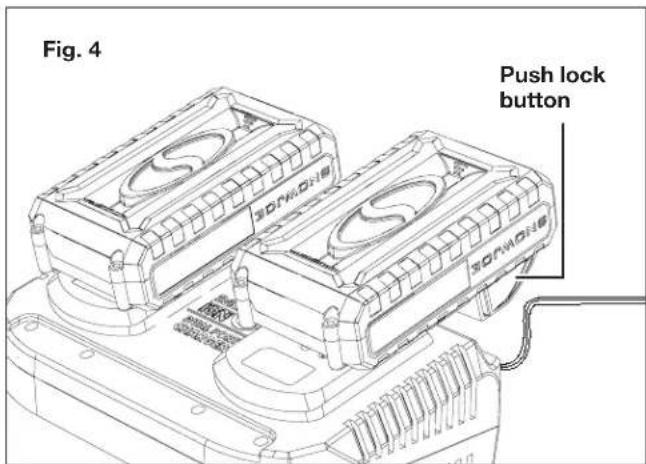

1. Press the push lock buttons on the batteries to pull them

out of the equipment (Fig. 1).

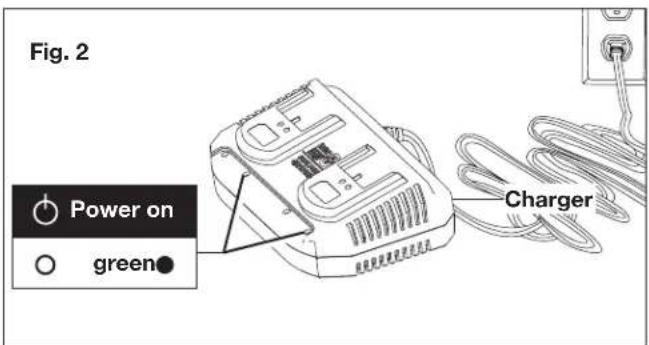

2. Check that the mains voltage is the same as that marked

on the rating plate of the battery charger. Then, insert the charger's plug into the electrical wall outlet. When you plug in the charger, two green lights will illuminate and stay green (Fig. 2).

3. Place the battery packs into the charger by sliding the

packs to lock them into position. When you insert the batteries into the charger, the two green lights will go o, and the red lights will illuminate to indicate that the batteries are charging (Fig. 3).

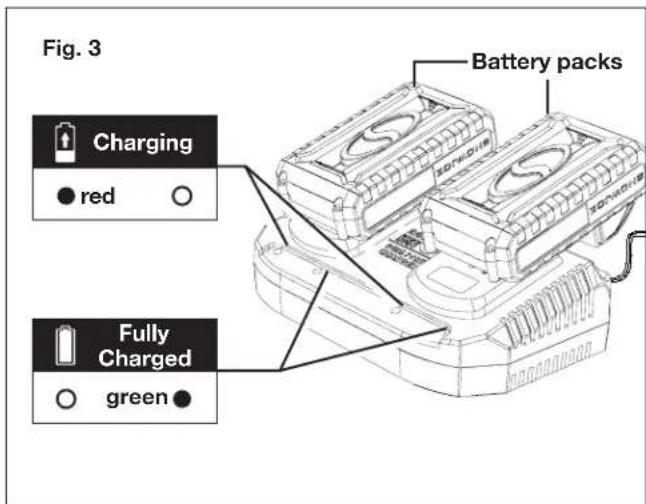

4. When the charger lights turn green, the batteries are fully

charged (Fig. 3). NOTE: A fully discharged pack with an internal temperature in the normal range will fully charge in 55 min (between 32ºF/0ºC and 113ºF/45ºC).

5. If the light indicators do not come on at all, check that

the battery packs are fully seated into the bay. Remove the battery packs and reinsert. If the problem persists, contact an authorized Snow Joe

dealer or call the Snow Joe

6. When charging is complete, remove the batteries from the

charger by pressing the push lock buttons and sliding the batteries backward to unlock them from the charger (Fig. 4). mCAUTION! FIRE HAZARD. When remove the batteries from the charger, be sure to unplug the charger from the outlet rst, then remove the batteries from the charger. mWARNING! This charger does not automatically turn o when the batteries are fully charged. Please take care not to leave the batteries in the charger. Switch o or unplug the charger at the mains when charging is complete.

7. Timely recharging of the batteries will help prolong the

batteries' life. You must recharge the battery packs when you notice a drop in the equipment's power. IMPORTANT! Never allow the battery packs to become fully discharged as this will cause irreversible damage to the batteries. Charging a Hot or Cold Battery Pack The green indicator lights on the charger base indicates that the battery packs' temperatures are outside the charging range. Once the packs are within the acceptable range, normal charging will take place and the red light will be continuous. Hot or cold battery packs may take longer to charge. Push lock button (on both sides) Fig. 1 Fig. 2 Charger green Power on Fig. 3 Battery packs red Charging green Fully Charged Fig. 4 Push lock button10 Preparing To Work Checking the Machine mWARNING! Before performing any checks, adjustments, repairs or maintenance on the machine, make sure the batteries are not inserted in the compartments. Before starting work please:

• Check that all the screws on the machine and the guide bar are tightly fastened;

• Check that the chain is tensioned correctly, sharp and there are no signs of any damage;

• Check that hand grips and protection devices are clean and dry, correctly mounted and securely fastened to the machine;

• Check that the chain brake is working eciently;

• Check that the trigger switch and the safety button move freely without forcing and return automatically and rapidly back to their neutral positions;

• Check that the trigger switch remains locked until the safety button is pressed;

• Make sure the cooling air vents are not clogged with sawdust or debris;

• Check that the chain’s oil level is not below the "OIL min" level mark; if necessary, top up the oil to 1 cm from the rim of the ller. NOTE: You must ll the chain oil tank with bar and chain oil before using your chain saw. Adjusting the Chain Tension

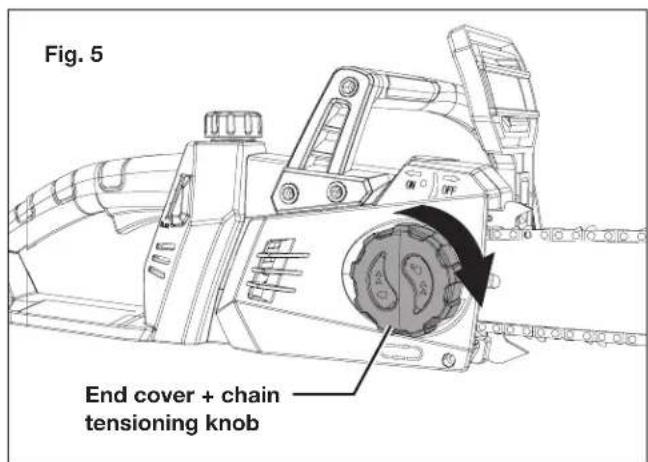

1. Tension the chain by turning the end cover + chain

tensioning knob clockwise (Fig. 5). A cold chain will be correctly tensioned when there is no slack on the underside of the guide bar; the chain is snug, but it can be turned by hand without binding. NOTE: Pay attention when loosening the chain by turning the end cover + chain tensioning knob counterclockwise. If loosened excessively, the knob and end cover may come o.

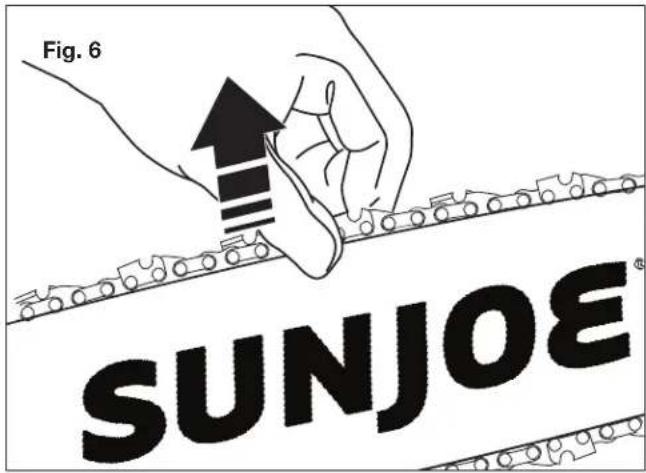

2. The tension is correct when the drive links on the chain do

not slip out of the chain guide on the bar when the chain is pulled up from the middle of the bar (Fig. 6).

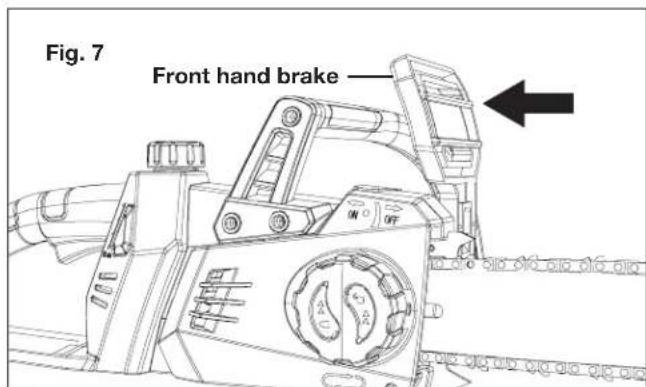

3. Pull the front hand brake towards the front handle in the

OFF position (Fig. 7). Using a screwdriver, run the chain along the guide to check that it moves smoothly. Chain Lubricant IMPORTANT! Only use a good quality bar and chain oil designed specically for use with chain saws to ensure optimal lubrication of the cutting parts. Do not use oil containing impurities to avoid clogging the tank lter and permanently damaging the oiler. IMPORTANT! The chain lubricating oil is bio-degradable. The use of mineral oil or engine oil can have a serious impact on the environment. It is essential that you use good quality oil to lubricate the cutting parts eectively. Used or poor quality oil does not guarantee good lubrication and reduces the lifespan of the chain and bar. Fig. 5 End cover + chain tensioning knob Fig. 6 Fig. 7 Front hand brake11 IMPORTANT! Before each use, the oil level should be checked and topped up to 1 cm from the rim of the ller. To ll the oil tank, remove the oil tank cap and add the recommended bar and chain oil. The oil level must not drop below the "OIL min" level mark, as indicated on the oil tank (Fig. 8). Operation Starting and Stopping mCAUTION! Starting, stopping, and restarting an electric motor repeatedly within a few seconds can generate a great deal of heat and damage the motor. To protect the life of your cordless chain saw, always wait at least ve seconds after stopping before restarting the saw. mWARNING! Be sure that the chain is not in contact with any object when you start the motor. mWARNING! Keep hands away from chain. Keep hands on handles. Do not overreach. A good, rm grip on the tool using both hands will help you maintain control. Maintain a rm grip by place your right hand on the rear handle and left hand on the front handle with thumbs and ngers encircling the respective handles. A rm grip combined with proper positioning of the handle against your body will help you maintain control of the saw. Do not let go of the saw while it is in operation. mWARNING! Do not operate the cordless chain saw in a tree, on a ladder, or on a scaold. Using the tool under such circumstances is extremely dangerous. mCAUTION! The chain will continue to run for several seconds after turning o the tool. Do not use the chain saw under wet conditions. Use extreme caution when cutting small brush, saplings, or limbs under tension because slender and tense material may catch the saw and be whipped toward you, pull you o balance, or spring back. Do not use the chain saw to cut vines and/or small underbrush. mWARNING! Do not let familiarity with this type of tool prevent you from taking all necessary precautions. Remember that a careless fraction of a second is sucient to inict serious injury. mWARNING! Do not cut trees near electrical wires. mWARNING! Failure to lubricate the chain will cause damage to the bar and chain. Use only a good quality bar and chain oil designed specically for use with chain saws. NOTE: It is normal for oil to seep from the saw when not in use. To prevent seepage, empty the oil tank after each use. When storing the unit for a long period of time (3 months or longer), be sure the chain is lightly lubricated; this will prevent rust on the chain and bar sprocket.

1. Prior to each cutting session, run through the daily

checklist (see pg. 19).

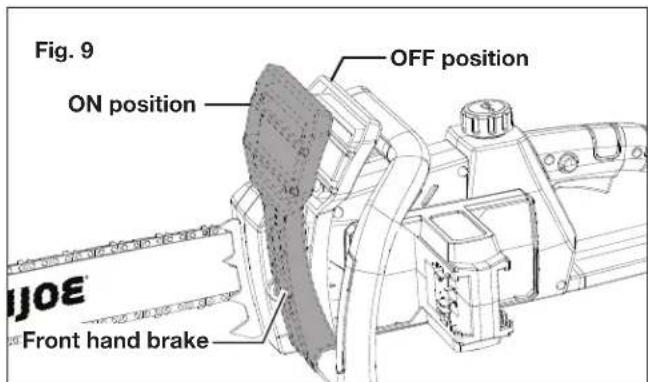

2. In the event of an accidental activation, the front hand

brake will engage in the ON position to stop the machine. Reset the safety brake function by returning the front hand brake to the OFF position (Fig. 9).

3. Insert both the batteries in the battery compartment

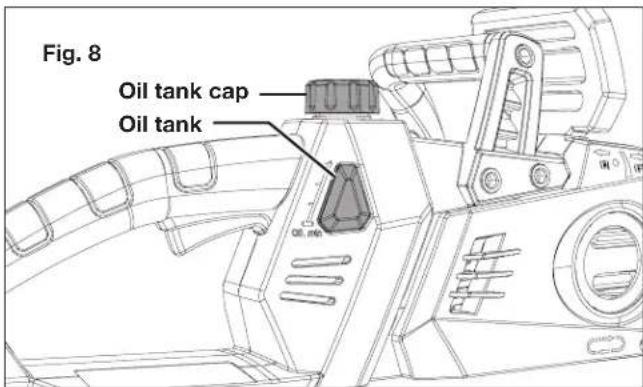

(Fig. 10). Fig. 8 Oil tank Oil tank cap Front hand brake Fig. 9 ON position OFF position Battery pack Fig. 10 Battery compartment12

4. To turn the tool on, hold the chain saw rmly with both

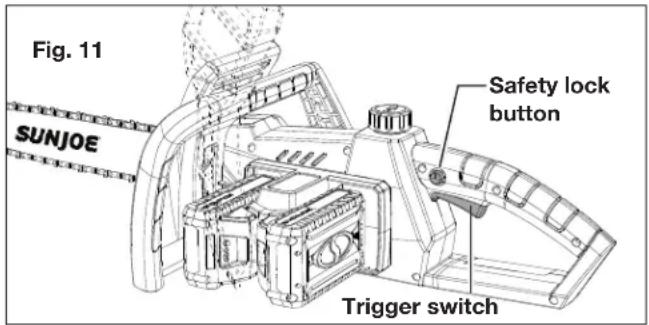

hands on the handles. Press the safety lock button, then squeeze the trigger switch. When the chain saw is running, you can release the safety lock button (Fig. 11).

5. To turn the tool o, simply release the trigger switch.

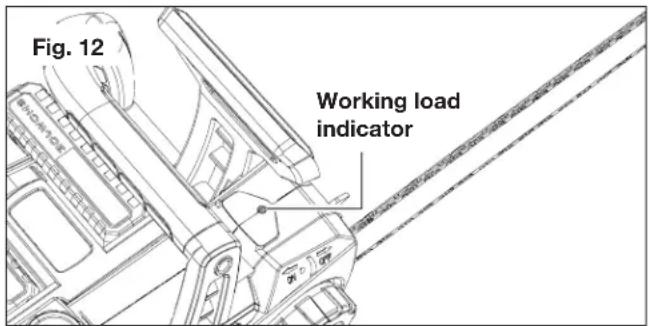

NOTE: Do not squeeze the trigger switch until you are ready to make a cut. Working Load Indicator The machine is equipped with an working load indication system located behind the front hand brake (Fig. 12), which will be illuminated immediately when battery is installed. Consult to the table below for the indication of the working status of the chain saw. NOTE: If an overload situation happens and the machine cuts o automatically, switch the machine o and remove the batteries. Let the machine and batteries cool down for a while before resuming work. Operating Tips

WARNING! For your safety and that of others:

1. Do not use the machine without reading the instructions

carefully. Become acquainted with the controls and the proper use of the machine. Learn how to stop the machine quickly.

2. Keep in mind that the operator or user is responsible

for accidents or hazards occurring to other people or their property.

3. Always wear suitable clothing when using the machine.

Wear anti-vibration gloves and other personal protective equipment. All the above-mentioned precautions do not, however, guarantee the prevention of certain risks – i.e. Raynaud’s phenomenon or Carpal tunnel syndrome. For operators who use this machine for prolonged periods, it is therefore recommended to have periodic checkups on their hands and ngers. If any of the above mentioned symptoms should appear, please contact a physician immediately.

4. Work only in daylight or good articial light.

5. Take utmost care when working near metal fences.

6. Take care not to hit the bar hard against foreign objects or

ying debris caused by the movement of the chain.

7. Stop the motor and remove the batteries from

the compartment: – Whenever you leave the machine unattended; – Before cleaning, checking or servicing the machine; – After striking a foreign object. Inspect the machine for any damage and make repairs before restarting it again; – If the machine begins to vibrate abnormally, immediately look for the cause of the vibrations and have the machine inspected at an authorized Snow Joe

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance; – When the machine is not in use. IMPORTANT! Always remember that an incorrectly used chain saw may disturb others and have a serious impact on the environment. To respect people and the environment:

• Avoid using the machine in environments or at times of the day when it may disturb others.

• Scrupulously comply with local regulations and provisions for the disposal of waste materials after sawing.

• Scrupulously comply with local regulations and provisions for the disposal of oils, damaged parts or any elements which have a strong impact on the environment.

• A certain amount of chain lubricating oil is released into the environment when the machine is running, so only use biodegradable oils made specically for this use. Safety lock button Fig. 11 Trigger switch Working load indicator Fig. 12 The saw is ready to make a cut Light IndicatorsLights Yellow The saw is working properlyGreen The saw is overloaded. Stop working immediately; Otherwise the circuit is going to cut o automatically in 2 seconds Red13

• To avoid the risk of re, do not leave the machine with the motor hot on leaves or dry grass. mWARNING! It takes specic training to use the machine for felling and delimbing. Checks During Work

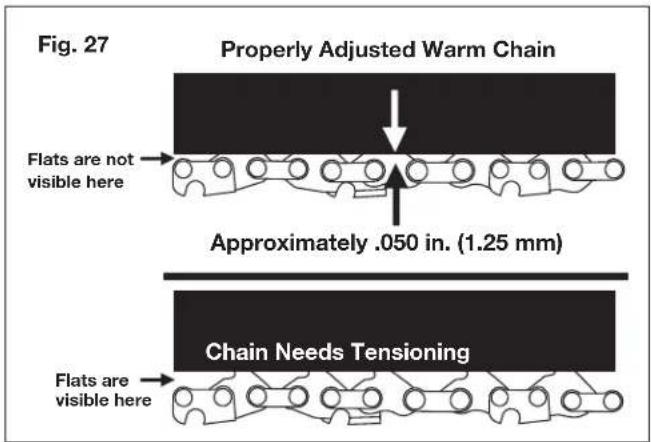

• Checking the chain tension The chain tends to stretch gradually as you work, so you need to check its tension frequently. IMPORTANT! During the rst period of use (or after replacing the chain), the chain tension must be checked more frequently due to settling of the chain. mWARNING! Never work with the chain loose, as it can be hazardous if the chain slips out of its guide. To adjust the chain tension, follow the instructions in “Adjust Chain Tension” on page 10.

• Checking the oil delivery IMPORTANT! Never use the machine without lubrication! You can check the oil level in the tank through the transparent gauge. Make sure you ll up the oil tank every time you use the machine. For best results, use only a good quality bar and chain oil designed specically for use with chain saws. mWARNING! Make sure the bar and the chain are in place when you check the oil delivery. Start the motor and check if the chain oil is delivered as shown below (Fig. 13). Proper Cutting Stance

• Weight should be balanced with both feet on solid ground.

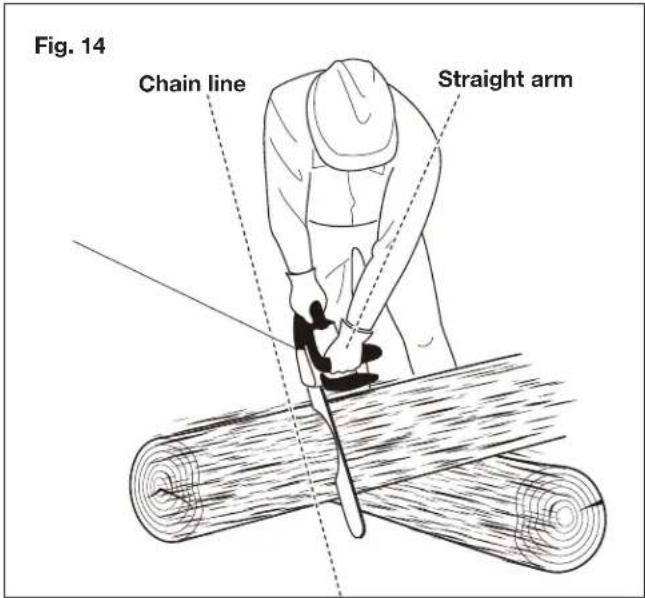

• Keep your left arm and elbow locked in a "straight arm" position to withstand any kickback force (Fig. 14).

• Your body should always be to the left of the chain line. Basic Cutting Procedures mWARNING! This unit is designed for trimming branches and limbs up to recommended 14.5 in. (36.8 cm), not to exceed a max. cut of 15.5 in. (39.4 cm) in diameter depending on type of wood. Practice cutting a few small limbs using the following technique to get the “feel” of using the saw before you begin a major sawing operation.

• Take the proper stance in front of the wood with the saw turned o (Fig. 14).

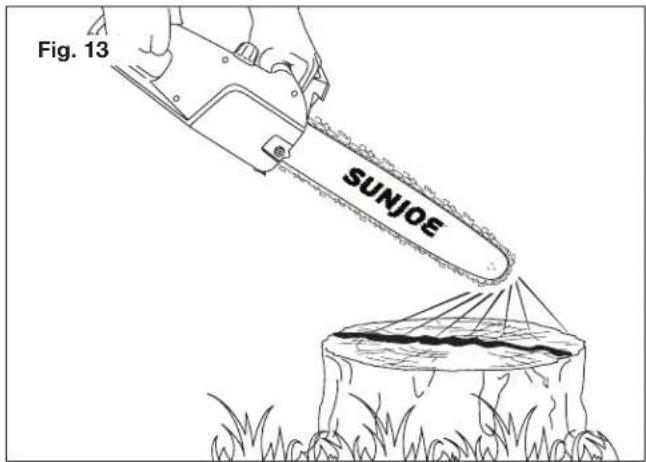

• Squeeze the trigger switch and let the chain accelerate to full speed before entering the cut.

• Hold the saw with both hands rmly. Always keep your left hand on the front handle and your right hand on the rear handle so that your body is to the left of the chain line.

• Keep the unit running the entire time you are cutting, maintaining a steady speed.

• Let the chain do the work; exert only light downward pressure. If you force the cut, damage to the bar, chain, or unit can result.

• Do not put the pressure on the saw at the end of the cut.

• Always cut with both feet on solid ground to prevent falling.

• Do not cut above chest height since it is dicult to control kickback forces with a saw held high. Cutting Techniques Before felling or delimbing for the rst time, practice sawing logs on the ground or on trestles, so that you can get familiar with the machine and the most suitable sawing techniques. mWARNING! Always hold the machine with both hands when sawing. Fig. 13 Fig. 14 Chain line Straight arm14 mWARNING! Stop the motor immediately if the chain stops during sawing. Beware of kickback, which can occur if the bar contacts an obstacle.

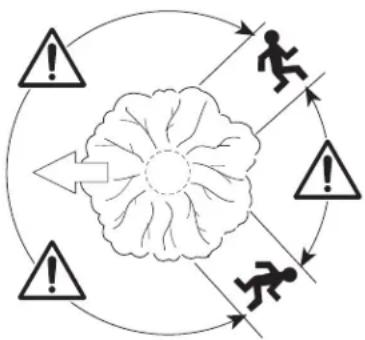

i) When bucking and felling are performed by two or more

people at the same time, the felling operation should be separated from the bucking operation by a distance of at least twice the height of the tree being felled. Trees should not be felled in a manner that would endanger any person, strike any utility line or cause any property damage. If the tree does make contact with any utility line, the company should be notied immediately.

ii) The chain saw operator should keep on the uphill side of

the terrain as the tree is likely to roll or slide downhill after it is felled.

iii) An escape path should be planned and cleared as

necessary before cuts are started. The escape path should extend back and diagonally to the rear of the expected line of fall as illustrated (Fig. 15).

iv) Before felling is started, consider the natural lean of the

tree, the location of larger branches and the wind direction to help you judge which way the tree will fall.

v) Remove dirt, stones, loose bark, nails, staples and wire

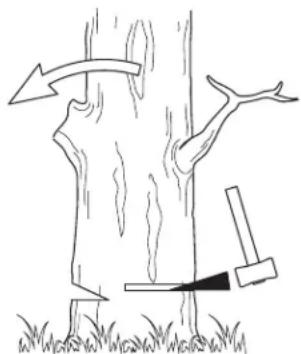

• Notching undercut Make the notch 1/3 the diameter of the tree, perpendicular to the direction of the fall as illustrated (Fig. 16). Make the lower horizontal notching cut rst. This will help to avoid pinching either the saw chain or the guide bar when the second notch is made.

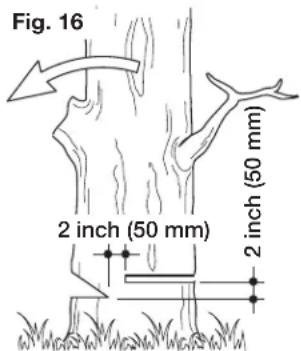

i) Make the felling back cut at least 2 in. (50 mm) higher than

the horizontal notching cut as illustrated (Fig. 16). Keep the felling back cut parallel to the horizontal notching cut. Strategically position the felling back cut so that enough wood is left to act as a hinge. The hinge wood keeps the tree from twisting and falling in the wrong direction. Do not cut through the hinge.

ii) As the felling gets close to the hinge, the tree should begin

to fall. If there is any chance that the tree may not fall in the desired direction or it may rock back and bind the saw chain, stop cutting before the felling back cut is complete and use wedges of wood, plastic or aluminium to open the cut and drop the tree along the desired line of fall.

iii) When the tree begins to fall, remove the chain saw from

the cut, stop the motor, put the chain saw down, then use the retreat path planned. Be alert for overhead limbs falling and watch your footing.

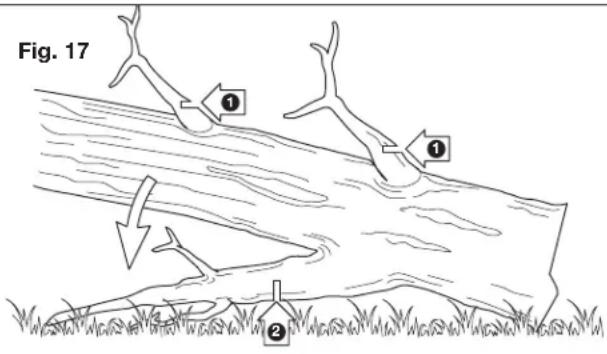

• Limbing Limbing is the process in which branches are removed from a fallen tree. When limbing, leave larger lower limbs to support the log o the ground. Remove the small limbs in one cut as illustrated (Fig. 17). Branches under tension should be cut from the bottom up to avoid binding the chain saw. mWARNING! Pay special attention to where the branches are lying on the ground and recognize the following risks: 1). the branches may be under tension; 2). the direction in which the branch will fall may dier from that anticipated; 3). the tree may be unstable after the branch has been cut.

• Bucking a log mWARNING! Do not buck logs that are larger than the maximum cutting thickness. Bucking is the process in which a log is cut into lengths. It is important to make sure your footing is rm and your weight is evenly distributed on both feet. When possible, the log should be raised and supported by the use of limbs, logs, or chocks. Follow these simple directions for easy cutting: Fig. 15 2 inch (50 mm) 2 inch (50 mm) Fig. 16

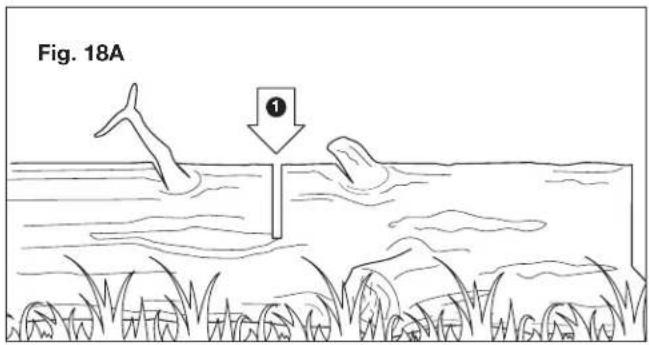

• When the log is supported along its entire length as illustrated (Fig. 18A), cut from the top (overbuck).

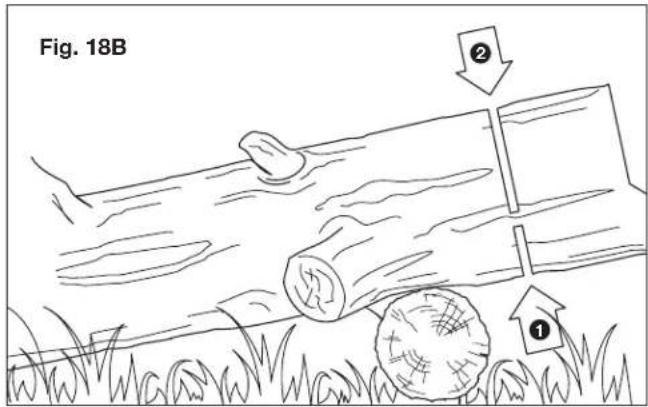

• When the log is supported on one end (Fig. 18B), cut 1/3 the diameter from the underside (underbuck). Then make the nishing cut by overbucking to meet the rst cut.

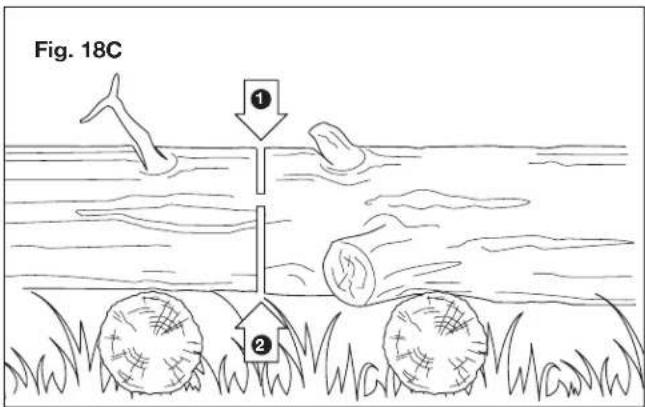

• When the log is supported on both ends (Fig. 18C), cut 1/3 the diameter from the top (overbuck). Then make the nishing cut by underbucking the lower 2/3 to meet the rst cut.

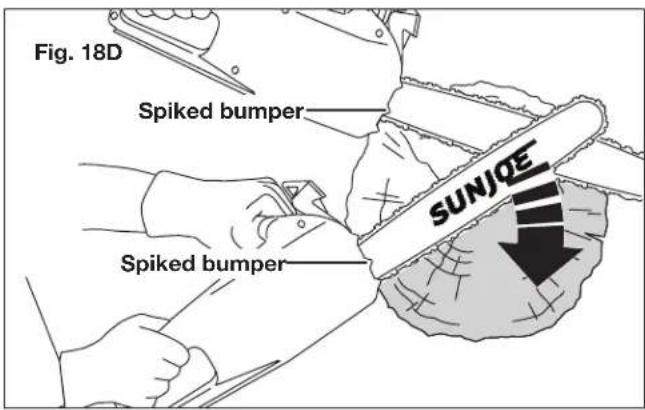

• It is easier to saw a log using the spiked bumper (Fig. 18D). – Dig the spiked bumper into the log and use it as a pivot. Cut with an arched motion to make the bar penetrate the wood. – Repeat several times if necessary, changing the point where you plant the spiked bumper. – When bucking on a slope, always stand on the uphill side of the log. When cutting through the log, maintain control by releasing the cutting pressure near the end of the cut without relaxing your grip on the chain saw handles. Do not let the chain contact the ground. After completing the cut, wait for the saw chain to stop before you move the chain saw. Always stop the motor before moving from tree to tree. Maintenance Please contact an authorized Snow Joe

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563) for all maintenance operations not foreseen in this manual. Any operation performed in an unauthorized service center or by unqualied personnel will completely invalidate the warranty. mWARNING! For your safety and that of others:

• Correct maintenance is essential to maintain the original eciency and safety of the machine over time.

• Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.

• Never use the machine with worn or damaged parts. Damaged parts are to be replaced and never repaired.

replacement parts. Parts that are not of the same quality can seriously damage the equipment, compromise safety, and invalidate the warranty. mWARNING! Always remove the batteries before performing any adjustments, maintenance, or repairs to your cordless chain saw.

• Use protective gloves when handling the bar and chain.

• Keep the bar encased in its sheath, except when working directly on the bar or the chain.

• Never dispose of oils or other polluting materials in unauthorized places.

Fig. 18C Fig. 18D Spiked bumper Spiked bumper16 Motor Cooling To avoid overheating and damage to the motor, always keep the cooling air vents clean and free of sawdust and debris. Replacing the Guide Bar and Chain NOTE: When replacing the guide bar and chain, use only identical replacement parts. Make sure the batteries are not inserted in the compartment before proceeding with operation. mWARNING! Always wear heavy-duty gloves when handling the bar and chain. Mount the bar and chain very carefully so as not to impair the safety and eciency of the machine. If in doubt, contact an authorized Snow Joe

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). mWARNING! The operation should be completed on a at and stable surface, with adequate space for moving the machine and its components. mDANGER! Never start the motor before installing the guide bar, chain, and sprocket cover. Without all these parts in place, the clutch can y o or explode, exposing the user to potentially serious injuries. When you rst purchase your chain saw, the chain and bar will come pre-assembled on the saw. Should you need to replace the chain in the future, follow the steps below.

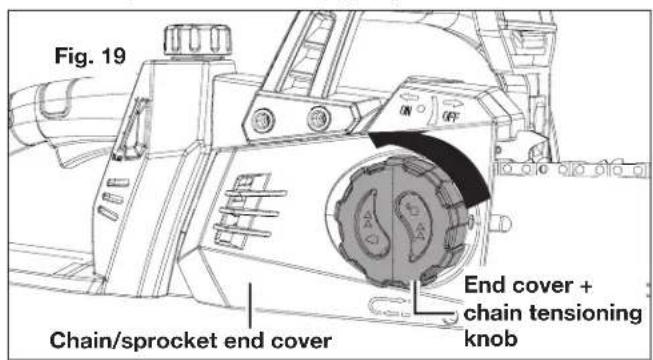

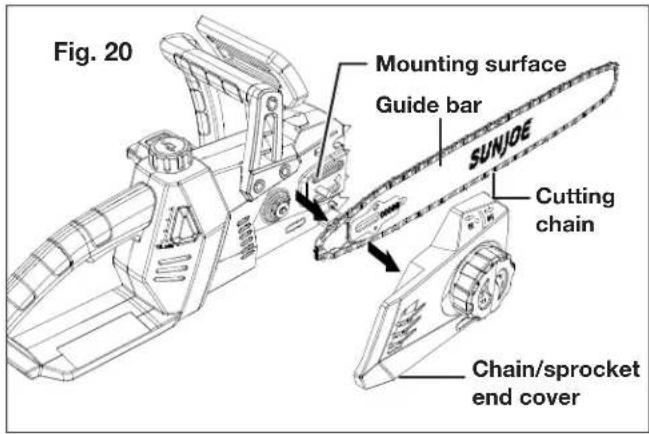

1. Unscrew the end cover + chain tensioning knob

counterclockwise to unlock to the end and remove the chain/sprocket end cover (Fig. 19).

2. Remove the cutting bar and chain from the mounting

3. Remove the old chain from the bar.

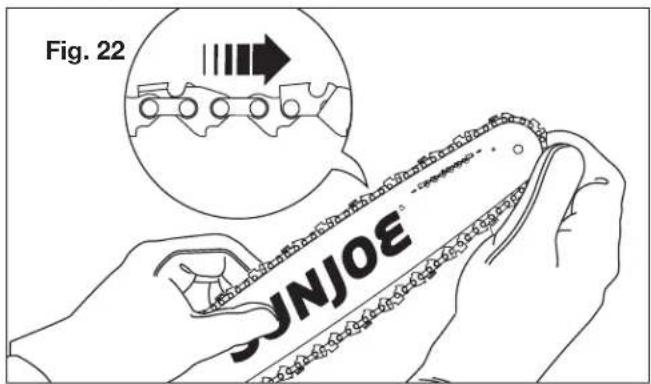

4. Lay out the new saw chain in a loop and straighten

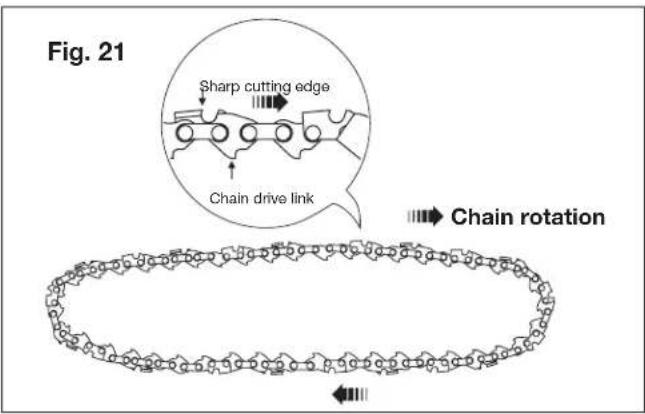

any kinks. THE SHARP SIDE OF THE TEETH MUST FACE AWAY FROM YOU IN THE DIRECTION OF THE CHAIN ROTATION INDICATED ON THE GUIDE BAR . If the teeth face backwards, turn the loop over (Fig. 21).

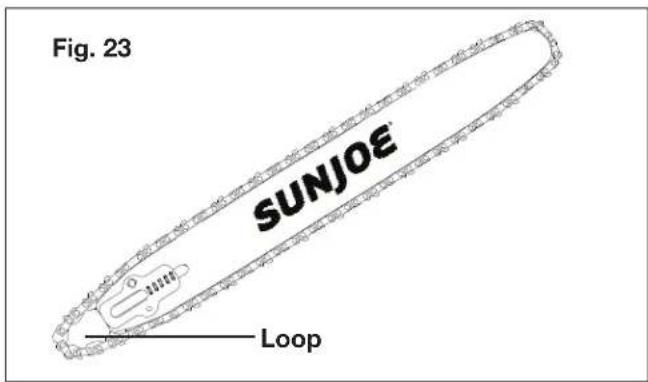

5. Starting at the tip, mount the chain drive links into the

bar groove, leaving a loop at the back of the bar. The chain will loosely t until it is placed on the sprocket (Figs. 22 & 23). NOTE: Make certain of the direction of the chain . If the chain is mounted backwards, the saw will vibrate abnormally and will not cut. Fig. 19 End cover + chain tensioning knob Chain/sprocket end cover Fig. 20 Guide bar Chain/sprocket end cover Cutting chain Mounting surface Fig. 21 Chain rotation Sharp cutting edgeChain drive link

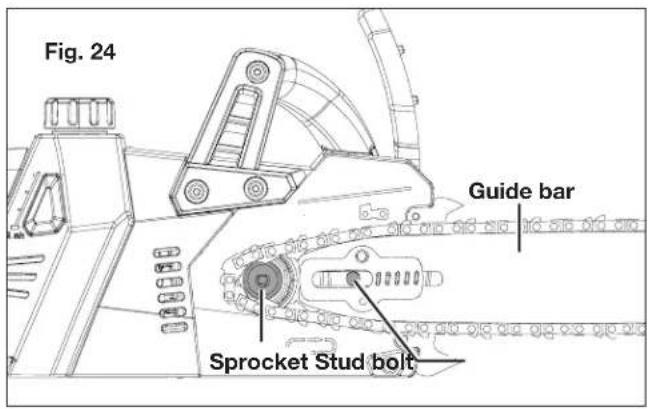

6. Mount the guide bar by inserting the stud bolt into the

long slot on the guide bar; arrange the chain loop on the back of the bar to ensure the sprocket is inserted in the loop (Fig. 24).

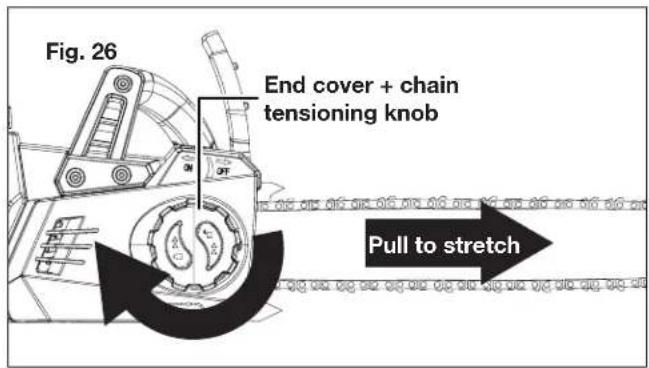

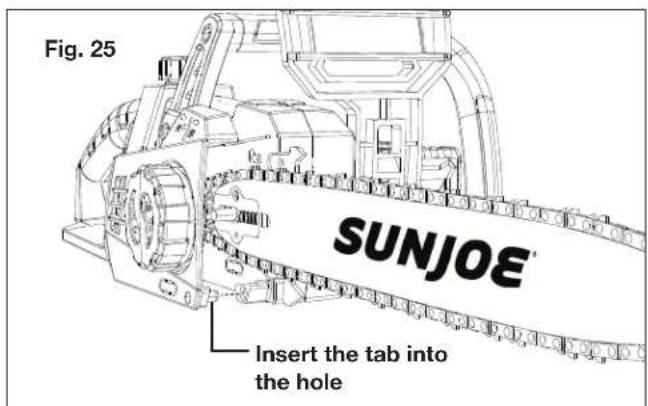

7. Adjust the chain tension by pulling the guide bar + chain

forward, and make sure the chain is fully stretched. Using your other hand, Fit the chain/sprocket end cover back on by inserting the small tab located on the right bottom of the end cover into the hole on the machine body. Turn the end cover + chain tensioning knob clockwise until you nd the right chain tension (Figs. 25 – 26). NOTE: The chain is correctly tensioned when there is no sag on the underside of the guide bar; the chain is snug, but can be rotated by hand without binding. NOTE: If the chain is too tight, it will not rotate. Loosen the end cover + chain tensioning knob slightly by 1/4 turn counterclockwise. Ensure that the chain can be rotated by hand without binding. Do not loosen the end cover + chain tensioning knob too much otherwise the chain + bar assembly will come loose. NOTE: A new chain tends to stretch; check the chain tension frequently, and adjust tension as required. Chain Tension Check the chain tension before using the saw when the chain is cold. The correct tension of a cold chain is when there is no slack on the underside of the guide bar; the chain is snug, but you can rotate it by hand without binding. During normal saw operation, the temperature of the chain will increase. The drive links of a correctly tensioned warm chain will hang approximately 0.050 in. (1.25 mm) out of the bar groove (Fig. 27). Be aware that a chain tensioned while warm, may be too tight upon cooling. Check the “cold tension” before next use. The chain must be re-tensioned whenever the ats on the drive links hang out of the bar groove (Fig. 27). NOTE: A new chain tends to stretch. Check the chain tension frequently and re-tension as needed. Fig. 23 Loop Fig. 24 Guide bar Sprocket Stud bolt Fig. 25 Insert the tab into the hole Fig. 26 End cover + chain tensioning knob Pull to stretch Fig. 27 Properly Adjusted Warm Chain Approximately .050 in. (1.25 mm) Flats are visible here Flats are not visible here Chain Needs Tensioning18 Chain Sharpening mWARNING! To ensure that the saw works safely and eciently, it is essential that the cutting components are well-sharpened. It is highly recommended to replace the chain once it loses its ability to cut cleanly and safely. It is possible, however, to sharpen the existing chain if the sharpening is carefully performed. Any work on the chain and bar requires specic experience and special tools. For safety purposes, we recommend you contact an authorized Snow Joe

dealer or call the Snow Joe

• The sawdust looks like dust;

• Cutting becomes more dicult;

• The cut is not straight;

• Vibrations increase. An authorized service center will sharpen the chain using the right tools to ensure minimum removal of material and even sharpness on all the cutting edges. If you sharpen the chain by yourself, it's recommended to purchase Sun Joe

24V-CSSHRP-LTE chain saw sharpener, which can be powered by the same 24V iON+ battery with this cordless chain saw. Visit sunjoe.com or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563) to order. Otherwise, use special round-section les with the right diameter depending on the type of chain (see “Chain Maintenance Table” pg. 22). You need a certain amount of skill and experience to avoid damaging the cutting edges. Sharpen the chain as follows (Fig. 28):

• Secure the bar rmly, with the chain mounted, in a suitable vise.

• Tighten the chain if it is loose.

• Mount the le in the guide and then insert it in the tooth at a constant angle from the cutting edge.

• Sharpen in a forward motion a few times and repeat this on all the cutting edges facing the same way (right or left).

• To move the chain forward, use a screwdriver.

• Turn the bar over in the vise and repeat on all the other cutting edges.

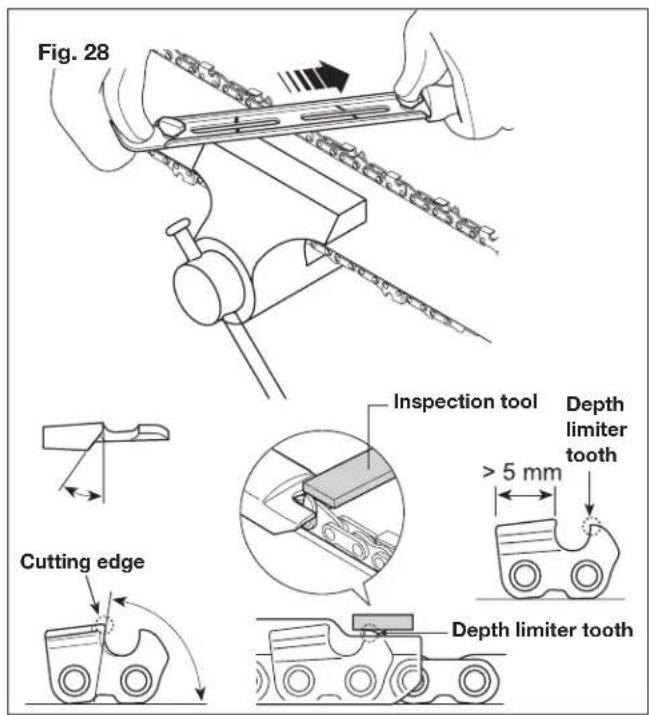

• Check that the depth limiter tooth does not stick out farther than the inspection tool and le any projecting parts with a at le, rounding o the edges (Fig. 28).

• After sharpening, remove all traces of ling and dust and lubricate the chain in an oil bath. Replace the chain whenever: – The length of the cutting edges decreases to 5 mm or less; – There is too much play between the links and the rivets. Guide Bar Maintenance Feathering or burring of the bar rails is a normal process of bar wear. You should smooth such faults with a le as soon as they occur. Replace a bar with any of the following faults:

• wear inside the bar rails permitting the chain to lay over sideways

• cracked or broken rails

• spread rails Turn the saw over, check the underside of the guide bar, and make sure that the lubrication holes and chain groove are free from impurities. You can purchase replacement parts for your Sun Joe

24V-X2-CS16 cordless chain saw by ordering online at sunjoe.com or, to order by phone, contact Snow Joe

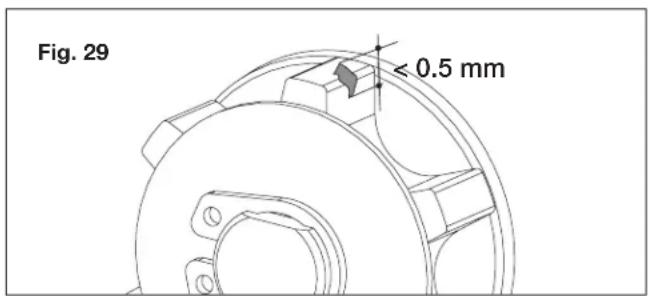

customer service at 1-866-SNOWJOE (1-866-766-9563). Chain Sprocket Regularly check the condition of the sprocket and replace it when wear exceeds 0.5 mm (Fig. 29). Do not mount a new chain with a worn sprocket or vice-versa. Fig. 28 Inspection tool Depth limiter tooth Cutting edge Depth limiter tooth19 Troubleshooting Troubleshooting Tips Most diculties are easy to x. Consult the troubleshooting table for common problems and their solutions. If you continue to experience problems or need repairs beyond these minor adjustments, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. mWARNING! Always remove the batteries before performing any adjustments, maintenance, or repairs to your cordless chain saw. Troubleshooting Table Daily Checklist, Cleaning and Storage Daily Checklist To help maintain your cordless chain saw for optimum performance, we recommend you complete this checklist prior to each work session. mWARNING! Do not insert the batteries until you have completed all of the daily checks.

• Inspect for any visible damage to the chain, guide bar, or motor housing.

• Inspect the oil port and guide bar rails and clean them to remove any debris.

• Check the chain tension.

• Check the chain teeth for sharpness.

• Check the bar and chain oil level; ll with only new chain oil specically formulated for chain saws. NOTE: If you notice anything unusual, such as a vibration or odd sound, shut the saw OFF immediately. Remove the batteries and check the saw for any damage. If you cannot nd the cause of the problem or are uncertain what to do, then have the saw inspected by an authorized Snow Joe

dealer or call the Snow Joe

• Remove the batteries and wait at least ve minutes for the saw to cool before servicing or storing your unit.

• If you drop the saw, carefully inspect it for damage. If the guide bar is bent, the housing is cracked, the handle is broken, or if you see any other condition that may aect the saw’s operation, DO NOT USE the tool. Instead, have it serviced at an authorized Snow Joe

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). Cleaning Use only mild soap and a damp cloth to clean the cordless chain saw. Never let any liquid get inside the motor housing and NEVER immerse any part of the saw housing in liquid. Storage

• Ensure that the guide bar cover is in place when storing.

• Do not store cordless chain saw near chemicals, such as fertilizers or other harsh solvents. Do not expose the plastic parts of the unit to brake uids, gasoline, petroleum-based products, penetrating oils, or the like. These products are often highly corrosive and may cause permanent damage, weaken, or destroy the plastic parts of your unit. < 0.5 mm Fig. 29 Problems Corrective Action The saw motor fails to start
• Make sure that the batteries are inserted correctly

• Check charge status and recharge the batteries

• The chain is too tight; re-tension.

• The chain tension is too tight; re-tension.

• The chain oil tank is empty; rell.

• The lubrication holes are plugged; clean them out.

• The chain tension is too tight; re-tension.

• The guide bar or chain is damaged; inspect and replace the damaged part.The saw runs, but the chain speed is low Bar and chain running hot and smokingThe saw motor runs, but the chain is not turningThe saw stops during operation
• Make sure that the batteries are inserted correctly

• Check charge status and recharge the batteries

• The machine is overloaded20

• When not in use, your machine should be stored indoors in a dry and high or locked-up place, out of the reach of children. Battery Caution + Disposal Always dispose of your battery pack according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations. mCAUTION! Even discharged battery packs contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery pack from shorting, which could cause a re or explosion. mWARNING! To reduce the risk of injury or explosion, never burn or incinerate a battery pack even if it is damaged, dead, or completely discharged. When burned, toxic fumes and materials are emitted into the surrounding atmosphere.

1. Batteries vary according to device. Consult your manual

for specic information.

2. Install only new batteries of the same type in your product

3. Failure to insert batteries in the correct polarity, as

indicated in the battery compartment or manual, may shorten the life of the batteries or cause batteries to leak.

4. Do not mix old and new batteries.

5. Do not mix Alkaline, Standard (Carbon-Zinc), or

Rechargeable (Nickel Cadmium, Nickel Metal Hydride, or Lithium-Ion) batteries.

6. Do not dispose of batteries in re.

7. Batteries should be recycled or disposed of as per state

and local guidelines. Service and Support If your Sun Joe

24V-X2-CS16 cordless chain saw requires service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. Model and Serial Numbers When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below. Record the following numbers from the housing or handle of your new product: Model #: Serial #: 2 4 V - X 2 - C S 1 6 24VCHRG-DPC Federal Communications Commission (FCC) mWARNING! Any changes or modications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Class B device: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.21 Optional Accessories

WARNING! ALWAYS use only authorized Snow Joe

replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this saw. Contact Snow Joe

if you are unsure whether it is safe to use a particular replacement part or accessory with your saw. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. 24V iON+ Lithium-Ion Battery Quick Charger 24VCHRG-QC ModelAccessories Item

24V iON+ 5.0 Ah Lithium-Ion Battery 24VBAT-XR22 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe

to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe

16-inch replacement chain SWJ-16CHAIN Bar and chain oil SWJ-OIL Sold online at sunjoe.com or you can purchase equivalent bar and chain oil at your local hardware store

CUSTOMER PROMISE OUR WARRANTY: Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specic part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that! This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not aect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.
