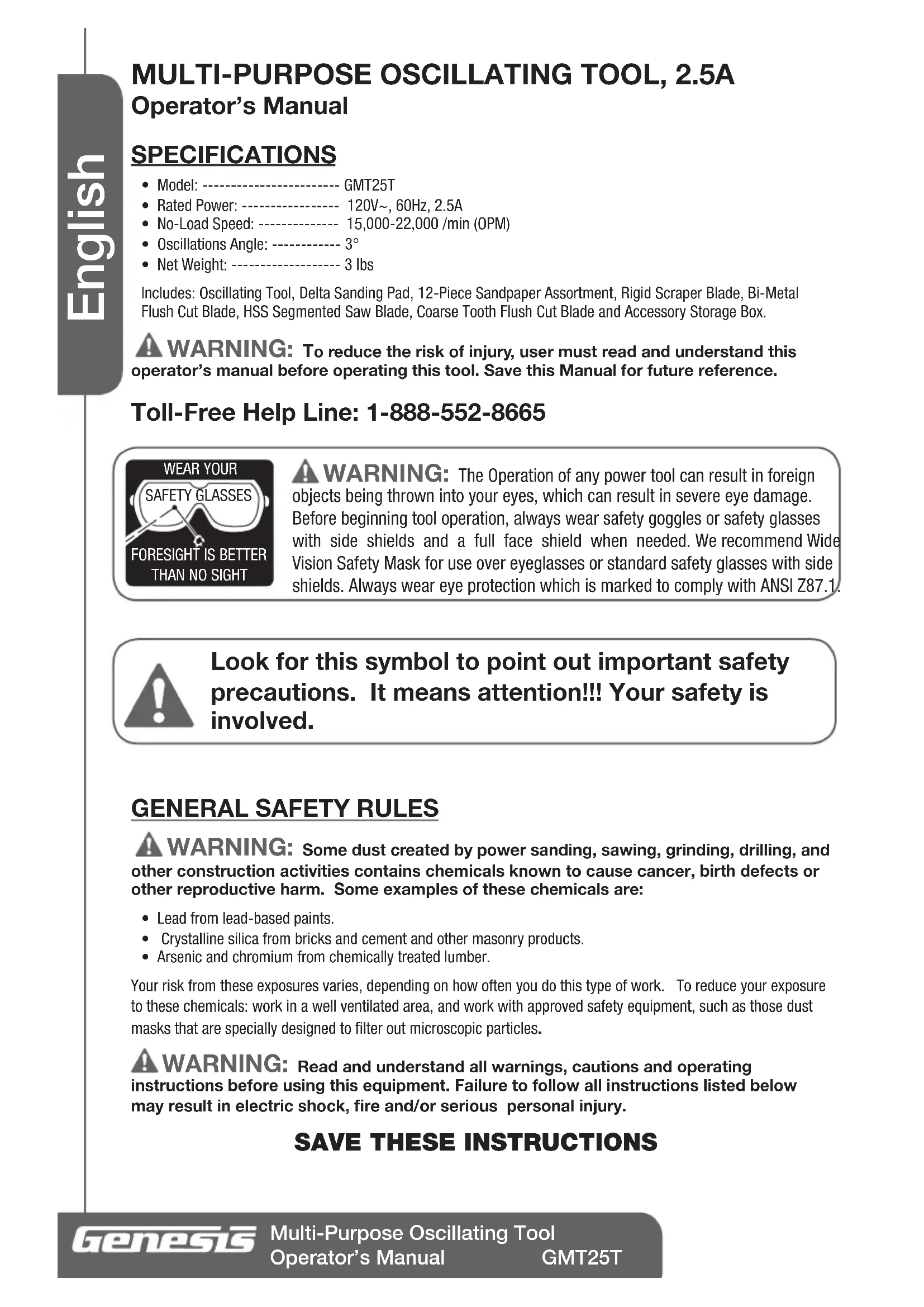

USER MANUAL GMT25T Genesis

• Model: ------------------------ GMT25T• Rated Power: ----------------- 120V~, 60Hz, 2.5A• No-Load Speed: -------------- 15,000-22,000 /min (OPM)• Oscillations Angle: ------------ 3°• Net Weight: ------------------- 3 lbsIncludes: Oscillating Tool, Delta Sanding Pad, 12-Piece Sandpaper Assortment, Rigid Scraper Blade, Bi-Metal Flush Cut Blade, HSS Segmented Saw Blade, Coarse Tooth Flush Cut Blade and Accessory Storage Box.

WARNING: To reduce the risk of injury, user must read and understand this

operator’s manual before operating this tool. Save this Manual for future reference. Toll-Free Help Line: 1-888-552-8665

WARNING: The Operation of any power tool can result in foreign

objects being thrown into your eyes, which can result in severe eye damage. Before beginning tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always wear eye protection which is marked to comply with ANSI Z87.1. Look for this symbol to point out important safety precautions. It means attention!!! Your safety is involved.

GENERAL SAFETY RULES

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and

other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:• Lead from lead-based paints.• Crystalline silica from bricks and cement and other masonry products.• Arsenic and chromium from chemically treated lumber.Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

WARNING: Read and understand all warnings, cautions and operating

instructions before using this equipment. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

WEAR YOURFORESIGHT IS BETTERTHAN NO SIGHTSAFETY GLASSES3 English

• Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.

Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs in any earthed (grounded) power tools. Double insulated tools are equipped with a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double insulation eliminates the need for the three wire grounded power cord and grounded power supply system.

Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.

Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged cords increase the risk of electric shock.

When operating a power tool outside, use an extension cord suitable for outdoor use. These cords are rated for outdoor use and reduce the risk of electric shock.

Do not use AC only rated tools with a DC power supply. While the tool may appear to work. The electrical components of the AC rated tool are likely to fail and rate a hazard to the operator. PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection for appropriate conditions will reduce personal injuries.

Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. Air vents may cover moving parts and should be avoided.

Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tool with your finger on the switch or plugging in power tools that have the switch on invites accidents.

Remove any adjusting keys or wrenches before turning the power tool on. A wrench or key that is left attached to a rotating part of the tool may result in personal injury.

Do not overreach. Maintain proper footing and balance at all times. Loss of balance can cause an injury in an unexpected situation.

If devices are provided for connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

Do not use a ladder or unstable support. Stable footing on a solid surface enables better control of the tool in unexpected situations.

Keep tool handles dry, clean and free from oil and grease. Slippery handles cannot safely control the tool.

• Secure the workpiece. Use clamp or other practical way to hold the workpiece to a stable platform. Holding the workpiece by hand or against your body is unstable and may lead to loss of control.English Multi-Purpose Oscillating Tool Operator’s Manual GMT25T

• Do not force the power tool. The tool will perform the job better and safer at the feed rate for which it is designed. Forcing the tool could possibly damage the tool and may result in personal injury.

Use the correct power tool for the job. Don’t force the tool or attachment to do a job for which it is not designed.

Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired or replaced by an authorized service center.

Turn power tool off, and disconnect the plug from the power source and/or battery pack from the power tool before making any adjustments, changing the accessories, or storing the tools. Such preventive safety measures reduce the risk of an accidental start up which may cause personal injury.

Store idle tool out of reach of children and other inexperienced persons. It is dangerous in the hand of untrained users.

Maintain power tools with care. Check for proper alignment and binding of moving parts, component breaks, and any other conditions that may affect the tool’s operation. A guard or any other part that is damaged must be properly repaired or replaced by an authorized service center to avoid risk of personal injury.

Use recommended accessories. Using accessories and attachments not recommended by the manufacturer or intended for use on this type tool may cause damage to the tool or result in personal injury to the user. Consult the operator’s manual for recommended accessories.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

Feed the workpiece in the correct direction and speed. Feed the workpiece into a blade, cutter, or abrasive surface against the direction of the cutting tool’s direction of rotation only. Incorrectly feeding the workpiece in the same direction may cause the workpiece to be thrown out at high speed.

Never leave the tool running unattended, turn the power off. Do not leave the tool until it comes to a complete stop.

WARNING: USE OF THIS TOOL CAN GENERATE AND DISBURSE DUST OR

OTHER AIRBORNE PARTICLES, INCLUDING WOOD DUST, CRYSTALLINE SILICA DUST AND ASBESTOS. Direct particles away from face and body. Always operate tool in a well- ventilated area and provide for proper dust removal. Use dust collection system wherever possible. Exposure to the dust may cause serious and permanent respiratory or other injury, including silicosis (a serious lung disease), cancer, and death. Avoid breathing the dust, and avoid prolonged contact with the dust. Allowing dust to get into your mouth or eyes, or lay on your skin may promote absorption of harmful material. Always use properly fitting NIOSH/OSHA approved respiratory protection appropriate for dust exposure, and wash exposed areas with soap and water. SERVICE

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Service your power tool periodically. When cleaning a tool, be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched.

SAVE THESE INSTRUCTIONS5

English EXTENSION CORDS Grounded tools require a three wire extension cord. Double insulated tools can use either a two or three wire extension cord. As the distance from the power supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible tool damage. Refer to the table shown below to determine the required minimum wire size.The smaller the gauge number of the wire, the greater the capacity of the cord. For example: a 14-gauge cord can carry a higher current than a 16-gauge cord. When using more than one extension cord to make up the total length, be sure each cord contains at least the minimum wire size required. If you are using one extension cord for more than one tool, add the nameplate amperes and use the sum to determine the required minimum wire size. Guidelines for Using Extension Cords

• If you are using an extension cord outdoors, be sure it is marked with the suffix “W-A” (“W” in Canada) to indicate that it is acceptable for outdoor use.• Be sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified person before using it.• Protect your extension cords from sharp objects, excessive heat, and damp or wet areas.

SPECIFIC SAFETY RULES FOR MULTI-PURPOSE

WARNING: DO NOT LET COMFORT OR FAMILIARITY WITH PRODUCT (GAINED

FROM REPEATED USE) REPLACE STRICT ADHERENCE TO PRODUCT SAFETY RULES. If you use this tool unsafe or incorrectly, you can suffer serious personal injury!

WARNING: Hold tool by insulated gripping surfaces when performing an

operation where cutting tools may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator!

Always wear safety glasses or goggles. Normal prescription eye or sunglasses are not safety glasses.

Hold the Oscillating Tool by its insulated gripping surfaces to avoid electrical shock from unseen “live” wires.

Always hold the tool firmly. Do not leave the tool running unless hand held.

Check your work area for proper clearances before cutting. This will avoid cutting into your workbench, the floor, etc.

Do not cut nails or screws unless you are using a blade specifically designed for this purpose. Inspect your material before cutting.

Before switching on the tool, be sure the blade is not contacting the work piece.

Do not use tool if switch does not turn it on or off. Any tool which can not be controlled by the switch is dangerous and must be repaired.

Wear cushioned protective gloves to minimize the vibration. Excessive vibration may cause personal injury. Recommended Minimum Wire Gauge for Extension Cords (120 Volt)Nameplate Amperes (At Full Load)Extension Cord Length25 Feet 50 Feet 75 Feet 100 Feet 150 Feet 200 Feet0–2.0 18 18 18 18 16 162.1–3.4 18 18 18 16 14 143.5–5.0 18 18 16 14 12 125.1–7.0 18 16 14 12 12 107.1–12.0 18 14 12 10 8 812.1–16.0 14 12 10 10 8 616.1–20.0 12 10 8 8 6 6English Multi-Purpose Oscillating Tool Operator’s Manual GMT25T

• Do not wet-sand with this tool. Water or moisture entering the motor housing can cause electric shock and serious personal injury.

Always be sure that the tool is switched off and unplugged before adjusting, adding accessories, or checking a function on the tool.

WARNING: Read and understand all warnings, cautions and operating

instructions before using this equipment. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

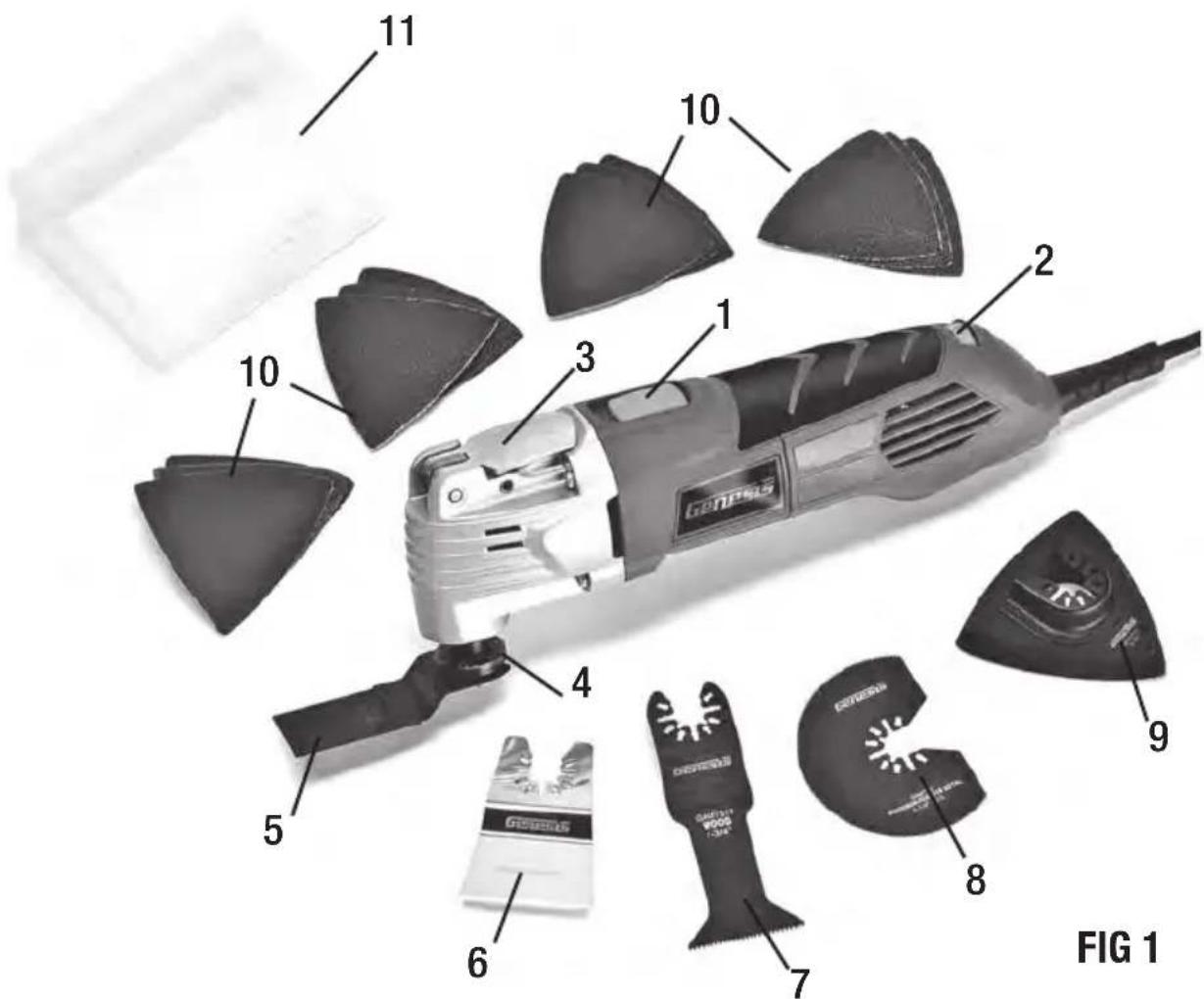

8. Segmented Saw Blade 3-1/8"

9. Delta Hook & Loop Sanding Pad 3-1/8"

10. Sandpaper Assortment

UNPACKING AND CONTENTS

IMPORTANT: Due to modern mass production techniques, it is unlikely the tool is faulty or that a part is missing. If you find anything wrong, do not operate the tool until the parts have been replaced or the fault has been rectified. Failure to do so could result in serious personal injury.

Description Q'ty Description Q'ty

ASSEMBLY AND ADJUSTMENTS

WARNING: Always be sure that the tool is switched off and unplugged before

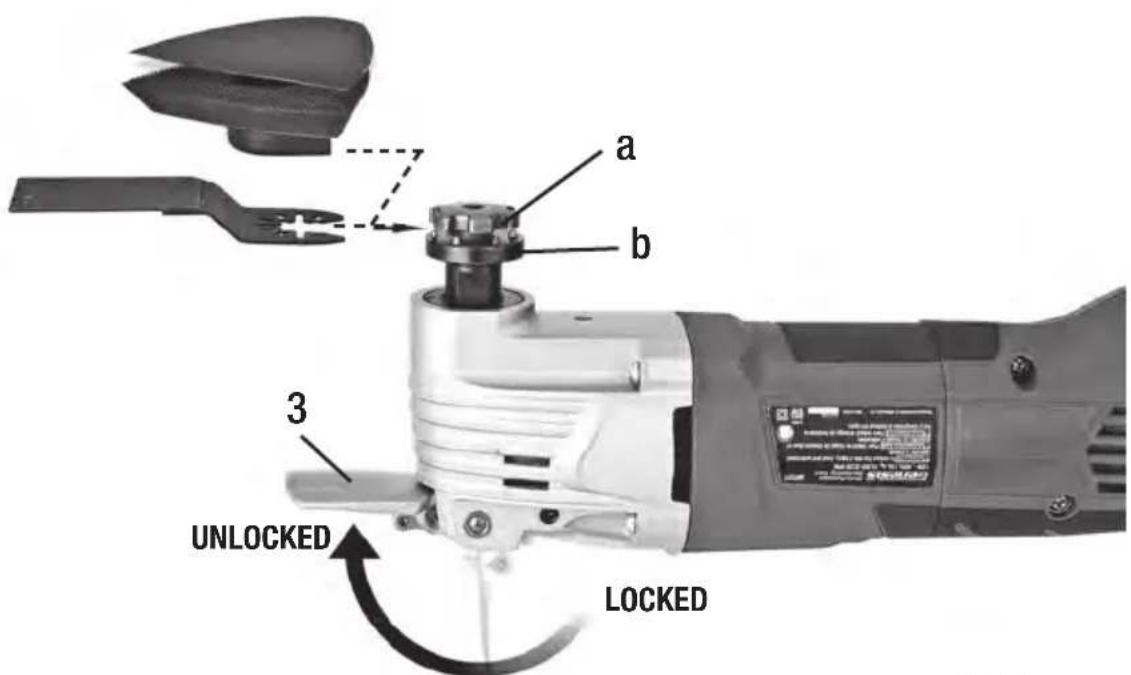

adjusting, installing accessories, or checking a function of the tool.With the Accessory Quick-Change System on the tool and GENESIS™ Universal Quick-Fit accessories included, changing the accessories does not require an additional tool. To Install the Accessories (FIG 2) 1. Flip the Accessory Quick-Change Lever (3) forward completely to separate the blade flange (a) and shaft flange (b) as shown on FIG 2.2. Slide the open-end of the accessory into the gap between the blade flange (a) and the shaft flange (b). The shaft flange of this tool comes with a 6-pin design. Place the accessory over the pins on the shaft flange. Make sure the holes on the accessory properly engage 5 of those 6 pins. 3. Flip the Accessory Quick-Change Lever (3) back to locked position to secure the accessory in place. FIG 2 LOCKED UNLOCKED

Oscillating Tool 1Bi-Metal Flush Cut Blade 1-3/8" 1Segmented Saw Blade 3-1/8" 1Coarse Tooth Flush Cut Blade 1-3/4" 1Rigid Scraper Blade 1Delta Hook & Loop Sanding Pad 1Sandpapers 12Storage Case 1Operator’s Manual 1English Multi-Purpose Oscillating Tool Operator’s Manual GMT25T NOTE: Some accessories, such as a saw blade, may be mounted either straight on the tool, or at an angle to enhance usability. Always make sure 5 of the 6 pins are engaged as described in step 2 above. NOTE: For maximum sandpaper life, rotate the pad or sandpaper 120 degrees when tip of sandpaper becomes worn. To Remove Accessories From the Tool, flip the Accessory Quick-Change Lever forward completely, disengage the accessory from the pins and pull the accessory off the tool. OPERATION

To reduce the risk of serious personal injuries, read and follow all important safety warning and instructions before using this tool.

WARNING: Always be sure the tool is disconnected from the power source

before making any adjustments or setting up prior to cutting. Failure to disconnect or unplug the tool may cause accidental starting, resulting in serious personal injury. NOTE: Always Check that the power supply corresponds to the voltage on the ratings plate.

STARTING AND STOPPING THE

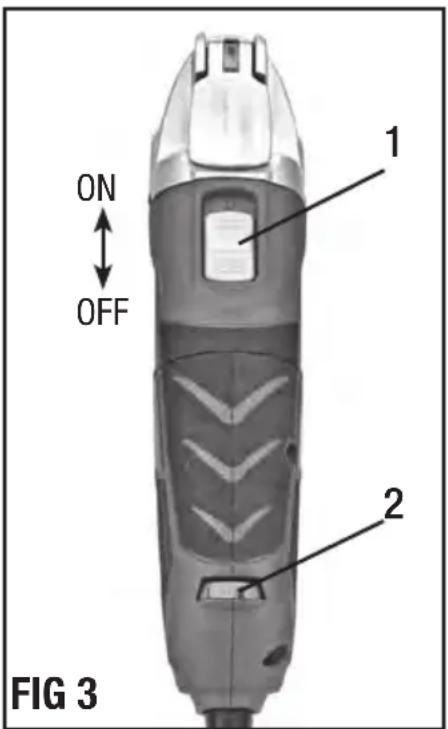

OSCILLATING TOOL (FIG 3) To Start the Oscillating Tool, slide the ON/OFF switch (1) forward to ON position. To Stop the Oscillating Tool, slide the ON/OFF switch (1) backward to OFF position. VARIABLE SPEED DIAL (FIG 3) Your oscillating tool has a variable speed control dial (2) located at the rear end of the tool. See FIG 3. You may select the oscillating speed by rotating the control dial. Setting 6 is the maximum speed (22,000 OPM) and setting 1 is the minimum speed (15,000 OPM). The variable speed control allows to set up a optimum oscillating speed based on the accessory and the materials being used on. High oscillating speed recommended for: Sanding, Sawing, Rasping wood or metals Low oscillating speed recommended for: Scraping painted wood or removing caulk or adhesives. APPLICATIONS NOTE: Recommended accessories for this tool are the GENESIS™ Universal Quick- Fit oscillating tool accessories. Please refer to the "Genesis Oscillating Tool Accessory Reference Guide" enclosed for details. This multi-purpose oscillating tool is intended for cutting and sanding wood, plastic, plaster and non-ferrous metals. It is especially suitable for cutting in tight spaces and for flush cutting . Following are a few typical uses. CUTTING (FIG 4,5,6) Use a flush cutting saw blade (or “e-cut blade”) for making precise cuts in tight areas, close to edges, plunge or flush to a surface. It is important not to force the tool during the flush cutting. If you are experiencing a strong vibration during cut, it indicates too much hand pressure is on the tool. Back off on the pressure and let the speed of the tool do the work. See FiG 4, 5 for examples of using the flush cutting saw blade. FIG 3

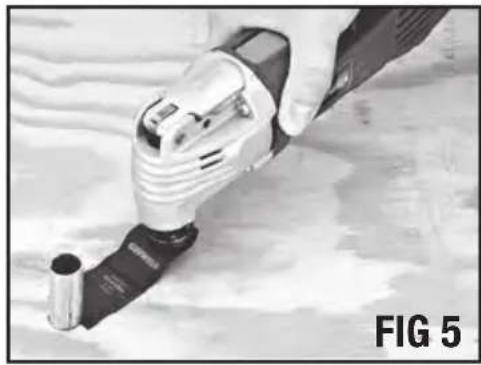

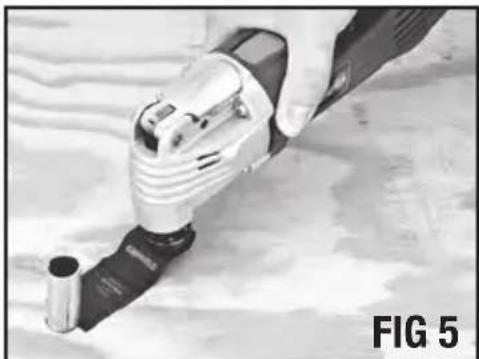

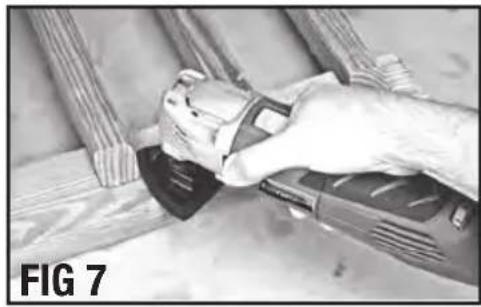

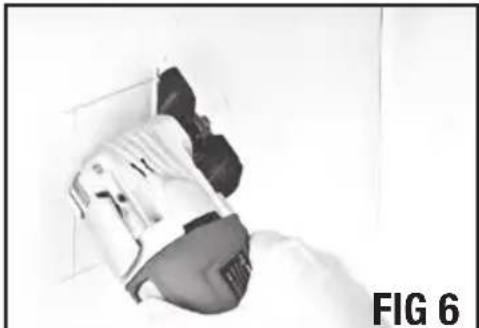

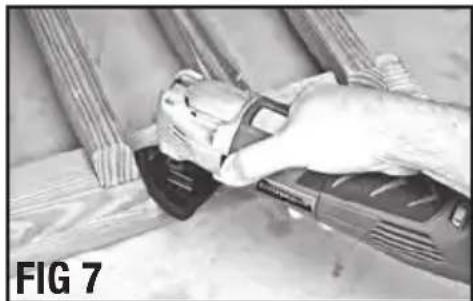

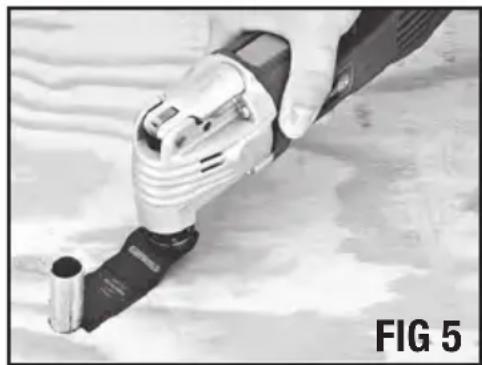

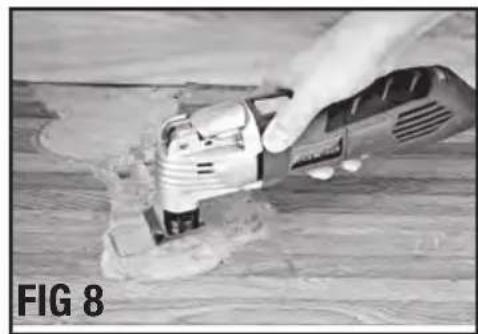

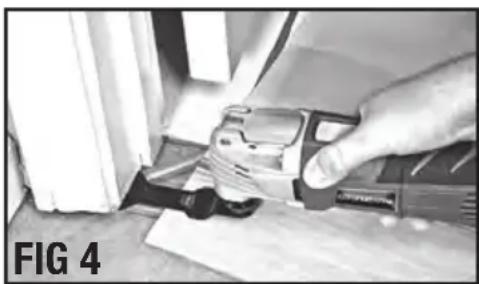

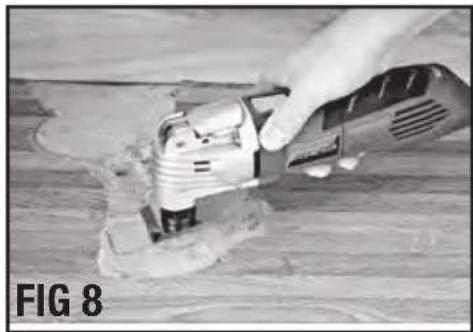

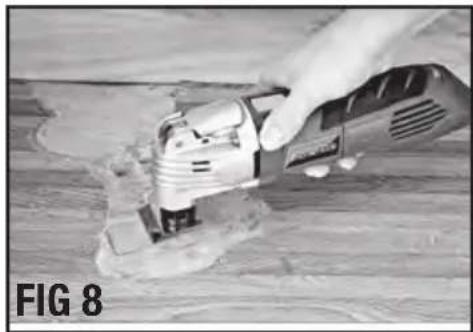

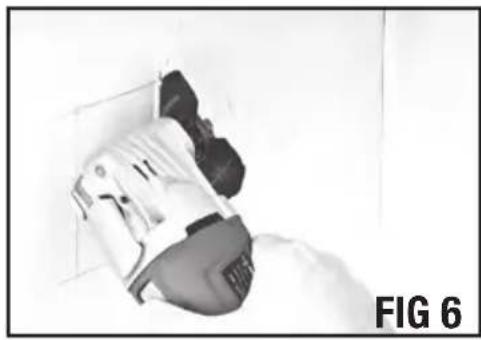

OFF FIG 49 English NOTE: It is suggested that you have a piece of scrap material supporting the blade when making a flush cut. If you need to rest the blade on a delicate surface, you need to use cardboard or masking tape to protect the surface. Use the segmented saw blade for making continuous precise cuts in wood, plastic or drywall material. Applications include: cutting openings for electrical boxes, repairing flooring, cutting flooring for venting, and more. See FIG 6 for an example of how to use the segmented saw blade. SANDING (FIG 7) Using sanding accessories, this tool is a detail sander. It is suitable for dry sanding of wood, plastic, and metal surfaces, especially in corners, edges and hard to reach areas. See FIG 7. Tips: 1. Work with the complete surface of the sandpaper, not only with the tip. 2. Sand with continuous motion and light pressure. Do not apply excessive pressure. Let the tool do the work.3. Always secure small work pieces. 4. Select suitable abrasive paper for best results. SCRAPING (FIG 8) Scraper blades are suitable for removing vinyl, varnish, paint layers, carpeting, caulk and other adhesives. Use a rigid scraper blade to remove harder materials, such as vinyl flooring, carpeting and tile adhesives in a large area. Use a flexible scraper blade (not included) to remove softer material such as caulk. Tips:

1. When removing strong, tacky adhesive, grease the scraper

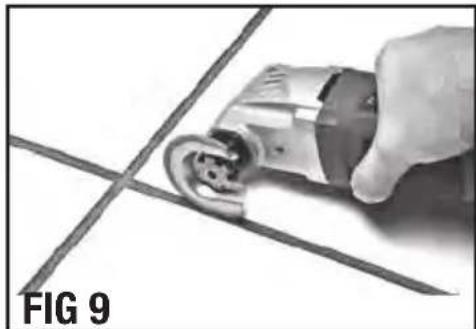

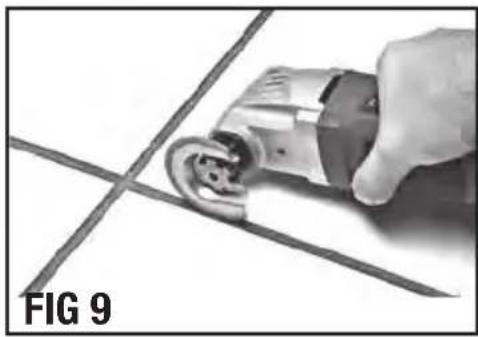

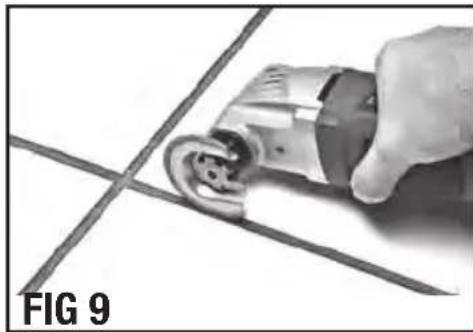

blade surface to reduce gumming up. 2. Begin with light pressure. The oscillating motion of accessory only occurs when pressure is applied to the material to be removed.3. If you are removing caulk from a delicate surface, such as a bath tub or tile back splash, we recommend taping to protect the surface that the blade will rest on. GROUT REMOVAL (FIG 9) Use a grout removal blade (not included) to remove damaged or cracked grout, or in order to replace a damaged or broken tile. To remove the grout, use a back and forth motion, making several passes along the grout line. Be careful not to apply too much side pressure on the grout blade. See FIG 9. ACCESSORIES Recommended accessories for this tool are the GENESIS™ Universal Quick-Fit oscillating tool accessories. Please refer to the "Genesis Oscillating Tool Accessory Reference Guide" enclosed for details. FIG 5 FIG 6 FIG 7 FIG 8 FIG 9English Multi-Purpose Oscillating Tool Operator’s Manual GMT25T MAINTENANCE CLEANING Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING: Do not at any time let brake fluids, gasoline, petroleum-based

products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury. Electric tools used on fiberglass material, wallboard, spackling compounds, or plaster are subject to accelerated wear and possible premature failure because the fiberglass chips and grindings are highly abrasive to bearings, brushes, commutators, etc. Consequently, we do not recommended using this tool for extended work on these types of materials. However, if you do work with any of these materials, it is extremely important to clean the tool using compressed air. LUBRICATION This tool is permanently lubricated at the factory and requires no additional lubrication. TWO-YEAR WARRANTY This product is warranted free from defects in material and workmanship for 2 years after date of purchase. This limited warranty does not cover normal wear and tear or damage from neglect or accident. The original purchaser is covered by this warranty and it is not transferable. Prior to returning your tool to store location of purchase, please call our Toll-Free Help Line for possible solutions. THIS PRODUCT IS NOT WARRANTED IF USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. ACCESSORIES INCLUDED IN THIS KIT ARE NOT COVERED BY THE 2 YEAR WARRANTY.

For questions about this or any other GENESIS™ Product, please call Toll-Free: 888-552-8665. Or visit our web site: www.genesispowertools.com ©Richpower Industries, Inc. All Rights reservedRichpower Industries, Inc.736 Hampton RoadWilliamston, SC 29697Printed in China, on recycled paper11 Français
